Chasing a hydrostatic drive fault without factory data is slow, expensive guesswork. This Gradall 534C-6 service manual PDF ends that: OEM publication 9112-4116, 284 pages covering five models in the material handler line. Hydrostatic drive performance checks fill nearly half the book, walking you from gauge hookup through charge pressure, main relief, and steering circuit tests to a clear pass or fail. Hydraulic schematics trace the full circuit for each configuration, a wiring diagram covers the electrical system, and rebuild procedures handle the Sundstrand piston pump, Mico brake valve, and Meritor planetary axles under your machine. Set low idle at 800 to 900 RPM, verify 2,500 RPM at full throttle, and replace a pump body once inlet-side gear wear passes 0.005 inch (0.127 mm). One missing pressure spec can park the machine all morning. The bookmarked, text-searchable file puts that number seconds away; download it once and keep it on whatever screen lives in the shop.
What's Inside This Gradall 522-534C-6 Series Manual
| System | Pages | Key Topics |
|---|---|---|
| Important Safety Notice, Introduction and Decals | 6-16 | General, Operator Qualifications, Orientation, Fuel Tank, Hydraulic Reservoir, Steering Axle, Safety Precautions, Capacity Chart |
| Operators Cab and Pre-Start Checks | 17-21 | Control and Instrument Identification, Structural Members, Fuel Leaks, Lubricant Leaks, Starting the Engine, Cold-Weather Starting Aids |
| Operating the Handler | 22-28 | General, Inching Travel, Service Brakes, Checking & Adjusting Boom Cables, Leveling Procedure, Hydraulic Controls, Rated Capacity Chart |

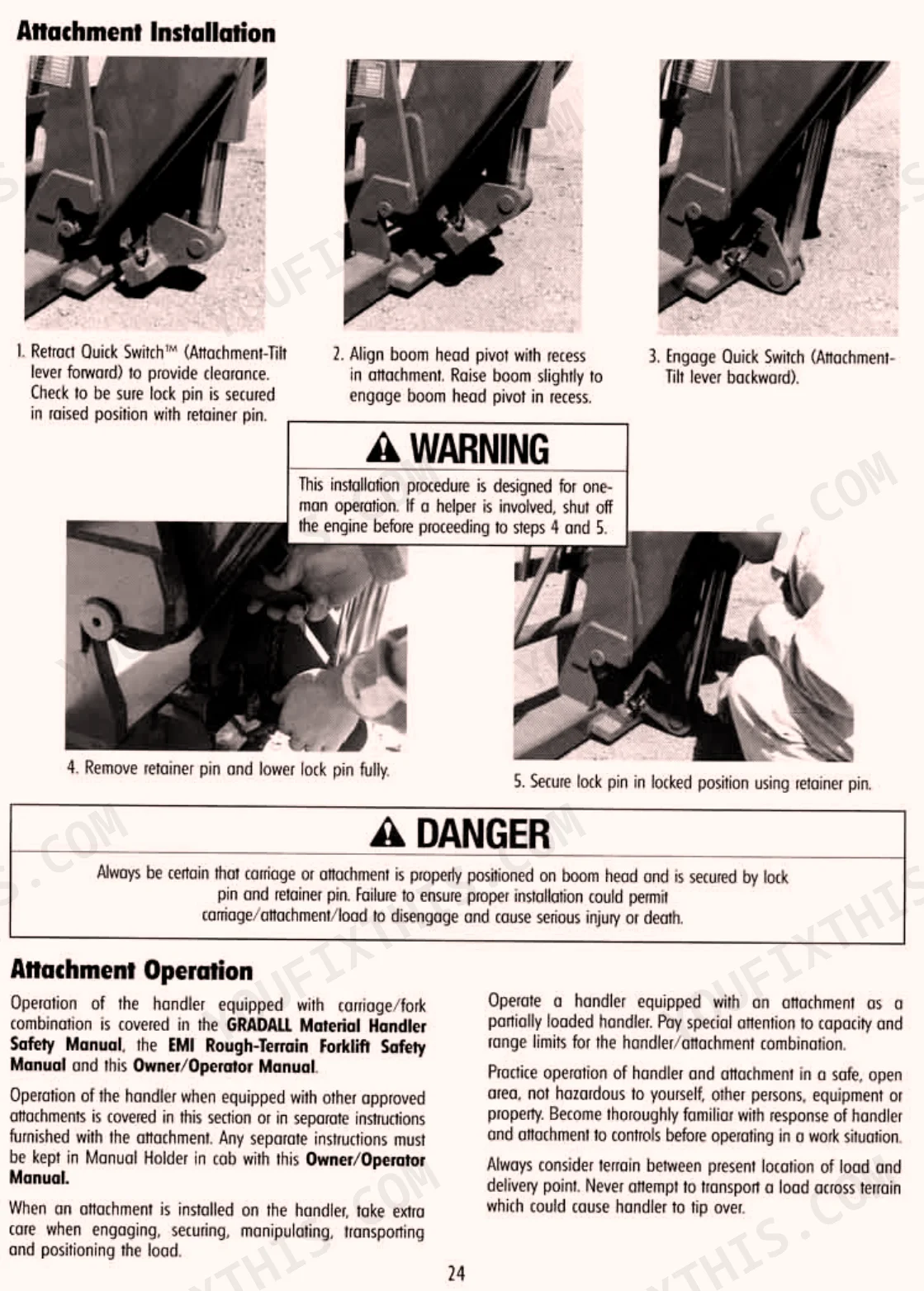

| Attachments | 29-31 | Approved Attachments, Non-Approved Attachments, Carriage/Fork Capacities, Other Attachment Capacities, Attachment Installation, Attachment Operation |

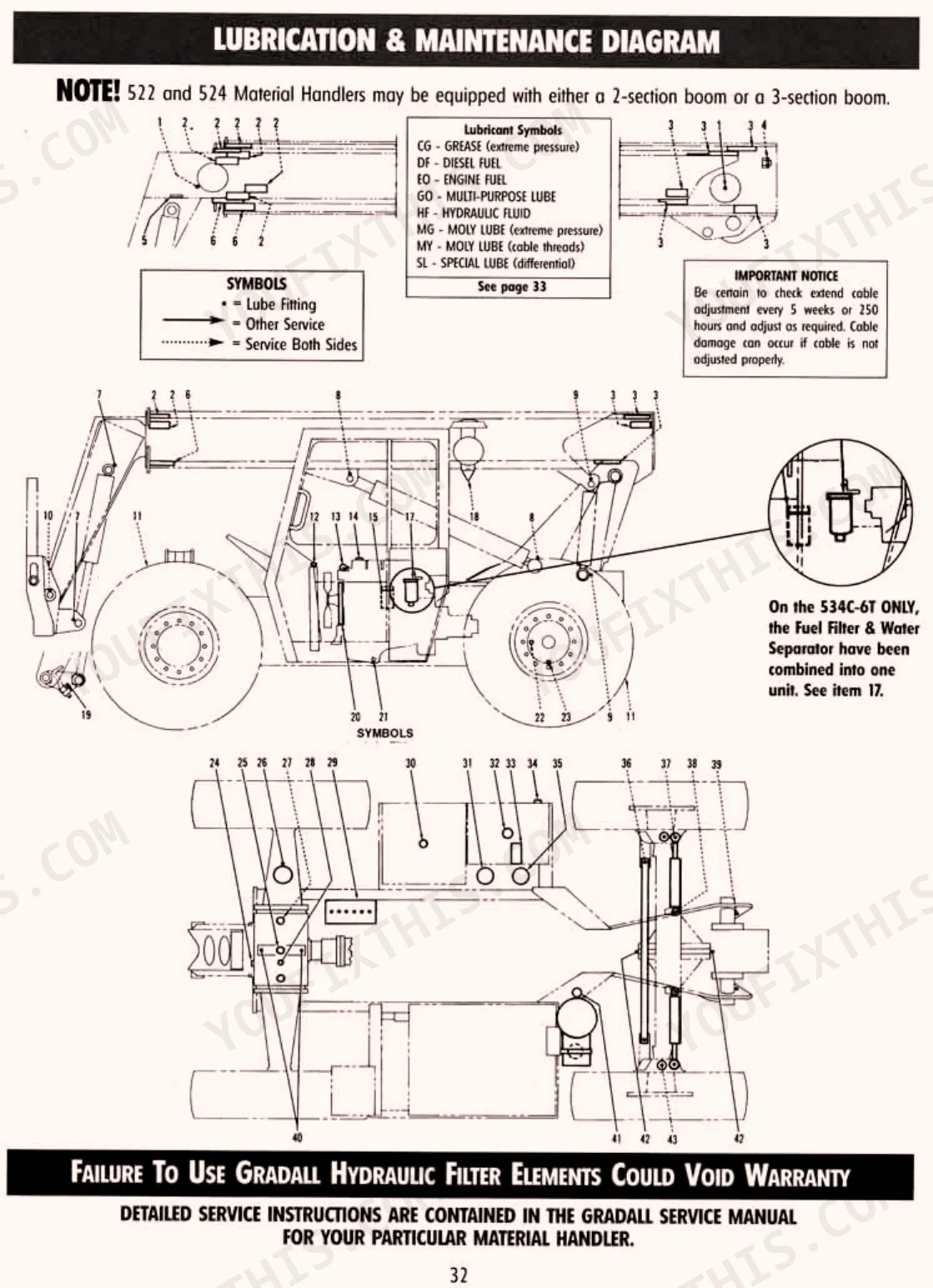

| Lubrication, Maintenance and Oil Sampling | 32-42 | Lubrication & Routine Maintenance Diagram, Recommended Lubricants & Capacities, Torque Chart, Hydraulic Oil, Filter Bypass Indicator, Test Port, Sample Container, Hydraulic Oil Reservoir |
| Hand Signals and Hydraulic Schematics | 43-46 | Emergency Stop, Raise Boom, Lower Boom, Hydraulic Schematic 524D & 534D-6, Hydraulic Schematic 524 534C-6 534C-6T |
| Sundstrand Sauer Service | 47-54 | M46-Axial Piston Pumps and Motors, Shaft Seal Repair, Pump Disassembly, Pump Reassembly, Break-In Procedure |
| Mico Hydraulic Power Brake Valve | 55-70 | System Schematic, Performance Data, Description and Operation, Installation Instructions, Primary Cup Design, Ring Seal Design, Sliding Piston Design, Bleeding Procedures |
| Auburn Gear Power Wheel Service | 71-74 | Model 8 Heavy Duty Planetary Gear Drive, Disassembly, Assembly, Lubrication Recommendations, Towing Vehicle |
| Meritor PRA 352 Planetary Axles | 75-148 | Maintenance Manual, Removal and Disassembly, Prepare Parts for Assembly, Assembly and Installation, Torque Charts, Specifications |
| Gradall Hydrostatic Drive Performance Checks | 149-182 | Hydrostatic Drive System, Hydraulic Oil Reservoir, Park Brake, Hydraulic Filter Condition, Engine Speed, Charge Pressure, Steering Circuit, Main Control Valve Pump Relief |
| Gradall 532/534 Boom Maintenance | 183-267 | Boom Section Nomenclature, Bearing Pad, Bearing Pad Spacer, Shim, Boom Bearing Pad Adjustment, Bearing Pad Shim Data |
| Appendix a: Cycle Times for Functions | 268-284 | C-Series Cycle Times, D-Series Cycle Times, Cycle Time Test Setup |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Cap screw torque | 34 to 38 ft-lb (46 to 51 N·m) | p. 51 |
| Shaft journal wear limit | 0.001 inch (0.025mm) | p. 51 |
| Low-idle engine speed | 800-900 RPM | p. 159 |
| Full throttle engine speed (no load) | 2,500 +150/-0 RPM | p. 159 |
| Lifting capacity for crane and lifting tackle | 5000 lb | p. 201 |
| Crowd cylinder retainer bolts torque | 340-365 ft-lb | p. 215 |
| Cable jam nuts torque | 100 ft-lb | p. 221 |
| Fuel Tank Capacity | 40 gal | p. 40 |
| Hydraulic System Capacity | 45 gal | p. 40 |
| Rear Hub Capacity | 3 pints ea | p. 40 |
| Wheel Lug Nut Torque | 350-400 ft-lbs | p. 40 |
| Cab Mounting Bolt Torque | 450-475 ft-lbs | p. 40 |
Gradall 522-534C-6 Series Common Problems This Manual Covers
Gradall 534C-6 won't drive forward or reverse, parking brake released, engine runs strong
Check charge pressure at the test port with the engine at low idle; the gauge should read approximately 380 PSI, per the test on page 161. If pressure is low, replace both hydraulic filters and retest. Verify the park brake is fully releasing and inspect the directional control solenoid wiring against the diagram.
Manual Section: Gradall Hydrostatic Drive Performance Checks p. 161Main hydraulic pump leaking oil at the shaft, fluid pooling under the machine
Clean the pump housing and run the engine briefly to pinpoint the leak source. Replace the shaft seal following the Sundstrand pump repair procedure starting on page 47. During reassembly, inspect the gear journals and replace the shaft if journal wear exceeds 0.001 inch (0.025 mm), then torque the cap screws to 34 to 38 ft-lb.
Manual Section: Sundstrand Sauer Service Manual p. 51Boom and lift functions slow down and lose power as hydraulic oil warms up
Test charge pump flow before condemning the main pump. Measure flow at 850 RPM; you should see 4 GPM, rising to 12 GPM at 2,500 RPM, per page 163. Low flow when hot points to internal wear in the charge pump. Check the filter restriction indicator and pull an oil sample for analysis before any teardown.
Manual Section: Gradall Hydrostatic Drive Performance Checks p. 163Front tires lock up or drag during travel, worse after machine warms up
Check hydrostatic control pressure in neutral; it should read 325 PSI, plus or minus 15 PSI, per the test on page 164. Incorrect control pressure keeps the front motors stroked when they should destroke. Inspect the traction-lock valve and front drive motors covered in the drive train overview on page 24 for stuck spools.
Manual Section: Control Pressure p. 1644x4 drive won't engage when switched, front axle never pulls even in soft ground
Test for voltage at the 2/4 drive valve solenoid with the switch engaged, using the wiring diagram to trace the circuit. If the solenoid energizes but the valve won't shift, pull the cartridge and check for a stuck spool. Also verify charge pressure holds 380 PSI at low idle; weak charge pressure can prevent valve shift. The pressure checks run in the Gradall Hydrostatic Drive Performance Checks section, which starts on page 149.
Manual Section: Gradall Hydrostatic Drive Performance Checks p. 149Frequently Asked Questions
What are the torque specifications for the boom slide bearings on a Gradall 522 or 524?
The torque specifications for the boom slide bearings (front and rear) are 32-37 ft-lb for 3/8-24 (grade 5) fasteners and 68-78 ft-lb for 1/2-20 (grade 5) fasteners. p. 40
What are the hydraulic pressure settings for the main control relief valve on all Gradall 522-534C-6 Series models?
The main control relief valve pressure setting for all models is 3,000 ± 100 PSI. p. 173
What is the recommended oil for the hydraulic system on a Gradall material handler?
The recommended hydraulic fluid for the system is Mobilfluid 424 or an equivalent tractor hydraulic fluid. p. 13
What is the correct procedure for bleeding the MICO open center power brake valve?
Manual bleeding involves stroking the brake pedal while an assistant opens and closes the bleeder screws on the brake closest to the valve first. Alternatively, pressure bleeding requires installing a bleeder by-pass line and developing 50-200 PSI at the inlet to the brake valve. p. 68
What is the torque specification for the wheel lug nuts on the Gradall handler?
The wheel lug nuts should be torqued to 350-400 ft-lb every 3 months or 500 hours. p. 40
How will I receive this Gradall 522 Service Manual?
Immediate download of the complete 284-page searchable Service Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Am I free to print this Gradall 522 Service Manual?
Printing is allowed without restriction. Pull the pages you need for the job and bin them when they get greasy.
