Searching for a Hatz 1D90 workshop manual PDF? This 193-page factory workshop manual (OEM #438 202 01) covers the entire air-cooled 1D diesel family: 1D30, 1D31, 1D40, 1D41, 1D50, 1D60, 1D80, 1D81, 1D90, plus the A1D35, A1D40, and A1D41. You get full electrical circuit diagrams with alternator data, an electrical troubleshooting chart, factory torque wrench settings, and page after page of exploded views walking you through crankcase, crankshaft, camshaft, cylinder head, governor, and injection pump work. Check crankshaft journal wear against the factory grinding dimensions, set the bumping clearance, and time the injection pump straight from the data sheets before you button up the cowling. No more chasing wiring faults with a multimeter and a prayer. Bookmarked, keyword-searchable PDF; pull it up on your phone next to the engine and start wrenching.

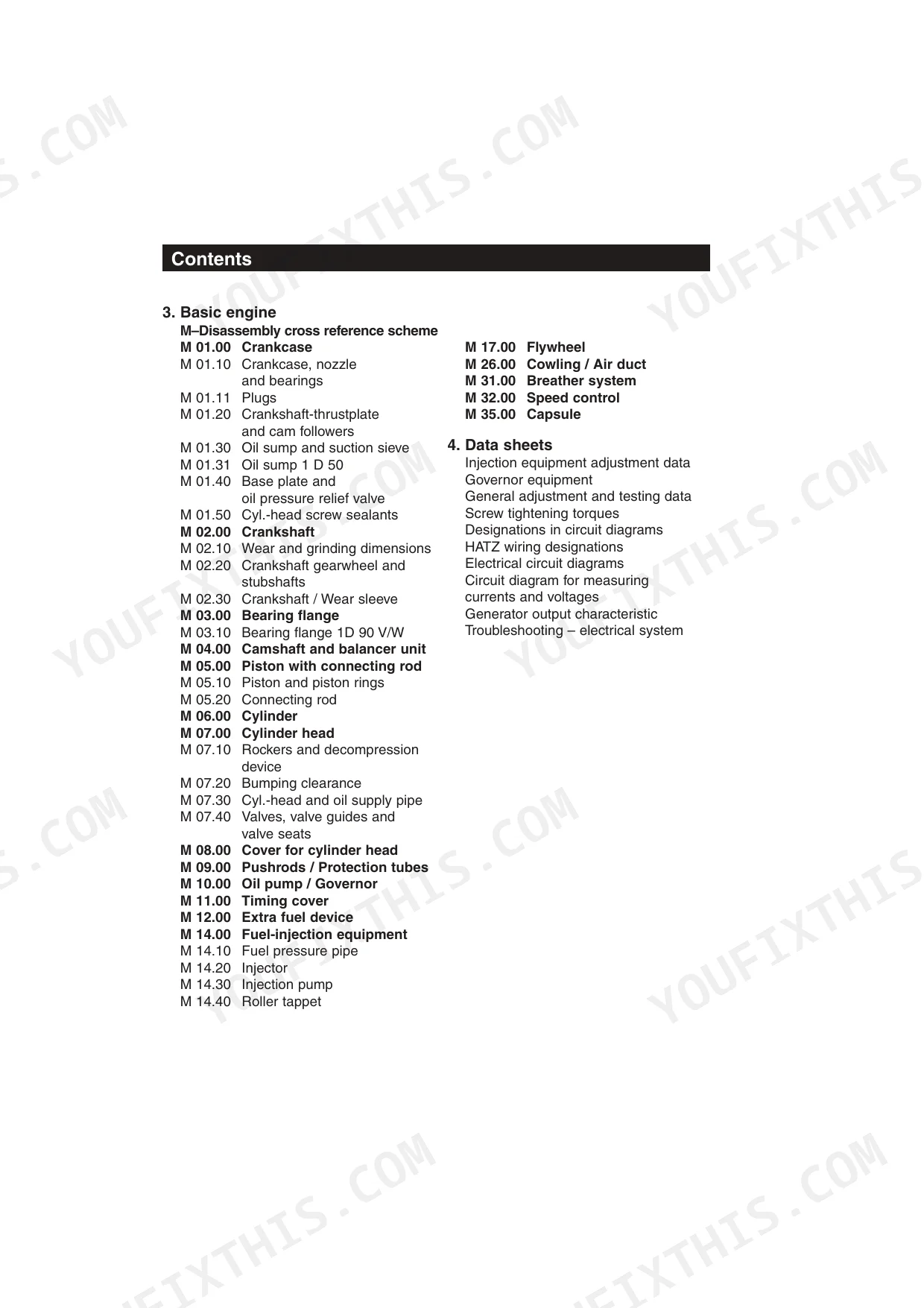

What's Inside This Hatz 1D30–1D90, A1D35–A1D41 Manual
| System | Pages | Key Topics |
|---|---|---|
| General | 7-22 | Engine Illustrations, Technical Data, Type Plate Data, Lubrication Oil Circuit, Special Tools and Workshop Equipments, Jointing Material / Sealing and Bonding Agents |

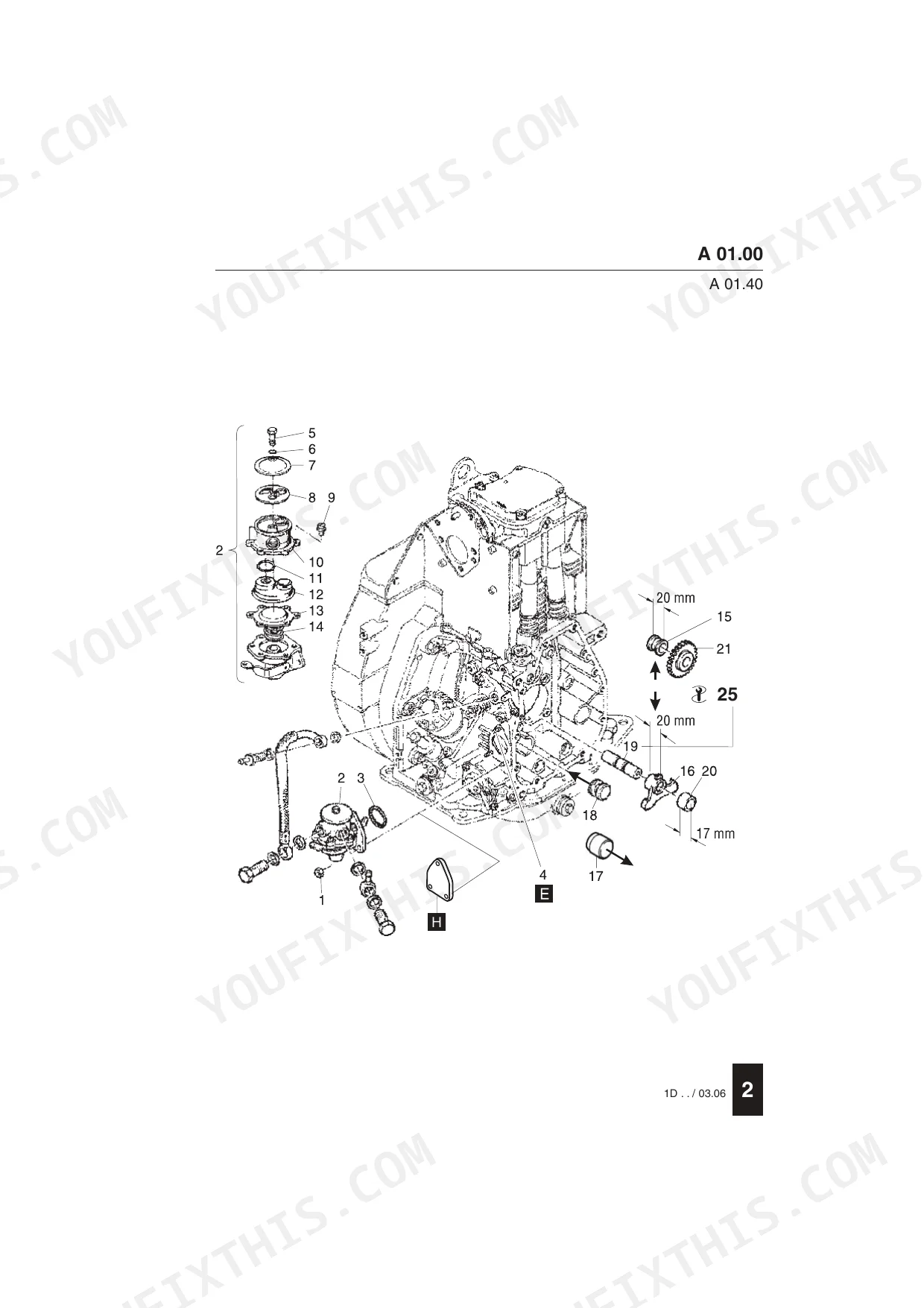

| Additional Equipments | 23-76 | Fuel (Tank, Feed Pumps), Combustion Air (Oil Bath Air Filters, Dry Type Air Filters, Service Indicators; Vacuum Gauges, Pre-Cleaners; Cyclons) |

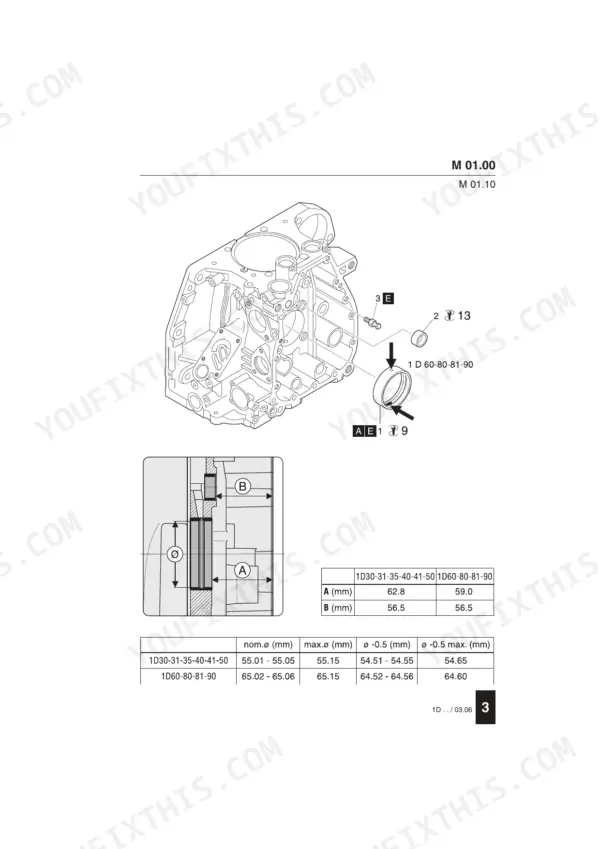

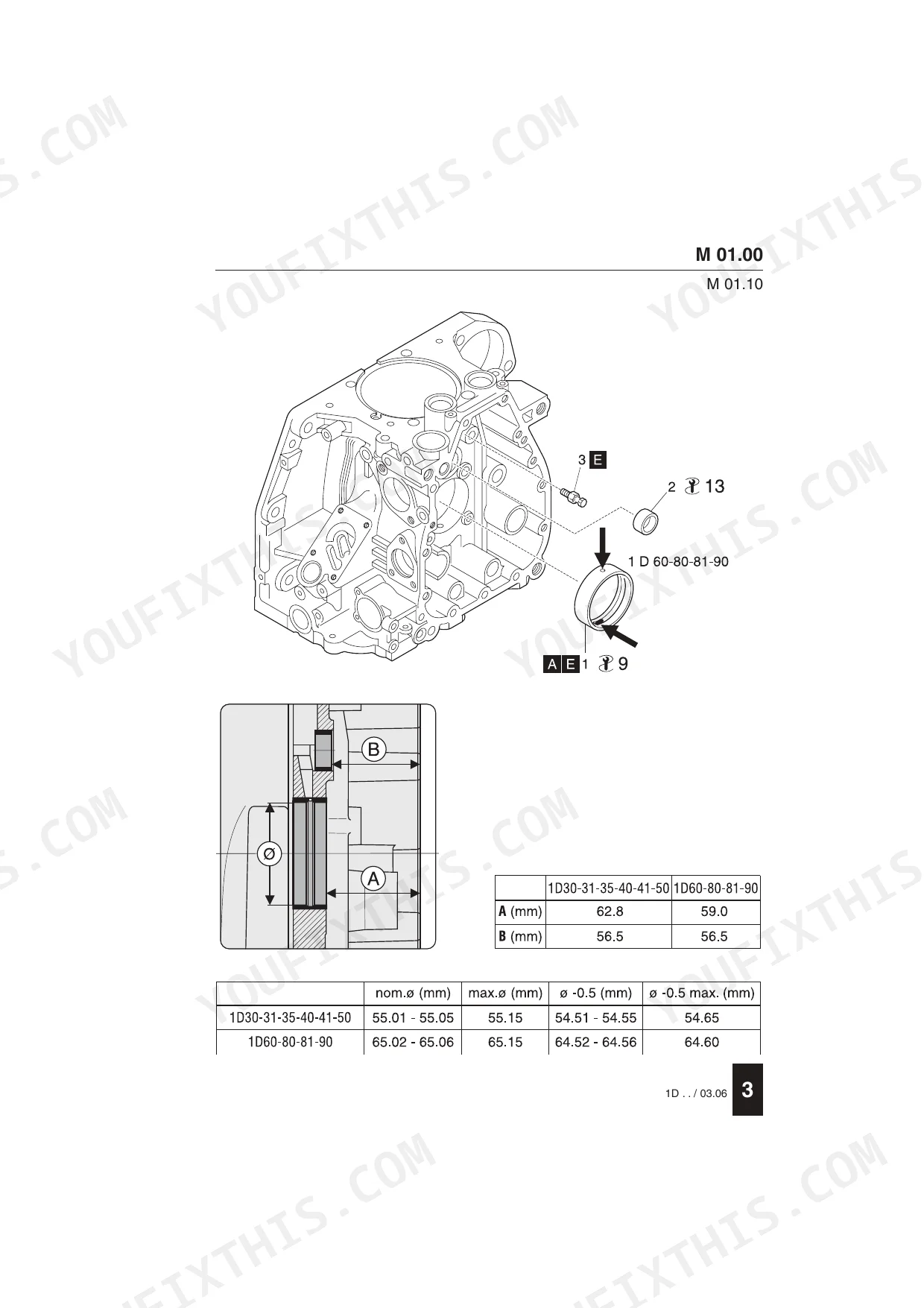

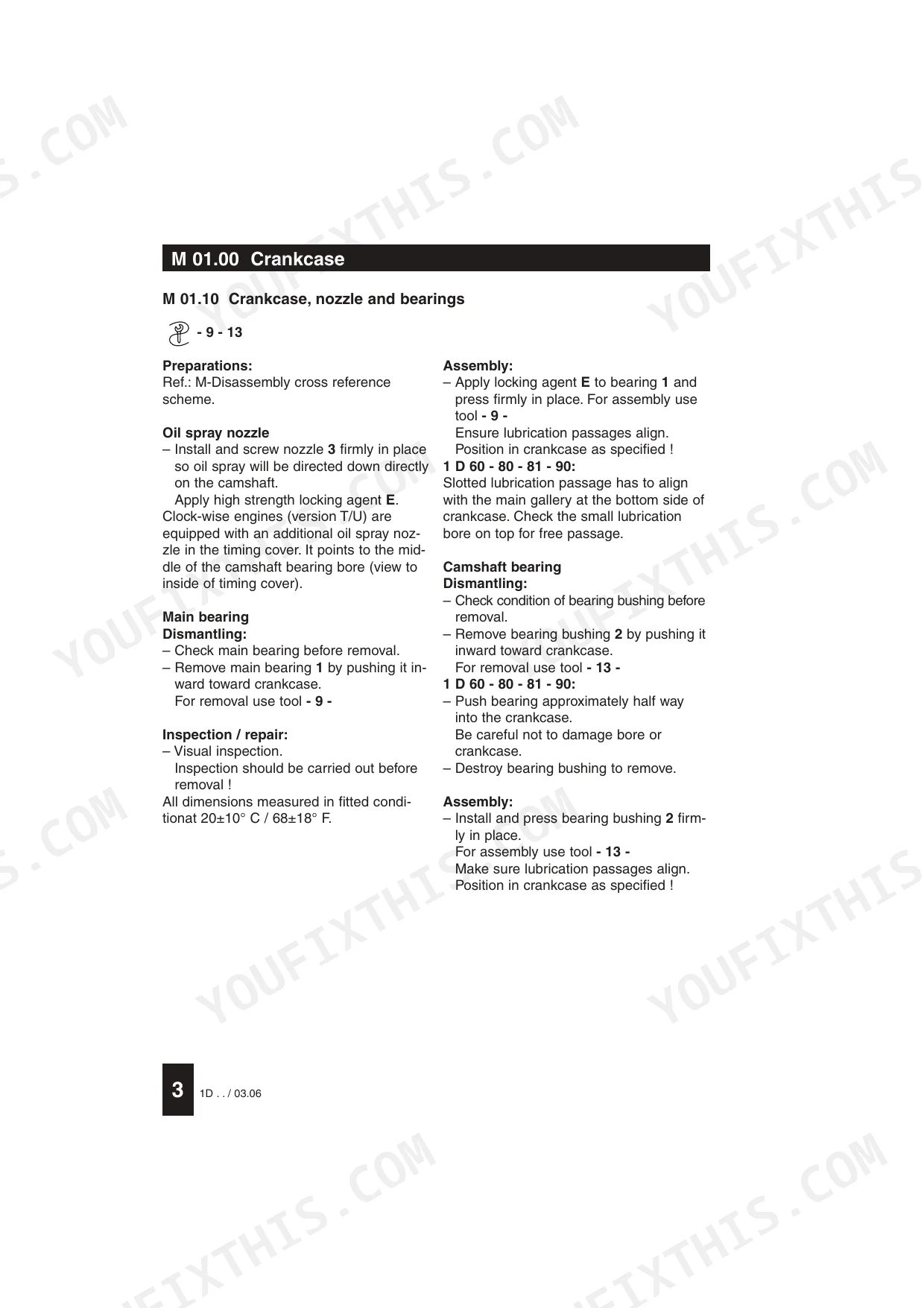

| Crankcase Assembly | 77-95 | Crankcase, Main Bearings, Oil Spray Nozzle, Plugs, Crankshaft Thrustplate, Oil Sump |
| Crankshaft and Bearing Flange | 96-105 | Crankshaft Wear, Grinding Dimensions, Gearwheel, Stubshafts, Wear Sleeve, Bearing Flange |
| Camshaft, Piston, and Cylinder | 106-115 | Camshaft, Balancer Unit, Piston, Piston Rings, Connecting Rod, Cylinder Wear |
| Cylinder Head and Valve Train Components | 116-127 | Cylinder Head, Rockers, Decompression Device, Bumping Clearance, Valves, Pushrods |
| Oil Pump, Governor, and Timing Cover | 128-131 | Oil Pump, Governor Assembly, Governor Springs, Timing Cover, Oil Galleries |
| Fuel Injection System | 132-145 | Extra Fuel Device, Fuel Pressure Pipe, Injector, Injection Pump, Roller Tappet, Timing Adjustment |
| Flywheel, Cowling, and Engine Control Systems | 146-156 | Flywheel, Cowling, Air Duct, Breather System, Speed Control, Capsule |

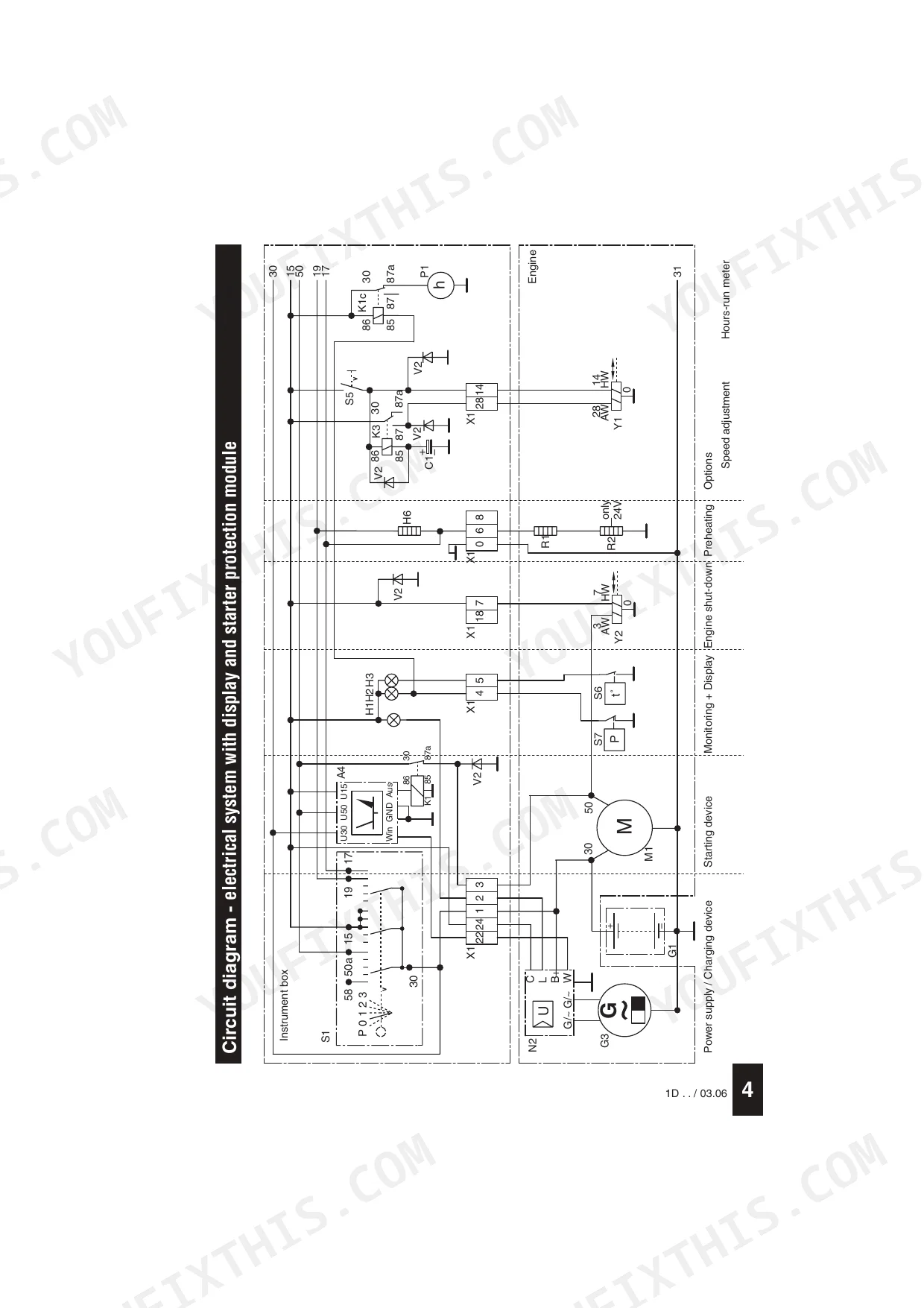

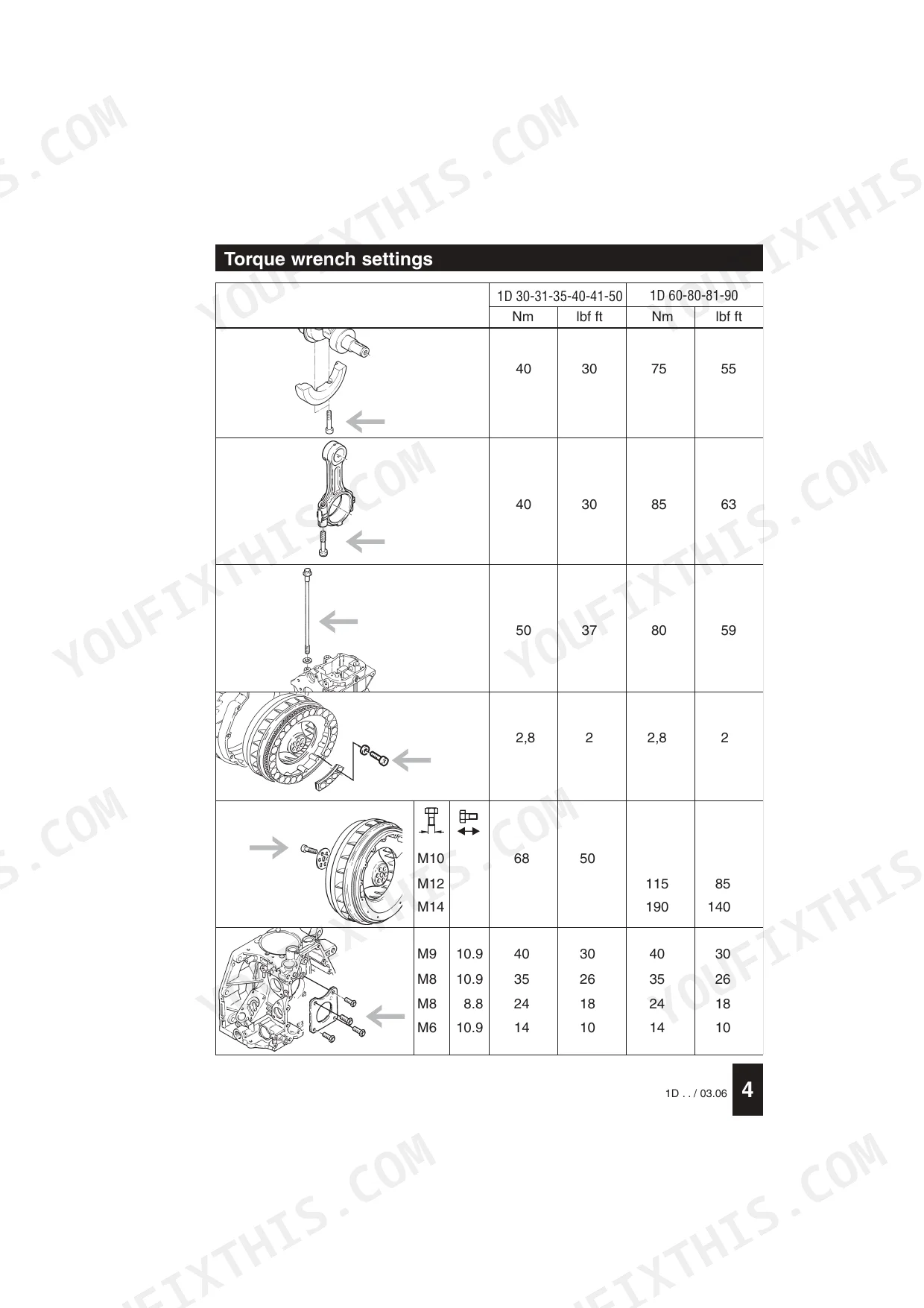

| Data Sheets | 157-193 | General Adjustment and Testing Data, Torque Wrench Settings, Circuit Diagrams, Alternator Data, Troubleshooting Chart - Electrical System |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Fuel feed pumps | A 01.40 | p. 3 |
| Oil bath air filters | A 02.10 | p. 3 |
| Dry type air filters | A 02.11 | p. 3 |
| Cowling / Air duct | M 26.00 | p. 4 |

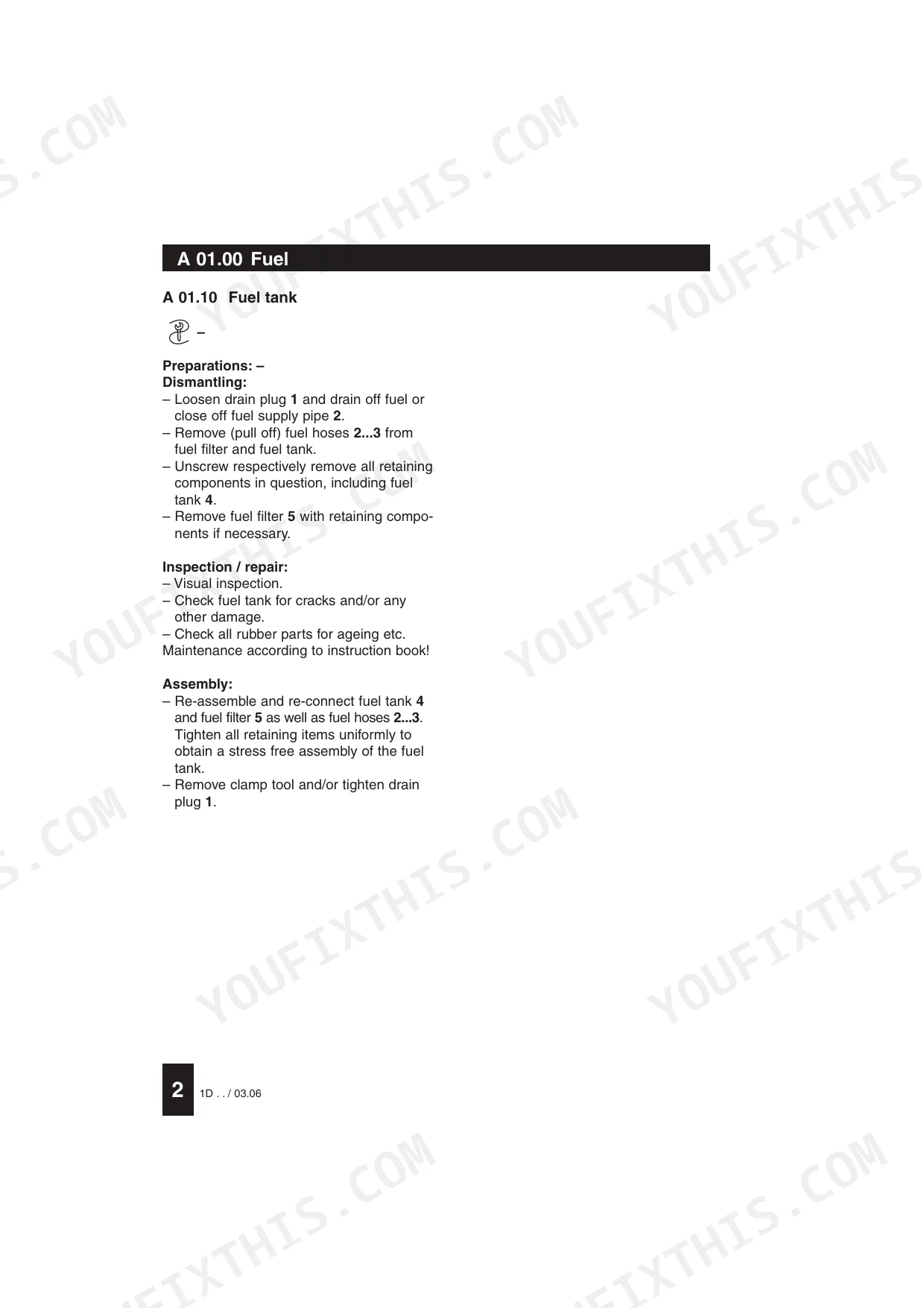

| Fuel filter replacement | Remove fuel filter 5 | p. 24 |
| Oil bath air filter maintenance | Maintenance according to instruction book! | p. 28 |
| Dry type air filter element and cover fixation torque | 23 Nm 17 lb ft | p. 31 |
| Shut-off reaction pressure | approximately 1.0 bar at 3000 rpm | p. 72 |
| Torque for mounting screws | 11 Nm (8 lb ft) | p. 87 |
| Tappet clearance Inlet | 0.1+0.05 (mm) | p. 116 |
| Tappet clearance Outlet | 0.2+0.05 (mm) | p. 116 |
| Flywheel fixation by Allen screws | M 10 | p. 146 |
Hatz 1D30–1D90, A1D35–A1D41 Common Problems This Manual Covers
Hatz 1D81 diesel shuts down suddenly under load even though oil level is correct
Test lubrication oil pressure with the engine warm; a healthy engine holds 3.5 to 4.5 bar at 3000 rpm per the data sheet on page 164. The mechanical monitor shuts the engine down near 1.0 bar at 3000 rpm (page 72), so a trip with a full sump points to a worn oil pump or main bearings.
Manual Section: Data Sheets p. 164Engine power and speed both drop off under load, surging and hunting at full throttle
Check the fuel filter first; the replacement procedure on page 24 is quick work. Bleed the system afterward until fuel runs free of bubbles at the injection pump. While the covers are off, inspect the dry type air filter element and torque its cover fixation to 23 Nm (17 lb ft), page 31.
Manual Section: Additional Equipments p. 24Engine cranks slowly and will not start on cold mornings below freezing

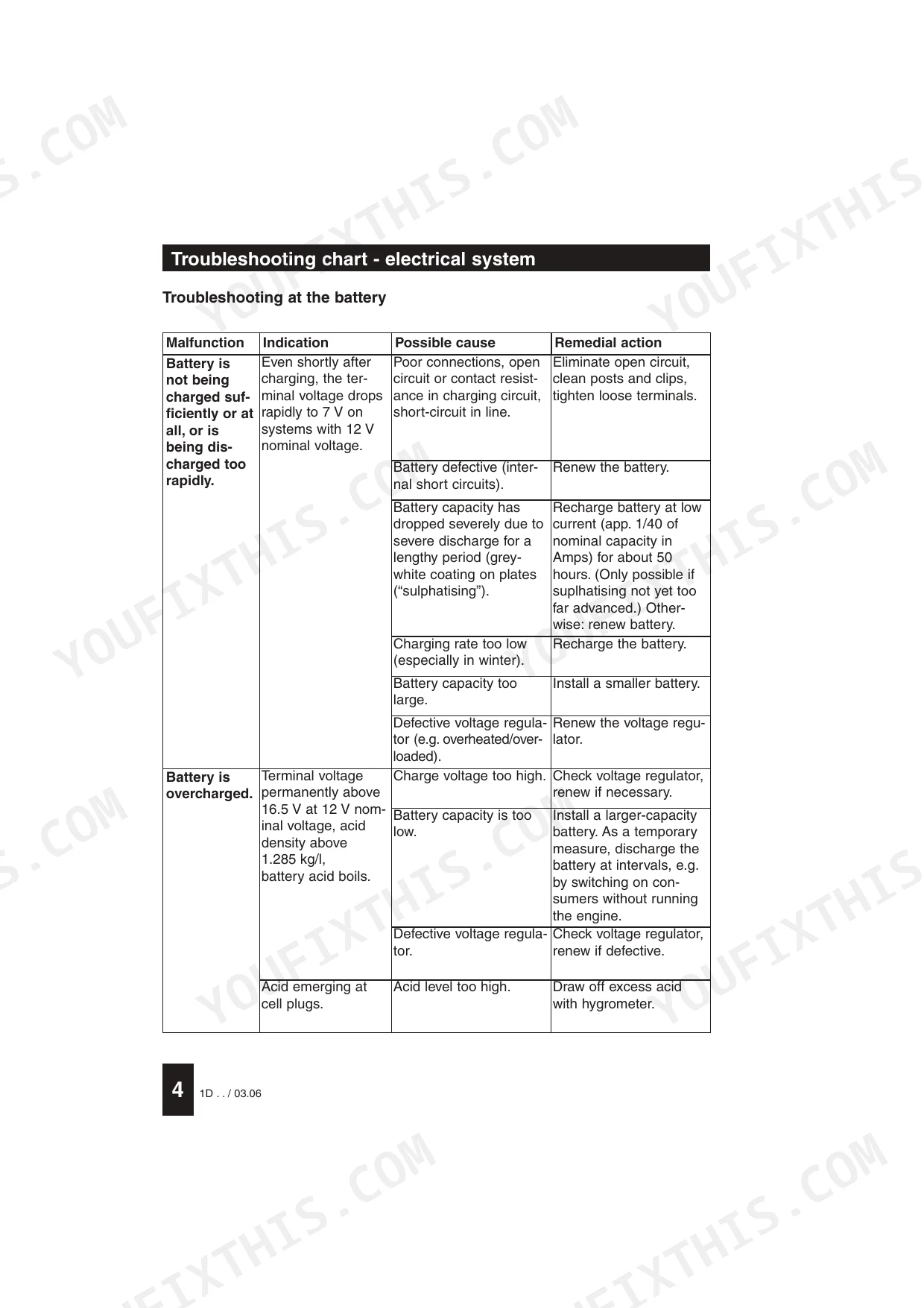

Drain summer-grade oil and refill with winter viscosity; the 1D30, 1D31, 1D40, and 1D41 take 1.2 liters with the filter (page 12). Load-test the battery and clean corroded terminals following the troubleshooting procedures beginning on page 188. Slow cranking against cold, thick oil kills starts long before the fuel side does.
Manual Section: Troubleshooting at the battery p. 188Engine runs hot and smells like baked paint after an hour of work
Remove the cowling and air duct and clean packed debris from the cylinder fins, following the procedure starting on page 146. Verify every cooling air guide plate is seated before refitting; missing plates route air past the head. Check the machine sits within the approximately 30 degree maximum inclination listed on page 12.
Manual Section: Flywheel, Cowling, and Engine Control Systems p. 146Loud ticking from the rocker cover and weak compression when cranking by hand
Adjust tappet clearance cold to 0.1 mm inlet and 0.2 mm exhaust, plus 0.05 mm tolerance on each, for 1D30 through 1D81 engines per the data sheet on page 162. The 1D90 uses its own values on that same page, so read it before touching that model. Verify decompression device operation while the rocker cover is off; procedures start on page 116.
Manual Section: Cylinder Head and Valve Train Components p. 116Frequently Asked Questions
What are the torque specifications for HATZ 1D30 cylinder head bolts?
For HATZ 1D30-31-35-40-41-50 engines, the cylinder head screws should be tightened to a torque of 50 Nm (37 lb ft). This is part of the assembly procedure for the cylinder head and oil supply pipe. p. 121
What is the oil capacity for HATZ 1D30 engines?

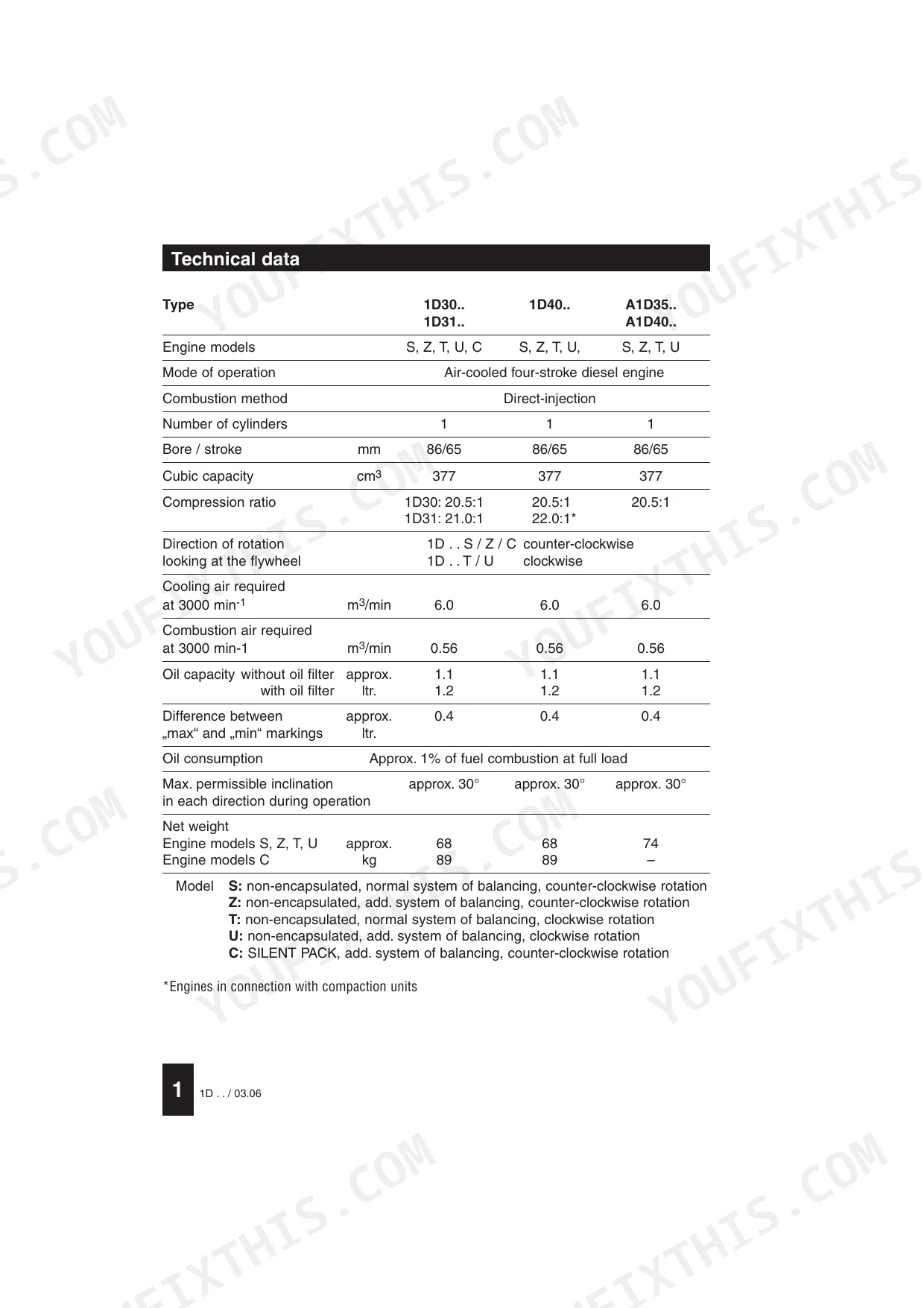

For HATZ 1D30 engines, the oil capacity without an oil filter is approximately 1.1 liters, and with an oil filter, it is approximately 1.2 liters. The difference between "max" and "min" markings is about 0.4 liters. p. 12
What is the compression ratio for HATZ 1D30 and 1D31 engines?
The compression ratio for HATZ 1D30 engines is 20.5:1, while for 1D31 engines, it is 21.0:1. For 1D31 engines used in compaction units, the compression ratio is 22.0:1. p. 12
What is the normal oil pressure range for HATZ 1D engines at 3000 min-1?
The normal oil pressure for HATZ 1D engines at 3000 min-1 is between 3.5 and 4.5 bar (51 – 65 psi). The minimum permissible oil pressure at this speed is 2.5 bar (36 psi). p. 164
What is the maximum permissible inclination for HATZ 1D engines during operation?
The maximum permissible inclination for HATZ 1D engines in each direction during operation is approximately 30°. This specification applies across various 1D models. p. 12
What format is this Hatz 1D30 & variants manual in?
A 193-page Workshop Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print specific sections of this Hatz 1D30 & variants Workshop Manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
