Hydraulic oil leakage, solenoid valve trouble and contactor or fuse faults all appear in the troubleshooting chart of this Hyster A3B5 operator manual PDF, a 15-page guide to the A3B5 electric pallet truck published under OEM ID 4245858. The electrical schematic diagram traces the traction motor, hydraulic motor, battery, contactor, fuse and speed switch. Operating pages explain the key switch, emergency stop switch, lifting and lowering buttons, accelerate knob and turtle-speed button, while the maintenance chapter sets out routine, Level (1) and Level (2) servicing plus battery charging. Keep loads within 2000 kg at a 600 mm load centre. If you are about to order a replacement oil seal or fuse, the fault chart helps you confirm which part has actually failed. Bookmarks take you straight to the schematic or the maintenance levels, and the text layer lets a search for any control name land on the right page in seconds.
What's Inside This Hyster A3B5 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Regulations | 3-5 | Proper Shoes, Safety Goggles, Load Bearing Capacity, Slope Operation, Elevator Safety |
| Truck Description | 6-7 | Running System, Traction Motor, Lifting System, Hydraulic Motor, Hydraulic Drive |

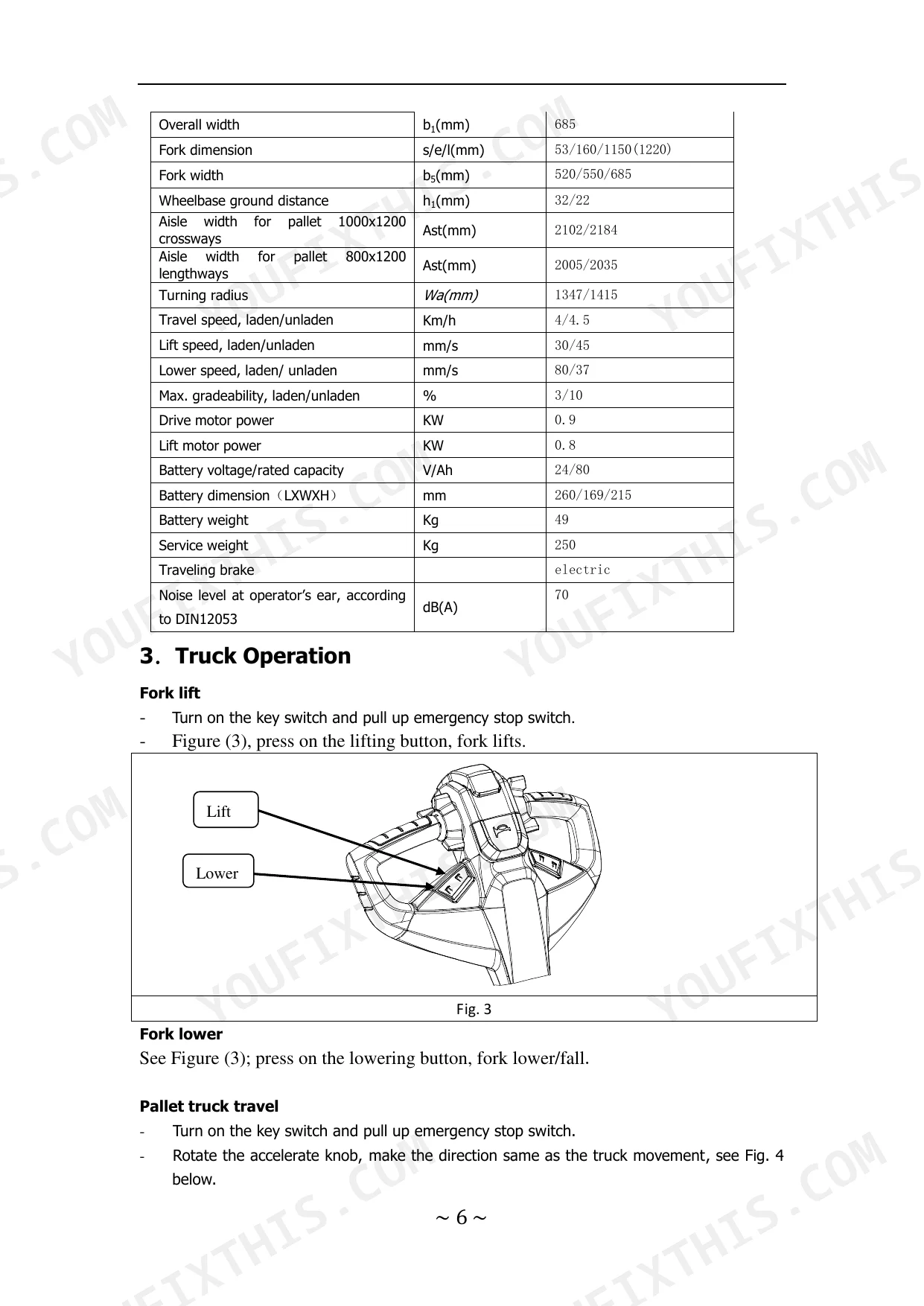

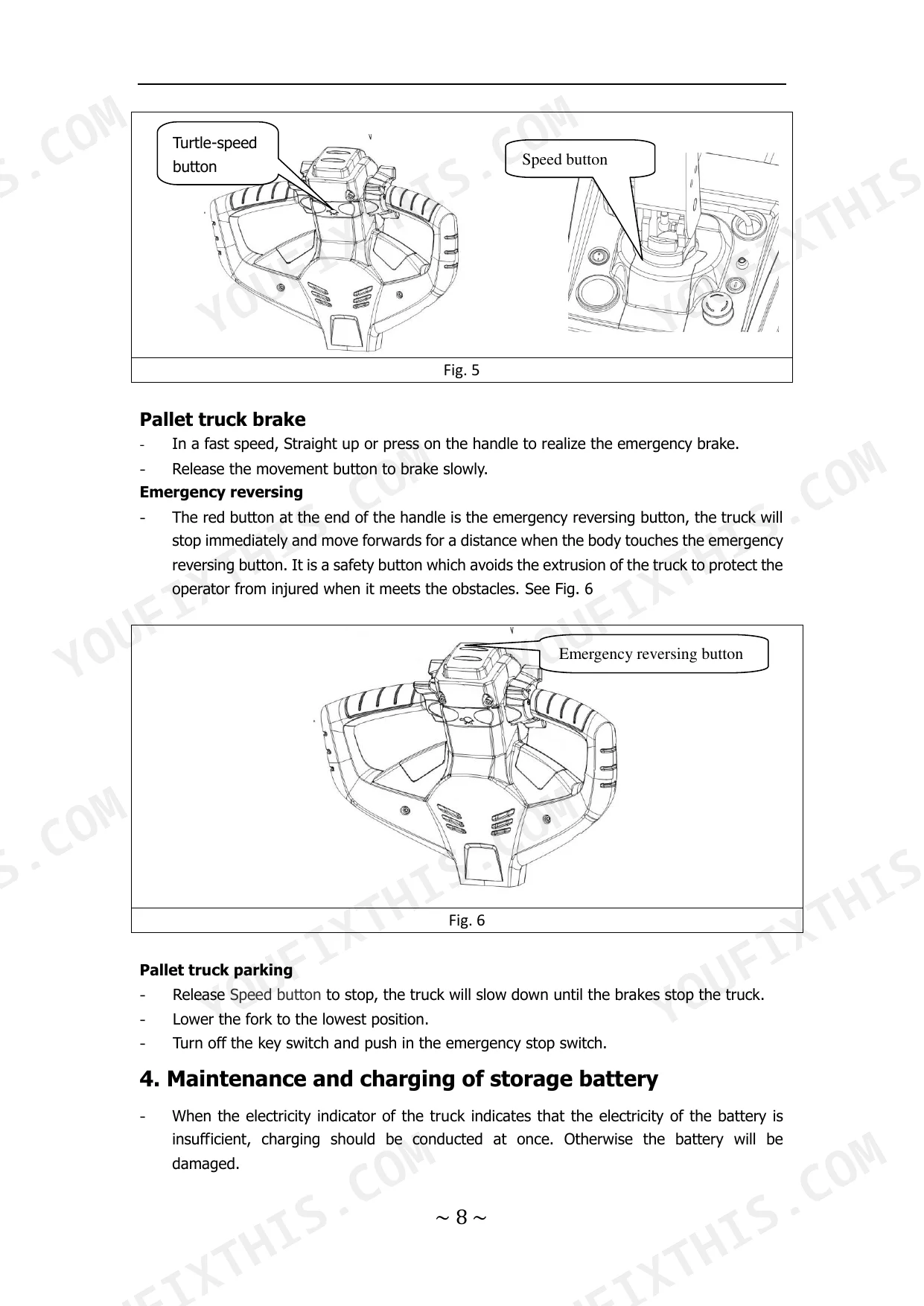

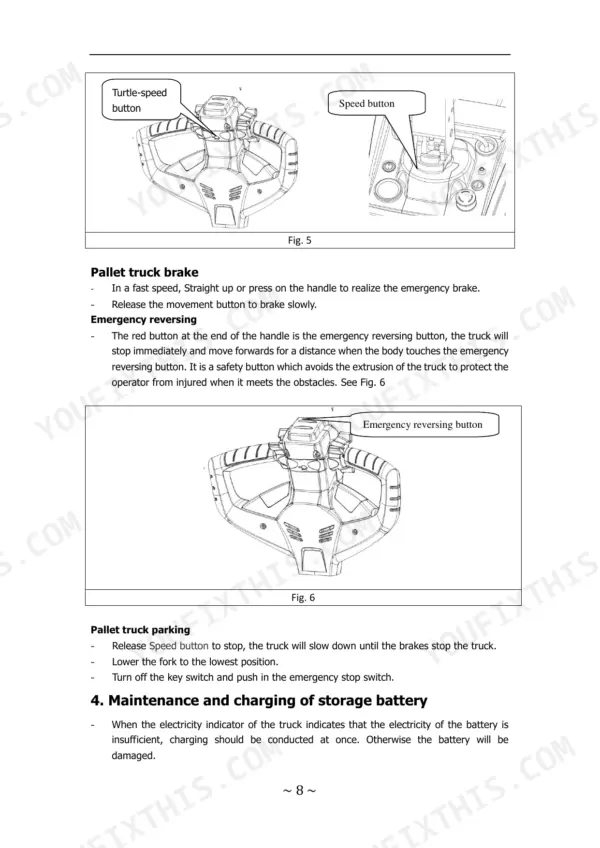

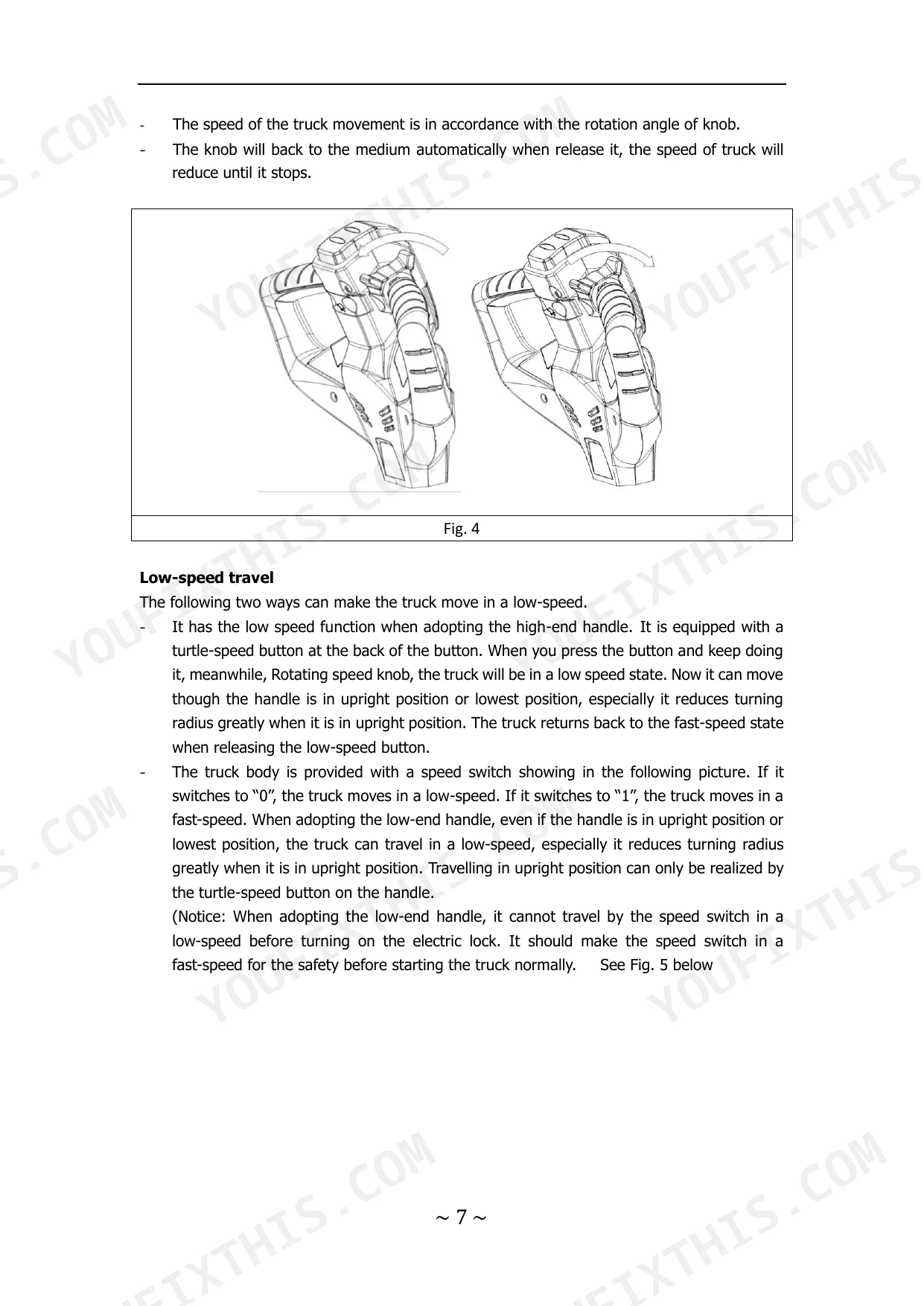

| Truck Operation | 8-9 | Key Switch, Emergency Stop Switch, Lifting Button, Lowering Button, Accelerate Knob, Turtle-Speed Button |
| Maintenance and Charging of Battery | 10 | Storage Battery |
| Maintenance | 11-12 | Routine Maintenance, Level (1) Maintenance, Level (2) Maintenance, Lubricating Oil, Transmission Gear, Hydraulic System |
| Common Faults and Trouble Shooting | 13 | Hydraulic Oil Leakage, Hydraulic Power Unit, Solenoid Valve, Contactor, Fuse |
| Electrical Schematic Diagram | 14 | |
| Packing List | 15 | Electric Pallet Truck, Accessory Box, Operation Manual, Parts Catalogue, Qualification Certificate |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Battery voltage/rated capacity | 24 V/80 Ah | p. 8 |
| Battery dimension (Lxwxh) | 260/169/215 mm | p. 8 |
| Rated capacity | 2000 kg | p. 7 |
| Load centre distance | 600 mm | p. 7 |
| Battery weight | 49 kg | p. 8 |
| Service weight | 250 kg | p. 8 |
| Drive motor power | 0.9 KW | p. 8 |
| Lift motor power | 0.8 KW | p. 8 |
Hyster A3B5 Common Problems This Manual Covers
Hyster A3B5 electric pallet truck traction motor unable to operate after turning the key switch on
Insert the key and turn on the power supply, then charge the battery if it has completely discharged. Examine the stroke switch on the lever to see if a collision has pressed it, and confirm the braking switch has been reset. If the motor still won't run, replace the contactor or the burnt fuse (10A and 125A fuses listed on page 13).
Manual Section: Motor unable to operate p. 13Pallet truck forks do not lift when the lifting button is pressed on the tiller
Check the hydraulic oil first. Oil that is too thick, was never filled, or carries foreign matter will stop the lift. Replace it with HL-N32 for ambient -5 to 40°C or HV-N20 for -35 to -5°C, per page 12. If fresh, clean oil doesn't restore lifting, replace the hydraulic power unit as page 13 directs.
Manual Section: Fork does not lift p. 13Forks stay raised and do not lower when the lowering button is pressed
Inspect the solenoid valve coil on the hydraulic power unit and replace the coil if it is damaged. If the coil is sound, the valve is likely blocked, so clean the oil line of the solenoid valve, following the fault table on page 13. Afterward, confirm the forks rise and lower normally, the same check page 12 lists for six-month maintenance.
Manual Section: Fork does not lower p. 13Hydraulic oil leaking from the hydraulic cylinder or hydraulic power unit connections
Trace the leak source. Re-tighten any loose connection first. If oil weeps past a seal, replace the oil seal. If a component surface is damaged or worn, replace that component, per page 13. Check for leaks at every weekly level (1) inspection on page 11, and inspect the cylinders for internal or external leakage annually per page 12.
Manual Section: Hydraulic oil leakage p. 13Battery charger unable to charge the 24 V battery and green pilot light never comes on
Turn off the key switch and emergency stop switch, connect the charge cable to the charging socket, then plug into the power socket (page 11). A completely discharged 24 V/80 Ah battery needs about 12h for a full charge. If the green pilot light never comes on after that, replace the charger per page 13. Never open the battery air vent valve.
Manual Section: Charger unable to charge p. 13Electric equipment showing abnormal temperature rise or sparks during the weekly level (1) inspection
Remove the truck from service now. Page 3 says do not operate a damaged truck until it's repaired, and page 11 calls for an authorized technician when level (1) checks find abnormal conditions. Check that electric equipment connectors are reliable and switches work normally, and have insulation resistance between electric equipment and the truck body verified above 0.5 MΩ, per page 12.
Manual Section: Level (1) maintenance p. 11Frequently Asked Questions
How can I troubleshoot a Hyster A3B5 that will not start or move?
If the motor is unable to operate, first ensure the key is inserted and the power supply is turned on. Check if the battery is discharged, ensure the brake is released, and inspect the stroke switch on the lever for collision damage. If these steps do not resolve the issue, the contactor may need replacement or the fuse may be burnt out (see page 13). p. 13

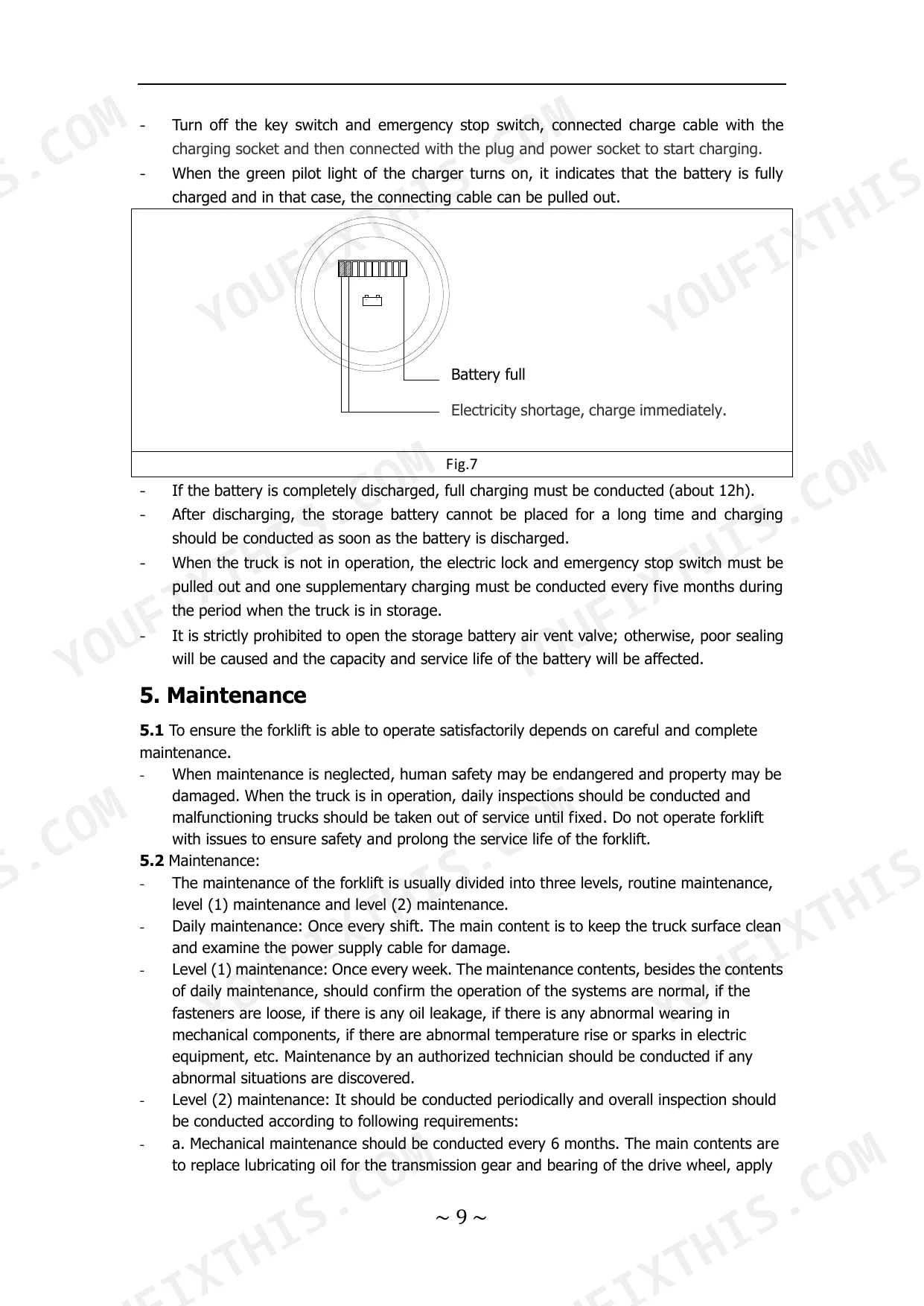

How should I charge and maintain the Hyster A3B5 battery?
When the electricity indicator shows insufficient power, charge the battery immediately to prevent damage. A full charge takes about 12 hours. If the truck is in storage, perform a supplementary charge every five months, and never open the battery air vent valve as it affects service life. p. 11
What is the recommended maintenance interval for the mechanical system on the Hyster A3B5 electric pallet truck?
Mechanical maintenance should be performed every 6 months. This includes replacing the lubricating oil for the transmission gear and the bearing of the drive wheel, and applying lubricant to various rotating joints. p. 12

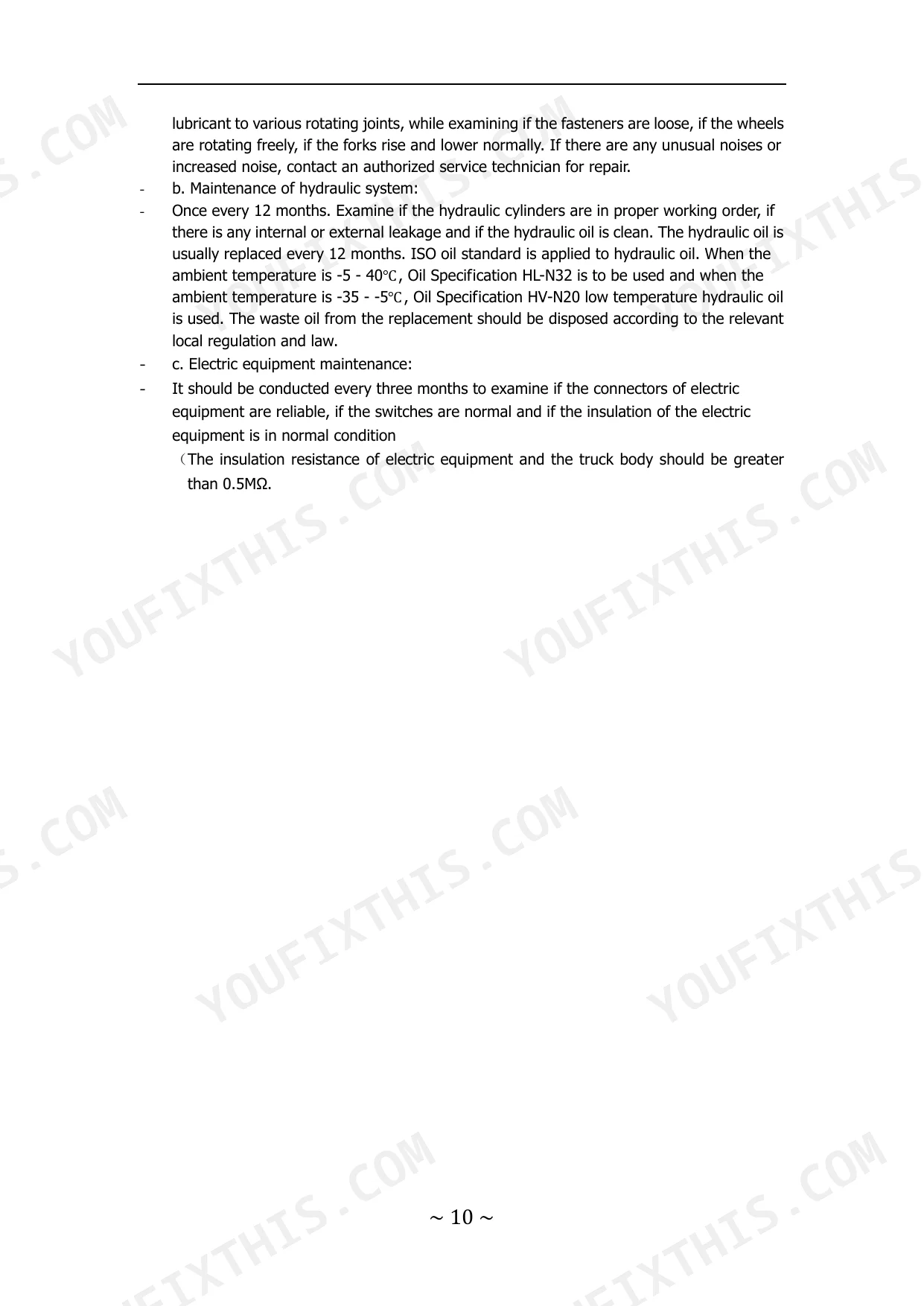

How often should the hydraulic system be maintained?
The hydraulic system requires maintenance every 12 months. This involves checking the hydraulic cylinders for proper operation, inspecting for internal or external leaks, and ensuring the hydraulic oil is clean and replaced. p. 12
What hydraulic oil specifications does the Hyster A3B5 need for different ambient temperatures?
For ambient temperatures between -5°C and 40°C, use Oil Specification HL-N32. For colder environments between -35°C and -5°C, use Oil Specification HV-N20 low temperature hydraulic oil. p. 12
Is this Hyster A3B5 Operator Manual a digital download?
This is a 15-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print specific sections of this Hyster A3B5 Operator Manual?
Yes. Printing works from any reader and any printer, for your own shop use.
