Controller fault signals are the toughest material in this 52-page Hyster A3C2 operator manual PDF (OEM ID 4245857), which also covers operation, battery charging, pre-operation inspection and periodic upkeep for the A3C2, A3B6 and A3C3 pedestrian straddle trucks. Signals such as motor speed encoder, motor overcurrent, throttle wiper and main contactor are listed with troubleshooting guidance, and the wiring diagrams show the circuits you trace when one appears. A hydraulic schematic maps the power unit circuit. Confirm the battery is rated 24 V/200 Ah, and hold brake clearance between 0.2 mm and 0.8 mm during the braking system check before operation. When you replace the storage battery, you need the 160 kg pack weight and its 800×254×320 mm dimensions to plan the hoisting method. The spare and vulnerable parts list names the fuse, O type sealing rings and dustproof rings so your order matches first time, and the bookmarked, text-searchable PDF finds each entry quickly.
What's Inside This Hyster A3C2, A3B6, A3C3 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Configuration Diagram and Main Technical Parameter | 6-7 | Characteristics, Weight, Wheel Chassis, Dimension, Performance Data, Motor |
| Brief Introduction of Structure | 8-13 | Frame, Mast, Fork, Lifting Oil Cylinder, Operation Handle, Steering Device, Hydraulic Power Unit |
| Initial Operation | 14 | Emergency Parking Plug, Battery Cable and Charger, Electromagnetic Brake |
| Use and Operation Instruction | 15-17 | Hydraulic Pipes, Electric Energy Meter, Electric Lock, Brake, Accelerator Knob, Emergency Reverse Button |
| Use, Maintenance and Charging of Storage Battery | 18-20 | Fixed Charger, Battery Case, Electrolytic Solution, Density Check, Equalizing Charge, Electrolyte Leakage |
| Inspection Before Operation | 21 | Braking and Steering Systems, Hydraulic Oil and Lifting Cylinder, Wheels and Storage Battery |
| Inspection After Operation | 22-26 | Warning Signs, Nameplates, Lubricating Oil, Grease, Faulty Components |
| Storage, Transportation, and Loading & Unloading | 27 | Driving Wheels, Storage Battery and Electrolyte, Electrical Contacts |
| Replacement of Storage Battery | 28-30 | Side Door, Socket Connector, Battery Pin, Battery Pack, Hoisting Method |
| Common Faults Signal and Trouble Shooting | 31-33 | Motor Speed Encoder, Motor Failsafe, Motor Overcurrent, Static Return to Off, Throttle Wiper, Main Contactor |
| Lists of Accessories, Spare Parts and Vulnerable Parts | 34 | Electric Lock Key, Fuse, Sealing and Dustproof Rings |
| Packing List | 35-52 | Safety Rules for the User and Driver, Operating Conditions, Vehicle Maintaining Rule for the Drivers |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Wheel dimension, front | Ø250×70 mm | p. 7 |
| Wheel dimension, rear | Ø80×70 mm | p. 7 |
| Battery voltage/rated capacity | 24/200 V/Ah | p. 7 |
| Battery weight | 160 kg | p. 7 |
| Brake clearance | 0.2mm to 0.8mm | p. 21 |
| Output voltage of charger | 24V | p. 21 |
| Output current of charger | 30A | p. 21 |
| Rated load | 1500kg | p. 7 |
| Load center distance | 600mm | p. 7 |
| Hydraulic oil charge | 12L | p. 23 |
| System pressure (rated load 2000KG) | 11.5Mpa | p. 30 |
| System pressure (rated load 2500KG) | 13.5Mpa | p. 30 |
Hyster A3C2, A3B6, A3C3 Common Problems This Manual Covers

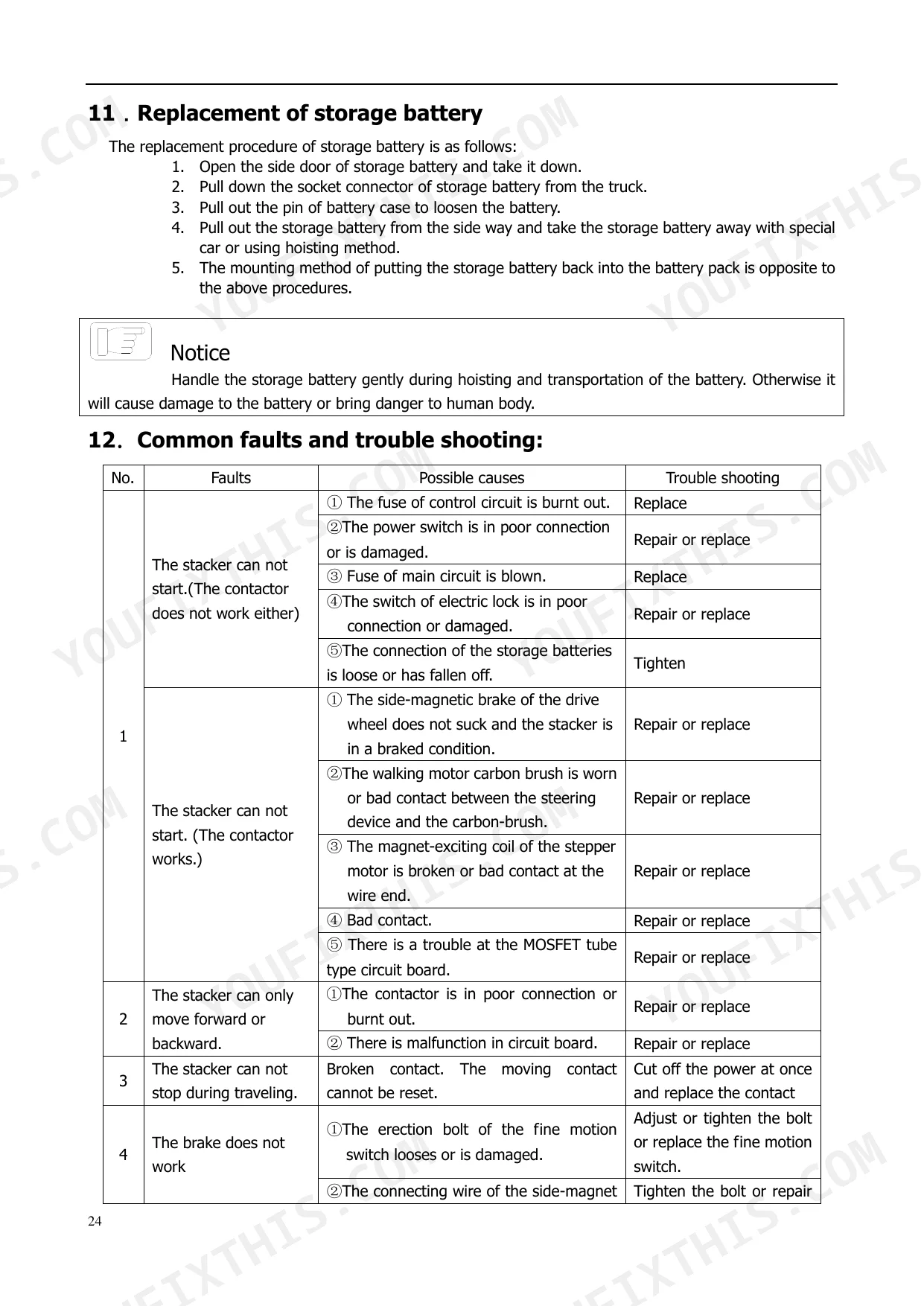

Hyster A3C2 pedestrian straddle truck will not start and the contactor does not work either
Check the control circuit fuse and the main circuit fuse first, following the fault chart on page 28, and replace any that are blown. Test the power switch and the electric lock switch for poor connection or damage. Tighten loose or fallen battery connections, and keep tools and other metal off the lidless battery while you work (page 41).
Manual Section: Common faults and troubleshooting p. 28Forks will not lift when the lifting button is pressed on the control handle
Reduce the load first, then set the control handle horizontal or vertical so the oil pump motor turns on, per page 29. Check that the electric lock is unlocked and charge the battery if voltage is low. Add filtered hydraulic oil if the level is short; the system charge is 12L (page 23). Do not adjust the overflow valve yourself. Page 30 says users shall not adjust it at will, so have professional personnel set it.
Manual Section: Common faults and troubleshooting p. 29Fork keeps rising on its own after the lifting button is released on the handle
Turn off the general power supply switch at once to cut power, as page 18 directs. Drive the stacker to a safe position, then lower the fork manually, keeping every part of your body out from under the forks and load (page 8). Have the lifting circuit repaired before the truck goes back into service.
Manual Section: Abnormal situations handling during operation p. 18Brake does not work or will not hold while the stacker is traveling
Stop operating at once and keep the truck out of service until it is repaired, per page 18. Check the fine motion switch erection bolt, then tighten it or replace the switch. Inspect the side-magnet brake connecting wire, following page 28. Measure brake plate clearance with an insert ruler. If it exceeds 0.5mm, clean the friction plate and adjust the three screws evenly (page 25). Replace worn braking plates.
Manual Section: Common faults and troubleshooting p. 28Storage battery end voltage stays low right after a full charge cycle
Check the electrolyte level in each cell and top up with electrolytic solution if it is low, following page 29. Never use industrial sulfuric acid or running water (page 19). Replace the electrolyte if foreign matter is present, and repair or replace any damaged individual battery. Charge only in a well ventilated area with no flame, since hydrogen builds up in the battery case (page 18).
Manual Section: Common faults and troubleshooting p. 29Truck body shakes and wobbles while traveling across a hard flat warehouse floor
Check the driving wheel locating nuts and screw down any that have loosened or come off, per page 29. Verify that the balance wheel, driving wheel and both front wheels sit in the same plane. If they do not, adjust the bolts on the balance wheel until all four wheels line up, following page 30.
Manual Section: Common faults and troubleshooting p. 29Frequently Asked Questions
What do the Hyster A3C2, A3B6, and A3C3 error codes mean?

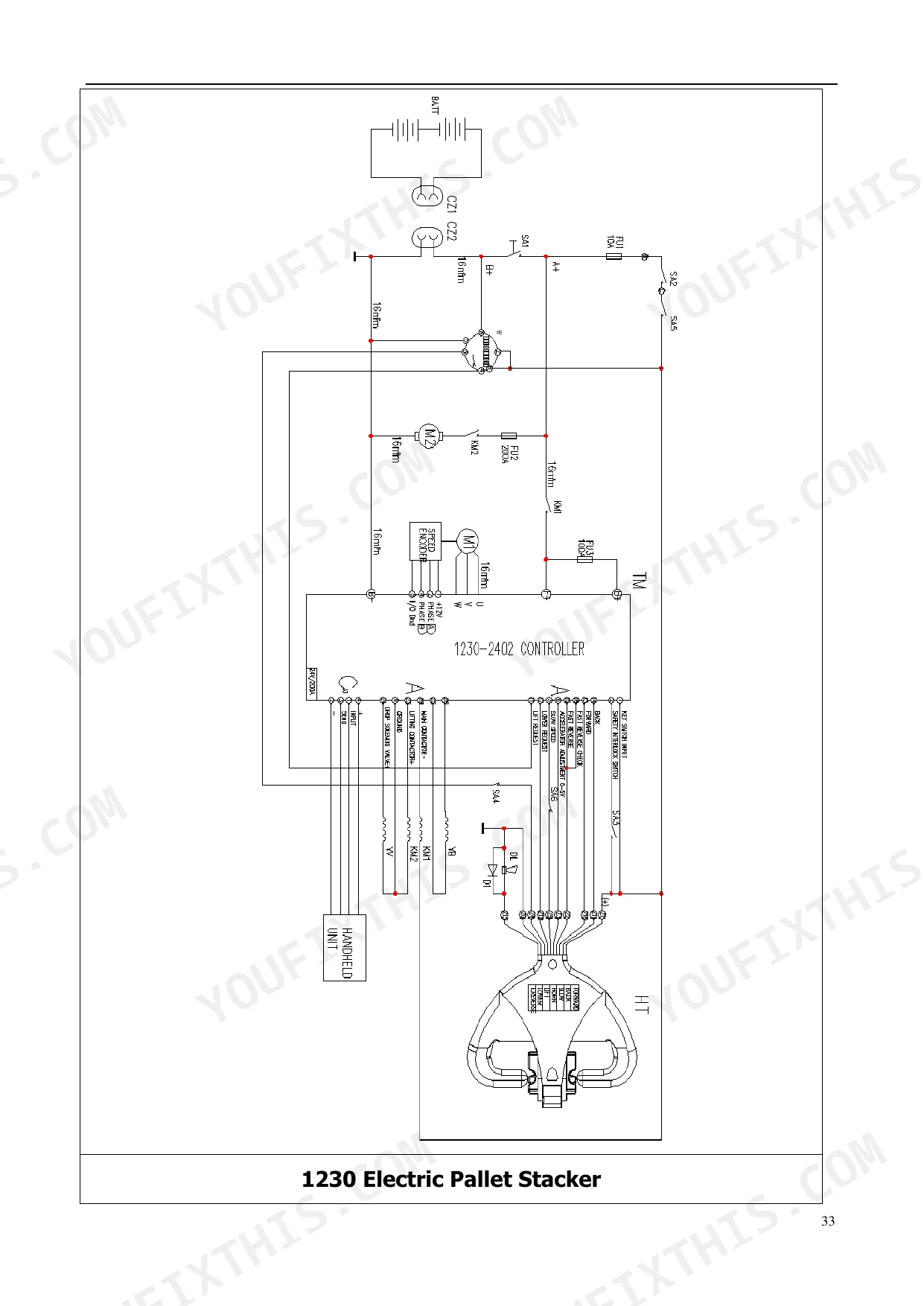

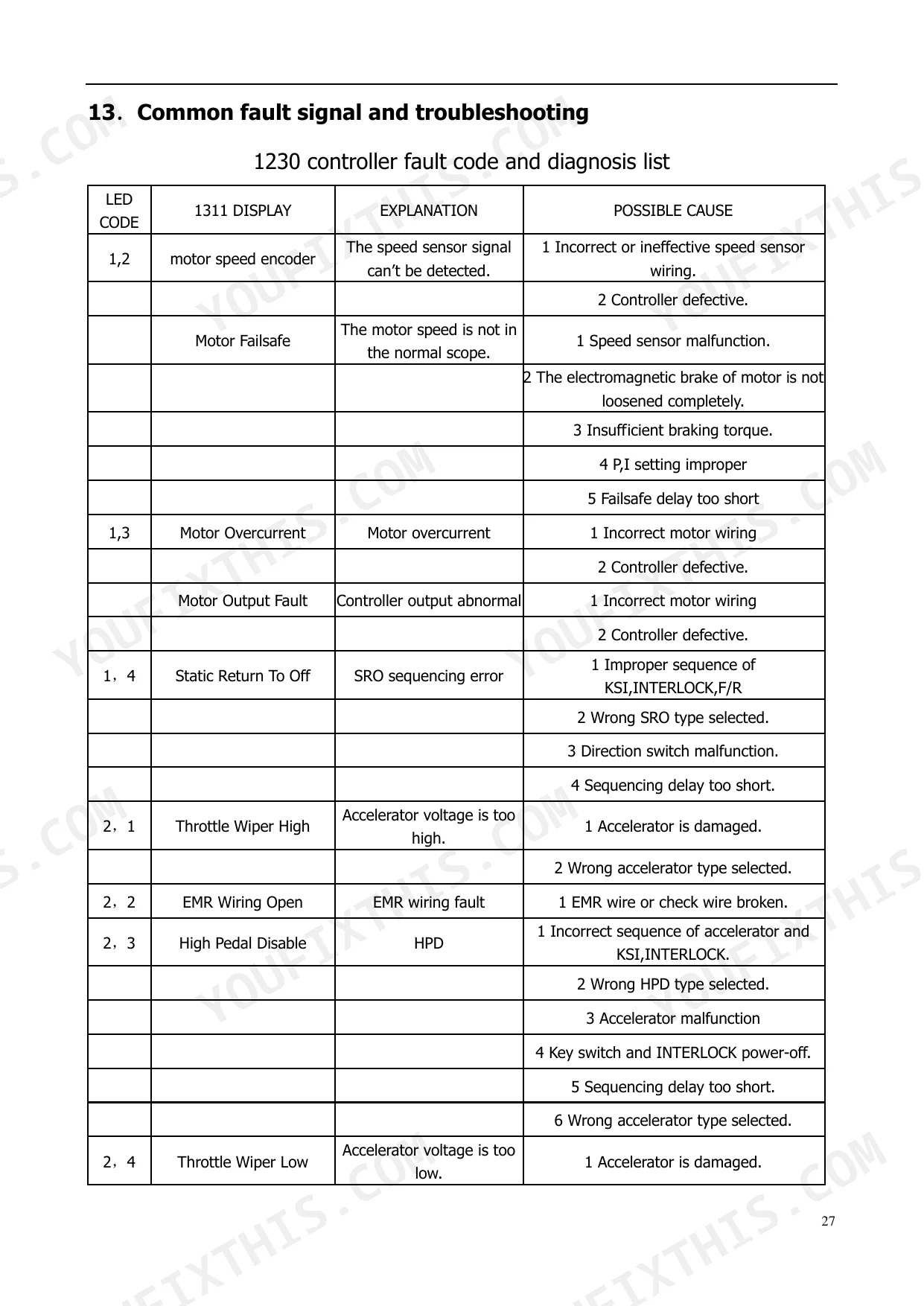

The manual provides a comprehensive list of fault codes for the 1230 controller on pages 31 and 32, and for the 1207A controller on page 33. For example, an LED code of 1,2 indicates a 'motor speed encoder' fault where the speed sensor signal cannot be detected, potentially due to incorrect wiring or a defective controller. p. 31
How do I troubleshoot a Hyster A3C2 that will not lift or drive?
If the stacker will not lift, check for overload, insufficient hydraulic oil, or a damaged oil pump motor. If it will not drive, check the side-magnetic brake, the walking motor carbon brush, or the controller. Refer to the 'Common faults and trouble shooting' table on pages 28 and 29 for specific causes and remedies. p. 28
What are the replacement specifications for the traction/drive wheel on the Hyster A3C2, A3B6, A3C3?
The drive wheel should be replaced when its diameter reduces by 5% compared to the original parameter. You should also check the wheel tread and side face for damage during inspections. p. 21

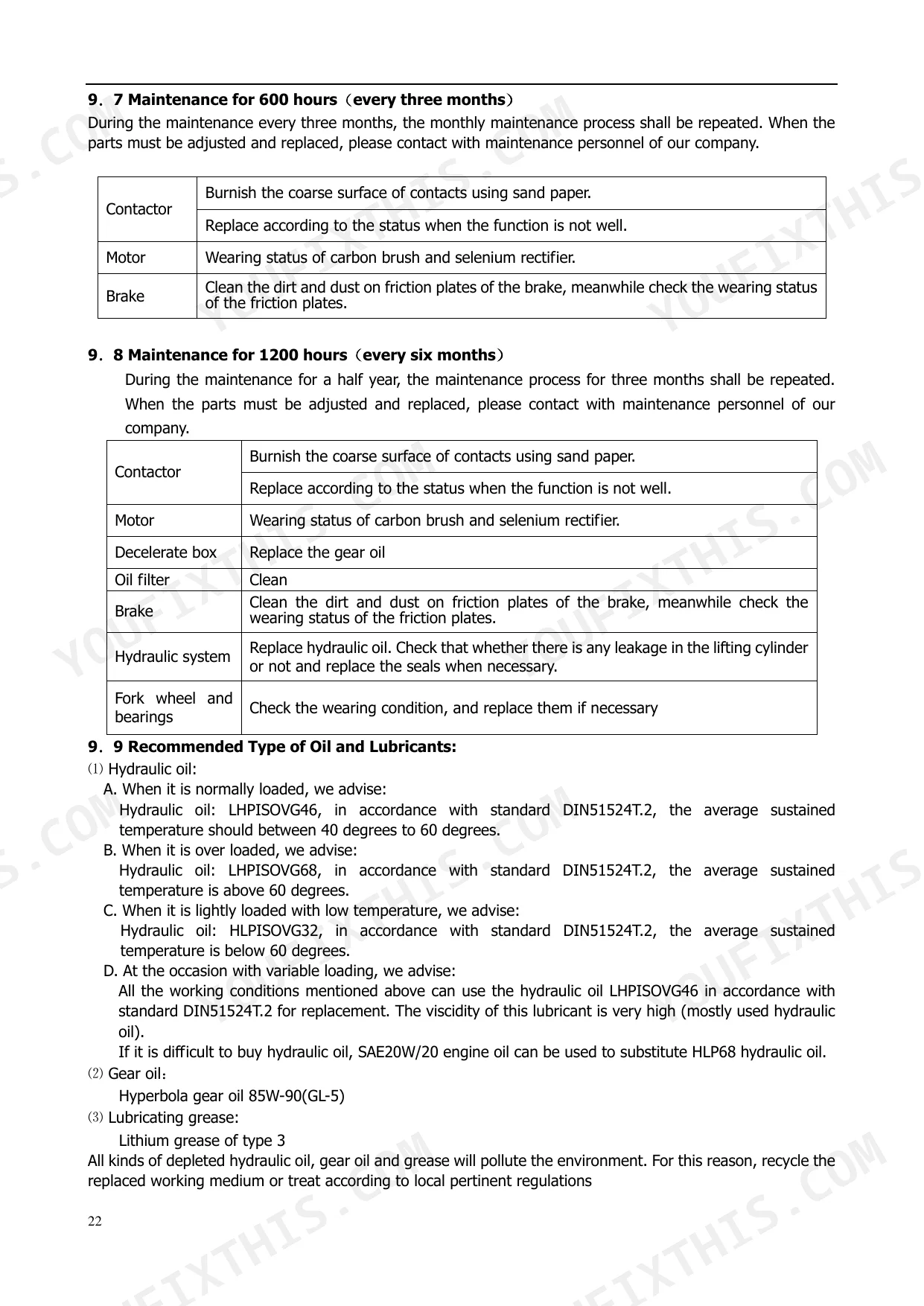

What is the required hydraulic oil capacity for the Hyster A3C2, A3B6, A3C3 pedestrian straddle truck?
The hydraulic oil capacity for the system is 12L. When performing maintenance, ensure the fork is lowered to the lowest position before checking or filling the oil. p. 23

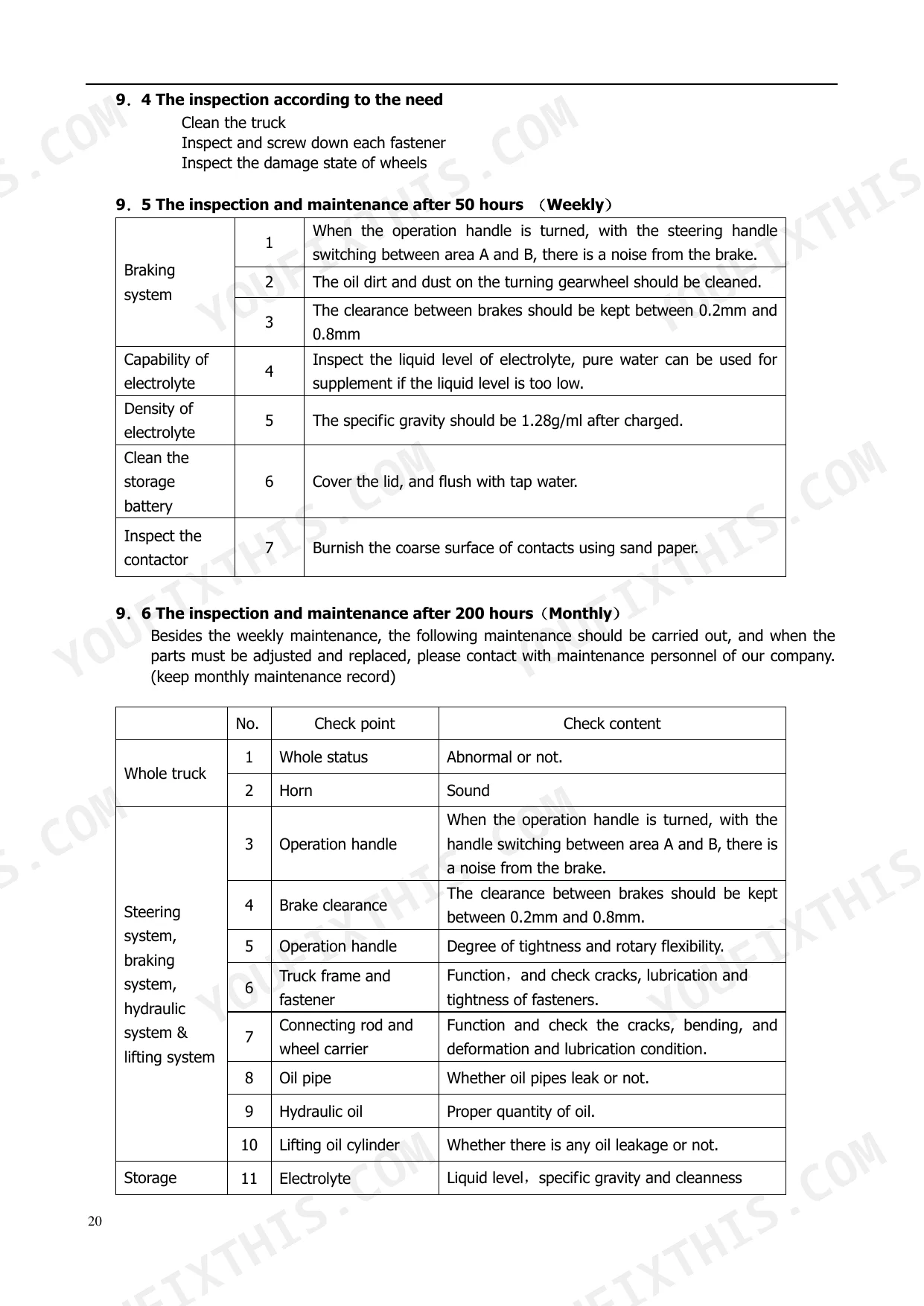

What is the correct brake clearance for the Hyster A3C2, A3B6, A3C3 stacker?
The clearance between the brake plate and magnetic steel must be maintained between 0.2mm and 0.8mm. If the clearance exceeds 0.5mm, it is necessary to adjust it using the procedure described on page 25. p. 21
How is this Hyster A3C2 Operator Manual delivered?
Instant PDF download. You get the full 52-page searchable Operator Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Am I free to print this Hyster A3C2 Operator Manual?
Yes. Print the pages you need for the job in your own shop, and bin them when they get greasy.
