Part of the Isuzu 6BG1 engine documentation.
This is the Isuzu Shop Manual (publication IDE-2041-00) for the B-series industrial diesel engines: the 4BD1, 4BB1, 6BB1, 6BD1, 6BG1 and their turbocharged 4BD1T, 6BD1T and 6BG1T variants. Across 221 pages it walks through general specifications, maintenance, full engine disassembly, inspection and repair, and step-by-step reassembly.Dedicated sections cover the lubricating, cooling and fuel systems, the turbocharger, the air compressor and the engine electricals, plus a troubleshooting section and complete tightening-torque data. You get the numbers that matter, including valve clearance, compression pressure, injection starting pressure and cylinder head and flywheel bolt torque.Whether you are rebuilding a tired long block, chasing hard starting, or setting injection timing, this PDF gives you the factory procedures and figures to do the job on any of the covered B-series engines.
What's Inside This Isuzu B-Series Diesel Engines Manual
| System | Pages | Key Topics |
|---|---|---|

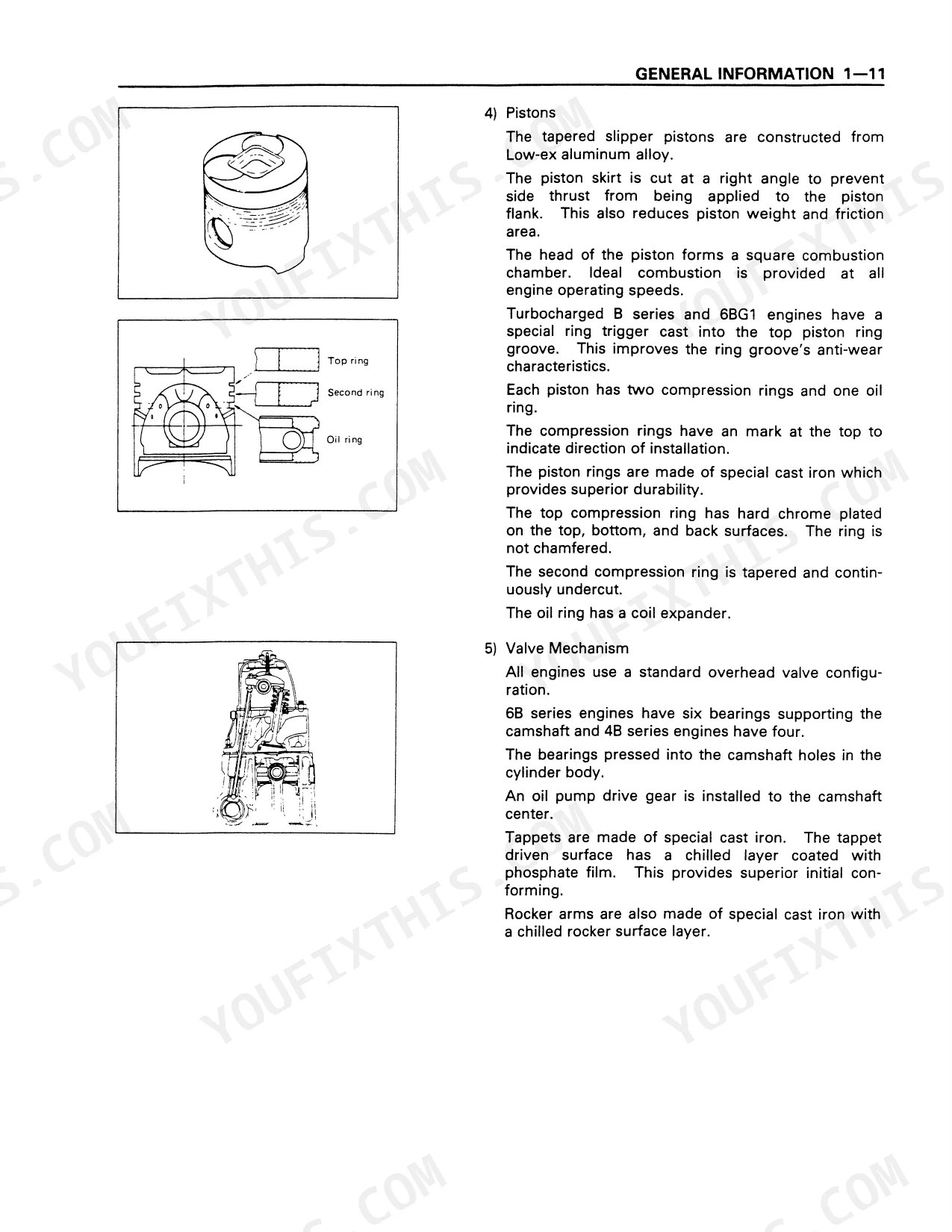

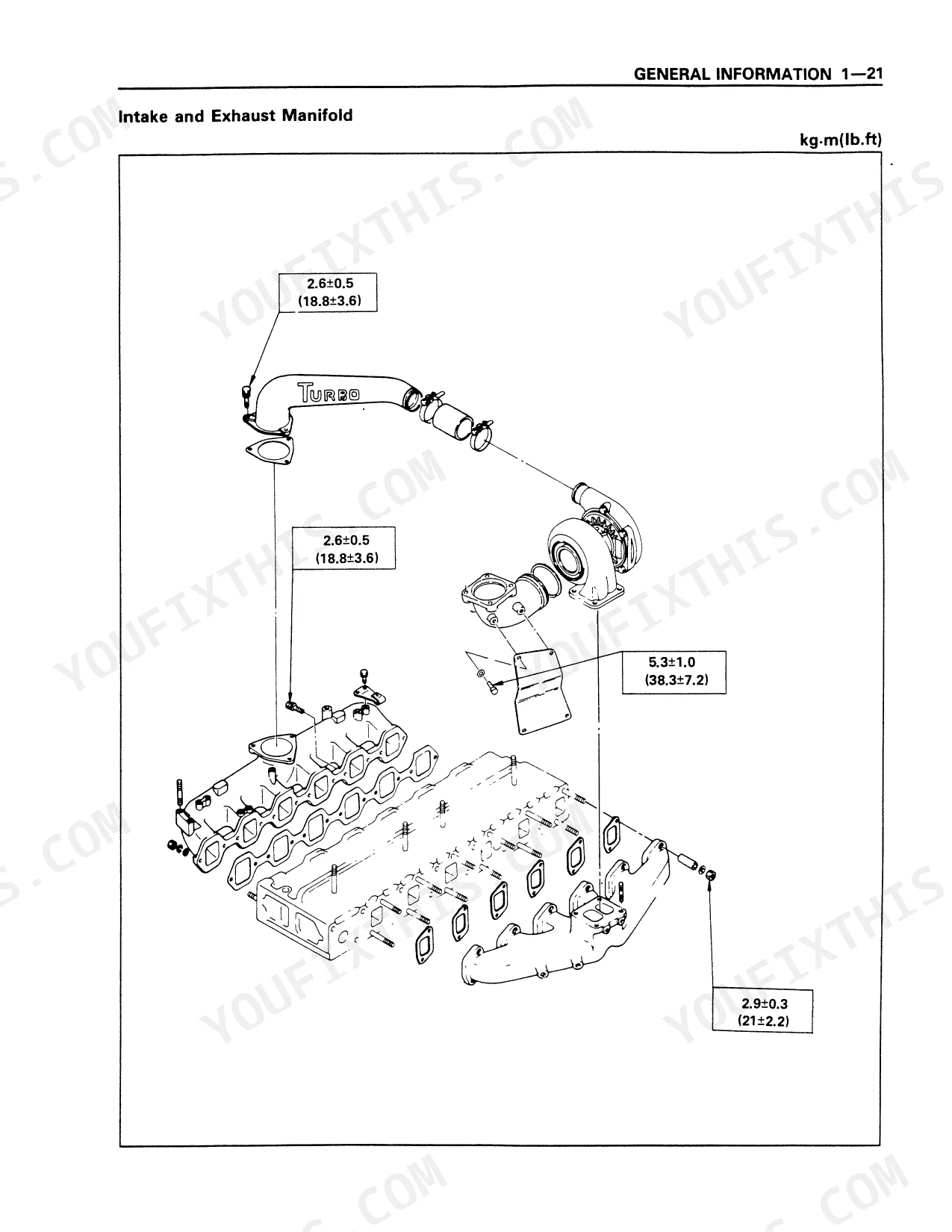

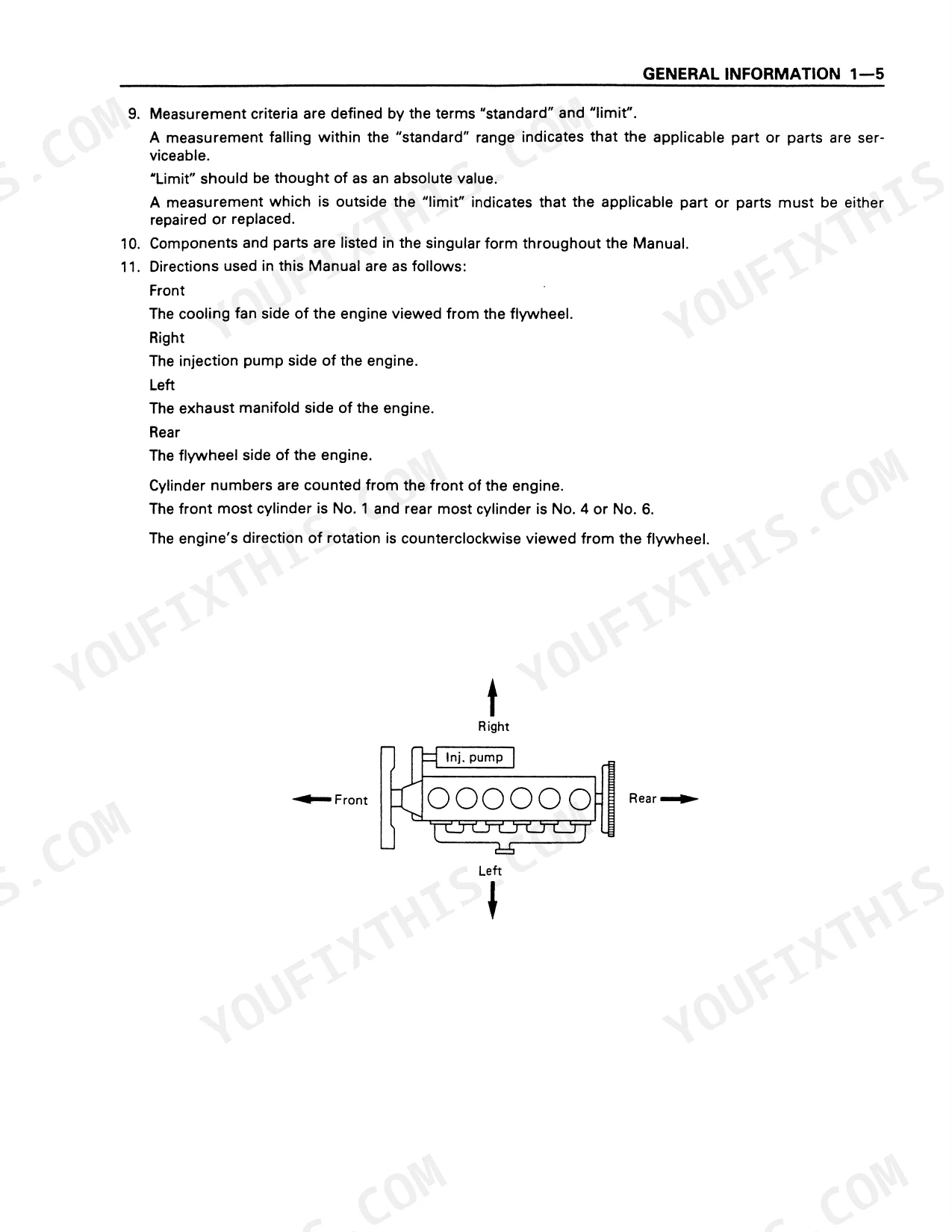

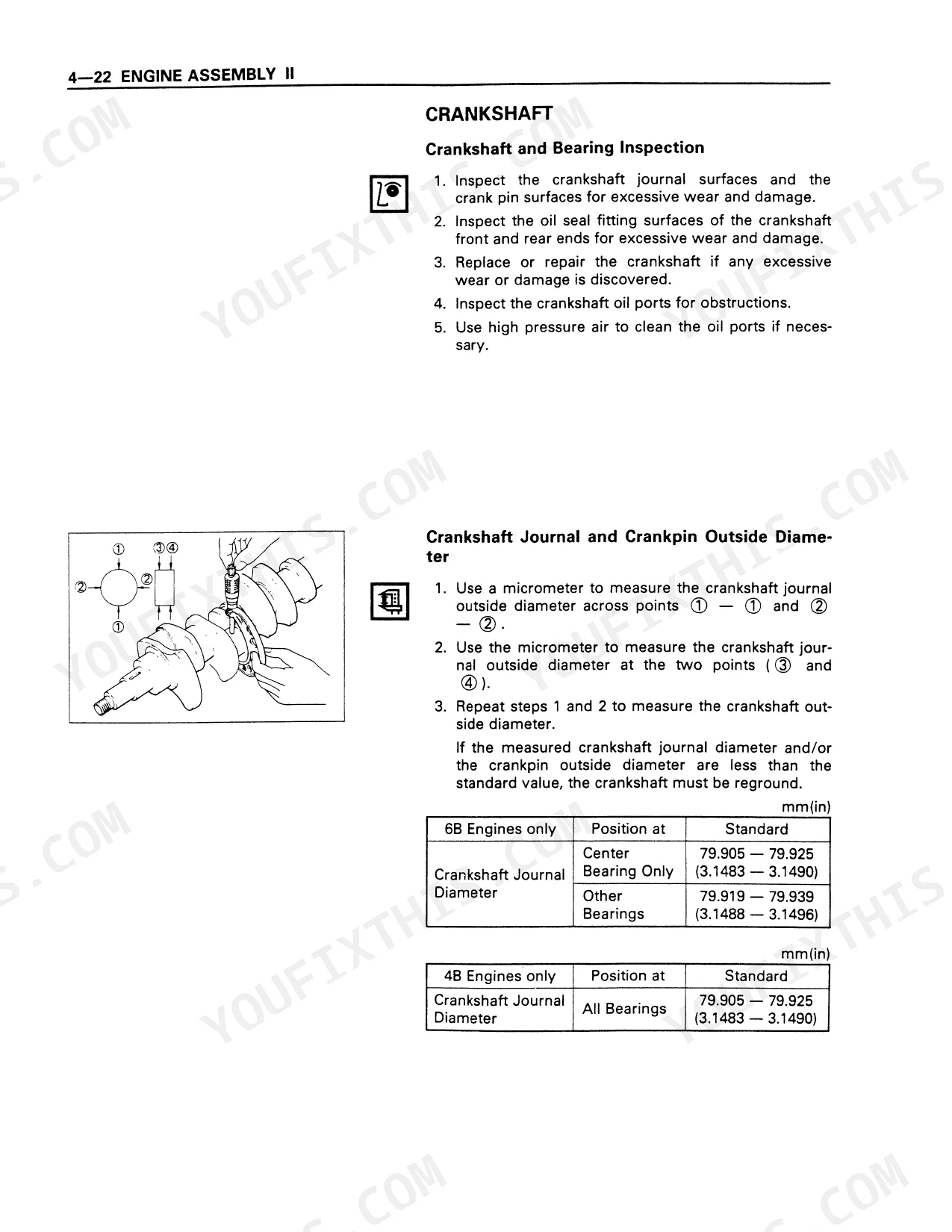

| Section 1 - General Information | 8-33 | General repair instructions, Main data and specifications, Design features and general outline, Tightening torque specifications, Major parts fixing nuts and bolts, Identifications |
| Section 2 - Maintenance | 34-53 | Lubricating system, Fuel system, Cooling system, Valve clearance adjustment, Injection timing, Compression pressure measurement |
| Section 3 - Engine Assembly I (Disassembly) | 54-69 | External parts disassembly steps, Major components, Rocker arm and rocker arm shaft disassembly steps, Cylinder head disassembly steps, Piston and connecting rod disassembly steps |
| Section 4 - Engine Assembly II (Inspection & Repair) | 70-101 | Cylinder head, Valve guide, Connecting rod, Crankshaft, Flywheel and flywheel housing, Timing gear case cover |
| Section 5 - Engine Assembly III (Reassembly) | 102-131 | Piston and connecting rod reassembly steps, Cylinder head reassembly steps, Rocker arm and rocker arm shaft reassembly steps, Major component reassembly steps I |
| Section 6 - Lubricating System | 132-139 | General description, Oil pump, Main oil filter, Oil cooler |
| Section 7 - Cooling System | 140-147 | General description, Water pump, Thermostat |

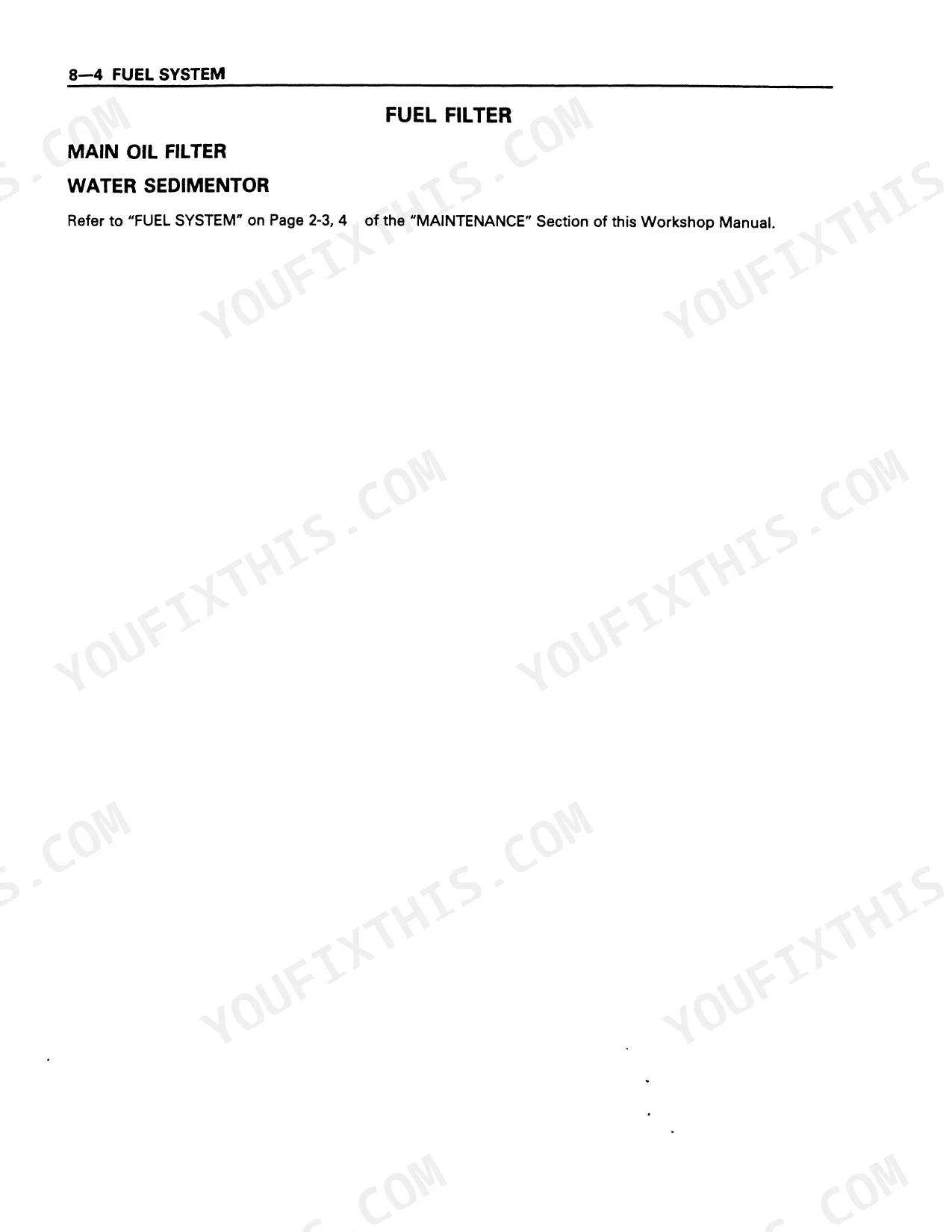

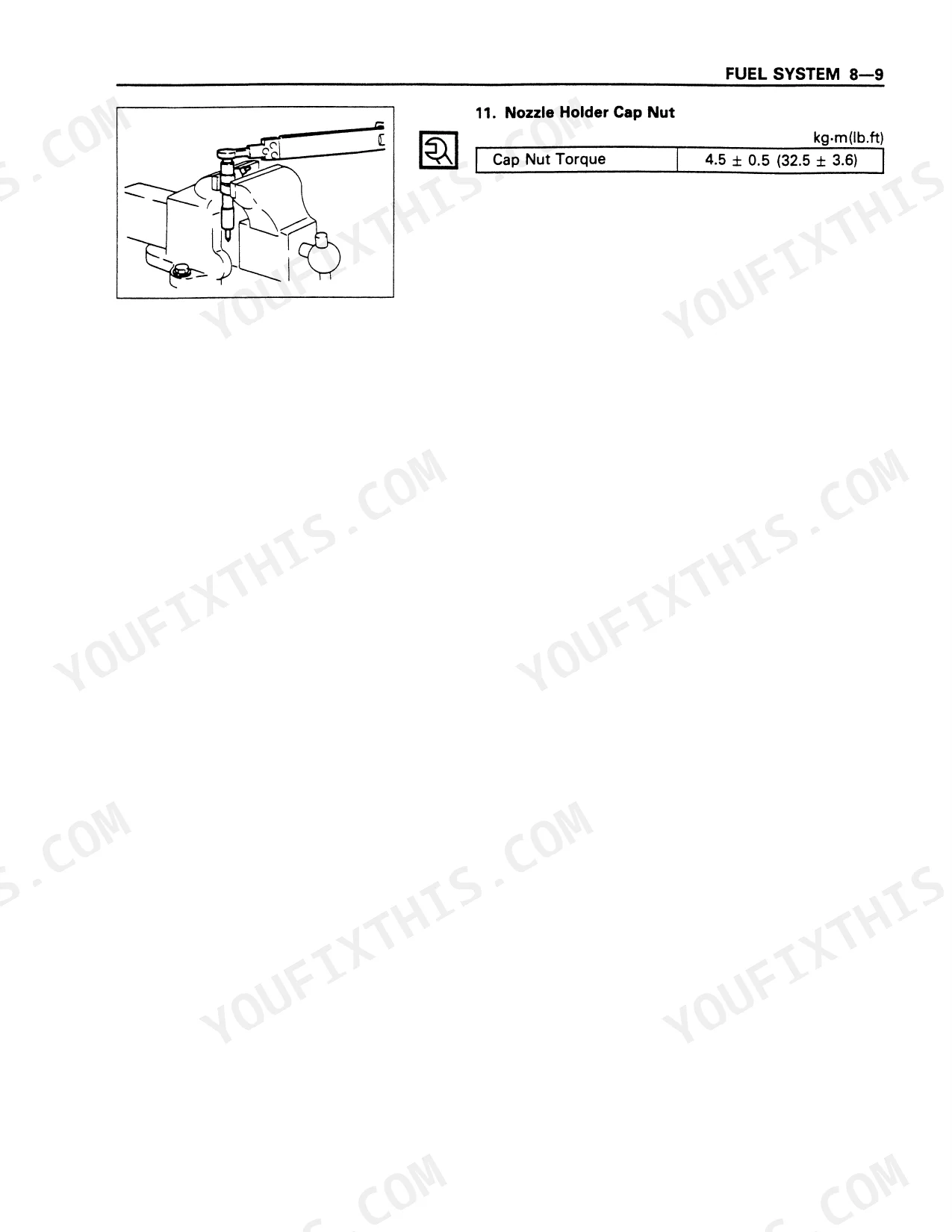

| Section 8 - Fuel System | 148-159 | General description, Fuel filter, Injection nozzle, Injection pump calibration data |
| Section 9 - Turbocharger | 160-163 | General description, Turbocharger identification, Rotor shaft play inspection |
| Section 10 - Air Compressor | 164-171 | General description, Disassembly steps, Inspection and repairs, Reassembly steps |
| Section 11 - Engine Electricals | 172-183 | Starter motor identification, Starter main data and specifications, Starter motor sectional view, Alternator identification, Alternator main data and specifications |

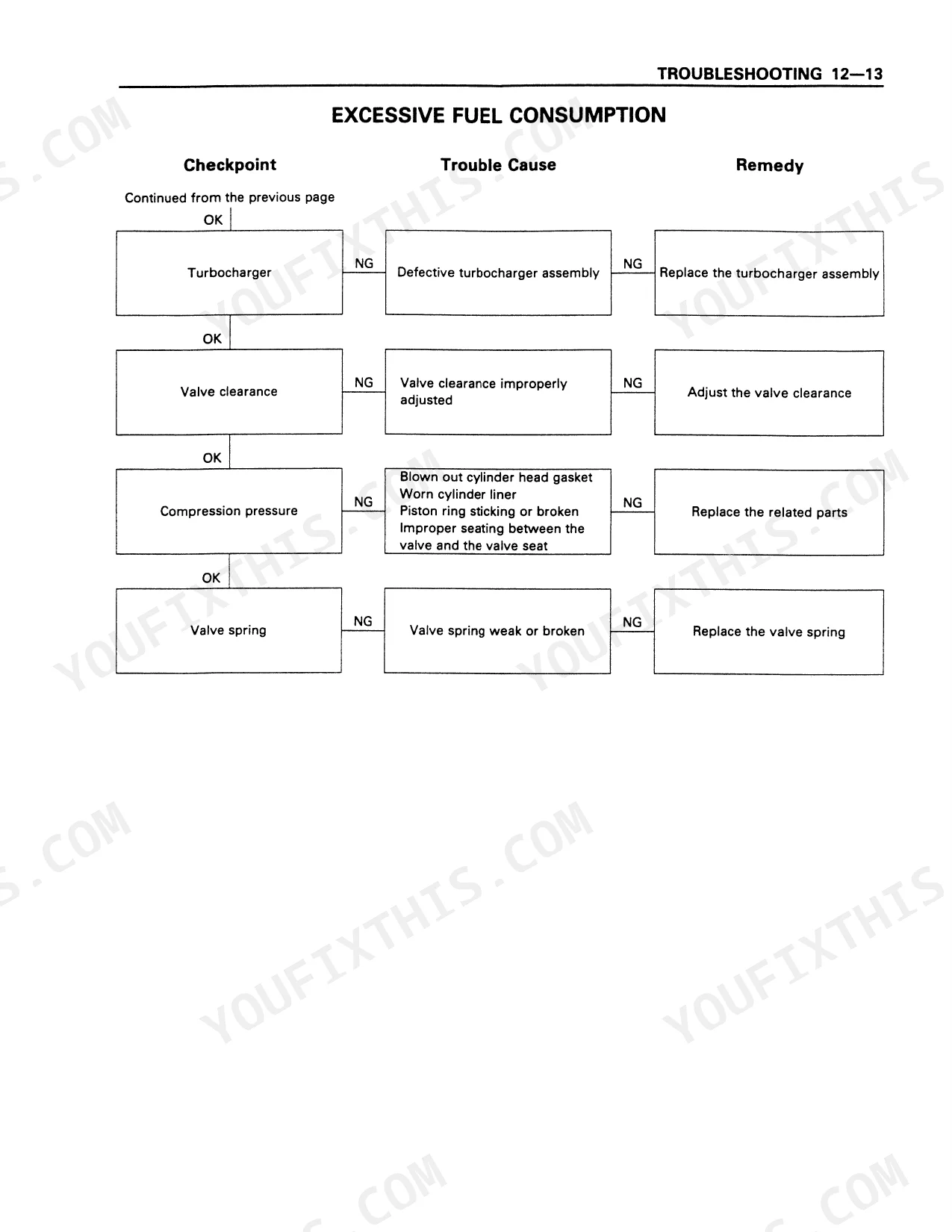

| Section 12 - Troubleshooting | 184-207 | Hard starting, Unstable low idling, Insufficient power, Excessive fuel consumption, Excessive oil consumption, Overheating |
| Section 13 - Special Tool List | 208-211 | - |
| Section 14 - Conversion Table | 212-221 | Length, Area, Volume, Mass, Pressure, Torque |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 6BB1 | ||
| Crankshaft Bearing Cap Bolt Torque | 24.0 ± 1 kg-m (173.5 ± 7.2 lb.ft) | p. 197 |
| All Models | ||
| Thermostat Valve Opening Temperature | 80 — 84 °C (176 — 193 °F) | p. 33 |
| Lubricating Oil Capacity | 13 L (3.44 US gal) | p. 13 |
| Valve Clearance (Cold) | 0.40 mm (0.016 in) | p. 13 |
| Compression Pressure (Standard) | 31.0 kg/cm² (441 psi) | p. 48 |
| Rocker Arm Screw Lock Nut Torque | 2.6 ± 0.5 kg-m (18.8 ± 3.6 lb.ft) | p. 42 |
| Cylinder Head Bolt Torque (Laminated Gasket, 2nd Step) | 9.0 +0.5/-0 kg-m (65.1 +3.6/-0 lb.ft) | p. 121 |
| Turbocharged models | ||
| Injection Starting Pressure (Turbocharged) | 185 kg/cm² (2631 psi) | p. 37 |
| Non-turbocharged models | ||
| Injection Starting Pressure (Non-Turbocharged) | 150 kg/cm² (2133 psi) | p. 37 |
| 4B Series | ||
| Flywheel Bolt Torque (4B Series) | 16 ± 1.5 kg-m (115.7 ± 10.8 lb.ft) | p. 26 |
| 6B Series | ||
| Flywheel Bolt Torque (6B Series) | 22.3 ± 2.2 kg-m (161.2 ± 15.9 lb.ft) | p. 26 |
| 4BD1T | ||
| Turbocharger Model | RHB6A | p. 13 |
Isuzu B-Series Diesel Engines Common Problems This Manual Covers
Hard starting on B-series diesels
Worn injectors, weak injection pump delivery or a tired starter leave these engines cranking without firing. The troubleshooting section isolates the cause across fuel, compression and electrical, and the fuel system chapter covers nozzle and injection checks.
Manual Section: Section 12 - Troubleshooting p. 184Overheating and thermostat failure
Clogged radiators, coolant leaks or a stuck thermostat push coolant temperature past the normal opening range. The cooling system section covers the water pump and thermostat with the correct valve opening temperature.
Manual Section: Section 7 - Cooling System p. 140Injector and fuel system contamination
Clogged fuel filters or dirty injection nozzles cause rough running, misfires and power loss on the 4BD1 and 6BD1 family. The fuel system section covers the filter, injection nozzle and injection pump calibration data.
Manual Section: Section 8 - Fuel System p. 148Turbocharger wear on T variants
On the turbocharged 4BD1T, 6BD1T and 6BG1T, excessive rotor shaft play or bearing wear shows up as smoke, whine or lost boost. The turbocharger section covers identification and rotor shaft play inspection.
Manual Section: Section 9 - Turbocharger p. 160Low compression and cylinder wear
High-hour engines lose compression through worn liners, rings and valves, causing hard starting and blow-by. The inspection and repair section details cylinder head, valve guide, connecting rod and crankshaft measurement against limits.
Manual Section: Section 4 - Engine Assembly II (Inspection & Repair) p. 70Air compressor faults on air-braked units
Engines driving an air compressor can suffer slow build-up or oil passing from worn internals. The air compressor section covers disassembly, inspection and repair, and reassembly.
Manual Section: Section 10 - Air Compressor p. 164Frequently Asked Questions
Which Isuzu engines does this manual cover?
It covers the B-series industrial diesel engines: 4BD1, 4BB1, 6BB1, 6BD1 and 6BG1, plus the turbocharged 4BD1T, 6BD1T and 6BG1T variants, under Isuzu publication IDE-2041-00.
Does it give valve clearance and maintenance settings?
Yes. The Maintenance section covers valve clearance adjustment, injection timing and compression pressure measurement, with the cold valve clearance set at 0.40 mm (0.016 in) for all covered engines. p. 34
Is turbocharger service included for the T models?
Yes. The Turbocharger section covers general description, turbocharger identification and rotor shaft play inspection for the turbocharged variants such as the 4BD1T. p. 160
Does it include a troubleshooting guide?
Yes. The Troubleshooting section works through hard starting, unstable low idling, insufficient power, excessive fuel and oil consumption and overheating, pointing you to the system at fault. p. 184
How will I receive this Isuzu 4BD1, 4BB1, 6BB1, 6BD1 Shop Manual?
Immediate download of the full 221-page searchable shop manual. Open it on any device: laptop at your desk or phone in the field.
Can I print specific sections of this Isuzu 4BD1, 4BB1, 6BB1, 6BD1 Shop Manual?
Yes. The PDF has no DRM restrictions. Print any page or section you need for your shop. Works with any standard printer.
Does this Isuzu 4BD1, 4BB1, 6BB1, 6BD1 manual include wiring diagrams?
Yes. A wiring diagram for the engine's electrical system is included on page 180.
