Bringing a worn Kawasaki 50ZV back to factory tolerances is the job the 186 pages of Kawasaki publication 93205-00161 are written for. Six groups make up this Kawasaki 50ZV shop manual PDF, from chassis and boom through power line, transmission, hydraulics, brakes and operator station, each split into disassembly and reassembly followed by a service standard you measure worn parts against. The power and hydraulic groups fill roughly half the book, tracing the drive from radiator to both axles and taking the pump, cylinders, multiple control valve and Orbitrol steering unit apart piece by piece. Expect about 8 L (2.1 gal) of coolant to drain from the radiator and 20 L (5.3 gal) of oil from the transmission, and torque the radiator plate bolts to 94 N-m (69 lb-ft). Every day the machine sits parked is a day of material not moved. Keyword searchable, the PDF lands you on the right page so your 50ZV is loading trucks again.
What's Inside This Kawasaki 50ZV Manual

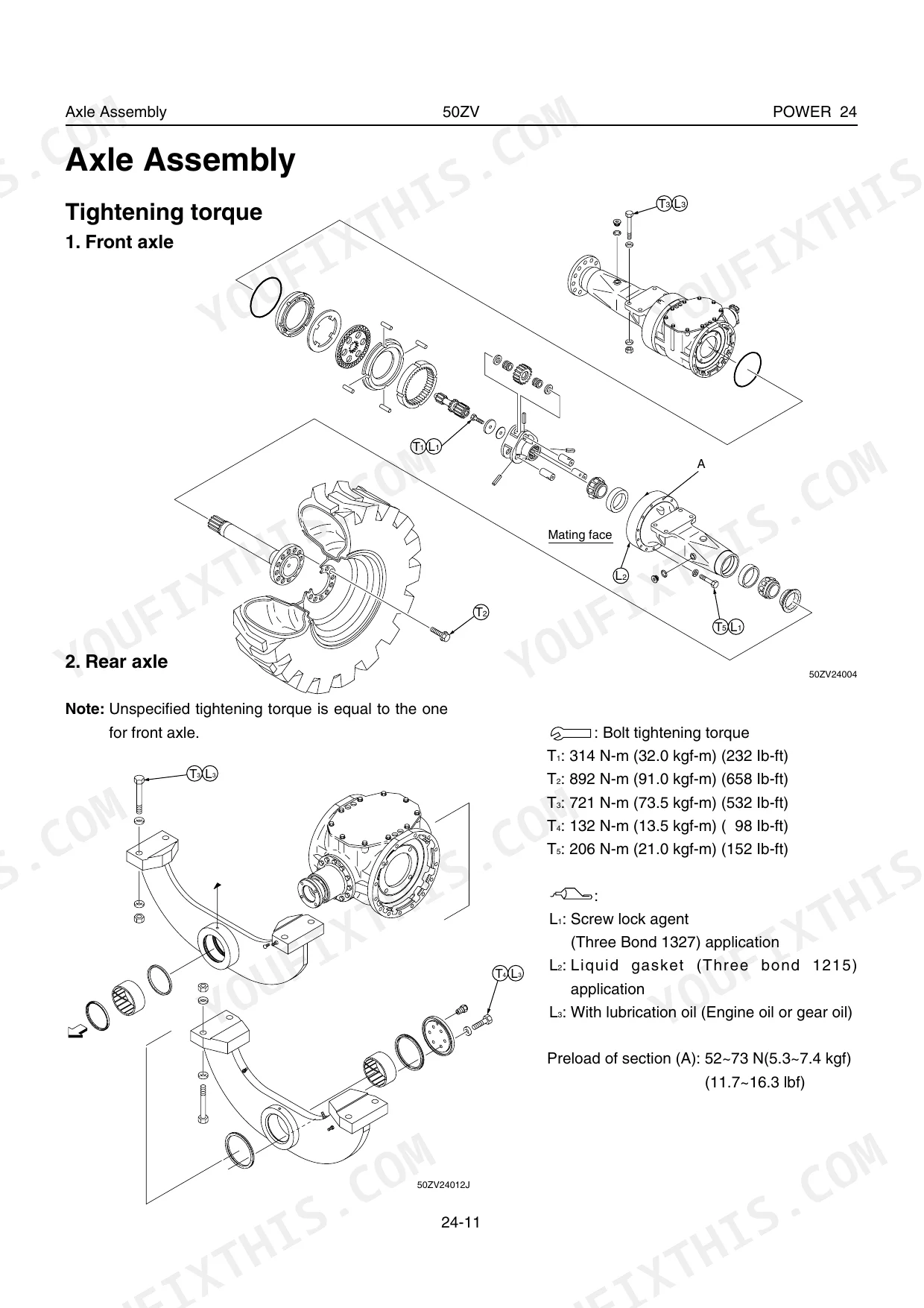

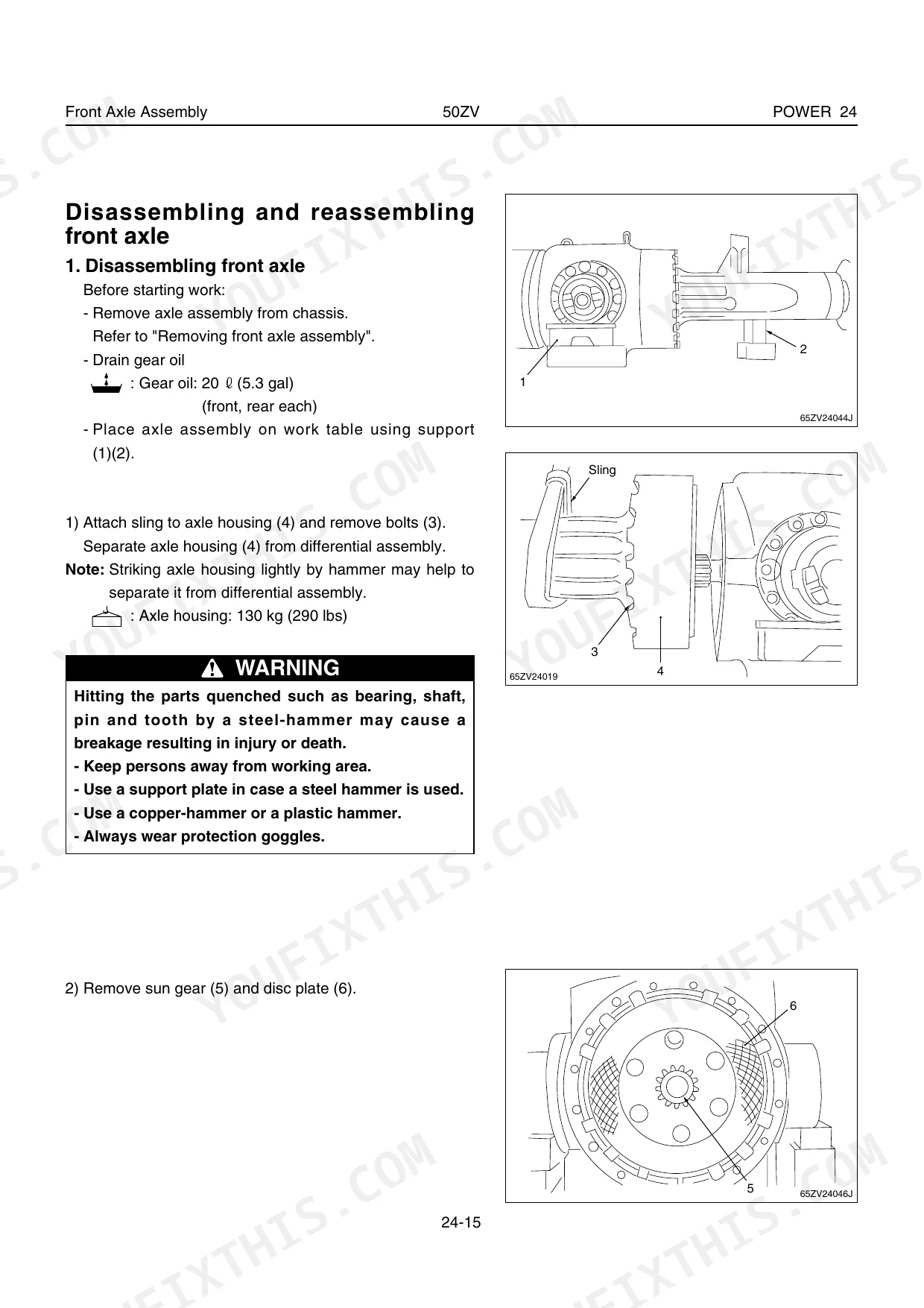

| System | Pages | Key Topics |
|---|---|---|
| Chassis Group | 17-32 | Fuel Tank, Engine Room, Floor Board, Boom |
| Power Group | 33-82 | Power Line, Radiator, Engine, Propeller Shaft, Front Axle Assembly, Rear Axle Assembly |
| Torque Converter & Transmission Group | 83-106 | Torque Converter and Transmission Assembly, Torque Converter Assembly, Transmission Assembly |
| Hydraulic Group | 107-154 | Hydraulic Pump Assembly, Hydraulic Cylinder, Multiple Control Valve, Orbitrol |
| Brake Group | 155-170 | Hydraulic Servo Master, Parking Brake |
| Operator Station Group | 171-186 | Disassembly & Reassembly, Service Standard |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Battery Weight | 35 kg/pc (80 lb/pc) | p. 13 |
| Radiator drain coolant capacity | 8 L (2.1 gal) | p. 36 |
| Radiator plate bolt torque | 94 N-m (9.55 kgf-m) (69 lb-ft) | p. 36 |
| Transmission oil | 20 L (5.3 gal) | p. 85 |
| Head bolt of magnetic clutch | 18 (1.8) N-m (kgf-m) | p. 178 |
| Fixing bolt of blower motor and condenser motor | 4 (0.4) N-m (kgf-m) | p. 178 |
| Fuel tank capacity | 131 L | p. 18 |
| Fuel tank weight | 80 kg | p. 18 |

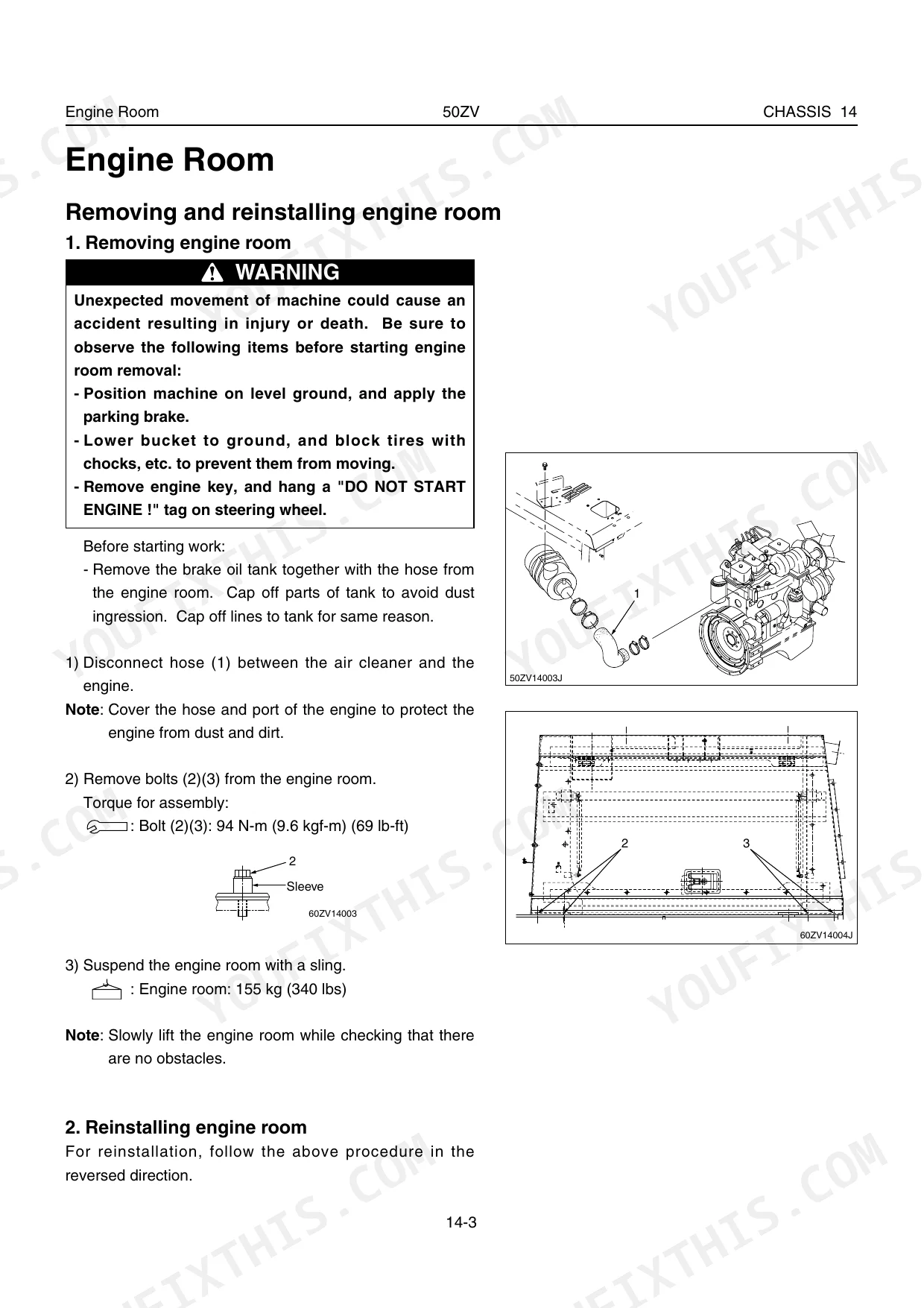

| Engine room weight | 155 kg | p. 19 |
| Bucket weight | 435 kg | p. 22 |
| Boom weight | 490 kg | p. 24 |
| Radiator coolant capacity | 8 L | p. 36 |
Kawasaki 50ZV Common Problems This Manual Covers
Kawasaki 50ZV radiator removal and reinstallation, coolant drain amount and plate bolt torque needed
Drain the coolant before you break any hose loose; expect about 8 L (2.1 gal) per page 36. Disconnect the hoses, lift out the 40 kg radiator, and torque the plate and retainer bolts to 94 N-m (69 lb-ft) on reinstall. Catch the 0.5 L of oil that drains from the transmission cooler hose, noted on page 37.
Manual Section: Radiator Removal and Reinstallation p. 36Boom removal sequence with bucket, bucket cylinder and boom cylinders attached, rigging weights unknown
Remove the bucket first (435 kg), then the link connection pin and the pin between the lever and the bucket cylinder, following page 22. The bucket cylinder stays on the machine: lift it on the rod side and temporarily turn it up from the cab hoisting point, keeping the cylinder angle at 90 degrees or less (page 23). Sling and remove the lever pin (lever 120 kg), raise the boom horizontal onto a stand, then pull the pins from the boom cylinder rods on both sides. The boom itself weighs 490 kg (page 24), so keep persons away from the working area.

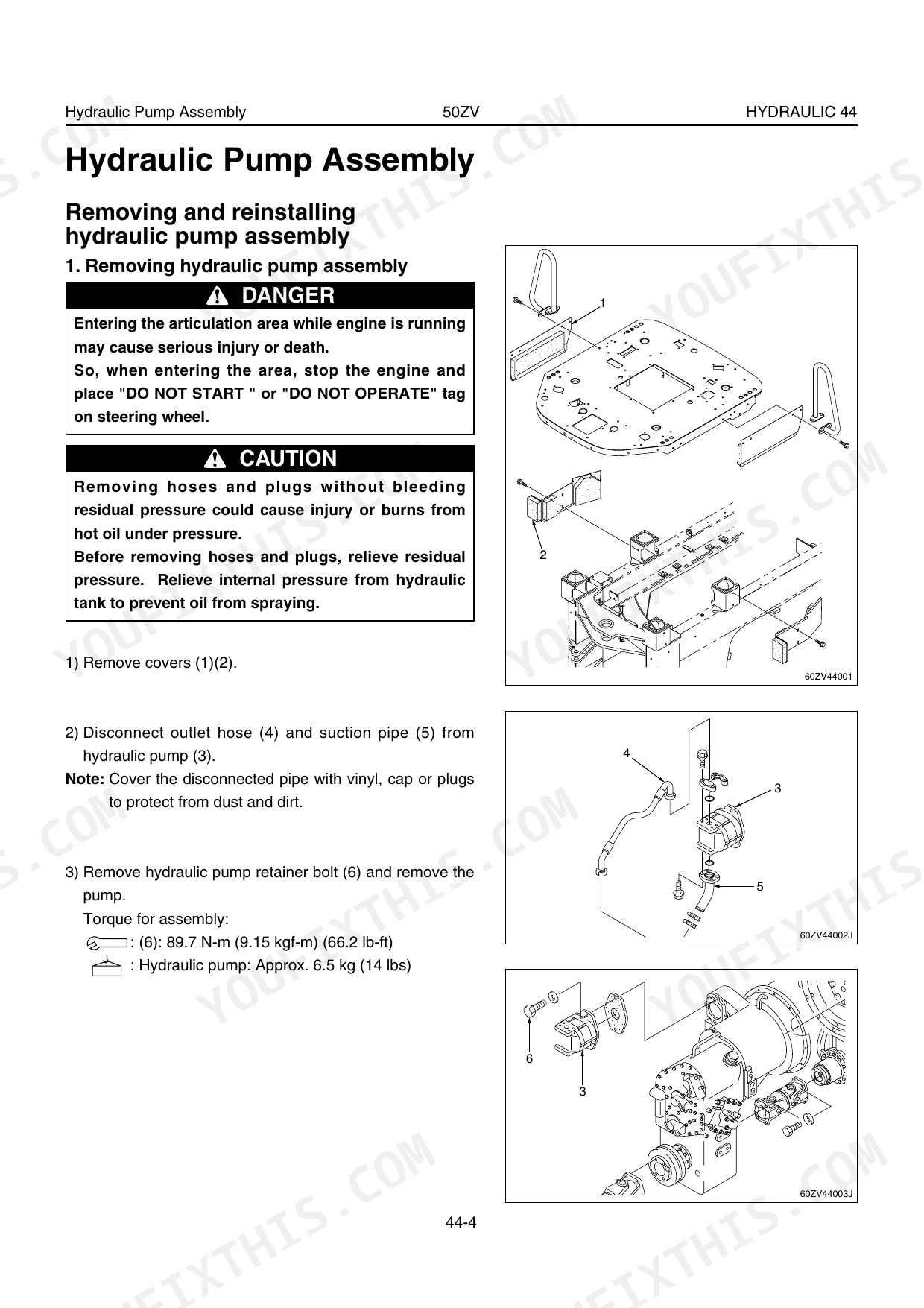

Manual Section: Boom Removal and Reinstallation p. 22Hydraulic pump assembly removal, covers, hoses and suction pipe must come off first
Remove the covers to get access, then disconnect the hoses and the suction pipe before you unbolt the pump assembly, following page 110. Cap every open hose and the suction pipe as soon as it comes loose so dirt stays out of the hydraulic system. Reverse the sequence on reinstallation and check every hose connection before startup.
Manual Section: Hydraulic Pump Assembly Removal and Reinstallation p. 110Boom, bucket or steering cylinder must come off the machine, removal and reinstallation sequence unclear
Each cylinder has its own sequence: boom cylinder from page 114, bucket cylinder from page 116, steering cylinder from page 119. Relieve the pressure in the loading line and the hydraulic tank first, and for boom cylinder work support the horizontal boom on a stand. Sling every cylinder before its pin comes out: the boom cylinder weighs 55 kg, the bucket cylinder 45 kg and the steering cylinder 15 kg.

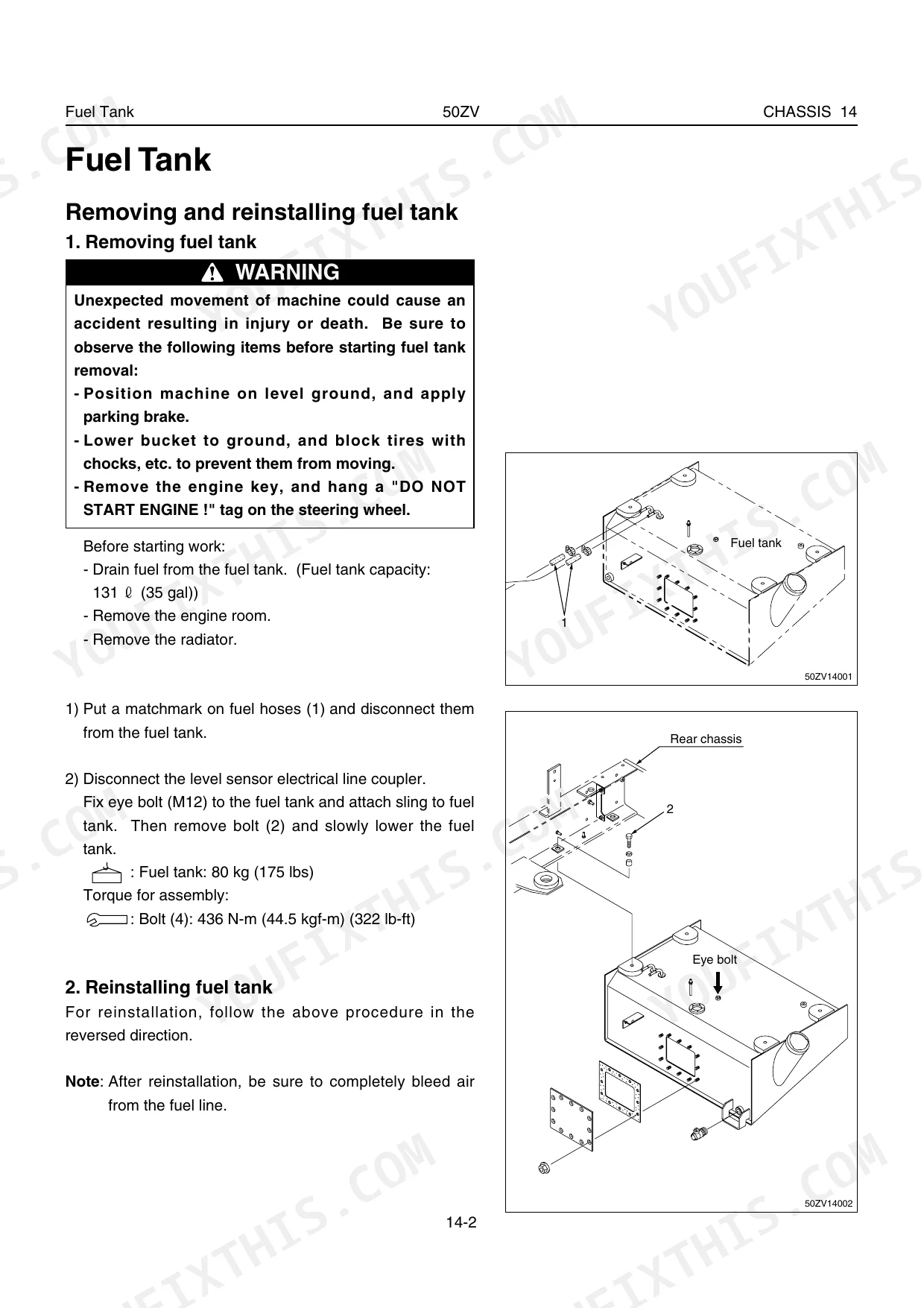

Manual Section: Hydraulic Cylinder Removal and Reinstallation p. 114Fuel tank removal for access, drain volume and empty tank weight unknown
Drain the fuel tank completely before you disconnect the hoses. Capacity is 131 L, so stage enough clean containers before you start, per page 18. Disconnect and label the fuel hoses, then remove the tank. It still weighs 80 kg empty, so rig it with a hoist instead of trying to muscle it off the frame.
Manual Section: Fuel Tank Removal and Reinstallation p. 18Multiple control valve removal, cables and hoses must be disconnected before the valve comes out
Put matchmarks on the control cables and disconnect them, then disconnect the pump port and tank port hoses and the bucket and boom cylinder hoses from the multiple control valve, following page 130. Cover the disconnected hoses with vinyl, plugs or caps to keep dust and dirt out, then remove the valve and reinstall it in the reverse order.
Manual Section: Multiple Control Valve Removal and Reinstallation p. 130Frequently Asked Questions

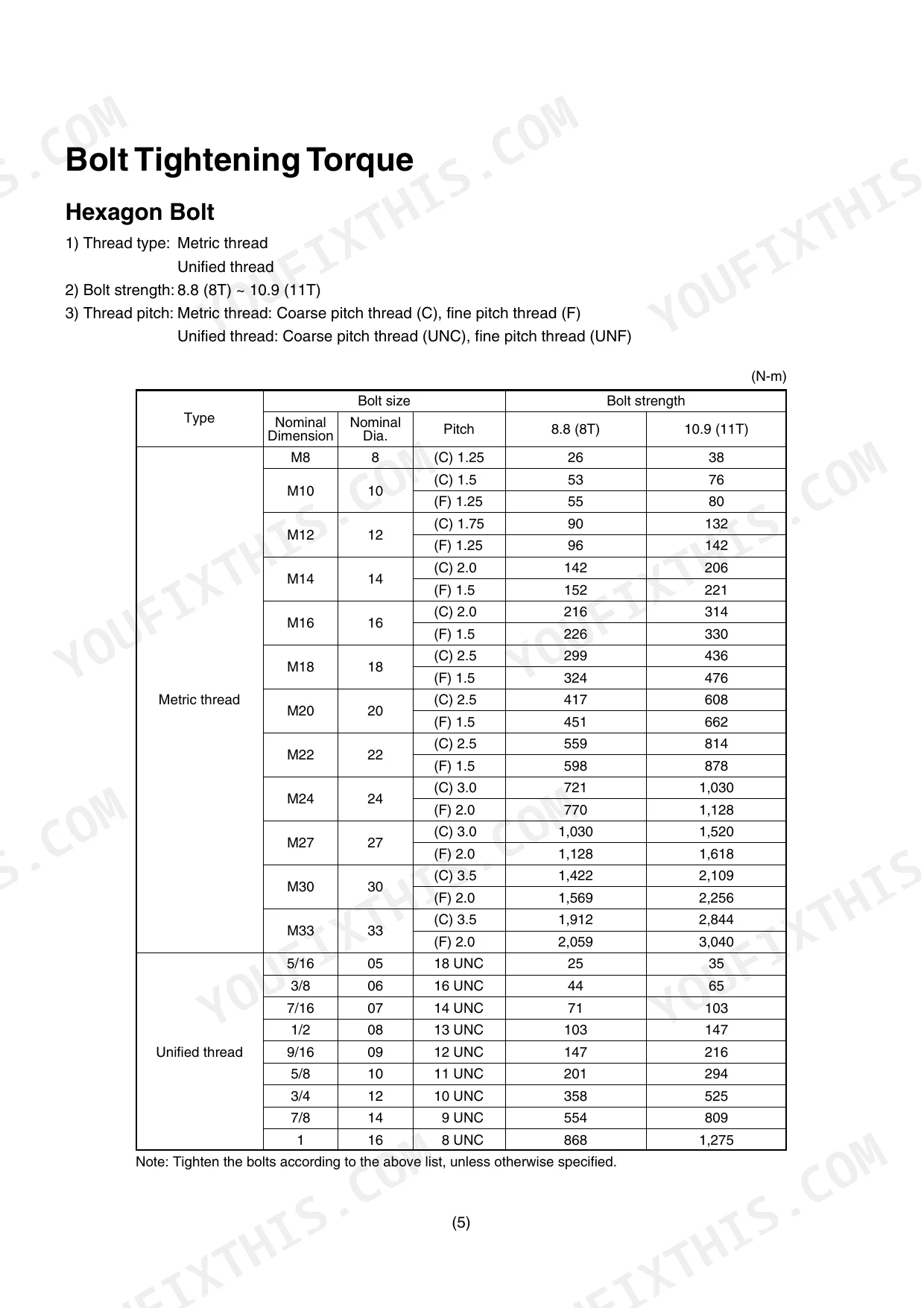

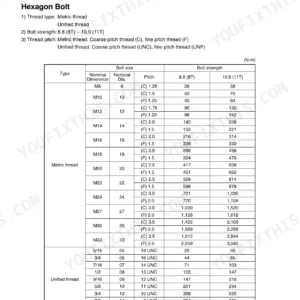

What are the torque specifications for the hexagon bolts used on the Kawasaki 50ZV?

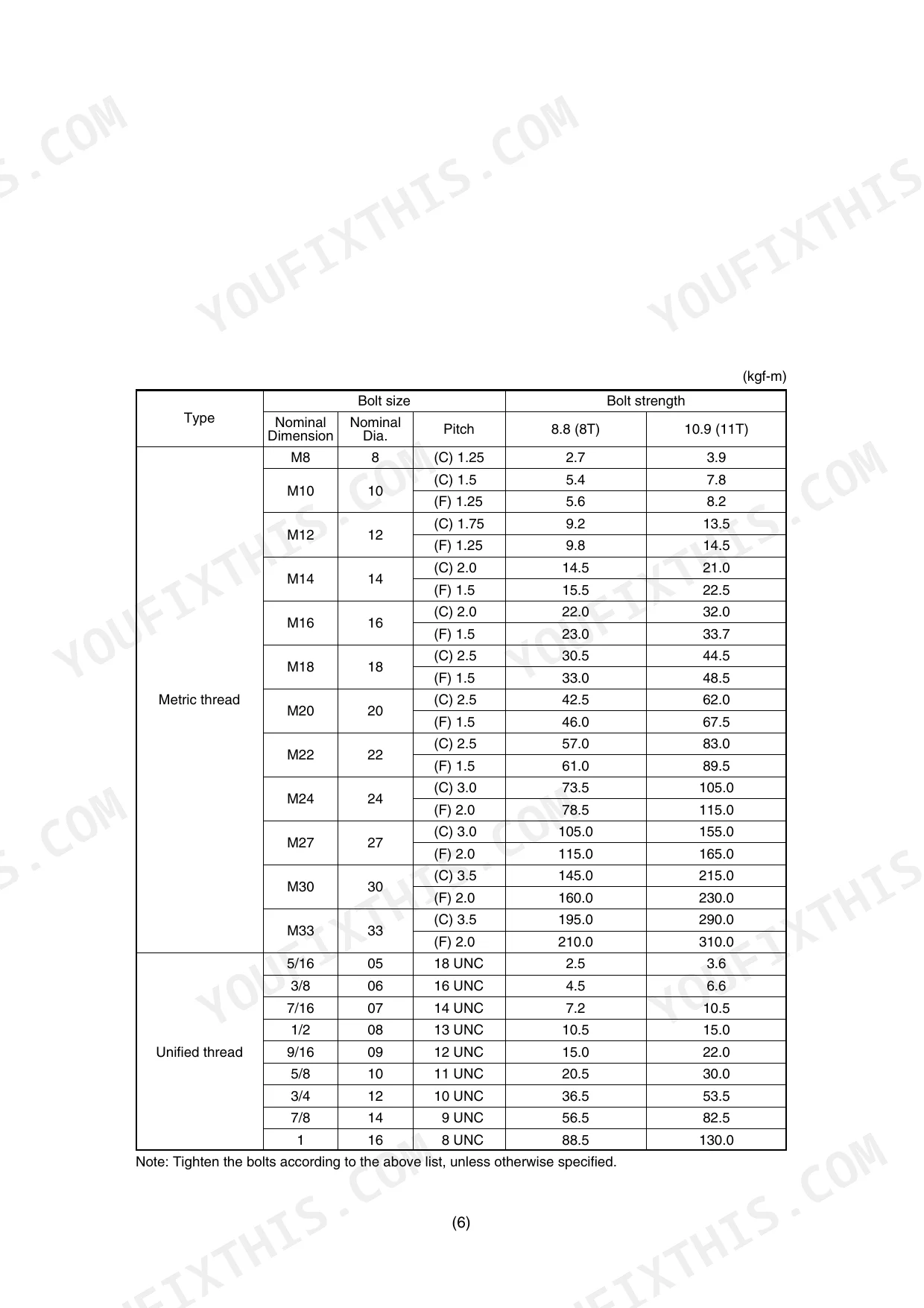

The manual provides extensive torque tables for hexagon bolts. For example, a metric M8 bolt with 8.8 strength has a torque of 26 N-m, while an M33 bolt with 10.9 strength requires 3,040 N-m. Unified thread bolts are also listed, such as a 1/2 inch bolt with 8.8 strength requiring 103 N-m. p. 5
What is the procedure for bleeding air from the hydraulic cylinder after repair?
After repairing or replacing a cylinder, operate the engine at low-idling speed and actuate the cylinder piston for 4 to 5 strokes, stopping 100 mm before full stroke. Then, stroke the cylinder piston fully to both ends 4 to 5 times. Finally, add hydraulic oil to the tank and check for leaks. p. 115
What is the required tightening torque for the fuel tank mounting bolts on the Kawasaki 50ZV?
The fuel tank mounting bolts must be tightened to a torque of 436 N-m (44.5 kgf-m) (322 lb-ft). p. 18
How do I adjust the backlash for the differential assembly?
To adjust the backlash, remove the lock plate, tighten the adjusting nut on the ring gear side until backlash is zero, then loosen by 2 to 3 notches. Tighten the opposite adjusting nut until a touch is felt, then tighten one more notch. The standard backlash value is 0.20 to 0.28 mm. p. 69
What is the capacity of the fuel tank on the Kawasaki 50ZV?
The fuel tank capacity is 131 liters (35 gallons). p. 18
How is this Kawasaki 50ZV Shop Manual delivered?
Instant PDF download. You get the full 186-page searchable Shop Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print a copy of this Kawasaki 50ZV Shop Manual for the shop?
Yes. Print the pages or sections you need for your own shop use. Any standard printer works.
