The KCM 62Z7, 67Z7, 67TM7 operator manual PDF puts all three wheel loaders on a factory maintenance schedule. Its 401 pages, under OEM number 93107-00711, run from the cab monitor panel out to the grease points on the lift arms. Maintenance fills close to a third of the book: greasing layouts, fluid and filter intervals, inspection routines, and separate procedures for muddy, rocky, dusty and freezing sites. Your operators get safety labels, daily pre-start checks, trailer loading, quick coupler operation and troubleshooting tables for the engine auxiliaries and hydraulic system, while the specifications list tipping load, bucket capacity and travel speed. Schedule hydraulic oil changes at the 2000, 1500 or 1000 hour interval the chart assigns, and torque a 50 mm ORS fitting to 330 N·m (243 lbf·ft). A loader parked over one missing figure costs you the shift. Bookmarked and text-searchable, this copy rides in the cab, the truck or the shop, wherever your machine is.
What's Inside This KCM 62Z7, 67Z7, 67TM7 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Engine Emission Control Label | 12-13 | California Proposition 65 Warning, Emission Control Label, Cylinder Head Cover |
| Machine Numbers | 14-15 | Machine Serial Number, Hydraulic Components Serial Number, Engine Type, Engine Manufacturing Number |
| Safety | 16-53 | Recognize Safety Information, Understand Signal Words, Follow Safety Instructions, Prepare for Emergencies, Wear Protective Clothing, Protect Against Noise, Inspect Machine |
| Safety Labels | 54-63 | Bucket, Hood, Lift Arm, Cab Inside Right Front Column, Cab Inside Right Rear Column, Cab Inside Left Rear Column |
| Components Name | 64-65 | Cutting Edge, Bucket, Bell Crank, Bucket Cylinder, Front Combination Light, ROPS Cab |
| Getting on/Off the Machine | 66 | Foot Holds, Handrails, Door Handle |
| Operator's Station | 67-179 | Exhaust Filter, Monitor Panel, Auto Air Conditioner |
| Break-In | 180-181 | Warm Up, Engine Start Up, Sudden Starts, Sudden Stops, Load Capacity |

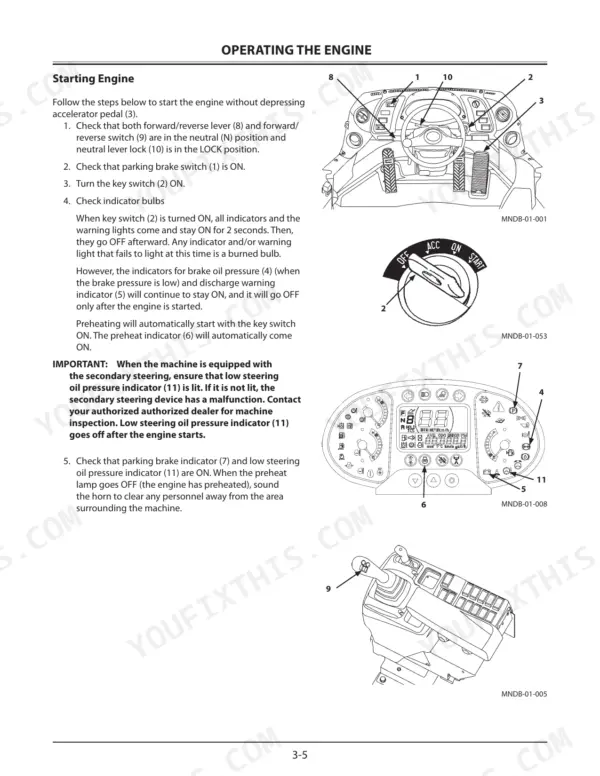

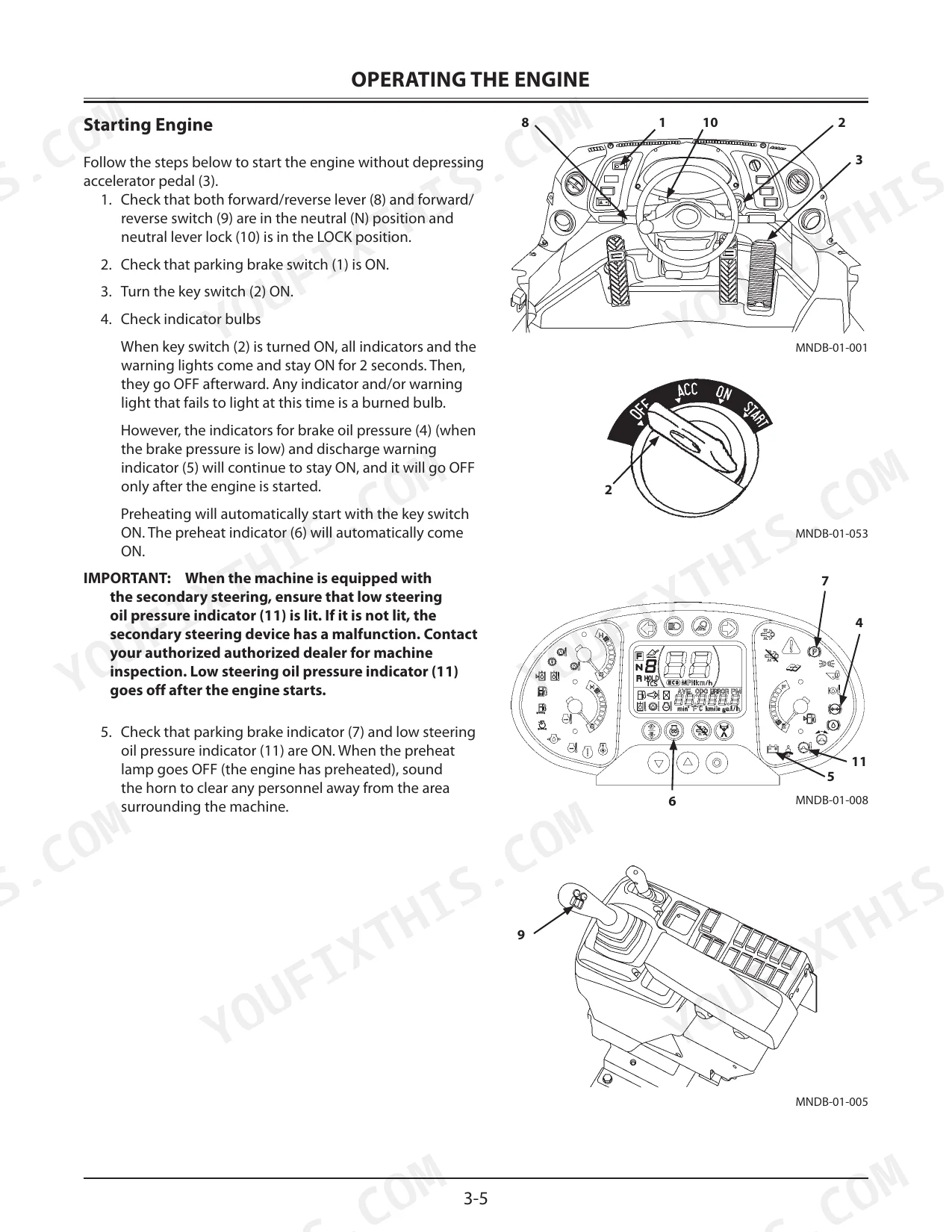

| Operating the Engine | 182-195 | Inspect Machine Daily Before Starting, Starting Engine |
| Moving the Machine | 196-213 | Driving the Machine, Starting to Move |
| Operating the Machine | 214-237 | Control Lever |
| Transporting | 238-249 | Loading / Unloading on Trailer |

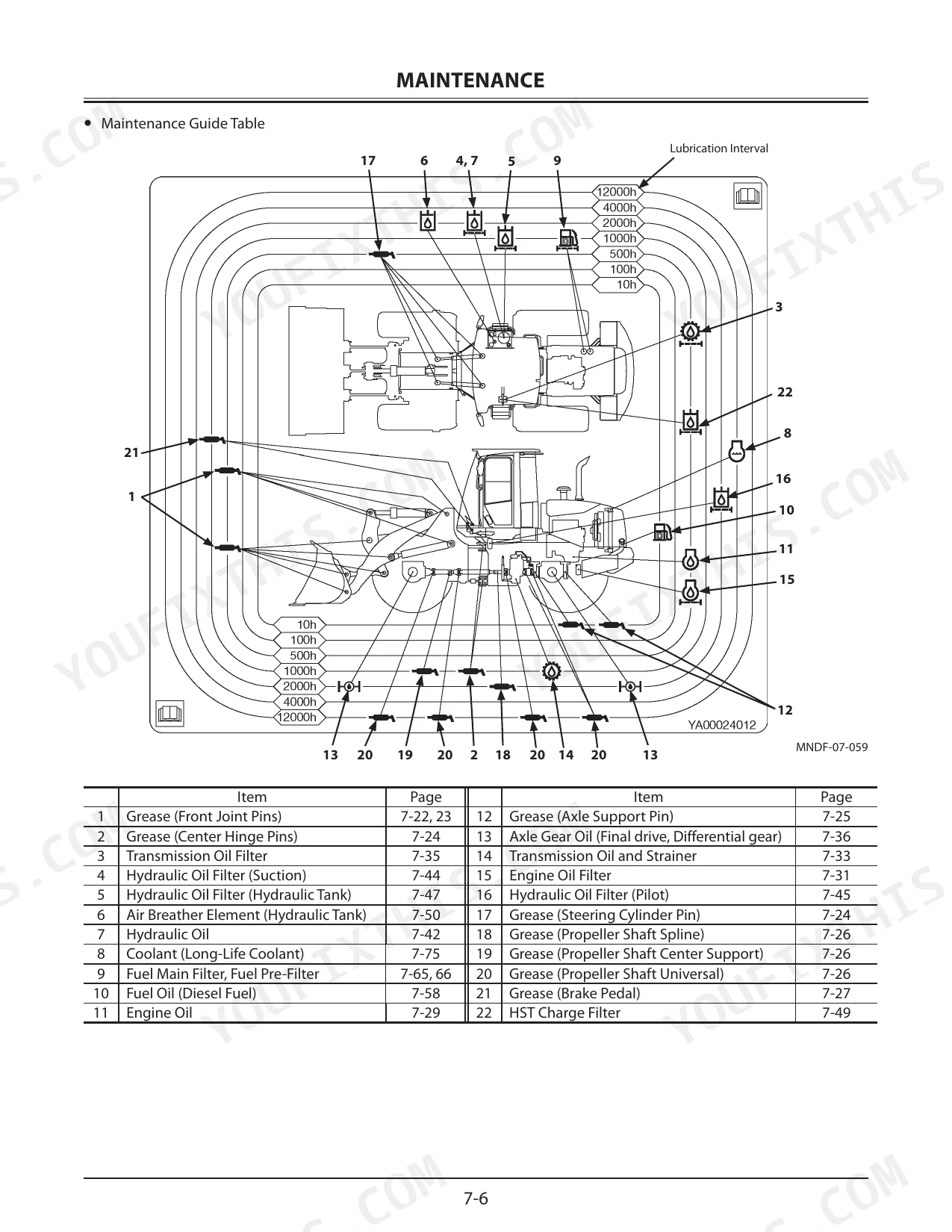

| Maintenance | 250-371 | Correct Maintenance and Inspection Procedures, Layout, Greasing |
| Maintenance Under Special Environmental Conditions | 372-375 | Muddy Soil, Dusty Atmosphere, Rocky Ground, Freezing Weather, Industrial Waste |
| Storage | 376-379 | Wash Machine, Battery Removal, Coolant Check, Rust-Prevention Oil, Periodic Operation |

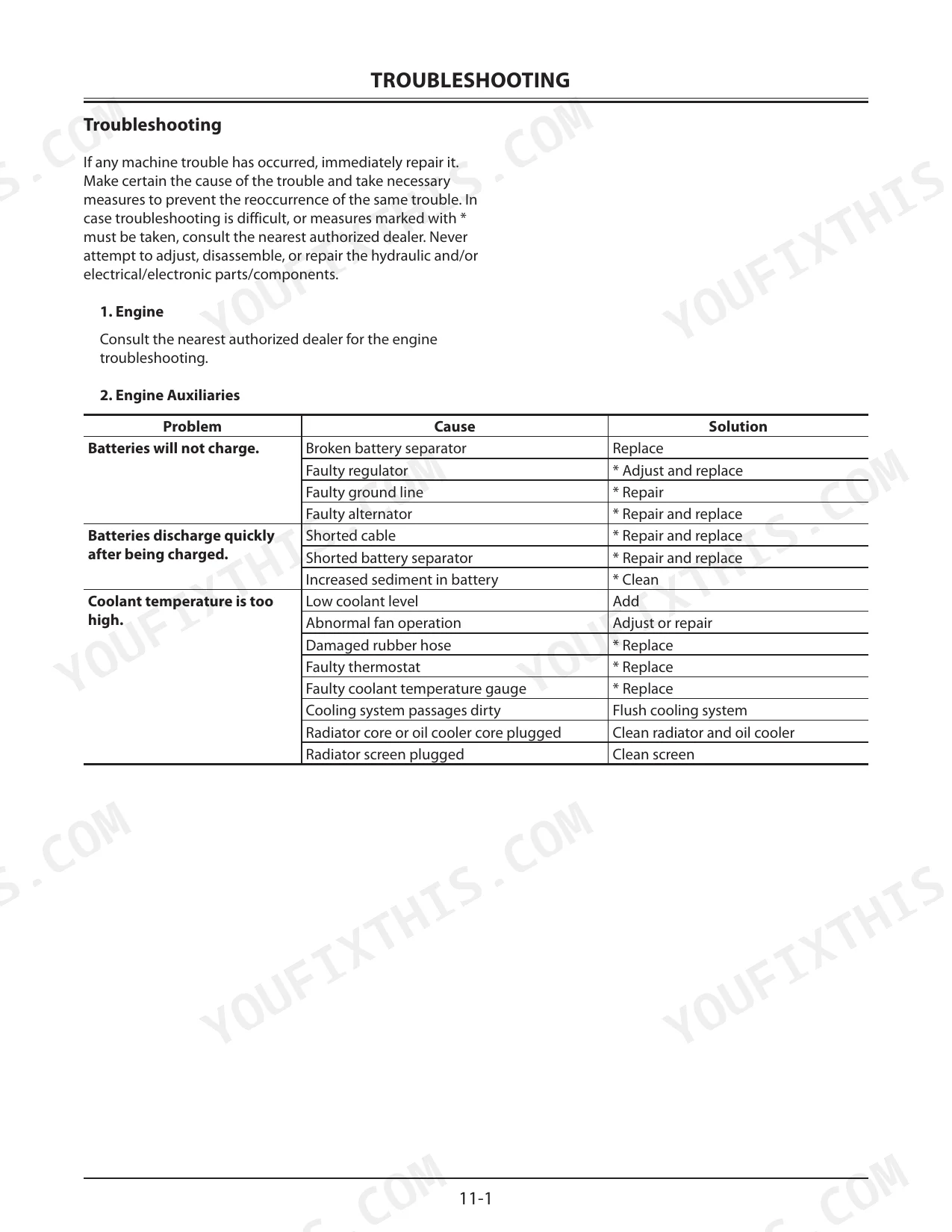

| Troubleshooting | 380-385 | Engine Auxiliaries, Hydraulic System |

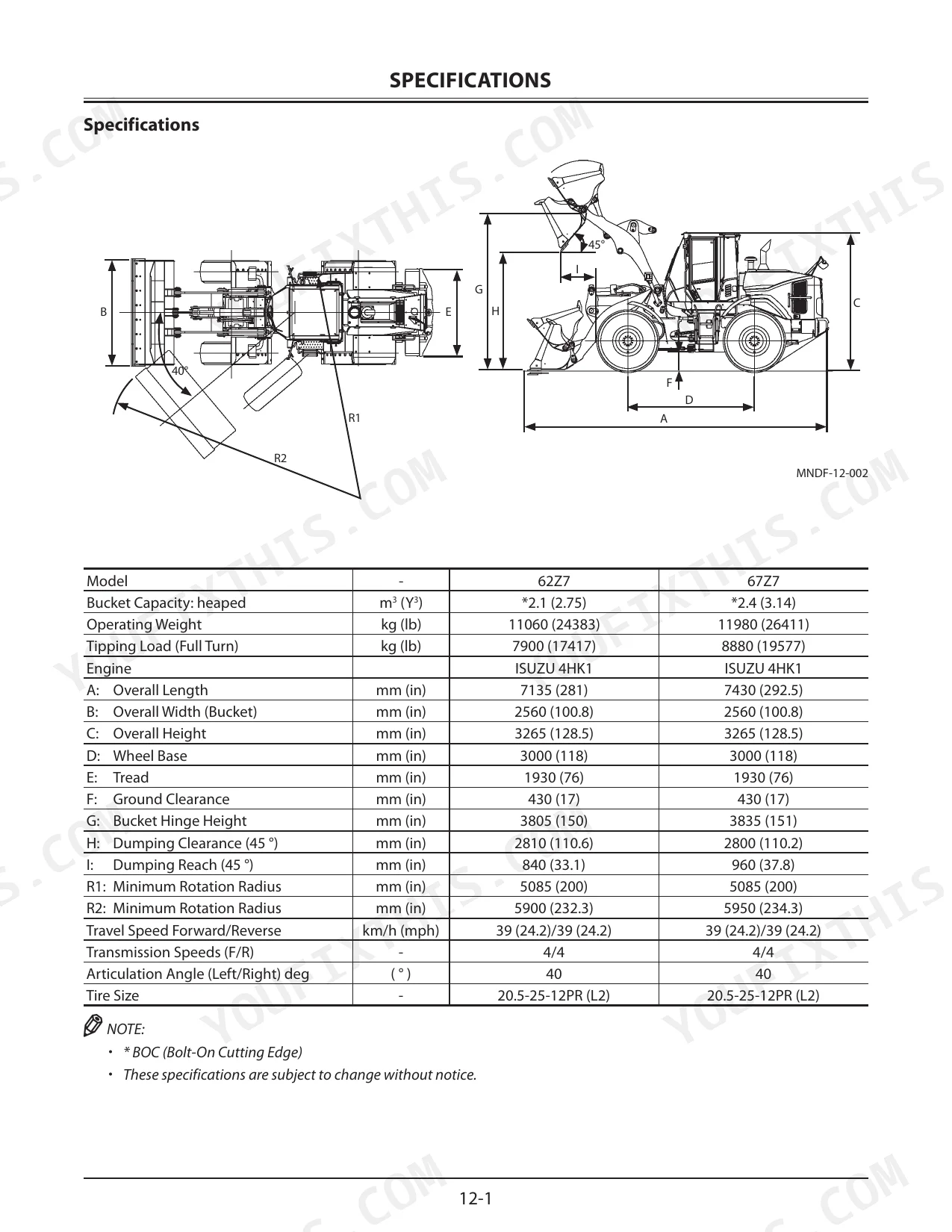

| Specifications | 386-389 | Bucket Capacity, Operating Weight, Tipping Load, Engine, Overall Length, Travel Speed |

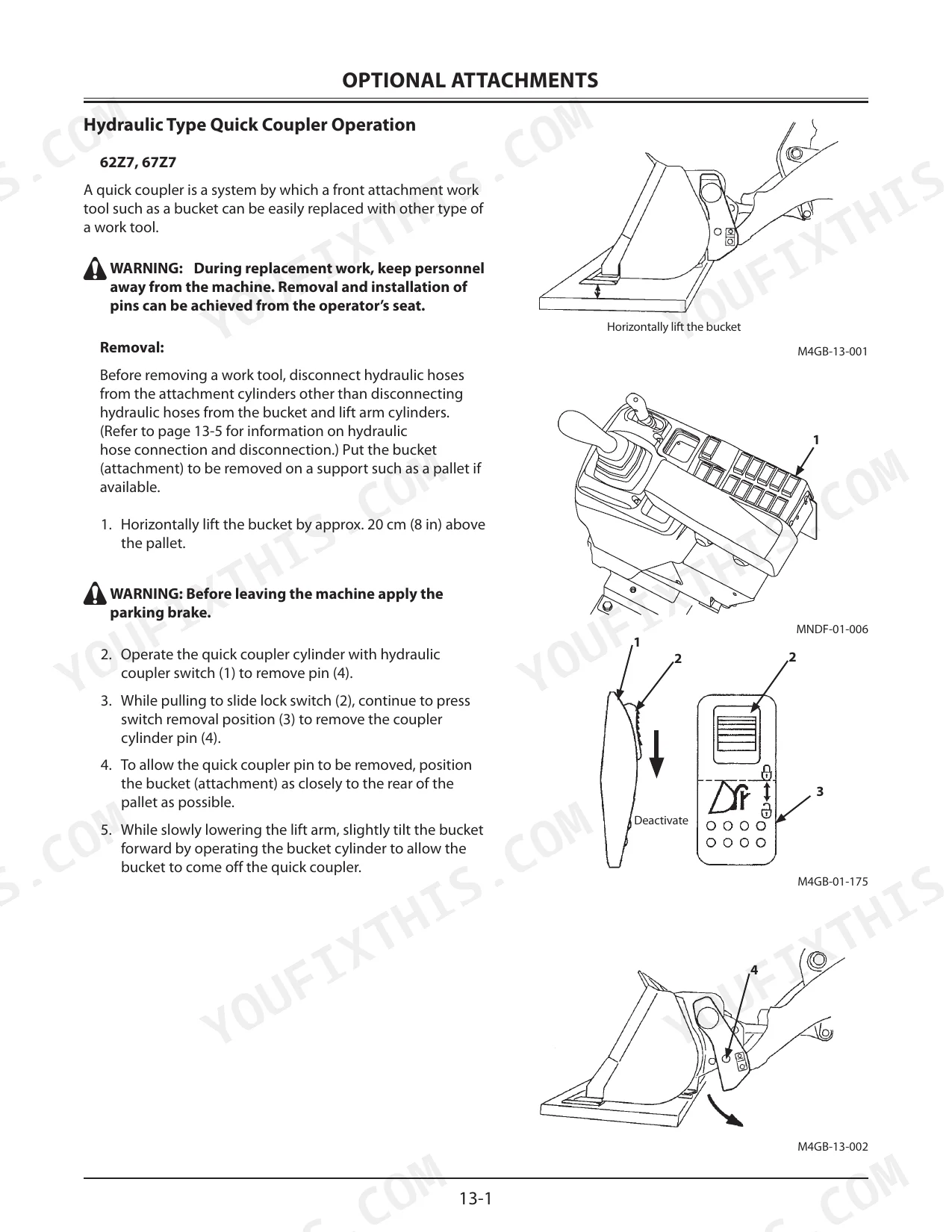

| Optional Attachments | 390-395 | Hydraulic Type Quick Coupler Operation |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Hydraulic Oil Change Interval | 2000.0, 1500.0, or 1000.0 hours | p. 98 |
| Hydraulic Oil Filter 1 Replacement Interval | 1000.0 or 500.0 hours | p. 99 |
| Hydraulic Oil Low Temperature Viscosity | Less than 4000 cSt at -40 °C | p. 270 |
| Hydraulic Oil High Temperature Viscosity | More than 6.5 cSt at +80 °C | p. 270 |
| Flat Face O-ring Seal Fitting (ORS Fitting) Tightening torque | 93 N·m (69 lbf·ft) for 27mm, 132 N·m (101 lbf·ft) for 32mm, 176 N·m (130 lbf·ft) for 36mm, 206 N·m (152 lbf·ft) for 41mm, 330 N·m (243 lbf·ft) for 50mm | p. 305 |
| Metal Face Seal Fittings Tightening torque | 24.5 N·m (18.5 lbf·ft) for 17mm, 29.5 N·m (22 lbf·ft) for 19mm, 39 N·m (29 lbf·ft) for 22mm, 93 N·m (69 lbf·ft) for 27mm, 175 N·m (132.5 lbf·ft) for 36mm | p. 306 |
| Compressed air pressure for cleaning | less than 0.2 MPa (2 kgf/cm², 30 PSI) | p. 320 |
| Transparent filter case tightening torque | 30 ± 2 N·m (3 ± 0.2 kgf·m, 22 ± 1.5 lbf·ft) | p. 315 |
| Water separator transparent filter case tightening torque | 30 ± 2 N·m (3 ± 0.2 kgf·m, 22 ± 1.5 lbf·ft) | p. 318 |
| Wheel rim mounting bolt torque | 890 N·m | p. 360 |
| Front Axle Mounting Bolt Tightening Torque | 785 ± 150 N·m | p. 360 |
| Rear Axle Support Mounting Bolt Tightening Torque (Front) | 550 ± 110 N·m | p. 360 |
KCM 62Z7, 67Z7, 67TM7 Common Problems This Manual Covers
KCM 67Z7 wheel loader loader and travel functions inoperable, with all hydraulic actuators showing no power
Lower the bucket to the ground and stop the engine, then work the Hydraulic System chart in the Troubleshooting section symptom by symptom. Check the hydraulic oil in the tank and confirm it meets the viscosity grade listed on page 270. Verify hydraulic oil filters were replaced on the intervals shown on pages 99 and 101.
Manual Section: Hydraulic SystemHydraulic oil overheats during long loading shifts and the system runs hot while cycling the bucket
Check that the hydraulic oil in the tank is the grade the book calls for: more than 6.5 cSt at +80 °C and less than 4000 cSt at -40 °C, per page 270. Verify the oil change interval on page 98 has not been overrun, then work through the Hydraulic System troubleshooting chart for the oil overheats symptom.
Manual Section: Hydraulic SystemOil leak from low pressure hose on the loader hydraulic system, fresh oil visible under the machine
Lower the bucket to the ground, stop the engine and let the oil cool before touching any line. Inspect the low pressure hose along its length and at both ends to find the leak source. Replace a damaged hose, and tighten any disturbed flat face O-ring seal fittings to the torque on page 305 for their width across flats.
Manual Section: Hydraulic SystemControl lever hard to move, not returning to neutral, or not held by the magnetic detent
Lower the bucket to the ground and stop the engine before checking the lever. Move the control lever through its full travel and note whether it binds, sits tilted in neutral, or drops out of the magnetic detent. Match that symptom to the Control Lever chart on page 381 and correct the listed cause before loading again.
Manual Section: Control Lever p. 381Starter turns but engine does not start, or engine runs low and stalls easily after startup
Work through the Engine does not Start chart on page 381 and match the exact symptom before swapping parts. If the fuel filter or water separator was just serviced, check the transparent filter case for leaks and verify it is tightened to 30 ± 2 N·m (22 ± 1.5 lbf·ft) as shown on page 315.
Manual Section: Engine does not Start p. 381Batteries not charging during operation or discharging quickly between shifts on the loader
Check the Engine Auxiliaries chart on page 380 to separate a charging fault from a battery that simply will not hold. Inspect the batteries and their connections before replacing anything. If the machine will sit parked for a long stretch, remove the batteries and follow the storage steps on page 376.
Manual Section: Engine Auxiliaries p. 380Frequently Asked Questions
What are the torque specifications for the wheel rim mounting bolts on the Kawasaki 67TM7 wheel loader?
The wheel rim mounting bolts for the KCM 67TM7 wheel loader must be tightened to a torque of 890 N·m (91 kgf·m, 655 lbf·ft). p. 360
How do I reset the oil change and filter replacement intervals on the Kawasaki 62Z7?
To reset the oil change or filter replacement intervals, display the change interval hours on the monitor, then press and hold switch (1) for more than 2 seconds. Refer to page 1-35 for the detailed procedure. p. 98
What is the correct procedure for changing the engine oil on the Kawasaki 62Z7?
Change the engine oil every 500 hours. Drain the oil by removing drain plug (3) on the fuel tank side into a 20-liter container, replace the oil filter cartridge (4), and refill with 18 liters (4.8 gallons) of approved engine oil. p. 278
What is the correct drive belt tension for the Kawasaki 62Z7 engine?
The drive belt tension should be checked by depressing the midpoint between the tension pulley and alternator pulley. The deflection must be 8 to 12 mm (0.31 to 0.47 in) with a depression force of approximately 98 N (10 kgf, 22 lbf). p. 323
What is the capacity of the hydraulic oil tank for the Kawasaki 62Z7?
The hydraulic oil tank capacity is 80 liters (21 gallons), with a total system capacity of 105 liters (28 gallons). p. 292
What exactly do I receive with this Kawasaki 62Z7 Operator Manual?
One searchable PDF covering 401 pages, delivered instantly. No disc, no shipping, no waiting on the post.
Can I print specific sections of this Kawasaki 62Z7 Operator Manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
