Which part actually fits a given hydraulic excavator is settled by one source: the 864-page Kobelco SK115SR-1E, SK115SRL-1E parts catalog PDF, factory OEM ID S3YV00005ZE07, which lists both machines exactly as they left the line. Exploded views fill most of the book, with the superstructure taking the largest share and the undercarriage idlers, rollers, slewing ring, boom, arm, pumps, valves and regulators each broken down to numbered callouts. Wiring diagrams and hydraulic schematics let you trace a harness or a remote control line before ordering, and the filter list gathers every element your service kit calls for. Read the relief valve setting as 37.8 MPa at 30 L/min, and order sleeve ZA93S15000 for a 15 mm tube. A swing motor can sit stripped for days over one seal number. The bookmarked, text-searchable file prints cleanly, so the pages you need can go to the bench and soak up hydraulic oil.
What's Inside This Kobelco SK115SR-1E, SK115SRL-1E Parts Manual

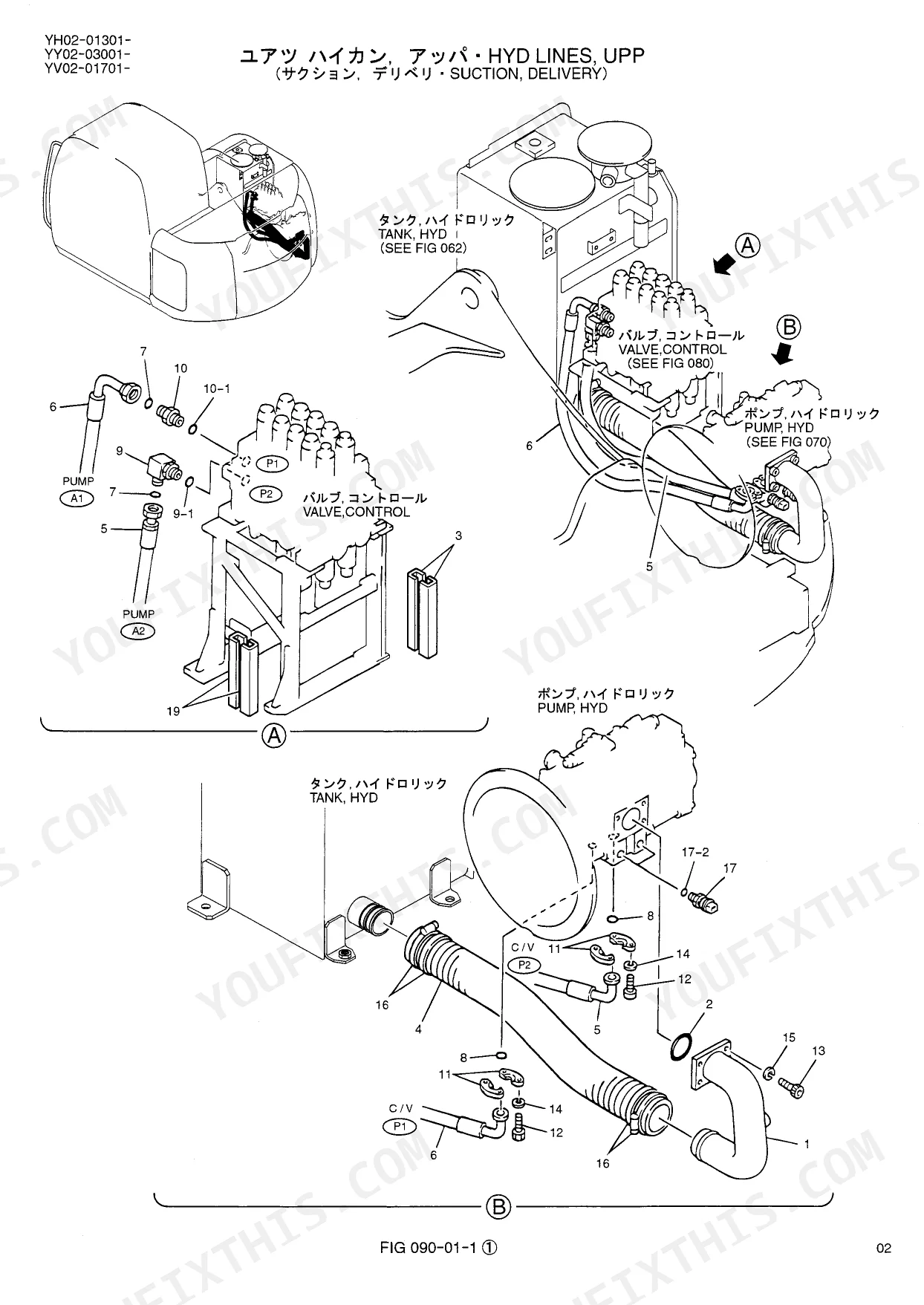

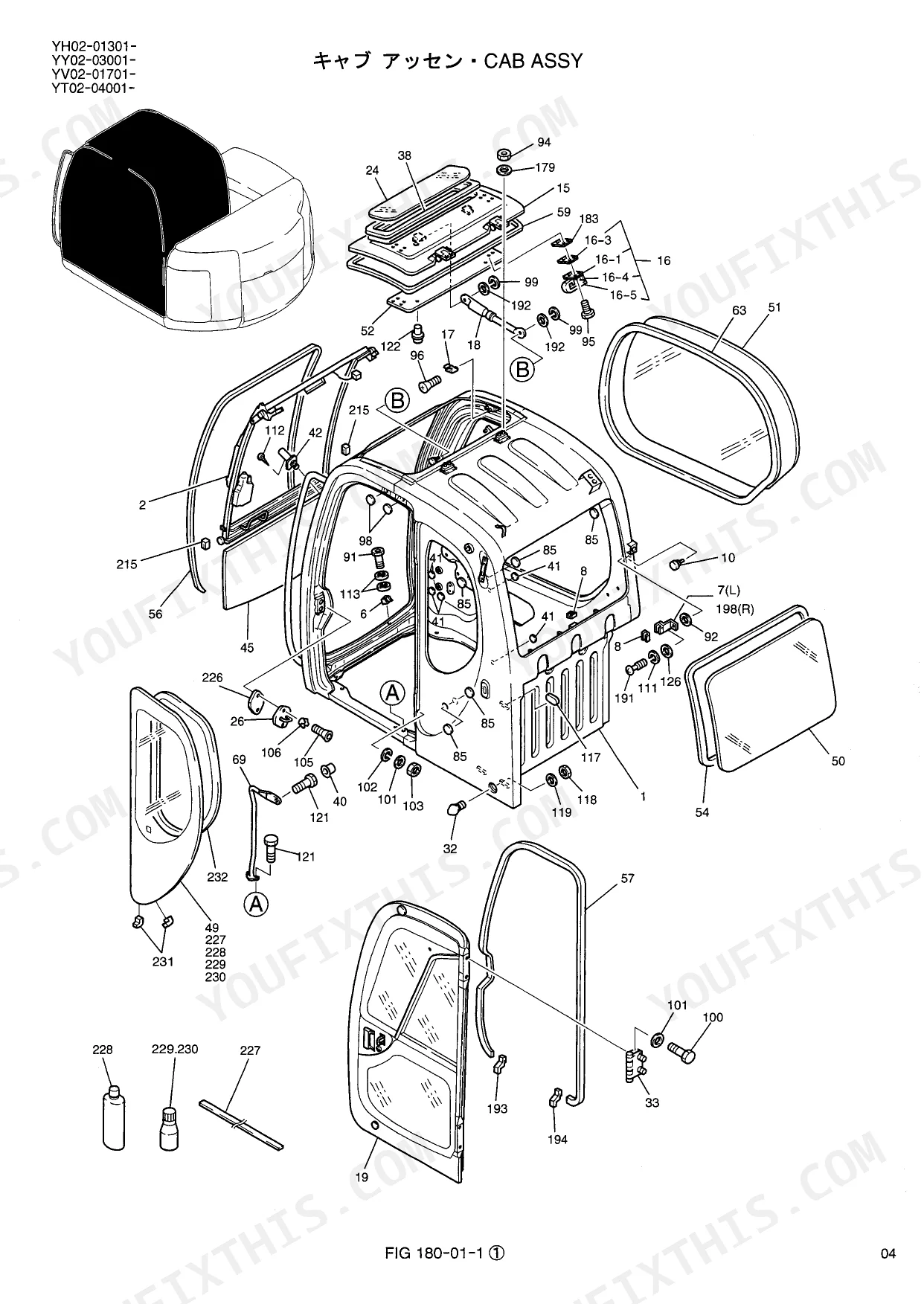

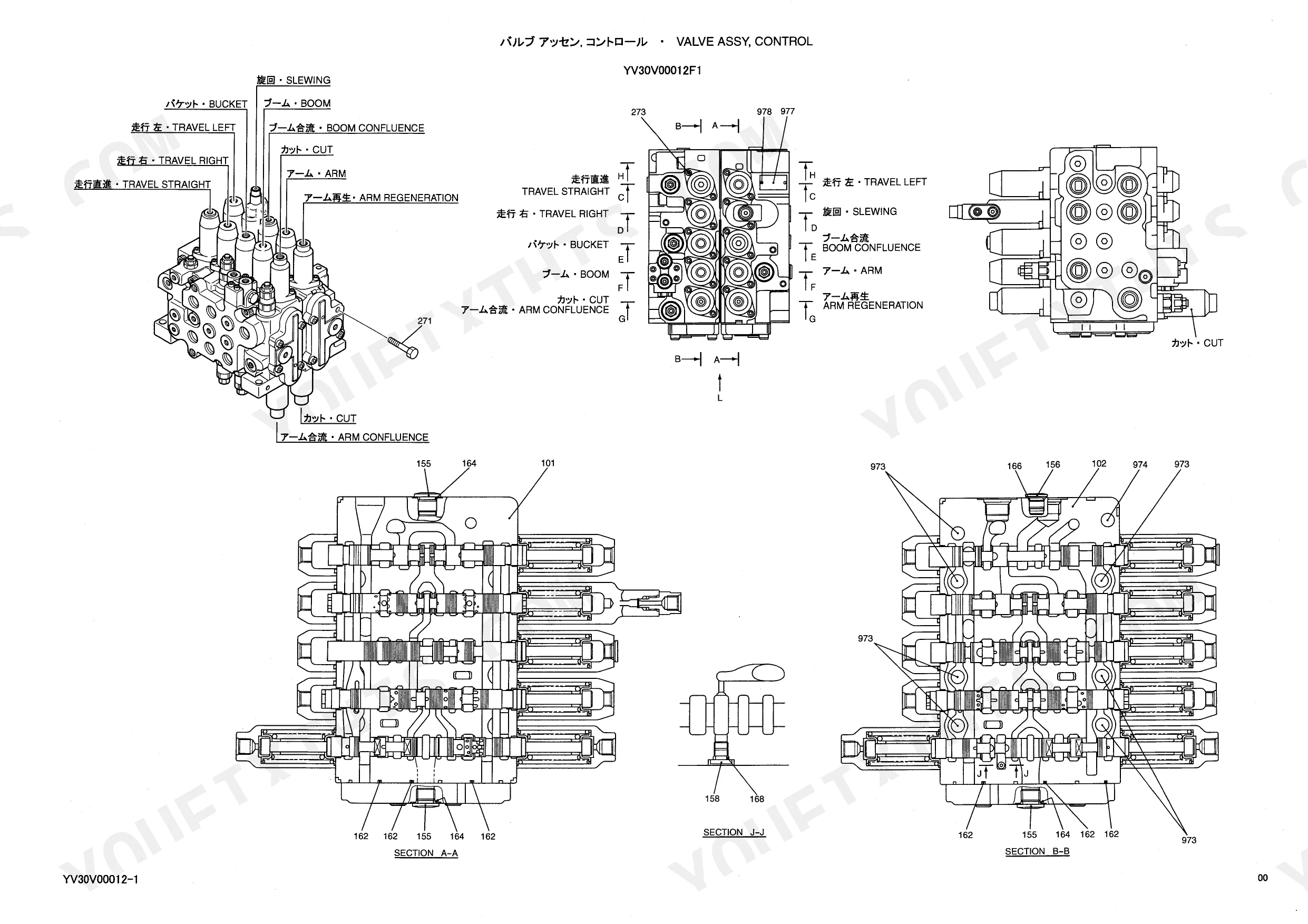

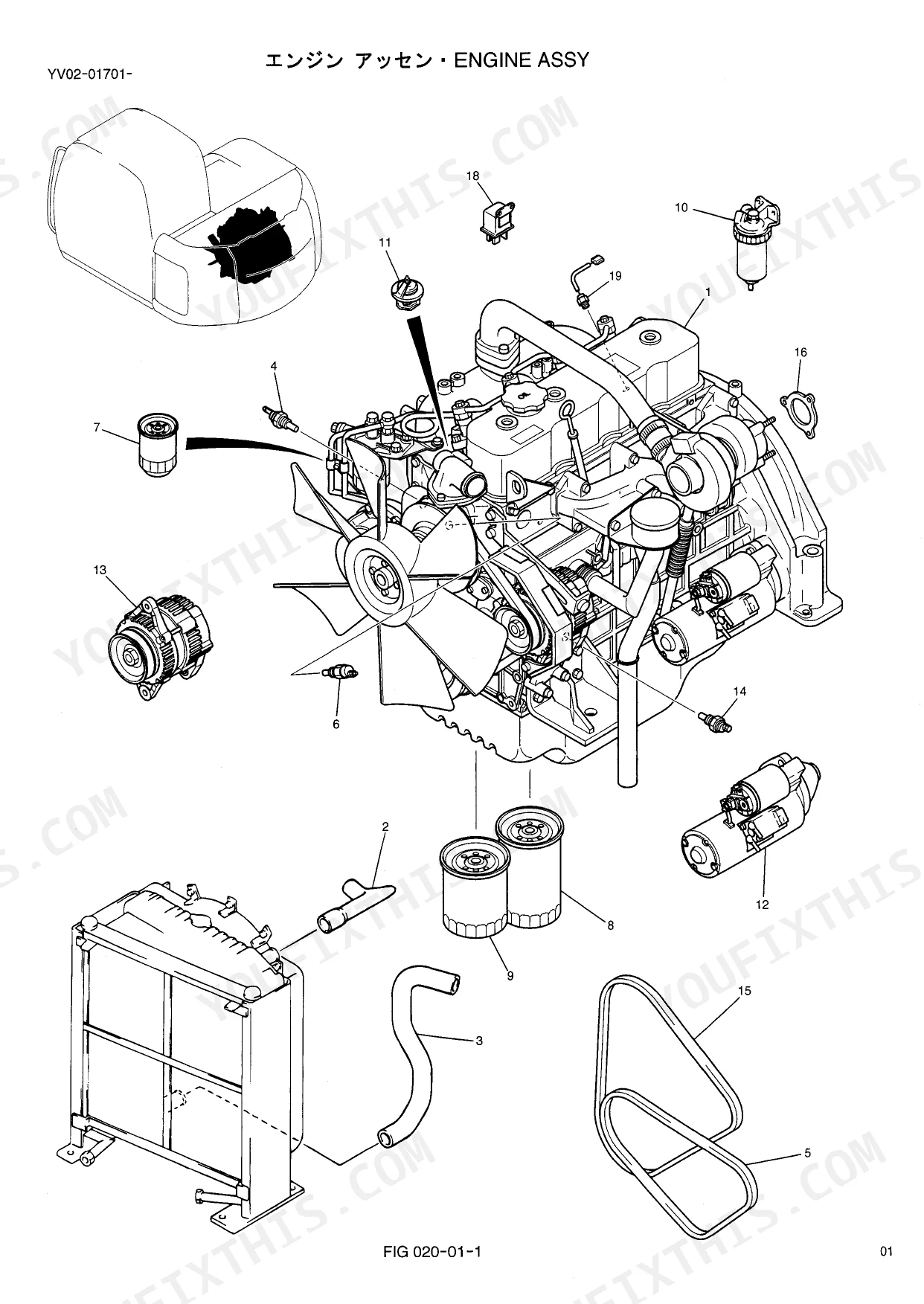

| System | Pages | Key Topics |
|---|---|---|
| Parts Manual | 1-7 | Preface |
| General Drawing | 8 | Bucket Cylinder, Arm Cylinder, Monitor Panel, Hydraulic Tank, Fuel Tank, Swing Motor |
| General Maintenance Items | 25-36 | Filter List, Nut & Sleeve Parts No, Paint Color |
| Superstructure | 37-364 | Frame Assy, Upp, Counterweight Assy, Engine Assy, Engine Instal, Muffler Assy, Radiator Instal, Radiator Assy |
| Undercarriage | 365-422 | Low Group, Idler Assy, Roller Assy, Slewing Ring, Shoe Assy, Rubber Crawler Belt |
| Attachments | 423-454 | Boom Assy, Hydraulic Lines, Bucket Assy, Arm Assy |
| Tools and Spare Parts | 455-542 | Tool and Accessory, Tool Box Assy, Element Kit |
| Name Plate | 543-566 | Instal, Machine Name, Attachments, Cab |
| Hydraulic Components | 605-756 | Valve Assy, Pump Assy, Regulator Assy, Cylinder Assy, Joint Assy, Section Assy |
| Engine Components | 757-864 | Engine Assy, Radiator Assy, Cleaner Assy, Muffler Assy, Pump Assy, Fuel Lines |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Tube Size 10mm Sleeve Part No. | ZA93S10000 | p. 32 |
| Tube Size 15mm Sleeve Part No. | ZA93S15000 | p. 32 |
| Set Pressure F1 | 20.6MPa at 70L/min | p. 620 |
| Set Pressure F1 (Relief Valve) | 37.8MPa at 30L/min | p. 634 |
| Set Pressure F2 | 18.6MPa at 50L/min | p. 620 |
| Set Pressure F2 (Relief Valve) | 39.2MPa at 30L/min | p. 634 |
| Set Pressure F3 | 19.6MPa at 50L/min | p. 620 |
| Set Pressure F3 (Relief Valve) | 22.6MPa at 30L/min | p. 634 |
| Set Pressure F4 | 19.6MPa at 30L/min | p. 620 |
| Set Pressure F4 (Relief Valve) | 30.9MPa at 30L/min | p. 634 |
| Set Pressure F5 | 20.6MPa at 50L/min | p. 620 |
| Set Pressure F5 (Relief Valve) | 31.9MPa at 30L/min | p. 634 |
Kobelco SK115SR-1E, SK115SRL-1E Common Problems This Manual Covers
Kobelco SK115SR-1E hydraulic tube sleeve part number unclear when matching a replacement sleeve to tube size
Measure the tube size first, then match it to the sleeve table on page 32 in General Maintenance Items. A 10mm tube takes ZA93S10000, a 22mm tube takes ZA93S22000, and a 35mm tube takes ZA93S35000. Pull the matching nut from the same nut and sleeve list so both pieces fit the line you are rebuilding.
Manual Section: General Maintenance Items p. 32Filter element part numbers hard to confirm before a scheduled service interval comes due
Check the filter list in General Maintenance Items starting on page 25, then confirm each number against the parts number list on page 27. If you want every element in one order, cross-check the Element Kit listing in Tools and Spare Parts on page 455. Verify the machine name plate before you order.
Manual Section: General Maintenance Items p. 25Relief valve replacement part hard to identify among several set pressure variants
Open the relief valve listing in Hydraulic Components on page 634 and find the exact position you are replacing. Each variant has its own set pressure: F1 is 37.8MPa at 30L/min, F2 is 39.2MPa at 30L/min, and F6 is 29.4MPa at 190L/min. Order by that F code. Do not pick one because it looks the same.

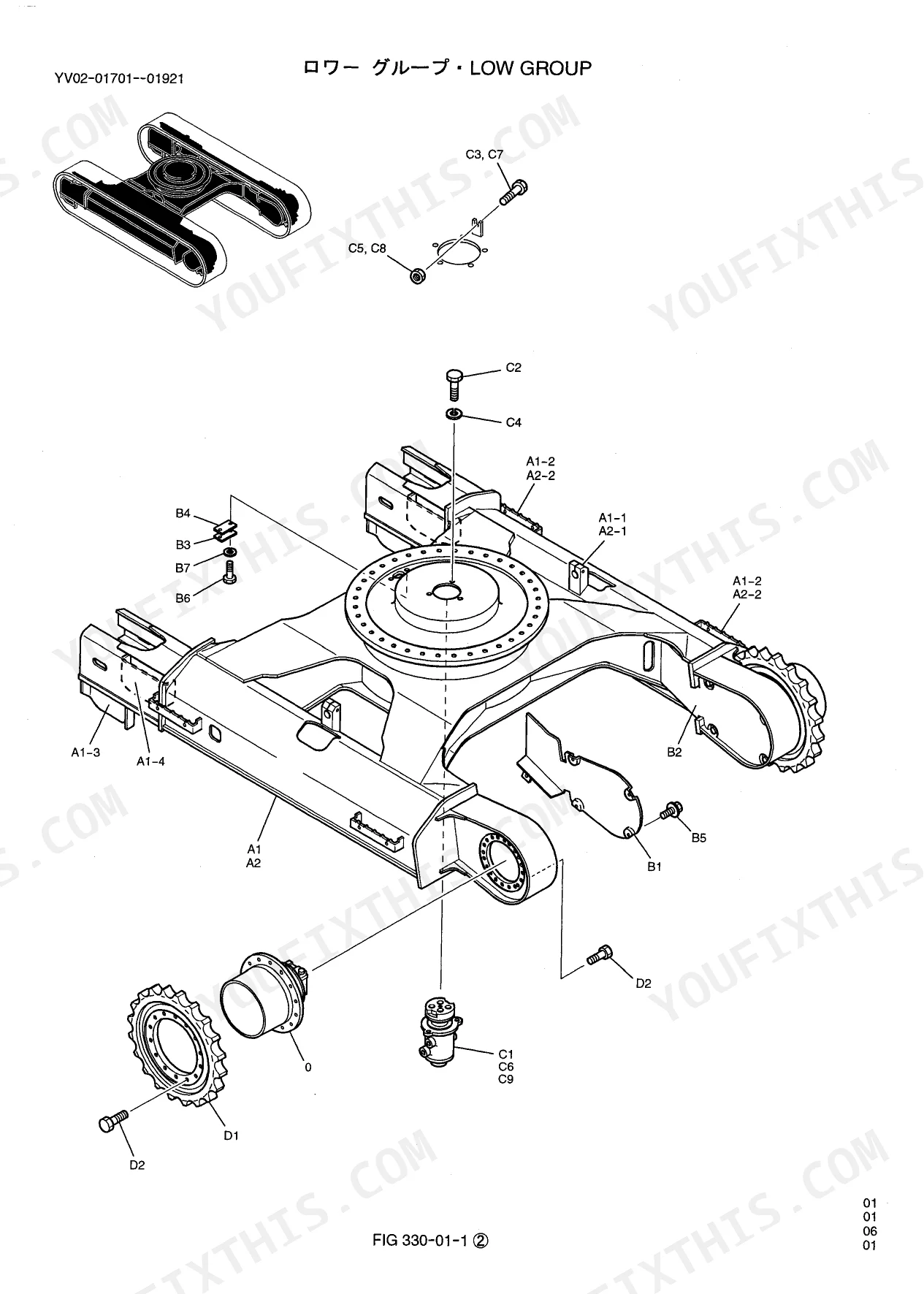

Manual Section: Hydraulic Components p. 634Idler, roller, or rubber crawler belt part numbers unclear for a worn undercarriage
Inspect the chassis parts diagrams starting and locate the idler assy, roller assy, or shoe assy callout on the exploded view. Match that reference number to the parts list beside it. Check the name plate to confirm whether you are on the SK115SR-1E or SK115SRL-1E before ordering, because this book covers both.

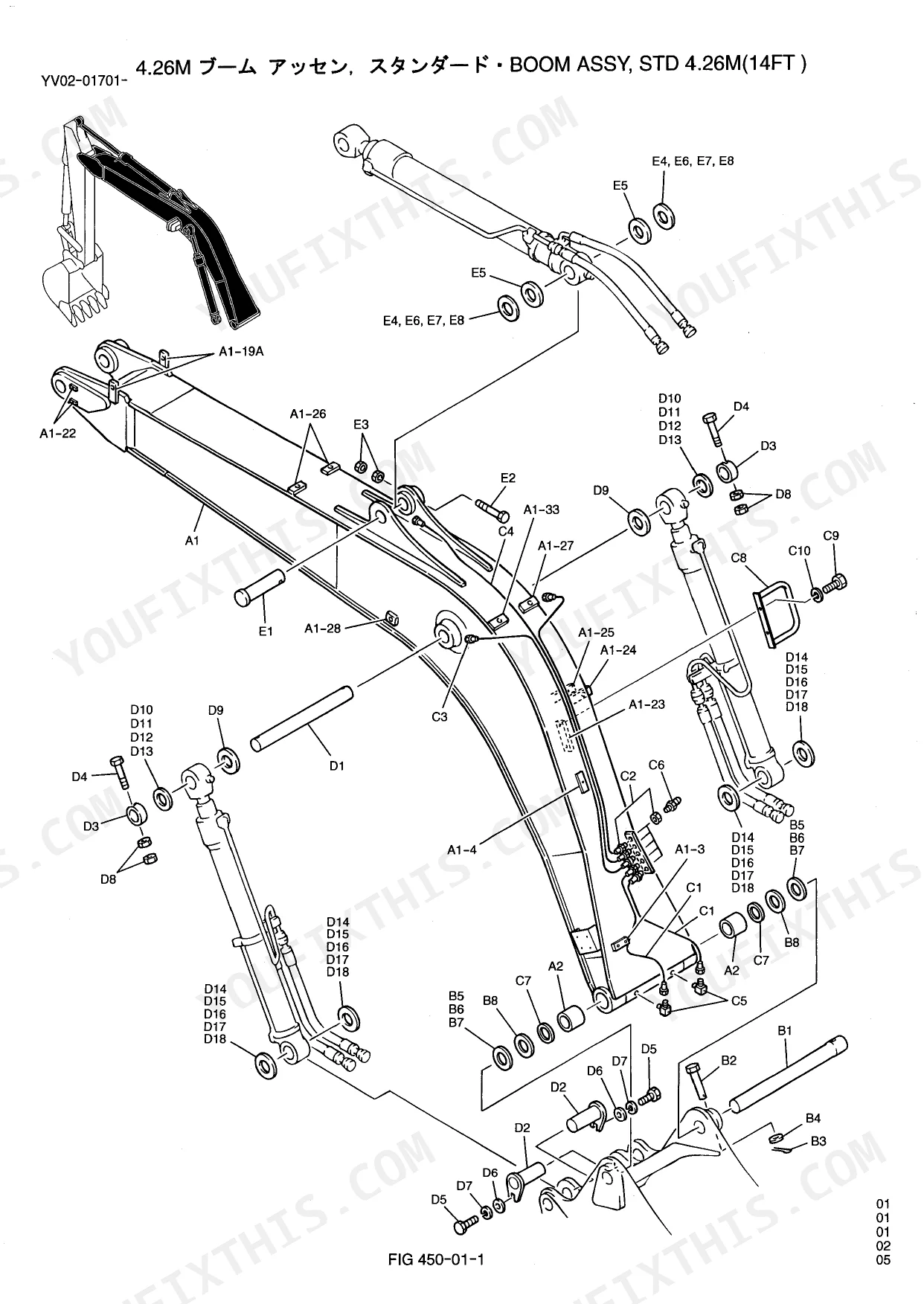

Manual Section: UndercarriageBoom or arm hydraulic line part number hard to find after a burst hose on the attachment
Check the boom and attachment exploded views starting on page 424, then trace the failed line from the boom assy or arm assy callout to its reference number. Read the part number off the matching parts list. If a steel tube is involved, note the tube size and pull the correct sleeve from page 32.
Manual Section: Attachments p. 424Bucket or arm cylinder assembly part breakdown needed for a leaking cylinder
Check the general drawing on page 8 to confirm whether the leak is on the bucket cylinder or arm cylinder. Then go to the cylinder assy breakdowns in Hydraulic Components, which start on page 605. Match each callout on the exploded view to the parts list and record the numbers before you order.
Manual Section: Hydraulic Components p. 605Frequently Asked Questions

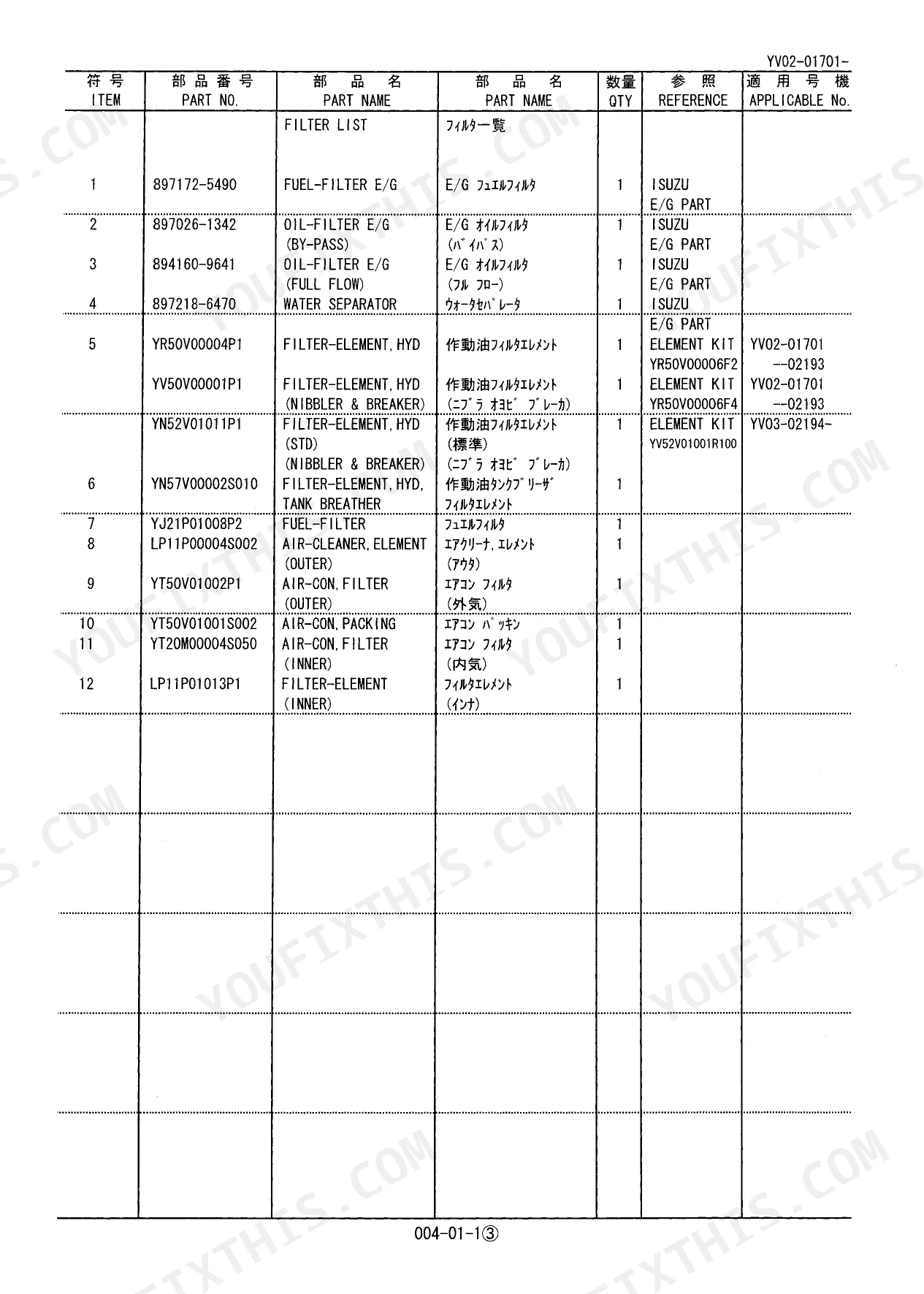

What are the engine oil, fuel, and air filter part numbers for the Kobelco SK115SR-1E/SK115SRL-1E?
For the engine, use part number 897172-5490 for the fuel filter, 897026-1342 for the oil filter (by-pass), and 894160-9641 for the oil filter (full flow). For the air cleaner, use part number LP11P00004S002 for the outer element and YT20M00004S050 for the inner filter element. p. 27
What is the mixing ratio for polyurethane paint coatings on the Kobelco SK115SR-1E/SK115SRL-1E?
Polyurethane coatings require a specialized curing agent. For SR3000, the ratio is 5:1 by weight. For RETHANE PG80, the ratio is 10:1 by weight, and for NAX MIGHTY LAC G-II, the ratio is 4:1 by weight. p. 36
What is the set pressure for the main relief valve on the SK115SR-1E?
The main relief valve on the Kobelco SK115SR-1E/SK115SRL-1E is set to 32.4 MPa at 60 L/min. p. 699
Which capscrews fasten the track motor sprocket on the Kobelco SK115SR-1E/SK115SRL-1E?
The capscrew part number LP53D01001P1 is listed with a total quantity of 70: 30 for the sprocket installation and 40 for the propel motor installation. p. 378
What is the set pressure for the port relief valve on the SK115SR-1E?
The set pressure for the port relief valve varies by configuration. For F1, it is 37.8 MPa at 30 L/min, and for F2, it is 39.2 MPa at 30 L/min. p. 634
Is this Kobelco SK115SR-1E manual a download or a disc?
You get a 864-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print just the pages I need from this Kobelco SK115SR-1E manual?
Yes. Print a chapter or just the pages for the job at hand, for use in your own shop. Any home or office printer works.
