Need the factory operating guide for your Kubota F2890 or F3690 Front Mower? This is the 91-page operator manual (OEM #K3603-6291-1) that ships with the machine: safe operating procedures, full maintenance schedules, and troubleshooting written for the owner-operator. Safety warnings for slope operation, PTO engagement, and danger/warning/caution label locations are covered first. From there, step-by-step procedures walk through cold-weather starting (page 32), the LCD monitor (page 25), hydraulic lift lever (page 20), 4WD lock (page 21), and foldable ROPS (pages 16-17). Service coverage runs 23 pages, from daily fluid checks to the 3,000-hour injection pump inspection, with capacities and interval charts split out by system. Front wheel nuts torque to 48.1-55.9 N-m, rear to 69.0-73.0 N-m; the air cleaner element cleans every 100 hours at under 205 kPa. Bookmarked by section and keyword-searchable, so you find the right page on a tablet at the machine.
What's Inside This Kubota F2890, F3690 Operator Manual
| System | Pages | Key Topics |
|---|---|---|

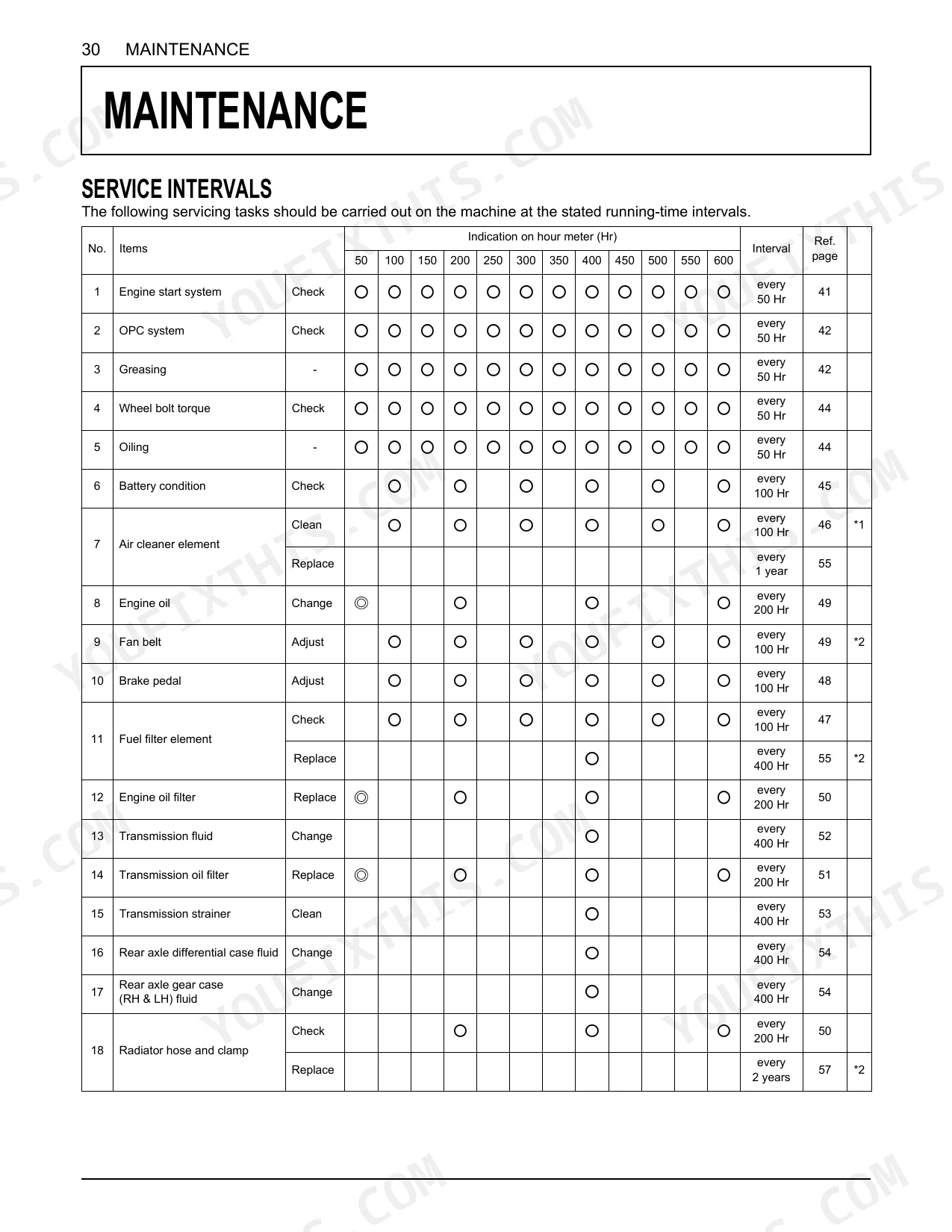

| Safety First | - | Product Quality and Service, Importance of Manual and Maintenance, Kubota's Policy and Dealer Consultation, Danger, Warning, Caution, Important, Note |
| Safe Operation | - | Before Operating, Operating on Slopes, Using the PTO, Servicing Safety, Danger/Warning/Caution Labels |
| Servicing of Machine | - | Serial Numbers, Warranty Information, Scrapping Procedure |

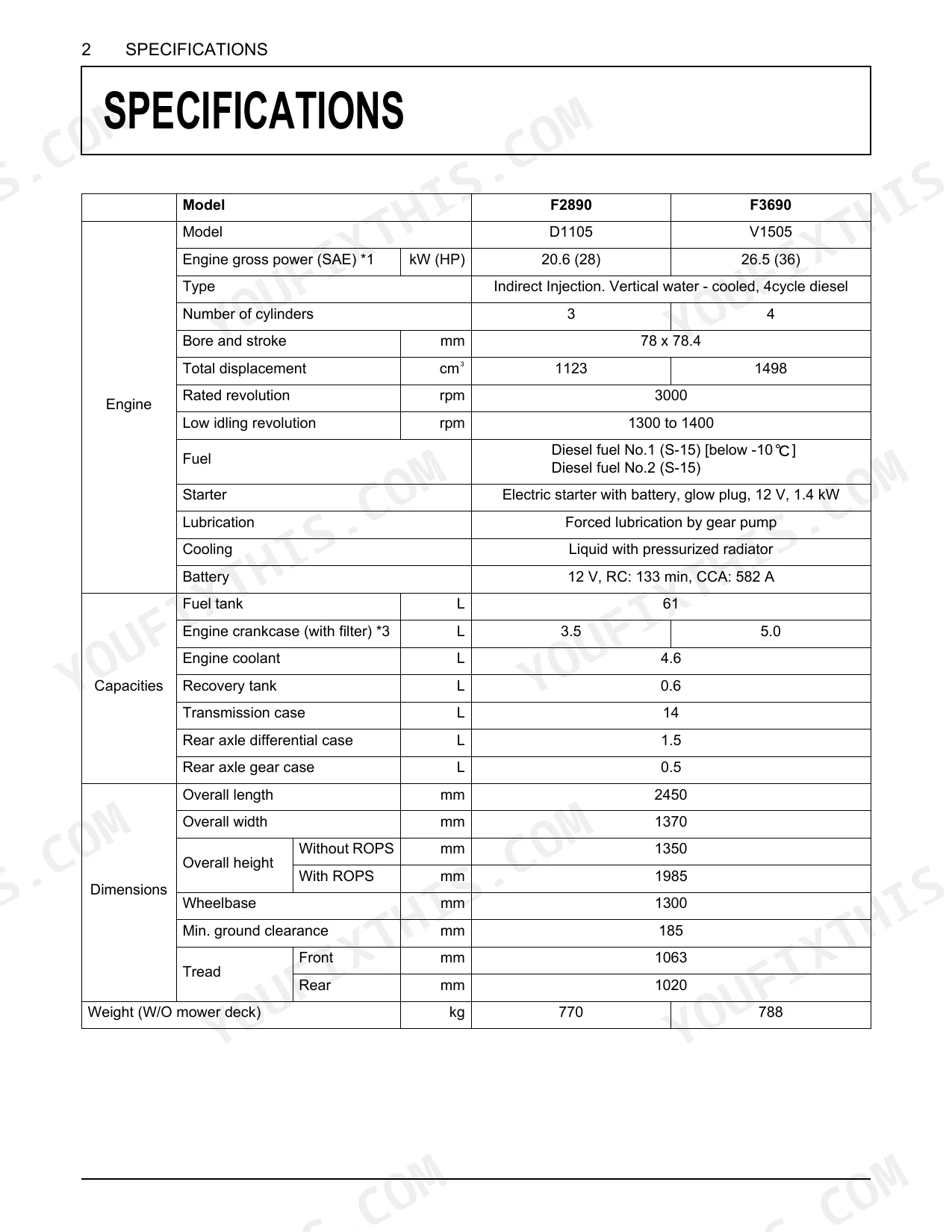

| Specifications | - | Engine Specifications, Capacities, Dimensions, Traveling System, PTO Specifications |
| Implement Limitations | - | Maximum Loading Weight, Front Axle Load, Rear Axle Load, Lift Link End Load |
| Instrument Panel and Controls | - | Liquid Crystal Display, Key Switch, Throttle Lever, Hydraulic Lift Lever, PTO Lever |

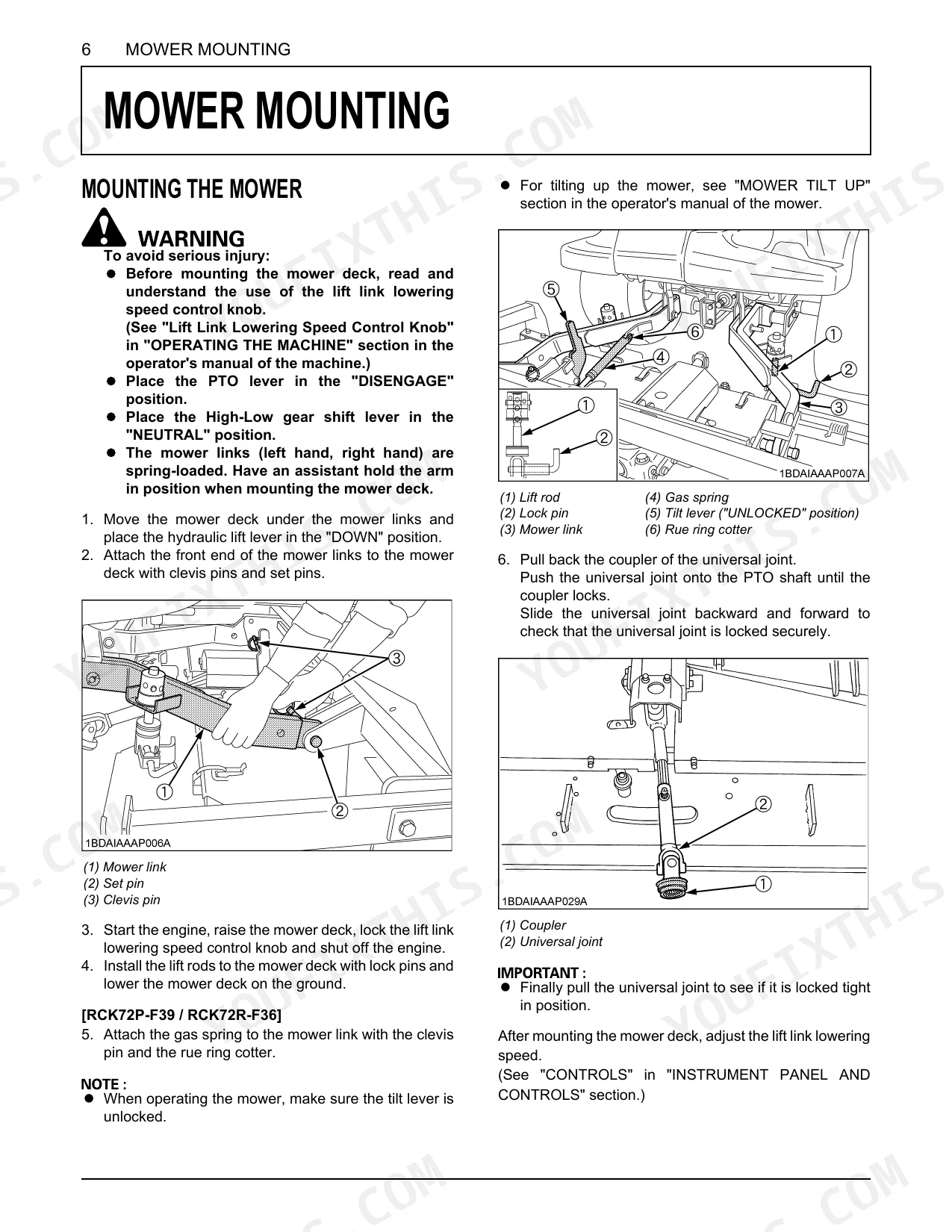

| Mower Mounting | - | Mounting the Mower, Dismounting the Mower Deck, Mower Tilt Up (How: Mount Another Implement) |
| Pre-Operation Check | - | Daily Check Items, Safety Warnings, Easy Checker System |

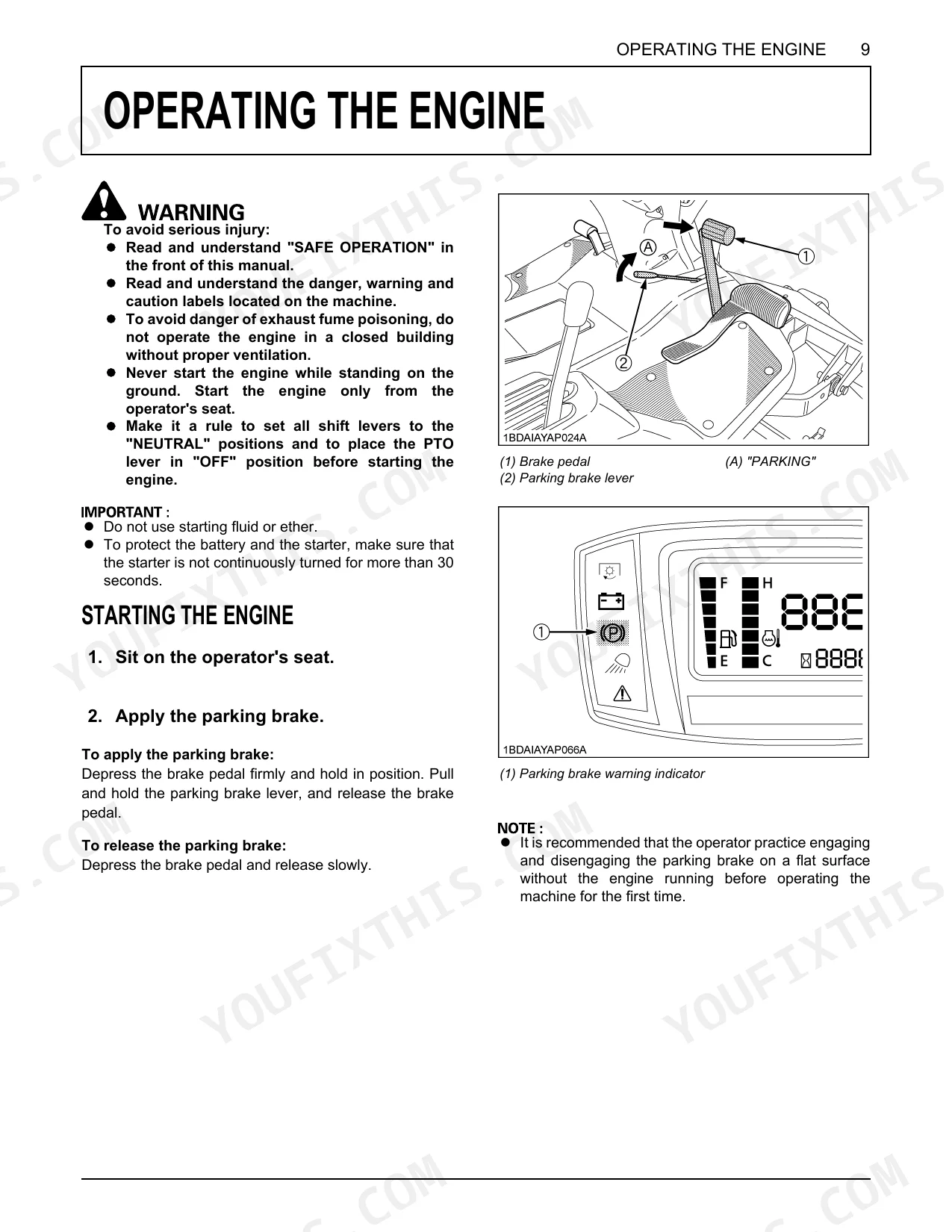

| Operating the Engine | - | Starting the Engine (Key Switch, Cold Weather Starting, Block Heater), Stopping the Engine |
| Operating the Machine | - | Operating New Machine (Changing Lubricating Oil for New Machines, Engine Break-In, Machine Break-In) |
| Check During Driving | - | Immediately Stop Engine If, Easy Checker (Tm) Lamps, Overheat Alarm, Electrical Charge |
| Periodic Service | - | How to Open the Hood |
| Service As Required | - | Replacing Fuses, Replacing Light Bulb, Bleeding Fuel System, Adjusting Lift Springs |
| Storage | - | Preparation for Storage, Battery Storage, Removing From Storage |
| Troubleshooting | - | Engine Troubleshooting, Power Train Troubleshooting, Battery Troubleshooting, Machine Troubleshooting |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Front wheel nut torque | 48.1 to 55.9 N-m (4.9 to 5.7 kgf-m) | p. 48 |
| Rear wheel nut torque | 69.0 to 73.0 N-m (7.0 to 7.4 kgf-m) | p. 49 |
| Air cleaner element cleaning air pressure | under 205kPa (2.1kgf/cm²) | p. 46 |
| Air cleaner element cleaning interval | every 100 Hr | p. 50 |
| Fuel filter element check interval | every 100 Hr | p. 50 |
| Fuel filter element replacement interval | every 400 Hr | p. 50 |
| Engine oil filter cartridge tightening | by hand an additional 1/2 turn only | p. 50 |
| Engine oil filter cartridge replacement interval | every 200 Hr | p. 50 |
| Fan drive belt deflection | 9 to 11 mm | p. 49 |
| Fan drive belt depression force | 98N (10 kgf) | p. 49 |
| ACC fuse capacity | 5 A | p. 58 |
| Head lights, Fuel pump fuse capacity | 10 A | p. 58 |
Kubota F2890, F3690 Common Problems This Manual Covers

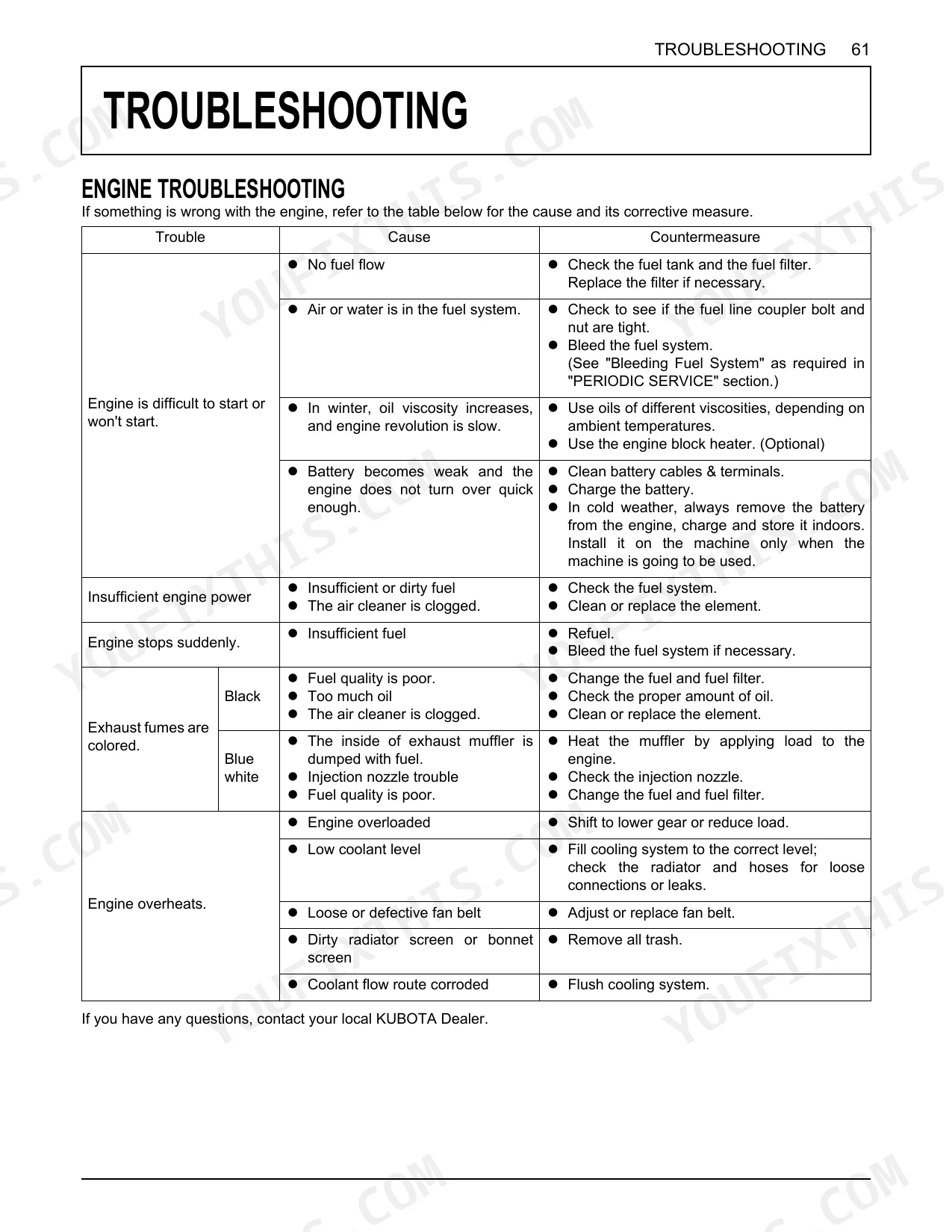

Kubota F3690 engine temperature gauge spikes and overheat alarm whistles during dusty summer operation p. 44
Stop the machine the moment the alarm sounds and read the instrument panel per page 44. Clear debris off the radiator and bonnet screens, then blow out the air cleaner element with compressed air under 205kPa (2.1kgf/cm2) as specified on page 46. Let the coolant temperature drop before you restart.
Manual Section: Check During DrivingStarter does not function when turning the key switch even with a fully charged battery p. 61
Confirm the PTO lever is disengaged and the brake pedal is held down. Walk through the engine troubleshooting steps on page 61 for starting issues. If the starter still does nothing, check the main electrical system and replace the 50 A slow blow fuse as detailed on page 58.
Manual Section: TroubleshootingFront mower deck vibration and abnormal squealing noise from the drive belt area p. 49
Inspect the fan drive belt for wear or glazing. Measure the belt deflection midway between the pulleys, pushing with 98N (10 kgf) of force. Adjust the tension until deflection measures 9 to 11 mm as outlined on page 49. Lubricate all mower deck grease points.
Manual Section: Periodic ServicePoor traction on slopes and machine feels unstable or pulls to one side p. 48
Set the front tires to 140 kPa (1.4 kgf/cm2) before working on uneven ground, as specified on page 48. Then confirm the rear wheel nuts are tight, torquing them to 69.0 to 73.0 N-m (7.0 to 7.4 kgf-m) with a torque wrench as directed on page 49.
Manual Section: Periodic ServiceFrequently Asked Questions
What do Kubota F2890/F3690 error codes mean?
On a power train fault, the F2890/F3690 shows an error code. Err 1 means a water temperature sensor problem, Err 2 a fuel sensor problem, and Err 3 a meter panel memory reading problem. Whichever code appears, contact your local KUBOTA Dealer for the repair.
What are the torque specs for Kubota F2890/F3690 wheel bolts or mower deck hardware?
Front wheel bolts torque to 48.1 to 55.9 N-m (4.9 to 5.7 kgf-m); rear wheel bolts to 69.0 to 73.0 N-m (7.0 to 7.4 kgf-m), as detailed on page 64. Check and retighten all bolts and nuts regularly, especially on a new machine, to those values.
What are the replacement specifications for Air cleaner element?
Replace the air cleaner element once a year or after every sixth cleaning, whichever comes first. It uses a dry element, so never apply oil to it. The outer filter is the primary one to replace, while the inner filter can be cleaned with pressurized air.
What are the replacement specifications for Fuel filter element?
Replace the fuel filter element every 400 hours of operation. Beyond that interval, swap it sooner if you find it clogged with debris or contaminated with water. This is a job that a KUBOTA Dealer should ideally handle for you.
How will I receive this Kubota F2890, F3690 Operator Manual?
Your 91-page searchable PDF downloads instantly after checkout. Open it on a laptop, tablet, or phone, and bring it right to the shop floor.
Is this Kubota F2890, F3690 Operator Manual printable?
Yes. Print as many copies as you like, with no restrictions. Plenty of mechanics print just the section they need and take it out to the machine.
