Serial number breaks decide which hydraulic pump, clutch, or hood fits a 6860 tractor, and this 161-page Landini 6860 parts catalog PDF settles each one with factory part numbers. Transmission takes the largest share of the book, with exploded views of the Luk, O.M.G. and Valeo dual clutches, the clutch pedal linkage, the centre axle housing and the transfer gear box. Your A4.236 engine is broken down from cylinder block, crankshaft and balancer unit to injection equipment and gaskets, while separate plates cover the draft, position and intermix lift controls, differential lock, brakes, drawbar and instrument panel harness. Check the detail: item 12 on the hydraulic plates is ring 1441514X1. A tractor waiting on the wrong part loses days of field time. Bookmarks take you straight to each system, text search finds any number, and your order goes in with the right part number the first time.
What's Inside This Landini 6860 Parts Manual

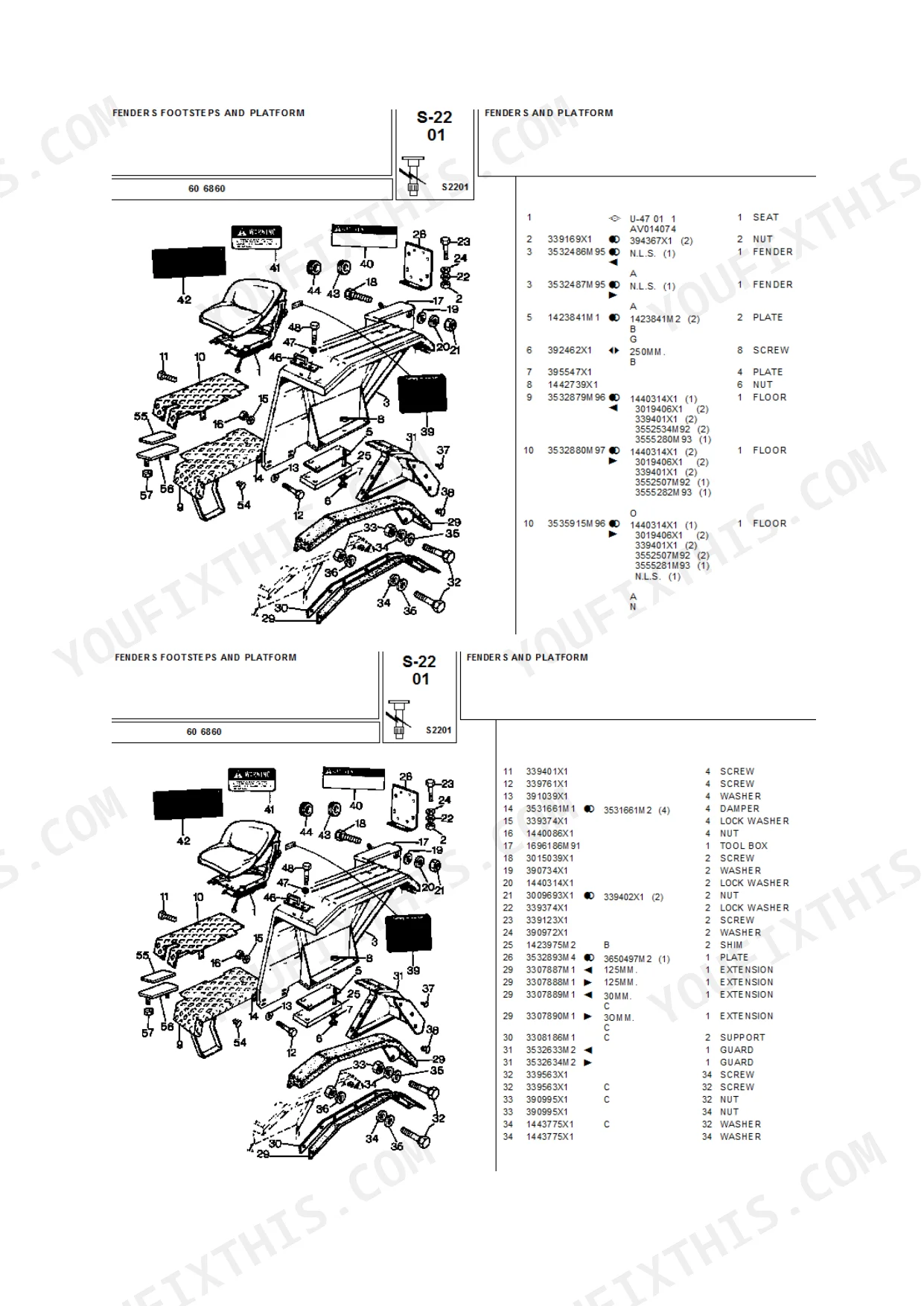

| System | Pages | Key Topics |
|---|---|---|
| Accessories Mechanical | 1-7 | Weight Frame and Weights - Front Hook - Up to Serial N.A27033, Weight Frame and Weights - Front Hook - From Serial N.A27034, Hitch Connections, Rear Hook - Adjustable - Type |
| Tractor Cab | 8-10 | Seat Grammer, Seat MT - Standard Version, Safety Frame, Rotating Light |
| Engine | 11-25 | Assembly - A4.236 Engine, Short Engine - A4.236 Engine, Cylinder Block - A4.236 Engine, Crankshaft, Pistons and Connecting Rods - A4.236 Engine, Cylinder Head - A4.236 Engine |
| Engine Ancillary Equipment | 26-62 | Alternator - Valeo Type, Alternator - Iskra Type, Alternator - Lucas - Lucas, Starter Motor - Marelli Type, Starter Motor - Bosch, Cooling System - Engine - Fan and Hoses |
| Hydraulics and Linkage | 63-91 | Hydraulic Equipment - Lift Pipings - Up to Serial Number P06076, Hydraulic Equipment - Lift Pipings - From Serial No P06077, Hydraulic Pump - Up to Serial Number P06076 |
| Lighting Equipment | 92-99 | Electrical Wiring - Front, Electronic Harness - Instrument Panel, Battery and Fastening, Instrument Panel - Equipment Instrument, - Rear |
| Rear Axle and Rear Brakes | 100-116 | Rear Axle - Differential, Rear Axle - Housing and Wheel Hub, Rear Axle - Differential Lock Mechanism - Hydraulic Control, Brake and Controls - Pedals - Standard Type |
| Sheet Metal | 117-120 | - Hood - Up to Serial N.A27033, - Grille and Front - From Serial N.A27034, - Hood - From Serial N.A27034, Side Cover - Shield Fan, - Panels |
| Transmission | 121-161 | Clutch - Dual Clutch Luk - 11, Clutch - Dual Clutch O.M.G. - 11, Clutch - Dual Clutch Valeo - 12 - Up to Serial Number A31058, Clutch - Dual Clutch Luk - 12 |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Screw length | 150mm | p. 75 |
Landini 6860 Common Problems This Manual Covers

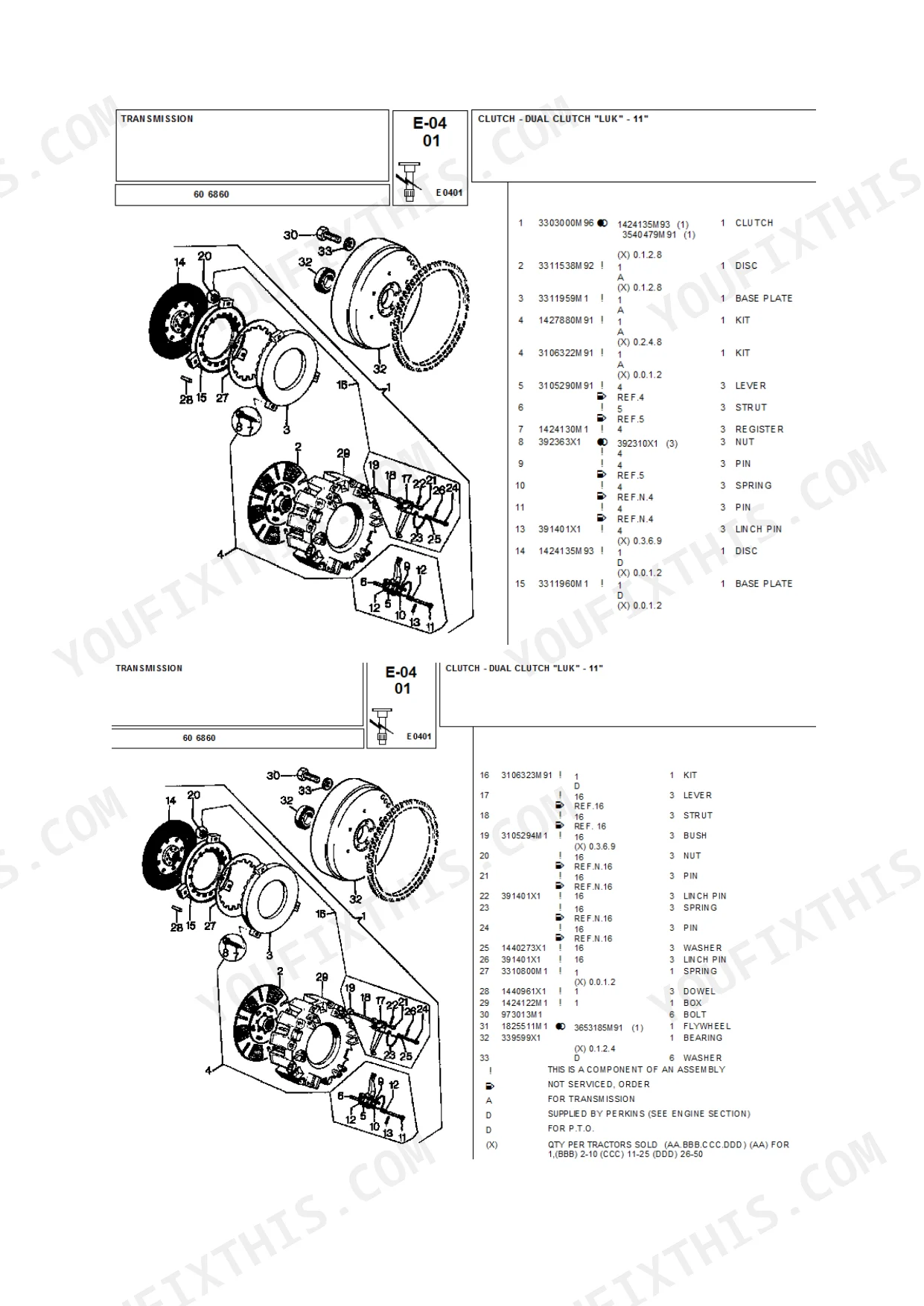

Landini 6860 dual clutch parts ordered from the wrong Luk, O.M.G. or Valeo listing don't fit

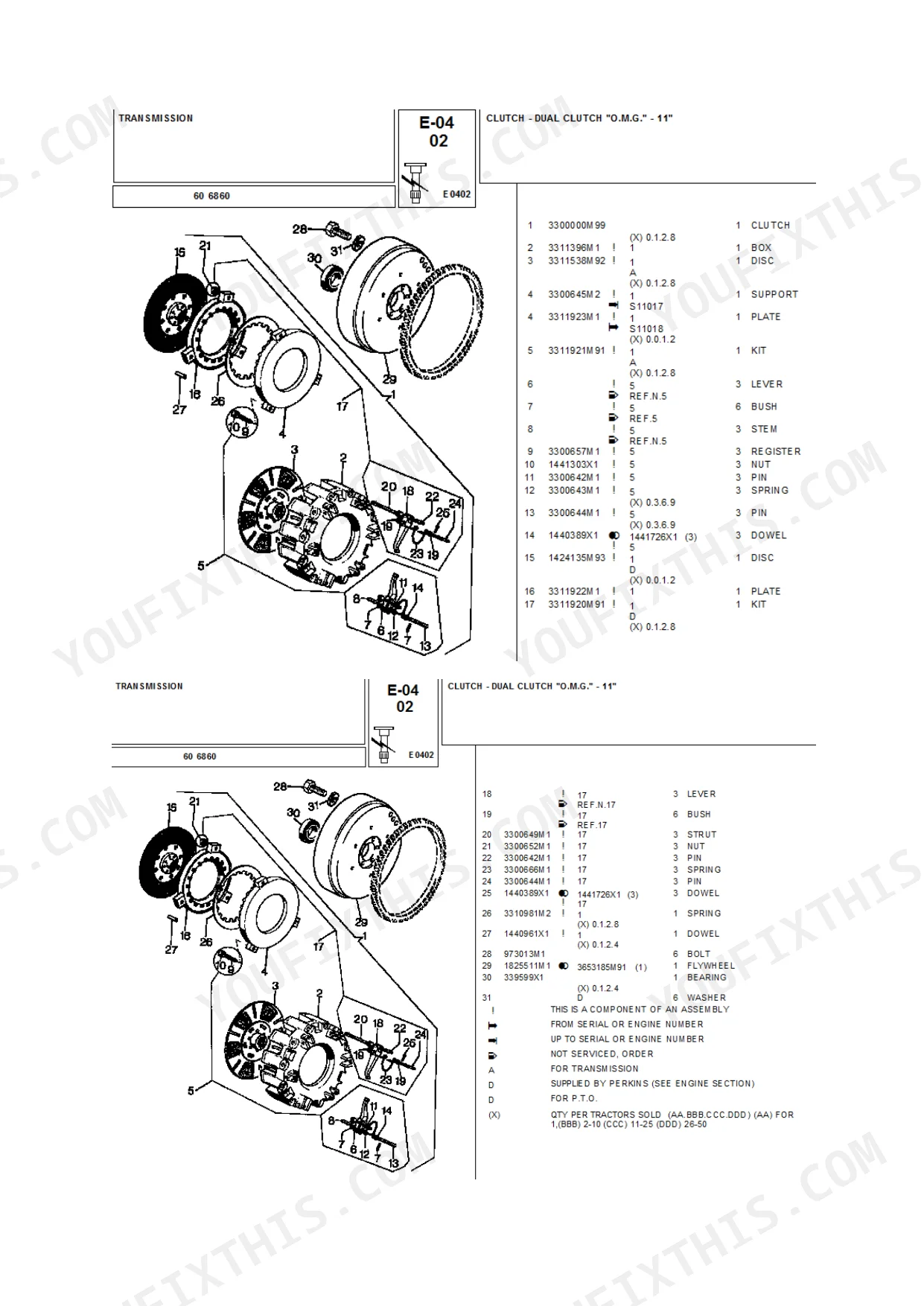

Verify which clutch maker and size your tractor carries before ordering anything. Open the transmission clutch exploded views starting on page 121, where the Luk 11, O.M.G. 11, Valeo 12 and Luk 12 dual clutches each have their own parts list. Check your serial number too, because the Valeo 12 listing only covers tractors up to serial A31058.

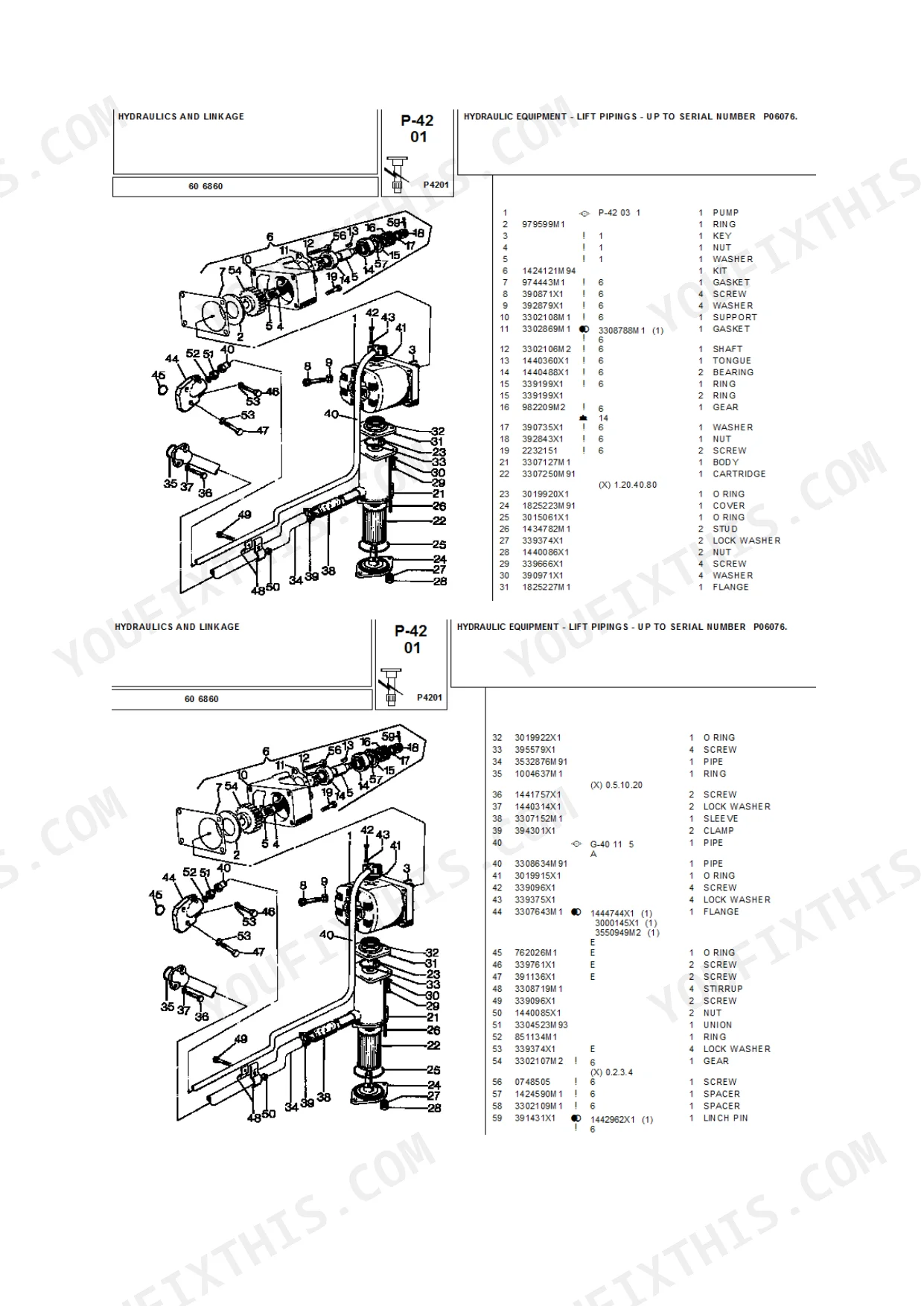

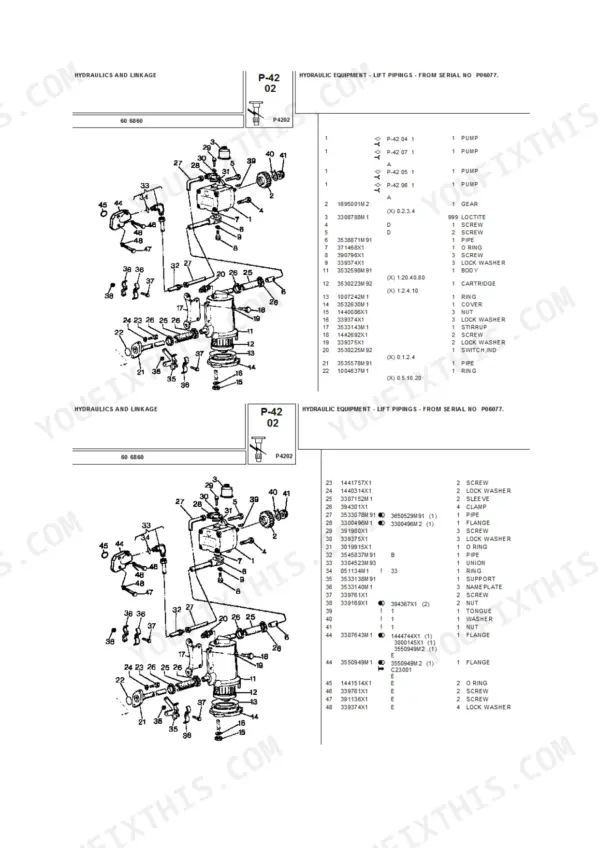

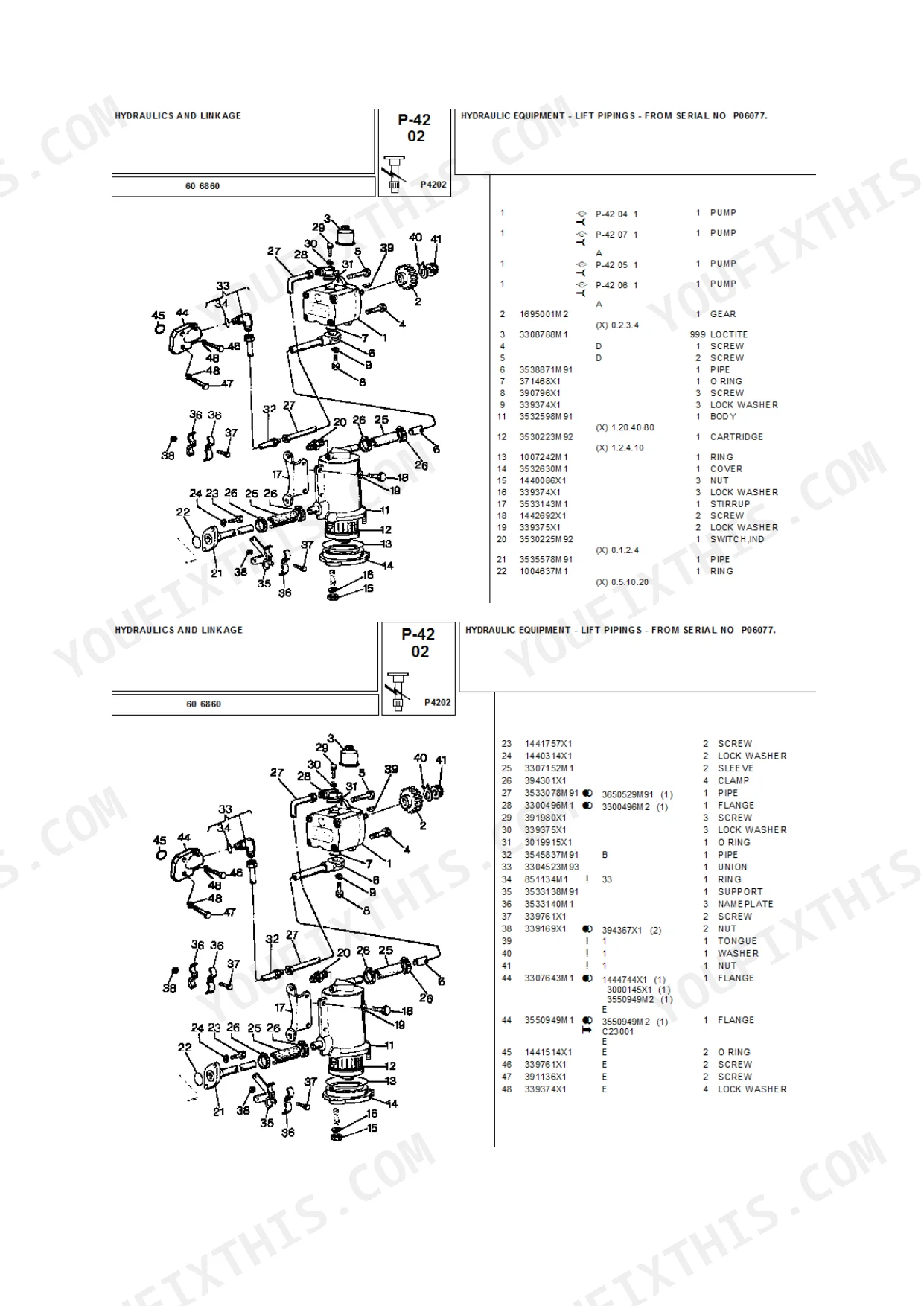

Manual Section: Transmission p. 121Hydraulic lift piping and pump parts ordered for the wrong side of serial P06076 won't fit
Check your tractor serial number first, then open the Hydraulics and Linkage exploded views on page 63. The lift pipings and the hydraulic pump are listed separately for tractors up to serial P06076 and from P06077 on. Order part numbers only from the list for your side of that split so the hitch is lifting again before the weather turns.
Manual Section: Hydraulics and Linkage p. 63Alternator replacement parts don't match after mixing up the Valeo, Iskra and Lucas versions
Identify the alternator brand on your engine before you order. Open the Engine Ancillary Equipment exploded views starting on page 26, where the Valeo, Iskra and Lucas alternator assemblies each have their own parts list. Order only from the list that matches your unit, and don't assume parts cross over from one maker's breakdown to another.
Manual Section: Engine Ancillary Equipment p. 26Starter motor replacement parts don't fit when ordered from the wrong Marelli, Bosch or Iskra listing
Check the maker's name on the starter body before you order. Open the Starter Motor exploded views in the Engine Ancillary Equipment section, where the Marelli, Bosch and Iskra assemblies are listed separately. Match the parts list to the unit on your tractor and order everything in one go so the tractor is cranking again while the field window is still open.

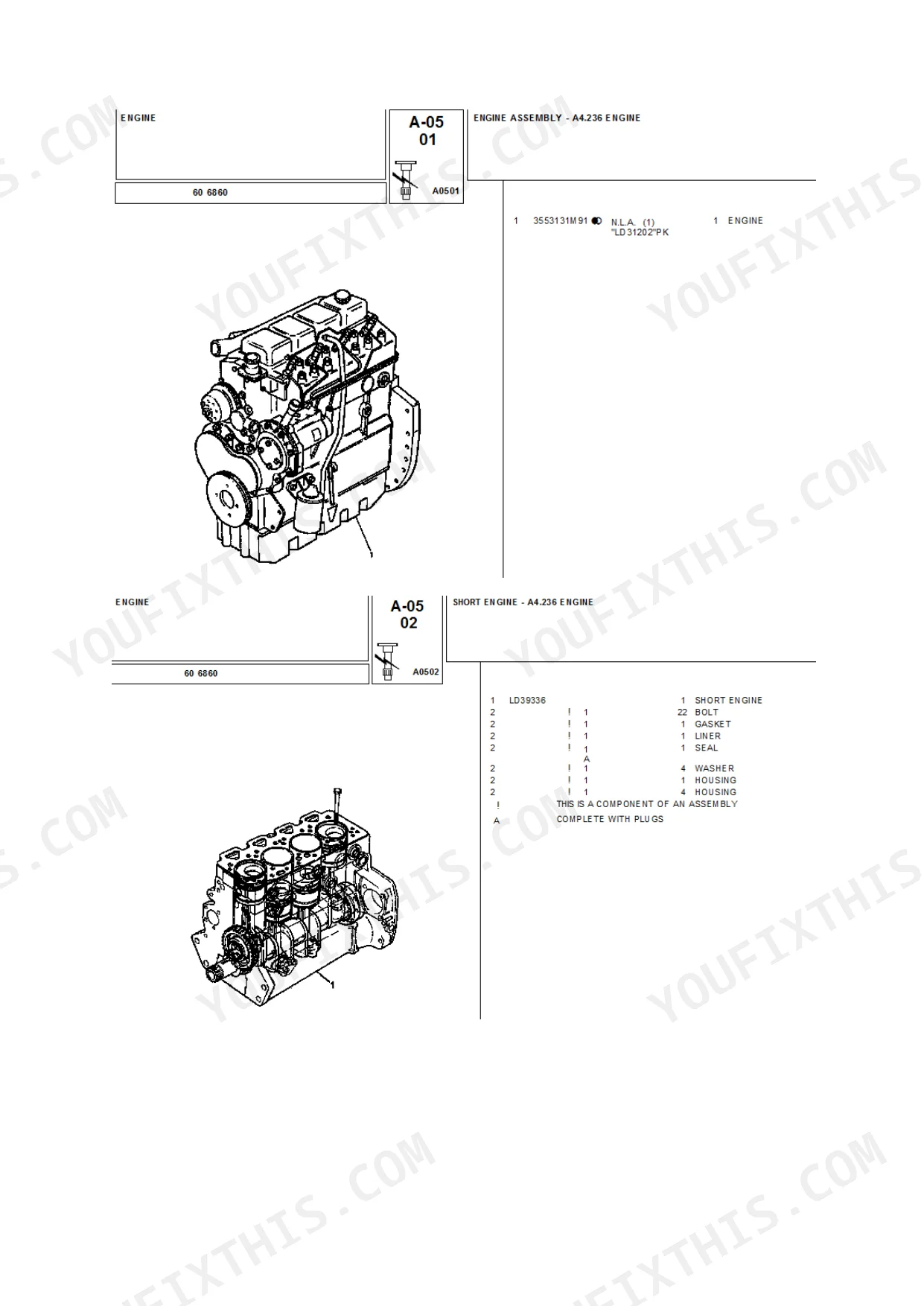

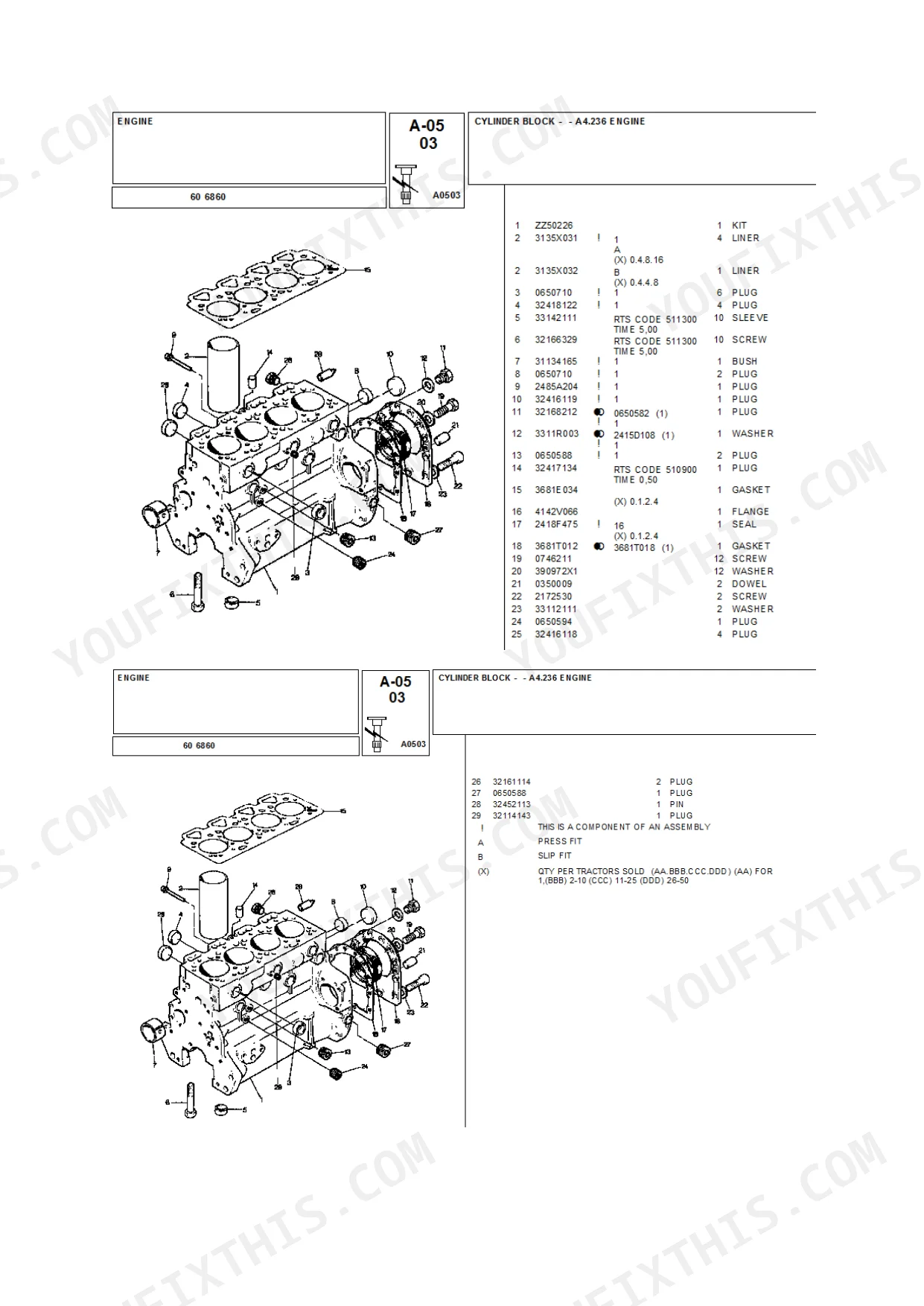

Manual Section: Starter MotorA4.236 engine cylinder block liner and plug part numbers are hard to find in the engine diagrams
Confirm the engine is the A4.236 before ordering. Open the Cylinder Block exploded view on page 12, which lists the block, liners and plugs with their part numbers. Cross-check against the A4.236 engine assembly view on page 11 so every liner and plug you order matches the block you are rebuilding.
Manual Section: Engine p. 12Differential lock hydraulic control parts are hard to identify within the rear axle parts breakdown
Open the Rear Axle and Rear Brakes section starting on page 100 and find the Differential Lock Mechanism Hydraulic Control exploded view. Match each part to its callout number before ordering. Cross-check against the Rear Axle Differential and Housing and Wheel Hub views so you don't order a part from the wrong assembly and lose a day waiting on the right one.
Manual Section: Rear Axle and Rear Brakes p. 100Frequently Asked Questions
What are the engine oil filter replacement specs for the Landini 6860?
The engine oil filter cartridge for the A4.236 engine is part number 2654403. This component is part of the lubricating oil filter and integral cooler assembly. p. 22
What is the part number for the fuel system and filter cartridge on the Landini 6860?
On the Fuel System and Filter plate for the A4.236 engine, the cartridge is part number 3541160M1. p. 23
What is the part number for the thermostat on the Landini 6860?
The thermostat for the A4.236 engine is part number 2485659. p. 15
What is the part number for the alternator belt on the Landini 6860 with the A4.236 engine?
The alternator belt for the A4.236 engine is part number 2614B642 (for 200mm length) or 2614B644 (for 250mm length). p. 25
What is the part number for the starter motor decal on the Landini 6860?
The decal for the starter motor is part number 773255M1. p. 30
How will I receive this Landini 60 6860 Parts Catalog?
One searchable PDF covering 161 pages, delivered instantly. No disc, no shipping, no waiting on the post.
Am I free to print this Landini 60 6860 Parts Catalog?
Yes. Print a single page or a chapter for your own shop use, on letter or A4.
Reviews
There are no reviews yet.
