Chasing down transmission faults on your compact tractor just got easier with this 474-page Landini Mistral America 40HST training manual PDF (OEM #3676168M1). Inside, you get complete hydrostatic gearbox breakdowns, front axle troubleshooting charts, and detailed electrical component testing procedures directly from the manufacturer. Open up the massive electrical section to find full wiring diagrams for the indicator light panel, ignition system, and auxiliary control valves, plus dedicated hydraulic schematics for the rear power lift. Verify your fuel tank holds exactly 50 liters before bleeding the lines, and use the factory driving torque values when rebuilding the differential housing. Don't waste another afternoon blindly swapping sensors. Grab this bookmarked digital download, pull it up on your tablet right beside the machine, and knock out the repair.
What's Inside This Landini MISTRAL AMERICA 40HST, MISTRAL AMERICA 45HST, MISTRAL AMERICA 50HST Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 2-4 | Safety Notes, General Instructions, Symbols, Danger Signs, Sealing and Fixing Sealants, Lubricants and Fuels |

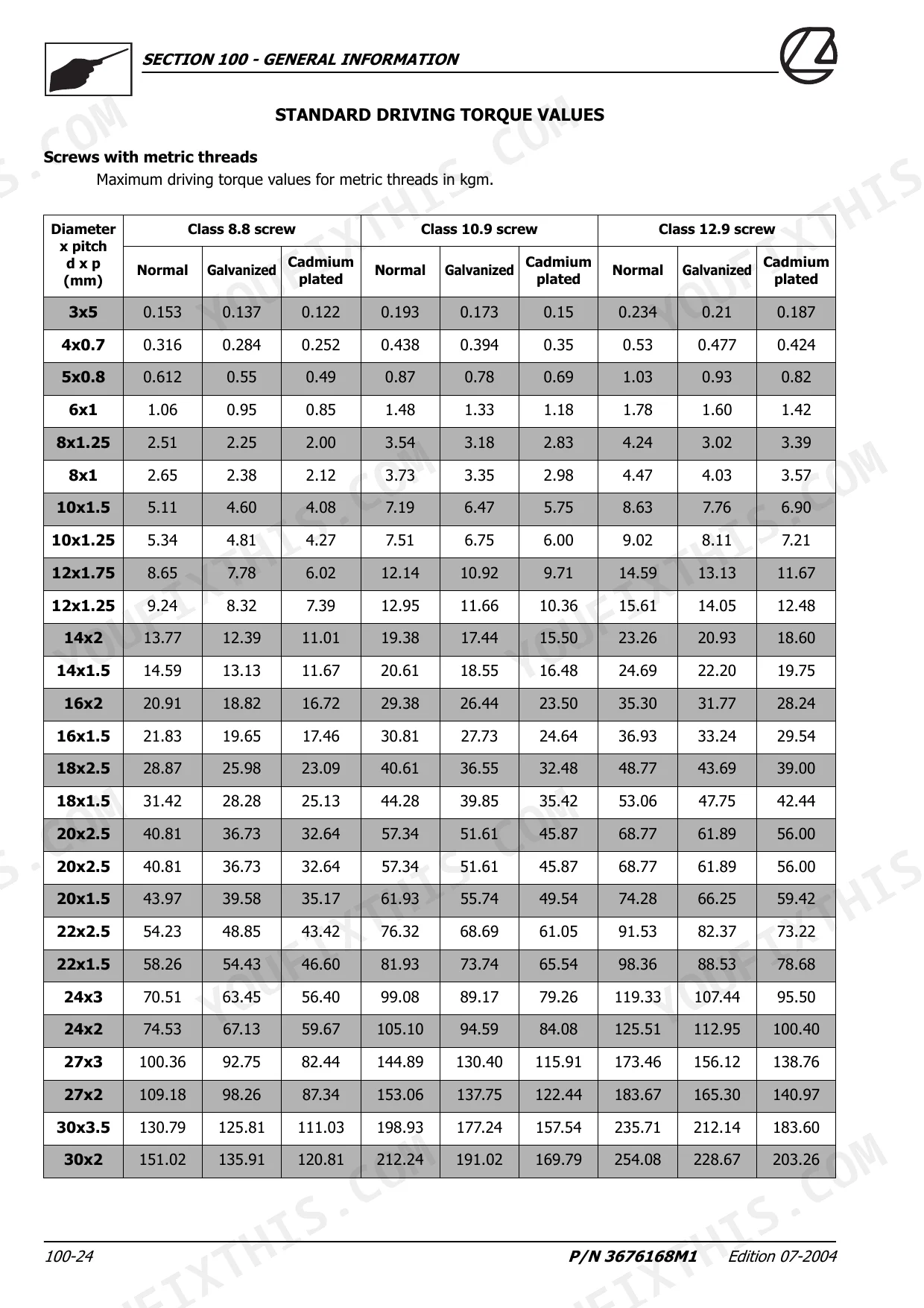

| General Information | 5-30 | Safety Notes, General Instructions, Symbols, Danger Signs, Sealing and Fixing Sealants, Lubricants and Fuels, Conventional Units of Measurement, Standard Driving Torque Values |

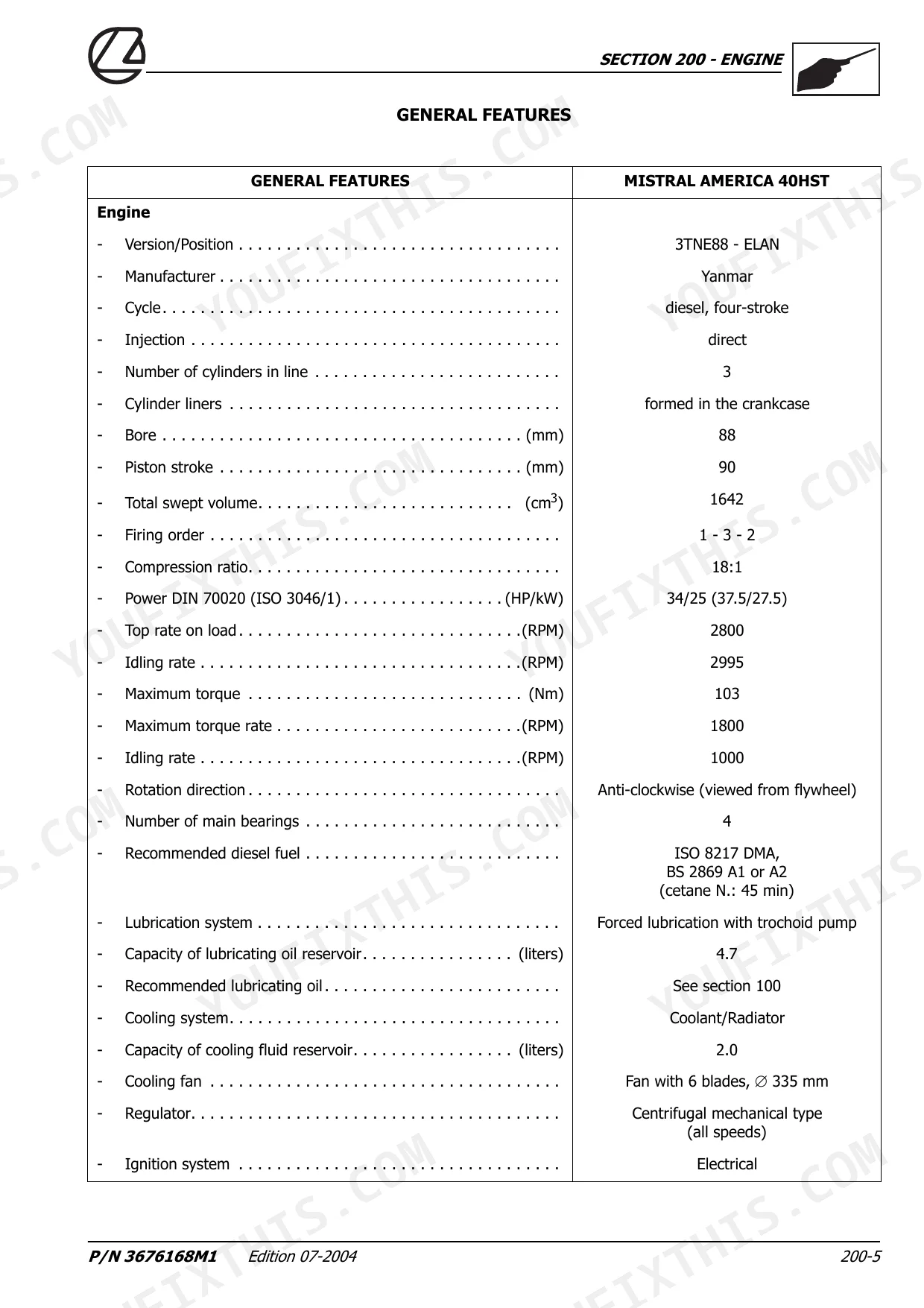

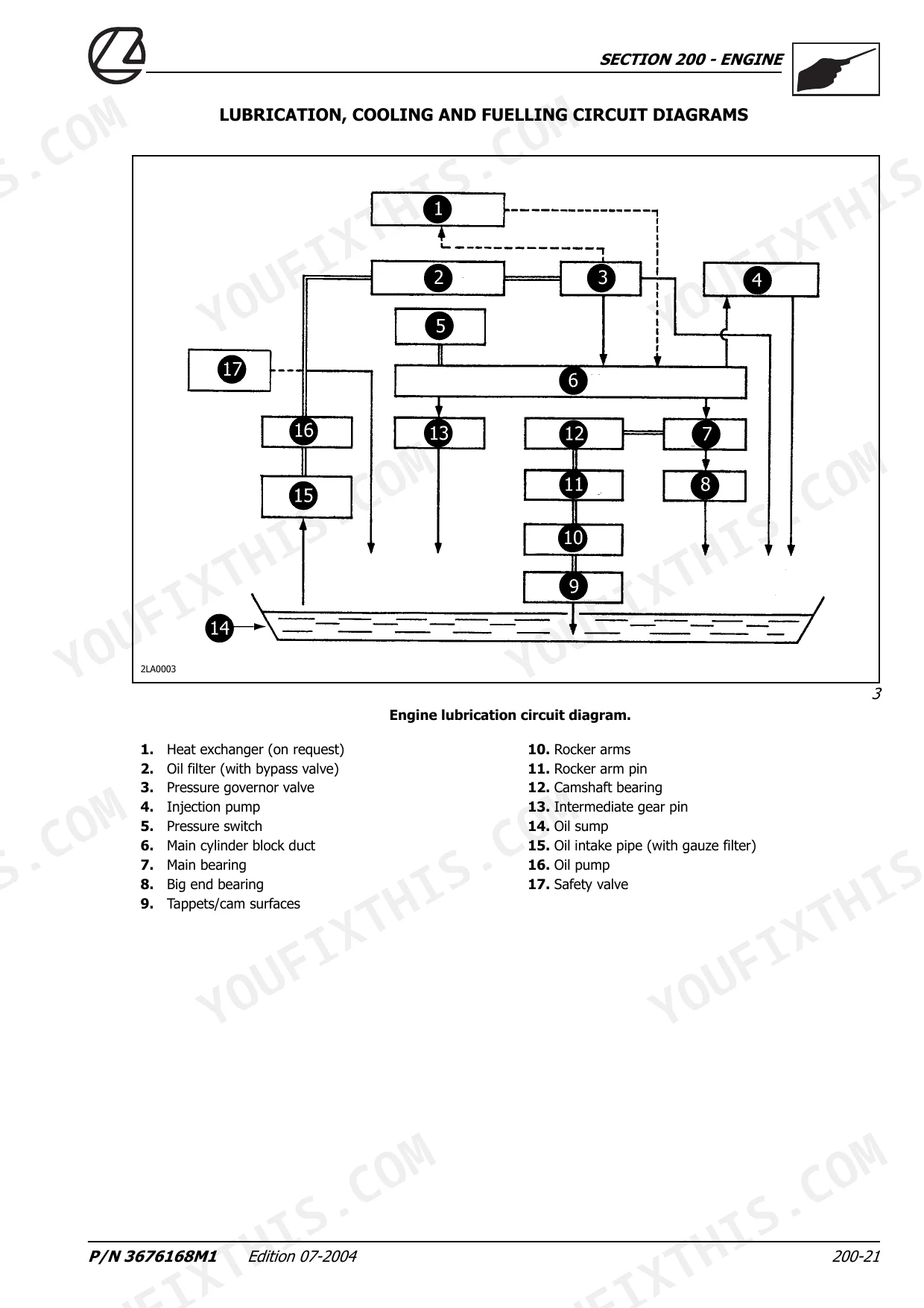

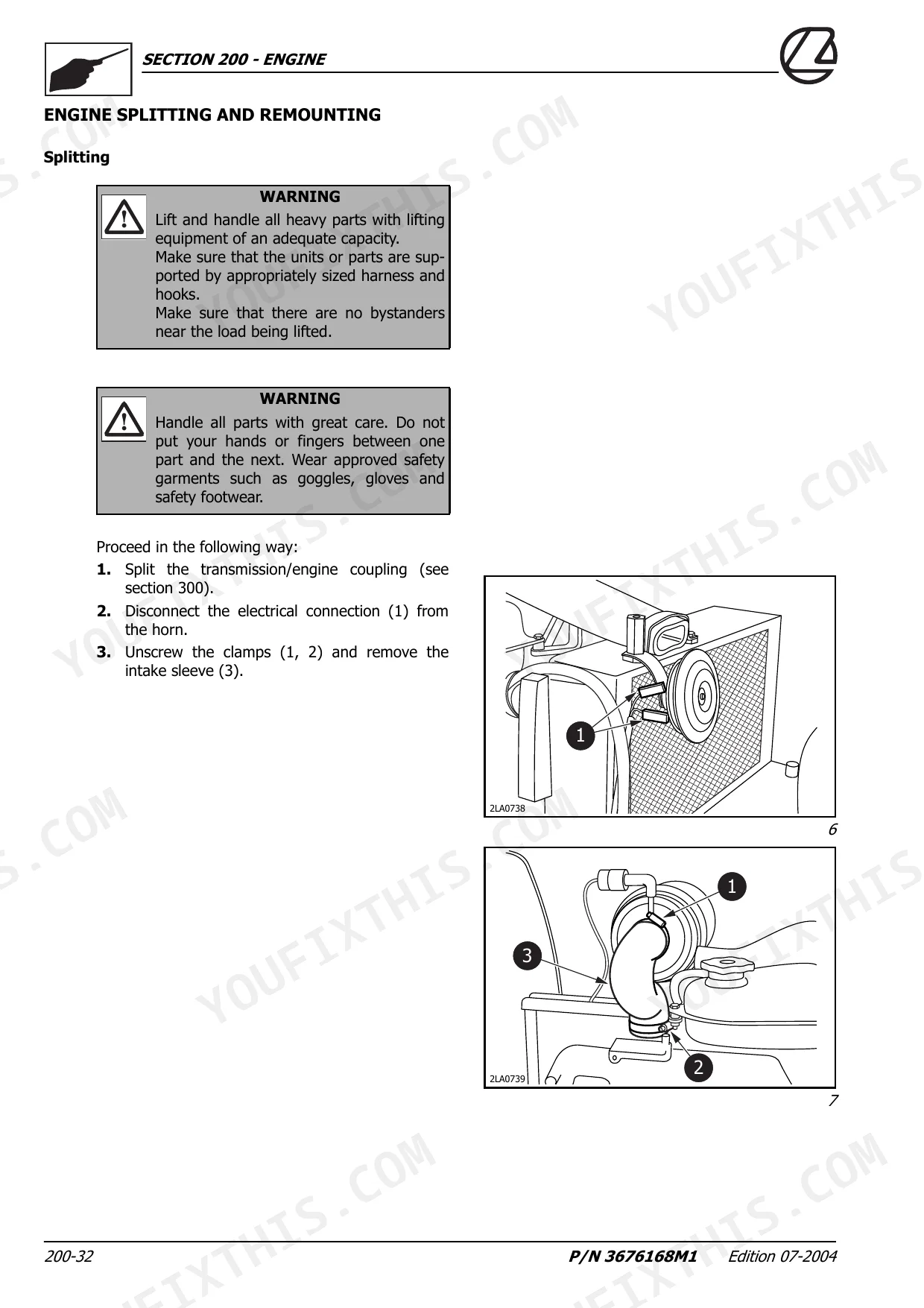

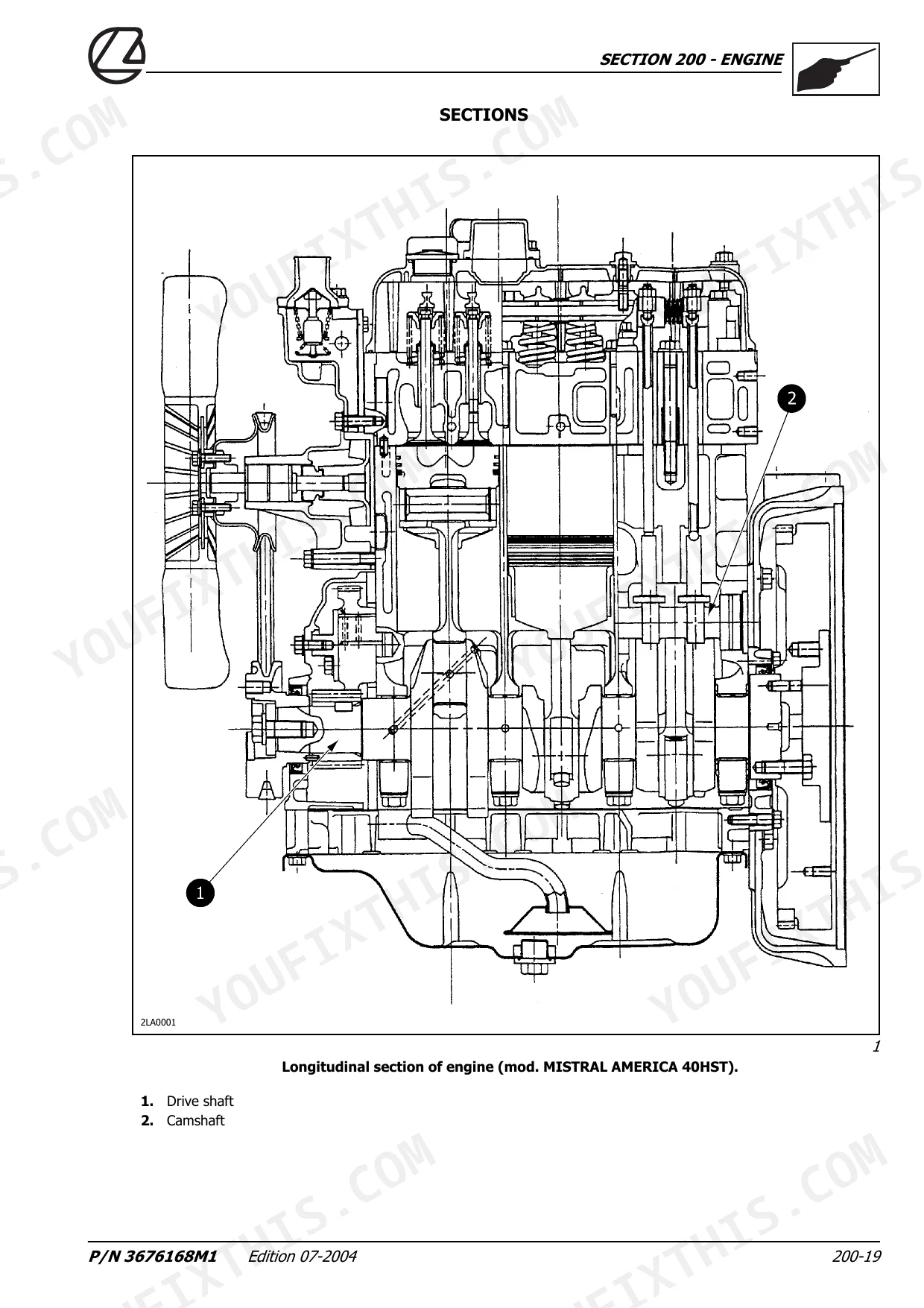

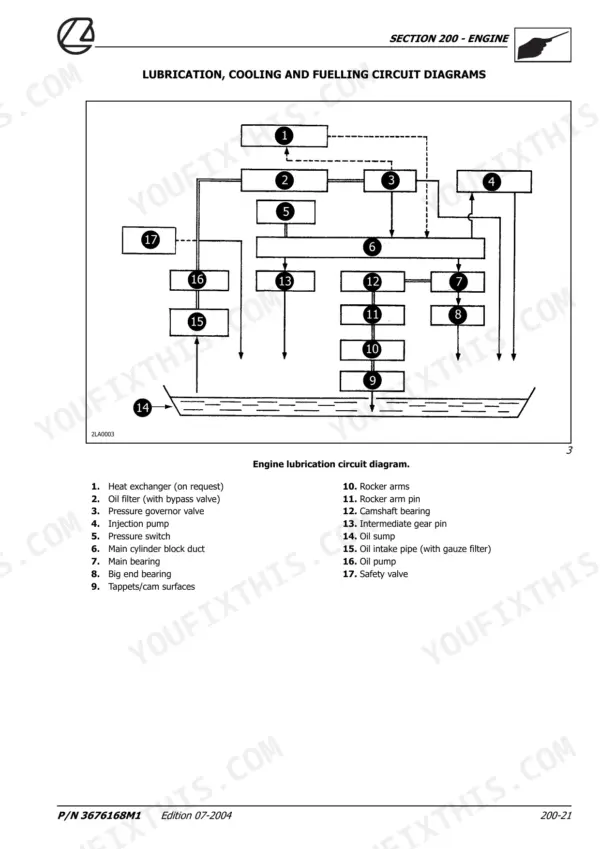

| Engine | 31-152 | General Features, Main Specifications, Driving Torque Values, Specific Equipment, Sections, Lubrication, Cooling and Fuelling Circuit Diagrams, Engine Troubleshooting |
| Engine/Transmission Coupling | 153-168 | General Specifications of the Engine Coupling, Driving Torque Values, Sections, Engine Coupling Troubleshooting, Where the Sealant Is Applied for the Engine Coupling Engine |
| Hydrostatic Gearbox | 169-216 | Main Specifications of the Gearbox and Final Drive, Driving Torque Values, Specific Equipment, Sections, Description of Hydrostatic Circuits of Transmission – Steering - PTO |
| Rear Differential Housing | 217-242 | Main Specifications of the Bevel Gear Pair and Differential, Driving Torque Values, Sections, Description and Operation |
| Front Axle | 243-278 | Main Specifications, Driving Torque Values, Specific Equipment, Sections, Description and Operation, Troubleshooting for the Front Axle Diff Lock Device |
| Power Take-Off | 279-290 | Main Specifications, Driving Torque Values, Sections, Description and Operation, Troubleshooting for the Power Take-Off, Where the Sealant Is Applied on the Power Take-Off Cover |

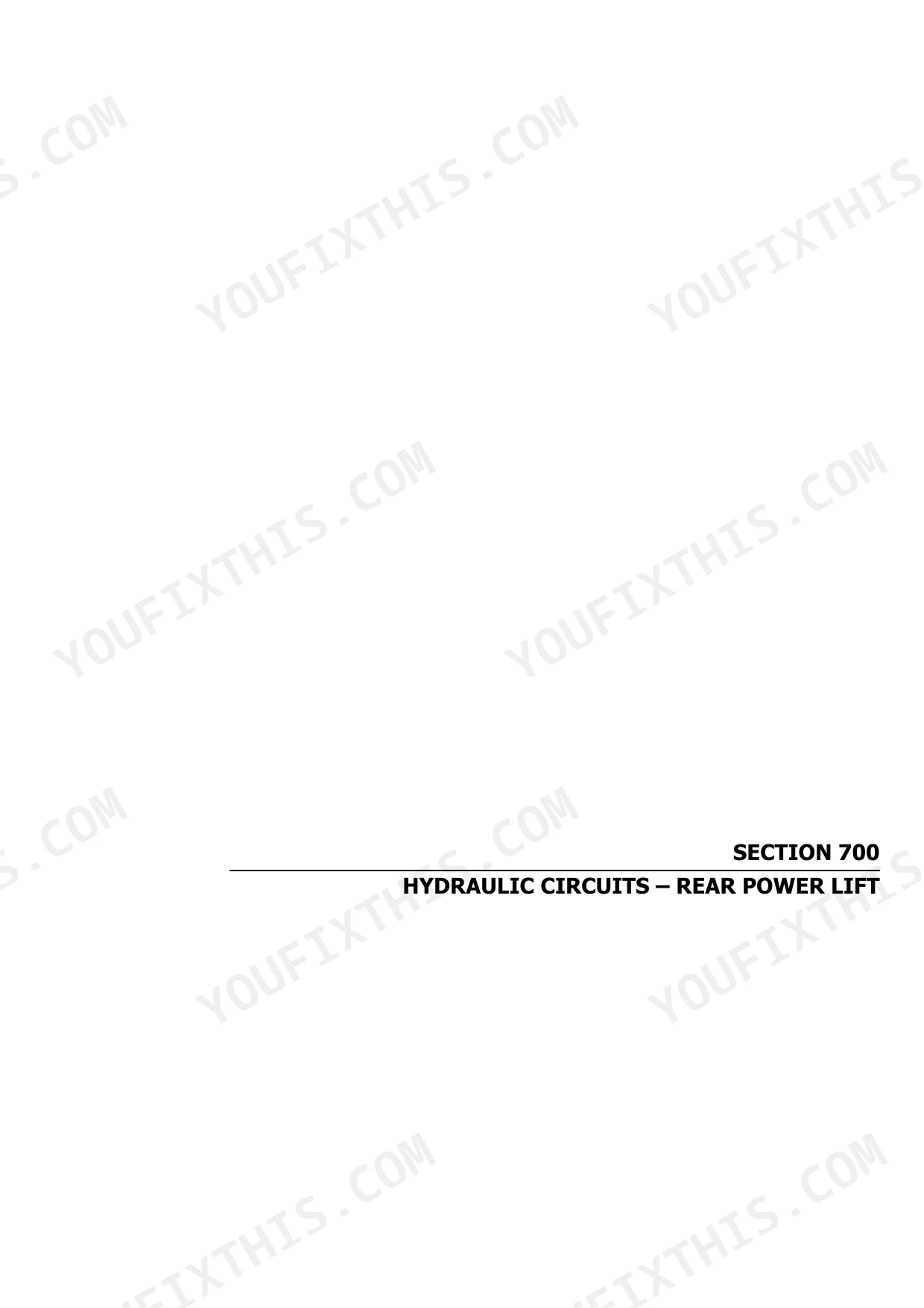

| Hydraulic Circuits – Rear Power Lift | 291-330 | Main Specifications – Rear Hydraulic Power Lift, Specific Equipment, Sections and Perspective Views, Description of the Operating Mode of the Hydraulic Power Lift |
| Hydraulic Circuits – Auxiliary Control Valves | 331-336 | Main Specifications, Description of the Circuit, Description of the Auxiliary Control Valves, Reservoir, Pump, Cylinders |
| Steering System | 337-344 | Main Specifications, Sections and Exploded Views, Description and Operation, Differential Locking and Unlocking, Power Steering Circuit Layout, Utility Pressure Governor Valve |
| Brakes | 345-356 | Main Specifications, Driving Torque Values, Sections, Description and Operation, Brake System Troubleshooting |
| Electrical System - Instruments | 357-370 | Warning Light Identification, Wiring Diagram of Indicator Light Panel Interior, RPM Meter and Hour Counter, Engine Coolant Temperature Indicator, Transmitters, Sensors and Switches |
| Electrical System - Components | 371-382 | Control Panel with Analogue Instrument, Light Switch, Hazard Light Switch, Cruise Control Selector, Controls on the Right-Hand Side, Maintenance |
| Electrical System – Ignition System | 383-392 | Technical Specifications, Description and Operation, Troubleshooting, Ignition System Test on the Tractor, Power Draw in the Starter Motor Circuit |
| Electrical System – Recharging System | 393-402 | Technical Specifications, Description of the Alternator, Alternator Operation, Tests and Troubleshooting, Alternator Connection Test, Alternator Splitting-Remounting |
| Electrical System - Battery | 403-414 | Technical Specifications, Battery Splitting-Remounting, Maintenance and Battery Inspection, Common Causes of Battery Faults |
| Electrical System – Electrical Circuits | 415-474 | Electrical System Components, Electrical System Components (Continued), Tractor – Component Locations, Control Panel – Component Locations, Locations of Fuses and Relays, Fuses |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Fuel tank capacity | 50 dm³ (liters) | p. 72 |
| Engine lubricating oil reservoir capacity | 4.7 liters | p. 35 |
| Cooling fluid reservoir capacity | 2.7 liters | p. 36 |
| Cylinder head fixing bolts torque (M10 x 1.25) | 85.3 ÷ 91.2 Nm | p. 47 |
| Intake and exhaust valve play (engine cold) | 0.15 ÷ 0.25 mm | p. 40 |
| Fan belt deflection | 10 ÷ 15 mm | p. 87 |
| Hydrostatic unit to engine coupling screws torque (M12) | 115 Nm | p. 172 |
| Thermostat opening temperature | 69.5 ÷ 72.5 °C | p. 93 |
| Auxiliary control valves pressure setting | 185 ÷ 190 bar | p. 329 |
| Brake pedal free play | 30 ÷ 35 mm | p. 355 |
| Final drive housing fixing nuts torque | 135 ÷ 149 Nm | p. 348 |
Landini MISTRAL AMERICA 40HST, MISTRAL AMERICA 45HST, MISTRAL AMERICA 50HST Common Problems This Manual Covers
Landini Mistral America 40HST engine runs hot under load and warning light indicates high coolant temperature

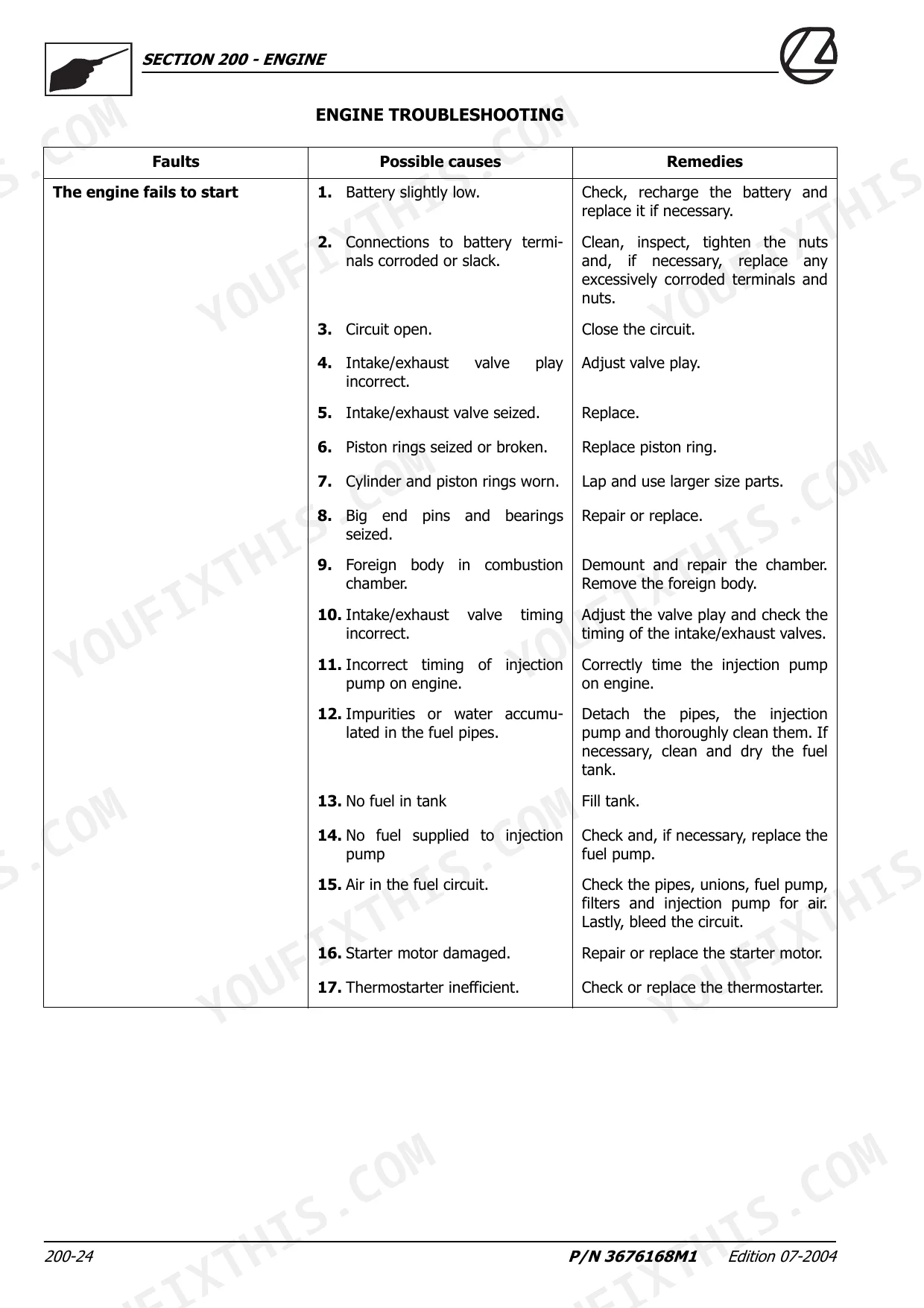

Inspect the cooling circuit and test the thermostat operation. Replace the thermostat if it fails to open fully within the normal operating temperature range of 69.5 ÷ 72.5°C as specified on page 93. Flush any scaling from the cylinder head and crankcase.
Manual Section: Engine Troubleshooting p. 93Three-point hitch remains locked in transport position or loader lacks lifting power
Test the auxiliary control valves pressure setting using a hydraulic gauge. Verify the system reaches 185 ÷ 190 bar before the over-pressure valve trips, shown on page 329. If pressure is low, inspect hydraulic couplers for loose connections that restrict fluid flow.
Manual Section: Hydraulic Circuits – Rear Power Lift p. 329Tractor remains braked after releasing the pedal or exhibits unbalanced braking on one side
Measure the idle travel of both left and right brake pedals. Adjust the linkage turnbuckles until you achieve the correct free play of 30 – 35 mm as detailed on page 355. Torque the nuts fixing the final drive housing to 135 ÷ 149 Nm if previously removed.
Manual Section: Brakes p. 355Hydrostatic gearbox experiences low speed output or jolting movement when shifting gears under heavy load
Remove the transmission housing to access the clutch assembly. Inspect all 7 driven and 7 driving plates for excessive wear, burning, or glazing as outlined on page 193. Replace the entire clutch pack if tolerances are exceeded or plates show severe friction damage.
Manual Section: Troubleshooting for the Hydrostatic Gearbox p. 193Frequently Asked Questions
What is the lubricating oil reservoir capacity for the Landini Mistral America 40HST engine?
The lubricating oil reservoir capacity for the Landini Mistral America 40HST engine is 4.7 liters. p. 35
What is the cooling fluid reservoir capacity for the Landini Mistral America 45HST and 50HST engines?
The cooling fluid reservoir capacity for both Landini Mistral America 45HST and 50HST engines is 2.7 liters. p. 36
What is the driving torque value for the cylinder head fixing bolts?
The cylinder head fixing bolts (M10 x 1.25) should be tightened to a driving torque value between 85.3 and 91.2 Nm (8.7 to 9.3 kgm). These parts should be spread with lubricating oil. p. 47
What is the recommended valve play for intake and exhaust valves when the engine is cold?
For a cold engine, the recommended assembly play between the valve stem and tappets for both intake and exhaust valves is 0.15 to 0.25 mm. p. 40
How is the engine fan belt tension checked and what is the correct deflection?
To check the fan belt tension, press with your hand in the middle of the belt between the alternator and the cooling pump. The belt tension is correct if it deflects between 10 to 15 mm. p. 87
What do I get after purchasing this Landini Mistral America 40HST?
Immediate download of the complete 474-page searchable Training Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print this Landini Mistral America 40HST?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
