Written for Blizzard 95 tractors on either side of the factory's serial breaks, the Landini Blizzard 95 parts catalog PDF runs 363 pages under OEM ID 95 - 3540033M1. Exploded views walk the tractor group by group, from the T4.236 engine and its Bosch, Marelli or Iskra starters through the Orbitrol steering, draft and position lift controls and the shuttle, creeper and overdrive reducer gearboxes, with every callout tied to a part number. Transmission and hydraulics and linkage together fill about a third of the book, and cab and lighting wiring diagrams help you identify a harness or relay before you order. Check your serial plate first: the O.M.G. and Luk 12-inch dual clutches are listed separately, and cab windows change at B25008. A guessed part number costs a week of good weather. The bookmarked PDF prints clean, so the pages you need can go to the bench, soak up grease, and get your Blizzard back in the field.
What's Inside This Landini Blizzard 95 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Accessories Mechanical | 1-8 | Weight Frame and Weights - Front Hook - Up to Serial N. ..., Hitch Connections, Front and Rear Hook - - Rear and Bracket, Drawbar - Lineare - "Heavy Duty", Drawbar - Lineare |

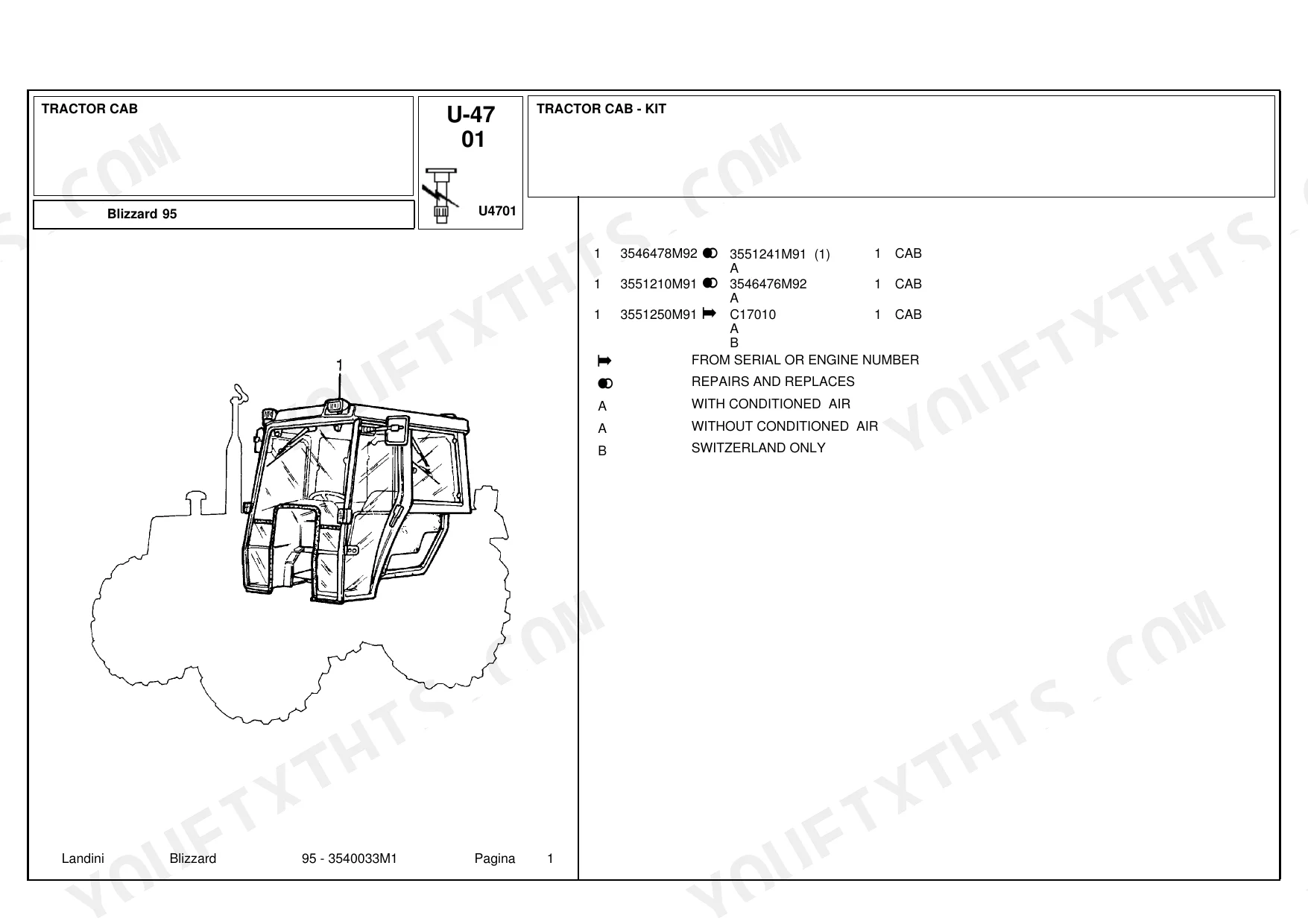

| Tractor Cab | 9-45 | - Kit, - Frame - Up to Serial Number "3/94" Windscreen, - Frame - From Serial N. "4/94" Windscreen, Tractor - "Doors", - Windows, - "Roof and Hatch" |

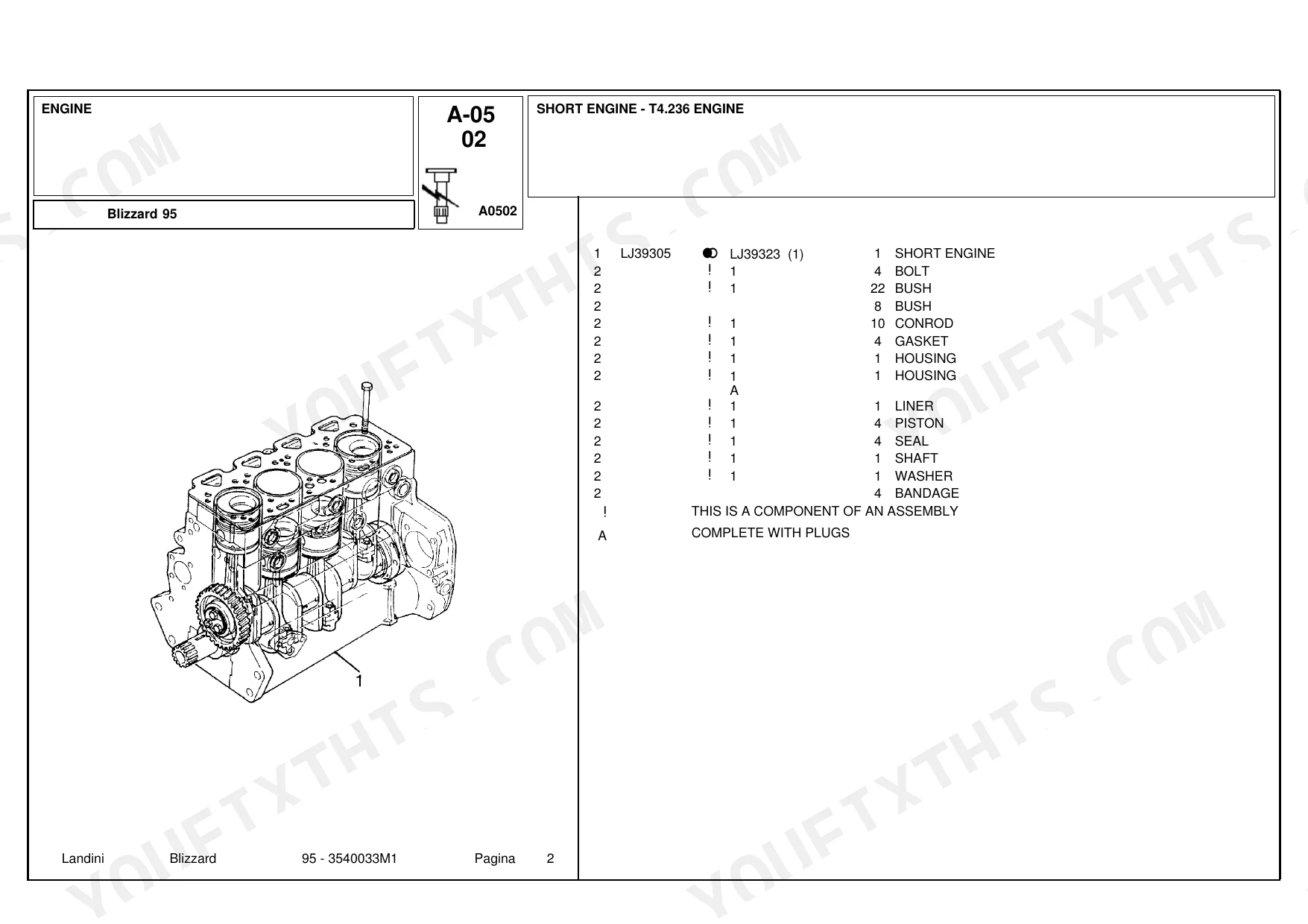

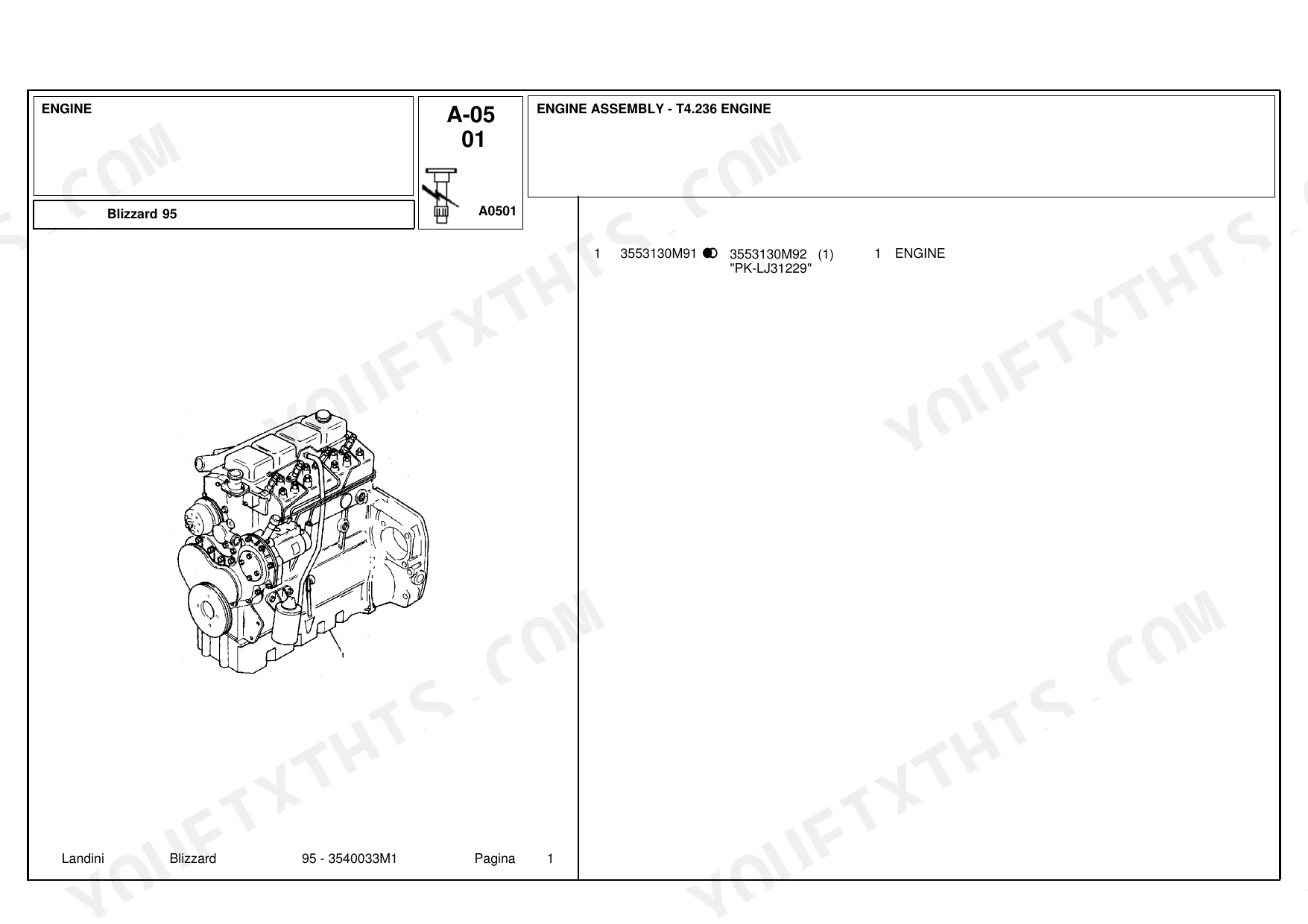

| Engine | 46-84 | Assembly - T4.236 Engine, Short Engine - T4.236 Engine, Kit Engine Overhaul -, Cylinder Block - - T4.236 Engine, Crankshaft, Pistons and Connecting Rods - - T4.236 Engine |
| Engine Ancillary Equipment | 85-129 | Alternator - - Valeo Type, Alternator - - Iskra Type, Starter Motor - Component Kit - "Marelli" Type, Starter Motor - Component Kit - "Bosch" |

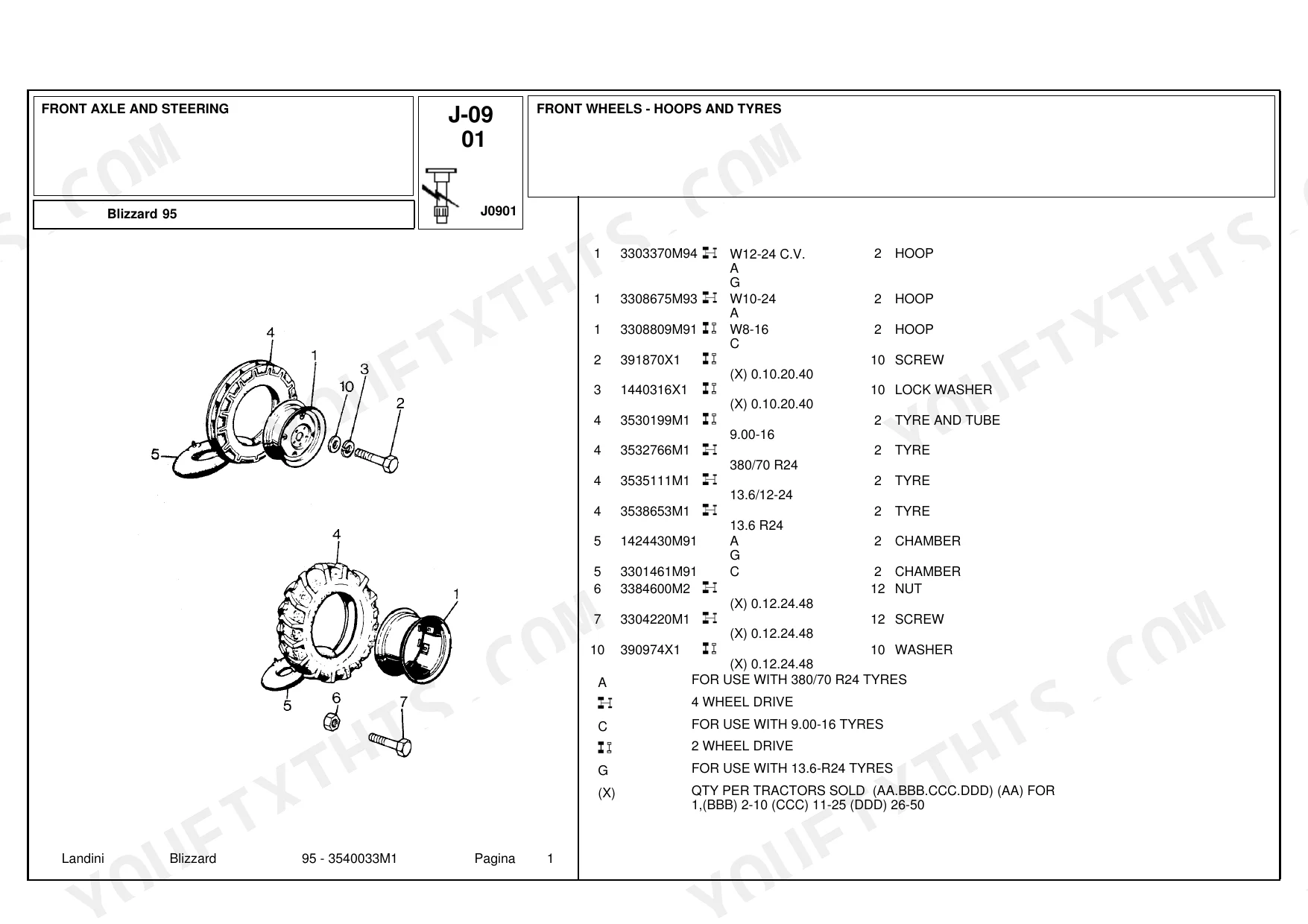

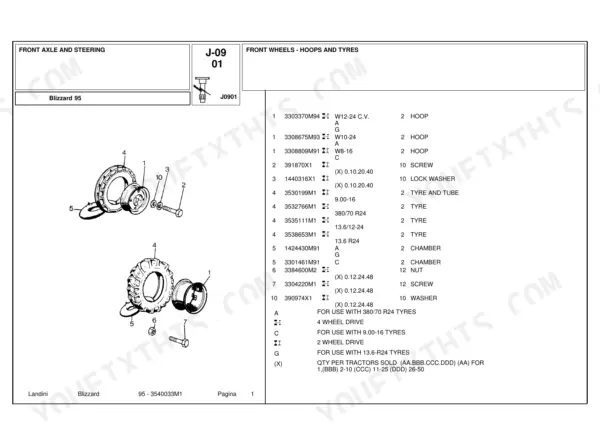

| Front Axle and Steering | 130-185 | Front Wheels - Hoops and Tyres, Front Axle 2 Wheel Drive - Axle Support, Front Axle 4 Wheel Drive - Differential - with Standard Seal |

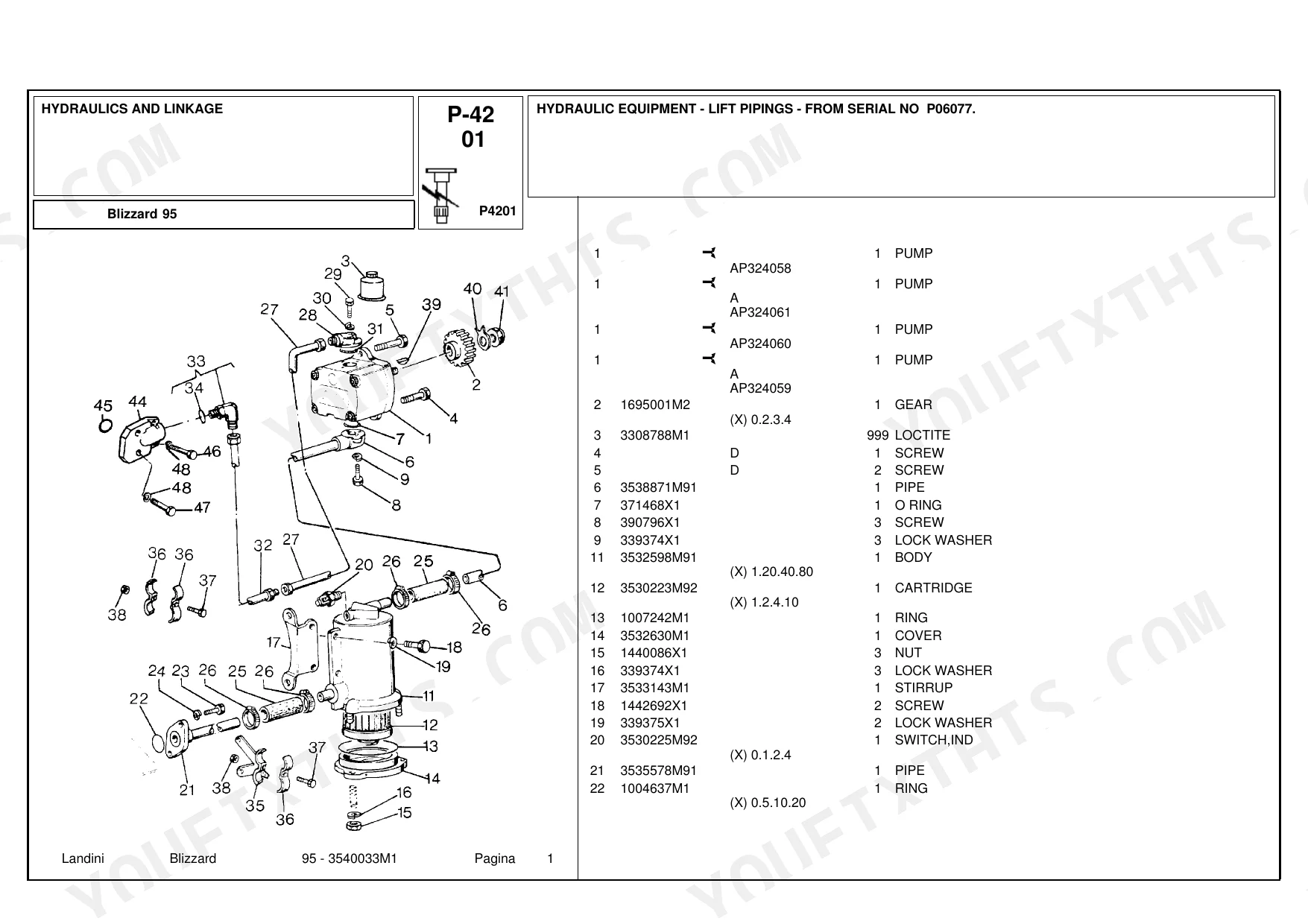

| Hydraulics and Linkage | 186-248 | Hydraulic Equipment - Lift Pipings - From Serial No P06077., Hydraulic Pump, Lift Distributor, Hydraulic Lift - Lift Arms, Hydraulic Lift Cylinder Lines - Auxiliary |
| Lighting Equipment | 249-255 | Harness, Switch, Lamp, Bulb, Support, Flasher, Relay |
| Rear Axle and Rear Brakes | 256-287 | Rear Axle - "Differential", Rear Axle - Housing and Wheel Hub, Rear Axle - Differential Lock Mechanism - Hydraulic Control, Brake and Controls - Pedals - "Standard" Type |
| Sheet Metal | 288-300 | - "Grille - Front and Hood Facings", Linkage - "Strut and Linkage" - Quick Attach-Details, - "Hood", - Panels - Hood Bracket and Instrument Panel, Decals |

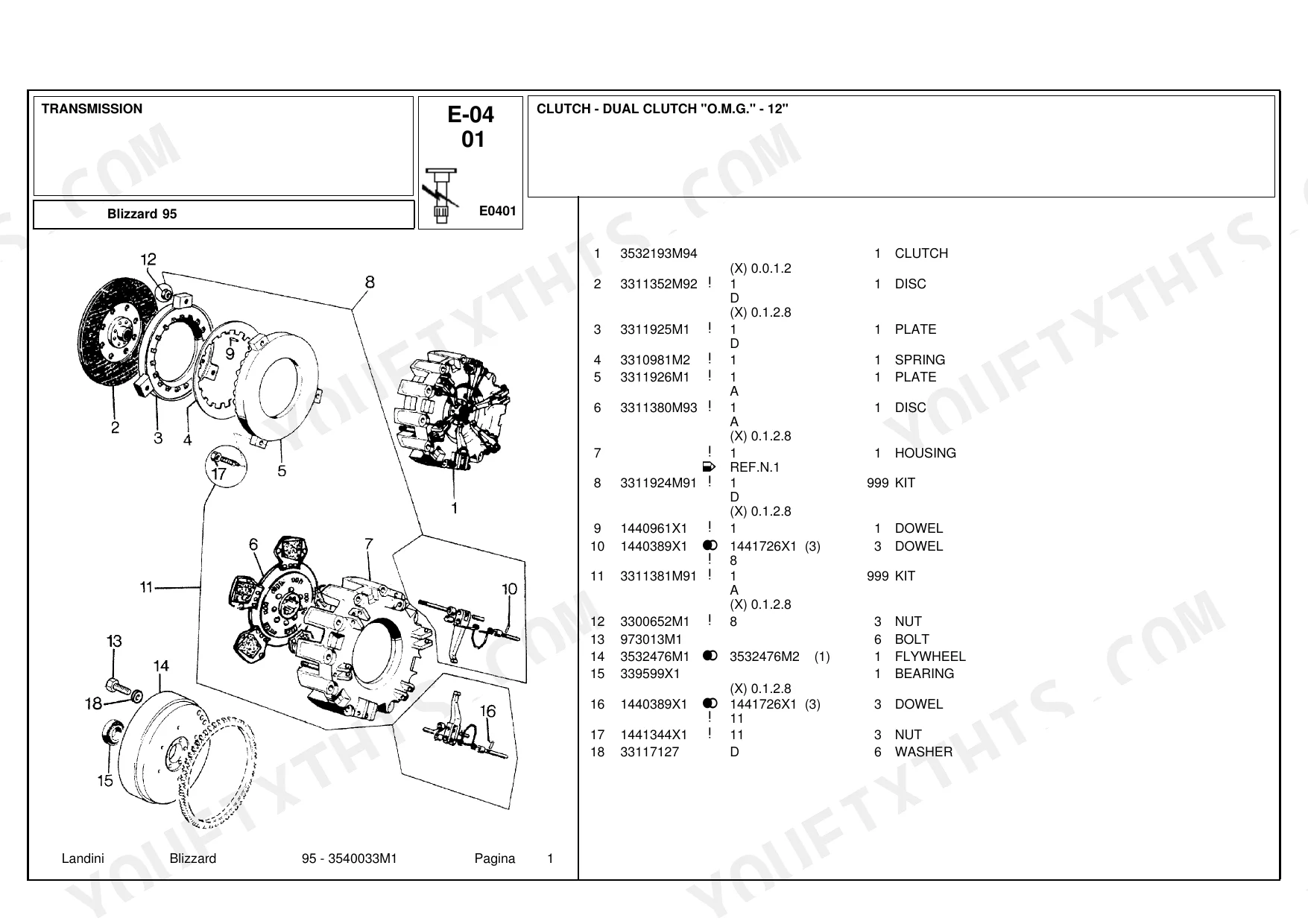

| Transmission | 301-363 | Clutch - Dual Clutch "O.M.G." - 12", Clutch - Dual Clutch "Luk" - 12", Clutch Pedal and Linkage, Centre Axle Housing and Transmission Housing - Flange, Transfer Gear Box |
Landini Blizzard 95 Common Problems This Manual Covers
Landini Blizzard 95 dual clutch replacement, can't tell whether the tractor has the O.M.G. or Luk 12 inch unit
Check the fitted clutch for an O.M.G. or Luk marking before ordering anything. Then open the Transmission exploded views starting on page 301, where the O.M.G. 12 inch and Luk 12 inch dual clutch assemblies are listed separately. Pull part numbers only from the list matching your clutch brand, so the right parts arrive before the field is ready.
Manual Section: Transmission p. 301Cab windscreen frame parts don't match, unsure which side of the serial 4/94 split the tractor falls on
Confirm your tractor serial number first. The Tractor Cab section splits the windscreen frame into separate exploded views for up to serial 3/94 and from serial 4/94. Start at the cab parts diagrams on page 9, find the frame view for your serial range, and order frame parts only from that list.
Manual Section: Tractor Cab p. 9Hydraulic lift arm replacement parts hard to identify in the rear linkage and quick attach assemblies
Open the Hydraulics and Linkage exploded views from page 186 and go to the Hydraulic Lift, Lift Arms illustration for the arm components and their part numbers. If the tractor has quick attach ends, check the Strut and Linkage quick attach details in the Sheet Metal section starting on page 288, since those parts are listed there.
Manual Section: Hydraulics and Linkage p. 186Brake pedal and control parts needed but standard type pedal components hard to identify in catalog
Check the Rear Axle and Rear Brakes section starting on page 256 and find the Brake and Controls, Pedals, Standard Type exploded view. Confirm your tractor carries the standard pedal arrangement before ordering, then take each part number straight from that list so the tractor is ready before hauling starts.
Manual Section: Rear Axle and Rear Brakes p. 256Front axle 4WD differential seal replacement, standard seal part number hard to find
Check the Front Axle and Steering exploded views, which start with the chassis diagrams on page 130. Find the Front Axle 4 Wheel Drive, Differential with Standard Seal illustration and confirm the seal type on your axle before ordering. Pull the part number from that parts list, not from the 2 wheel drive axle support view.
Manual Section: Front Axle and Steering p. 130Filter cartridge and pump parts in the T4.236 engine fuel system hard to identify
Check the Fuel System and Filter exploded view in the Engine section, which lists the pump, filter, cartridge, valve and union for the T4.236 engine. Match the cartridge against the illustration, then order from that parts list. Keep a spare cartridge on the shelf so a clogged filter doesn't cost a day in the field.
