Which of the O.M.G. and Luk dual clutches, 11 or 12 inch, belongs behind your bellhousing is settled by the 357-page Landini Blizzard 65 parts catalog PDF (OEM reference 3540030M1) for this tractor. Exploded views break down the A4.236 engine, Orbitrol steering, draft control linkage and rear differential lock, with serial breaks like the 4/94 cab frame and A07033 transmission flagged so the part matches your build. Transmission fills the largest share of the book, from clutch linkage through every shuttle, creeper and overdrive reducer to the 540/750/1000 rpm PTO shaft; wiring diagrams trace the front harness and cab circuits. Fit the 7.5 amp fuse under part 3533928M91; front ballast weights come in at 36 kg. One wrong clutch disc means splitting the tractor twice. Bookmarks and a searchable text layer get you from part number to exploded view fast, so the first order is the right one and the tractor sees the field before the weather turns.
What's Inside This Landini Blizzard 65 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Accessories Mechanical | 1-12 | Weight Frame and Weights - Front Hook, Hitch Connections, Rear Hook - Adjustable - Type, Rear Hook - Adjustable, Drawbar - Lineare - "Heavy Duty" |
| Tractor Cab | 13-49 | - Kit, - Frame - Up to Serial Number "3/94" Windscreen, - Frame - From Serial N. "4/94" Windscreen, Tractor - "Doors", - Windows, - Roof, - Windows - Up to Serial Number B25007 |

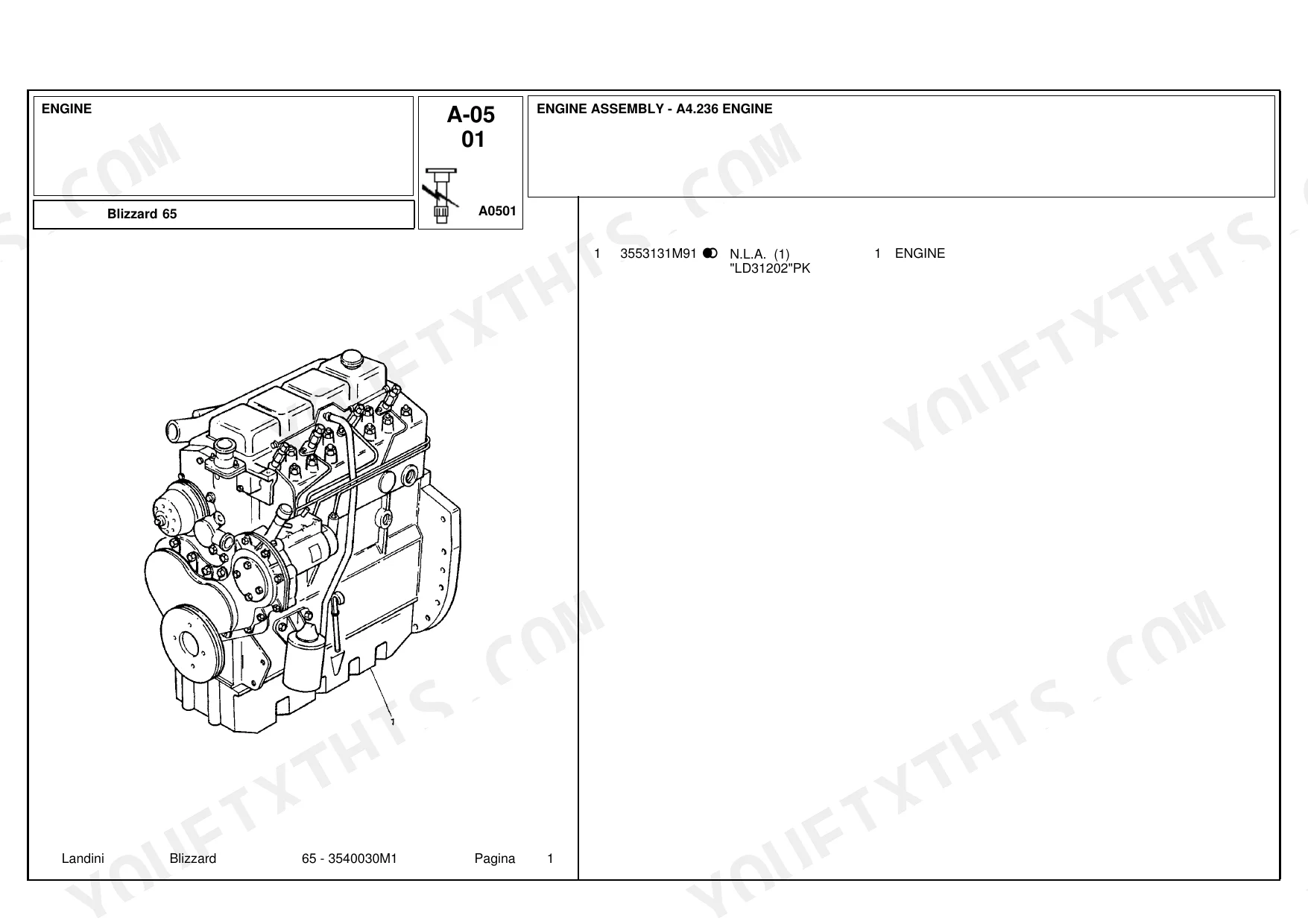

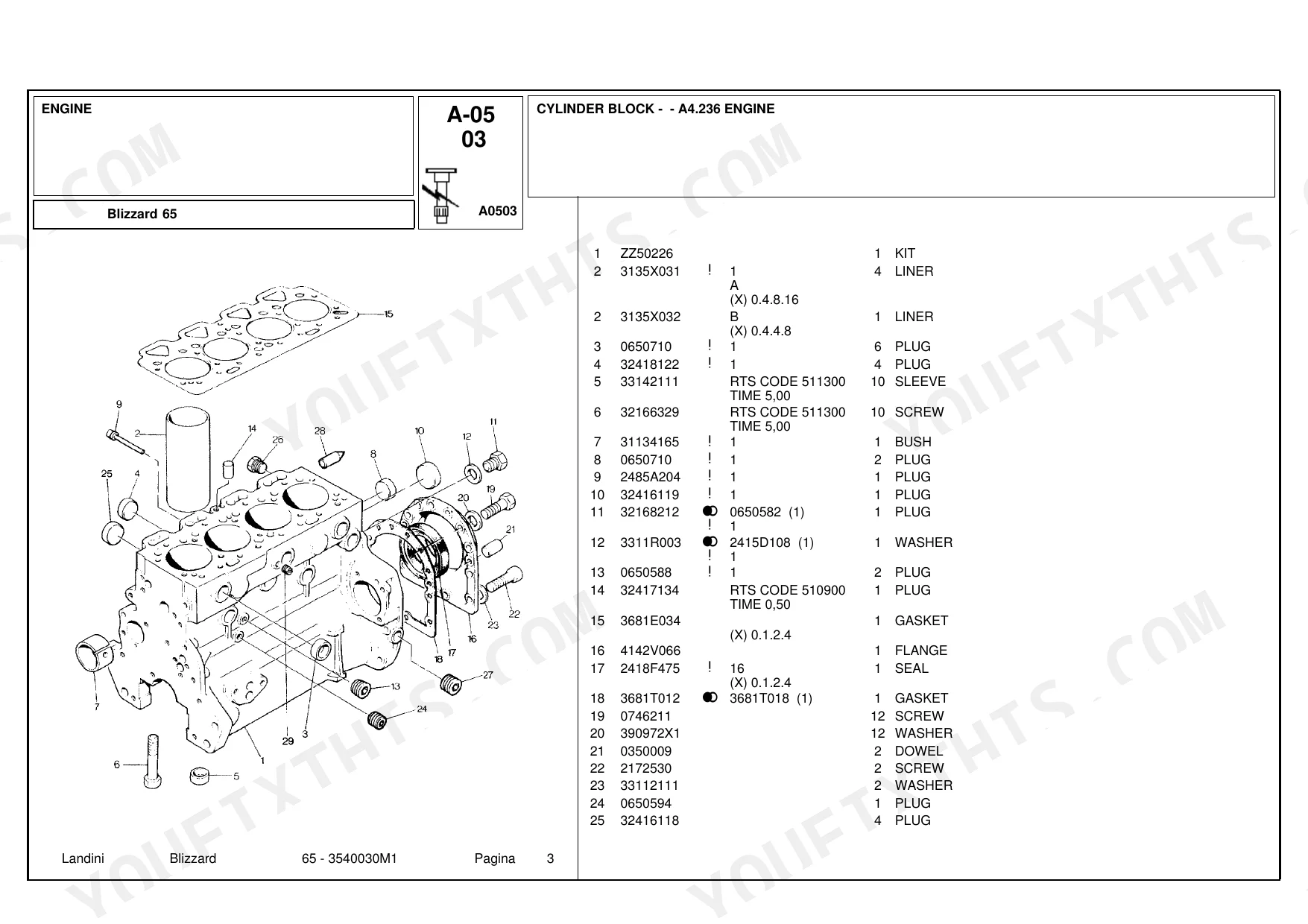

| Engine | 50-83 | Assembly - A4.236 Engine, Short Engine - A4.236 Engine, Cylinder Block - A4.236 Engine, Crankshaft, Pistons and Connecting Rods - A4.236 Engine, Cylinder Head - A4.236 Engine |
| Engine Ancillary Equipment | 84-130 | Alternator - Valeo Type, Alternator - Iskra Type, Alternator - Lucas - Lucas, Starter Motor - "Marelli" Type, Starter Motor - "Bosch", Starter Motor - Iskra Type |
| Front Axle and Steering | 131-182 | Front Wheels - Hoops and Tyres, Front Axle 2 Wheel Drive - Axle Support, Front Axle 4 Wheel Drive - Differential - with Standard Seal |
| Hydraulics and Linkage | 183-233 | Hydraulic Equipment - Lift Pipings - From Serial No P06077, Hydraulic Pump, Lift Distributor, Hydraulic Lift - Lift Arms, Hydraulic Lift Cylinder - Auxiliary - Auxiliary |

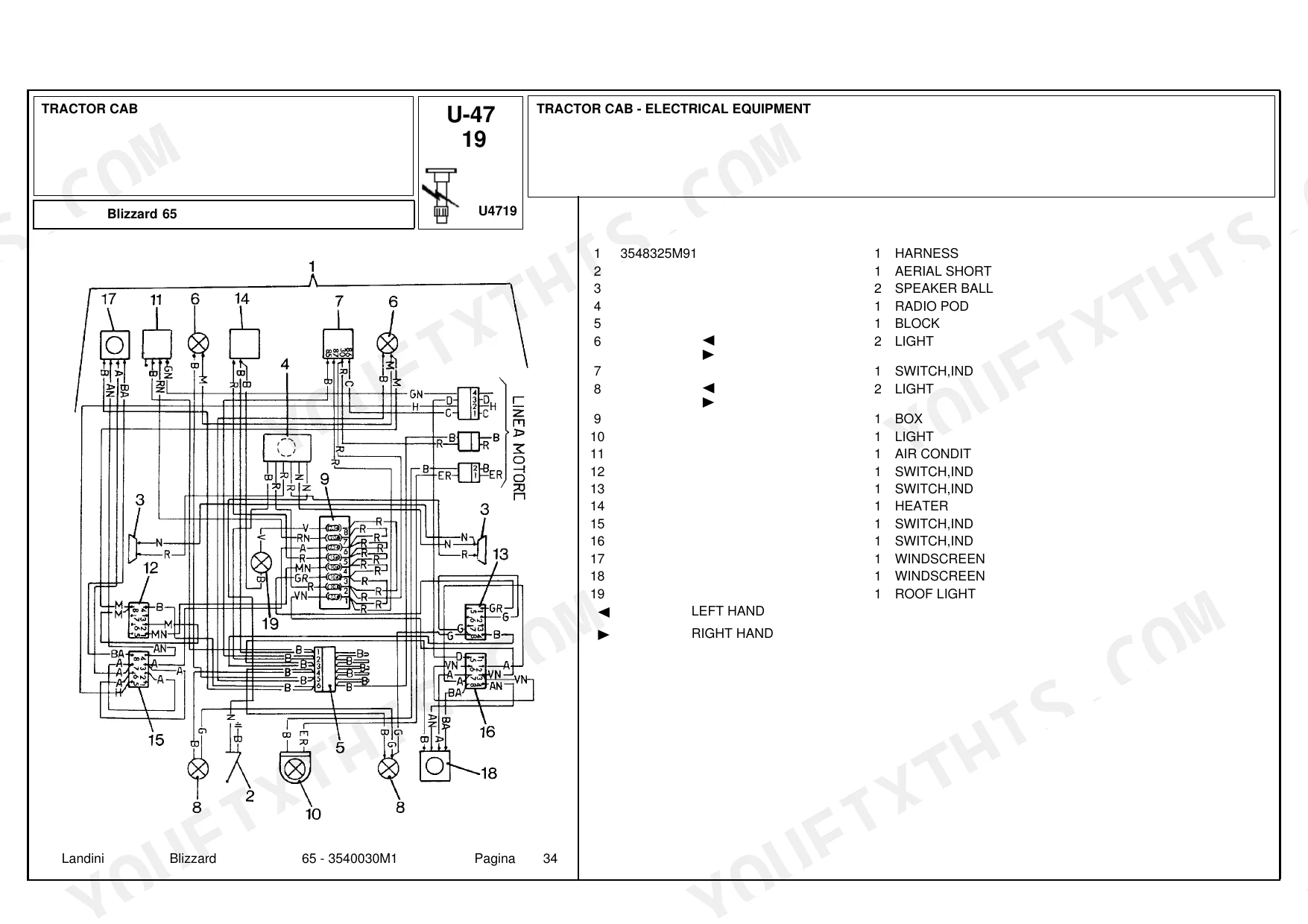

| Lighting Equipment | 234-240 | Rear Lighting, Electrical Wiring, Cab Wiring, Instrument Panel Equipment |
| Rear Axle and Rear Brakes | 241-274 | Rear Axle - Differential, Rear Axle - Housing and Wheel Hub, Rear Axle - Differential Lock Mechanism - Hydraulic Control, Brake and Controls - Pedals - "Standard" Type |
| Sheet Metal | 275-287 | - "Grille - Front and Hood Facings", Side Cover - Shield Fan, - Hood, - Panels - Hood Bracket and Instrument Panel, Decals |
| Transmission | 288-357 | Clutch - Dual Clutch "O.M.G." - 11", Clutch - Dual Clutch "Luk" - 11", Clutch - Dual Clutch "O.M.G." - 12", Clutch - Dual Clutch "Luk" - 12", Clutch Pedal and Linkage |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Fuse Rating | 7.5AMP | p. 111 |
| Ballast Weight | 36 kg | p. 1 |
Landini Blizzard 65 Common Problems This Manual Covers
Landini Blizzard 65 starter motor replacement, not sure if mine is the Marelli, Bosch or Iskra type
Check which make is stamped on your starter before ordering anything. Open the Engine Ancillary Equipment section and find the matching starter motor listing: Marelli, Bosch or Iskra type. Each make is listed separately, so match the make first, then pull the item numbers from that exploded view. Order it once and get back to the field.
Manual Section: Engine Ancillary Equipment p. 90Blown fuse in the tractor wiring, need the correct 7.5AMP fuse part number to reorder
Check the parts list on page 111. The 7.5AMP fuse is on the same line as part number 3533928M91, with a quantity of 2. Verify the item number against the exploded view on that page, then order a spare set and keep them in the cab before the next long day.
Manual Section: Engine Ancillary Equipment p. 111Replacement dual clutch parts, can't tell O.M.G. from Luk or 11 inch from 12 inch

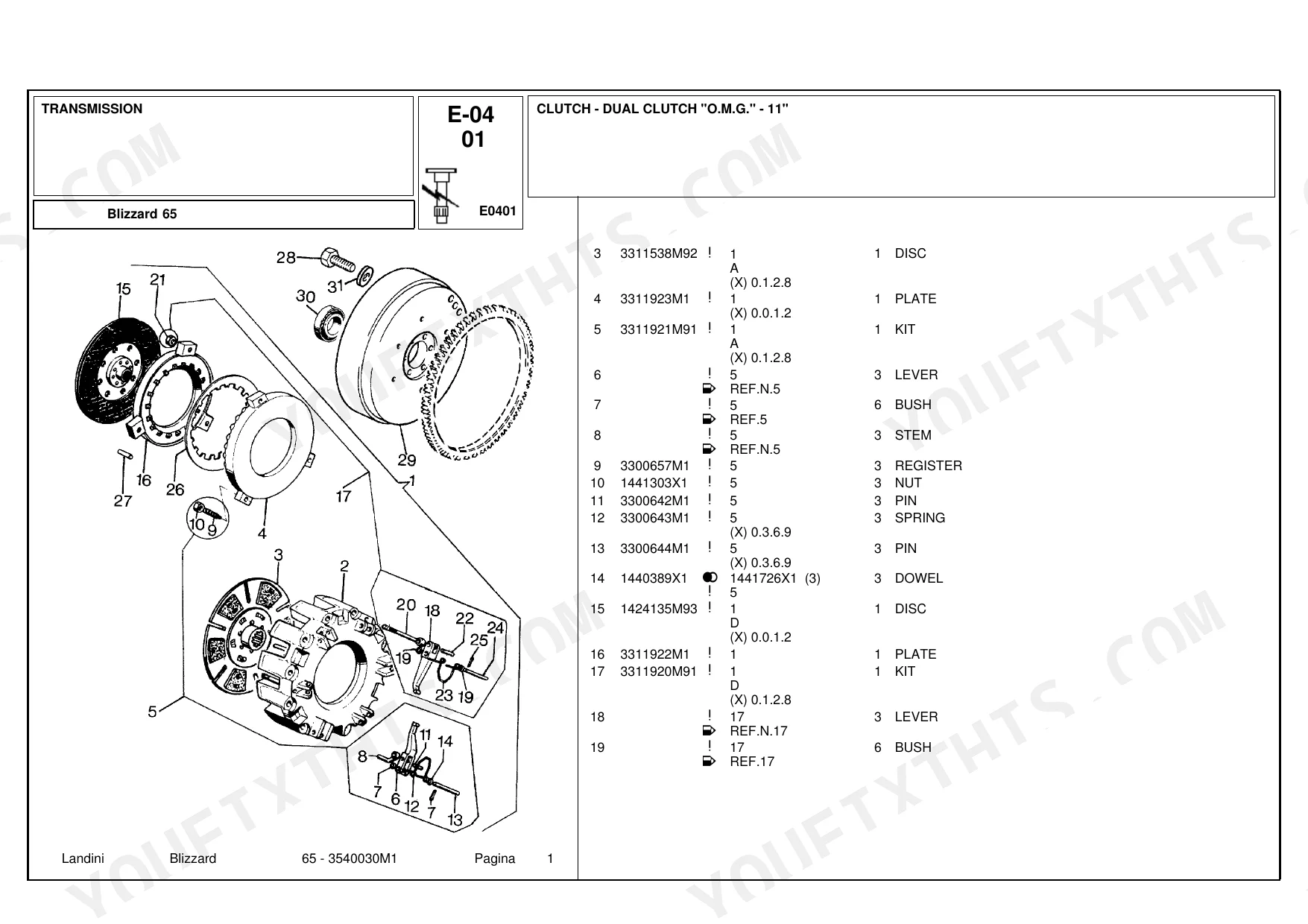

Check the Transmission section starting on page 288. It splits the dual clutch into four listings: O.M.G. 11 inch, Luk 11 inch, O.M.G. 12 inch and Luk 12 inch. Measure the old clutch diameter and identify the maker before ordering. If the pedal feel was off too, pull the clutch pedal and linkage parts from the same section.

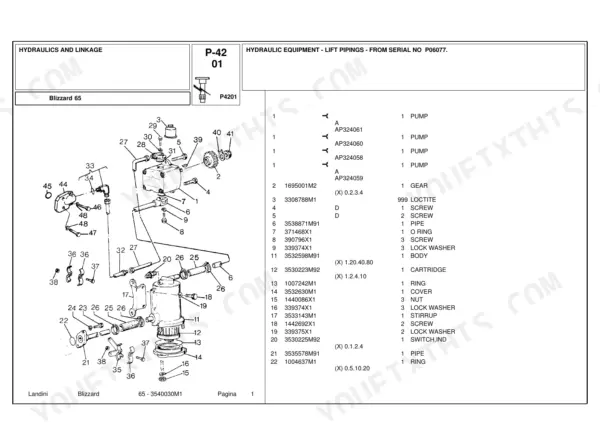

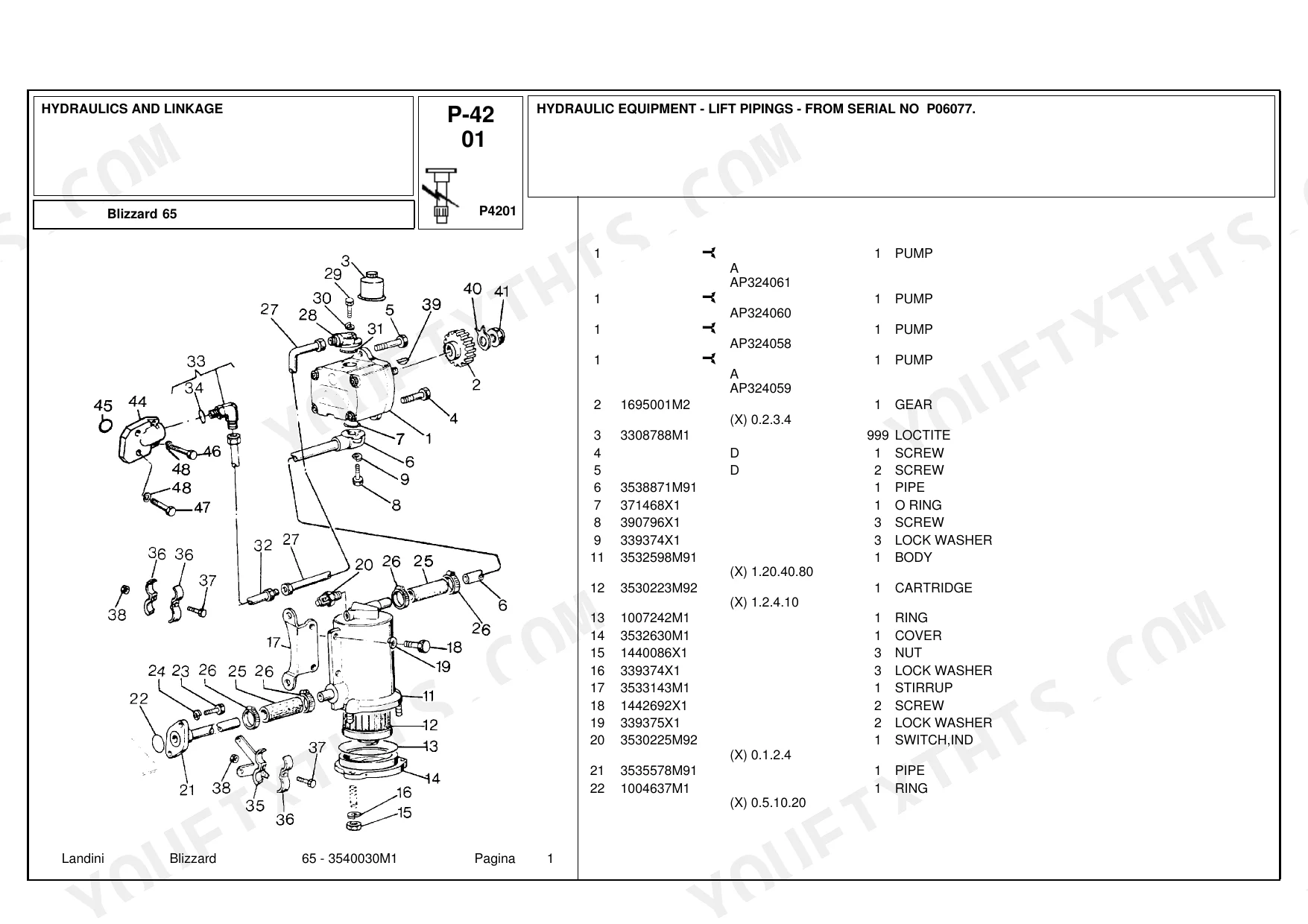

Manual Section: Transmission p. 288Leaking hydraulic lift pipe, unsure which piping listing fits tractors from serial number P06077
Check your serial number against the Hydraulics and Linkage section, which lists lift pipings separately for tractors from serial No P06077. Inspect the hydraulic parts diagrams starting on page 183 and match the leaking pipe to its item number. If fittings at those ends are weeping too, cross-check the hydraulic pump and lift distributor listings.
Manual Section: Hydraulics and Linkage p. 1834 wheel drive front axle differential seal leaking oil, need the standard seal part number
Check the Front Axle and Steering section beginning on page 131 and confirm whether you have the 2 wheel drive or the 4 wheel drive axle. Find the 4 wheel drive differential listing with standard seal, then match the seal to its item number in the exploded view. Order every part you need at once so the axle only comes apart one time.

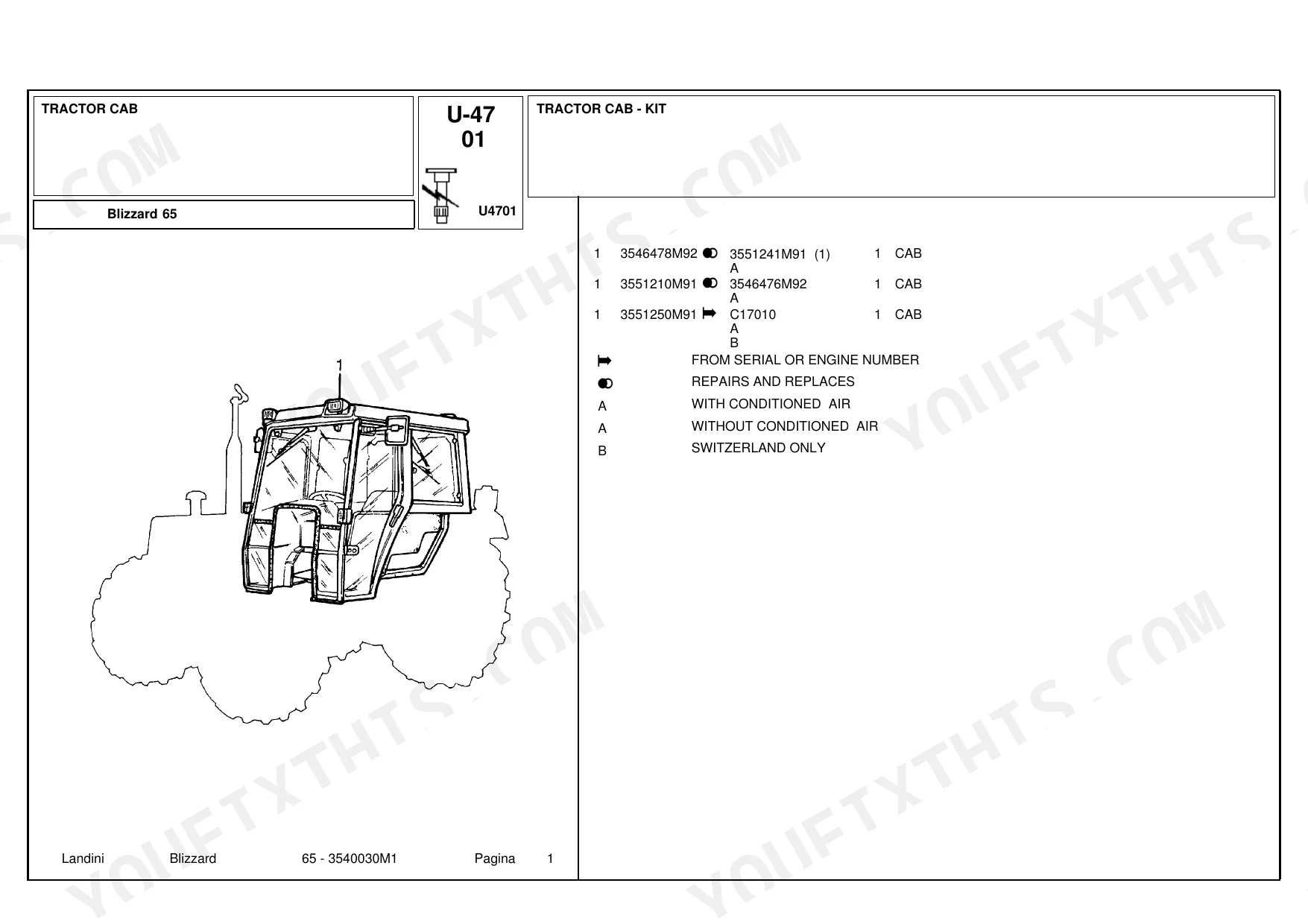

Manual Section: Front Axle and Steering p. 131Cracked cab windscreen, frame parts listed separately for serial number 3/94 and 4/94 tractors
Check the serial number on your tractor first. Then open the Tractor Cab section starting on page 13. Windscreen frame parts are listed in separate groups, one up to serial number 3/94 and one from serial 4/94. Order from the group that matches your tractor, and check window parts against the B25007 serial break too.
Manual Section: Tractor Cab p. 13Frequently Asked Questions
What are the Landini Blizzard 65 part numbers for the Marelli starter motor armature, solenoid and brush kit?
The starter motor for the Landini Blizzard 65 (Marelli type) includes several replaceable components. For example, the armature is part number 3477316M91, the solenoid is 3901191M1, and the brush kit is 1810743M91. These parts are detailed in the Engine Ancillary Equipment section. p. 90
What is the part number for the engine oil filter cartridge on the Landini Blizzard 65?
The replacement cartridge for the lubricating oil filter is part number 2654403. p. 74
What is the part number for the engine cooling fan belt on the Landini Blizzard 65?
The fan belt for the A4.236 engine depends on the production date. For models up to 88/12, use part number 2614B642. For models from 89/01, use part number 2614B644. p. 82
What is the part number for the main engine air filter element on the Landini Blizzard 65?
The main air filter element for the dry air cleaner system is part number 3540046M1. p. 102
What is the part number for the tractor seat on the Landini Blizzard 65?
The seat assembly for the Landini Blizzard 65 is part number 3547920M91. p. 47
What exactly do I receive with this Landini Blizzard 65 Parts Catalog?
Immediate download of the complete 357-page searchable Parts Catalog. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print a copy of this Landini Blizzard 65 Parts Catalog for the shop?
Yes. It prints from any PDF reader, so run off the pages you need for your own repair work.
