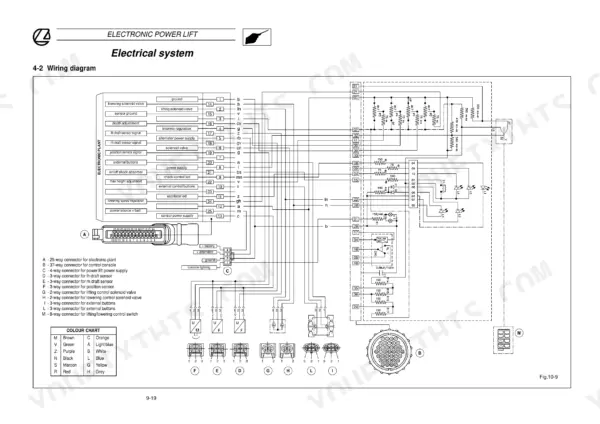

This 905-page Landini Mythos Training Manual (OEM #3659955M1) covers the Mythos tractors in both Powerfive and Deltafive versions, plus the ECC air-conditioning system, giving you the full training reference behind the dealer counter. You get complete wiring diagrams for every cab and roof line, hydraulic schematics for the braking and power lift circuits, and a dedicated Main Control Panel chapter walking through functional tests, calibration, and fault finding. Page after page of driving torque tables back up the gearbox, axle, and brake teardown procedures, right down to the special tools called out for each job. Set bolt driving torques anywhere from 1 to 57 depending on thread size, and confirm hydraulic filtration holds at 60 microns before you seal it back up. No more chasing an A/C fault with a test light and a guess. Bookmarked and searchable, so you jump straight to the wiring line or calibration step you need.
What's Inside This Landini Mythos 90, Mythos 100, Mythos 110 Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction & How to Use the Manual | 4-62 | How to Consult the Manual (Introduction, Structure of the Manual) |
| Driving Torques (Perkins 1004-40T / 1006-60) | 63-87 | Technical Specifications, Main Technical Specifications, Driving Torques, Standard Driving Torques, Recommended Driving Torques: Engine 1004-40T, Recommended Driving Torques: Engine 1006-60, 1004-40T/1006-60 Engine Tuning, Introduction |
| Inspections & Special Tools | 88-104 | General Description, Description of Operation, Damper (Deltafive Version), Technical Specifications, Main Technical Specifications, Inspections, Special Tools |

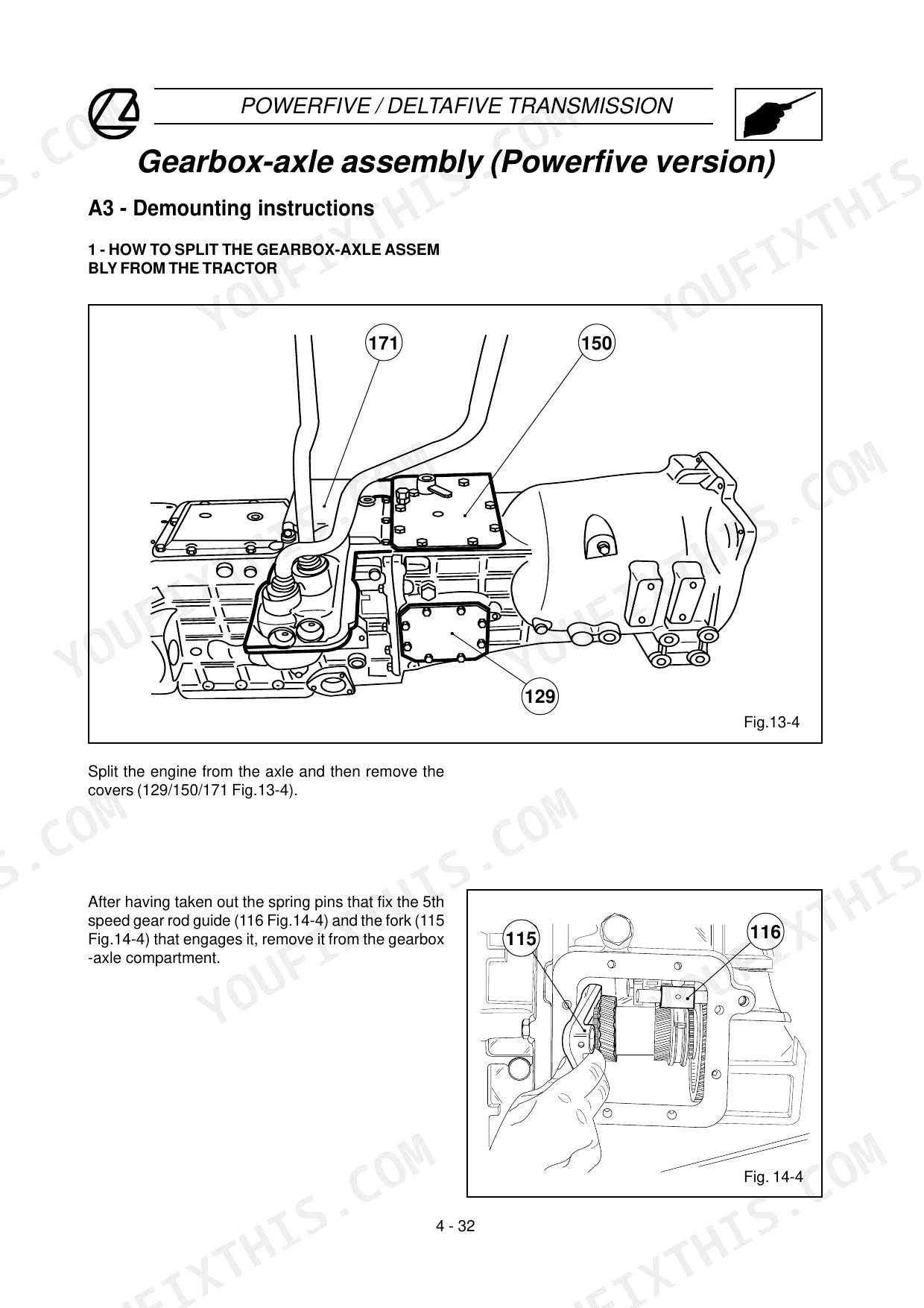

| Gearbox, Axle, Differential, Final Drives & Rear Brakes | 105-216 | Demounting, Remounting and Adjustment Instructions (Gearbox-Axle Assembly, Gearbox, Bevel Gear Pair and Differential, Side Final Drives, Rear Brakes), Special Tools |
| Front Brakes | 217-242 | Demounting, Remounting and Adjustment Instructions (Front Brakes), Special Tools |
| Demounting, Remounting & Adjustment | 243-260 | General Description, Drawing of Assembly and Main Components, Operation, Technical Specifications, Main Technical Specifications, Driving Torques and Sealants, Power Train Diagrams, Demounting |
Every system also includes technical specifications.
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

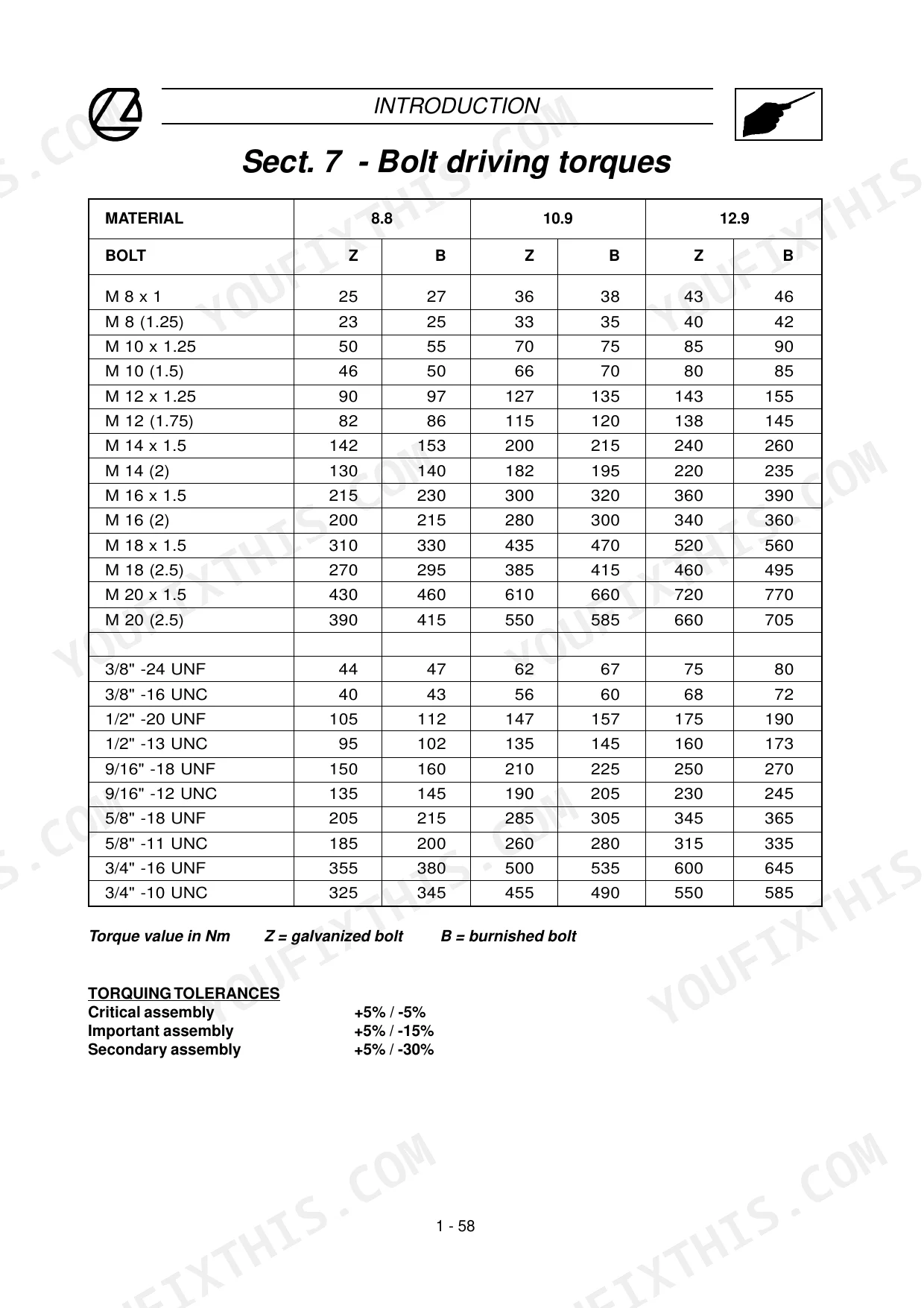

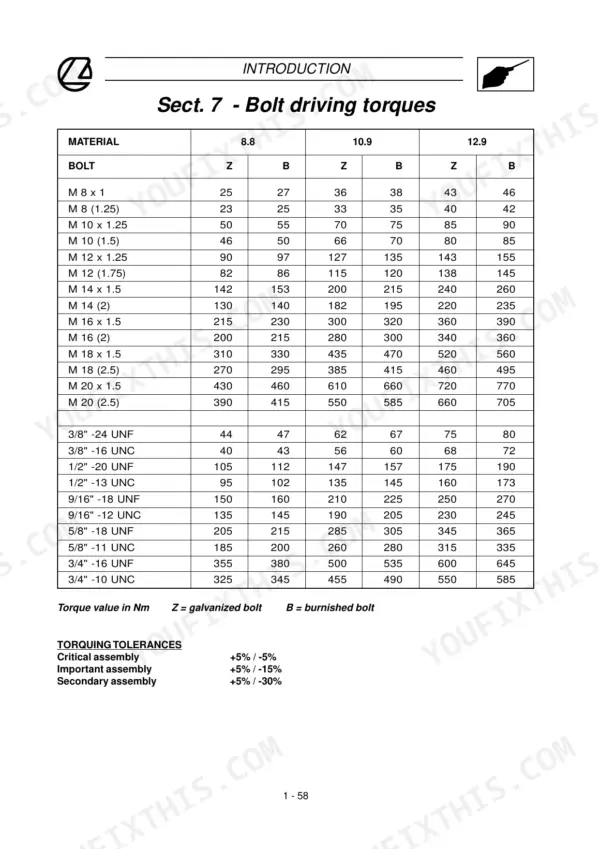

| Bolt driving torques | 1-57 | p. 5 |
| Filter on injection pump delivery | Cvx | p. 11 |
| Air filter | Dry, with two elements removable for maintenance | p. 11 |
| Type (on the intake) | with replaceable cartridge | p. 19 |
| filtering degree | 60 micron | p. 19 |
| Voltage rating | 12V | p. 21 |
| Cold starting surge at -18°C in 30 seconds | 500 (CEI) | p. 21 |
| Maximum operating pressure | 180 bar | p. 19 |
| Maximum flow rate (at 2200 RPM) | 53.9 l/min | p. 19 |
| Clean fuel filter bowls | Daily or as required | p. 40 |
| Dry air filter: clean drain valve | Daily or as required | p. 40 |
Landini Mythos 90, Mythos 100, Mythos 110 Common Problems This Manual Covers
Landini Mythos 110 Delta Shift transmission throws AL024 error, reverse gear won't engage
Check the reverse drive solenoid valve wiring and Hall sensor continuity per the electrical fault diagnosis chart. Test the reverse shuttle lever contacts for continuity; open circuit here triggers AL024. Verify battery output holds at 12V under load before condemning the transmission control module.
Manual Section: Specific Electrical Faults (Hall Sensors, Switches, Solenoid Valves)Three-point hitch stuck in up position, won't lower even with control lever movement
Check the transport lock knob under the seat first; it's often engaged accidentally and blocks the lift arms completely. If clear, run the hydraulic tests for the valve system starting at page 395 and check operating pressure against the 180 bar maximum tolerated pressure specified on page 429. Low pressure points to a lift valve or pump fault.
Manual Section: Mechanical Power Lift Inspections, Adjustments and Troubleshooting p. 395Hydraulic loader function quits working unexpectedly, bucket and boom stop responding to lever inputs
Remove and inspect the hydraulic quick coupler at the loader valve bank; a loose or partially seated coupler restricts oil flow and kills the function entirely. Reseat and lock the coupler, then check hydraulic pressure at the pump against the 180 bar maximum operating pressure listed on page 19. Clean the intake filter screen if pressure reads low.
Manual Section: Technical Specifications p. 19Excessive coolant loss requiring daily top-off, no visible external leak underneath the tractor
Check coolant level in the radiator daily as listed in the maintenance schedule on page 40; top-off alone won't fix an internal leak. Pressure test the cooling system and pull the cylinder head to inspect the gasket and mating surface for cracks. Torque head bolts to 45 Nm on reassembly, referencing page 71, then retest for leakage.
Manual Section: Cap-1: Maintenance Schedule p. 40Evaporator core failure inside the cab, weak or no cold airflow from the vents
Check the evaporator drain pipes for blockage as described on page 895; frozen condensate in the drip tray stops airflow and mimics a dead evaporator. Verify evaporator internal temperature holds near -5°C during operation per the spec on page 874. Replace the evaporator core if it's cracked or leaking refrigerant.
Manual Section: Air-Conditioning System p. 874Frequently Asked Questions
How to correct the AL 29 error code on Landini Mythos?
Error code AL 29 indicates that an attempt has been made to engage the 'options' solenoid valve (Reverse - Overdrive - Underdrive), but the hydraulic clutch failed to engage completely. To correct this, repeat the operation by releasing the clutch pedal with the Reverse/Underdrive/Overdrive engaged indicator light on. p. 749
What are the torque specifications for Landini Mythos wheel bolts?
The manual instructs to check the driving torque of the nuts or bolts that fix the wheels and wheel plates as part of pre-delivery inspection and routine maintenance. However, specific torque values for wheel bolts are not provided in the general bolt driving torques table or the maintenance guide. p. 35
How can the electronic lift on a Landini Mythos tractor be reset?
The manual does not provide a specific 'reset' procedure for the electronic lift. It states that if the electronic plant operates in a faulty way, electrical faults are indicated by a flashing code on the control panel. The general approach for electrical faults is to identify the faulty component and replace it, as the whole plant must be replaced in the event of faults. p. 466
What is the procedure for checking driving torques on Landini Mythos chassis components?
To check driving torques on chassis components, inspect areas such as the front axle/engine, engine/gearbox, gearbox/rear axle, and axle shaft housings/rear axle. This is part of the pre-delivery inspection and routine maintenance, ensuring all nuts and bolts are correctly fixed. p. 35
What format is this Landini Mythos manual in?
This is a 905-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Am I able to print pages from this Landini Mythos manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Are there hydraulic schematics in this Landini Mythos manual?

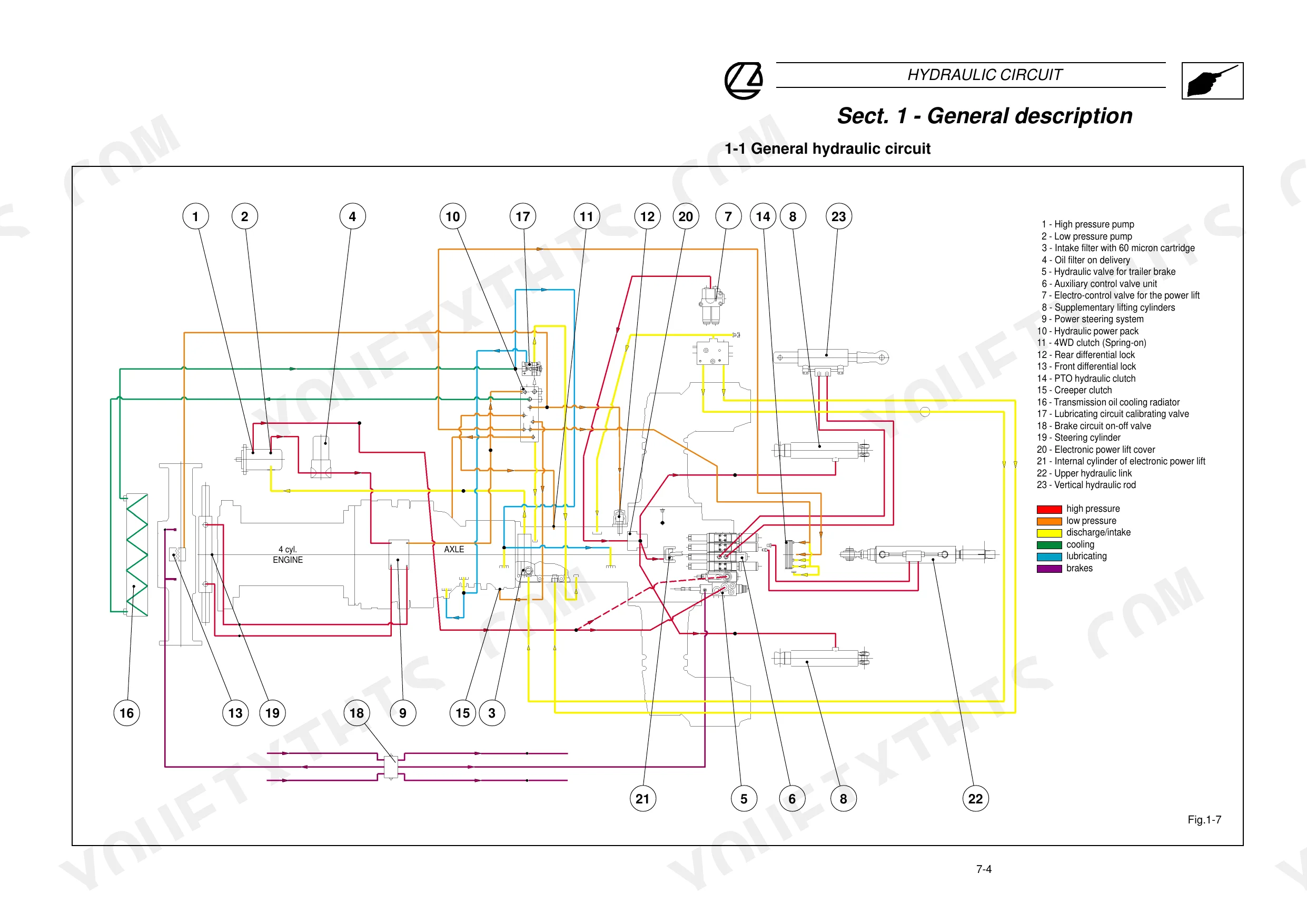

A hydraulic system diagram for the Landini Mythos is included.
