The Landini Large 13000 parts catalog PDF breaks the tractor down to its last washer and circlip across 340 pages, catalogued under OEM number 3310477M3. Exploded views take the 6.354.4 engine apart from rocker shaft, crankshaft, pistons and connecting rods through cylinder head, starter motor and alternator, every callout keyed to a part number you can quote at the dealer counter. Past the engine, drawings cover the front PTO drive shaft, instrument panel, water pump and thermostat, and the hydraulic lift pipings, clamping valve and hydraulic valve, while fenders and platform sheet metal fill a large share of the book. Match the callout to its reference, confirm the quantity listed, then place your order. One wrong gasket means a week's wait and a second teardown. Bookmarked and text-searchable, the file travels on a laptop or phone to wherever the tractor stands, so the right number is found before the weather turns and you're back in the field.
What's Inside This Landini Large 13000 Parts Manual
| System | Pages | Key Topics |
|---|---|---|

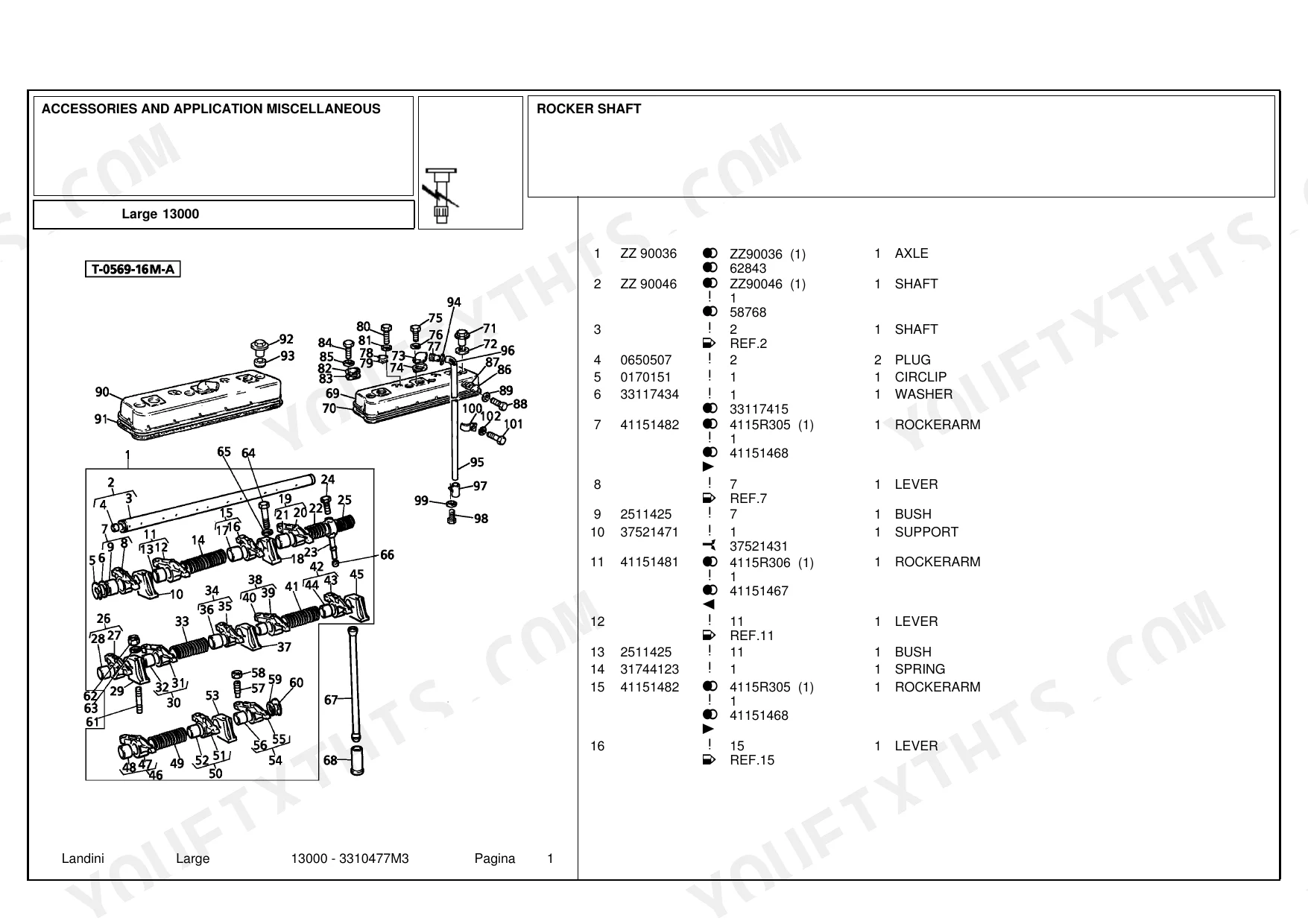

| Rocker Shaft | 1-6 | Axle, Shaft, Rockerarm, Lever, Bush, Support, Spring |

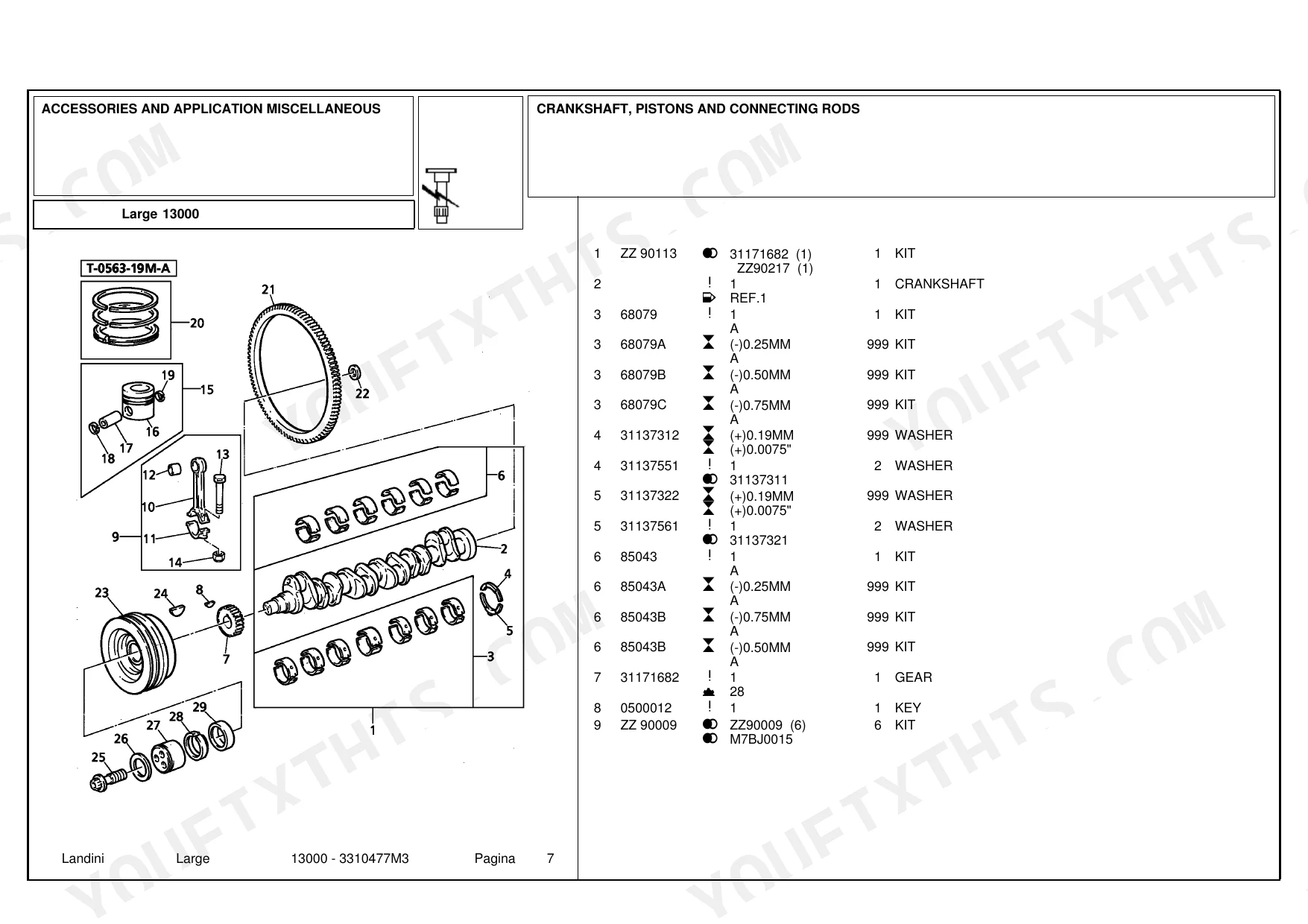

| Crankshaft, Pistons and Connecting Rods | 7-9 | Crankshaft, Washer, Gear, Key, Conrod, Cap, Bush, Bolt |
| Front PTO Drive Shaft | 10-12 | Shaft, Bearing, Gear, Circlip, Protector, Guard, Pinion, Bush |
| Alternator and Generator | 13-21 | Alternator, Pulley, V Belt, Setscrew, Nut, Washer, Sleeve, Bolt |

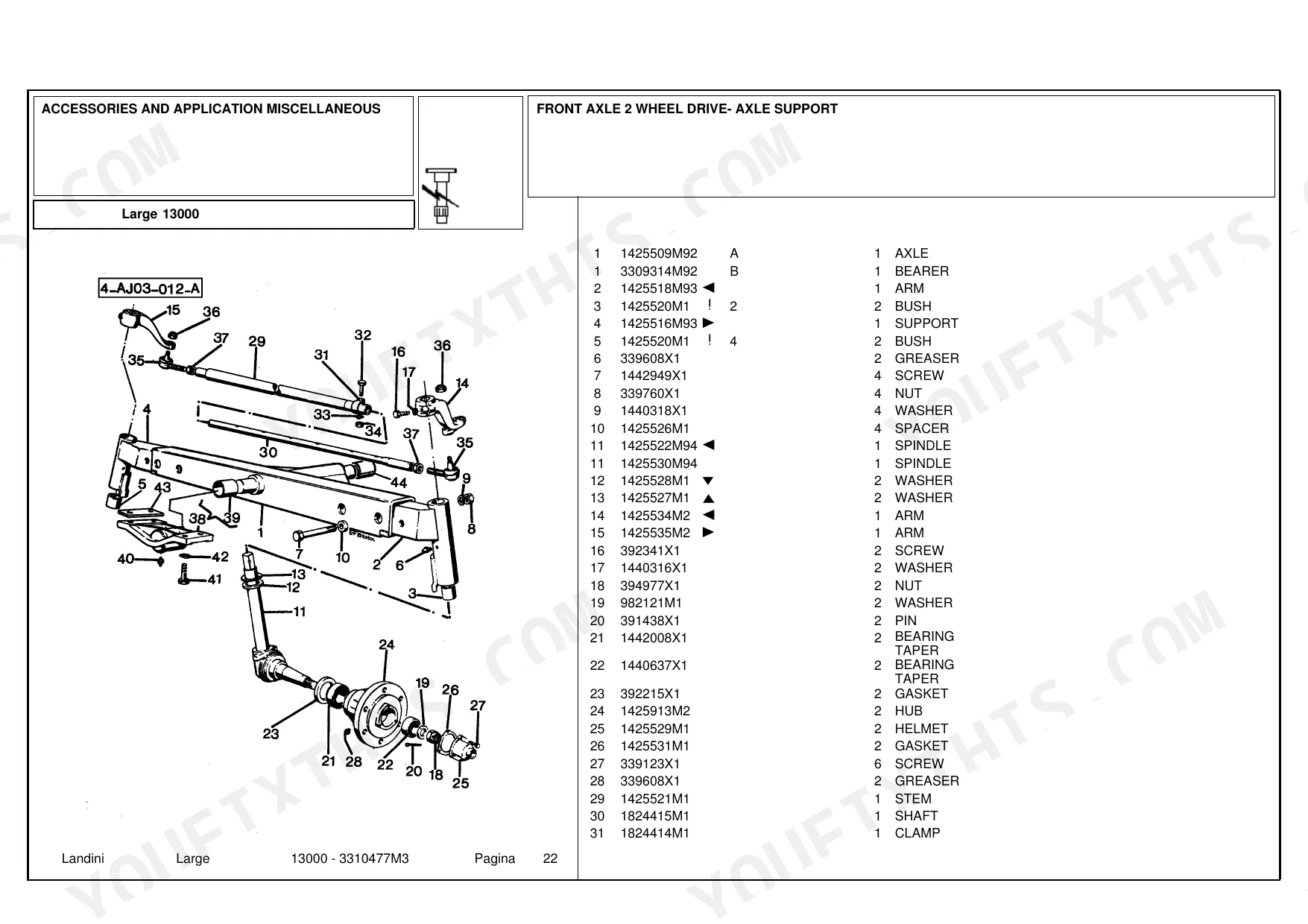

| Front Axle 2 Wheel Drive - Axle Support | 22-24 | Bearer, Arm, Spindle, Greaser, Spacer, Front Axle 2 Wheel Drive- Axle Support |
| Front Axle 4 Wheel Drive - Housing | 25-50 | Front Axle 4 Wheel Drive- Differential Lock Mechanism, Front Axle 4 Wheel Drive- Differential, Front Axle 4 Wheel Drive - Final Drive |
| Rear Axle | 51-63 | Rear Axle - Housing, Rear Axle - Differential, Rear Axle - Differential Lock Pedal |

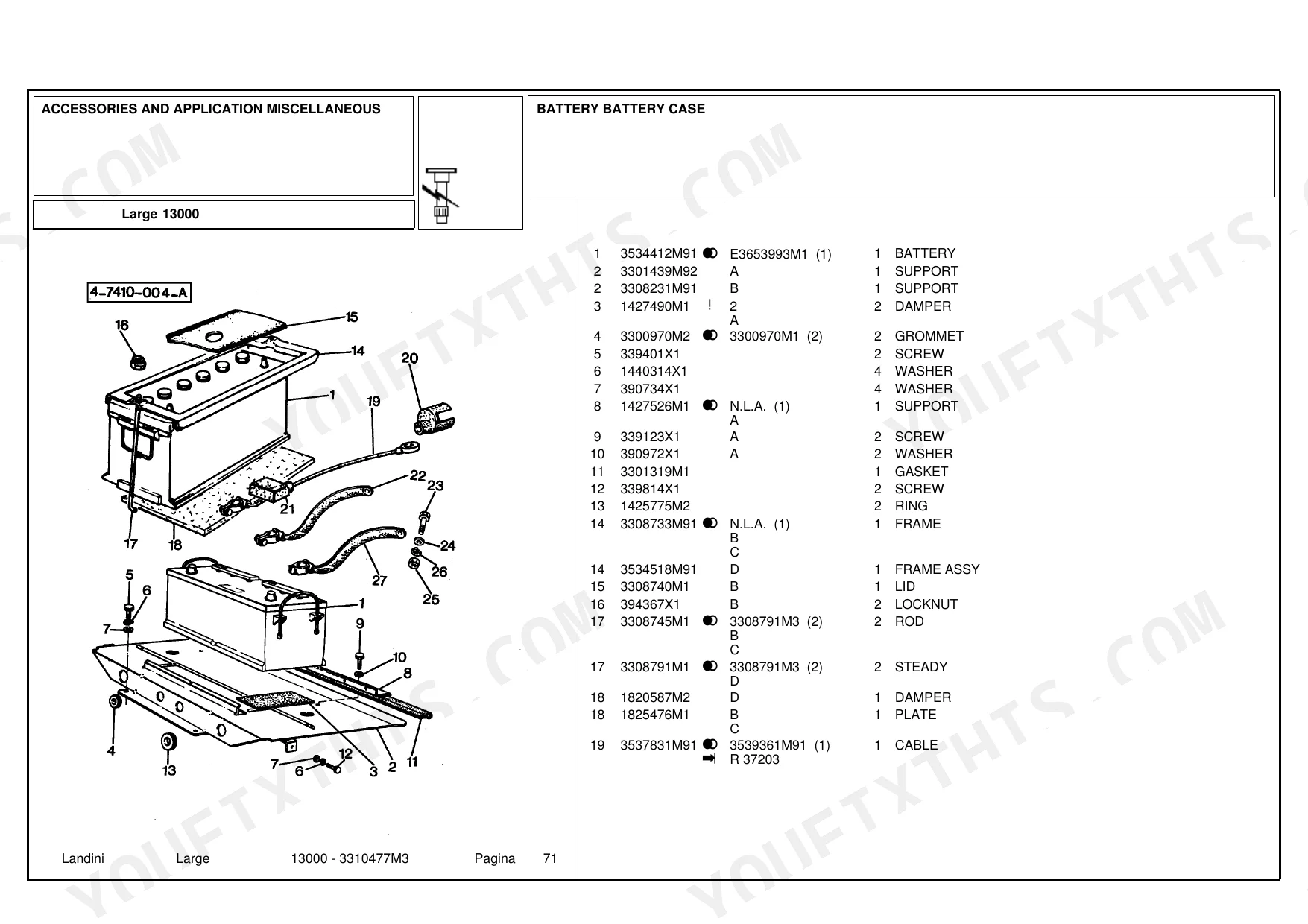

| Lift Hitch | 64-73 | Drawbar, Battery Battery Case |
| Tractor Cab - Radio Installation | 74-110 | Tractor Cab - Cab Insulation, Tractor Cab - Cab Door, Tractor Cab - Cab Heater, Tractor Cab - Cab Lighting, Tractor Cab - Air Conditioner, Cab - Windows, Cab - Frame, Cab - Windscreen Wiper, Tractor Cab - Ventilation |
| Sheet Metal - Hood | 111-115 | Sheet Metal - Grille, Sheet Metal - Panels |

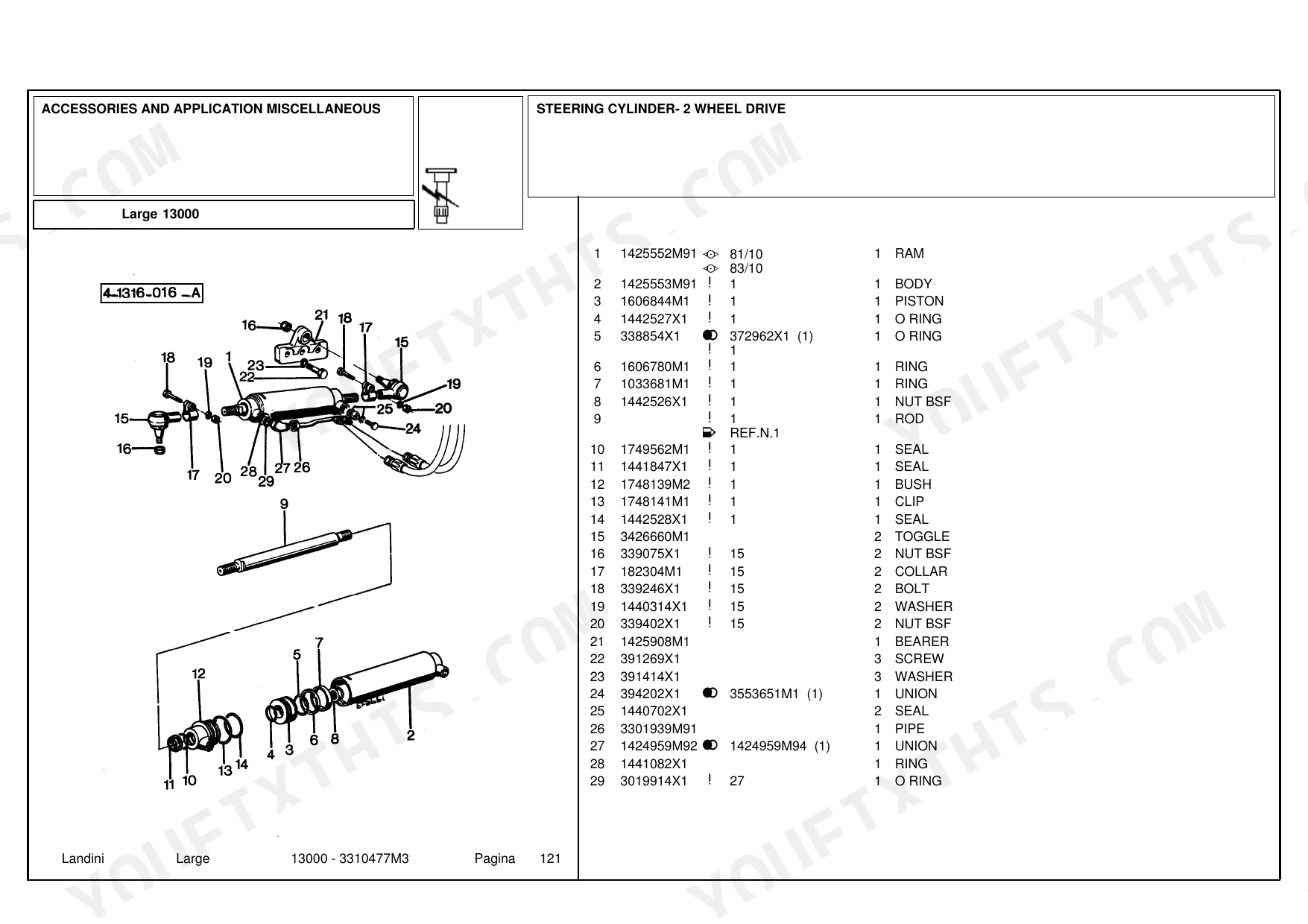

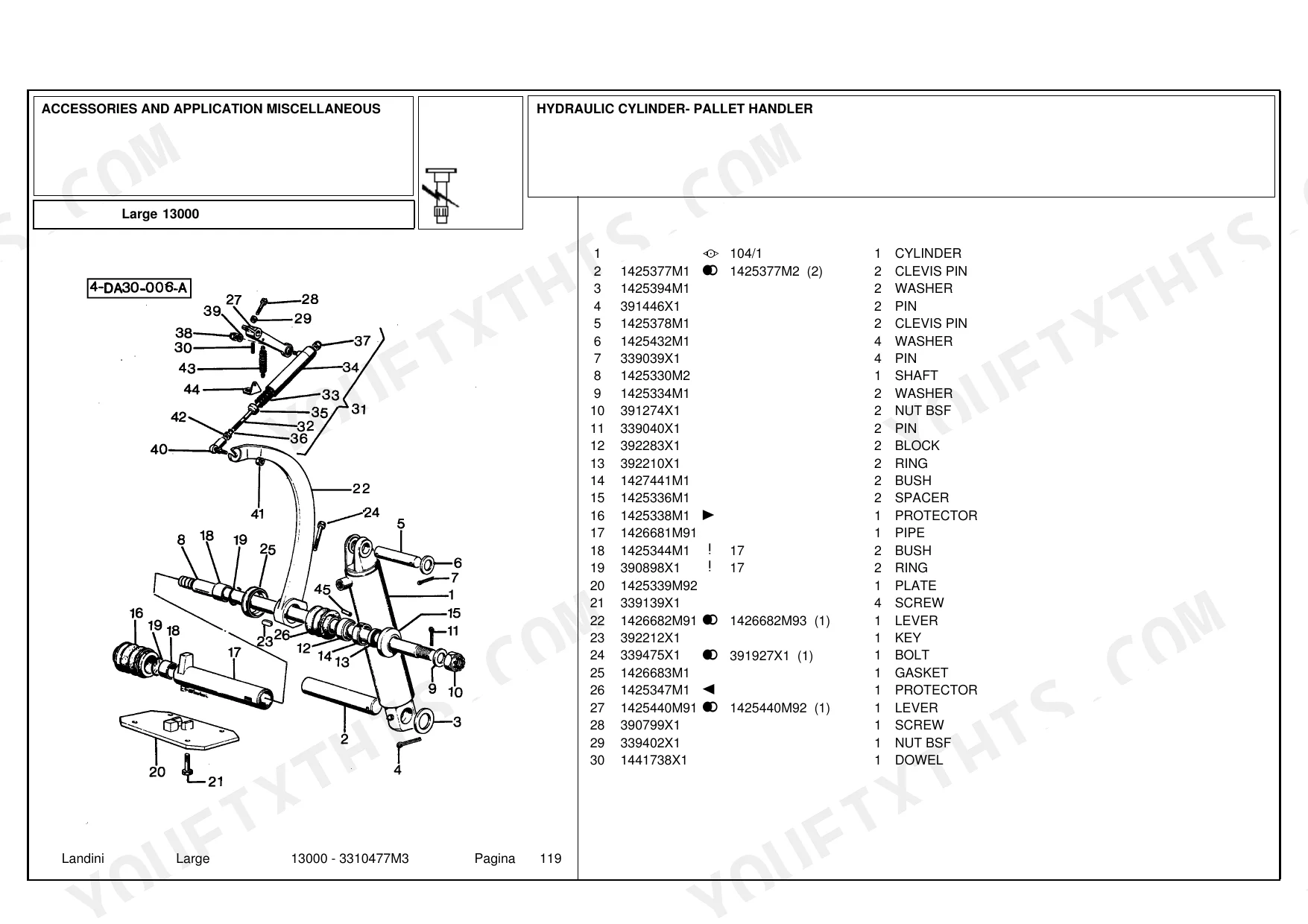

| Centre Axle Housing and Transmission Housing | 116-131 | Electronic Harness- Instrument Panel, Brake Cylinder, Hydraulic Cylinder- Pallet Handler, Steering Cylinder- 2 Wheel Drive, Steering Cylinder- 4 Wheel Drive, Exhaust Manifold, Throttle Controls |
| Rear Controls - Draft and Position | 132-155 | Rear Controls- Draft and Position, P.T.O. Control, Reducer Control, Transmission Control - Fork, Lubricating Oil Sump, Decals, Lift Distributor |
| Steering Control Valve | 156-174 | Auxiliary Distributor |
| Electrical Wiring | 175-185 | Lighting Equipment, Air Filter- Dry - Dual Element, Lubricating Oil Filter and Integral Cooler |
| Brakes and Controls | 186-198 | Brakes- Pedals and Linkage, Brakes- Hydraulic Pipes, Handbrake - Control Linkage, Brakes- Master Cylinder |
| Dual Clutch | 199-209 | Front and Rear Hitch, Rear Hook- Adjustable, Joints and Gaskets |
| Electrical Equipment | 210-227 | Fuel Injection Equipment (Diesel), Timing Gear and Camshaft, Tool Kit, Rotating Light, Shift Levers- Standard Transmission, Pick-Up Mechanism, Cylinder Block |
| Engine | 228 | Short Engine 6.354.4, Components |
| Starter Motor | 229-232 | Decal, Bosch Type, Assembly, Components, Repair Kit, Service |
| Instrument Panel and Instruments | 233-235 | Tachometer, Meter, Gauge, Manometer, Cable, Clamp, Instrument Panel Assembly, Instrument Panel Components, Instrument Panel Service |
| Front Fenders | 236-247 | Fenders and Platform |
| Water Pump, Thermostat and Heat Exchanger | 248-259 | Pump, Bearing, Circlip, Seal, Water Pump, Thermostat and Heat Exchanger |
| Front Wheels | 260-264 | Rear Wheels |
| Transfer Gear Box - 4 Wheel Drive | 265-275 | Transfer Gear Box - Gears |
| Seat - Grammer | 276-291 | Seat- Grammer, Seat- Sable |
| Air Induction and Exhaust System | 292-297 | Low Pressure Fuel System |
| Hydraulic Lift - Lift Arms | 298-311 | Hydraulic Lift- Lift Arms, Steering Hydraulic Lines |
| Fenders and Platform Brackets | 312-319 | Front Frame, Weight Frame and Weights, Safety Frame and Passenger Seat |
| Cylinder Head | 320-322 | Kit Cyl.head, Valve, Guide, Seal, Spring, Cotter, Assembly |
| Pipings Auxiliary Valve | 323-333 | Trailor Brake Lines, Fuel System- Fuel Filter, Fuel System- Fuel Tank and Attachments |
| Hydraulic Lift | 334-340 | Pipings, Clamping Valve, Hydraulic Valve |
Landini Large 13000 Common Problems This Manual Covers
Landini Large 13000 hydraulic lift ram or distributor needs replacing, can't identify the right parts
Check the Hydraulic Lift exploded views starting on page 334, which cover the pipings, clamping valve and hydraulic valve. Match the ram and distributor to their reference numbers on the diagram, then take the part numbers from the parts list. Verify them before you call the dealer so the parts arrive before the field is ready.
Manual Section: Hydraulic Lift p. 334Fuel injection pump, pipe, bridle or atomiser parts needed, correct replacement hard to pin down
Check the Fuel Injection Equipment (Diesel) exploded view for the injection pump, pipes, bridles and atomisers. Identify each item by its callout on the diagram and confirm the part number in the parts list before you order. Order the bridles and pipes with the atomisers so one dealer run covers the whole job and the tractor gets back to pulling.
Manual Section: Fuel Injection Equipment (Diesel)Front PTO drive shaft bearing, gear or synchronizer worn out, need matching part numbers
Check the Front PTO Drive Shaft exploded view on page 10. Find the shaft, bearings, gears, synchronizer, circlips and guard on the diagram, then read their part numbers from the parts list. Order the circlips with the bearings so you are not stuck waiting on small hardware once the shaft is out and the implement is sitting idle.
Manual Section: Front PTO Drive Shaft p. 10Starter motor needs rebuilding, can't tell whether to order the full assembly or repair kit
Check the Starter Motor section on page 229, which lists the complete assembly, the individual components and the repair kit. Compare the components view against the worn parts on your unit, then choose between the repair kit part number and the full assembly. Verify the listing before ordering so the tractor fires on the next dry morning.
Manual Section: Starter Motor p. 229Front axle 4WD differential lock mechanism or housing seals need replacing, part numbers hard to find

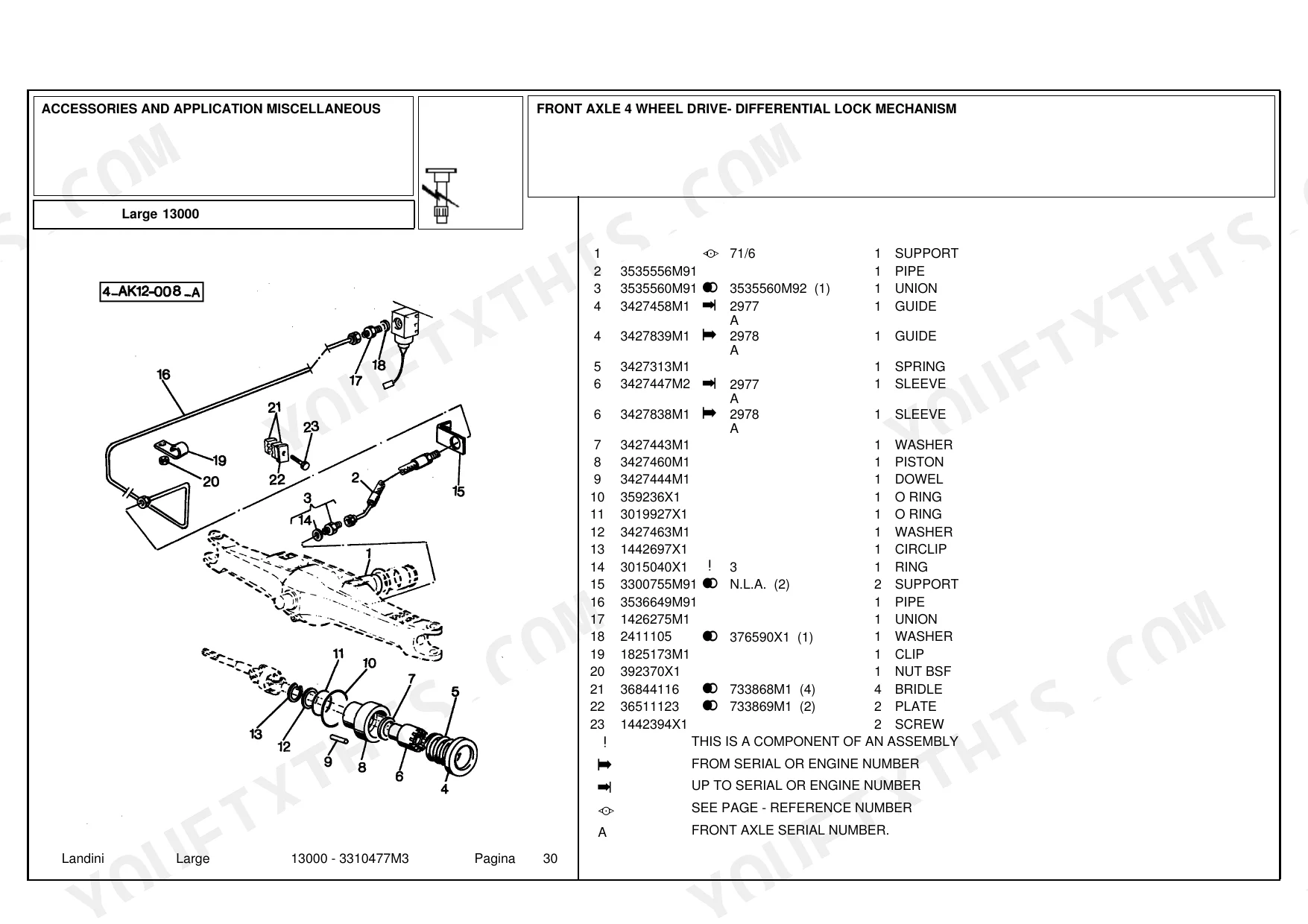

Check the Front Axle 4 Wheel Drive exploded views for the housing, the differential lock mechanism and the related seals and bearings. Match each seal and bearing to its callout on the diagram, then confirm the part number in the parts list. Order the full seal set at once so the front axle only comes apart one time this season.
Manual Section: Front Axle 4 Wheel DriveWater pump, thermostat or heat exchanger replacement needed, can't find where they're listed in the catalog
Check the Sheet Metal section starting on page 236, where the water pump, thermostat and heat exchanger diagrams are listed with the fenders and platform. Identify the component on the exploded view, then take its part number from the parts list. Verify it against your tractor before ordering so a cooling repair doesn't cost you a day in the field.
Manual Section: Sheet Metal p. 236Frequently Asked Questions
What are the replacement specifications for the hydraulic pump on the Landini Large 13000?
The hydraulic pump for the Landini Large 13000 is listed under the 'Hydraulic Pump' section. The pump assembly is part number 3301295M91 (or 3549613M91). p. 253
What are the replacement specifications for the hydraulic pump seal kit on the Landini Large 13000?
The seal kit for the hydraulic pump is identified by part number 1493867M91, which includes the seal kit components (999 KIT SEAL). p. 255
What is the part number for the cylinder head gasket?
The cylinder head gasket for the Landini Large 13000 is part number 3681H202. p. 321
What is the part number for the engine oil filter?
The engine oil filter for the Landini Large 13000 is part number 1447031M1 (or 2654407). p. 184
What is the part number for the fuel filter element?
The fuel filter element for the Landini Large 13000 is part number 3405418M1 (or 26561117). p. 295
What do I get after purchasing this Landini Large 13000 manual?
A single searchable PDF file of 340 pages, downloadable right after payment. Nothing ships, nothing waits in the mail.
Can I print this Landini Large 13000 manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
