This 628-page Landini Globus Service Manual (OEM #3651997M2) covers the Globus 55, 65, and 80 tractors from clutch to cab, giving you the full teardown-to-reassembly path for every major system. Inside you get complete wiring diagrams for the electrical system, hydraulic circuit schematics covering the low and high pressure sides, and a full torque specification section alongside step-by-step disassembly procedures for the transmission, axles, and power take-off. Your engine specs are right there too: bore runs 95 mm with a 127 mm stroke, and max torque swings from 193.1 Nm on the Globus 55 up to 284 Nm on the Globus 80. No more flipping through three different parts books trying to figure out which axle setup your tractor actually has. This PDF is bookmarked and text-searchable, so you can jump straight to the 4WD axle or PTO section, pull up the exact spec on your phone, and get back under the tractor.
What's Inside This Landini Globus 55, 65, 80 Manual
| System | Pages | Key Topics |
|---|---|---|

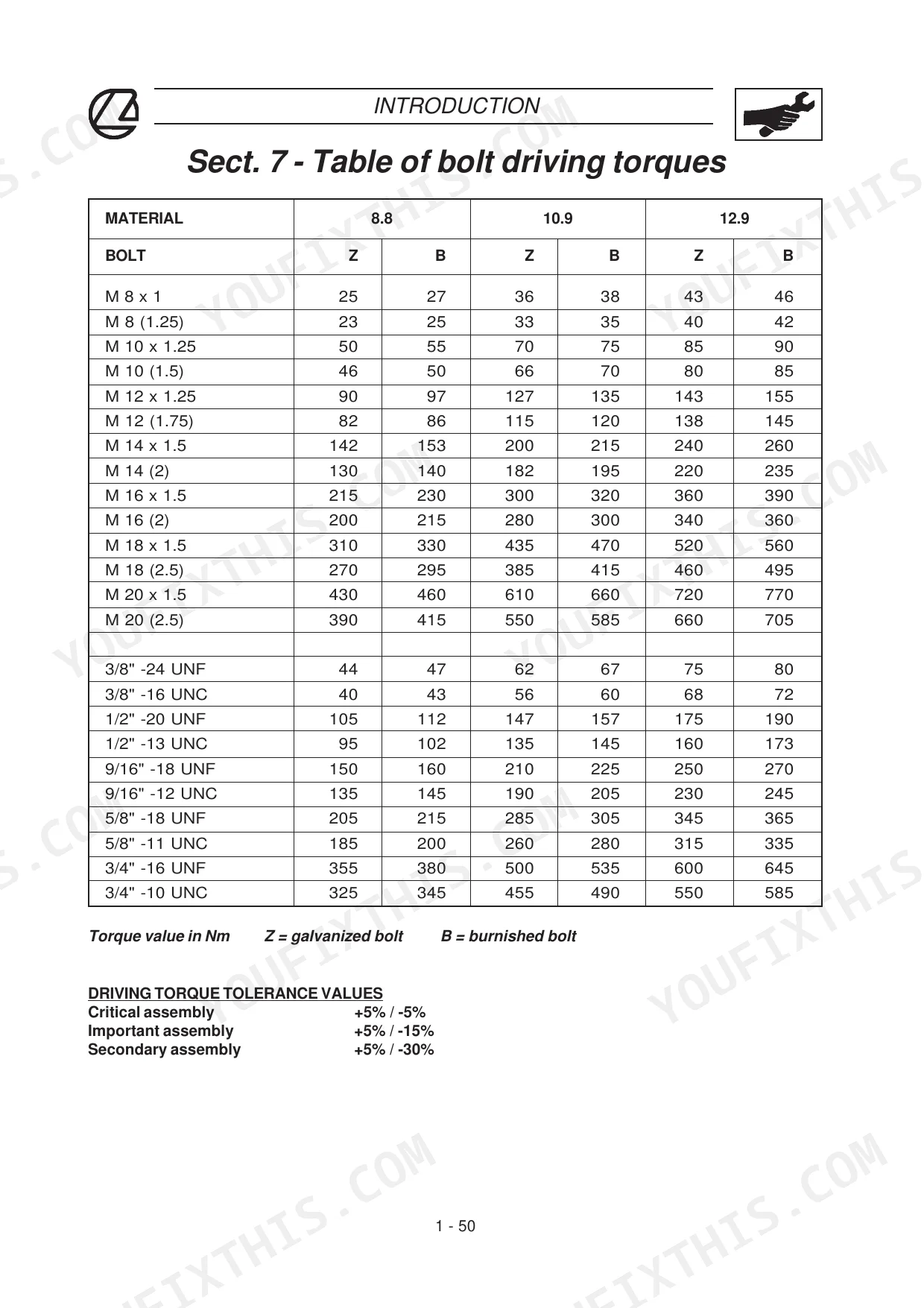

| Introduction | 3-59 | Reading the Manual, Tractor Identification, Technical Specifications, Safety Rules, Conversion Tables |
| Splitting the Assemblies | 60-81 | Safety Recommendations, Cab Splitting, Platform Splitting, Engine-Axle Separation, Gearbox-Differential Separation |
| Engine | 82-111 | Safety Recommendations, Technical Specifications, Driving Torques, Camshaft Timing, Injection Pump Timing |

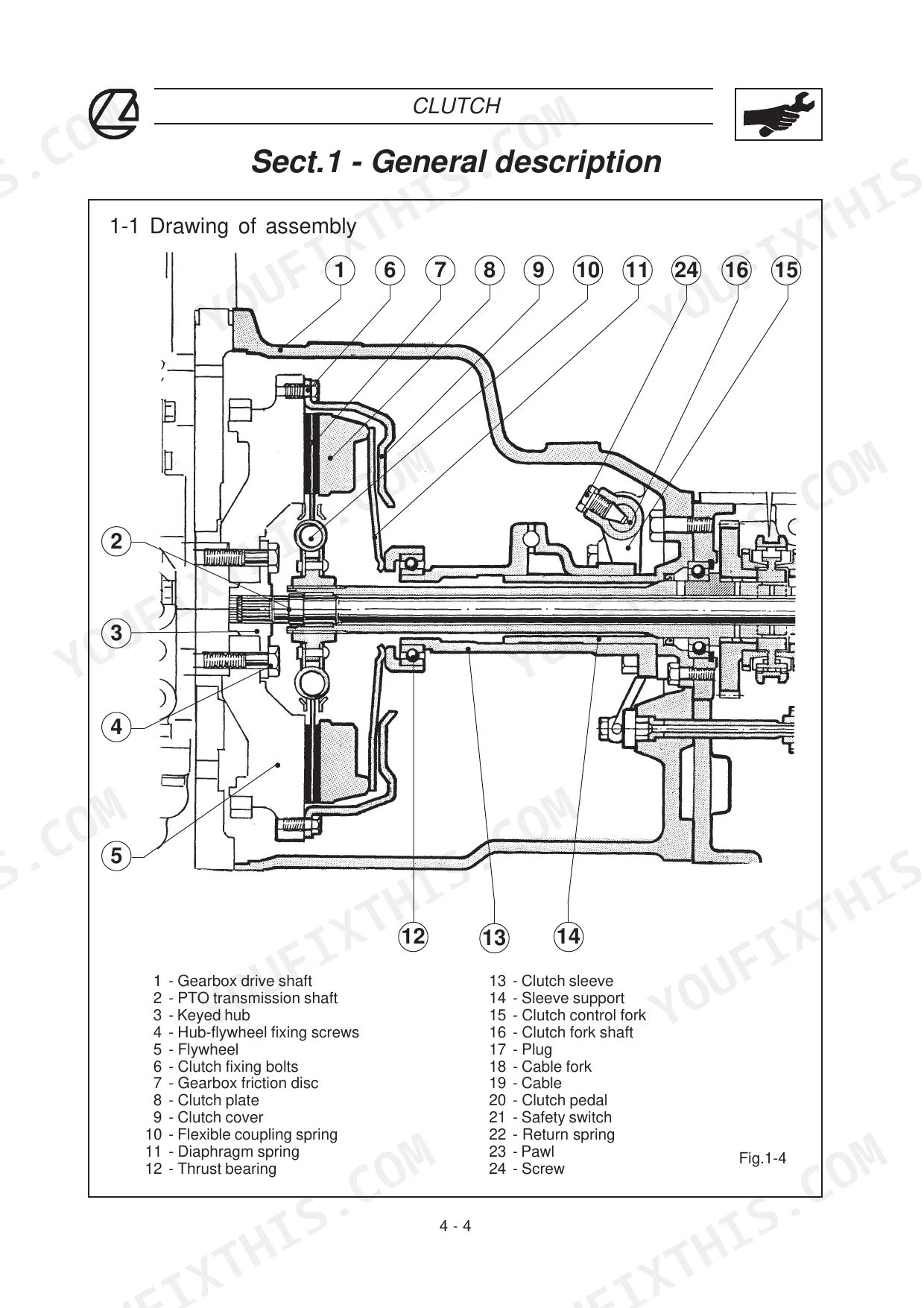

| Clutch | 112-125 | General Description, Technical Specifications, Disassembly, Inspection, Re-Assembly |
| Transmission | 126-223 | General Description, Technical Specifications, Disassembly, Rear Final Drives, Brakes, Hydraulic Hi-Lo |
| Dnx 4WD Front Axle (Standard and Sherpa) | 238-279 | General Description, Technical Specifications, Axle Dismantling, Final Drive Re-Assembly, Special Tools |
| Wd Axle with Bevel Gear Pairs | 280-319 | General Description, Technical Specifications, Axle Dismantling, Pinion-Crown Wheel Adjustments, Special Tools |
| Axle with 2 Driving Wheels | 320-337 | General Description, Technical Specifications, Axle Dismantling, Wheel Hub Preload, Special Tools |
| Wd Engagement with Hydraulic Clutch and Spring-On | 338-359 | Hydraulic Clutch Operation, Spring-On Unit Operation, Disassembly, Inspection, Re-Assembly |
| Power Take-Off | 360-385 | General Description, Technical Specifications, Hydraulic PTO, Mechanical PTO, Disassembly, Re-Assembly |

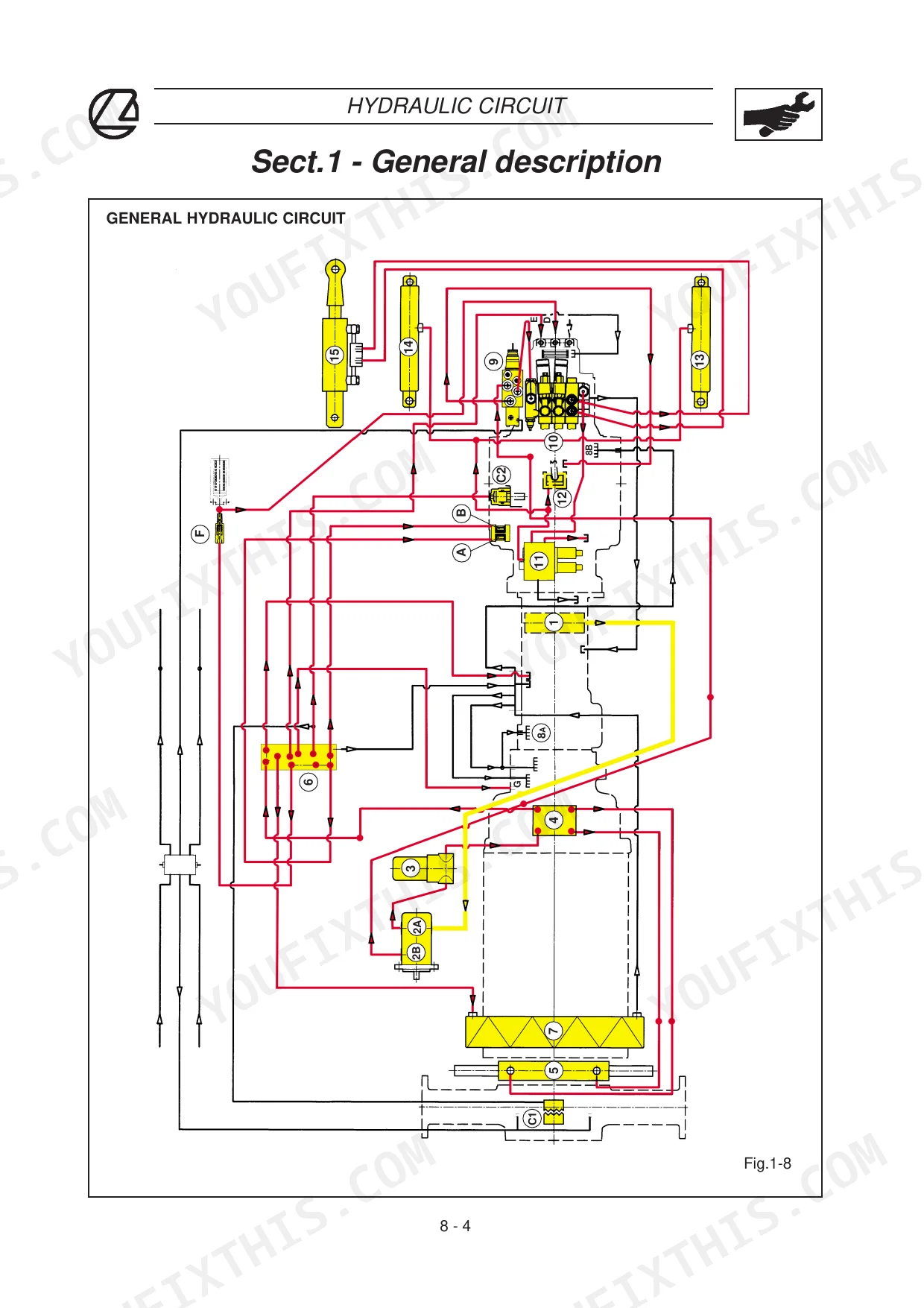

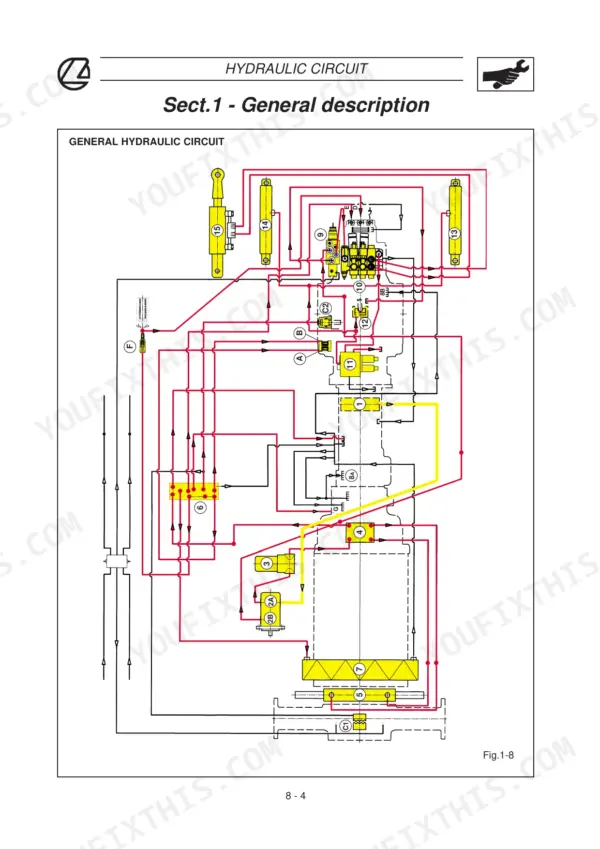

| Hydraulic Circuit | 386-529 | General Outline, Low Pressure Circuit, High Pressure Circuit, Hydraulic Power Pack, Trailer Brake Valve, Operating Pressure Checks |
| Cab | 586-609 | General Description, Technical Specifications, Air Conditioning System, Safety Notes, Maintenance |

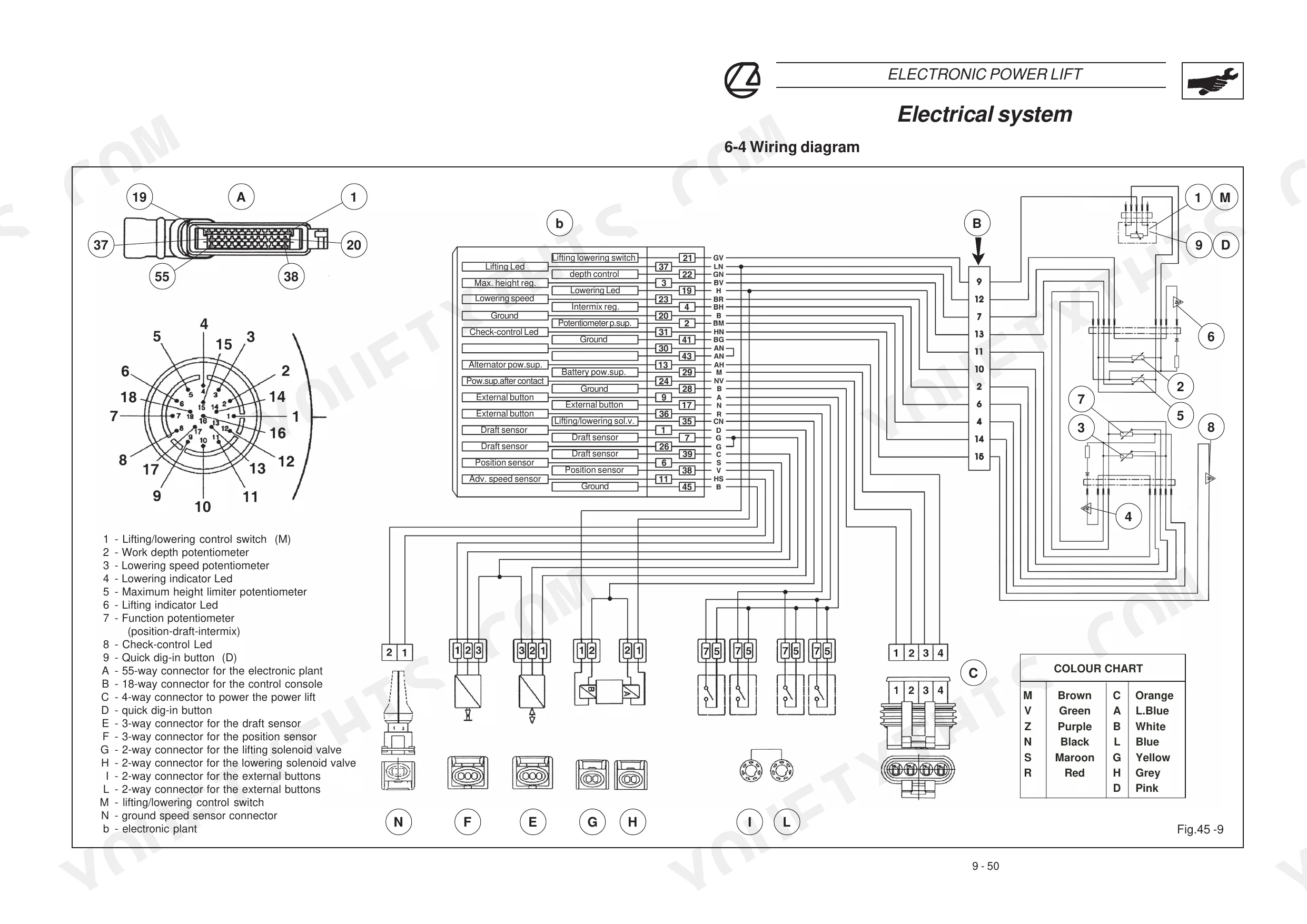

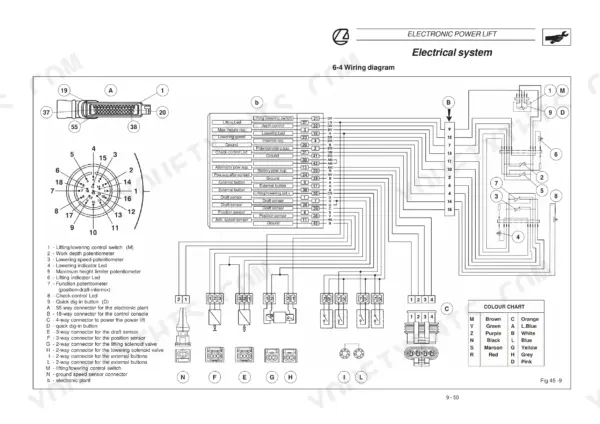

| Electrical System | 610-628 | General Description, Technical Specifications, Wiring Diagram, Fuse Boxes, Relays |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Globus 55 | ||

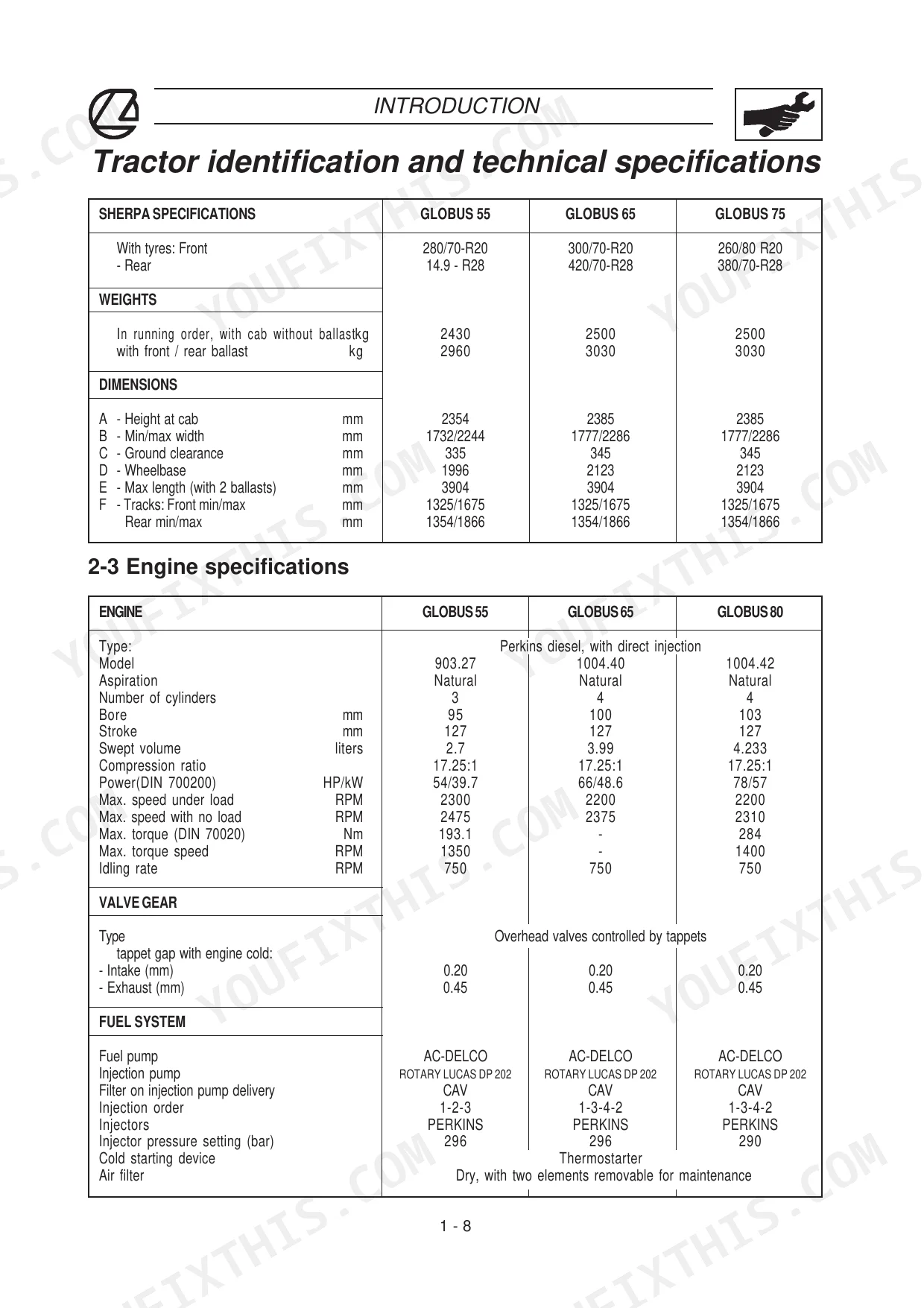

| Engine Bore | 95 mm | p. 11 |
| Engine Max. Torque (DIN 70020) | 193.1 Nm | p. 11 |
| All Models | ||
| Engine Stroke | 127 mm | p. 11 |
| Intake Tappet Gap (engine cold) | 0.20 mm | p. 11 |
| Exhaust Tappet Gap (engine cold) | 0.45 mm | p. 11 |
| Rear Brakes Total Braking Area | 1900 cm2 | p. 12 |
| 2WD Axle Max. Turning Angle | 55° | p. 15 |
| 4WD Front Axle Turning Radius | 3054 mm | p. 16 |
| Hydraulic Pump Max. Operating Pressure | 180 bar | p. 18 |
| Lifting Capacity (Standard) | 2100 Kg | p. 19 |
| Globus 80 | ||
| Engine Max. Torque (DIN 70020) | 284 Nm | p. 11 |
| Globus 55-65 | ||
| Clutch Dimensions (Single-plate) | 11" (280 mm) | p. 12 |
Landini Globus 55, 65, 80 Common Problems This Manual Covers

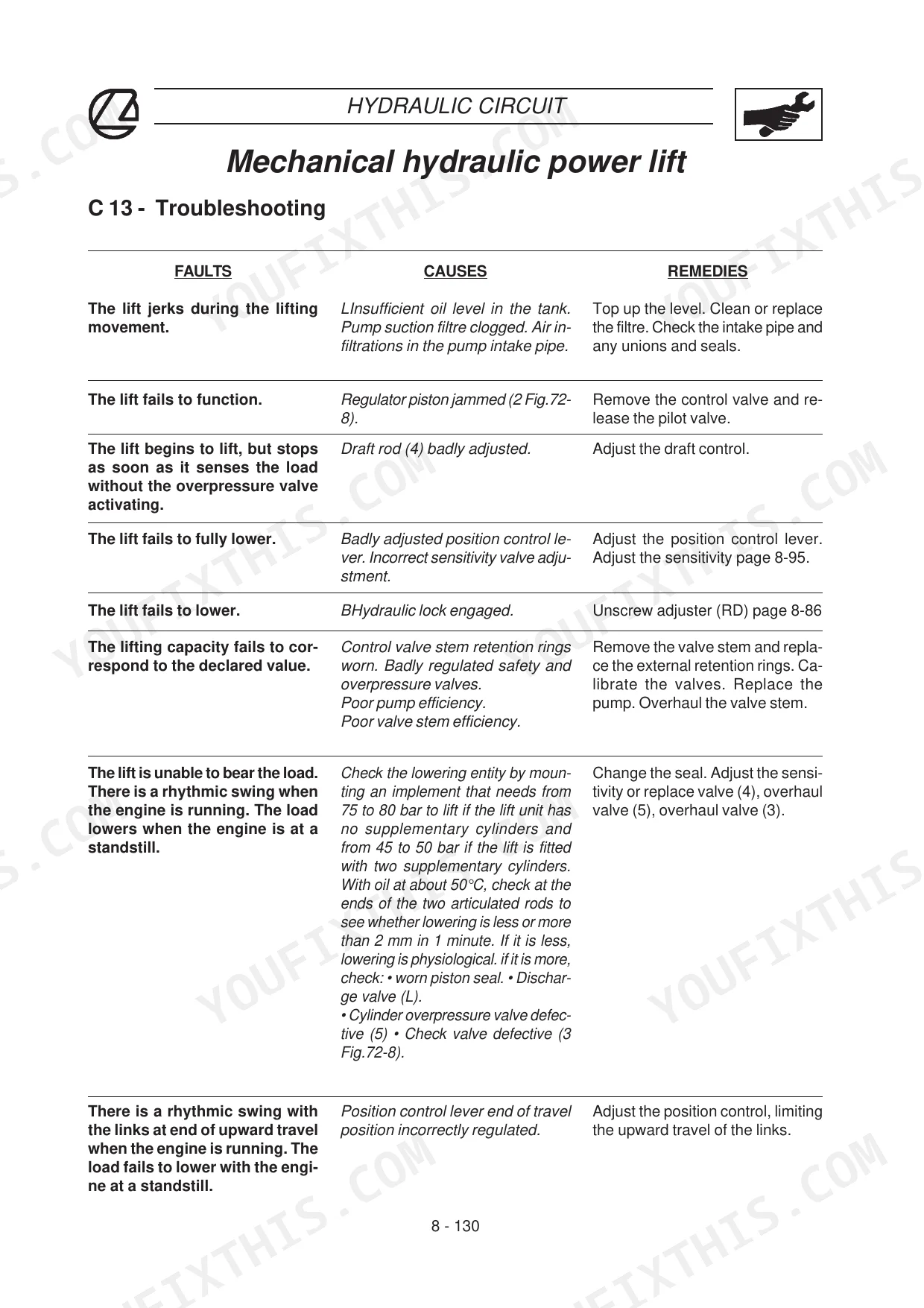

Landini Globus 55 hydraulic lift jerks or fails to hold position under load
Inspect the operating pressure using the procedures. Connect a gauge to the remote valves and verify the hydraulic pump max operating pressure reaches 180 bar. If pressure drops, rebuild the pump or replace worn relief valve seals to restore the 2100 Kg standard lifting capacity.
Manual Section: Mechanical Hydraulic Power Lift TroubleshootingTractor clutch pedal feels excessively stiff and transmission slips out of gear under load
Remove the inspection cover to access the assembly detailed on page 112. Measure the clutch disc wear against the 11" (280 mm) specification for 55 and 65 models. Clean out any oil contamination from the housing and adjust the free pedal travel before reassembling the unit.
Manual Section: Clutch p. 112Engine overheats during continuous plowing or loses power and fails to start under load
Remove the valve cover using the engine breakdown on page 82. Set the intake tappet gap to 0.20 mm and the exhaust tappet gap to 0.45 mm with the engine cold. Check the injectors for clogging and replace fuel filters if poor quality diesel is present.
Manual Section: Engine p. 82Draft sensor signal drops out or lowering speed potentiometer fails to register input
Test the electronic power lift inputs using the error code reference. Verify the draft sensor signal voltage and check for shorted wires. Measure the hydraulic pump max operating pressure to confirm it maintains 180 bar before replacing the lowering speed potentiometer.
Manual Section: Electronic Power Lift Slight FaultsFrequently Asked Questions
What are the torque specifications for the engine head on Landini Globus 80?
For the Landini Globus 80 (engine 1004.40/1004.42), torque all cylinder head bolts to 45 Nm. Then, torque bolts 2-8-13-18 to 110 Nm. Further torquing requires specific rotation degrees: bolts S and M by 120°, bolts L by 150°, and bolts 2-8-13-18 by 180°. p. 95
What are the replacement specifications for Clutch plate assembly?
When replacing clutch plate assemblies, check the friction surface on the flywheel, clutch plate, and friction disk. If necessary, the friction surface on the flywheel can be ground, removing a maximum of 1 mm depth of material. Always comply with the minimum dimensions allowed, as shown in Fig.9-4 on page 4-11. p. 121
What are the replacement specifications for Fuel injectors?
The injector pressure setting for Landini Globus 55 and 65 tractors is 296 bar, while for Globus 80, it is 290 bar. The injectors are manufactured by PERKINS. p. 87
What is the valve tappet gap for the Landini Globus 55, 65, and 80 engines?
For Landini Globus 55, 65, and 80 engines, the valve tappet gap when the engine is cold should be 0.20 mm for intake valves and 0.45 mm for exhaust valves. p. 11
How will I receive this Landini Globus 55, 65, 80 Service Manual?
A 628-page Service Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Are there any print restrictions on this Landini Globus 55, 65, 80 manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Can I find hydraulic circuit diagrams in this Landini Globus 55, 65, 80 manual?
Yes, complete hydraulic schematics with flow diagrams, valve configurations, and pressure specifications are included.
