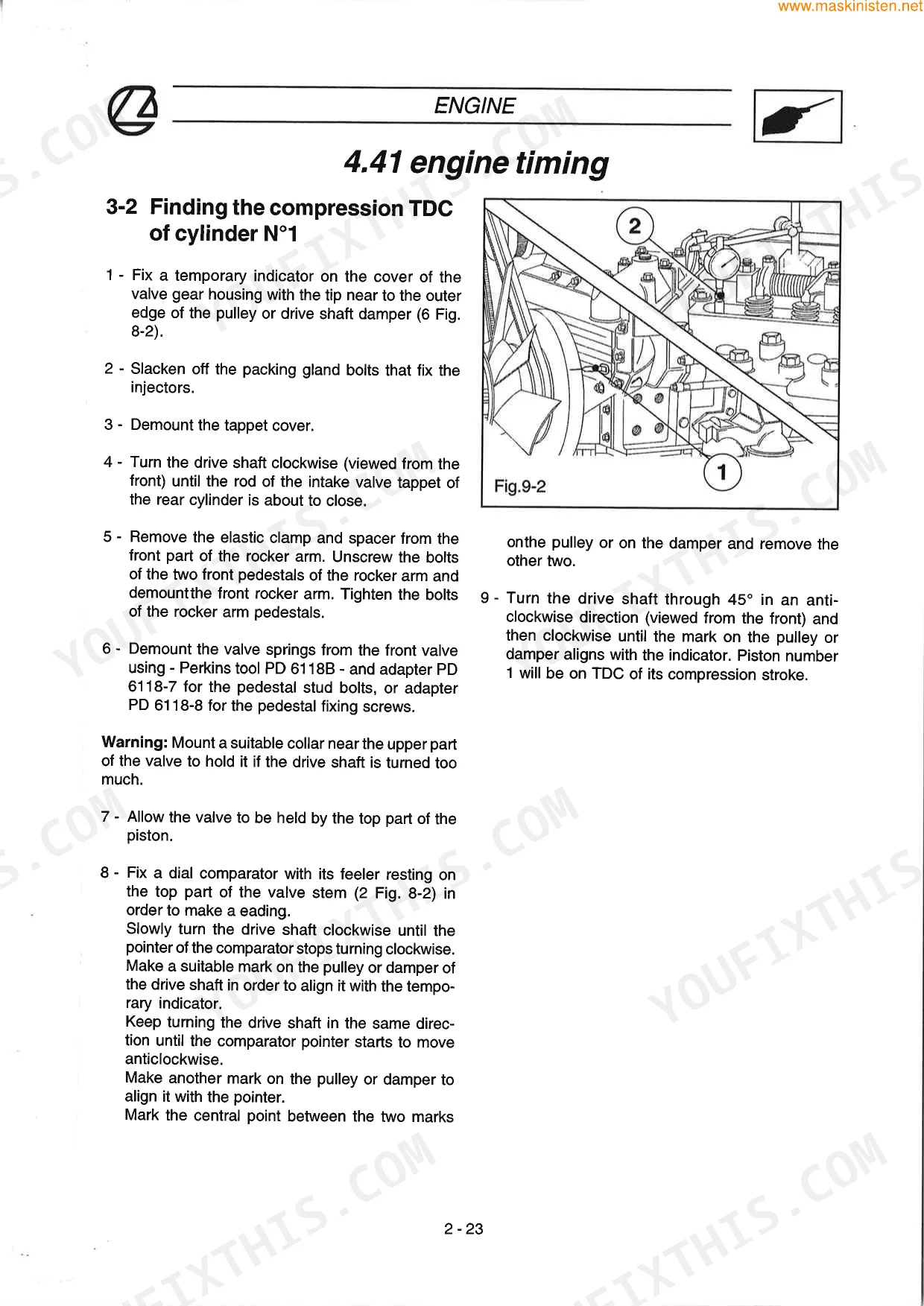

This 758-page Landini Atlantis 70-75-80-85-90-100, Ghibli 80-90-100 Training Manual (OEM #3661514M2) puts the complete technical training package for these tractors in your hands, chapter by chapter from engine timing through special tools. You get full wiring diagrams for both the Ghibli and Atlantis electrical systems, high and low pressure hydraulic circuit schematics, and a dedicated troubleshooting section for the mechanical power lift valve system. Set the hydraulic circuit's max operating pressure to 180 bar, and note both front and rear brakes run sintered graphite friction material, not the cheap stuff aftermarket guides gloss over. No more flipping between three dog-eared photocopies trying to trace one wiring line through the cab. It's bookmarked by chapter and searchable by keyword, so you jump straight to the PTO sensor adjustment or the injection pump timing check without hunting.
What's Inside This Landini Atlantis 70–100 & Ghibli 80–100 Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 1-84 | Reading the Manual (Introduction, Structure of the Manual) |

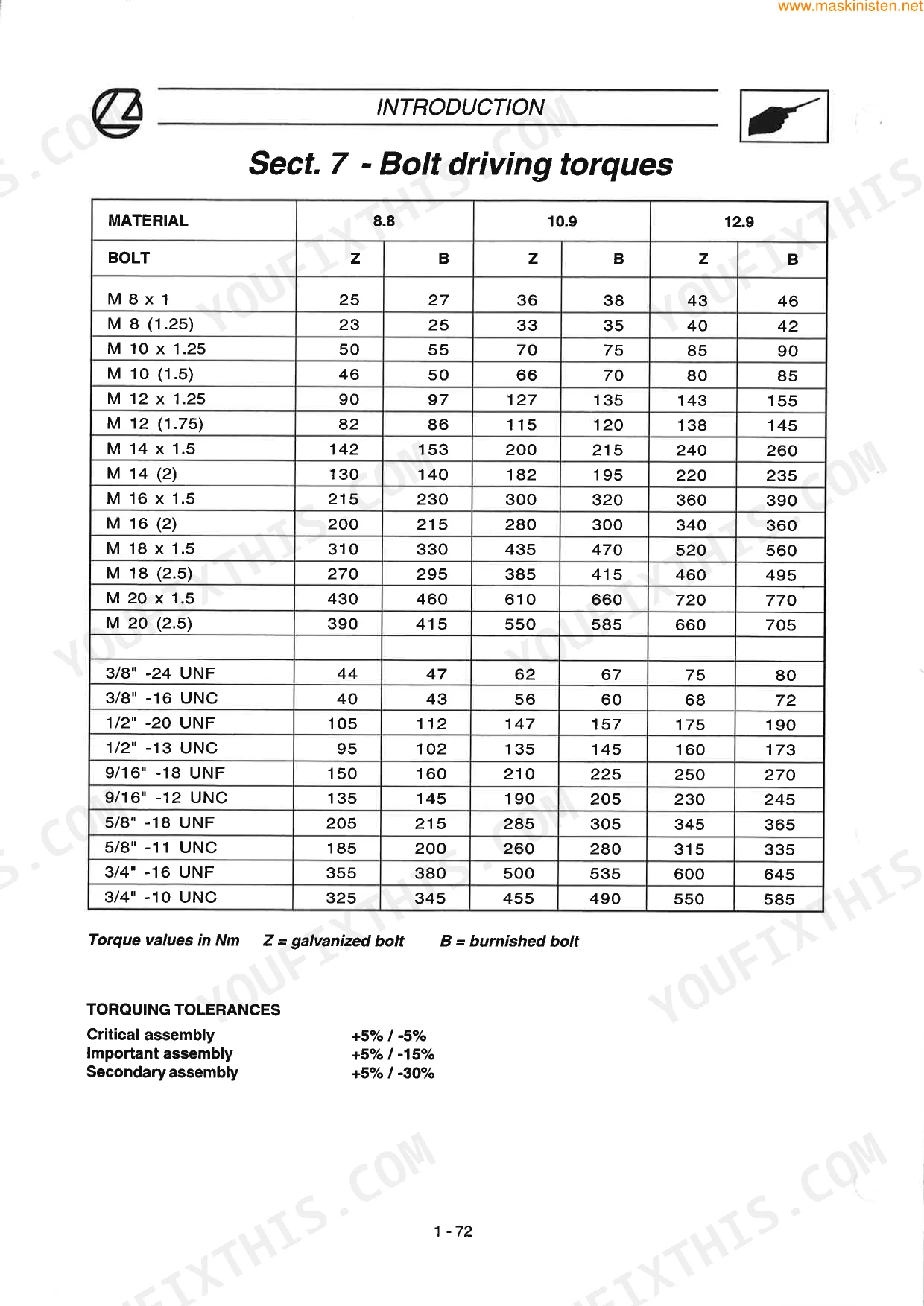

| Engine | 85-120 | Driving Torque Values (Standard Driving Torques, Recommended Driving Torques: Engine 4.41, Recommended Driving Torques: Engine 1004.40/1004.42/1004.40T) |
| Clutch | 121-134 | Inspection, Overhaul and Adjustment, Precautions and Safety Warnings (Drawing of Assembly and Components, Operation), Special Tools |

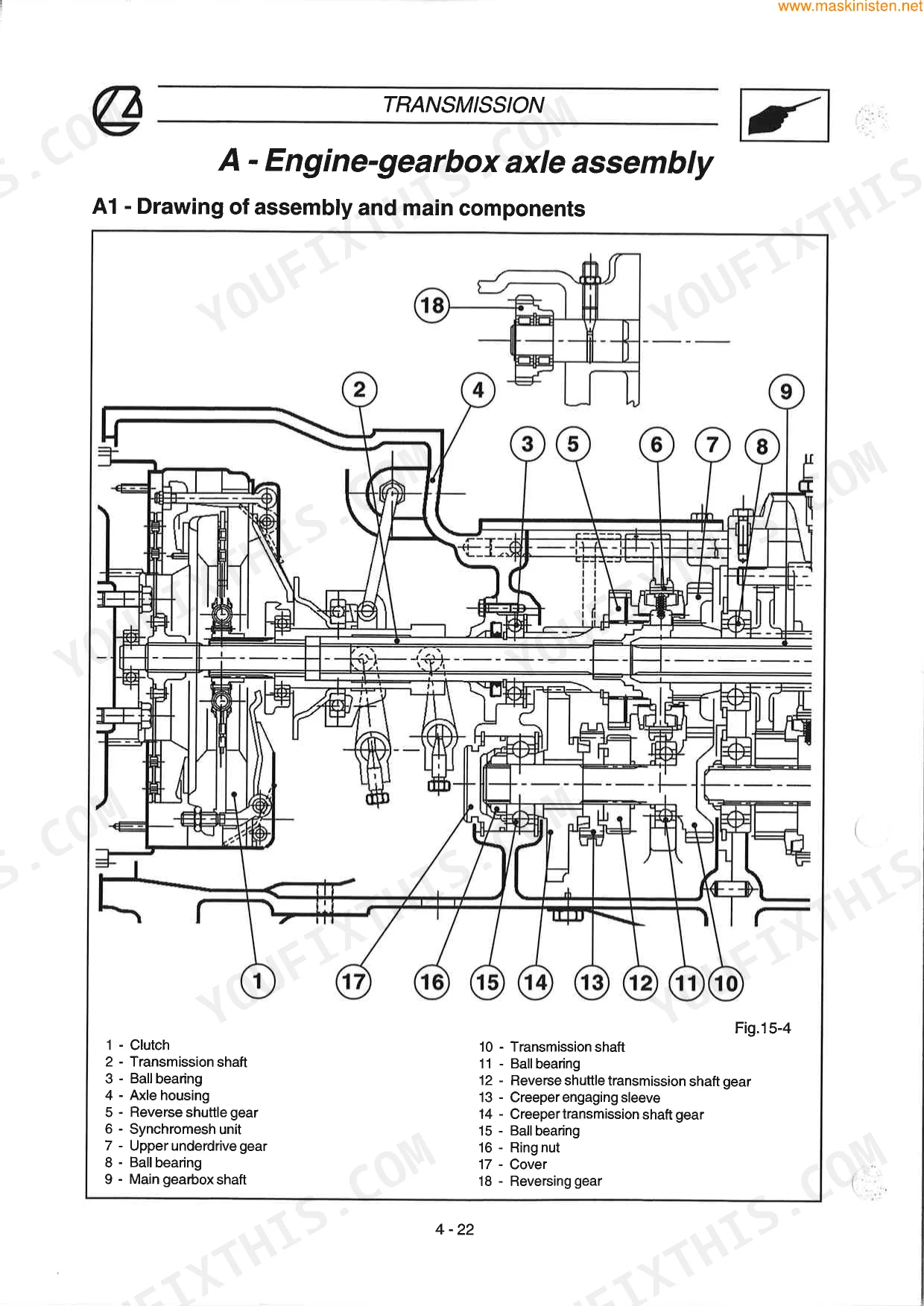

| Transmission | 135-196 | Main Components (Engine-Gearbox Axle Assembly, Gearbox, Bevel Gear Pair and Rear Differential, Side Final Drives) |
| Wd Front Axle | 197-226 | Inspections and Adjustments (A-B-C-D-E-F Cat. Front Axle Adjustments, Hc Front Axle Adjustments) |
| PTO | 227-238 | Precautions and Safety Warnings (Assembly Drawing and Main Components, Operation, Control Type, Sensor Adjustment) |
| Hydraulics | 239-312 | Checking the Operating Pressure Values (Low Pressure Hydraulic Circuit - Atlantis Tractors, Pressure Checks in the Low Pressure Circuit - Atlantis Tractors, Low Pressure Hydraulic Circuit - Ghibli Tractors, Pressure Checks in the Low Pressure Circuit - Ghibli Tractors) |

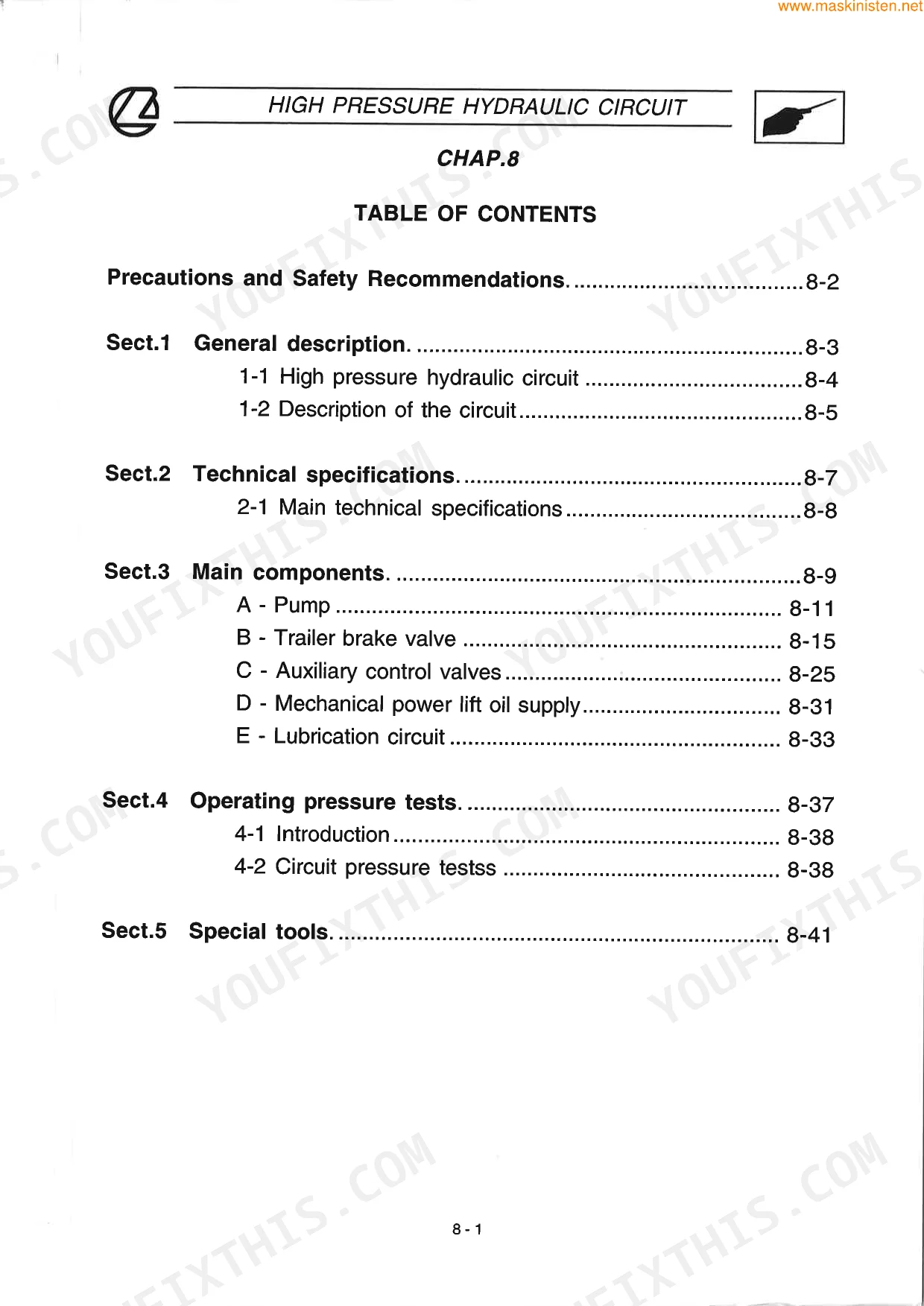

| High Pressure Hydraulic Circuit | 313-354 | Operating Pressure Tests (Introduction, Circuit Pressure Tests), Precautions and Safety Recommendations (High Pressure Hydraulic Circuit, Circuit) |
| Mechanical Power Lift | 355-392 | Inspections, Adjustments and Troubleshooting (Hydraulic Tests for Valve System, Power Lift Adjustments, Operating Pressure Tests) |

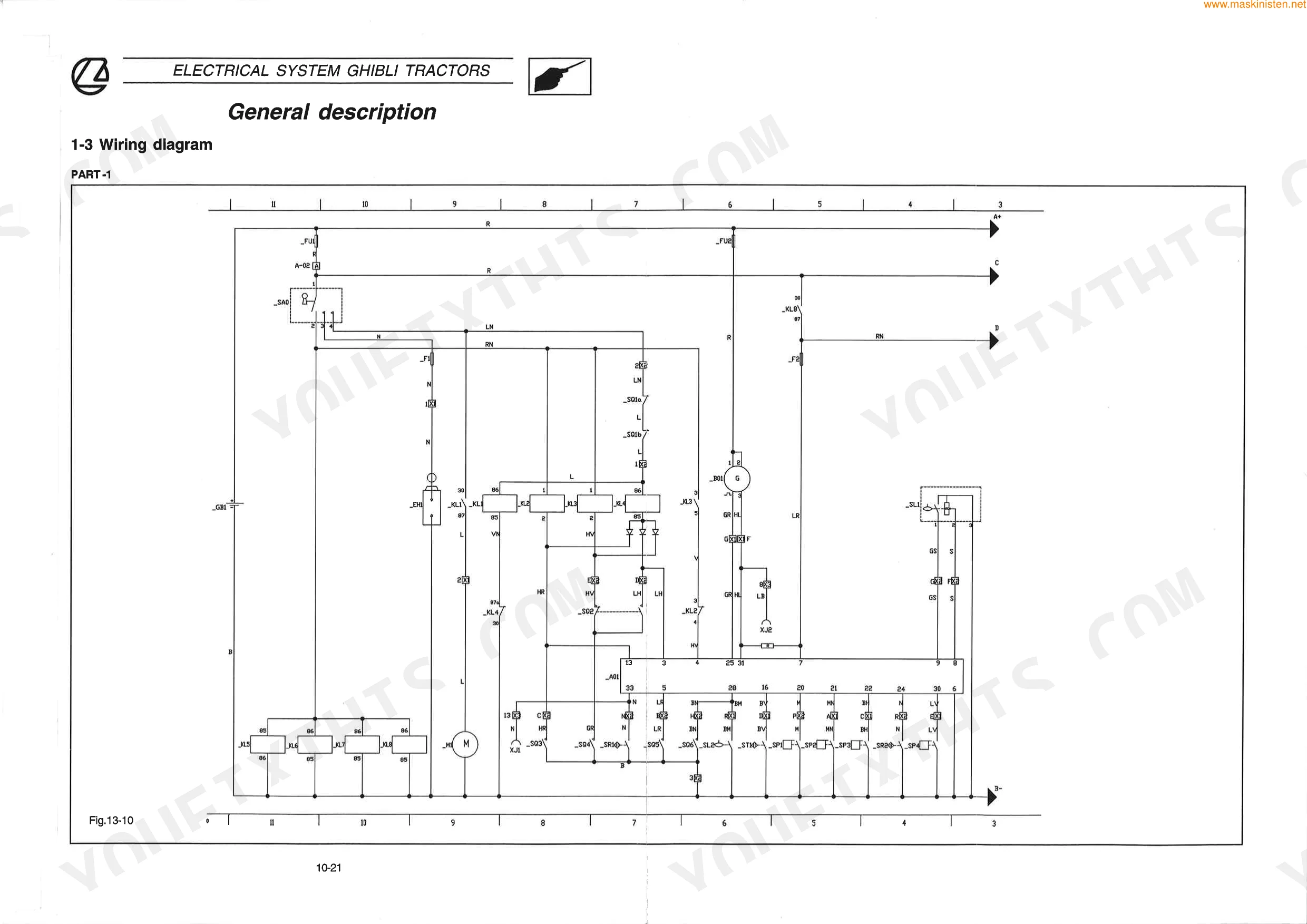

| Electrical System (Ghibli Tractors) | 393-566 | Wiring (Introduction, Battery-Starter Motor Line, Front Engine Line, Inner Cab Line, Roof-Cab Line, Rear Line) |
| Electrical System (Atlantis Tractors) | 567-690 | Wiring (Introduction, Battery-Starter Motor Line, Engine Front Line, Dashboard Line, Left-Hand Headlight Line, Right-Hand Headlight Line, Rear Line, Left-Hand Beam Line, Right-Hand Beam Line) |
| Air Conditioning | 691-734 | Air-Conditioning System (Main Components, How to Use the Air-Conditioning System, Wiring Diagram) |
| Special Tools | 735-758 | Drawings (Fri Rex, Cmb Rex, Dif Myt, Dt Atl, Dt Myt, Dt Rex, Dt Lg, Idr Rex, Idr Myt, Idr Gl, CR 342, R 502) |
Every system also includes technical specifications.
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Training manual P/N° | 3661514M2 | p. 1 |

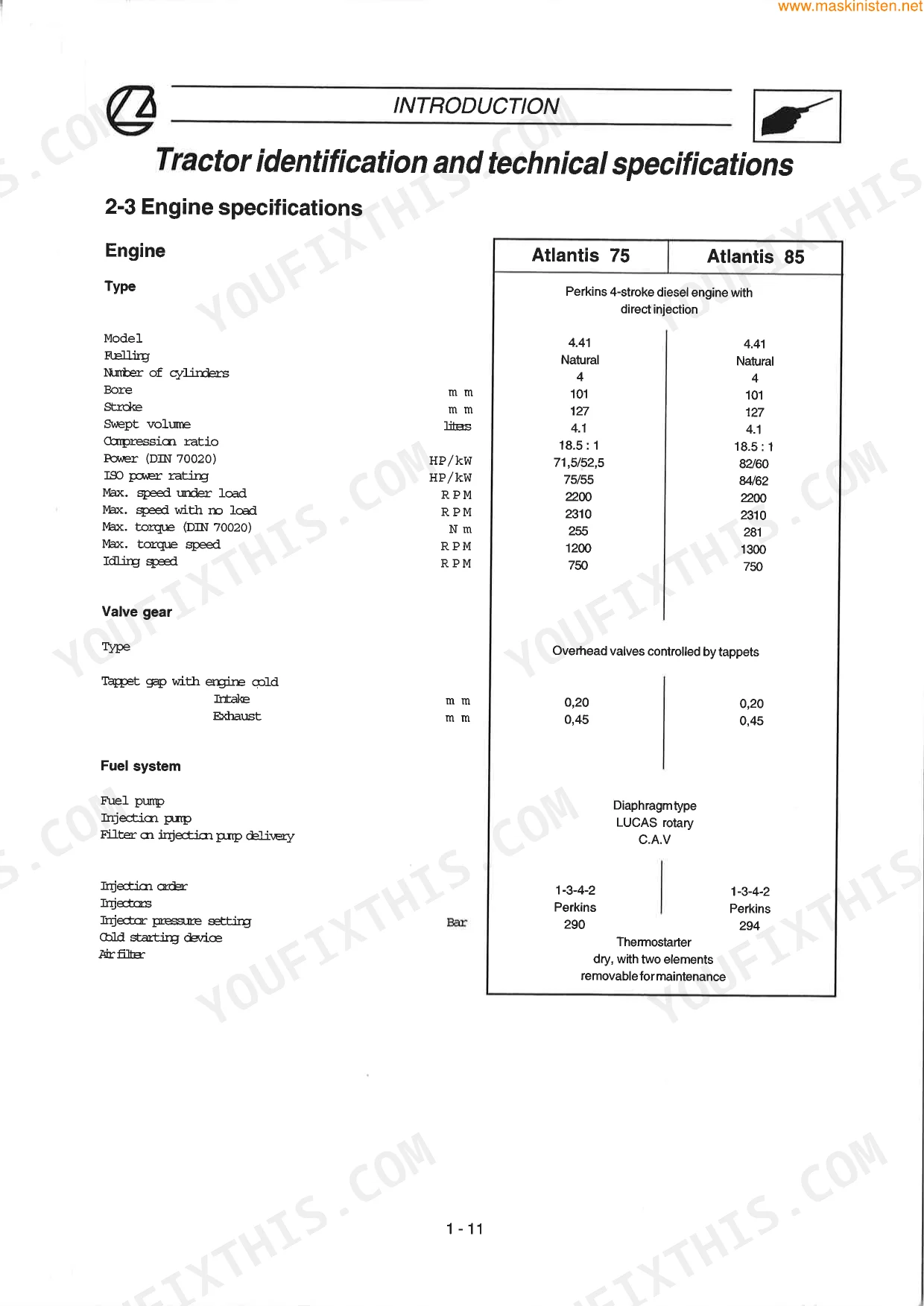

| Filter on injection pump delivery | C.A.V | p. 19 |
| REAR BRAKES FRICTION DISC MATERIAL | Sintered graphite | p. 21 |
| FRONT BRAKES FRICTION MATERIAL | Sintered graphite | p. 21 |
| Max. operating pressure | 180 bar | p. 33 |
| Filtering degree | 40 micron | p. 33 |
| Maximum tolerated pressure | 180 bar | p. 389 |
| PTO output shaft | 13/8 in (34.9 mm) with 6 splines | p. 29 |
| PTO speed (540 RPM) engine rate | 1944 RPM | p. 29 |
| Max. steering angle (4WD) | 55° | p. 32 |
| Mechanical power lift lifting capacity (without auxiliary control valves) | 2600 kg | p. 34 |
| Clutch Dimensions | 11" (280 mm) | p. 20 |
Landini Atlantis 70–100 & Ghibli 80–100 Common Problems This Manual Covers
Landini Atlantis hydraulic pump grinding noise, bucket and three-point hitch won't lift
Check the operating pressure per the low pressure hydraulic circuit tests starting. Max operating pressure spec is 180 bar (page 33); if gauge reads well below that, remove and inspect the pump inlet screen and coupler for blockage. Torque fittings per the standard driving torque chart before retesting under load.
Manual Section: Chap 8 High Pressure Hydraulic CircuitThree-point hitch stuck in transport position and won't respond to lift lever

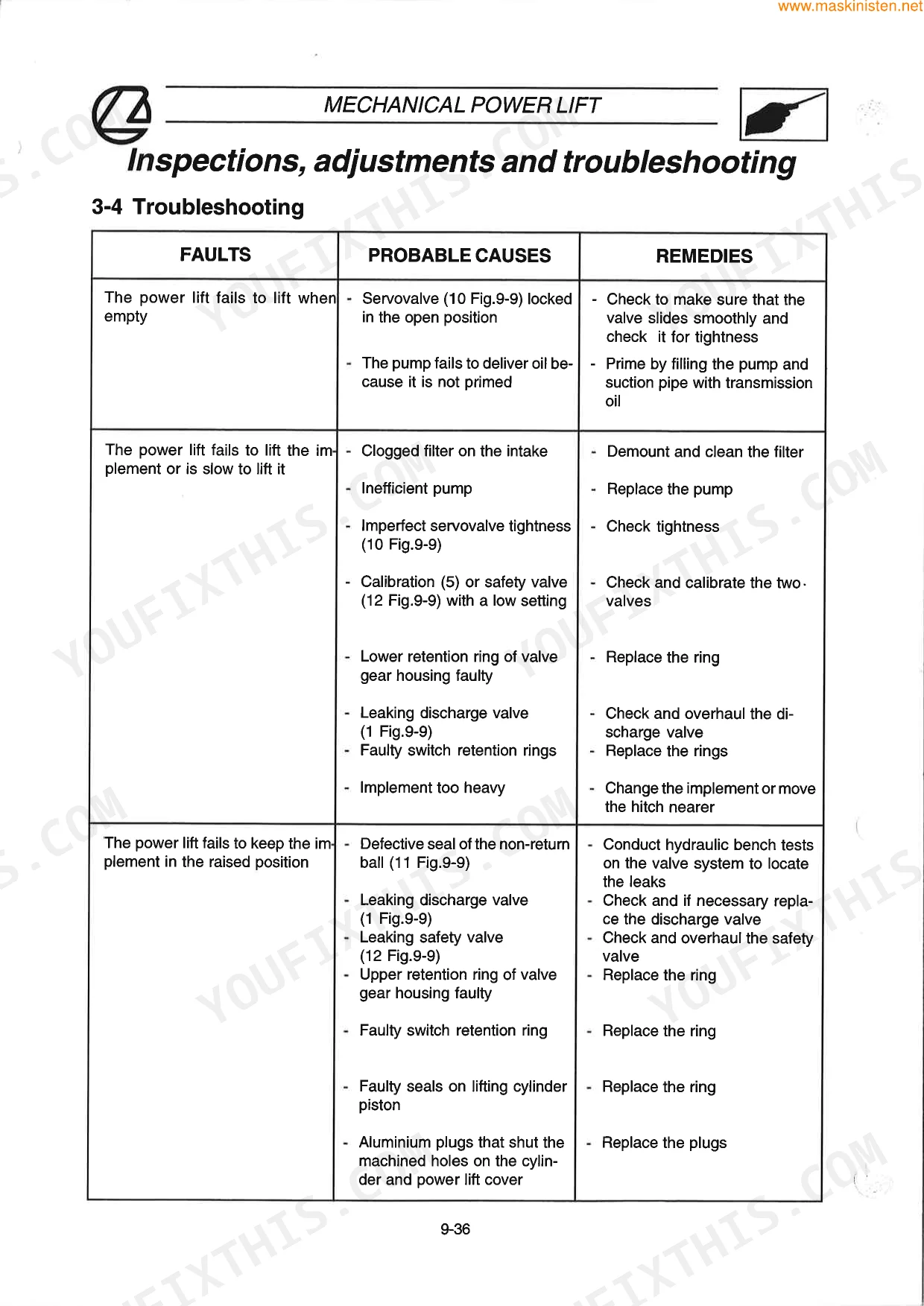

Locate the transport lock knob near the seat, distinct from the seat spring tension adjuster, and verify it's fully disengaged. Check the mechanical power lift troubleshooting fault tables on page 390 for lever linkage binding. Lifting capacity without auxiliary valves is rated at 2600 kg (page 34); if the hitch still won't move at low load, inspect the lift arm pivot for seizure.
Manual Section: Chap 9 Mechanical Power Lift p. 390Engine stalls and loses power shortly after replacing the fuel filter
Bleed air from the fuel system at the filter housing bleed screw before restarting; trapped air after a filter change is the usual culprit. Confirm the new filter matches the C.A.V. specification on page 19 and the correct filtering degree, 40 micron (15/20 micron on Ghibli models), listed on page 33. Run the engine at idle for two minutes and check for steady fuel pressure before returning to work.
Manual Section: Chap 2 Engine p. 19PTO shaft won't attach or release from the output stub
Pull the release collar rearward, not forward, since the mechanism is spring-loaded in that direction only. Confirm the output shaft matches the 13/8 in (34.9 mm) 6-spline ASAE spec on page 29 before forcing anything. If the collar still binds, inspect the detent balls and spring for corrosion per the PTO assembly drawing in the chapter starting on page 227.
Manual Section: Chap 6 PTO p. 227Brake friction lining destroyed and counter plate chewed up on one side
Pull the brake assembly and inspect the friction disc material against the sintered graphite spec on page 21 for both front and rear brakes. Measure lining thickness and compare to wear limits; replace any disc showing uneven scoring on the counter plate. Check for a blocked suction pipe restricting brake fluid return before reassembling and torquing per the chart.
Manual Section: Chap 4 Transmission p. 21Electrical system faults, dash warning lights flicker or dead on Ghibli models
Run the check-control continuity and voltage tests on before chasing individual components. Start at the battery-starter motor line ground connections and measure voltage drop across each junction; anything over 0.5V indicates a bad connection. Cross-reference suspect circuits against the wiring diagram to isolate the faulty run.
Manual Section: Chap 10 Electrical System Ghibli TractorsFrequently Asked Questions
What are the torque specs for the head bolts on a Landini Ghibli 90?
The torque specifications for the cylinder head bolts on a Landini Ghibli 90 (engine type 1004-40T) are 110 Nm. The screws should be tightened in a specific numeric order, followed by angular tightening: S screws by 150°, M screws by 180°, and L screws by 210°.
What is the torque specification for the flywheel on a Landini Ghibli 80?
The torque specification for the flywheel on a Landini Ghibli 80 is 105 Nm (10.7 Kgfm) for the screws fixing the flywheel to the drive shaft.
What are the replacement specifications for Hydraulic pump?
For the low-pressure hydraulic circuit, the pump is a single type with gears (Bx/Srx), with a maximum operating pressure of 185 ± 5 bar and a maximum flow rate of 18.7 l/min at 2200 RPM engine rate. For the high-pressure hydraulic circuit, the pump is a Bx double gear pump with a maximum operating pressure of 170 ± 0.5 bar and a maximum flow rate of 53.9 l/min.
What are the replacement specifications for Fuel filter?
The fuel filter cartridges should be changed every 250 hours. The fuel filter bowl should be cleaned daily.
What format is this Landini Atlantis, Ghibli manual?
Immediate download of the complete 758-page searchable Training manual. Access it on any device, from a laptop at your desk to a phone in the field.
