Hydraulic lift parts take up the biggest block of this 190-page Landini 6830 parts catalog PDF (OEM ID 3310499M2), and from the lift body, cylinder and control levers it widens to the engine, dual clutch, PTO, front axle and transfer gear box of the tractor. Every exploded view keys numbered callouts to factory part numbers, so a worn steering cylinder seal, a Cat. II three-point hitch stay or a balancer unit pinion gets matched to the exact item before you order. Remote hydraulics have their own auxiliary valve and lift piping groups, and the gasket kit pages let you order a complete seal set. On the front axle pages, Loctite is listed in a 250 cc size; add it to the same order. A guessed part number costs you a week of downtime. Bookmarked by system with a live text layer, the PDF finds any number in seconds and has your 6830 back on the drawbar while the weather holds.
What's Inside This Landini 6830 Parts Manual

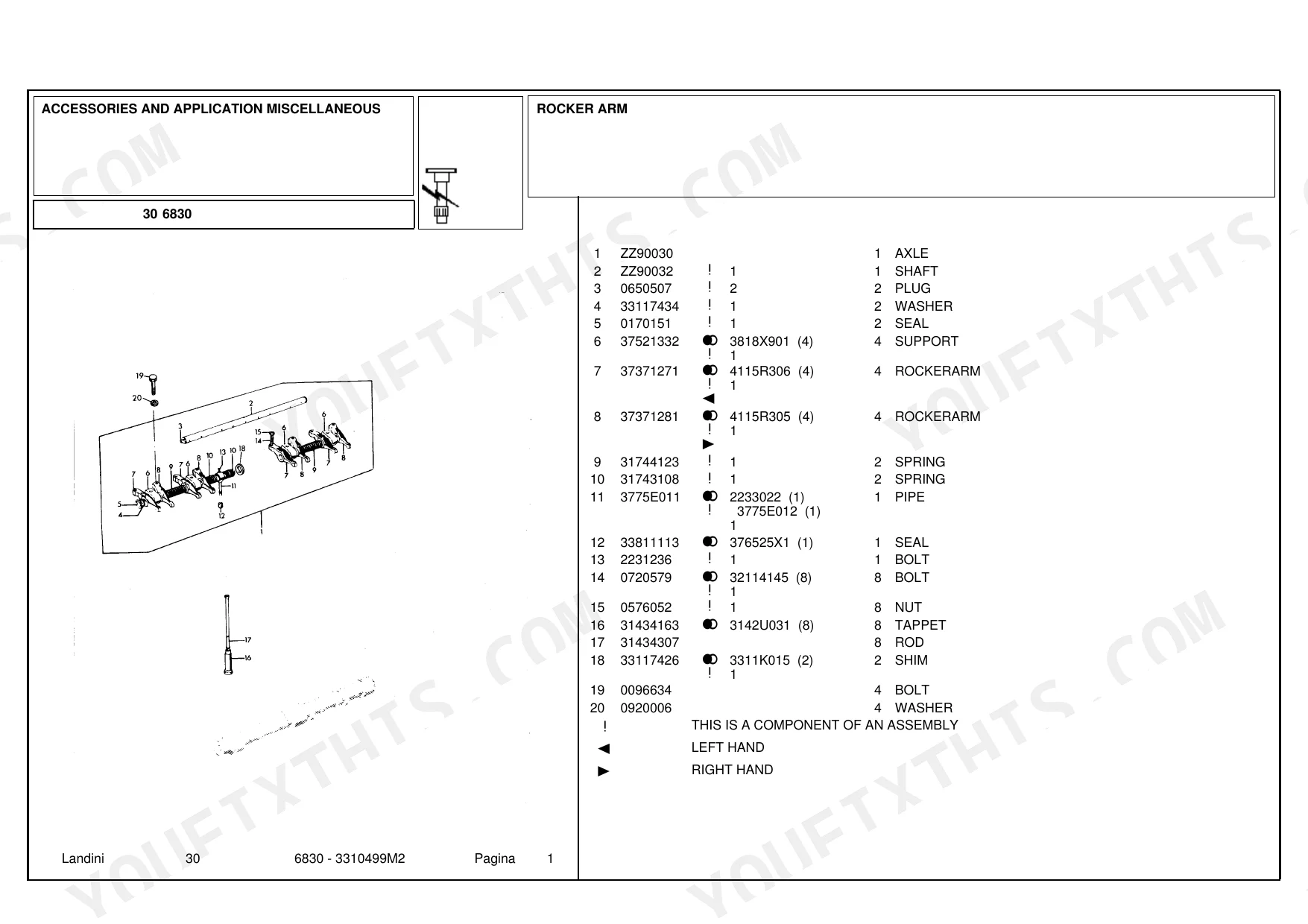

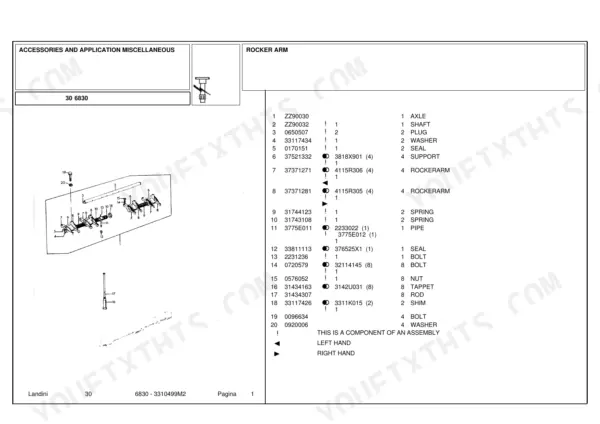

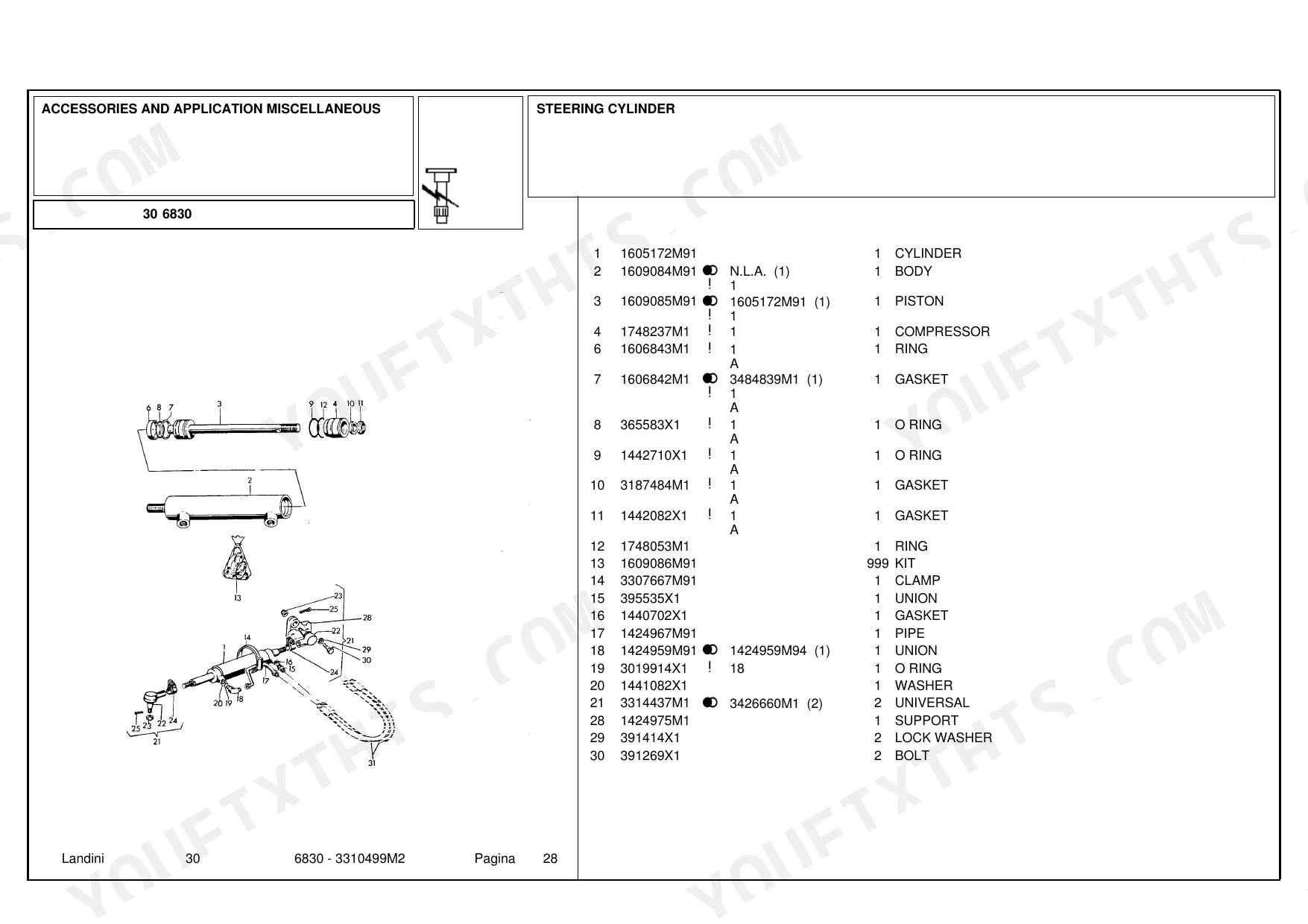

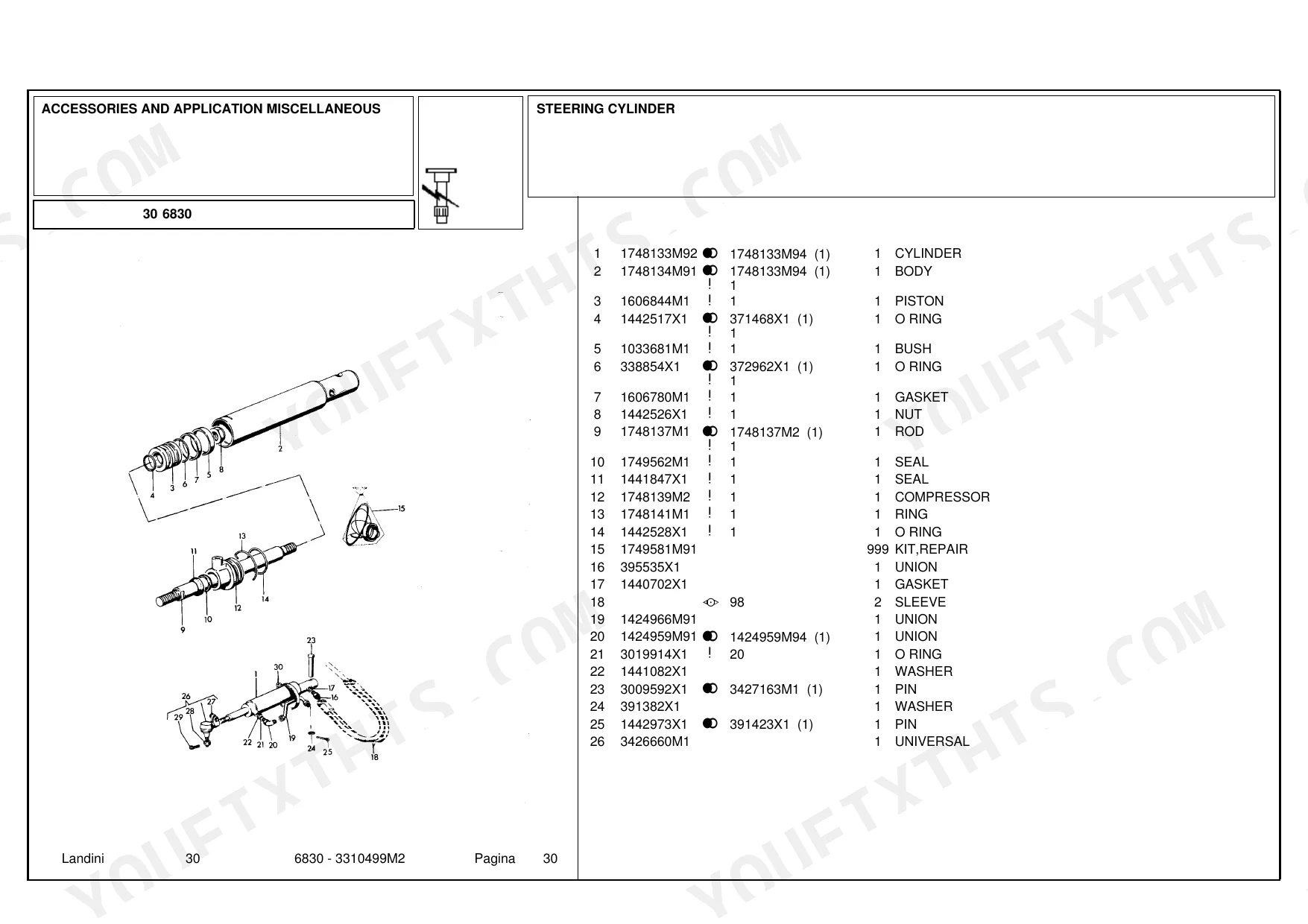

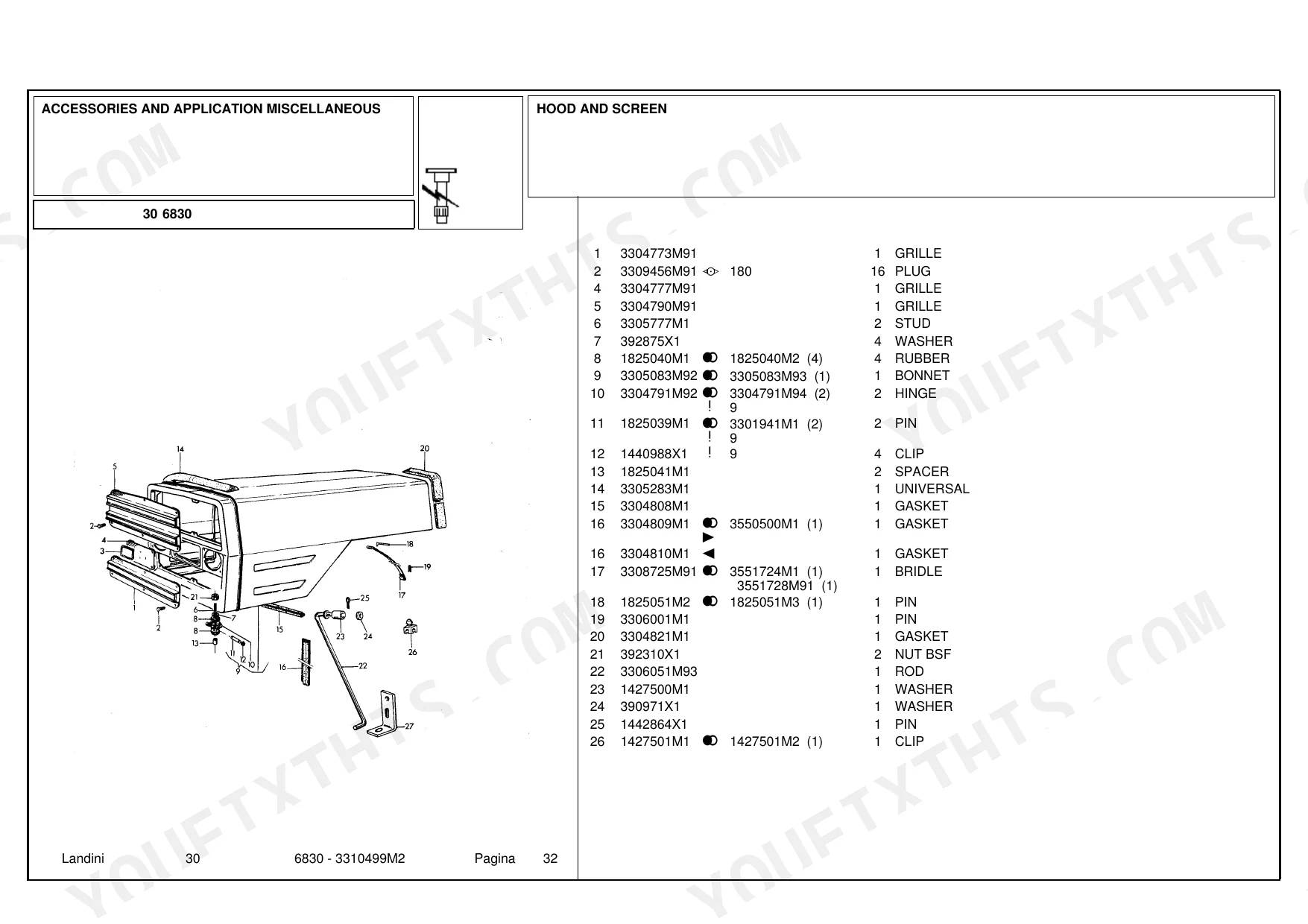

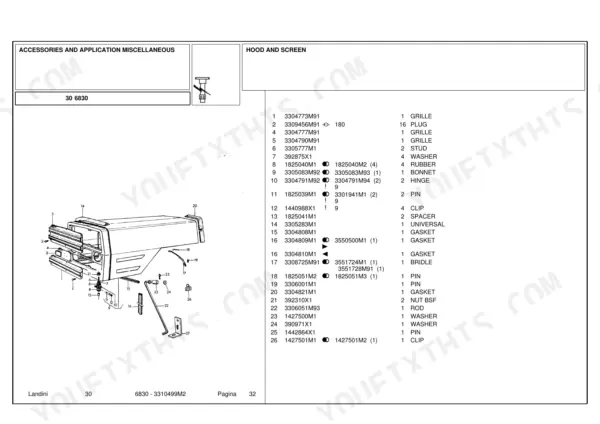

| System | Pages | Key Topics |
|---|---|---|
| Clutch & Transmission | Centre Axle Housing and Transmission Housing, Controls and Transmission Levers, Clutch Control, Dual Clutch, Transfer Gear Box | |
| Fuel System | Fuel Filter, Fuel Lift Pump, Fuel Tank | |
| Cooling System | Water Pump and Fan | |
| Engine | Rocker Arm, Crankshaft & Flywheel, Cylinder Block, Exhaust Manifold and Muffler, Engine Controls, Timing Gear, Lubricating Oil System - Oil Sump, Steering Oil Pump, Oil Pump, Kit Gaskets, Lubricating Oil System Power Take Off | |
| Electrical System | Alternator, Battery, Lights, Electrical Equipment, Starter Motor | |
| PTO | Power Take Off | |
| Rear Axle, Differential & Brakes | Brakes and Controls, Hand Brake, Rear Axle Housing | |
| Front Axle & Steering | Front Axle, Steering Cylinder, Steering Control Valve, Steering Hydraulic Equipment | |
| Hydraulics & 3-Point Hitch | Linkage Cat. II, Drawbar Heavy Duty, Cylinder for Hydraulic Lift, Hydraulic Lift, Hydraulic Lift Pipings, Auxiliary Hydraulic Valves | |
| Body & Operator Station | Hood and Screen, Induction Manifold and Air Filter, Decal and Emblems, Instrument Panel, Front Fenders, Fenders and Platform, Seat, Mounting Frame and Front Weights | |
| Decals & Accessories | Tool | |
| Other Components | Telescopic Arm, Reducer Control, Lift Control, Differential, Distributor, Front Cat. C and Rear Hook, Rear Hook, Balancer Unit, Reducer, Rim & Tires |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Loctite capacity | 250CC. | p. 7 |
Landini 6830 Common Problems This Manual Covers
Landini 6830 dual clutch disc, plate and spring part numbers hard to find in the parts catalog
Check the Dual Clutch exploded views starting on page 80 and match each reference number on the drawing to the parts list for the disc, plate, housing and springs. Pull pedal, lever and spring parts from Clutch Control starting on page 43, then order everything at once so the tractor isn't parked mid-season.
Manual Section: Dual Clutch p. 80PTO shaft, bearing and gear part numbers unclear when ordering power take off parts
Check the Power Take Off exploded views starting on page 120 for the shaft, bearing, gear, spacer, lever and guard callouts. Note item 36 on page 121 (gasket, 3308788M1, 250CC) so it ships with the parts. Pull the lubrication head and cartridge listings from page 142 so the order is complete before the next field day.
Manual Section: Power Take Off p. 120Front axle differential gear and steering rod pin part numbers hard to locate in the diagrams

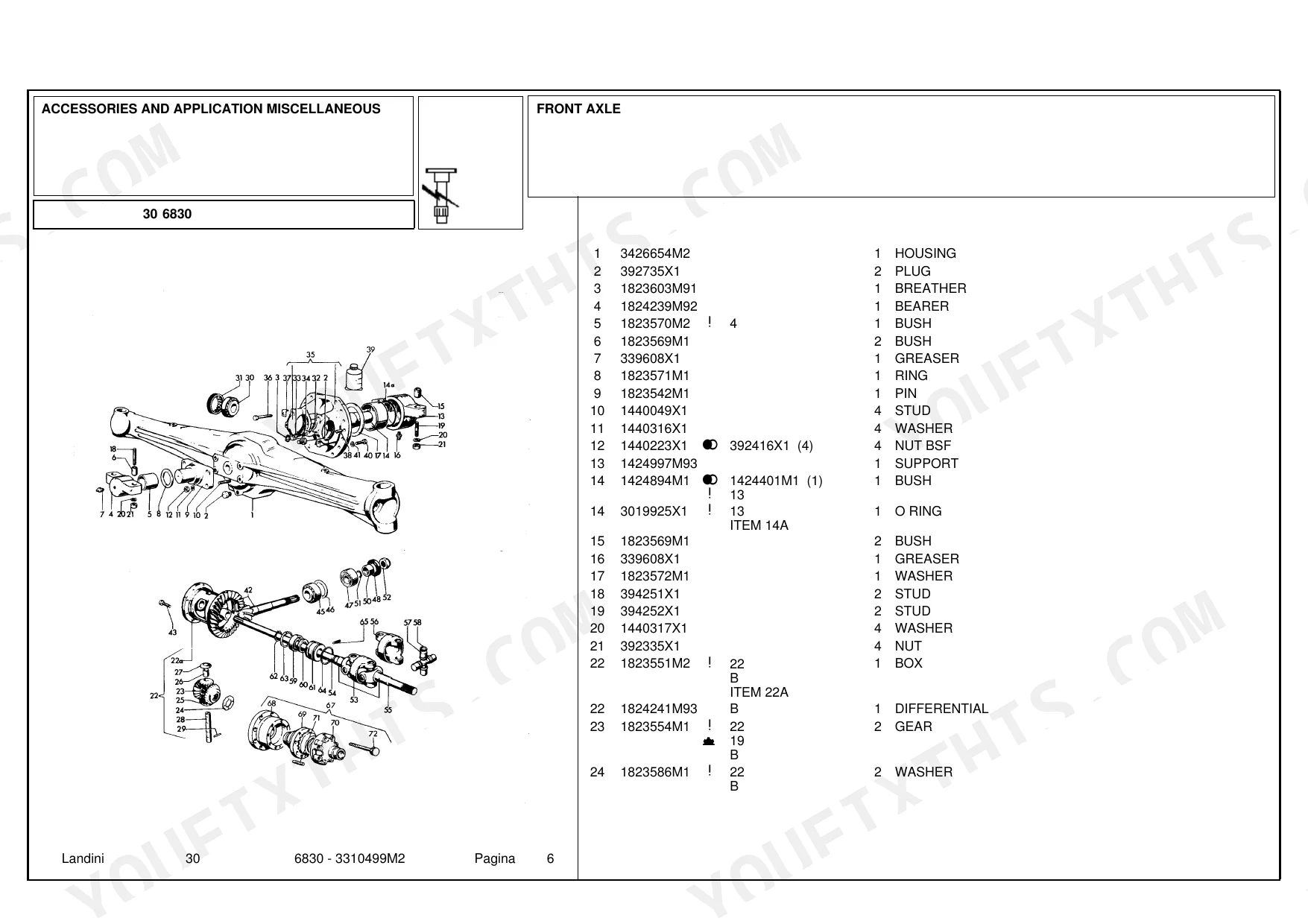

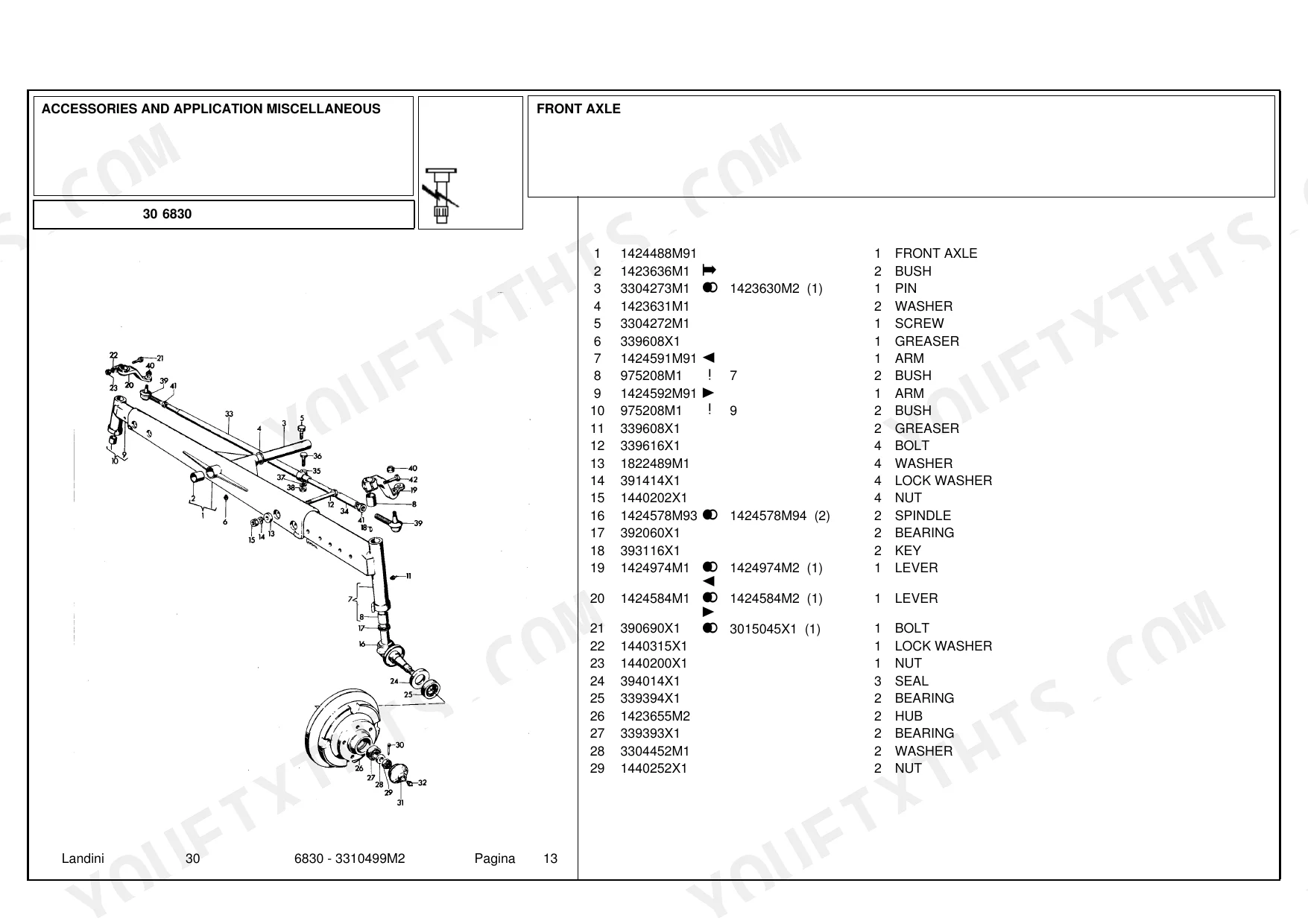

Check the Front Axle exploded views starting on page 6, which break out the housing and bearer, differential and gears, and steering rods and pins. Add item 39, Loctite 3303226M1 in the 250CC size shown on page 7, to the order so reassembly doesn't stall while you wait on a counter run.
Manual Section: Front Axle p. 6Hydraulic lift cylinder, piston and control lever parts hard to identify across many diagram pages
Check the Hydraulic Lift section starting on page 146 for the body, bush, cylinder, piston, lever and spring callouts. Cross-reference the lift cylinder arm and holder on page 28, Lift Control levers and shafts on page 47, and pump and pipe unions on page 175 so the lift is working again before planting.
Manual Section: Hydraulic Lift p. 146Water pump seal, fan pulley and radiator part numbers hard to match on cooling diagrams
Check the Water Pump and Fan exploded views starting on page 114 for the pump, seal, pulley, fan, hose and clamp listings. Then verify radiator, plug, shroud and damper part numbers in the Cooling System section on page 143, and order hoses with the pump so one trip to the counter covers the job.
Manual Section: Water Pump and Fan p. 114Auxiliary hydraulic valve seal and repair kit part numbers not obvious in the remote valve section
Check the Auxiliary Hydraulic Valves exploded views starting on page 180 for the distributor, plug, valve and spring callouts, along with the seal and repair kit listings. Match the kit to your valve assembly on the drawing before ordering, so the remote hydraulics are ready when the implement goes back on.
Manual Section: Auxiliary Hydraulic Valves p. 180Frequently Asked Questions
What are the part numbers for the Landini 6830 dual clutch?
The Dual Clutch list on page 80 gives the housing as part 1424122M1, the clutch assembly as part 3303000M94 and the disc as part 1424135M91. p. 80
Which Loctite part is listed for the Landini 6830 front axle?
The Front Axle parts list on page 7 shows Loctite part 3303226M1 in a 250CC. size; the same part appears again on page 10. It is a parts-list entry, not an application quantity. p. 7
What is the correct shim thickness for the front axle bearing adjustment?
The front axle bearing shim (part 1823578M1) is available in a thickness of 0.15mm. Other available thicknesses include 0.3mm, 0.5mm, and 0.7mm as listed on page 7. p. 7
What is the part number for the Landini 6830 cylinder head cover?
The Cylinder Head and Cover section lists the cover as item 34, part 37188549. p. 157
What is the part number for the Landini 6830 fuel filter?
The Fuel Filter list on page 72 gives the fuel filter assembly as item 1, part 2656615; parts marked ! on that page are components of the assembly. p. 72
Will this Landini 6830 Parts Catalog download right away?
This is a 190-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Is this Landini 6830 Parts Catalog printable?
Yes. Print the pages you need for the job in your own shop, and bin them when they get greasy.
