Ordering a steering clutch drum or upper roller seal for a crawler tractor goes wrong fast without the right number, and the 168-page Landini C7830 parts catalog PDF (OEM ID 3310579M2) is the factory list that settles it. Exploded views break down each assembly, from the rocker shaft and dual clutch through the lift distributor, auxiliary hydraulic pump, and draft and position controls, with every callout keyed to a part number. Hydraulic lift and remote valve pipings take up a large share of the book, and the tracks get the same treatment: lower and upper rollers, track adjuster idler, Silent Track links and shoes. Confirm your shoes against the listed 360 mm width, and match the instrument panel fuse to its 8 AMP rating. Rusted-over numbers can cost you a dry week. Searchable text and bookmarked sections keep lookups quick, and the file is yours to keep for as long as this C7830 works your ground.
What's Inside This Landini C7830 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Clutch & Transmission | Centre Axle Housing and Transmission Housing, Steering Clutch, Clutch - Dual Clutch, Shift Levers - 12 Speed Transmission, Clutch Pedal and Linkage, Transmission - Gear Train | |
| Fuel System | Fuel Injection Equipment, Low Pressure Fuel System, Fuel System - Fuel Filter, Fuel System - Fuel Tank and Attachments | |
| Cooling System | Lubricating Oil Filter and Integral Cooler, Water Pump, Thermostat and Heat Exchanger, Cooling System - Engine | |

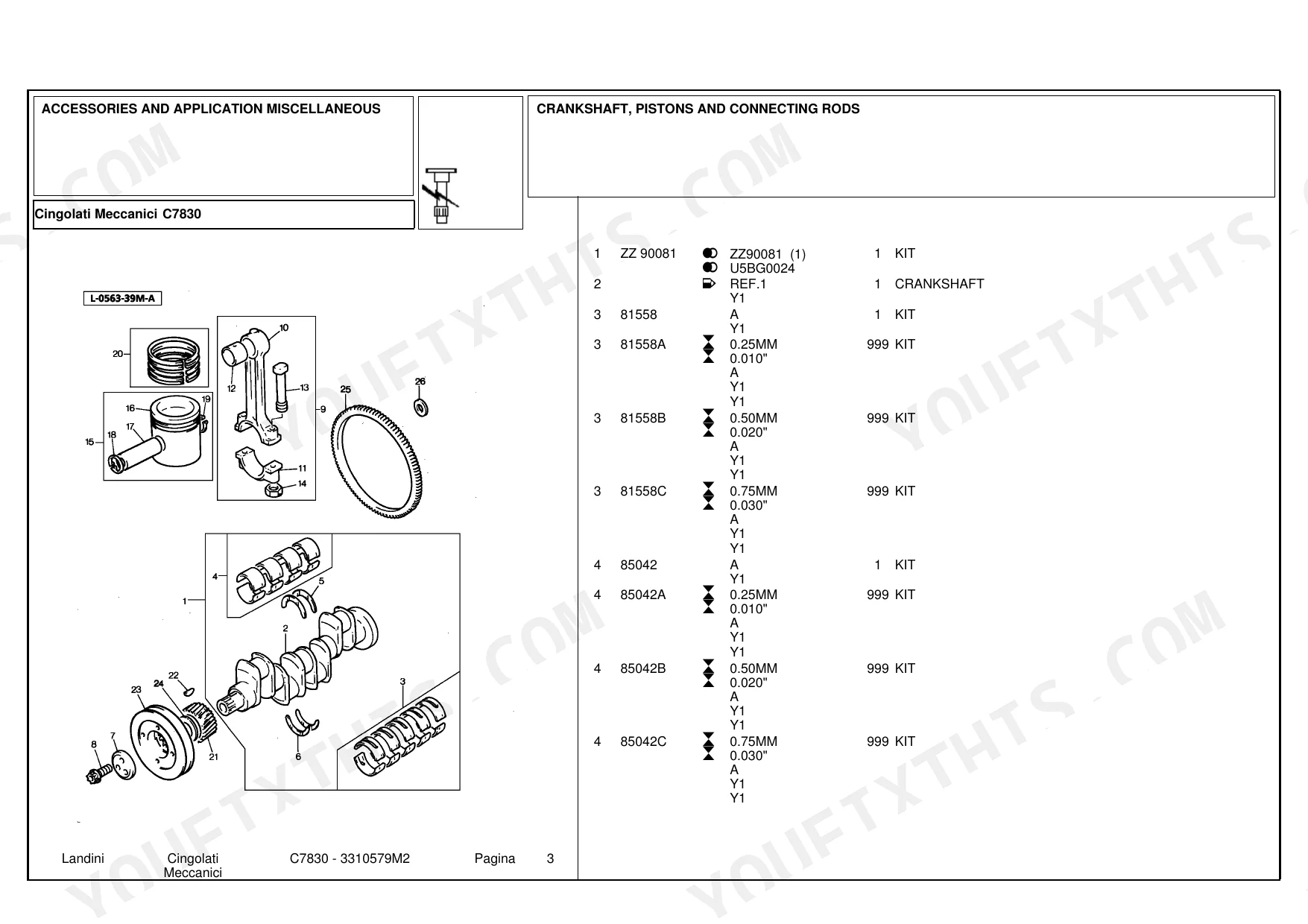

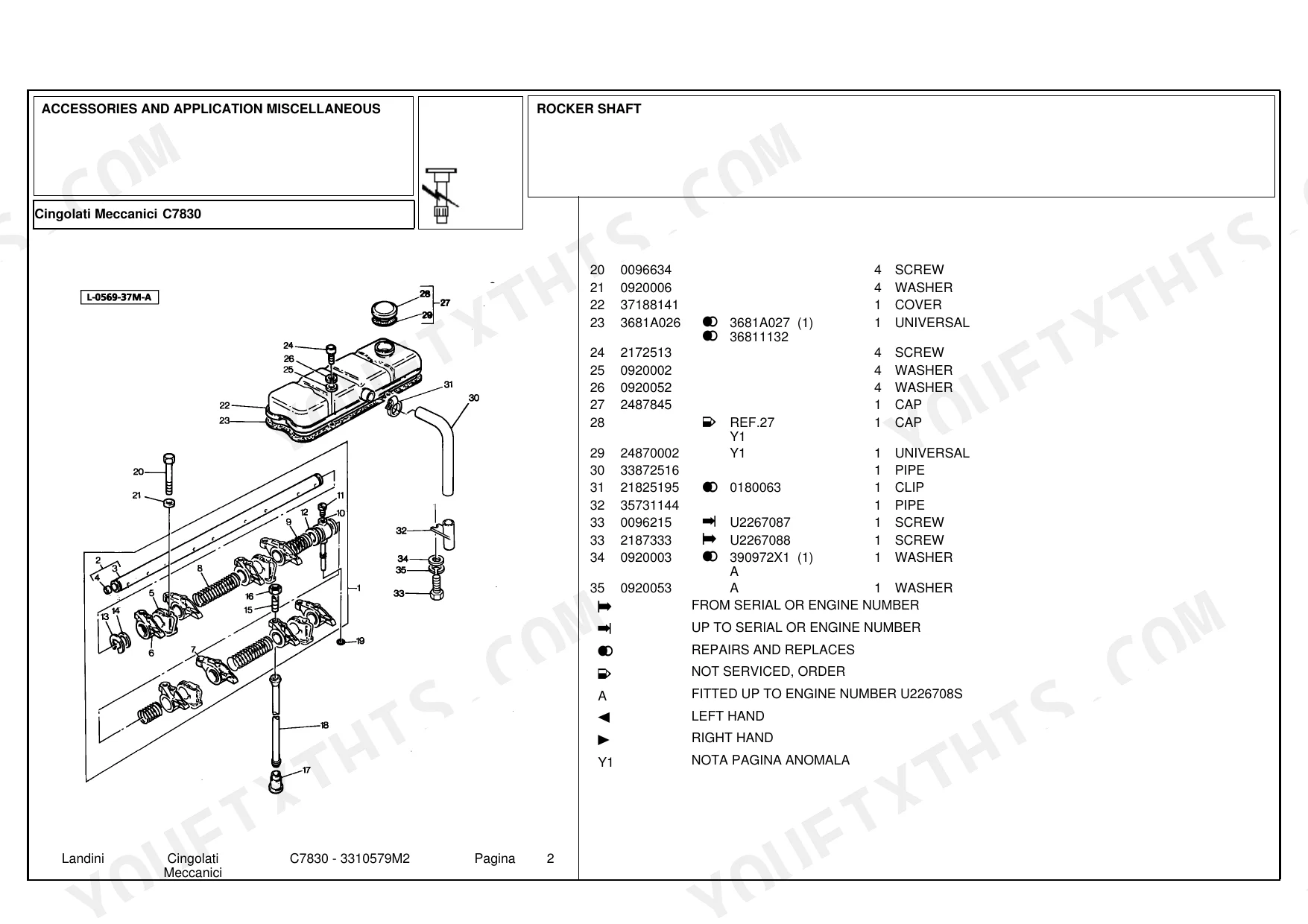

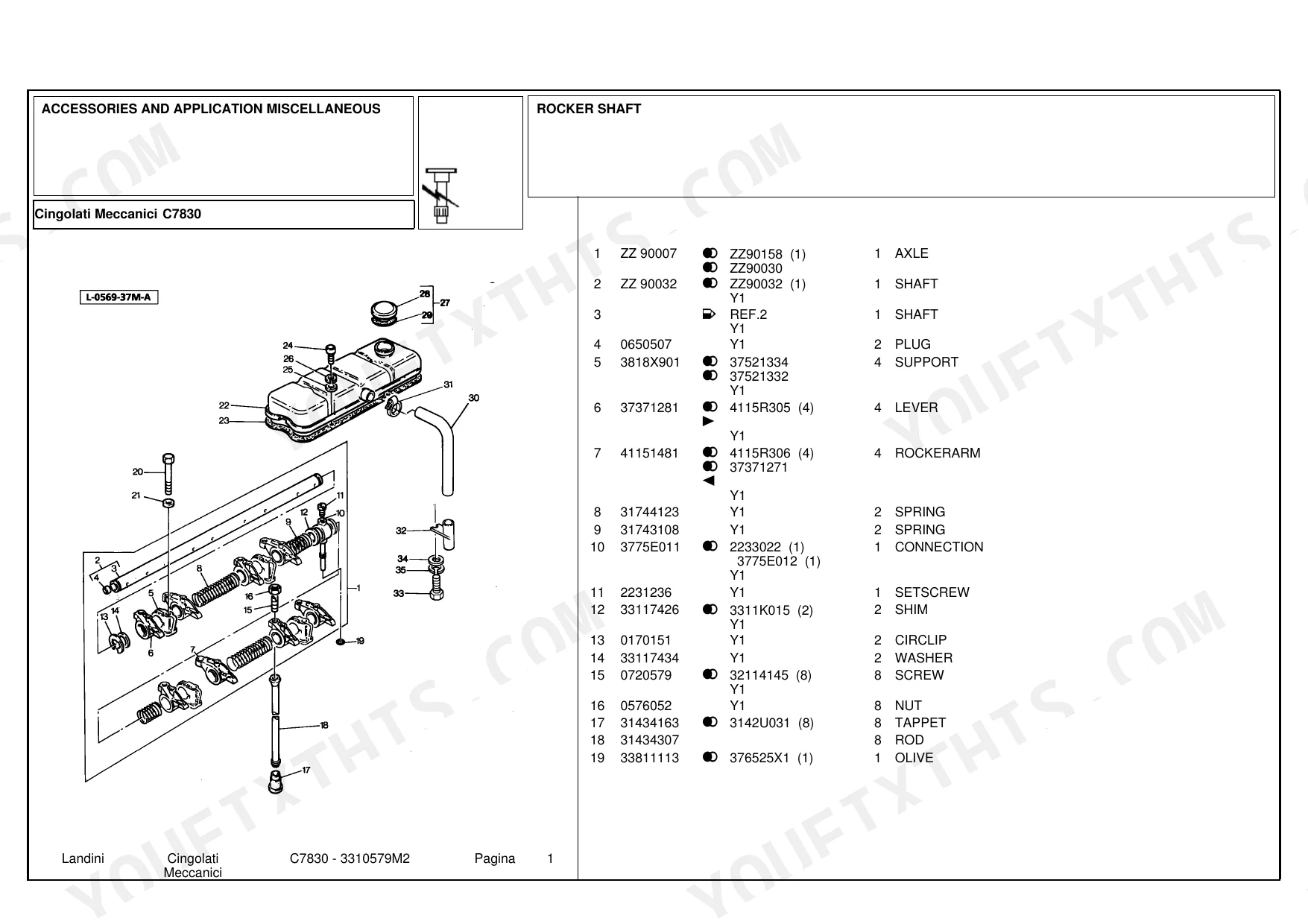

| Engine | Rocker Shaft, Crankshaft, Pistons and Connecting Rods, Lubricating Oil Sump, Joints and Gaskets, Timing Gear and Camshaft, Cylinder Block, Air Induction and Exhaust System, Exhaust System - Vertical, Cylinder Head | |
| Electrical System | Alternator, Alternator Lucas, Battery, Electrical Wiring, Lighting Equipment, Alternator Positioner, Starter - Lucas | |
| Undercarriage & Travel | Lower Roller, Upper Roller | |

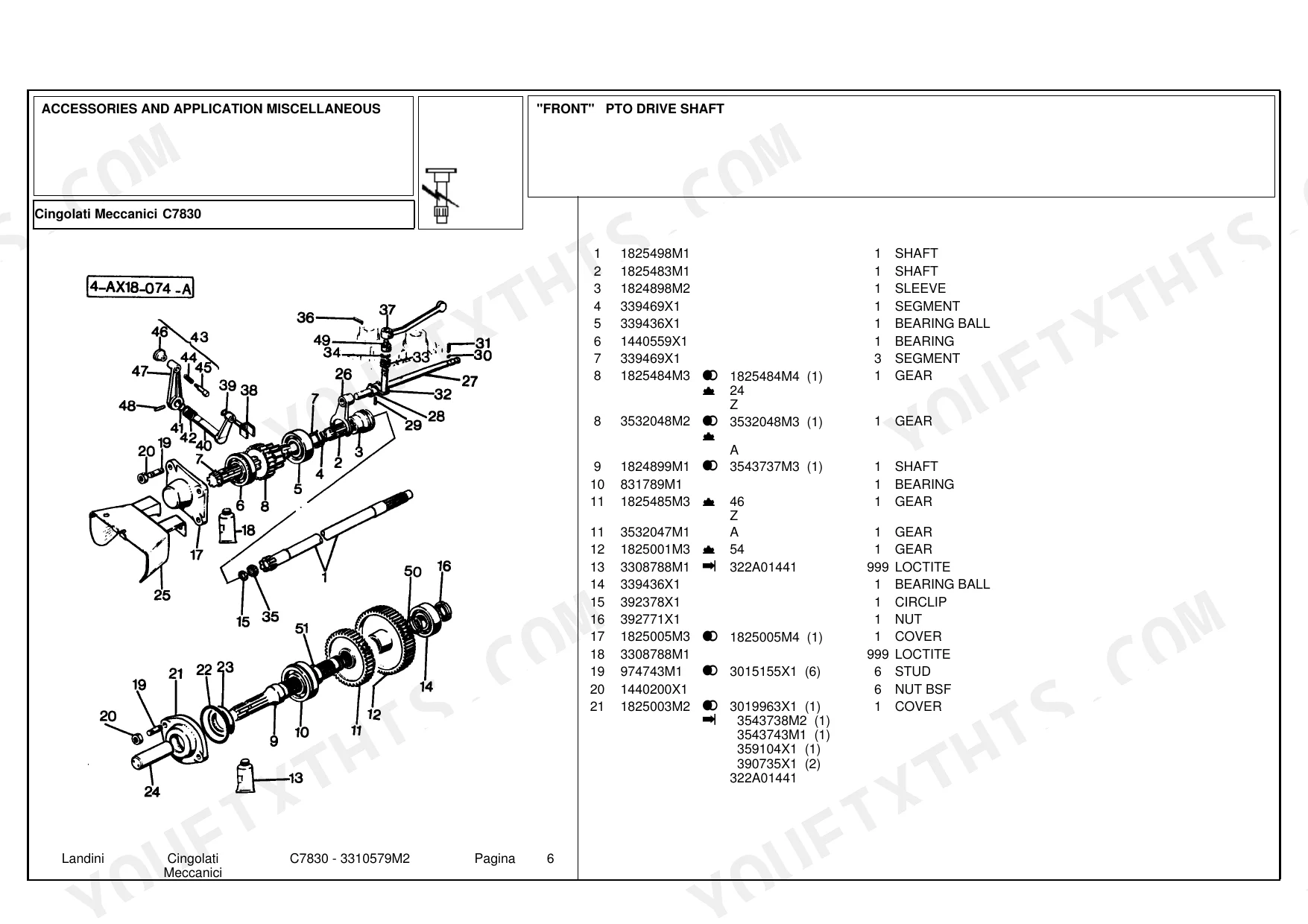

| PTO | Front PTO Drive Shaft, PTO Pulley | |

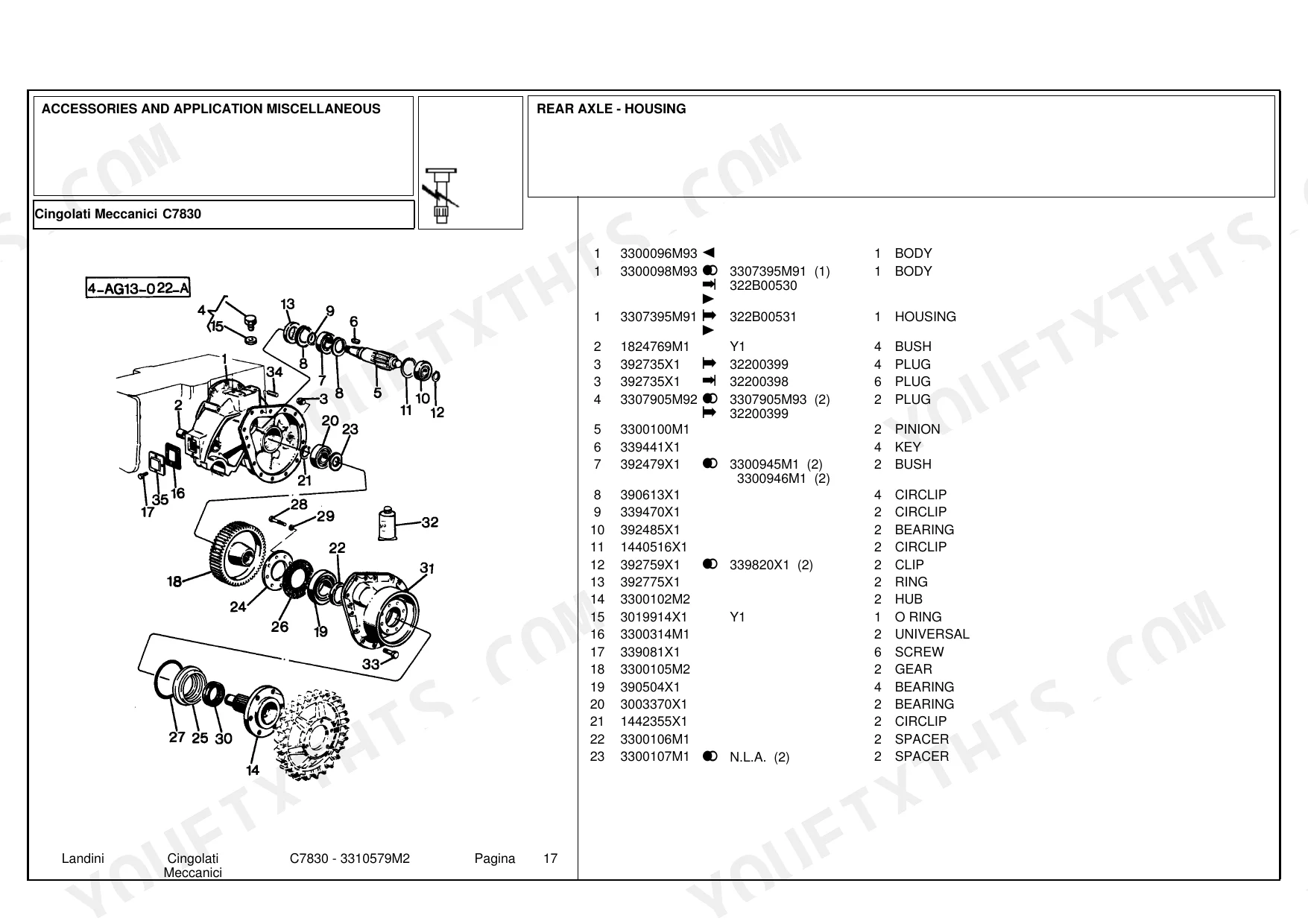

| Rear Axle, Differential & Brakes | Rear Axle - Housing, Brakes and Controls, Brakes - Handbrake | |

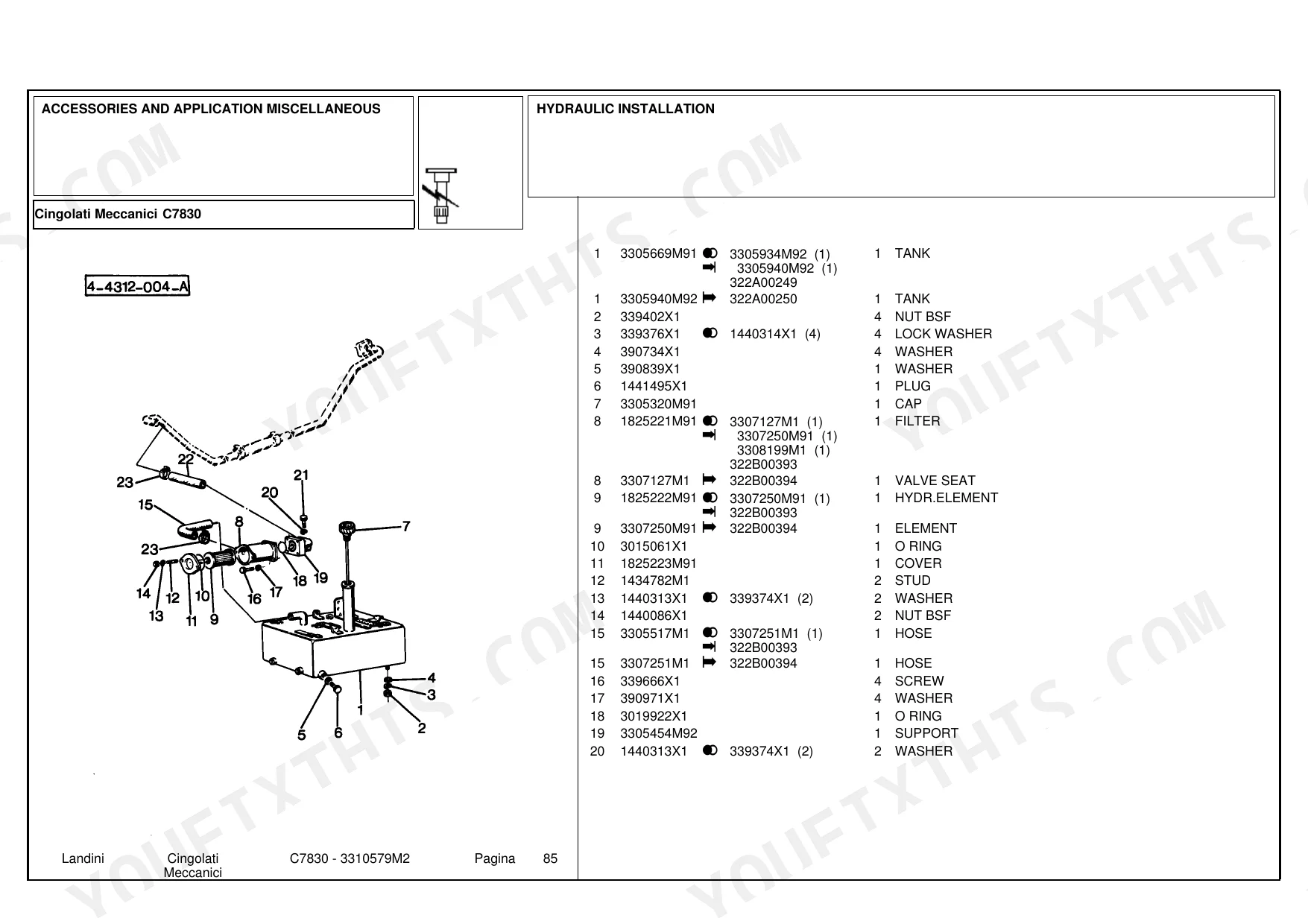

| Hydraulics & 3-Point Hitch | Linkage Cat 2, Drawbar, Rear Controls - Draft and Position, Hydraulics Equipment - Valve, Hydraulic Installation, Hydraulic Pump, Hydraulic Pump - Auxiliary, Hydraulic Lift - Lift Arms, Pipings Auxiliary Valve, Hydraulic Lift Pipings | |
| Body & Operator Station | Sheet Metal - Panels, Hood and Screen, Instrument Panel and Instruments, Fenders and Platform, Guards, Seat - Sable, Weight Frame and Weights, Safety Frame | |
| Decals & Accessories | Decals, Tool Kit | |

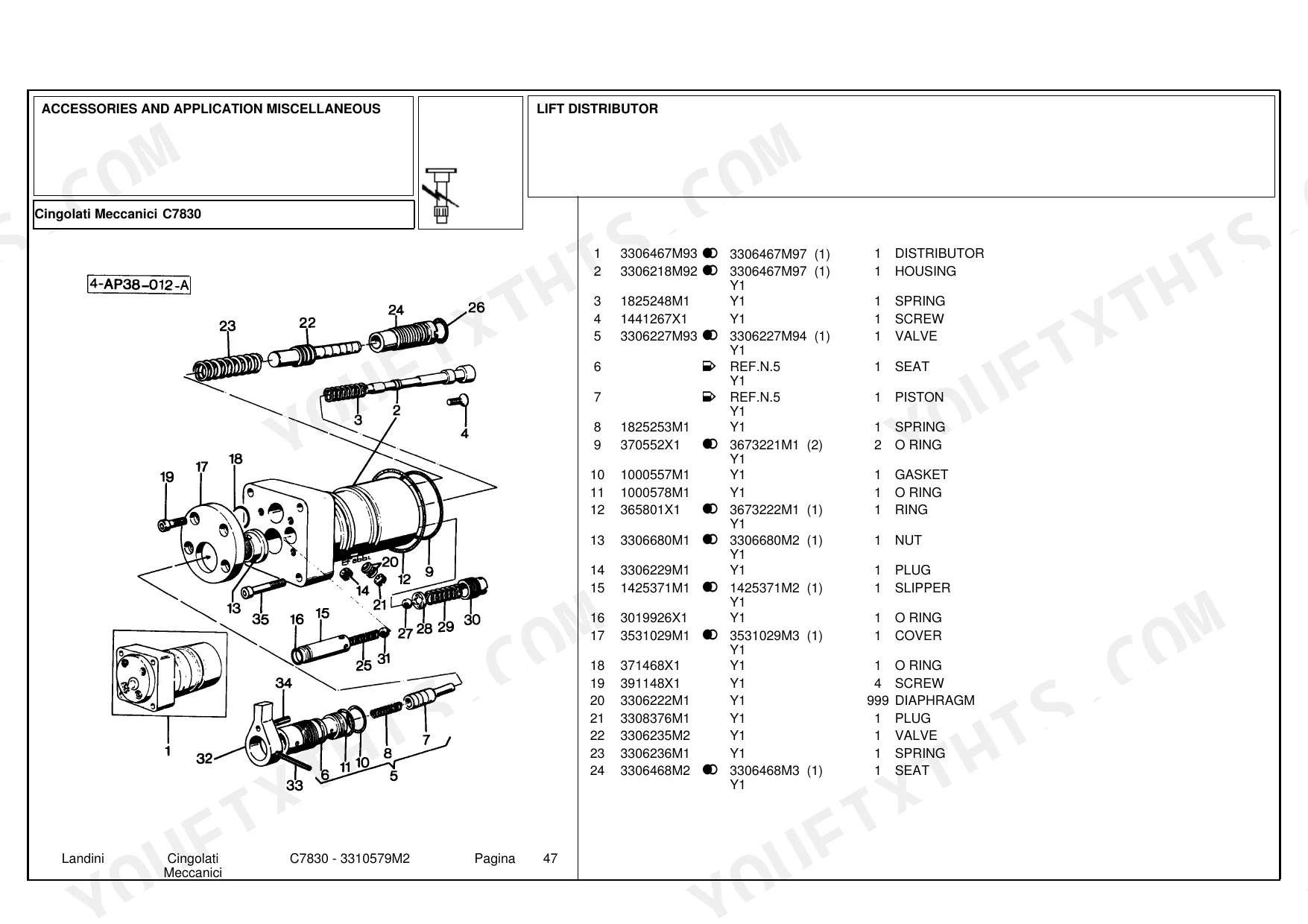

| Other Components | Track Chain Reinforcements Silent Track, Throttle Controls, Lift Distributor, Auxiliary Distributor, Air Filter - Oil Bath Air Filter, Rear Hook - Adjustable, Balancer Unit, Suspension, Track Adjuster |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Gasket thickness | 3 mm | p. 56 |
| Bulb | 3 WATT | p. 104 |
| Fuse | 8 AMP | p. 104 |
| Track Shoe Width | 360mm | p. 30 |
Landini C7830 Common Problems This Manual Covers
Landini C7830 track shoes worn out and unsure whether to order the 360mm or 400mm shoe
Measure the old shoe width before ordering. Check the Track Chain Reinforcements Silent Track parts list on page 30: the 360mm shoe is listed as 3304061M1 and the 400mm plate as 3304062M1. Match the reference on the exploded view to your chain and order a full set so you are back in the field before the weather turns.
Manual Section: Track Chain Reinforcements Silent Track p. 30Instrument panel bulb burned out and fuse blown, need the correct replacement part numbers
Check the Instrument Panel and Instruments exploded view on page 104. The 3 watt bulb is listed as 3300532M1 at reference 7, and the 8 amp fuse as 973561M3 at reference 10. Match the rating on the old part before fitting, and keep a spare fuse in the tool kit so a blown circuit doesn't cost you a field day.
Manual Section: Instrument Panel and Instruments p. 104Auxiliary distributor gasket needs replacing and unsure which gasket thickness or repair kit fits
Check the Auxiliary Distributor exploded views starting on page 51 to find the gasket and repair kit reference numbers. Measure the old gasket against the 3 mm thickness listed on page 56 before ordering. Cross-reference the parts list against your distributor body so the kit you order actually matches what is bolted to the tractor.
Manual Section: Auxiliary Distributor p. 51Engine gaskets needed for a teardown and unsure whether to order the top or bottom service kit
Check the Joints and Gaskets parts list on page 84, which splits the gaskets into a top service kit and a bottom service kit. Order the kit that matches the end of the engine you have open. Cross-reference the Cylinder Head parts list on page 152 for individual gaskets the kit may not cover.
Manual Section: Joints and Gaskets p. 84Dual clutch rebuild underway and can't identify the lever, strut, flywheel and bearing part numbers
Check the Clutch - Dual Clutch exploded views starting on page 79 for the clutch and box assembly, levers, struts, flywheel and bearing. Match each reference number on the diagram to its part number in the list. If the pedal side is worn too, pull parts from the Clutch Pedal and Linkage pages starting at 110.
Manual Section: Clutch - Dual Clutch p. 79Upper and lower track rollers worn and need part numbers for shafts, bushes, bearings and seals
Inspect which rollers are worn before ordering. Check the Lower Roller parts list starting on page 121 for the roller, shaft, bushes, rings and key, then the Upper Roller pages starting at 124 for the bearings, circlips, seals and covers. Order matched sets so the crawler is ready when the ground dries out.
Manual Section: Lower Roller p. 121Frequently Asked Questions
What is the part number for the oil filter in the Landini C7830 lubricating oil system?
The part number for the oil filter is 1447048M1, which replaces the previous part 2654403. p. 67
What is the part number for the alternator fan on the Landini C7830?
The part number for the alternator fan is 3600184M1. p. 11
What is the part number for the starter motor on the Landini C7830?
The part number for the starter motor is 2873B055. p. 102
What is the part number for the fuel filter element on the Landini C7830?
The part number for the fuel filter element is 3405418M1, which replaces the previous part 26561117. p. 136
What is the part number for the radiator on the Landini C7830?
The part number for the radiator is 3303115M92, which replaces the previous part 3666234M91. p. 132
Is this Landini C7830 manual a download or a disc?
You download the Parts Catalog yourself: 168 pages, searchable PDF, available immediately. Keep a copy on every device you use.
Is printing allowed for this Landini C7830 Parts Catalog?
You can. Print the sections you want for your own use and keep the file as your backup.
