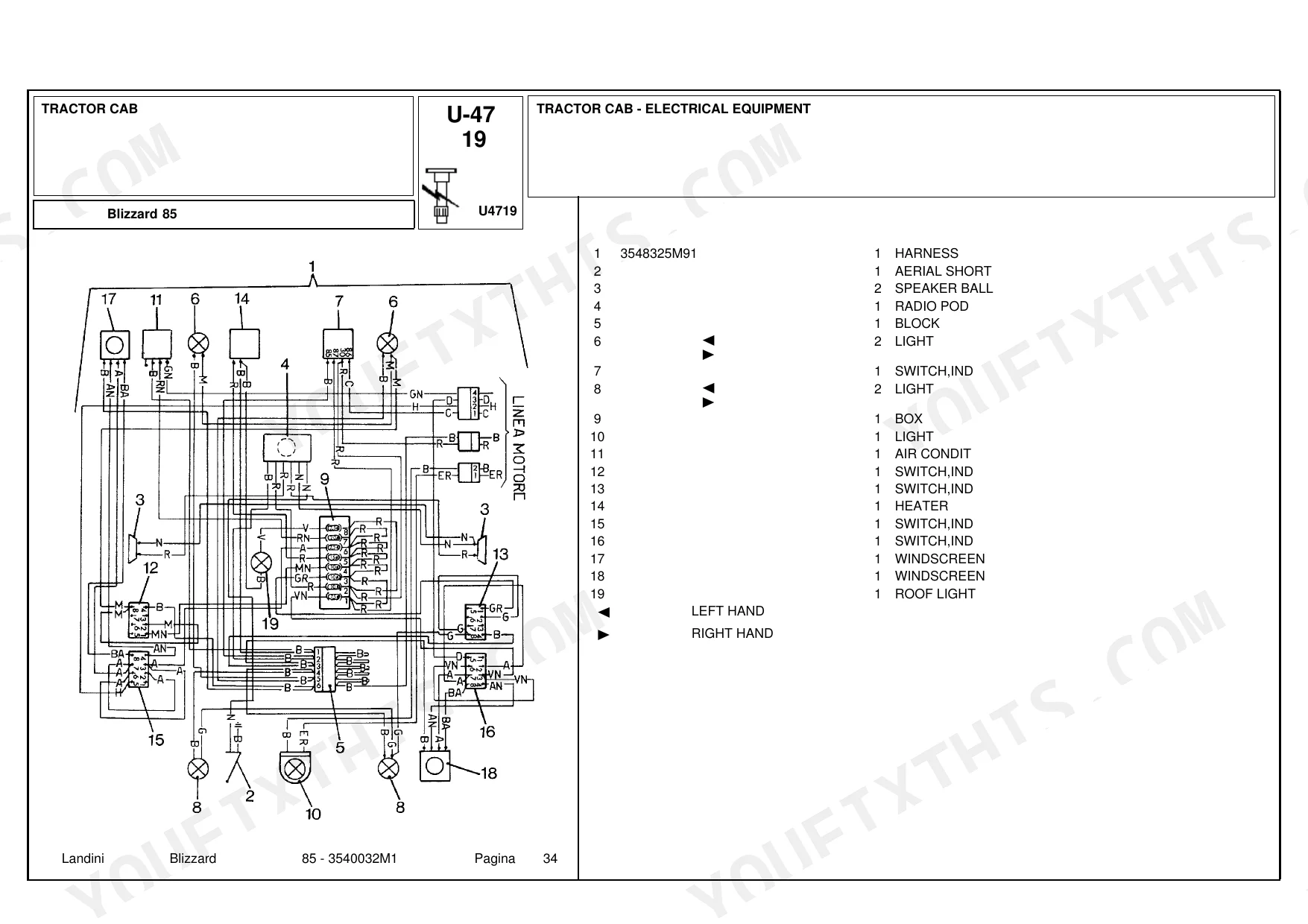

Ordering the right gasket the first time is what the 369 pages of this Landini Blizzard 85 parts catalog PDF (OEM 3540032M1) buy you, with every assembly on the tractor broken into exploded views and part numbers. Illustrations trace the A4.248 engine down to its pistons and connecting rods, then work through the Orbitrol steering unit, the draft, position and intermix lift control, the Standard, Floating and Hidroirma auxiliary distributors, the rear differential lock and every shuttle, creeper and overdrive reducer gearbox. Wiring diagrams for the front harness, instrument panel and cab circuits let you identify a connector before ordering. Check your clutch first: O.M.G. and Luk dual clutches are listed separately in 11-inch and 12-inch sizes, and cab windows change at serial B25008. Bookmarked by system and text-searchable, this PDF gets you to the right part number fast.
What's Inside This Landini Blizzard 85 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Accessories Mechanical | 1-12 | Weight Frame and Weights - Front Hook - Up to Serial N., Hitch Connections, Rear Hook - Adjustable - Type, Rear Hook - Adjustable, Drawbar - Lineare - "Heavy Duty" |

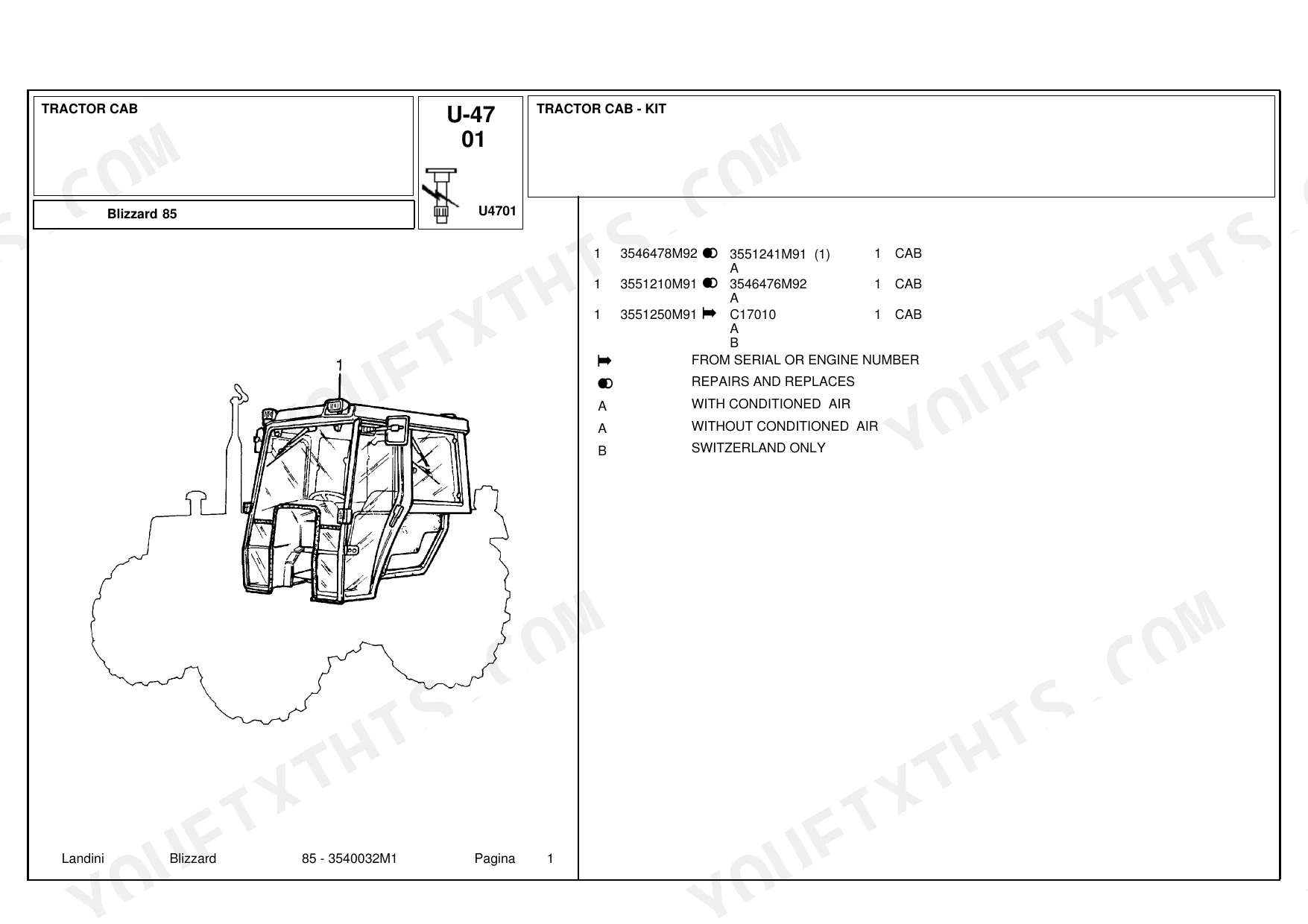

| Tractor Cab | 13-49 | - Kit, - Frame - Up to Serial Number "3/94" Windscreen, - Frame - From Serial N. "4/94" Windscreen, Tractor - "Doors", - Windows, - Roof, - Windows - Up to Serial Number B25007 |

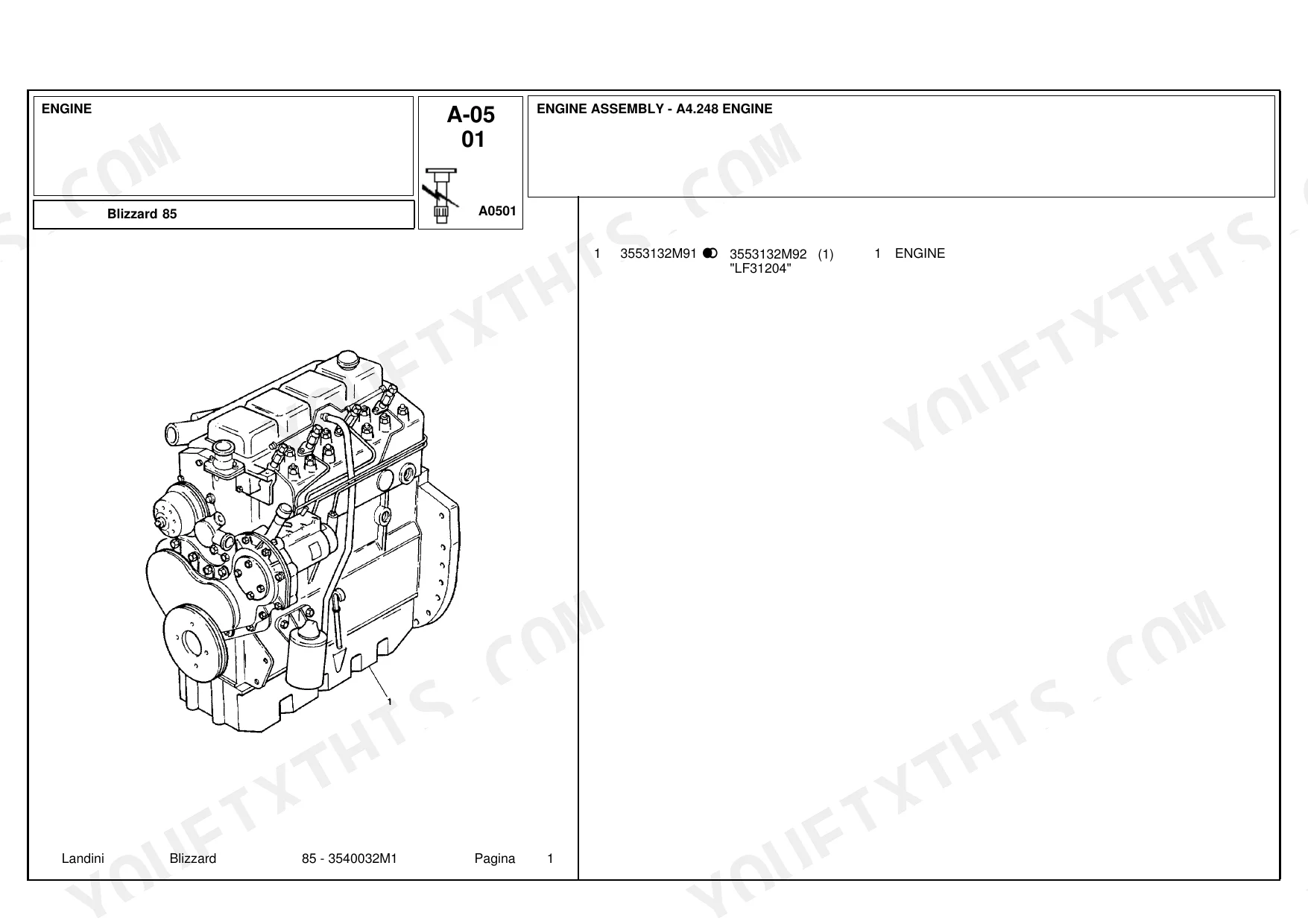

| Engine | 50-79 | Assembly - A4.248 Engine, Short Engine - Table PK ACEL9308, Cylinder Block - A4.248 Engine, Crankshaft, Pistons and Connecting Rods - A4.248 Engine, Cylinder Head - A4.248 Engine |
| Engine Ancillary Equipment | 80-111 | Alternator - Valeo Type, Alternator - Lucas - Lucas, Starter Motor - "Marelli" Type, Starter Motor - "Bosch", Starter Motor - Iskra Type, Cooling System - Engine - Fan and Hoses |
| Fenders Footsteps and Platform | 112-126 | Fenders - Front, Seat "Grammer", Seat - Grammer - Lux Type, Seat - Grammer - Lux Type - Chassis and Suspension, Seat "MT" - "Standard Version", Seat "MT" Lux Type |

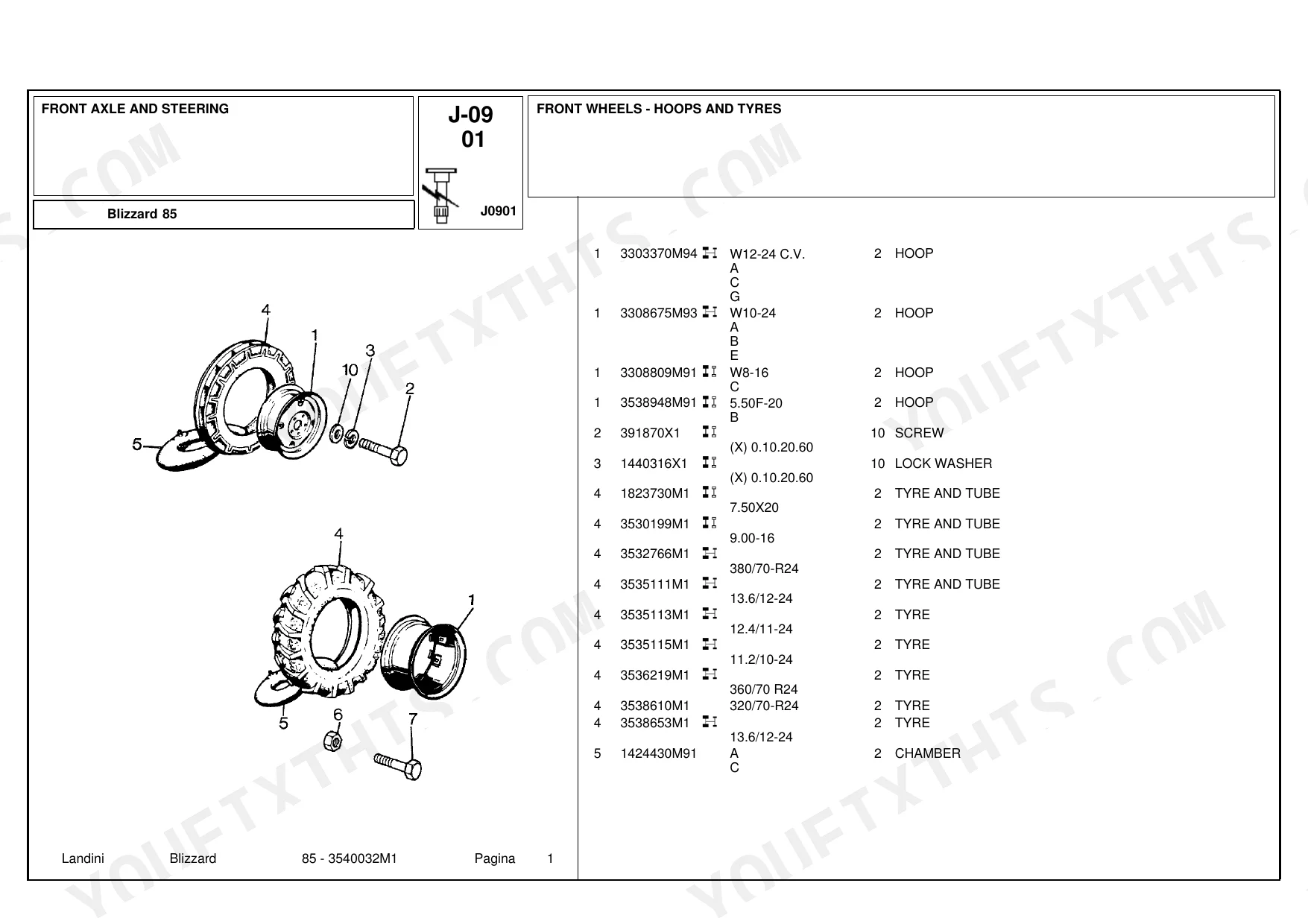

| Front Axle and Steering | 127-183 | Front Wheels - Hoops and Tyres, Front Axle 2 Wheel Drive - Axle Support, Front Axle 4 Wheel Drive - Differential - with Standard Seal |

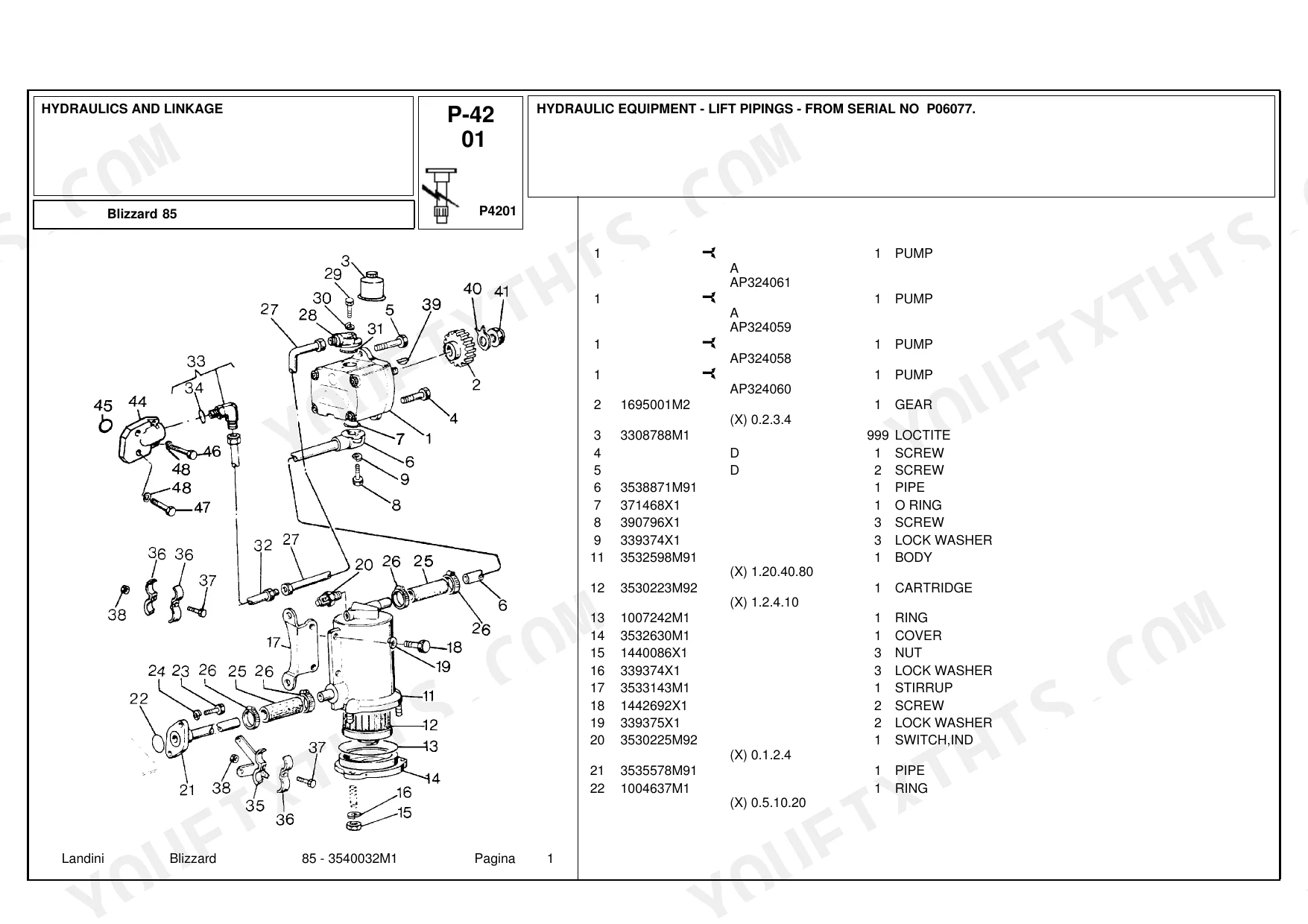

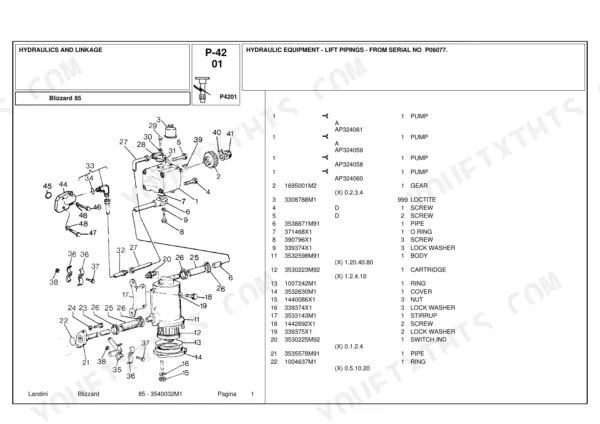

| Hydraulics and Linkage | 184-247 | Hydraulic Equipment - Lift Pipings - From Serial No P06077, Hydraulic Pump, Lift Distributor, Hydraulic Lift - Lift Arms, Hydraulic Lift Cylinder Lines - Auxiliary |
| Lighting Equipment | 248-254 | Rear Lighting, Rear Light Block, Cab Electrical Wiring, Rear Equipment, Flasher, Cable, Bulb, Pedal |
| Rear Axle and Rear Brakes | 255-288 | Rear Axle - Differential, Rear Axle - Housing and Wheel Hub, Rear Axle - Differential Lock Mechanism - Hydraulic Control, Brake and Controls - Pedals - "Standard" Type |
| Sheet Metal | 289-301 | - "Grille - Front and Hood Facings", Side Cover - Shield Fan, - Hood, - Panels - Hood Bracket and Instrument Panel, Decals |

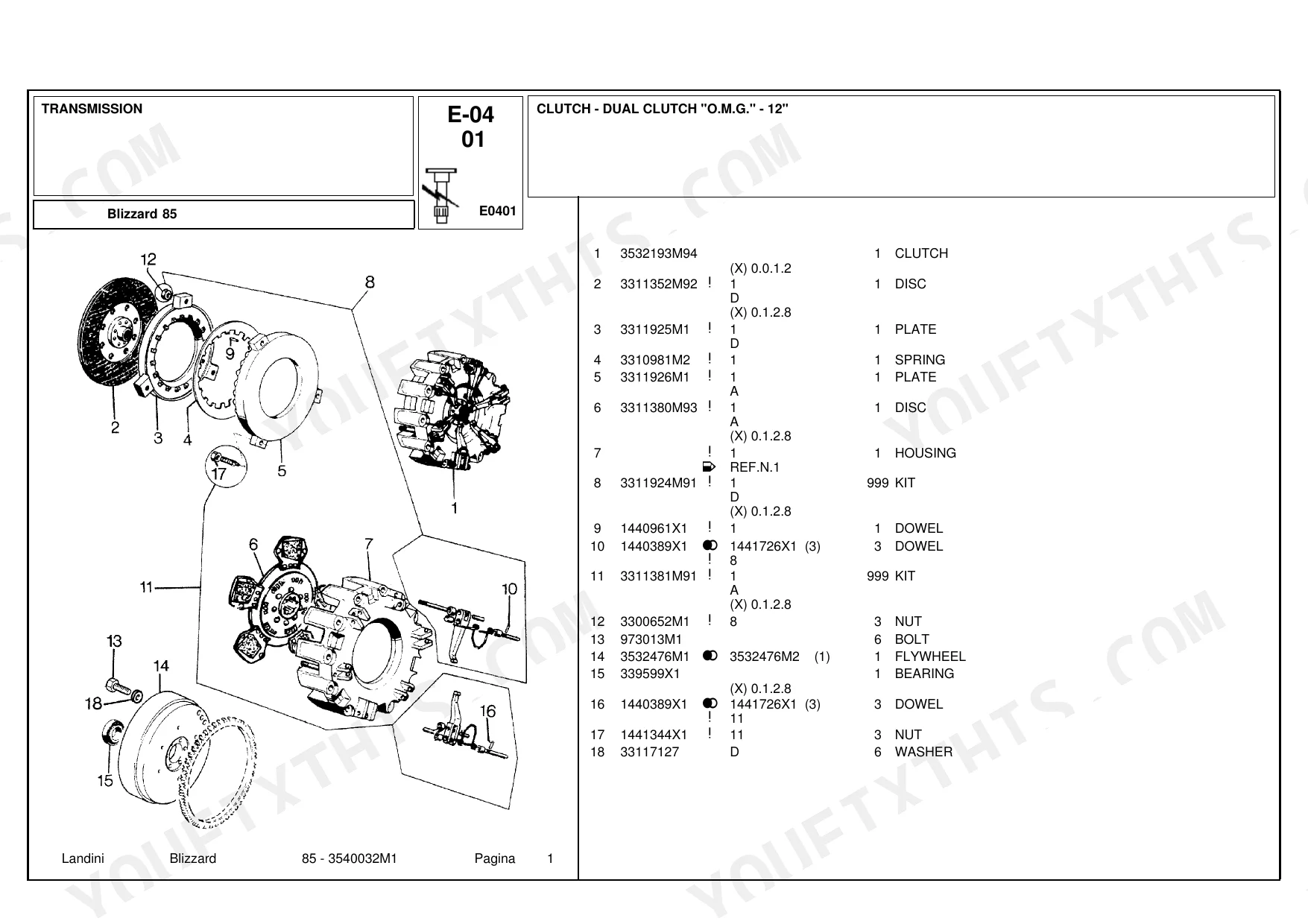

| Transmission | 302-369 | Clutch - Dual Clutch "O.M.G." - 12", Clutch - Dual Clutch "Luk" - 12", Clutch - Dual Clutch "O.M.G." - 11", Clutch - Dual Clutch "Luk" - 11", Clutch Pedal and Linkage |
Landini Blizzard 85 Common Problems This Manual Covers
Landini Blizzard 85 cracked windscreen glass and gasket part numbers differ between early and late serial cabs
Check your serial number first. Tractors up to 3/94 take glass 3548023M1 and gasket 3548024M91 (now 3547709M1), listed on page 14. From 4/94, the list on page 16 calls for glass 3552192M1 and gasket 3552194M1. While the frame is open, order damper 3548042M91 and ball joint 3548281M1 (replaced by 3659464M91).
Manual Section: Tractor Cab - Frame and Windscreen p. 14Alternator adjuster, stator or rectifier part number unclear because Valeo, Iskra and Lucas units were all fitted
Identify the alternator brand on its housing before ordering. The Valeo list on page 80 shows adjuster 3600178M91, stator 3600177M91 and diode 3600179M91. The Iskra list on page 82 gives rectifier 3540078M91 and adjuster 3540080M91. The Lucas list on page 84 shows adjuster 3900691M91 and bearing 3477859M1. Page 81 notes the belt is supplied by Perkins, so source it through the engine section.
Manual Section: Alternator - Valeo/Iskra/Lucas p. 80Starter solenoid or armature replacement part number differs between Marelli, Bosch and Iskra starter motors
Match the starter tag to its parts list. For the Marelli unit, page 86 lists solenoid 3901191M1 (replaced by 3904281M2) and armature 3477316M91 (replaced by 3539389M91). Iskra solenoids on page 89 split by serial number: 3540065M1 or 3541893M91. Page 87 requires a complete starter to be ordered together with safety decal 773255M1.
Manual Section: Starter Motor - Marelli/Bosch/Iskra p. 86Leaking injector nozzle or cracked injection pipe, need the correct part number for each cylinder
Check the fuel injection parts list on page 67 before you pull any lines. Nozzles are 2645664, four per engine. Injection lines 35343136 through 35343139 are numbered by cylinder, from No.1 to No.4, so match each one to its position. Order nozzle seals 33813131 and washers 0921173 from page 68 so the job gets done in one trip to the counter.
Manual Section: Fuel Injection Equipment p. 67Radiator, fan or coolant pipe part numbers differ on tractors with and without conditioned air
Check the radiator listings on page 92. Radiator 3307942M96 is superseded by 3666234M91, so order the newer number. Fan 3538983M91 and clamps 3307666M91 appear on page 91, where pipe 3550411M2 is flagged for tractors with conditioned air. Confirm your cab spec before ordering so the right parts arrive and you're back in the field before the weather turns.
Manual Section: Cooling System - Radiator and Fan p. 92A4.248 engine cylinder liner part number unclear, press fit and slip fit liners both listed

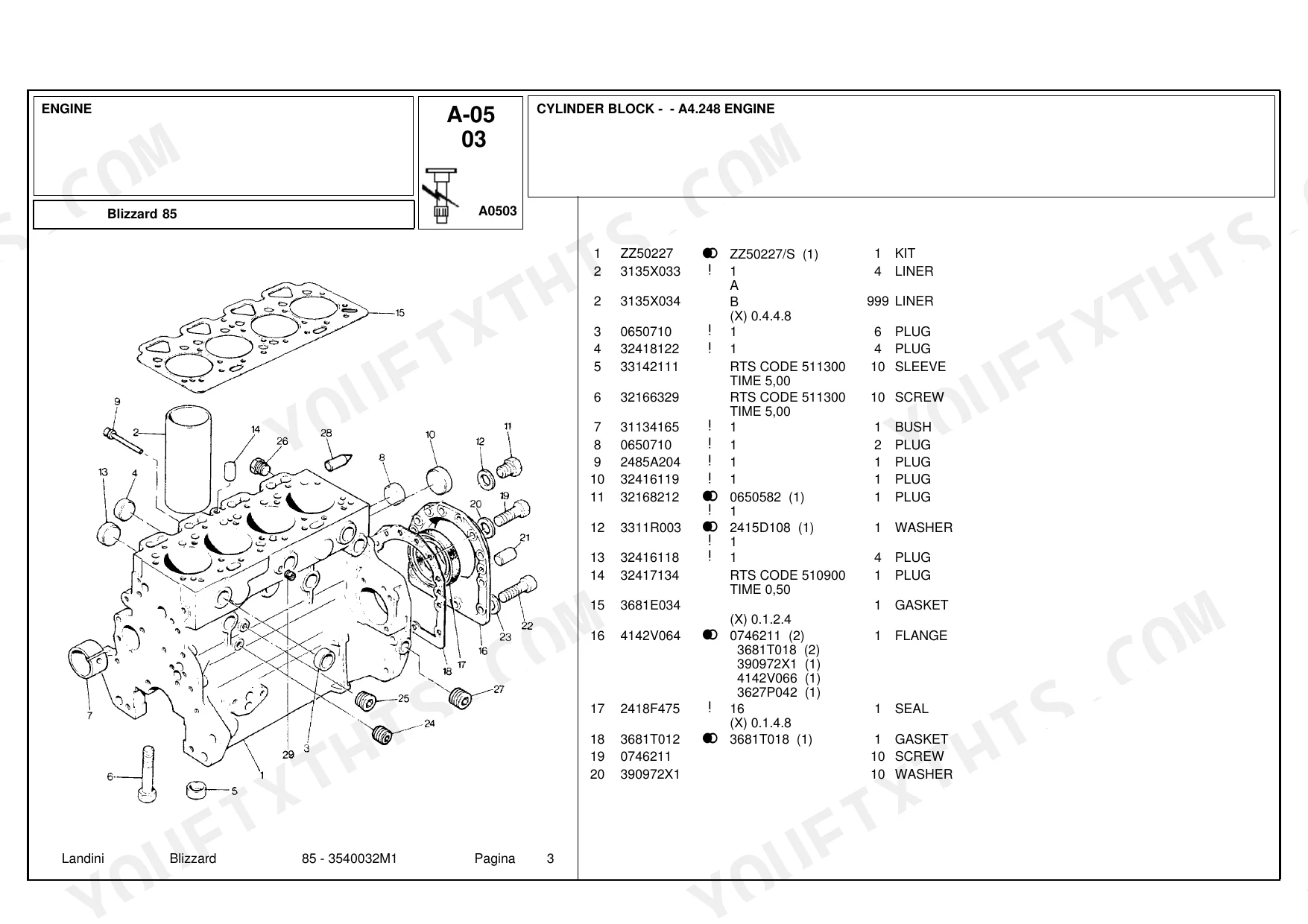

Check the cylinder block parts list on page 52 before ordering liners. Liner 3135X033 is marked press fit and 3135X034 is marked slip fit, per the key on page 53. Kit ZZ50227 heads the list. Add gasket 3681E034 and seal 2418F475 to the order. If the block is too far gone, compare against the complete short engine LF39335 on page 51.
