Matching a Landini C4500 crawler tractor part to its factory number is the job these 125 pages are built for, and this Landini C4500 parts catalog PDF (OEM ID 1424043M2) sets it out system by system. Exploded views break down the engine from rocker arms and timing gear to the injection pump, then move through the double clutch control, steering clutch, brakes, 540/1000 R.P.M. power take-off and belt pulley. Track rollers, upper rollers, the idler wheel and silent track chain share the book with the hydraulic lift, auxiliary distributor, linkage and swinging drawbar, each listed with part numbers you can cross-reference. Check shim thickness against the listing: the clutch shim is printed at 0.10 mm. Ordering a clutch shim? Numbers 1824669M1 and 1824670M1 sit in the transmission listing. Bookmarks jump to each system and the text layer finds any part number, so your transmission or PTO order goes in exactly as the factory catalog prints it.
What's Inside This Landini C4500 Parts Manual

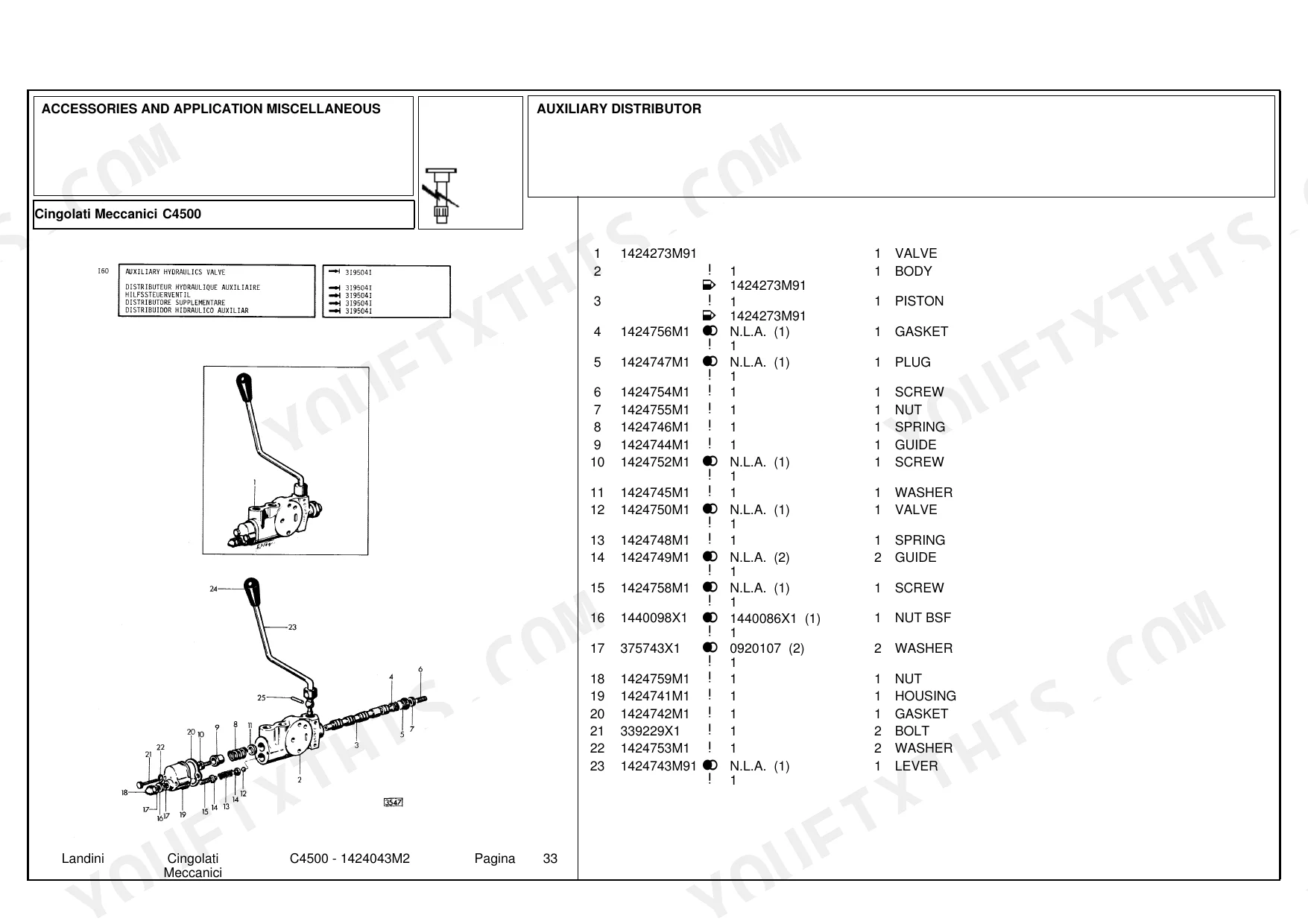

| System | Pages | Key Topics |
|---|---|---|
| Clutch & Transmission | Transmission Housing - Centre Axle Housing, Double Clutch Control, Clutch Shaft Braking System, Clutch Assembly, Steering Clutch, Dual Clutch, Controls and Transmission Shift Levers, Transmission | |
| Fuel System | Fuel Lift Pump, Injection Pump, Fuel Tank, Fuel Pipings and Fuel Filter | |
| Cooling System | Water Pump | |
| Engine | Rocker Arm, Crankshaft & Flywheel, Cylinder Block, Exhaust Manifold and Muffler, Timing Gear, Lubrication, Oil Pump, Kit Gaskets | |
| Electrical System | Front and Rear Lighting Equipment, Electrical Equipment | |
| Undercarriage & Travel | Track Roller, Upper Roller, Idler Wheel | |
| PTO | Power Take Off, Power Take-Off 540/1000 R.P.M | |
| Rear Axle, Differential & Brakes | Rear Axle-Housing, Brakes | |
| Hydraulics & 3-Point Hitch | Hitch, Swinging Drawbar, Hydraulic Lift Pump and Lines, Hydraulic Lift, Linkage | |
| Body & Operator Station | Hood, Induction Manifold, Track Gear Guards, Seat - Fenders - Footsteps, Mounting Frame and Front Weights | |
| Decals & Accessories | Decals, Tool | |
| Other Components | Track Carrier, Track Chain Reinforcements Silent Track, Throttle Controls, Distributor, Auxiliary Distributor, Auxiliary Distributor and Pipes, Air Filter, Belt Pulley, Center Gear Unit, Control Quadrants, Front Suspension - Rear Suspension |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Clutch shim | 0,10MM. | p. 123 |
Landini C4500 Common Problems This Manual Covers
Landini C4500 double clutch control lever and disc part numbers change depending on tractor serial number
Check the Double Clutch Control exploded view starting on page 25. The disc is listed as 1423472M1, superseded by 1423472M2. Verify your serial number against the section footnotes: lever 1824642M2 covers units up to 3194431, while lever 1425340M91 (marked N.L.A.) covers units from 3194432. Order the superseded number whenever the original shows a replacement.
Manual Section: Double Clutch Control p. 25Hydraulic lift distributor body and piston flagged as not serviced separately in the parts list

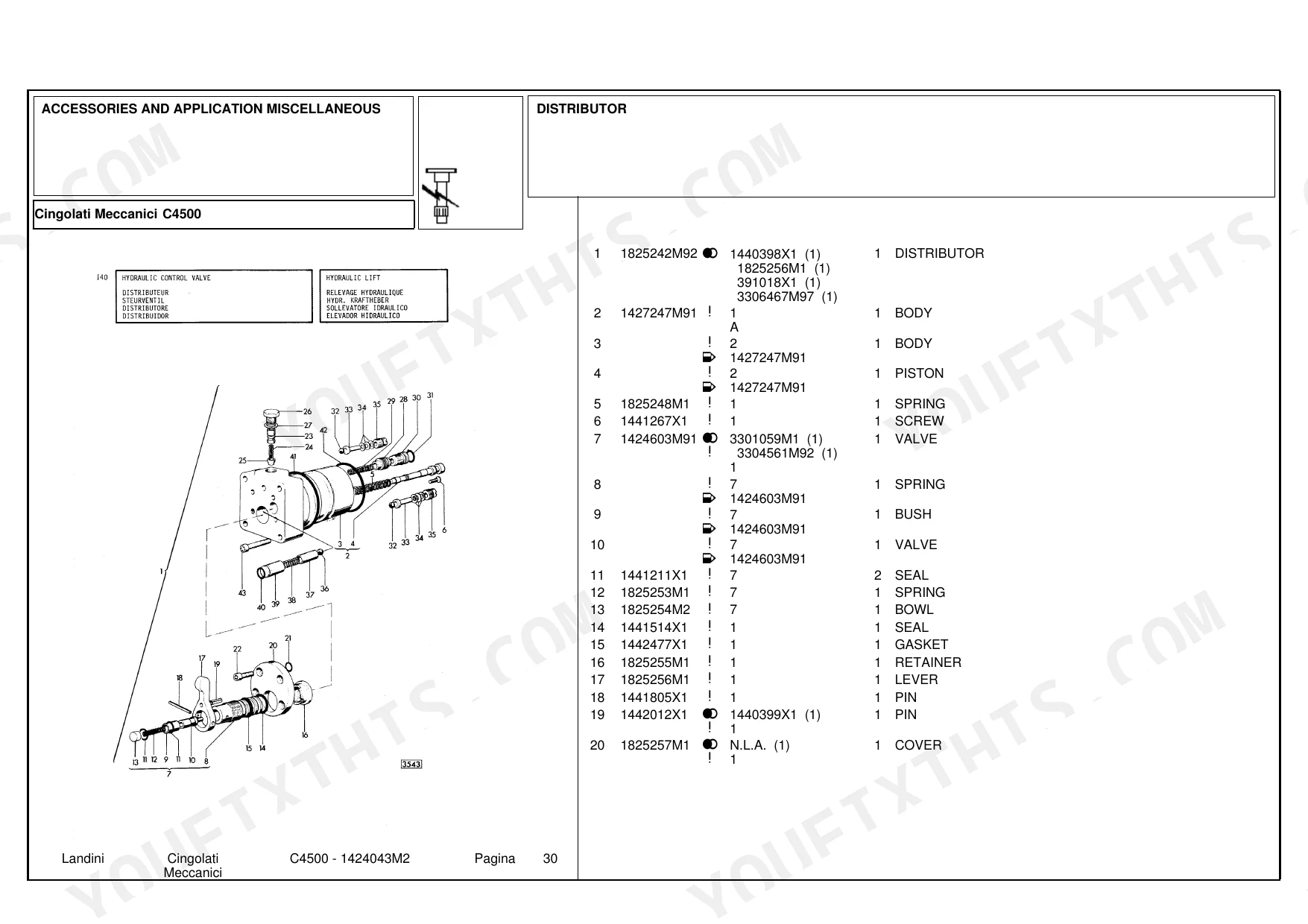

Check the Distributor exploded view on page 30. The complete distributor is 1825242M92, and the body and piston carry the not-serviced flag, so order assembly 1427247M91. Verify your hydraulic lift number against C9955 in the section footnotes: preceding lifts take 1427247M91 with slipper 1425371M1 and ball 361032X1. Order O ring 3019926X1 in place of 1441127X1.
Manual Section: Distributor p. 30Cylinder block liner and shim part numbers differ by engine serial, some shims no longer available
Check the Cylinder Block exploded view on page 7. Liner 31358382 is superseded by 31358323, quantity 3. Verify the engine number split at 152UA391043DL and 152UA391044DL in the section footnotes. Shims are listed as 0,05MM (33121415), 0,25MM (33121416) and 0,9MM (33121417); the 0,13MM shim 0760050 is marked N.L.A.
Manual Section: Cylinder Block p. 7Brake band lining and rivet part numbers show superseded listings on the brake parts list
Check the Brakes exploded view on page 46. The band is listed as 1824761M91, quantity 2, with band rivet 339086X1. Brake lining appears as 1423488M1 cross-referenced with 1824777M1, six per set. Order lining rivet 3000291X1 in place of 393354X1, quantity 42, and confirm the lever, pedal and rod listings in the rest of the Brakes section.

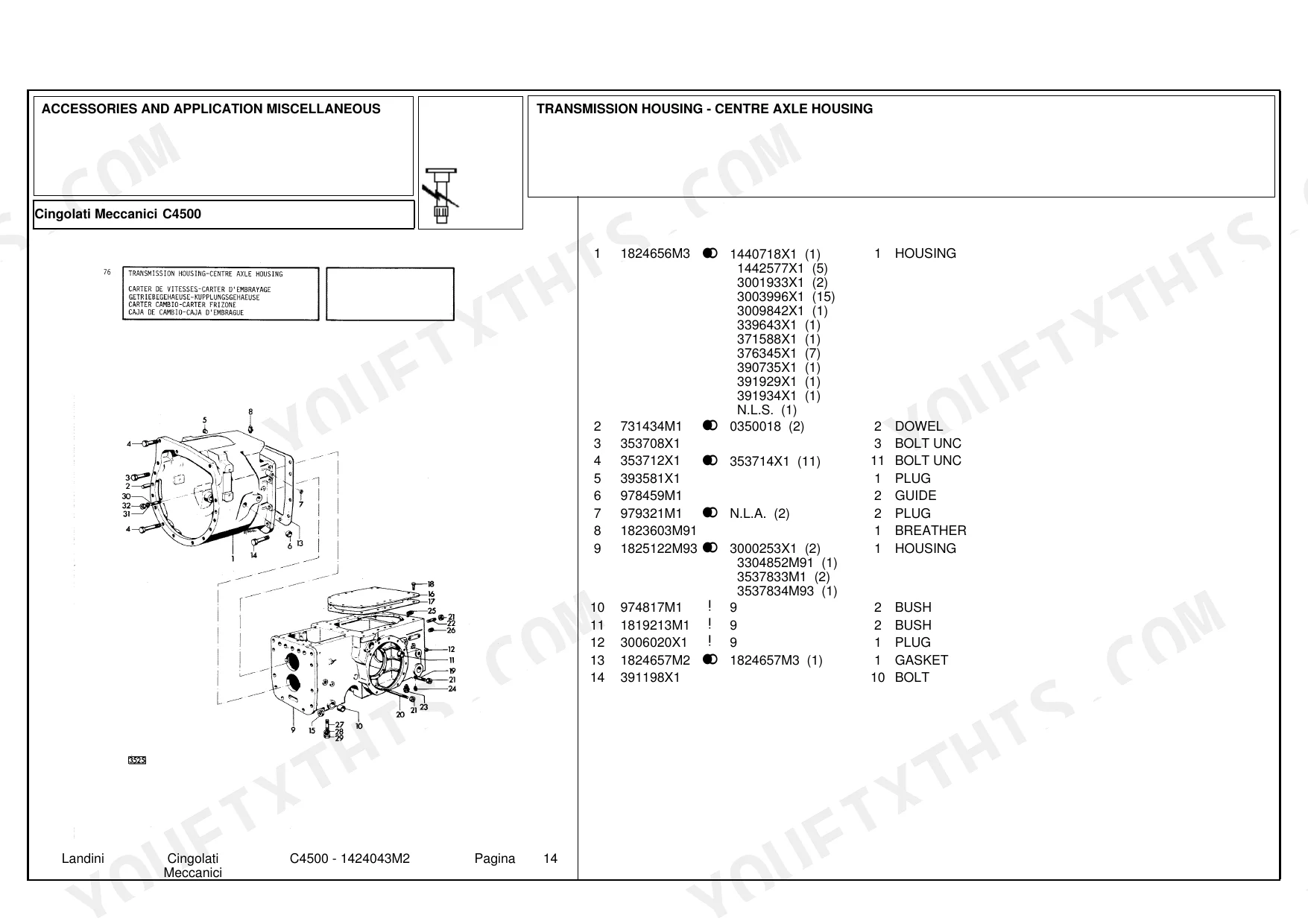

Manual Section: Brakes p. 46Transmission housing breather and gasket part numbers needed; original gasket listing shows a superseded number

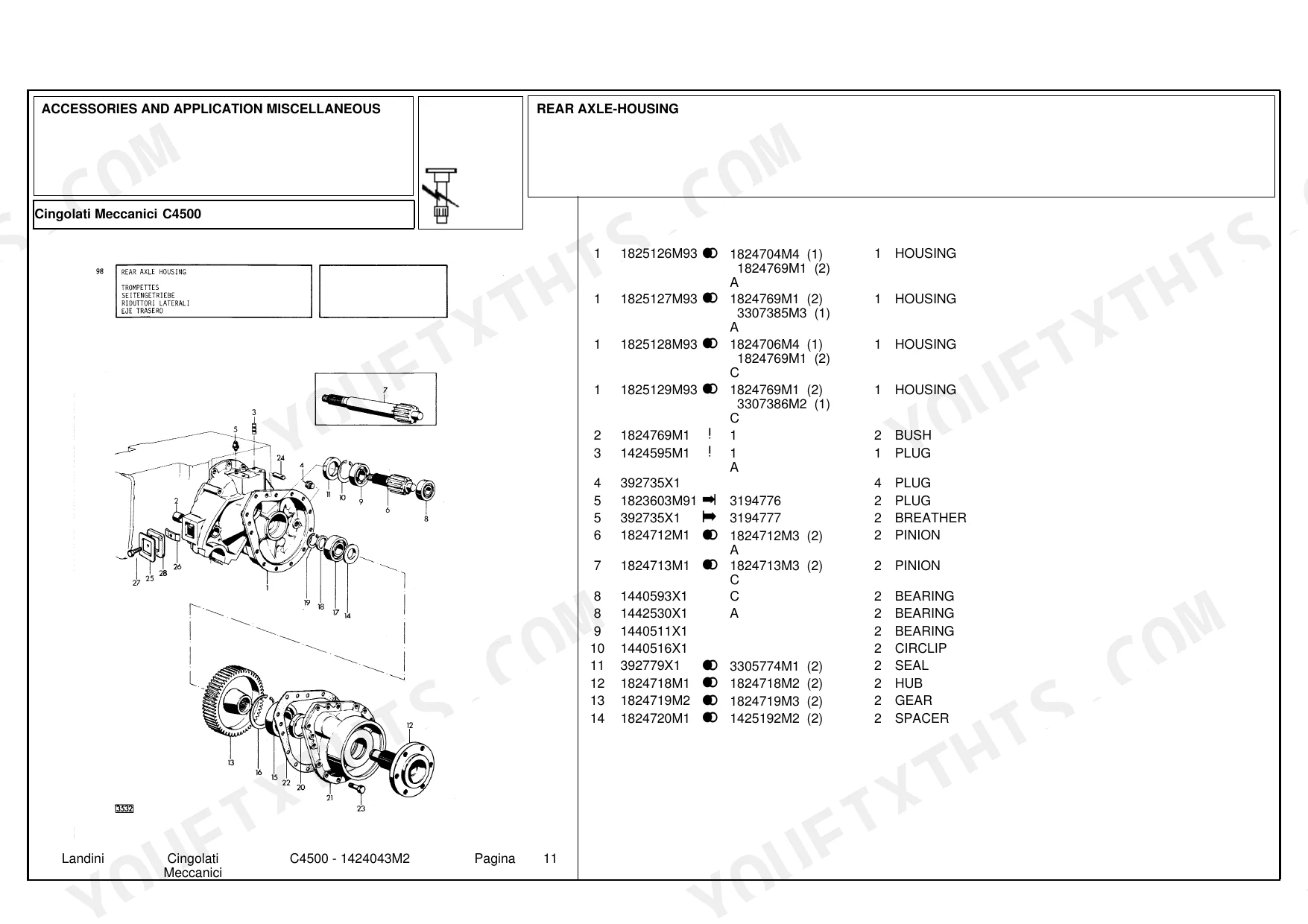

Check the Transmission Housing - Centre Axle Housing exploded view on page 14. The breather is 1823603M91. Gasket 1824657M2 is superseded by 1824657M3, and the plate gasket 1824661M1 by 3308788M1. Verify the bushes and plug flagged as assembly components before ordering, since those come with housing 1825122M93 rather than as loose parts.
Manual Section: Transmission Housing - Centre Axle Housing p. 14Clutch shim part number for the 0,10MM size shows a supersession in the transmission parts list
Check the Transmission exploded view, item 32 on page 123. The 0,10MM clutch shim is listed as 1824669M1, superseded by 1824670M1. Order the current number and cross-reference your shim requirement against the Transmission listings starting on page 122. Confirm the shaft, gear and bearing items there too before you close out the transmission parts order.
Manual Section: Transmission p. 123Frequently Asked Questions

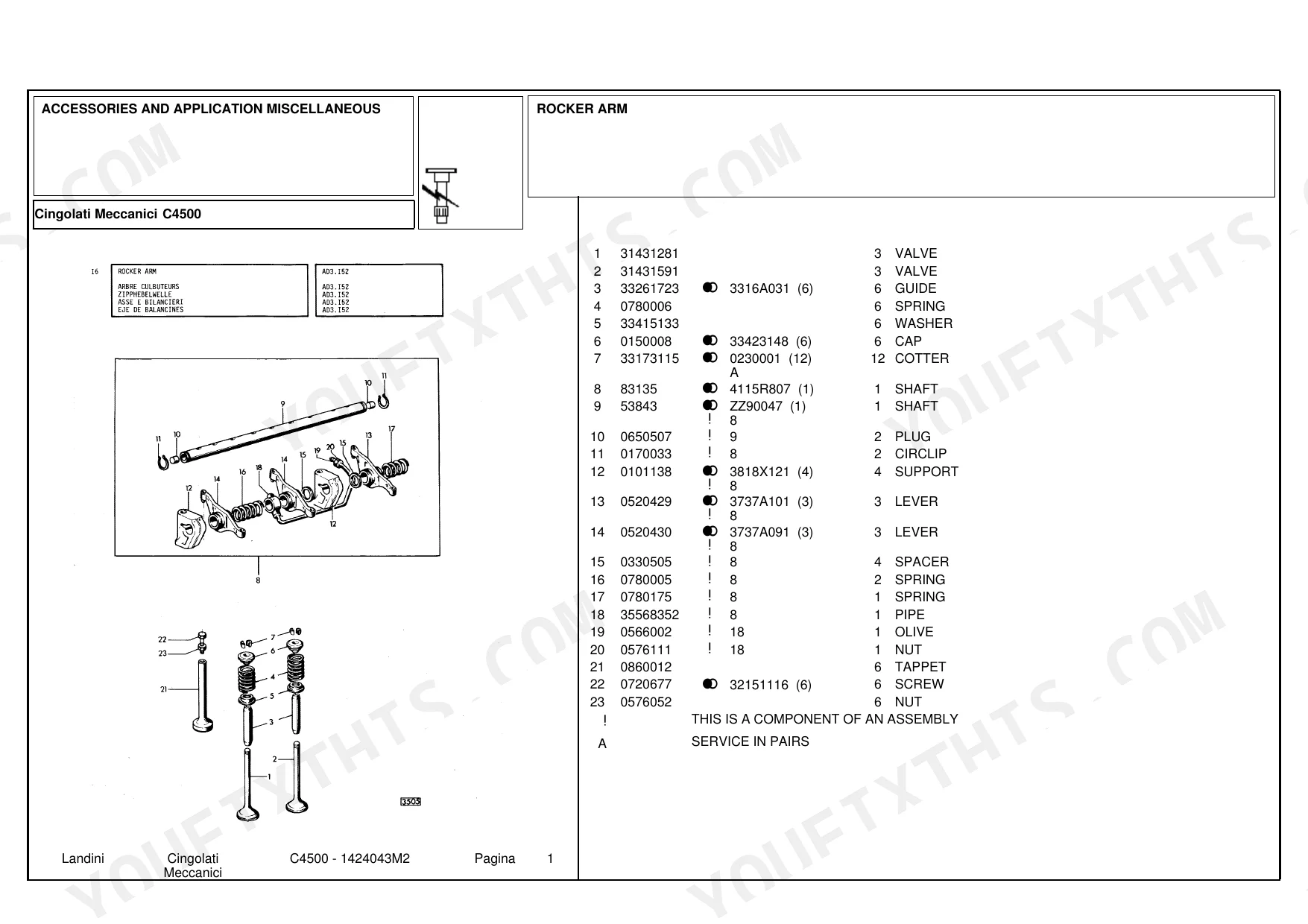

What is the part number for the VALVE in this manual?

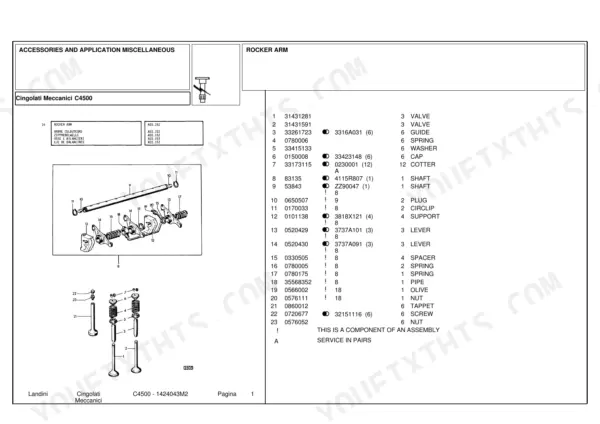

Page 1 lists part number 31431281 for the VALVE. p. 1

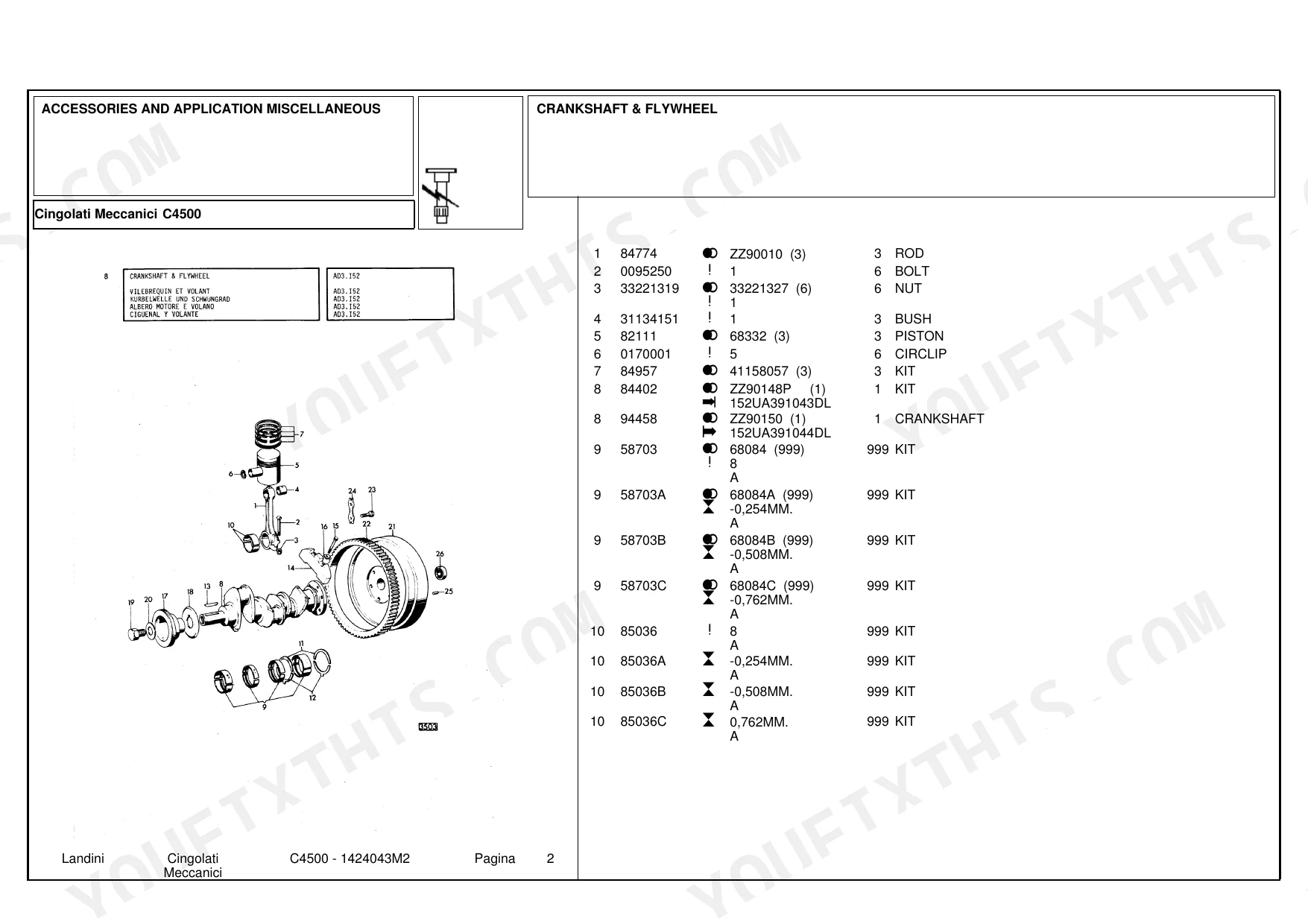

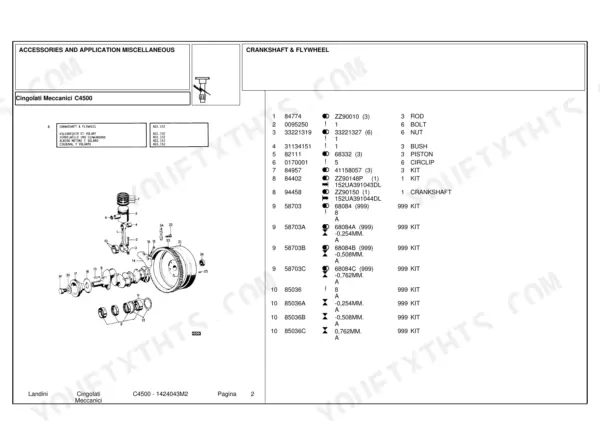

What is the part number for the BOLT in this manual?
Page 2 lists part number 0095250 for the BOLT. p. 2

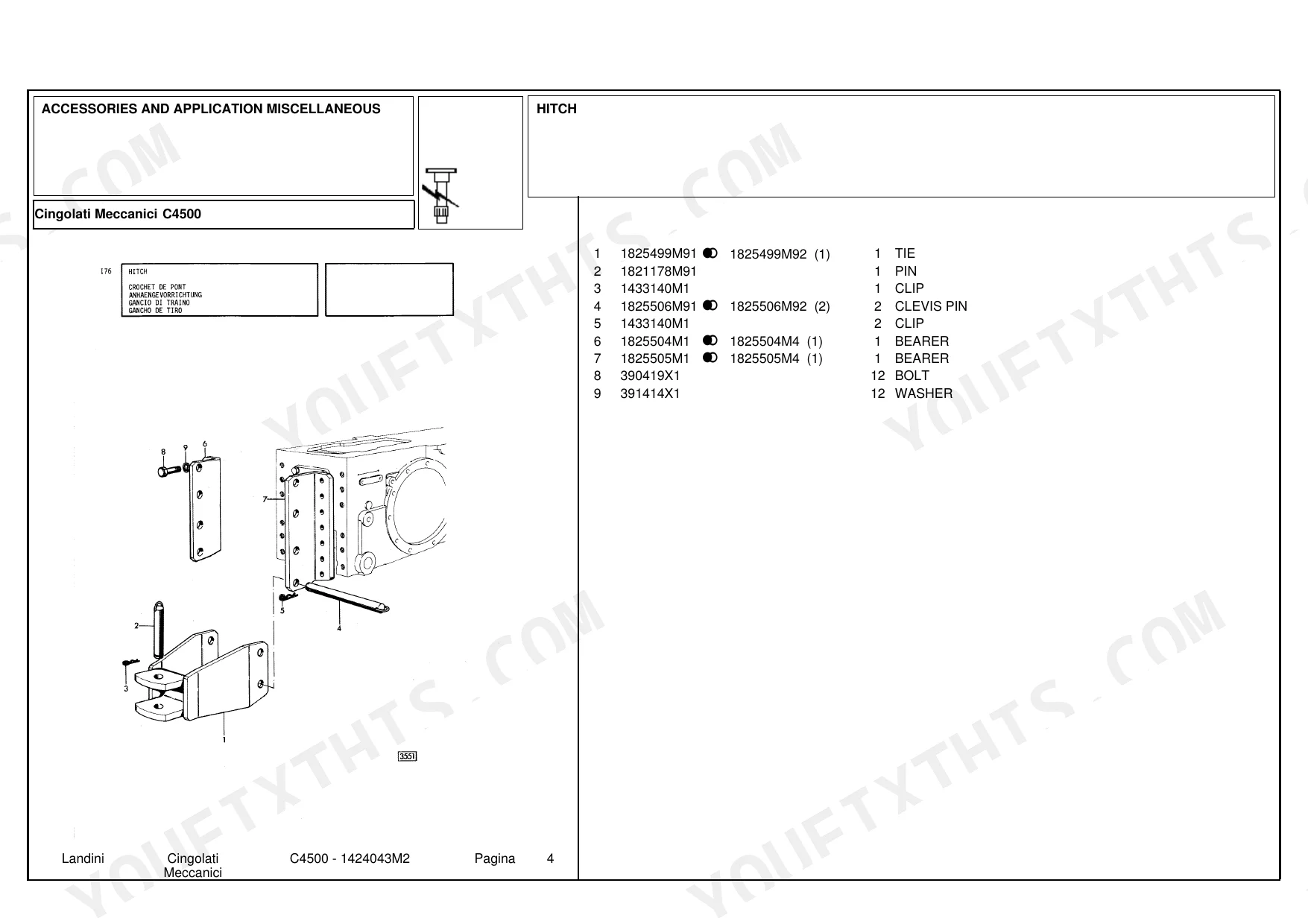

What is the part number for the PIN in this manual?
Page 4 lists part number 1821178M91 for the PIN. p. 4
What is the part number for the SPACER in this manual?
Page 5 lists part number 1825200M1 for the SPACER. p. 5
What is the part number for the DOWEL in this manual?
Page 7 lists part number 0350005 for the DOWEL. p. 7
What exactly do I receive with this Landini C4500 Parts Catalog?
You get a 125-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Does this Landini C4500 manual allow printing?
Yes. Print a single page or a chapter for your own shop use, on letter or A4.
