Built for one machine, the Landini Ghibli 90 parts catalog PDF (OEM ID 3657849M2) runs 365 pages and flags serial breaks throughout, such as the cab frame and platform change from 01-07-2003, so you can match each listing to your tractor. Exploded plates for the 1004-40T engine break out the cylinder block, crankshaft, pistons, cylinder head and rocker shaft, each part tied to its number. Hydraulics get the same treatment: the double-body Bosch pump, draft, position and intermix lift controls, and Hidroirma auxiliary valves in standard, floating and kick-out form. Before ordering clutch or PTO parts, confirm whether your tractor runs the 12-inch O.M.G. or Luk dual clutch and which 540/750/1000 rpm PTO setup it carries. The 20 AMP fuse orders as part 3534038M91. Bookmarks across all ten systems, plus a searchable text layer, take you straight to the PTO control or rear brake plate you came for.
What's Inside This Landini Ghibli 90 Parts Manual
| System | Pages | Key Topics |
|---|---|---|

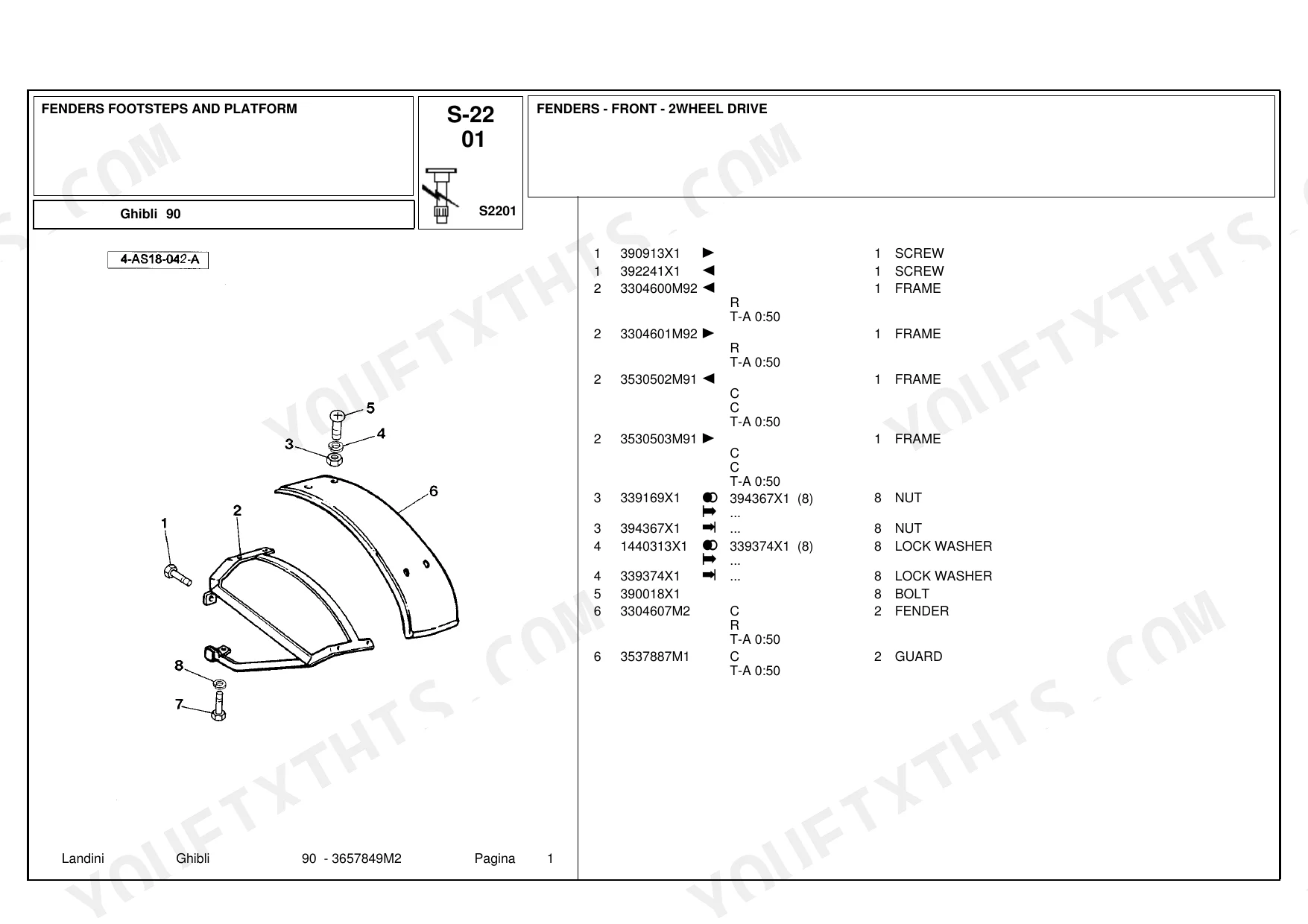

| Accessories Mechanical | 1-23 | Weight Frame and Weights - Front Hook - Up to Serial N., Weight Frame and Weights - Front Hook - From Serial N., Hitch Connections - Without Hitch |

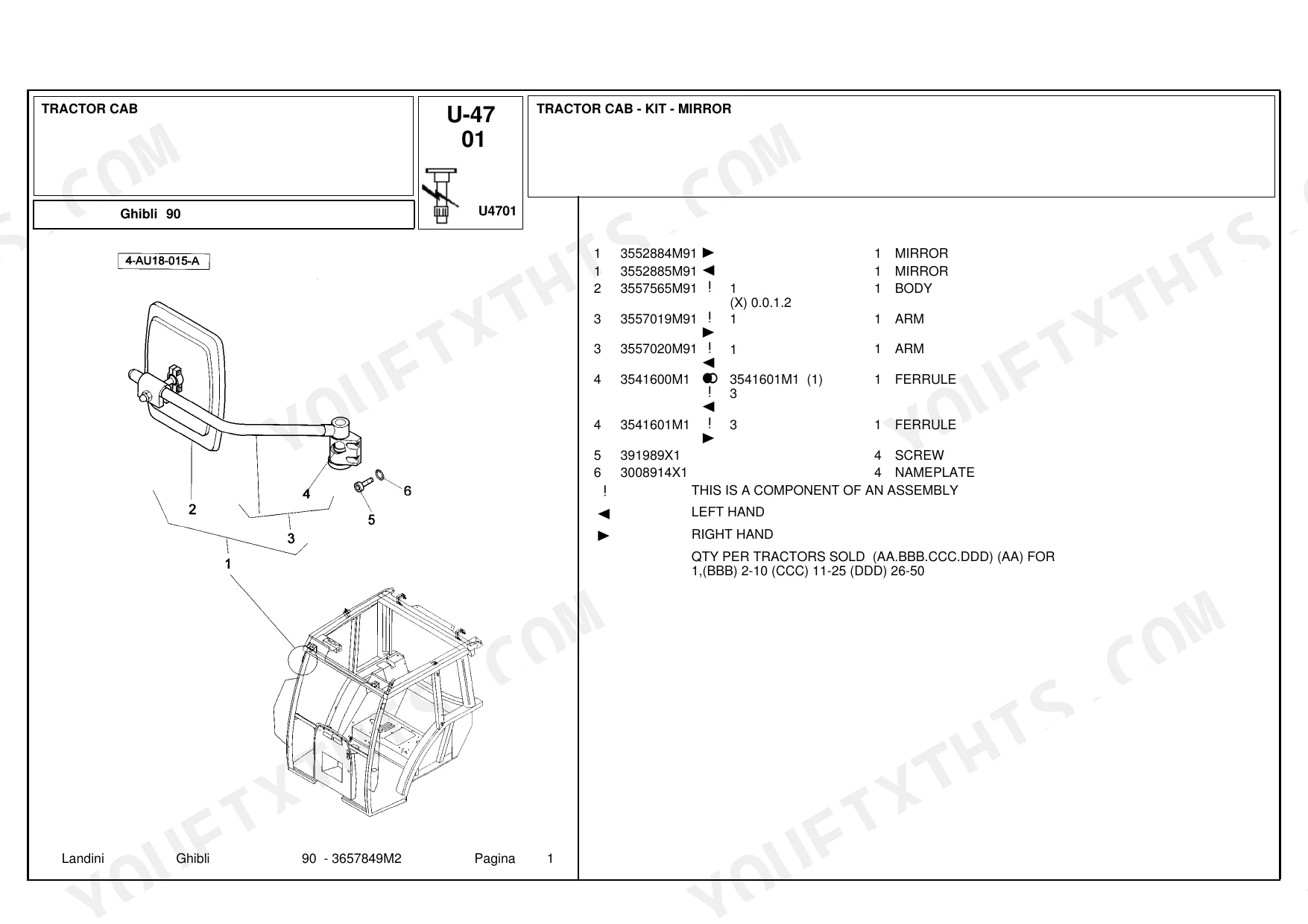

| Tractor Cab | 24-57 | - Kit - Mirror, - "Roof" - Cladding Panel, - Windscreen, Tractor - "Doors", - Windows - Left Side, Right Side, - Windows - Rear, - Frame and Platform - Visor Curtains Kit |

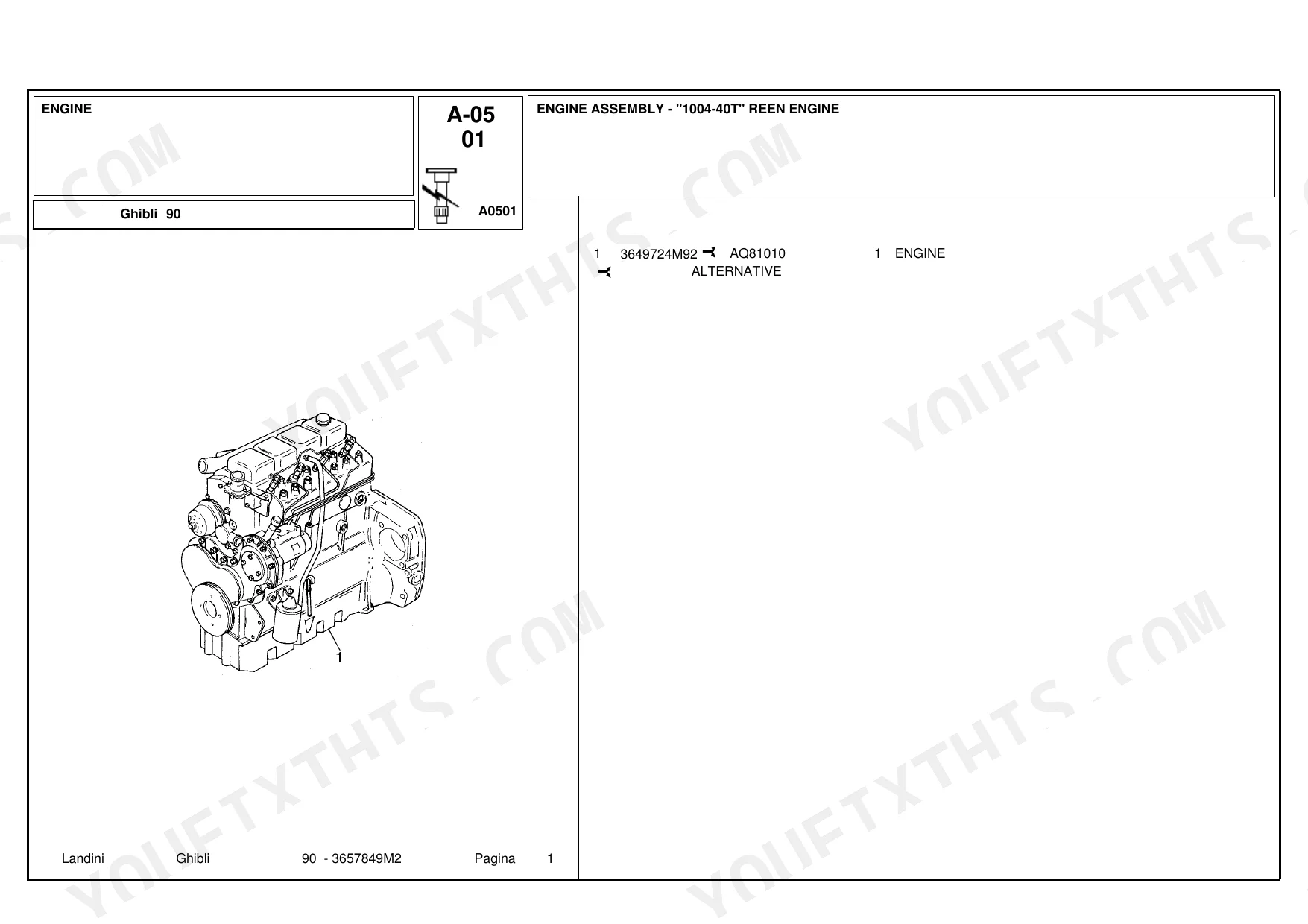

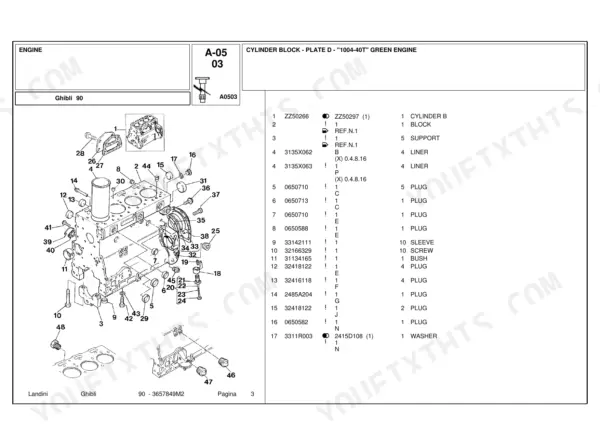

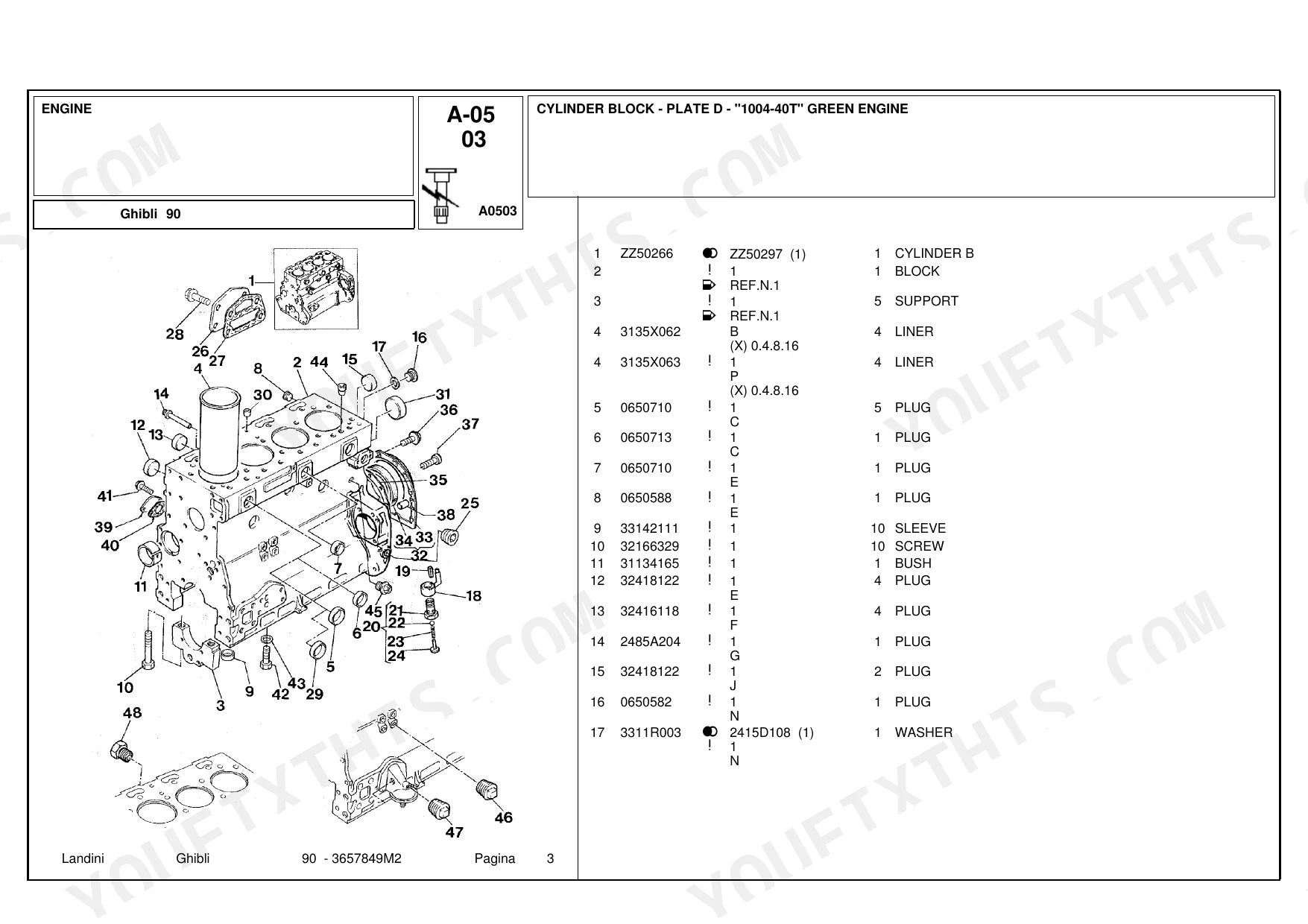

| Engine | 58-92 | Assembly, Cylinder Block, Crankshaft Pistons and Connecting Rods, Cylinder Head, Rocker Shaft, Timing Gear and Camshaft, Balancer Unit, Fuel Injection Equipment |
| Engine Ancillary Equipment | 93-135 | Heater - Engine Block, Alternator - "Valeo", Alternator - "Marelli" - "Perkins" Type, Alternator - "Iskra", Alternator Positioner, Starter Motor - "Marelli" |
| Front Axle and Steering | 136-180 | Front Wheels - Hoops and Tyres, Front Axle 2 Wheel Drive - Axle Support, Front Axle 4 Wheel Drive, Front Axle 4 Wheel Drive - Housing and Supports - with Differential "Hydrolock" |

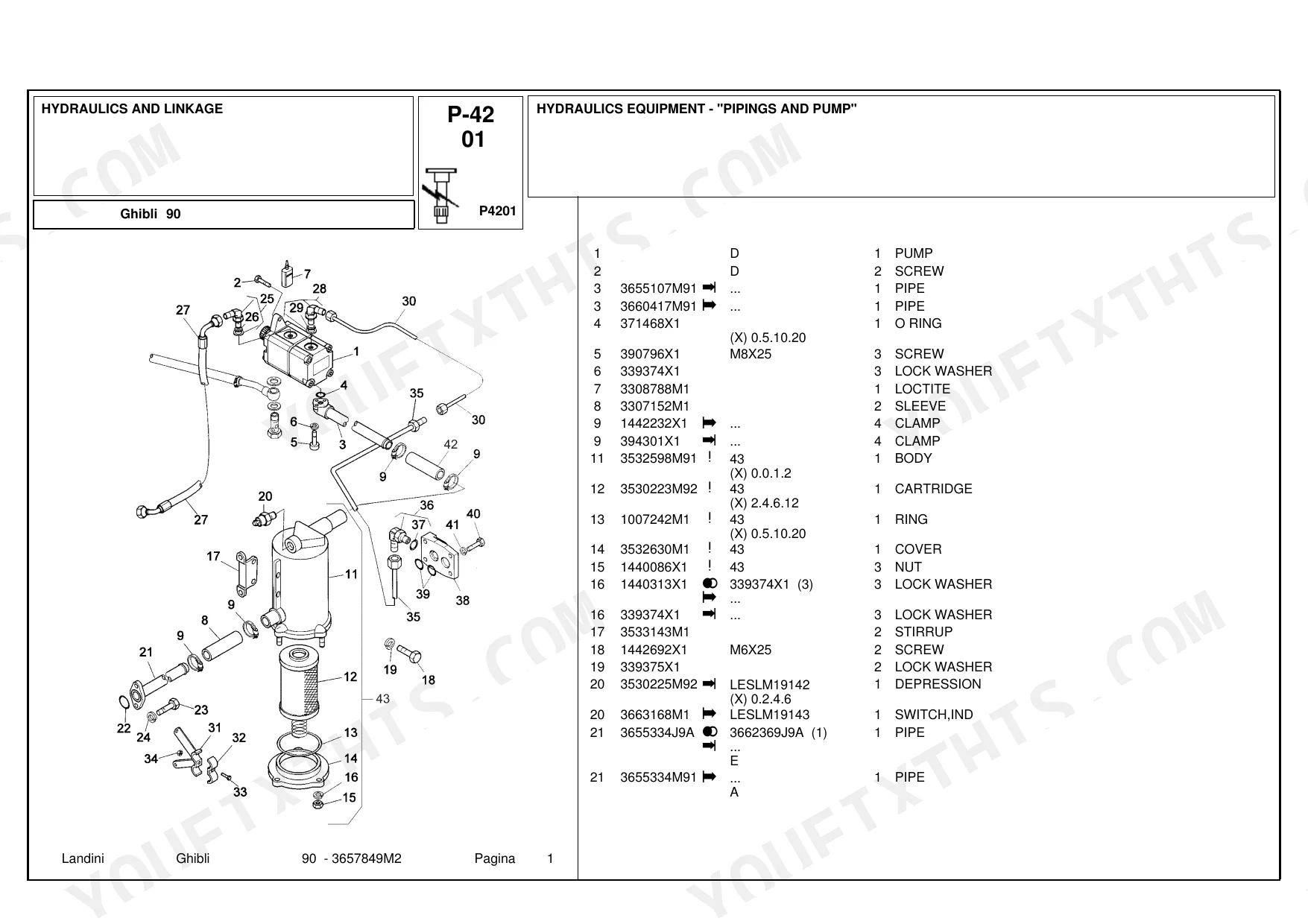

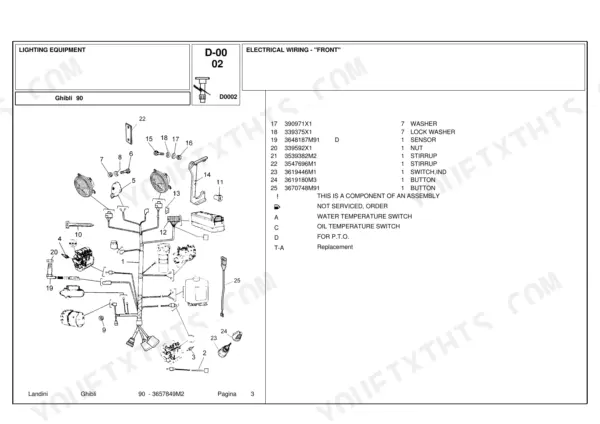

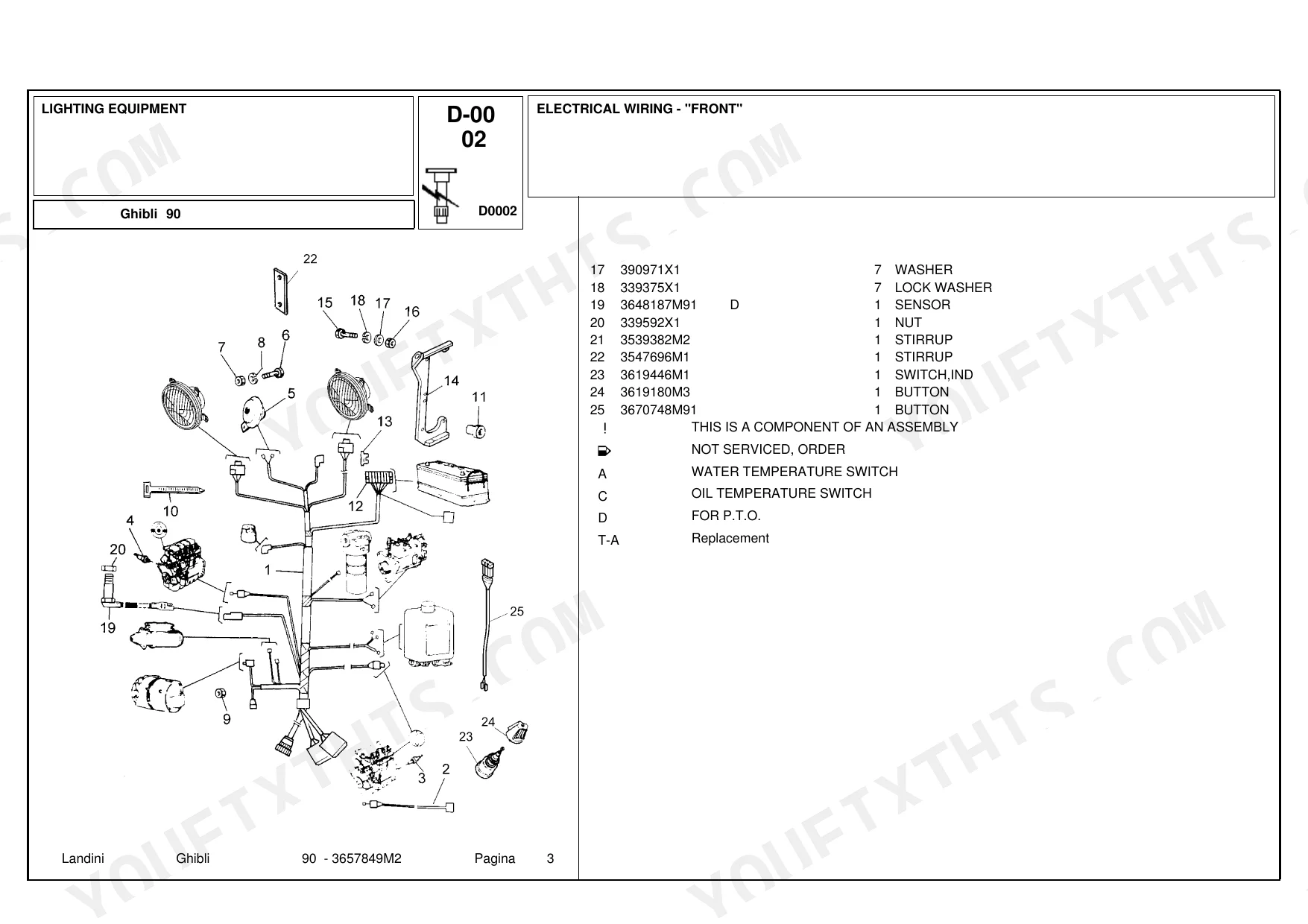

| Hydraulics and Linkage | 181-228 | Hydraulics Equipment - "Pipings and Pump", Hydraulics Equipment - "Pipings and Pump" - Heat Exchanger, Hydraulic Pump - Double Body - "Bosch" |
| Lighting Equipment | 229-249 | Battery and Support, Electrical Wiring, Instrument Panel, Rotating Light |
| Rear Axle and Rear Brakes | 250-286 | Rear Axle - "Differential" - Up to Serial N., Rear Axle - "Differential" - From Serial N., Rear Axle - Housing and Wheel Hub - Halfshaft |
| Sheet Metal | 287-299 | - "Hood", Side Cover, Side Cover - "Fan Guard", Decals |

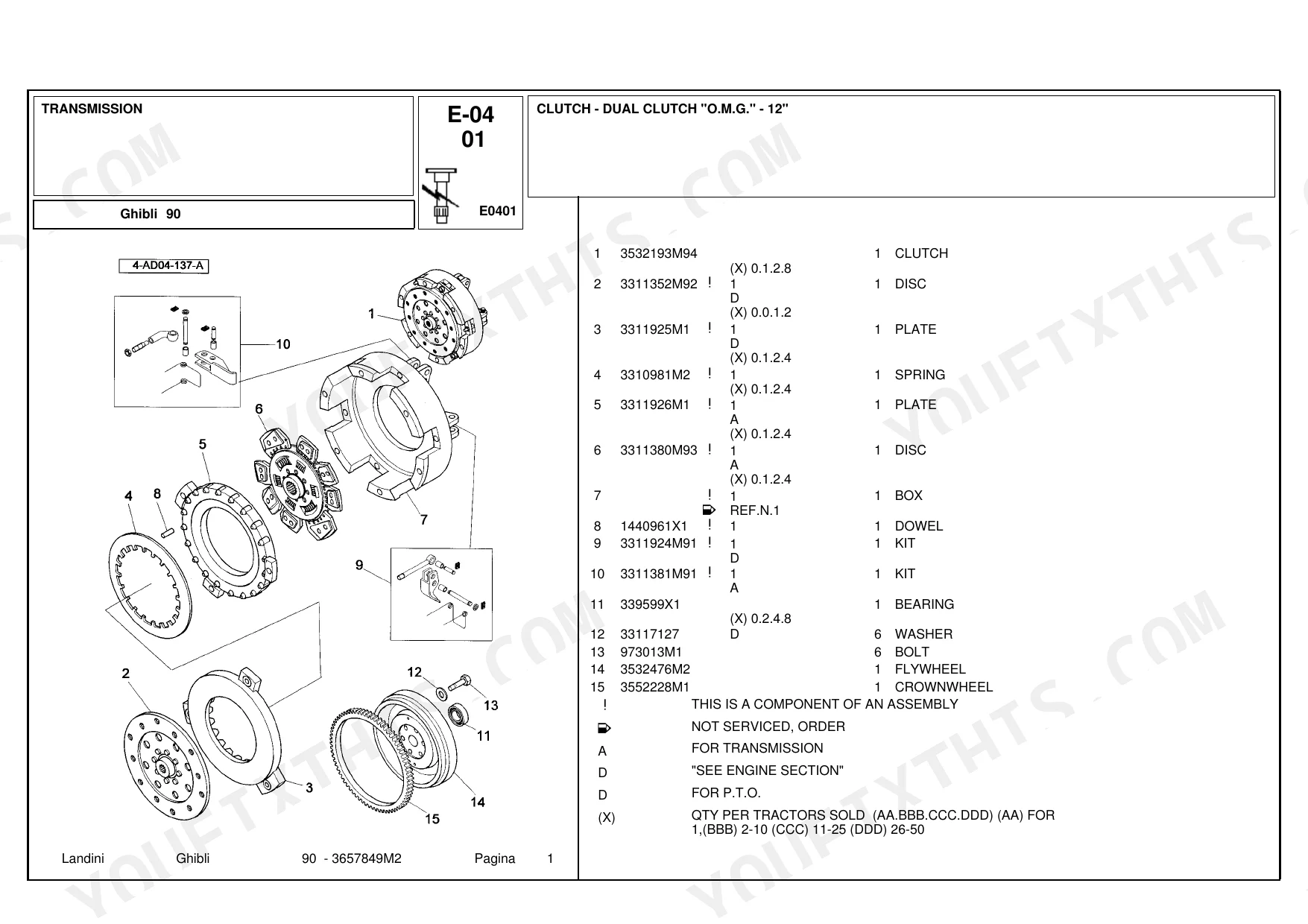

| Transmission | 300-365 | Clutch - Dual Clutch "O.M.G." - 12", Clutch - Dual Clutch "Luk" - 12", Clutch Pedal and Linkage - Clutch Collar - Up to Serial N. |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Fuse Rating | 20 AMP | p. 230 |
Landini Ghibli 90 Common Problems This Manual Covers
Landini Ghibli 90 alternator replacement part number unclear between Valeo, Marelli and Iskra versions fitted
Confirm which alternator brand is fitted, then open the matching plate: Valeo on page 94, Marelli Perkins type on page 95, Iskra on page 96. The Valeo unit lists as 3477851M91, and the from-serial Iskra 14V 65A unit lists as 3661191M91 on page 98. Order parts flagged not serviced as the complete assembly.
Manual Section: Alternator p. 94Marelli starter motor solenoid and armature each listed with two part numbers on the plate
Open the Marelli starter motor plate on page 101. The complete starter motor lists as 3539390M92. The solenoid shows 3901191M1 alongside 3904281M2, and the armature shows 3477316M91 alongside 3539389M91. Check the footnote codes on page 102 before ordering, and order the starter motor with its safety decal as the plate requires.
Manual Section: Starter Motor p. 101Power steering oil tank filter cartridge number differs between up to serial and from serial tractors
Check your tractor serial number first. Up to serial, use the oil tank plate on page 161: tank 3530018M92, cartridge 3300901M91, gasket 3534311M1. From serial, go to page 163: tank 3661086M92, filter 3651429M91, cartridge 3556455M1. Match your tank to the illustration before ordering a cartridge for the power steering circuit.
Manual Section: Steering Hydraulic Lines p. 161Hydraulic lift cylinder piston O-ring and ring part numbers hard to find on the lift arms plate
Open the Hydraulic Lift, Lift Arms plate on page 190. The cylinder lists as 1825278M91 and the piston as 1825284M1, with piston O-ring 3019929X1 and ring 395590X1. Check the footnotes on page 191 for mechanical riser, electronic lift and front PTO variants before ordering parts for your three-point hitch.
Manual Section: Hydraulic Lift p. 190Engine cooling fan part number differs between tropical climate tractors and standard builds
Check the Cooling System, Fan and Hoses plate on page 104. Fan 3542355M91 is footnoted as tropical climate not included, while 3650857M91 is the tropical climate fan. Confirm valve 3651181M91 and gasket 3651180M1 on the same plate, and use page 105 for the additional tank pipes, sleeves and clamps.
Manual Section: Cooling System p. 104Lighting equipment fuse rating and part number needed when ordering a spare for the electrical wiring
Check the Lighting Equipment wiring plate on page 230. The fuse lists as part 3534038M91 with a 20 AMP rating. Order that same 20 AMP part rather than a substitute, and cross-check the battery and support, electrical wiring and instrument panel plates in this section for related electrical parts.
Manual Section: Lighting Equipment p. 230Frequently Asked Questions
What is the part number for the SCREW in this manual?
Page 1 lists part number 390419X1 for the SCREW. p. 1
What is the part number for the PLATE in this manual?
Page 3 lists part number 3535597M91 for the PLATE. p. 3
What is the part number for the HOOK in this manual?
Page 5 lists part number 1825499M92 for the HOOK. p. 5
What is the part number for the YOKE in this manual?
Page 7 lists part number 3530828M1 for the YOKE. p. 7
How quickly can I access this Landini Ghibli 90 manual after buying?
Instant PDF download. You get the full 365-page searchable Parts Catalog immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print pages of this Landini Ghibli 90 manual for my own shop?
Yes. Print the pages you need for the job in your own shop, and bin them when they get greasy.
