From the rocker arm and cylinder head through the steering clutch, track rollers, PTO and hydraulic lift, this 141-page Landini C6500 parts catalog PDF (OEM ID 1424045M2) breaks the crawler tractor down assembly by assembly. Each group pairs exploded views with part numbers. You identify a component by its position in the drawing, then read off the number to order. Linkage Cat 2, the swinging drawbar, the double clutch control and the auxiliary hydraulic valves each get their own group, and gasket kits 94429 and 68006 are broken out into their components. Shims for the transmission come in 0,10, 0,15, 0,20 and 0,30 mm, each under its own part number. Sourcing parts for the steering clutch, the track roller seal kit or the idler wheel is the kind of job you bring to this book. Bookmarks jump to each assembly group and the text layer accepts a part number search, so your steering clutch order matches Landini's own references.
What's Inside This Landini C6500 Parts Manual

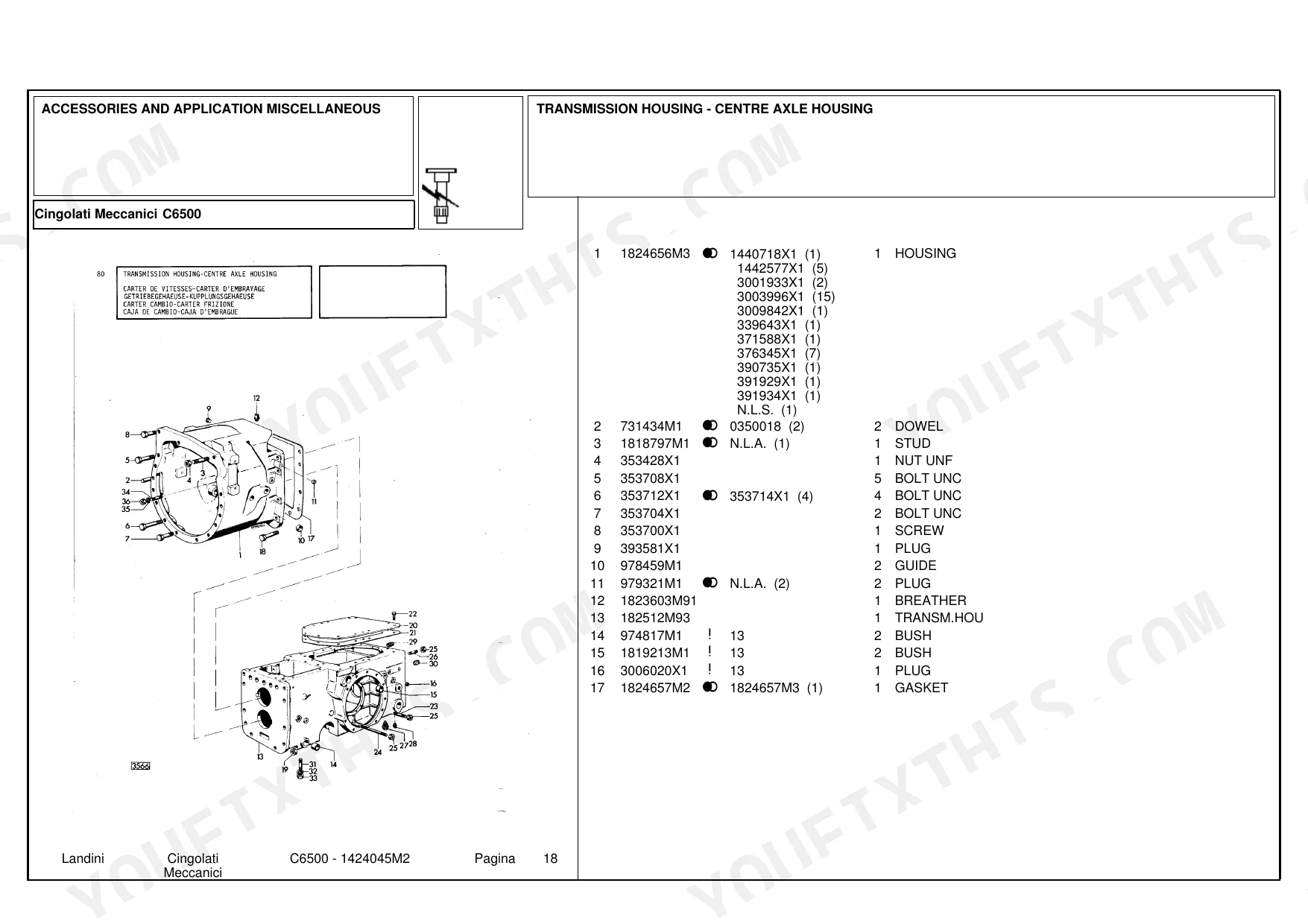

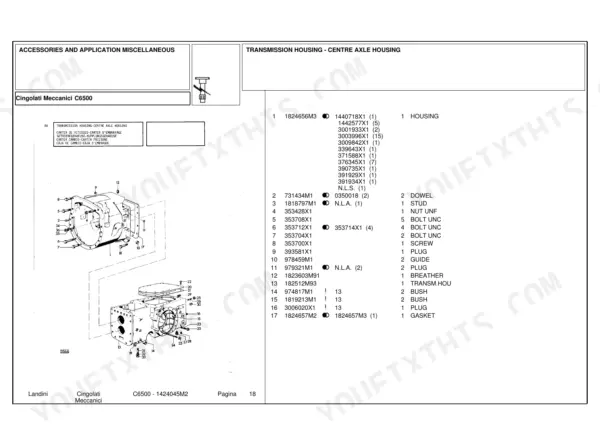

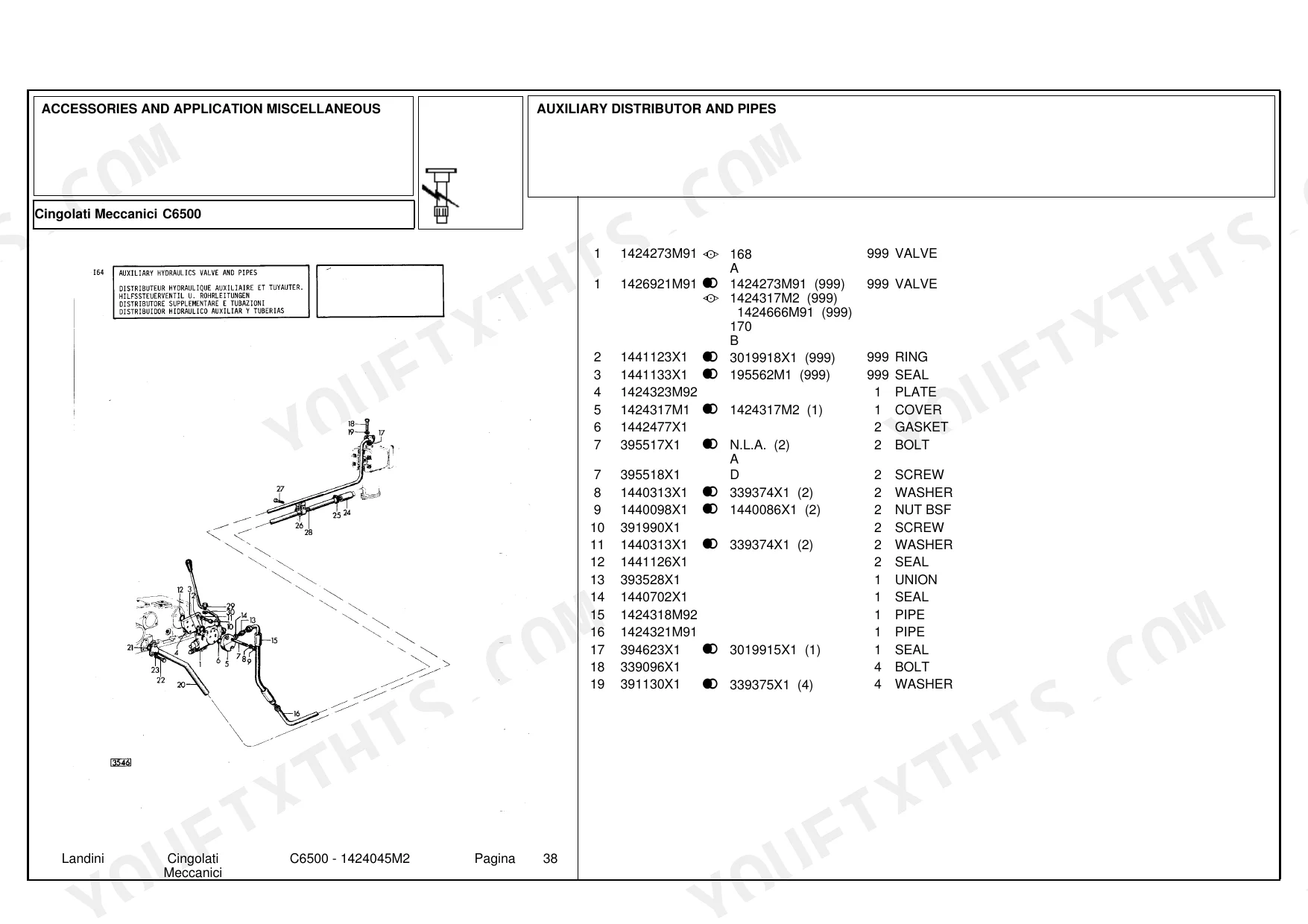

| System | Pages | Key Topics |
|---|---|---|
| Clutch & Transmission | Transmission Housing - Centre Axle Housing, Double Clutch Control, Clutch Shaft Braking System, Clutch Assembly, Steering Clutch, Dual Clutch, Controls and Transmission Shift Levers, Transmission | |
| Fuel System | Fuel Lift Pump, Injection Pump, Fuel Tank, Fuel Pipings and Fuel Filter | |
| Cooling System | Water Pump | |
| Engine | Rocker Arm, Crankshaft and Flywheel, Cylinder Block, Exhaust Manifold and Muffler, Timing Gear, Oil Pump, Kit Gaskets, Lubricating Oil System Power Take Off, Cylinder Head and Cover | |
| Electrical System | Front and Rear Lighting Equipment, Electrical Equipment | |
| Undercarriage & Travel | Track Roller, Upper Roller, Idler Wheel | |
| PTO | Power Take Off, Power Take-Off 540/1000 R.P.M | |
| Rear Axle, Differential & Brakes | Rear Axle-Housing, Brakes | |
| Hydraulics & 3-Point Hitch | Hitch, Linkage Cat 2, Swinging Drawbar, Hydraulic Lift Pump and Lines, Hydraulic Lift, Linkage, Auxiliary Hydraulic Valves | |
| Body & Operator Station | Hood, Induction Manifold, Track Gear Guards, Seat - Fenders - Footsteps, Mounting Frame and Front Weights | |
| Decals & Accessories | Decals, Tool | |
| Other Components | Track Carrier, Track Chain Reinforcements Silent Track, Throttle Controls, Distributor, Auxiliary Distributor and Pipes, Air Filter, Belt Pulley, Center Gear Unit, Control Quadrants, Front Suspension - Rear Suspension, Instruments |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Shim thickness for transmission gear adjustment | 0,10mm, 0,15mm, 0,20mm, 0,30mm | p. 133 |
Landini C6500 Common Problems This Manual Covers
Landini C6500 crankshaft bearing kit part number needed for -0,254mm, -0,508mm or -0,762mm undersize

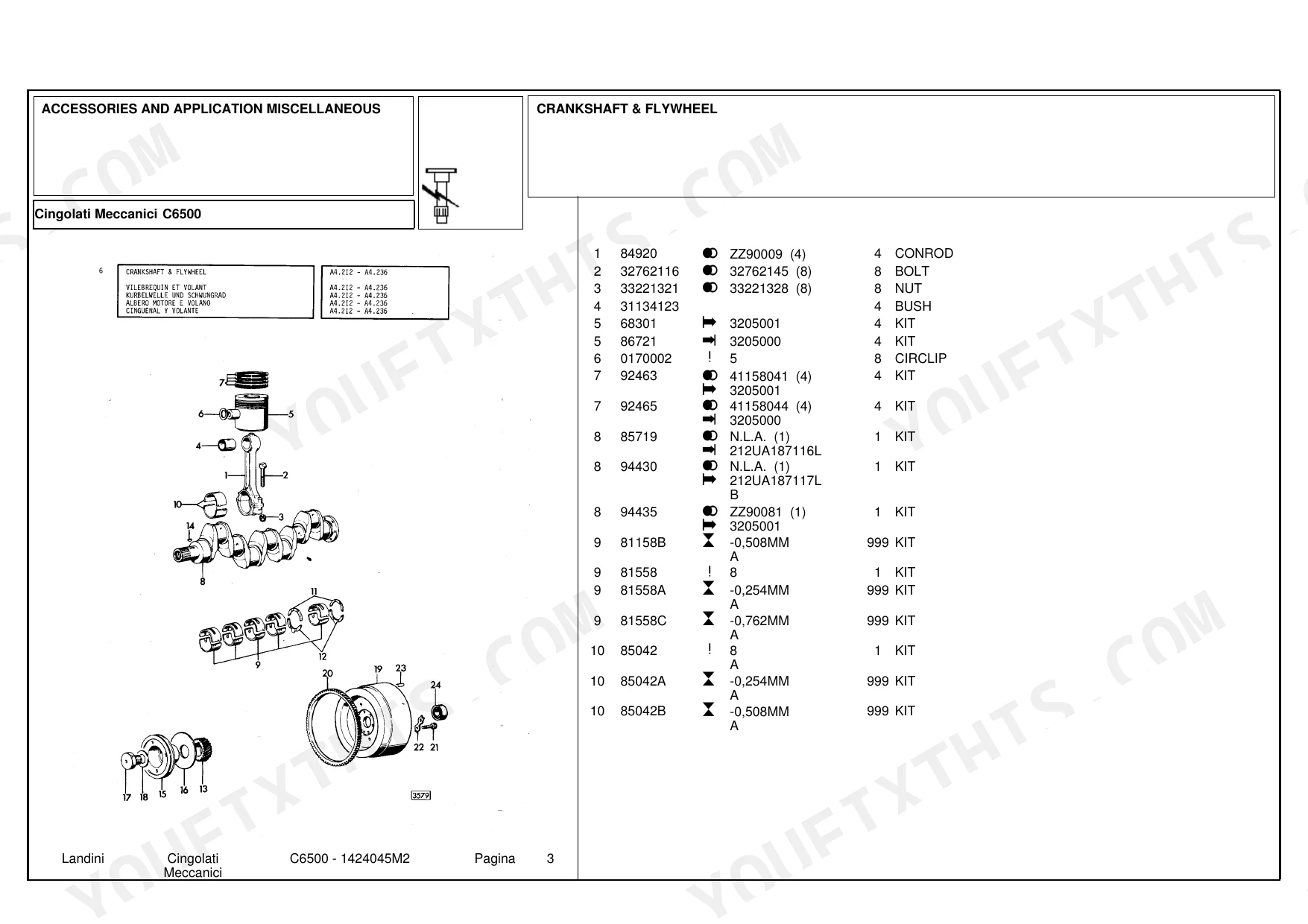

Check the Crankshaft and Flywheel parts list on page 3. Kit 81558 is standard, with 81558A at -0,254mm, 81158B at -0,508mm and 81558C at -0,762mm. Kit 85042 follows the same steps as 85042A, B and C. The bearings are listed as pre-finished. For thrust washers, page 4 lists 31137312 and 31137322 at +0,178mm.
Manual Section: Crankshaft and Flywheel p. 3Rocker arm valve oversize part number hard to find, and the +0,76mm valve shows N.L.A.

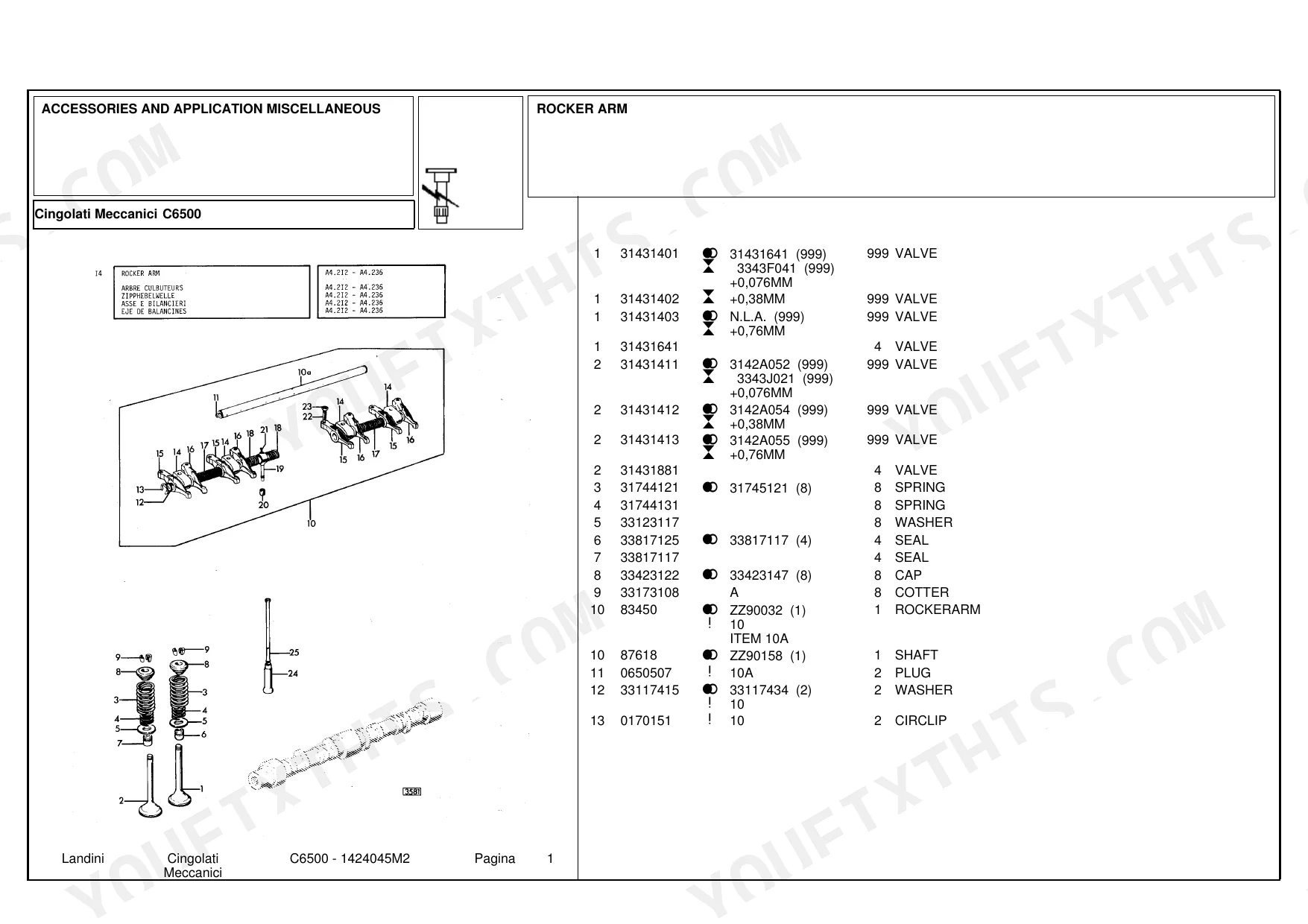

Check the Rocker Arm parts list on page 1. Item 1 valves are 31431401 at +0,076mm, 31431402 at +0,38mm and 31431403 at +0,76mm, which is marked N.L.A. Item 2 runs 31431411, 31431412 and 31431413 in the same sizes. Match the diagram item number before ordering. Seal 33817125 is superseded by 33817117.
Manual Section: Rocker Arm p. 1Cylinder block seal and housing part numbers change between engine serials 212UA187116L and 212UA187117L
Read your engine number first, then open the Cylinder Block list on pages 12 to 14. Up to 212UA187116L, kit 59537 carries seal 36883108, now 36883116, listed on page 13. From 212UA187117L, housing 37513851 takes seal 2415391, superseded by 2418F475, listed on page 14. Liner 31358341 is superseded by 31358394.
Manual Section: Cylinder Block p. 13Double clutch control lever and fork part numbers change from serial 3205643 onward
Verify the tractor serial number, then check the Double Clutch Control lists on pages 31 and 33. Up to 3205642, lever 1824642M2 and fork 1824305M1, now 1824305M2, apply. From 3205643, lever 1425340M91 is N.L.A. and fork 1425615M1 is used. On page 30, clutch disc 1423472M1 is superseded by 1423472M2.
Manual Section: Double Clutch Control p. 31Hydraulic lift distributor body and piston marked not serviced separately in the parts list

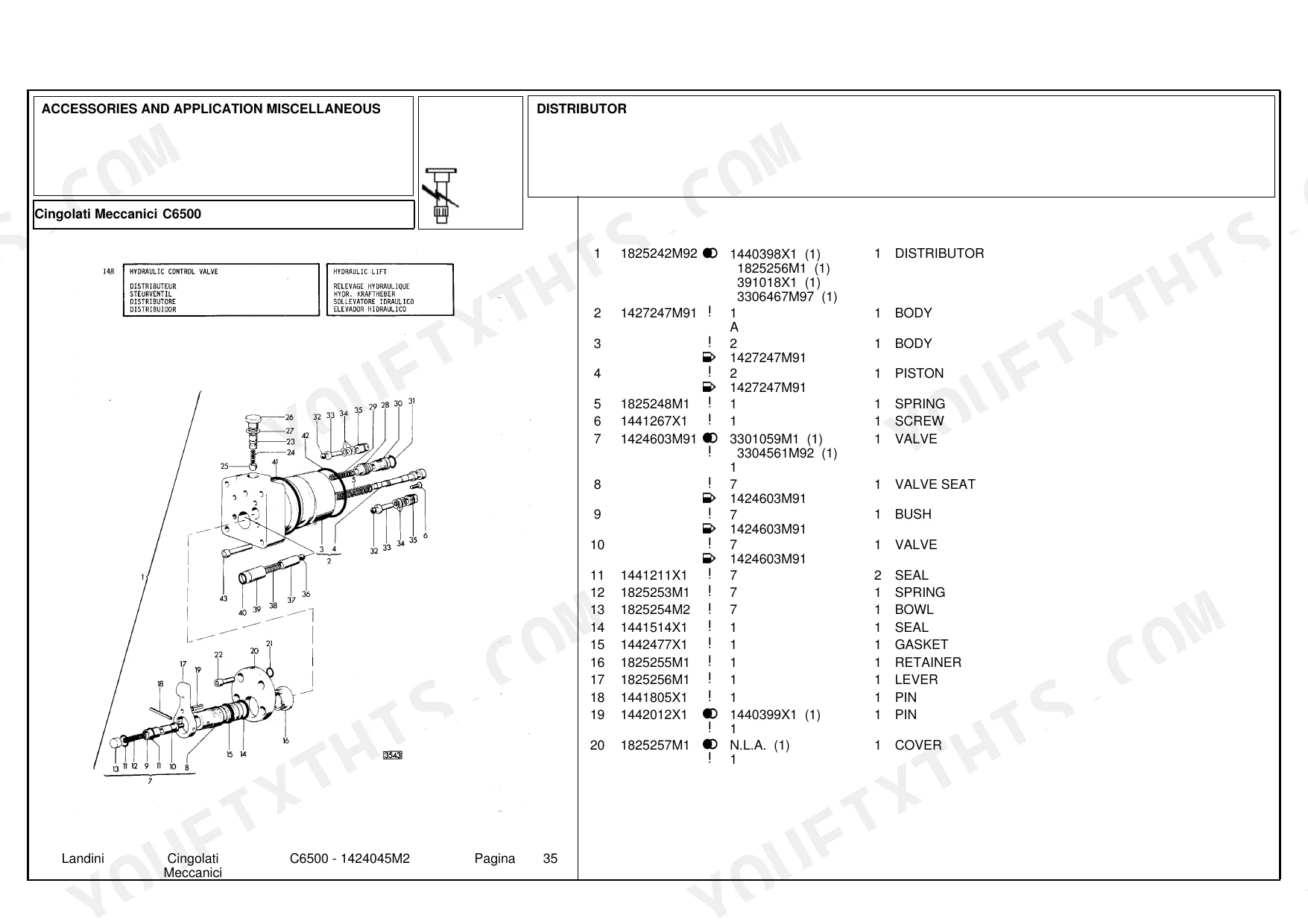

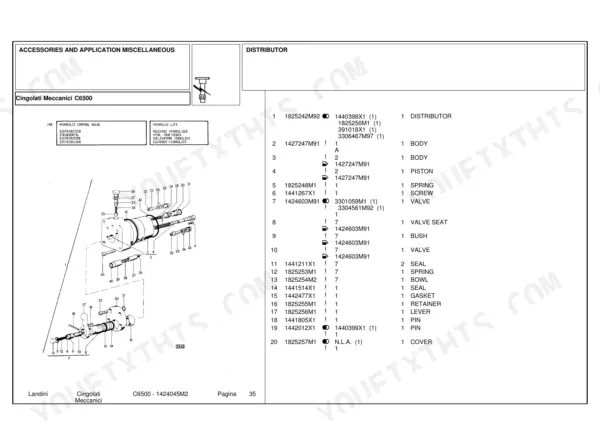

Check the Distributor footnotes on page 37. Body and piston 1427247M91 are not serviced separately. For a hydraulic lift preceding C9955, the note says to furnish body assembly and piston 1427247M91 with 1425371M1 and 361032X1. Page 36 lists slipper 1825268M1 and ball 361031X1 for lift C9954, and O ring 1441127X1 superseded by 3019926X1.

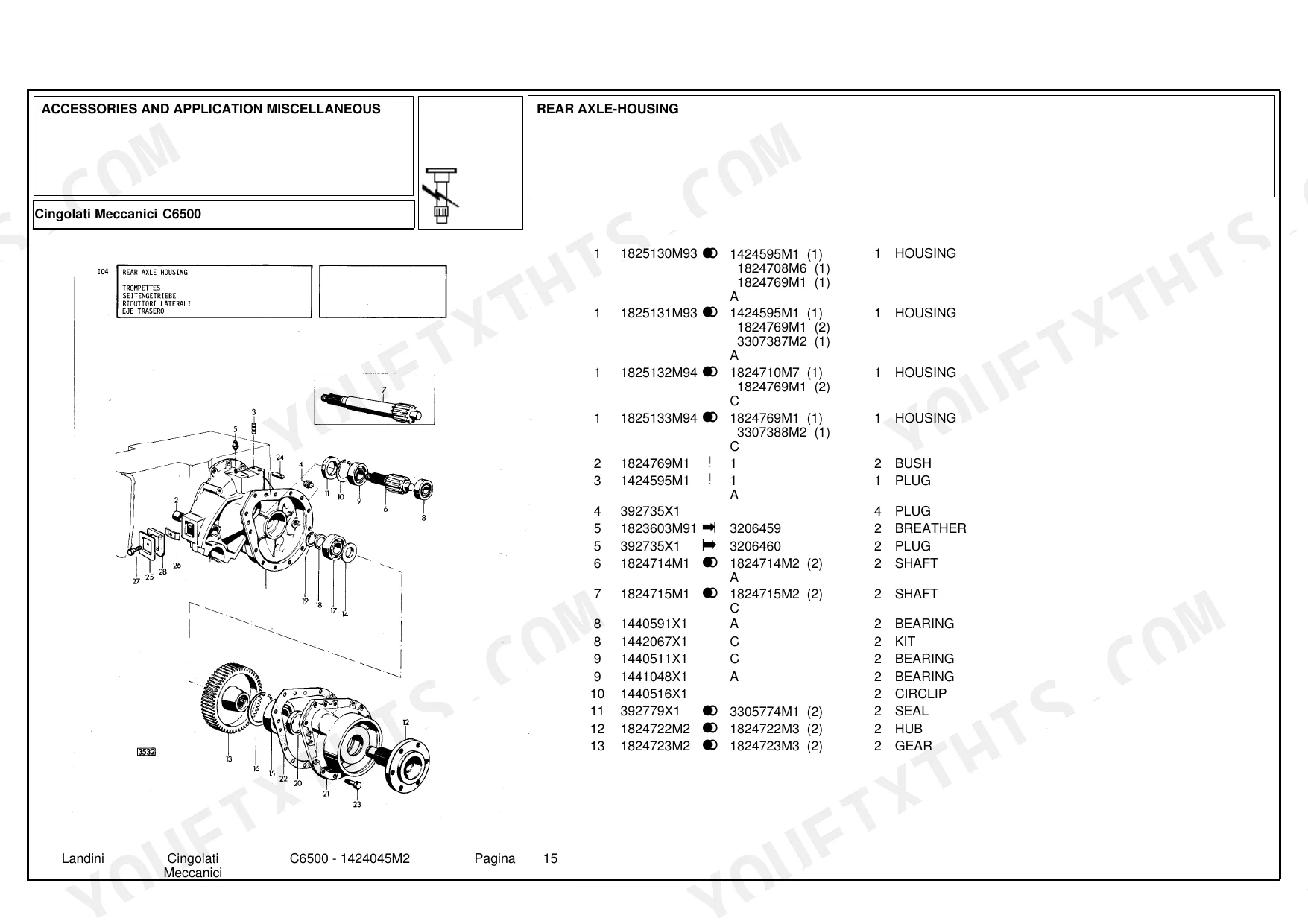

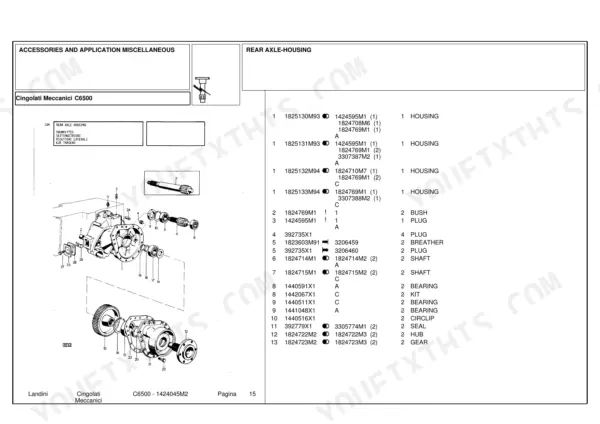

Manual Section: Distributor p. 37Rear axle housing shaft part number differs between standard, narrow and wide track builds
Confirm the track width fitted, then check the Rear Axle-Housing list on page 15. Standard and narrow tracks use shaft 1824714M1, now 1824714M2, with bearing 1440591X1. Wide track uses shaft 1824715M1, now 1824715M2, with kit 1442067X1. Seal 392779X1 is superseded by 3305774M1. Cross-check the housing number against your build before ordering.
Manual Section: Rear Axle-Housing p. 15Frequently Asked Questions
What is the part number for the ROCKERARM in this manual?
Page 1 lists part number 83450 for the ROCKERARM. p. 1

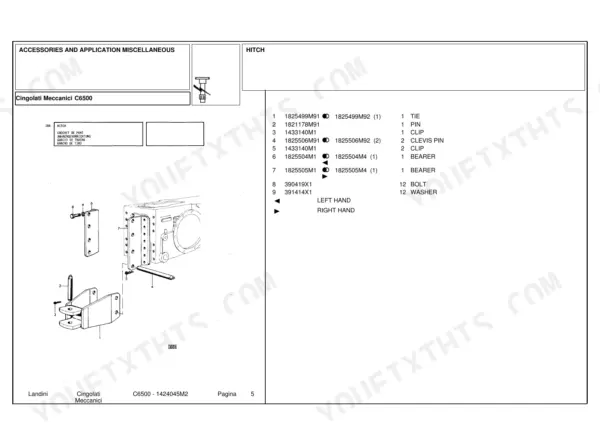

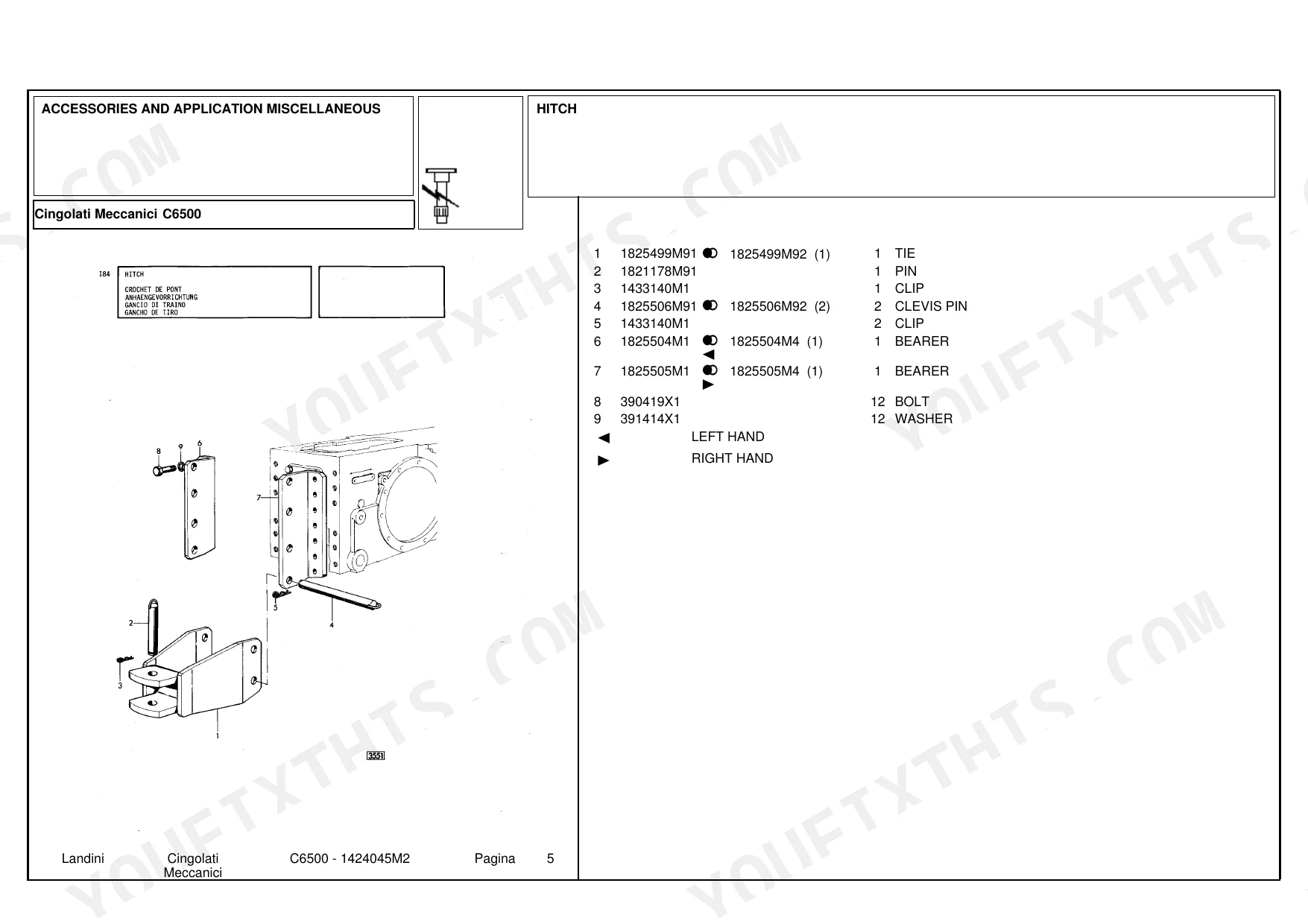

What is the part number for the TIE in this manual?
Page 5 lists part number 1825499M91 for the TIE. p. 5
What is the part number for the SPACER in this manual?
Page 10 lists part number 1825200M1 for the SPACER. p. 10
What is the part number for the THIMBLE in this manual?
Page 12 lists part number 33142111 for the THIMBLE. p. 12
What is the part number for the CIRCLIP in this manual?
Page 15 lists part number 1440516X1 for the CIRCLIP. p. 15
How quickly can I access this Landini C6500 manual after buying?
This is a 141-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print pages of this Landini C6500 manual for my own shop?
Yes. Many buyers print one chapter at a time for their own shop and keep the rest on a tablet.
