Ordering a brakes cylinder repair kit or a gasket kit begins with the right part numbers, and this 313-page Landini 50 parts catalog PDF (OEM ID 3301504M3) lists them for both the 50 and 8550 tractors. Exploded views break each assembly into numbered components, running from the crankshaft, flywheel and timing gear through the differential, transfer gear box, power take off and hydraulic lift, so you can identify every flange, seal, shaft and gear before you order. Cab glass, seat suspension, lights, decals and the mounting frame with front weights have their own listings. Every group carries its own assembly notes. Linkage parts are listed under Cat. II, so confirm your three-point hitch category before ordering arms or pins. If you are resealing the rear axle-housing or the centre transmission housing, the flange and seal listings identify the parts involved. Bookmarks open straight onto the brake pump or radiator group, a text search finds any part name, and the pages print cleanly as a working copy for your hydraulic lift parts order.
What's Inside This Landini 8550 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Clutch & Transmission | Centre Axle Housing and Transmission Housing, Controls and Transmission Levers, Clutch Control, Transfer Gear Box | |
| Fuel System | Fuel Filter and Heater Pipings, Fuel Tank | |
| Cooling System | Radiator | |

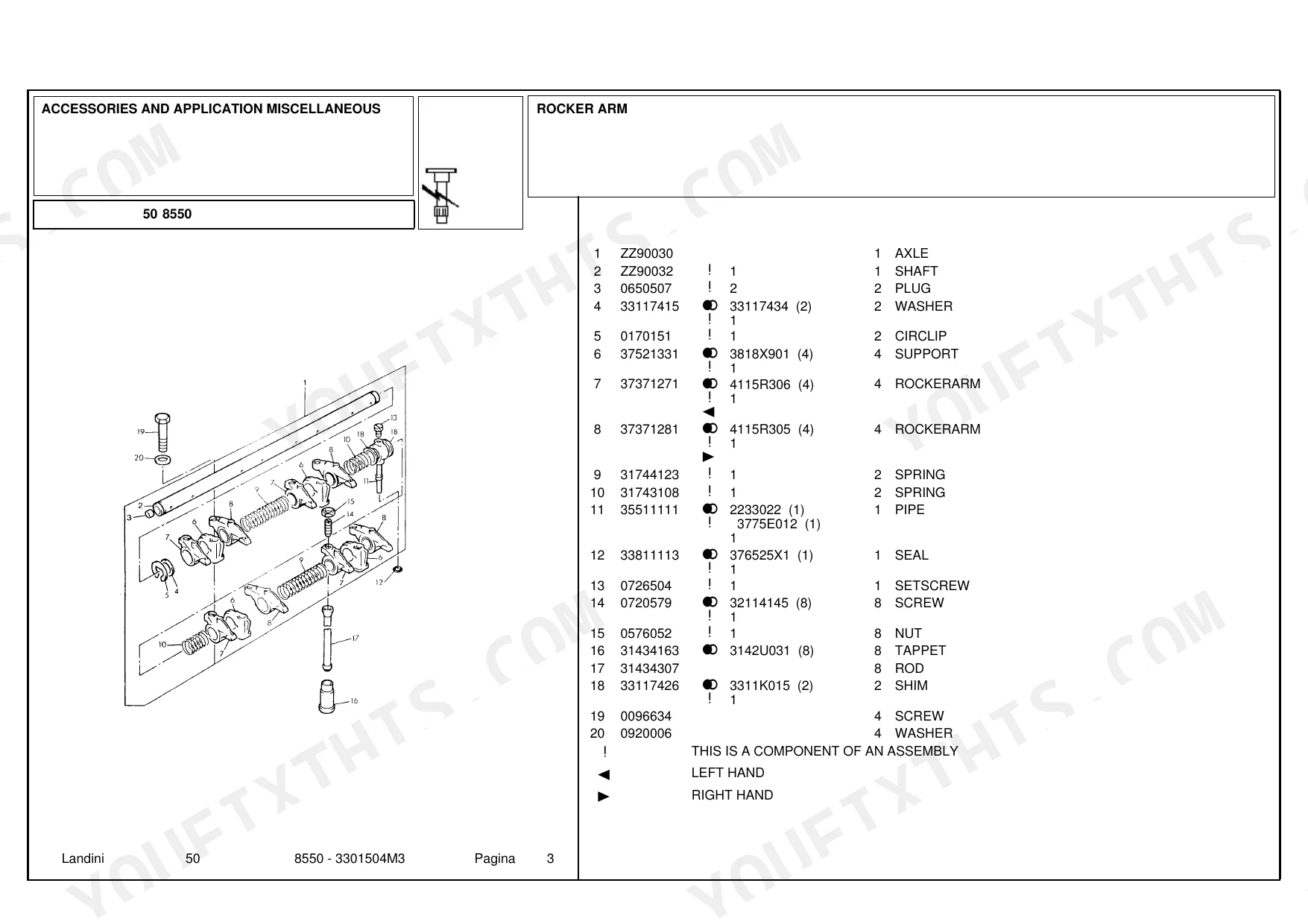

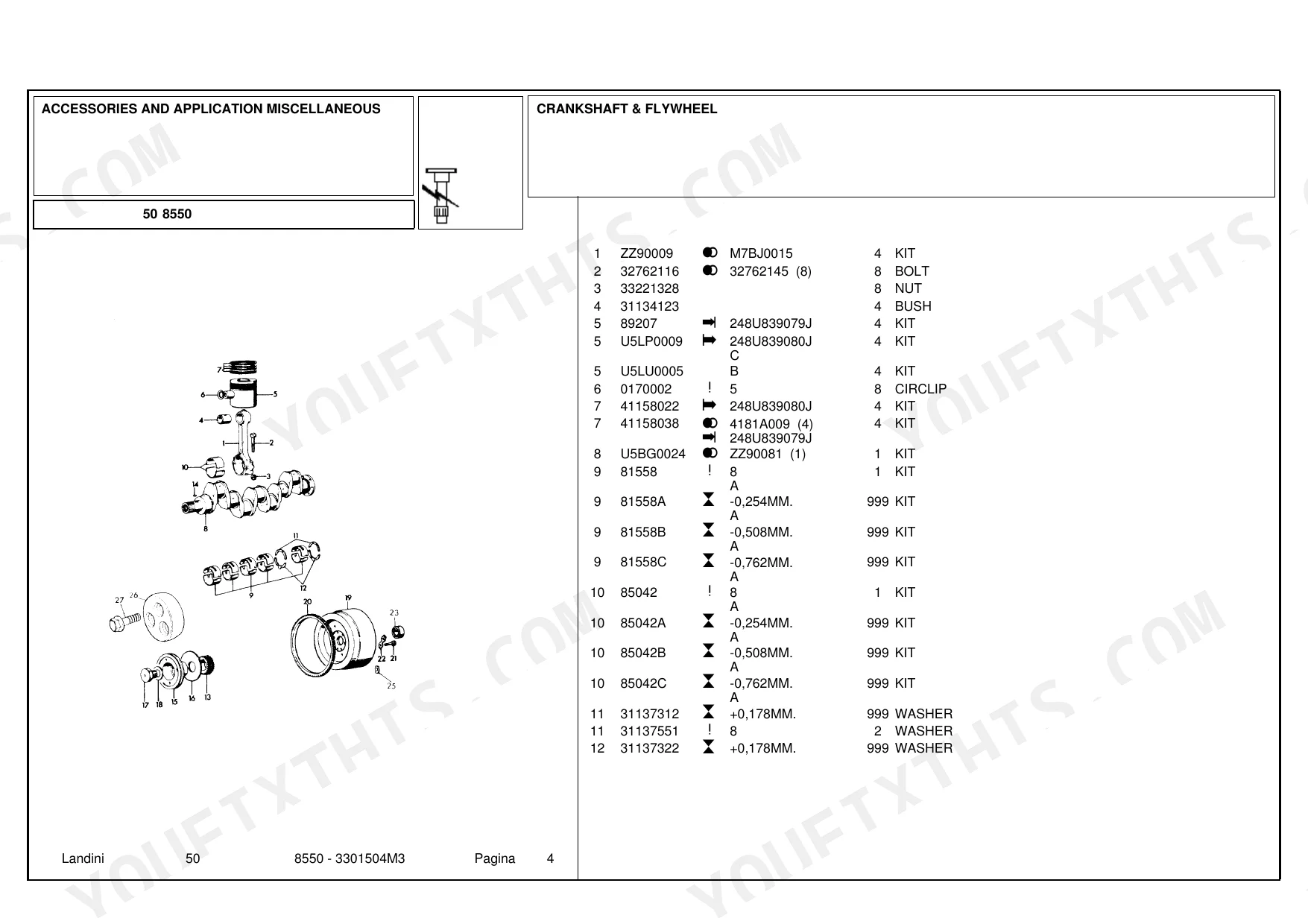

| Engine | Rocker Arm, Crankshaft & Flywheel, Cylinder Block, Engine Hood, Exhaust Manifold and Muffler, Engine Controls, Timing Gear, Lubricating Oil Filter, Oil Pump, Kit Gaskets | |
| Electrical System | Alternator, Battery, Lights | |
| PTO | Power Take Off | |
| Rear Axle, Differential & Brakes | Rear Axle-Housing, Brakes Cylinder, Brakes, Brake Pump | |
| Front Axle & Steering | Front Axle, Steering Cylinder, Steering Pump | |
| Hydraulics & 3-Point Hitch | Linkage Cat. II, Drawbar, Cylinder for Hydraulic Lift, Cylinder for Hydraulic Lift Supplementary, Lift Cylinder Supplementary, Hydraulic Lift, Valve for Control Valve Auxil, Valves | |

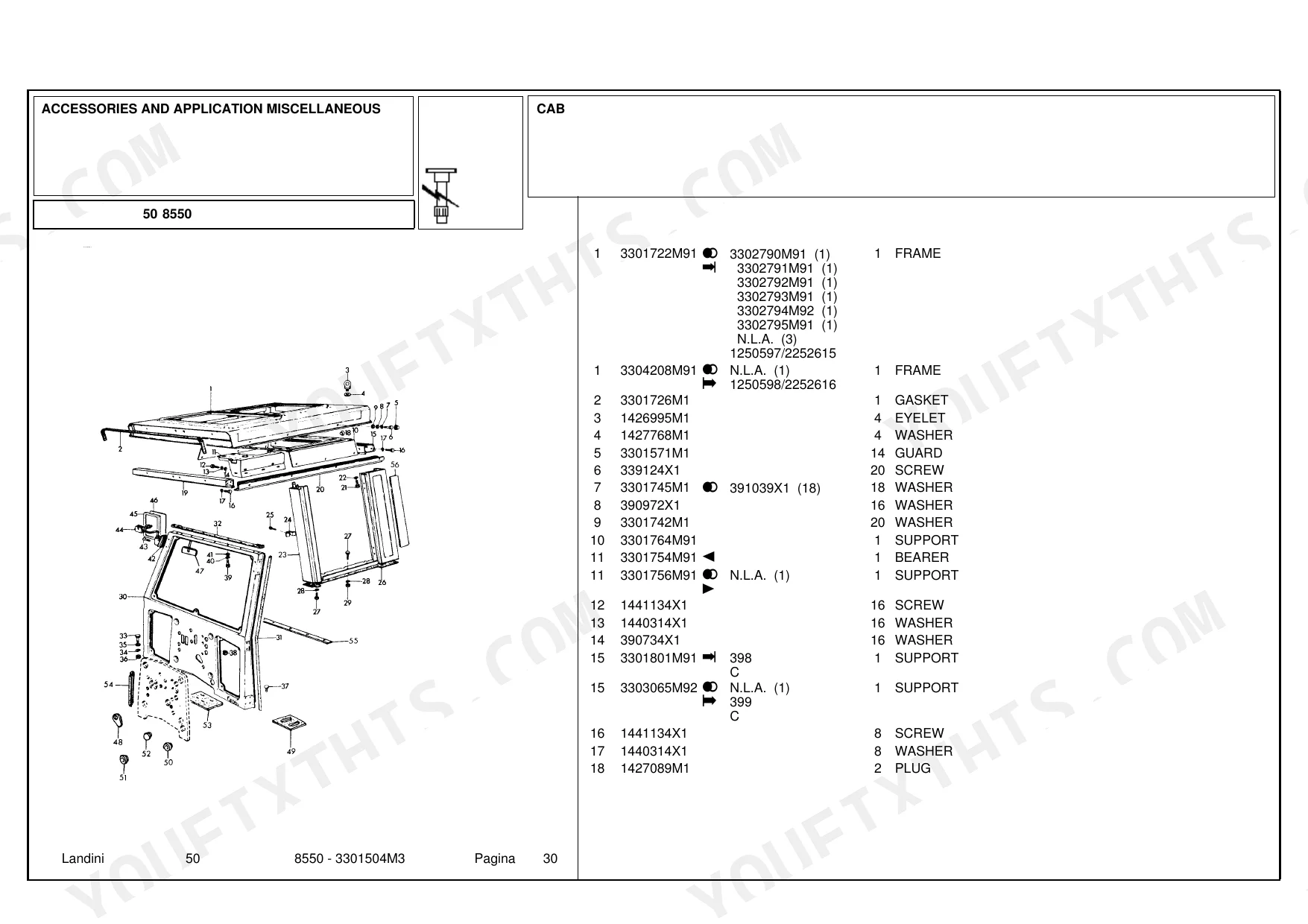

| Body & Operator Station | Cab, Induction Manifold, Decal and Emblems, Seat, Safety Frame and II Deg Passenger Seat, Mounting Frame and Front Weights | |
| Decals & Accessories | Tool | |
| Other Components | Reducer Control, Control Sensibility, Lift Control, Differential, Auxiliary Distributor, Wet Air Filter, Reducer, Rim & Tires |
Every system also includes assembly notes.
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Fuel Tank Capacity | 250CC. | p. 14 |
Landini 8550 Common Problems This Manual Covers
Landini 8550 hydraulic lift cylinder seal kit part number needed, can't match gaskets and rings to the cylinder
Open the Cylinder for Hydraulic Lift exploded view on page 78. Order seal kit 3314981M91, which supplies the gasket and rings listed as items 8, 9 and 11. The complete cylinder 3401010M91 is superseded by 3102114M91, so quote the newer number. Check page 77 for hose 3303103M91 and the lift cylinder unions.
Manual Section: Cylinder for Hydraulic Lift p. 78Steering cylinder seal kit part number confusing, two different cylinder assemblies listed with separate kits
Compare your steering cylinder against both exploded views. Page 86 shows steering cylinder 1605172M91 with kit 1609086M91 supplying the rings, O ring, seals and gasket. Page 87 covers ram 1748133M92, superseded by 1748133M94, with seal kit 1749581M91. Body 1609084M91 is listed N.L.A., so confirm which kit fits before pricing a complete cylinder.
Manual Section: Steering Cylinder p. 86Brake cylinder repair kit part number unclear, body and piston marked not serviced in parts list
Check the Brakes Cylinder pages before ordering. Page 76 lists cylinder 3302605M91 with repair kit 3302114M91, which includes the seals and guard. Body, piston and ring are not serviced separately, so order the complete cylinder if those are damaged. Page 75 shows brake cylinder 3302606M91 with repair kit 1810796M91, and page 74 lists kit 1810573M91 for cylinder 785625M92.
Manual Section: Brakes Cylinder p. 76Water pump repair kit and thermostat part numbers needed, shaft and impeller not sold separately
Check the Water Pump and Fan exploded view on page 222. Pump 41313225 is superseded by U5MW0104. Shaft, impeller, bearings and spacer come only in repair kit U7LW0029, which also includes seal 2415216 and circlip 0170040. Page 224 lists thermostat 2485659 and fan belts 2612423 or 2612424, split by serial or engine number, so verify yours first.
Manual Section: Water Pump and Fan p. 222Fuel filter element part number hard to find, two alternative kit numbers listed for the same filter
Open the Fuel Filter and Heater Pipings view on page 155. The fuel filter assembly is 2656615, and filter head 1890218M1 is superseded by 1630925M1. Kits 26560017 and 26561117 are listed as alternatives for the same position. Page 156 marks filter 26560017 as not serviced alone, so order the kit. The intake heater on the same view is 2666108.
Manual Section: Fuel Filter and Heater Pipings p. 155Lubricating oil filter cartridge part number needed, filter head and mounting bolt numbers also unclear
Check the Lubricating Oil Filter exploded view on page 157. Order cartridge 2654403 for engine oil service; the filter head is 37764181. Universal 36862517 is superseded by 36862206, and bolt 2184454 is replaced by 0746610, so quote the newer numbers at the parts counter to avoid a wrong pick on the filter mounting.
Manual Section: Lubricating Oil Filter p. 157Frequently Asked Questions
What is the part number for the FRONT AXLE in this manual?

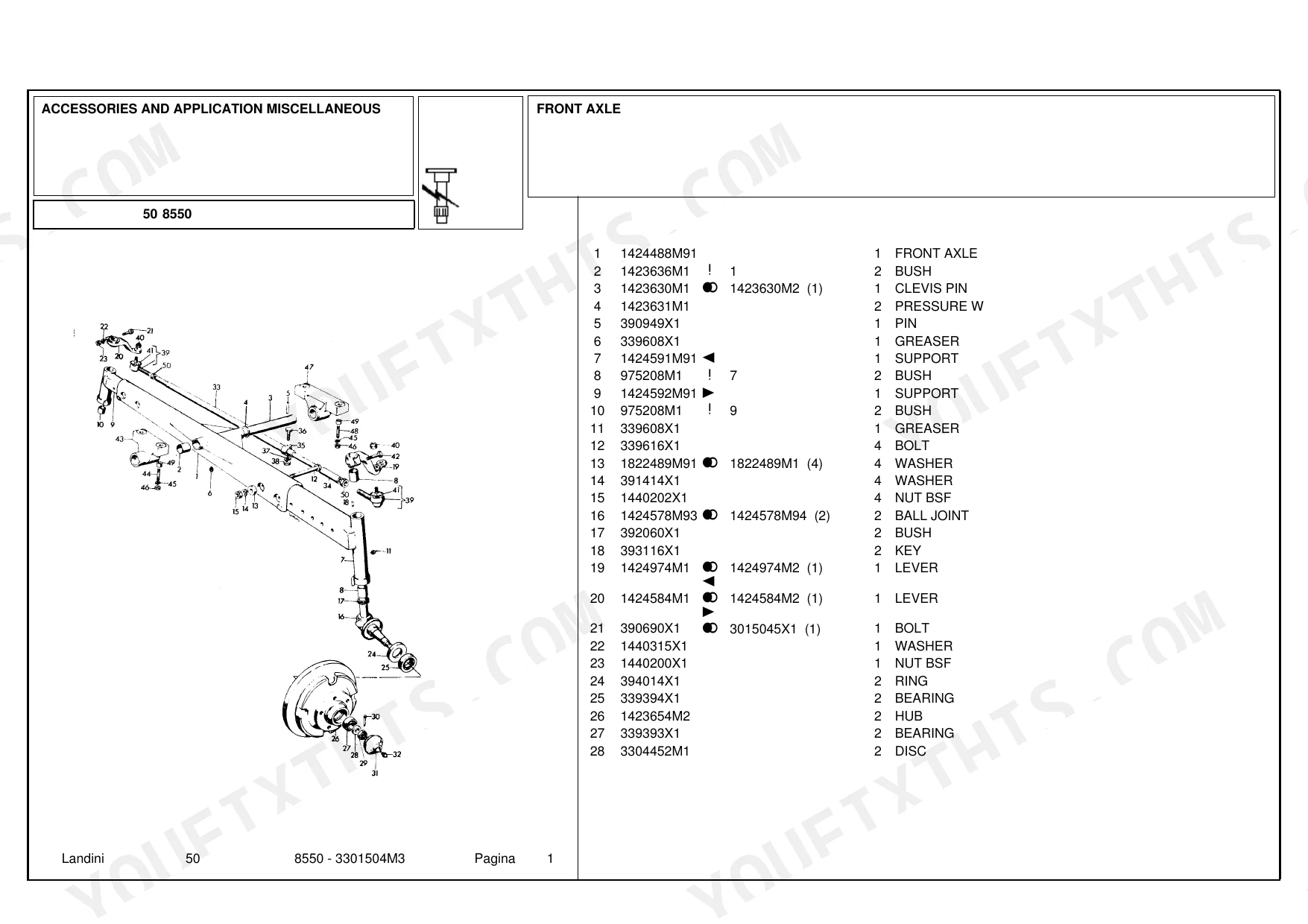

Page 1 lists part number 1424488M91 for the FRONT AXLE. p. 1
What is the part number for the ALTERNATOR in this manual?
Page 6 lists part number 2871A121 for the ALTERNATOR. p. 6
What is the part number for the BAR in this manual?
Page 23 lists part number 1424437M2 for the BAR. p. 23
What is the part number for the KIT in this manual?
Page 27 lists part number ZZ50076 for the KIT. p. 27
What format is this Landini 50 manual in?
You get a 313-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print just the pages I need from this Landini 50 manual?
Yes. Many buyers print one chapter at a time for their own shop and keep the rest on a tablet.
