Mapping the Landini 500 and 8500 tractors assembly by assembly, this 167-page Landini 500 parts catalog PDF (OEM ID 1424315M3) breaks each group into exploded views tied to factory part numbers. Engine coverage runs from the rocker arm, timing gear and cylinder head through the crankshaft, flywheel, oil pump and fuel filter, each drawing letting you match a component to its number before ordering. On the tractor side, the Cat 2 linkage, drawbar, draft and position controls, PTO shaft, dual clutch, front axle differential and auxiliary distributor valve each get their own views. Need gaskets? The kit section lists the gasket set and repair kit. Rebuilding your water pump is a typical reason to open it, and the seal, circlip and thermostat each appear on the pump assembly drawing. Bookmarks drop you onto the brakes or transmission group directly, and a part number typed into the search bar finds its page in seconds.
What's Inside This Landini 8500 Parts Manual

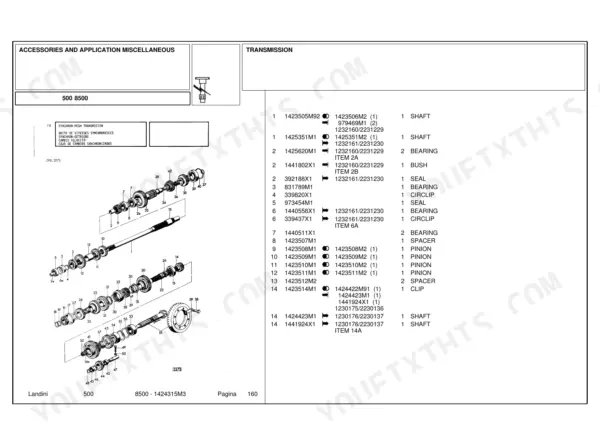

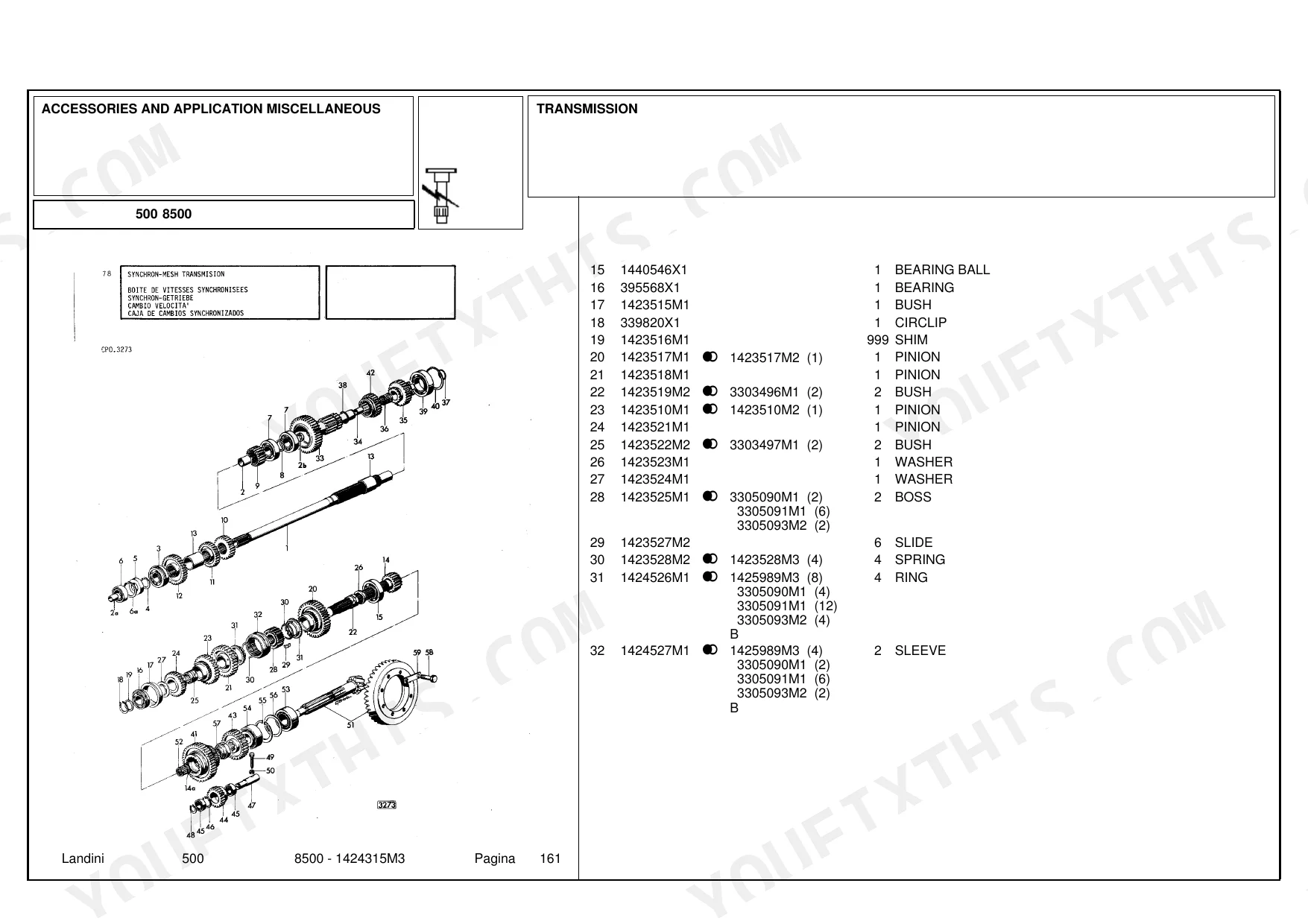

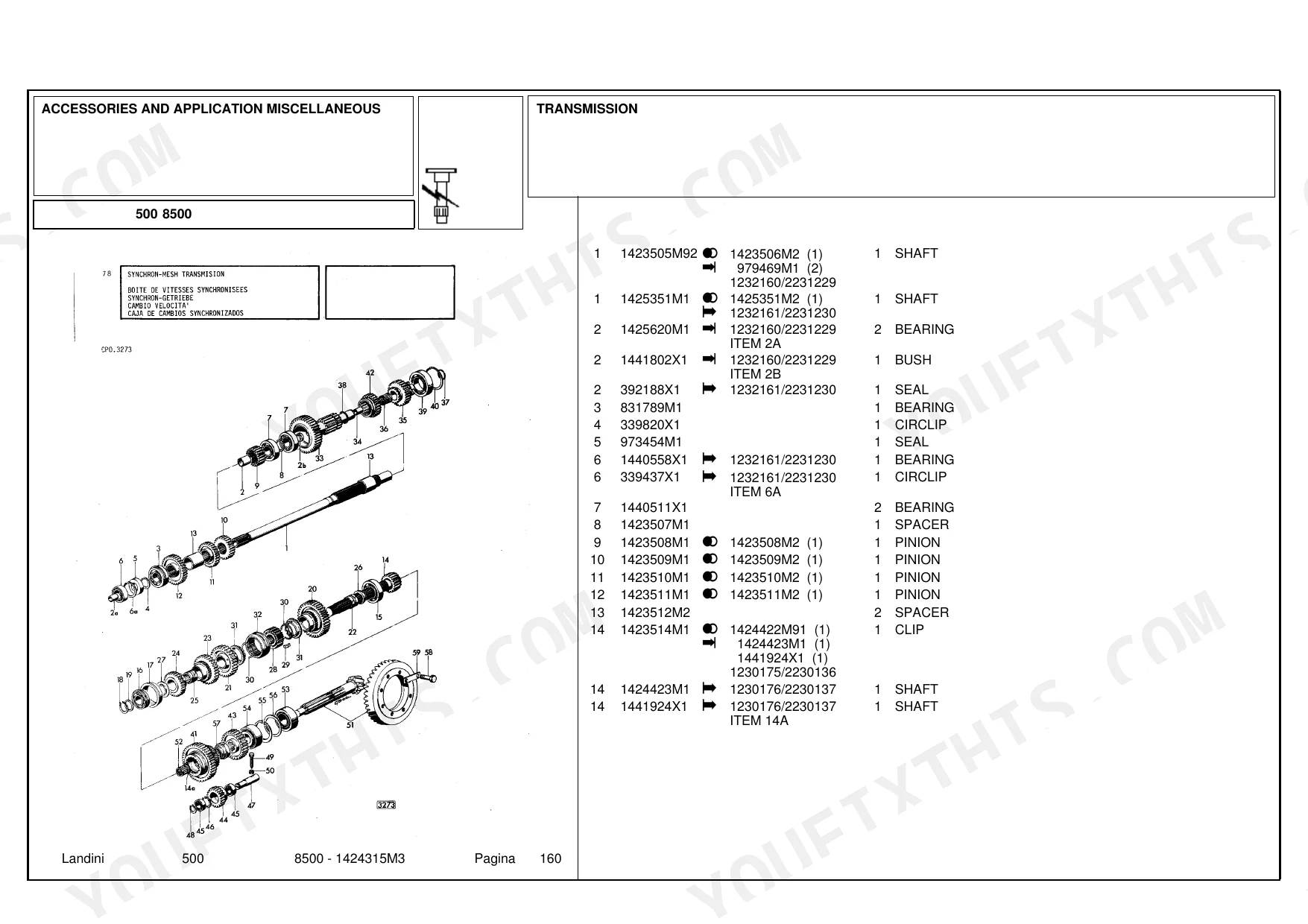

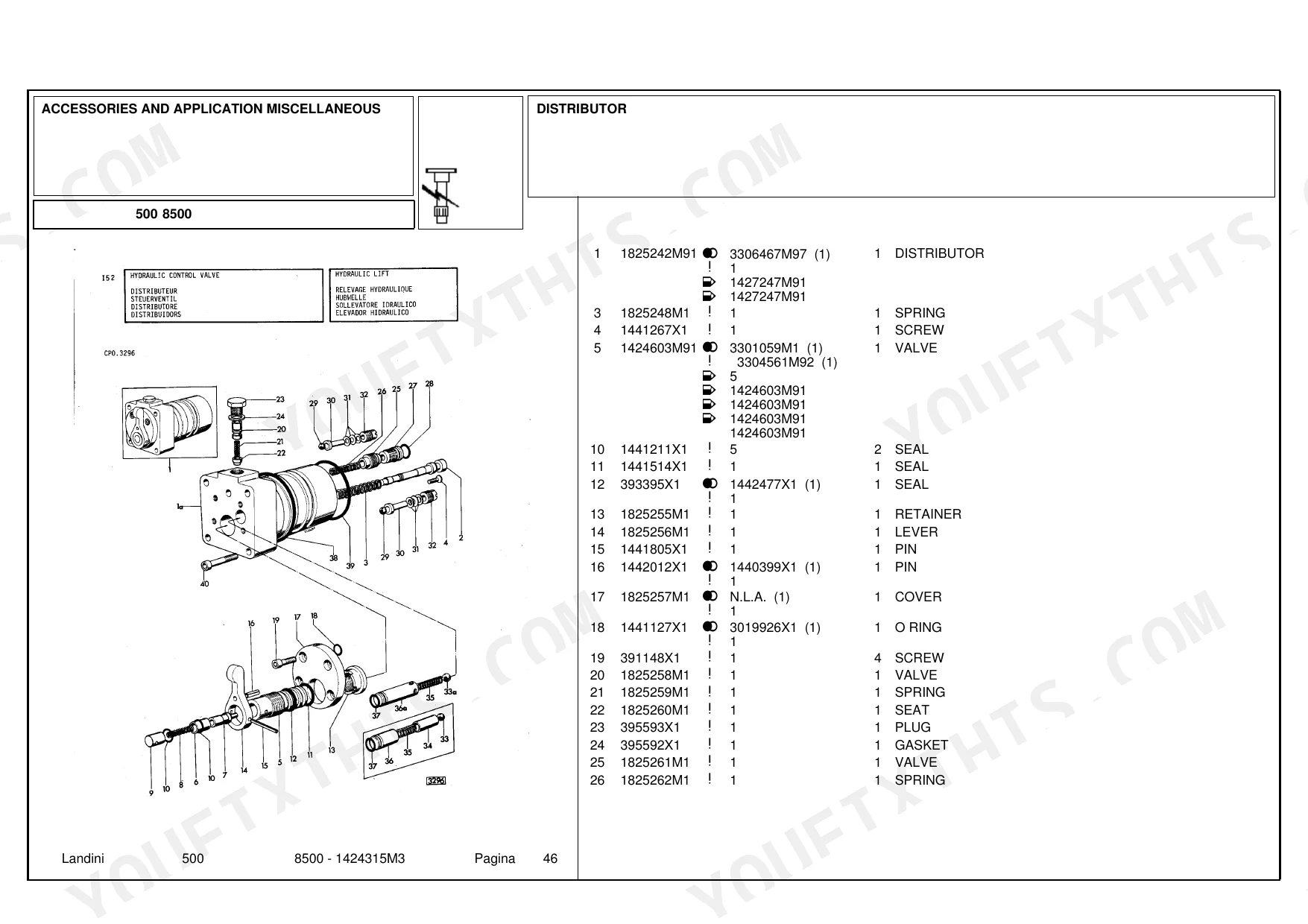

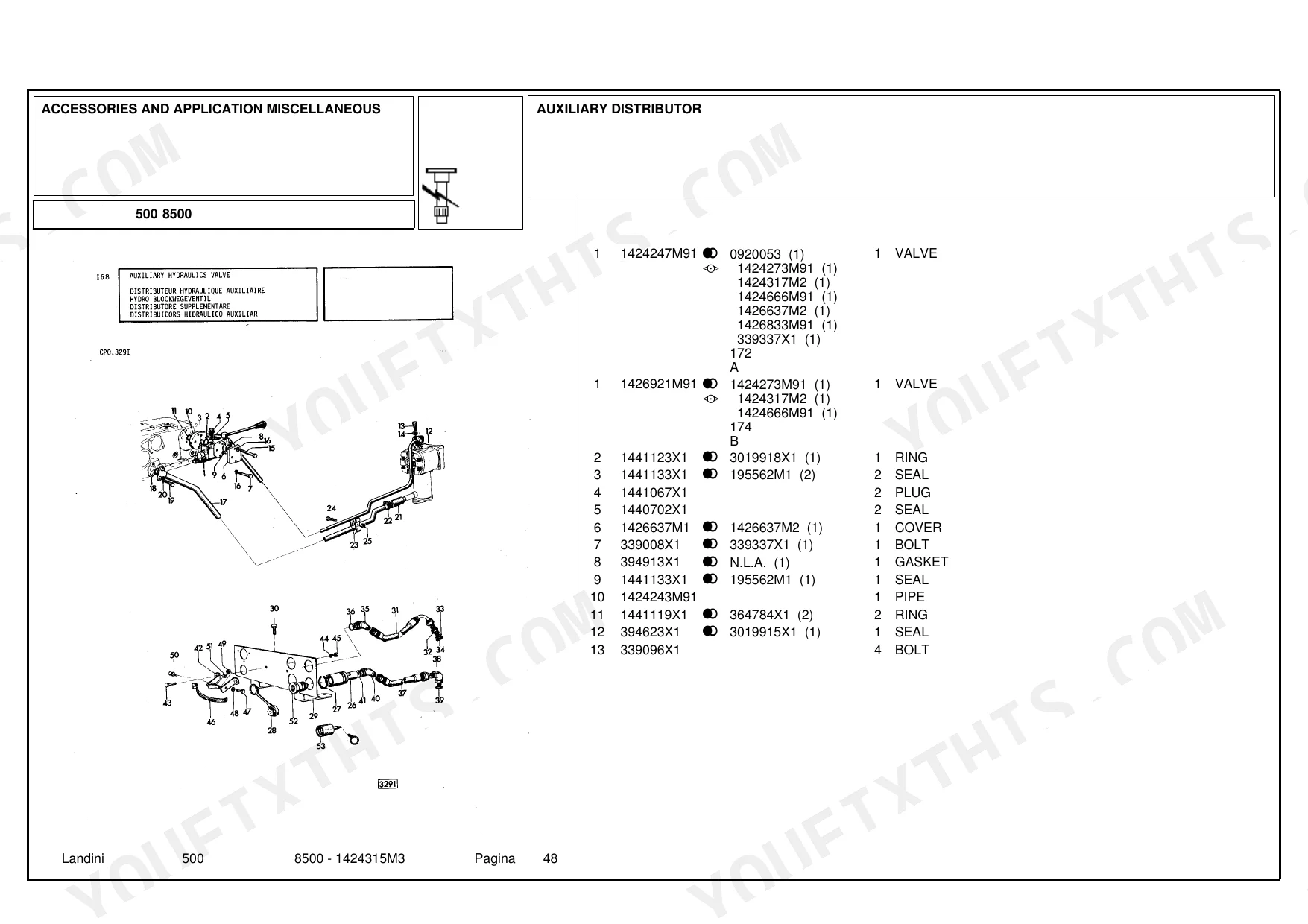

| System | Pages | Key Topics |
|---|---|---|
| Clutch & Transmission | Centre Axle Housing and Transmission Housing, Controls and Transmission Levers, Clutch Control, Dual Clutch, Transfer and Gear Box, Transmission | |
| Fuel System | Fuel Tank, Fuel Pipings and Fuel Filter | |
| Cooling System | Water Pump | |
| Engine | Rocker Arm, Crankshaft & Flywheel, Cylinder Block, Exhaust Manifold, Timing Gear, Oil Pump, Kit Gaskets, Lubricating Oil System Power Take Off, Cylinder Head and Cover | |
| Electrical System | Lighting Equipment, Electrical Equipment | |
| PTO | Power Take Off | |
| Rear Axle, Differential & Brakes | Brakes and Braking Control | |
| Front Axle & Steering | Front Axle, Steering Cylinder | |
| Hydraulics & 3-Point Hitch | Linkage Cat 2, Drawbar, Draft and Position Controls, Hydraulic Lift Pump and Lines | |
| Body & Operator Station | Hood, Induction Manifold, Seat and Footsteps, Seat, Mounting Frame and Front Weights | |
| Decals & Accessories | Decals, Tool | |
| Other Components | Throttle Controls, Differential, Distributor, Auxiliary Distributor, Air Filter, Front and Rear Witch, Additional Power Outlet Unit, Drive Pulley, Rim and Tires |
Landini 8500 Common Problems This Manual Covers
Landini 500 and 8500 front axle support and spindle part number differs by serial number

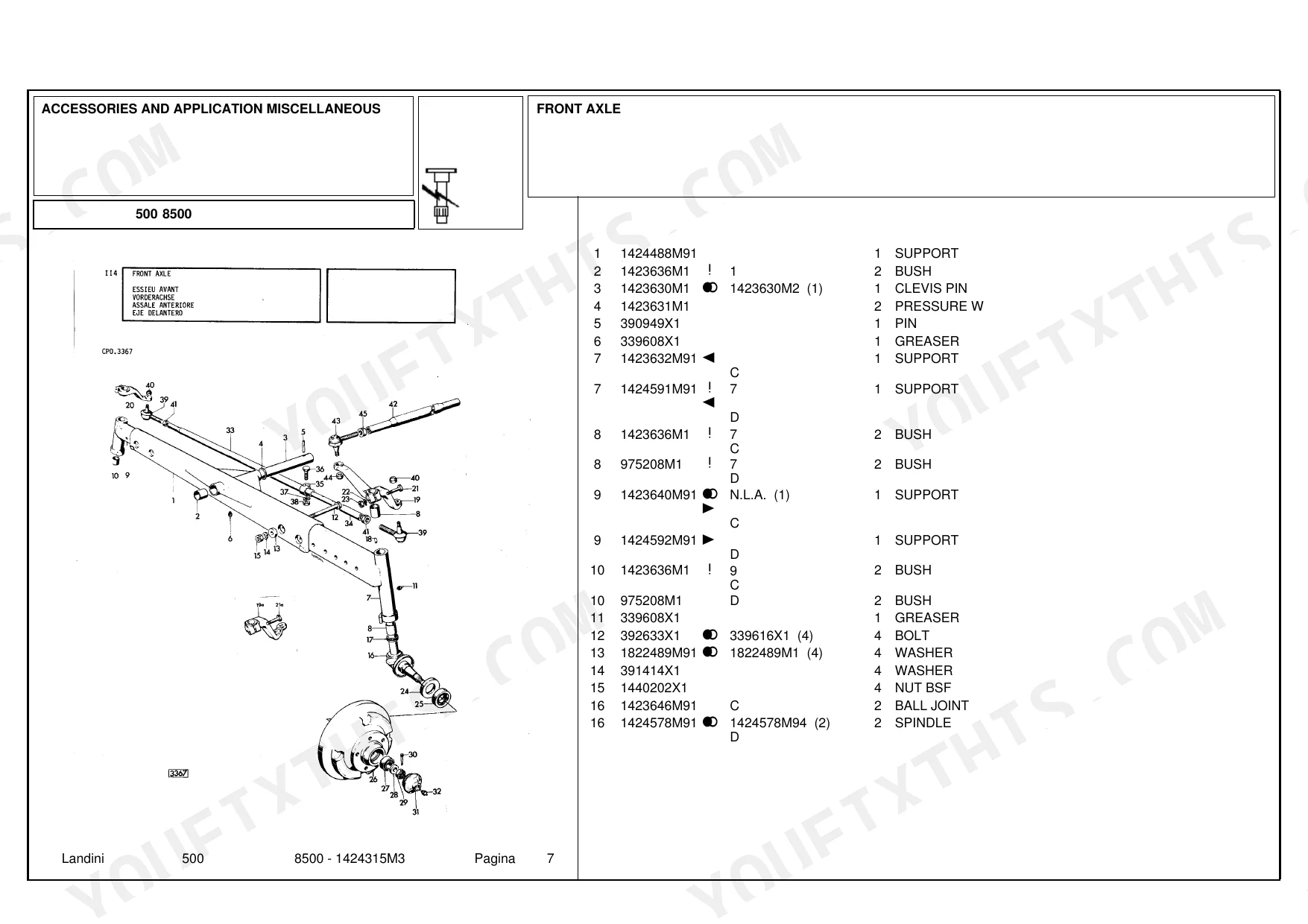

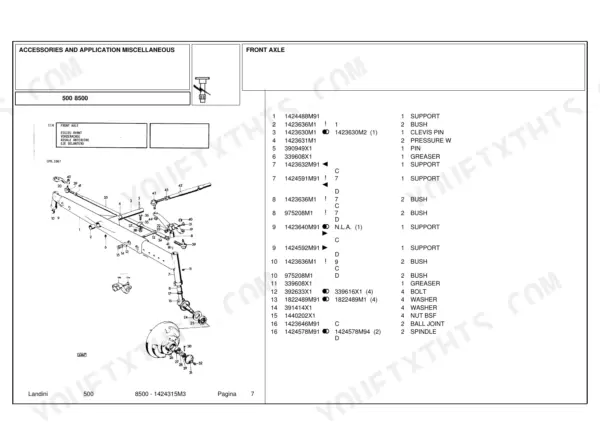

Check the front axle exploded view on page 7 and confirm your serial number first. Support 1423632M91 and ball joint 1423646M91 carry code C (up to serial 1230698). Support 1424591M91 and spindle 1424578M91, now 1424578M94, carry code D (from serial 1230699). Order bush 1423636M1 or 975208M1 to match your code.
Manual Section: Front Axle p. 7Front axle steering lever part number unclear between mechanical and hydrostatic steering versions
Verify whether your tractor has mechanical or hydrostatic steering, then check the lever listing on page 8. Code A marks mechanical steering levers such as 1423652M1 (N.L.A.). Code B marks hydrostatic parts such as pitman 1424974M1, replaced by 1424974M2. Match G for left hand and H for right hand before ordering.
Manual Section: Front Axle p. 8Front axle differential bearing shim part numbers by thickness hard to identify in parts list
Check the front axle differential listing on page 11, where the shims sit beside bearing taper 390876X1. Order 1823578M1 for 0.15 mm, 1823579M1 for 0.3 mm or 1823581M1 for 0.7 mm. The 0.5 mm shim 1823580M1 is replaced by 1823579M1, so verify the replacement pack with the parts counter before ordering.
Manual Section: Front Axle p. 11On axles before serial 2447, front axle support bracket and bush part numbers differ
Check the front axle number before ordering, then read the notes on page 12. Axles prior to serial 2447 use bracket assembly 1424997M91 (replaced by 1424997M93 on page 10) with bush 392020X1. From axle 2447 the gasket is 1440755X1. Axles prior to serial 1346 use bush 1424401M1 with 392020X1.

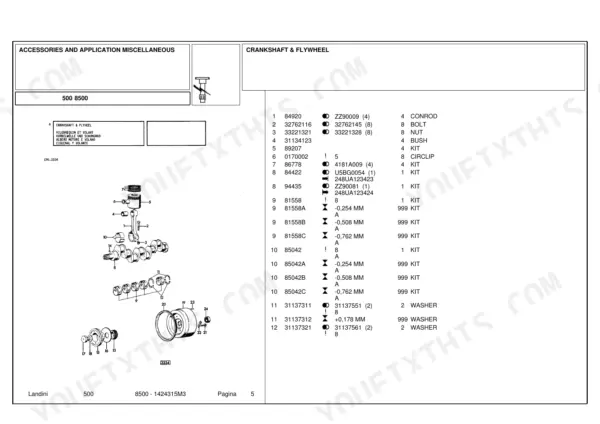

Manual Section: Front Axle p. 12Crankshaft bearing kit and washer undersize or oversize part numbers hard to find in catalog

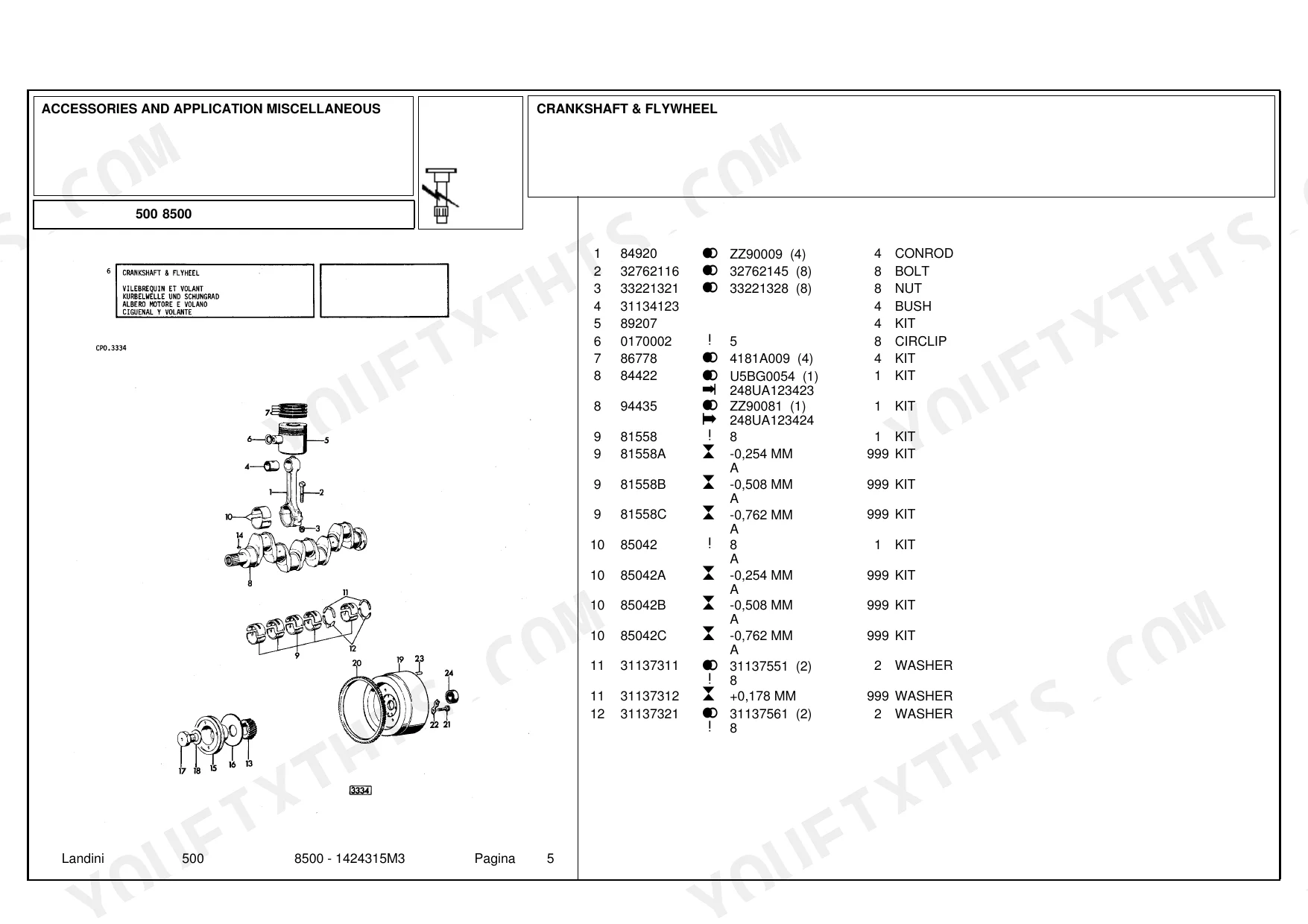

Check the crankshaft listing on page 5 and match the size you need. Kits 81558 and 85042 come with suffix A (-0.254 mm), B (-0.508 mm) or C (-0.762 mm), and these bearings are prefinished. Washers 31137311 and 31137321 also come in +0.178 mm as 31137312 and 31137322.
Manual Section: Crankshaft & Flywheel p. 5Linkage Cat 2 draglink, hook and stabiliser part numbers superseded or listed as N.L.A.
Check the Linkage Cat 2 exploded view on page 17 and order by the current number. Draglink 1423997M91 is replaced by 3533293M91, hook 1423824M91 by 1423826M91 and 1426070M1, and clevis pin 1423696M1 by 1423696M2. Washer 394990X1 is N.L.A. Stabiliser 1424000M91 and its stem parts sit on page 19.
Manual Section: Linkage Cat 2 p. 17Frequently Asked Questions
What is the part number for the HINGE in this manual?
Page 1 lists part number 1825038M91 for the HINGE. p. 1
What is the part number for the SHAFT in this manual?

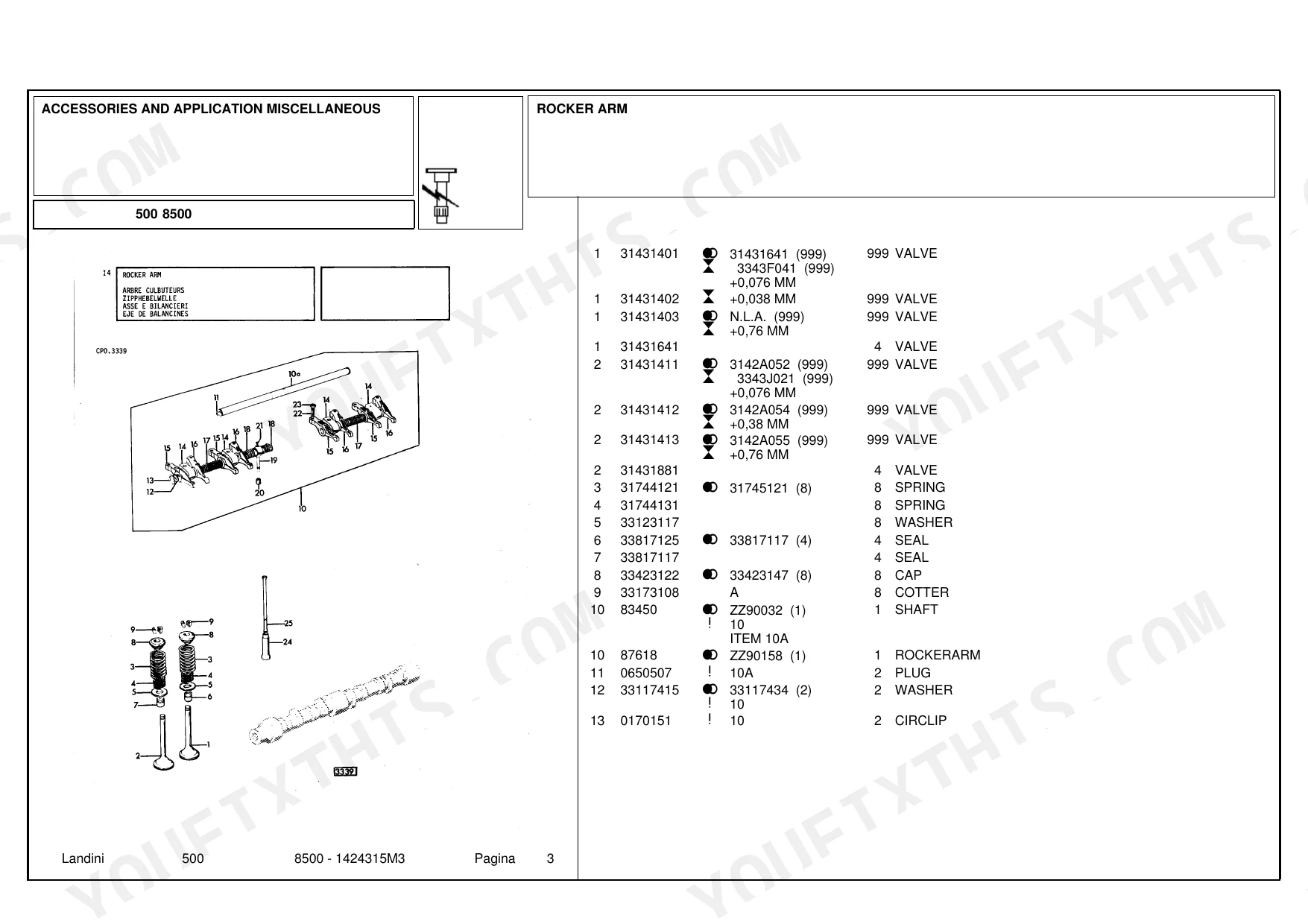

Page 3 lists part number 83450 for the SHAFT. p. 3
What is the part number for the CONROD in this manual?
Page 5 lists part number 84920 for the CONROD. p. 5
What is the part number for the GREASER in this manual?
Page 7 lists part number 339608X1 for the GREASER. p. 7
What is the part number for the AXLE in this manual?
Page 10 lists part number 1823541M3 for the AXLE. p. 10
How quickly can I access this Landini 500 manual after buying?
Delivery is instant: a 167-page searchable PDF is yours the second checkout clears. Laptop, tablet, or phone, all fine.
Am I free to print this Landini 500 Parts Catalog?
Yes. Printing works from any reader and any printer, for your own shop use.
