Owners and mechanics running a Landini C6000 crawler tractor will find their machine covered here: parts catalog 1821740M1, 135 pages, written for that one model. This Landini C6000 parts catalog PDF breaks the tractor down group by group, from cylinder block, timing gear and injection pump through steering clutch, dual clutch, hand brake and rear axle housing. Track rollers, idler wheels and the track carrier share space with the drawbar hook, jack assembly, lighting harness and independent PTO pump. Exploded views pair each component with its part number. That lets you confirm a roller seal or transmission fork by sight before the order goes in. If your job is a new air filter cartridge and pre-filter, or a full cylinder head gasket set, each has its own group. Bookmarks jump between sections and the text layer finds any part number you type, so brake band facings or PTO filter parts get ordered correctly the first time.
What's Inside This Landini C6000 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Clutch & Transmission | Transmission Case, Controls and Transmission Levers, Steering Clutch, Dual Clutch, Transmission | |
| Fuel System | Fuel Lift Pump and Filters, Injection Pump, Fuel Tank | |
| Engine | Exhaust Manifold and Muffler, Timing Gear, Oil Pump, Engine Gaskets Sets, Cylinder Head and Cover | |
| Electrical System | Tractormeter, Lighting, Starter | |
| Undercarriage & Travel | Idler Wheel, Track Roller | |
| PTO | Independent PTO Pipe | |
| Rear Axle, Differential & Brakes | Hand Brake, Rear Axle Housing | |
| Hydraulics & 3-Point Hitch | Hitch, Supply Pump Details | |
| Body & Operator Station | Hood, Induction Manifold and Air Filter, Instrument Panel, Track Gear Guards, Seat | |
| Decals & Accessories | Decals, Tool | |
| Other Components | Connecting Rod, Track Carrier, Drive Unit, Distributor, Hook, Jack Assembly, Center Gear Unit, Rim and Tires, Front and Rear Suspension |
Landini C6000 Common Problems This Manual Covers
Landini C6000 steering clutch plate and spring part numbers hard to identify on the parts list
Check the steering clutch exploded view on page 53. Plate 975743M1 (qty 16) carries alternate number 3535759M1, the second plate is 975744M91 (qty 16) and the spring is 975745M1 (qty 16). Drum 975742M1 is marked N.L.A., so match each item number to the diagram before you order steering clutch parts.
Manual Section: Steering Clutch p. 53Steering clutch hydr hose and sleeve part numbers needed, sleeve listed as N.L.A.
Check the steering clutch listing that continues on page 55. Hydr hose 975706M1 is listed at qty 2, and sleeve 975704M91 is marked N.L.A. Confirm plate 973141M1, spring 973157M1 and greaser 393486X1 on the same list, then compare item numbers against the drawing on page 53 before ordering.
Manual Section: Steering Clutch p. 53Dual clutch roller and spring part numbers listed N.L.A. in the parts catalog
Check the dual clutch exploded view on page 56. Roller 1420062M1 (qty 114) and pivot 1420060M1 are marked N.L.A., while spring 1420504M91 shows alternate numbers 1420058M1 and 390511X1. Verify bearing 973803M1 and collar 1818541M1 on page 57, then match every item number to the diagram before ordering clutch parts.
Manual Section: Dual Clutch p. 56Starter, dynamo and regulator part numbers hard to match within the starter parts group
Check the starter exploded view on page 72. The starter is 897269M1 (L. 35805, M. 2873121), dynamo 892447M91 lists alternate 2871182, and intake heater 893501M1 lists 2666103. Find regulator 892707M92 on page 74, and confirm dynamo pulley 731395M1 and key 355465X1 if you are swapping the dynamo.
Manual Section: Starter p. 72Transmission case breather and cover gasket marked N.L.A., replacement part number unclear
Check the transmission case parts list on page 19. Cover 977820M91 is still listed, but breather 977821M91 and gasket 975822M1 are marked N.L.A. Gasket 394625X1 shows alternate 3019917X1. Cross-check the plugs and caps on the same diagram, and look at page 20 for gasket 1819219M1 with its alternate 3308788M1.
Manual Section: Transmission Case p. 19Piston, connecting rod and conrod bolt part numbers hard to confirm in the connecting rod group
Check the connecting rod exploded view on page 14. Conrod 736386M91 (qty 4), piston 734467M91, kit 734466M91 and bush 731087M1 are listed, and conrod bolt 375756X1 shows alternate 0095250. Confirm ring 375709X1 and the flywheel items on page 15, then source cylinder head gaskets from the engine gasket sets on page 121.
Manual Section: Connecting Rod p. 14Frequently Asked Questions
What is the part number for the NUT in this manual?

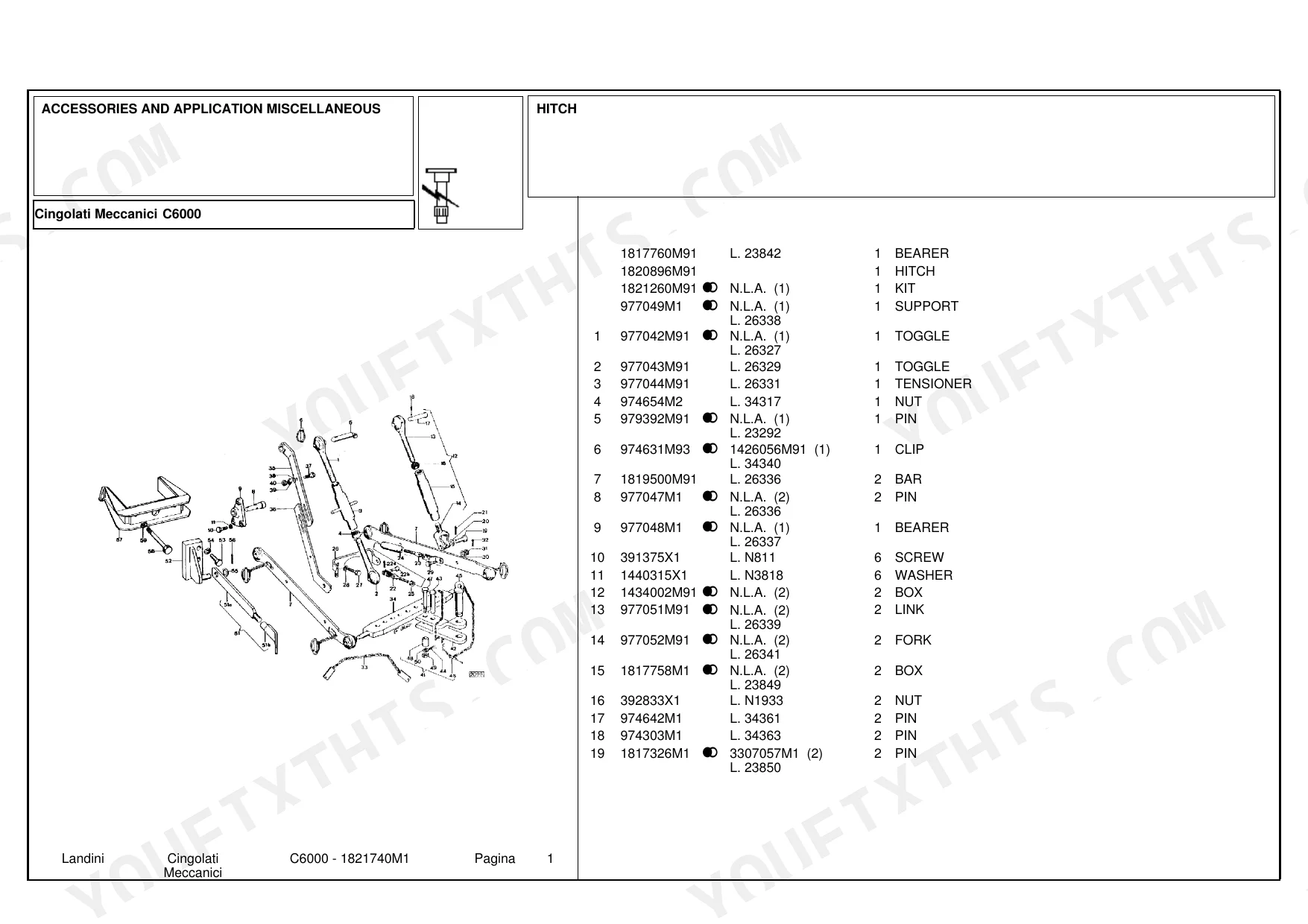

Page 1 lists part number 974654M2 for the NUT. p. 1
What is the part number for the CYLINDER B in this manual?
Page 7 lists part number 736340M91 for the CYLINDER B. p. 7
What is the part number for the CONROD in this manual?
Page 14 lists part number 736386M91 for the CONROD. p. 14
What is the part number for the CARRIAGE in this manual?
Page 17 lists part number 1818441M91 for the CARRIAGE. p. 17
What is the part number for the BUSH in this manual?
Page 19 lists part number 973218M1 for the BUSH. p. 19
How quickly can I access this Landini C6000 manual after buying?
You download the Parts Catalog yourself: 135 pages, searchable PDF, available immediately. Keep a copy on every device you use.
Is this Landini C6000 Parts Catalog printable?
Yes. Print the pages you need for the job in your own shop, and bin them when they get greasy.
