Ordering a take-up roller or a boom line hose this afternoon starts with the right number, and this 529-page Link-Belt 160X2 parts manual PDF (book No. 2204) lists them for the X2 hydraulic excavator in both 160X2 and 160X2 - EX form. Control and lines fill about a fifth of the book, breaking down the bucket and arm line, boom line, pilot pressure and return, oil cooler return, sump tank and standard control valve so you can identify each fitting. Wire harness diagrams trace the DC-DC converter, battery and pressure switches, while the lowers, turntable bearing and Isuzu engine groups carry part numbers you can quote to the dealer. Confirm engine items against the separate Tier III engine parts index before you order. A wrong number keeps the machine parked for days. The file is bookmarked and text-searchable, and the pages print cleanly, so your copy can stay on the bench and take the grease.
What's Inside This Link-Belt 160X2, 160X2 - EX Parts Manual

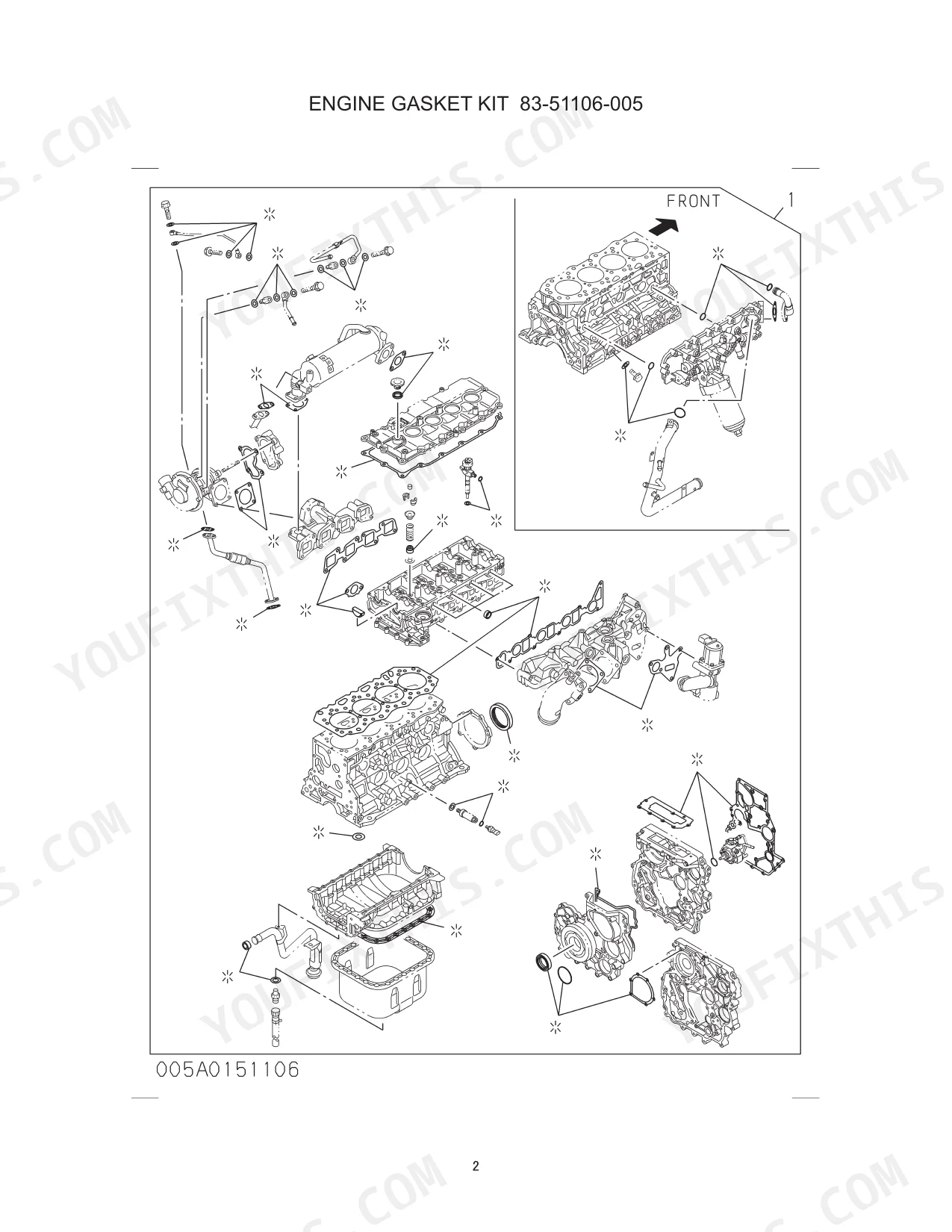

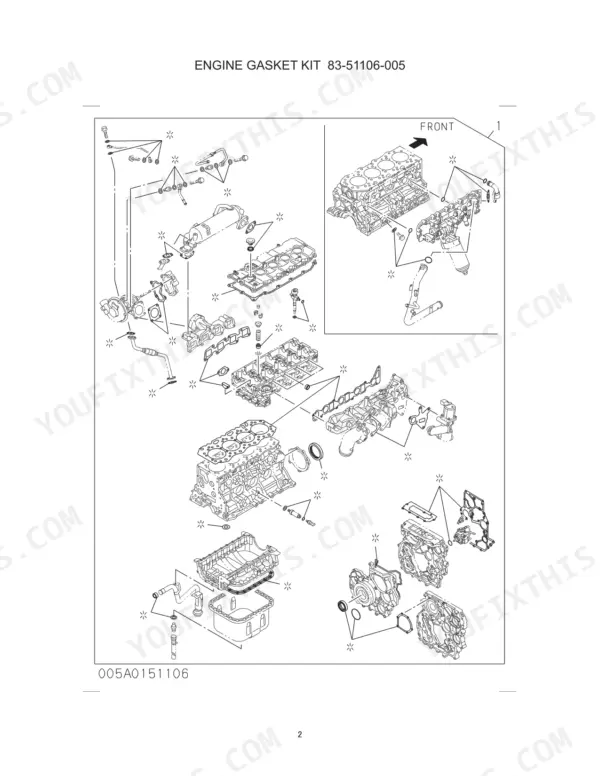

| System | Pages | Key Topics |
|---|---|---|
| Lowers | 15-45 | Traction Equipment, Lower Frame, Traction Motor Line, Upper Roller, Take-Up Roller, Lower Roller |
| Swing Frames | 46-53 | Revolving Frame, Counter Weight, Upper Undercover, Turn Table Bearing |
| Revolving Shafts & Equipment | 54-55 | Revolving Equipment |
| Engines | 56-69 | Fuel Line, Engine Isuzu, Muffler Standard, Radiator Standard, Air Cleaner Element, Fuel Tank |

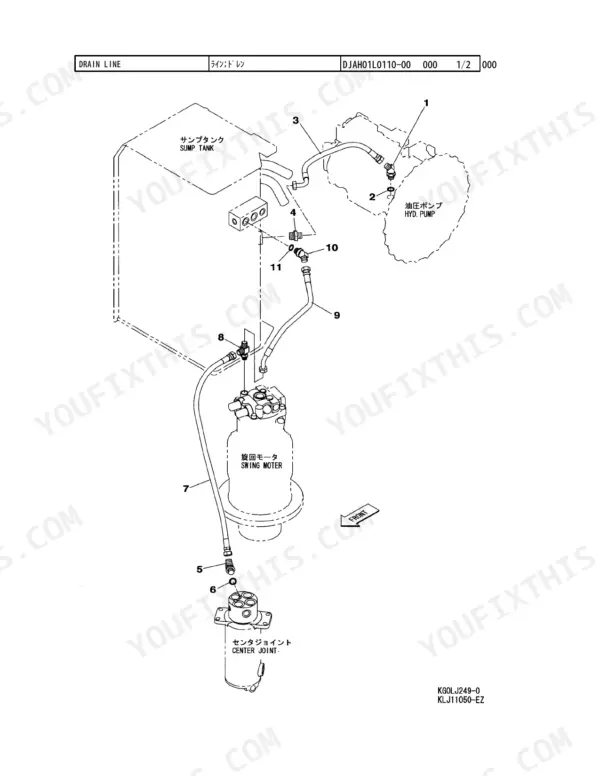

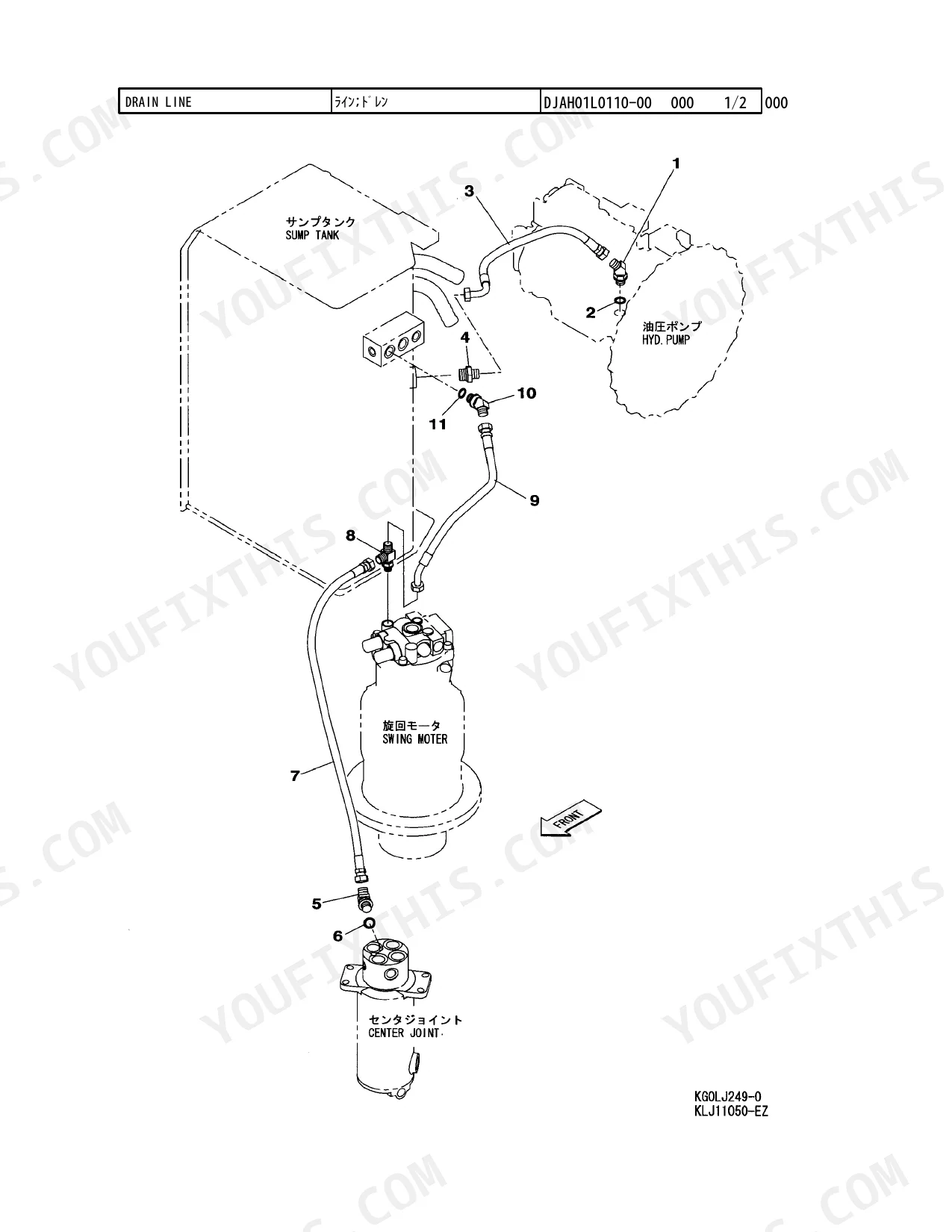

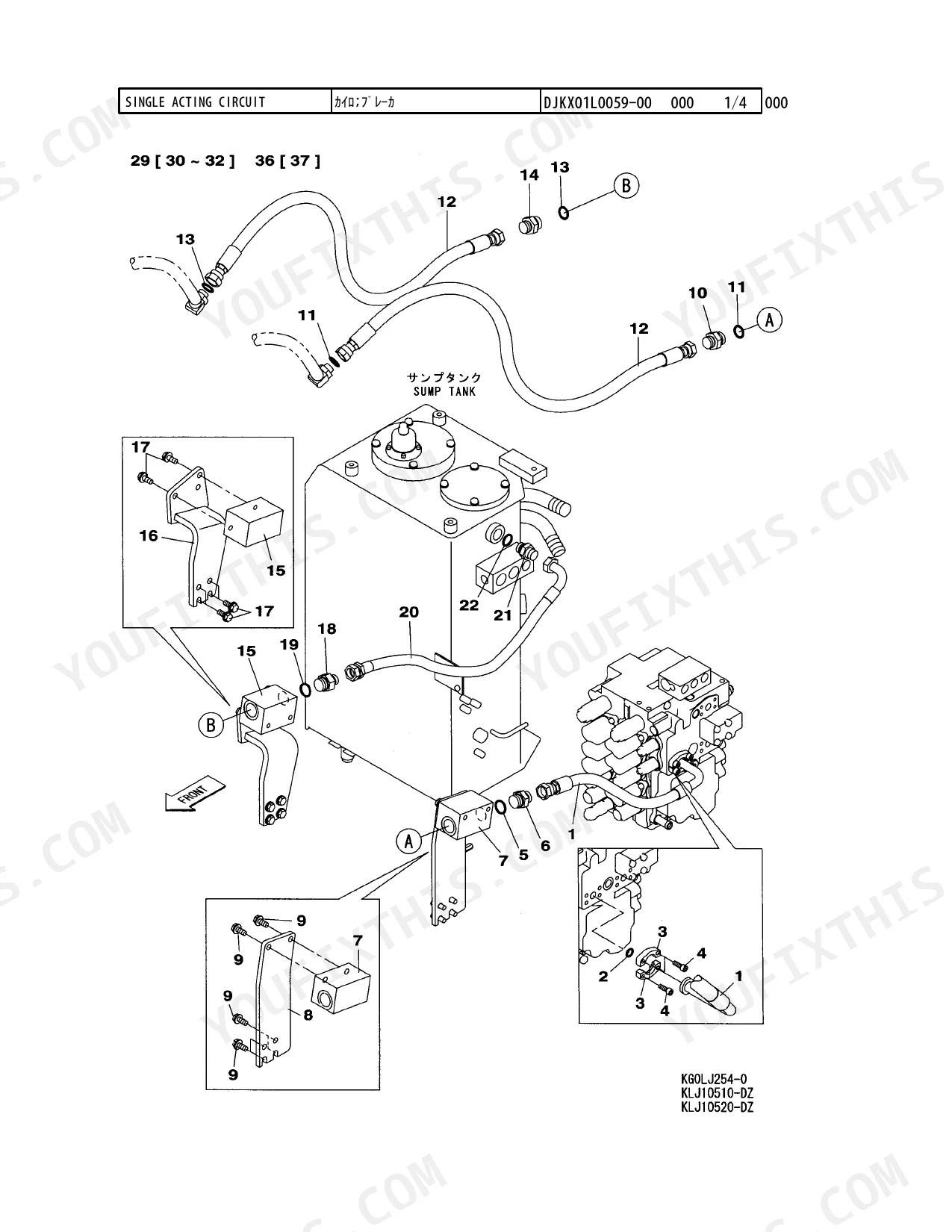

| Control & Lines | 70-179 | Drain Line, Bucket & Arm Line, Pilot Press & Return Line, Boom Line, Return & Oil Cooler Line, Sump Tank, Control Valve Std |

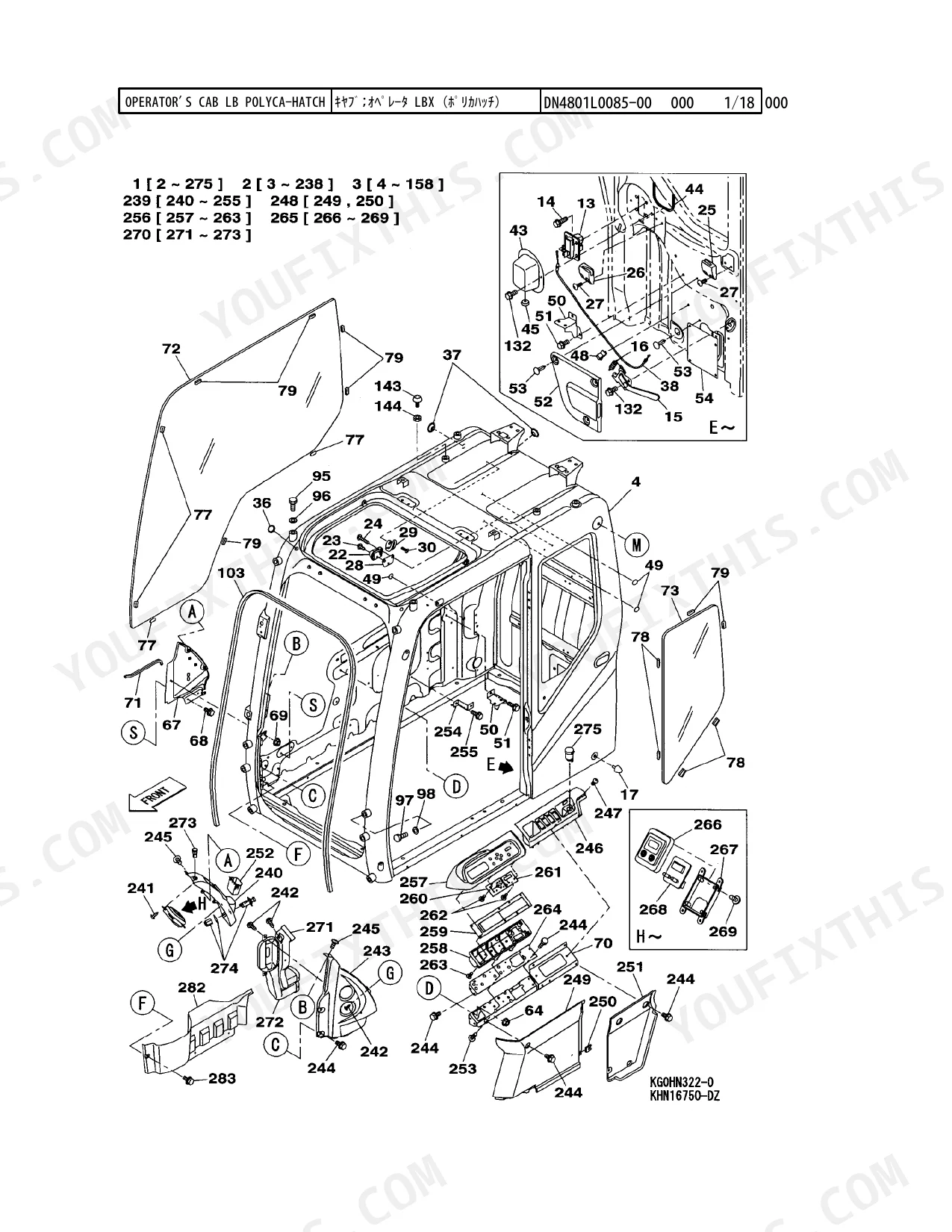

| Operator's Cab & House | 180-243 | Dog Chain, Sunvisor Kit, Rain Reflector, Cab Guard FOPS, Cab Front Guard Mesh, Cover Vandal Guard, Operator's Cab Polyca-Hatch, House |
| Accessories & Name Plate | 244-265 | Tools, Operator's Name Plate, Painting, Rear View Mirror |

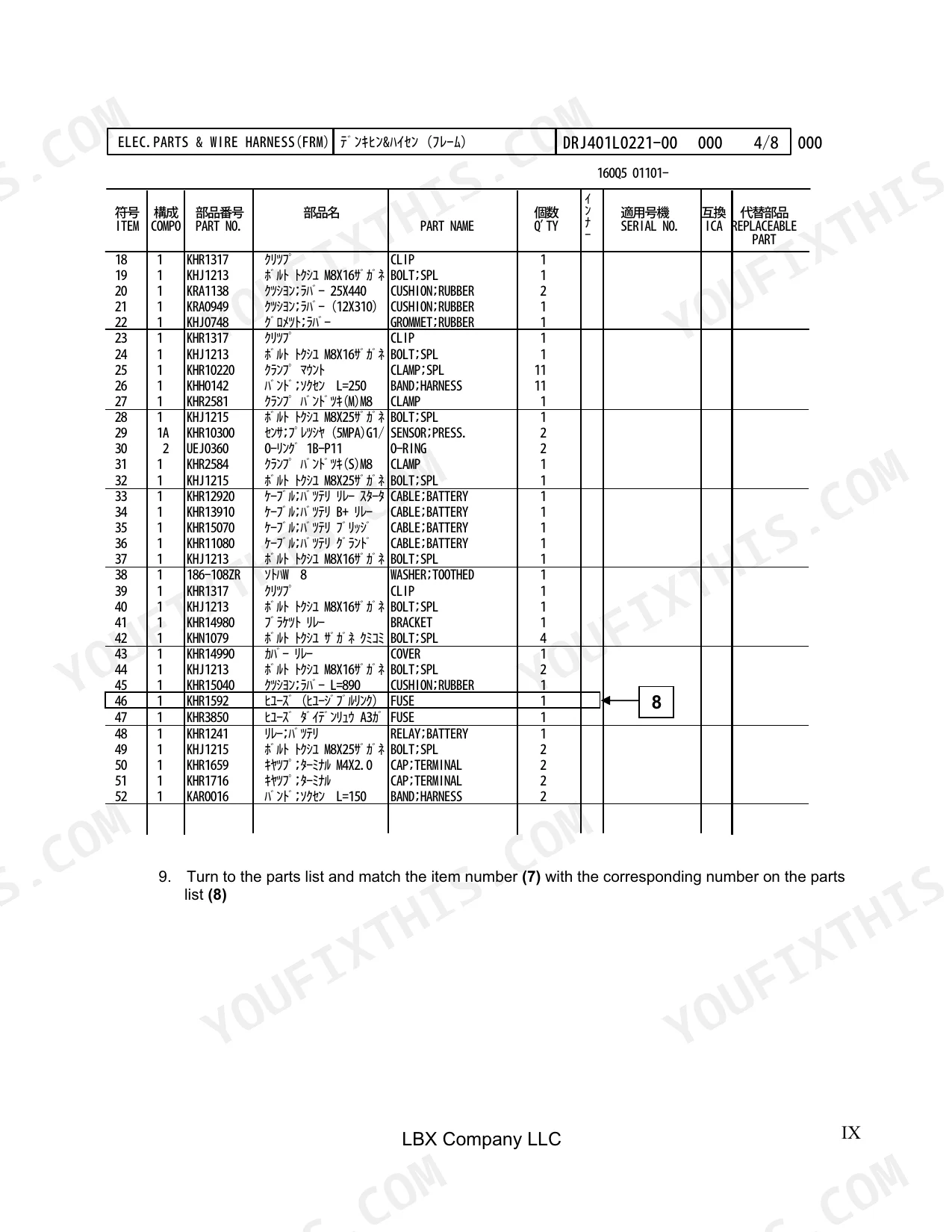

| Electric Parts | 266-315 | Dc-Dc Converter, Stand Rear, Press Switch, Elec Parts & Wire Harness, Battery, Horn Electric, Fuel Feed Pump, Am/Fm Radio High Band |
| Attachments | 316-361 | Arm Standard, Arm Long, Boom Back-Hoe, Bucket Linkage, Option Line Bar Base, Arm Cylinder Line, Grease Line, Bucket Cylinder Line |
Link-Belt 160X2, 160X2 - EX Common Problems This Manual Covers
Link-Belt 160X2 parts lookup stalled because the serial number plate on the cab platform is unreadable
Check the upper revolving frame, where the manufacturer's number is also stamped, as shown on page 7. Break it down: LBX is the brand, 160Q5 the model, HEX the machine type, and the last four digits the serial break. Match that serial break against the Manufacturer's No column on each parts page before you order.
Manual Section: Excavator & Engine Identification p. 7Hydraulic pump shows two part numbers in the inner parts index and the right one is unclear
Check page 18, where PUMP;HYD is listed as KLJ10570 (ZAJ010L0063) and KLJ10610 (ZAJ010L0064). Verify which pump group your machine carries on page 16: HYDRAULIC PUMP (STD) DJL901L0079-00 or the optional STD+2ND page DJL901L0080-00. Then follow the asterisk in the inner parts column of that parts page to the correct breakdown.
Manual Section: 160 X2 Inner Parts Index p. 18Boom cylinder lists four different part numbers in the inner parts index, unsure which one fits
Check the CYL;BOOM entries on page 18: KLV10970, KLV10990, KLV10960 and KLV10980. Verify the correct one by reading the Manufacturer's No column on the parts page against your serial break. When ordering, give your Link-Belt dealer the model, serial number, manufacturer's number, part number and quantity, as page 8 lays out.
Manual Section: 160 X2 Inner Parts Index p. 18Replacement part column shows a new number, unclear whether old and new parts interchange both ways
Check the interchangeability symbol between the part number and replacement part columns, defined on page 10. An = means the two parts swap either way; < means the replacement fits in place of the original but the original cannot replace it; X means neither substitutes for the other. Read the / definition there too before installing a supersession.
Manual Section: Parts Manual Overview p. 10Left or right side undercarriage part ordered for the wrong side of the machine
Verify the side using the convention on page 8: left and right are taken with the operator seated facing forward and the undercarriage drive sprockets toward the rear. Check the LH or RH abbreviation in the part name, then confirm the Manufacturer's No column on the Lowers pages starting at page 15 covers your serial.
Manual Section: How to order parts p. 8Bucket cylinder line has two parts pages, unclear which matches the arm length on the machine
Check which arm is fitted against the page 17 index: BUCKET CYLINDER LINE 8'-7" (2.62M) is DV5601L0161-00 for the standard arm, and 10'-0" (3.05M) is DV5601L0162-00 (OPT) for the long arm. Match that page code to the illustration in the Attachments section starting page 316, then locate the part by reference number.
Manual Section: 160 X2 Parts Index p. 17Frequently Asked Questions
What are the replacement specifications for the main hydraulic pump assembly on the Link-Belt 160X2?
The main hydraulic pump assembly (STD) is identified by part number KLJ10570. The assembly is secured using 9 bolts (part number 105R010Y030R) and 3 bolts (part number 108R014Y050R). p. 157
What is the engine fuel filter element part number for the Link-Belt 160X2?
The engine fuel filter element is part number 8980088400. p. 501
What is the part number for the starter motor assembly on the Link-Belt 160X2?
The starter motor assembly is part number 8980450270. p. 511
How is this Link-Belt 160X2 Parts Manual delivered?
This is a 529-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Does this Link-Belt 160X2 manual allow printing?
Yes. Many buyers print one chapter at a time for their own shop and keep the rest on a tablet.
Does this Link-Belt 160X2 manual have electrical schematics?
Included. The Link-Belt 160X2, 160X2 - EX Parts Manual provides a wiring diagram for the electrical system. See page 274 for an example.
