A missed grease point or the wrong oil in the swing reduction gear can park a Link-Belt 160 X2 hydraulic excavator for a day, and this 150-page Link-Belt 160 X2 operator manual PDF (OEM ID 2104) prevents it. Much of the book goes to lubrication, filters and fluids: an hourmeter-based lubrication chart, every grease point down to the turntable teeth, and the track, roller and idler checks your undercarriage relies on. From the cab chapter you learn what each monitor message means and how the C and D control patterns differ, while the specifications close out with working range and lifting capacity tables. Your hydraulic tank takes 90 liters (23.78 gal) of a 165-liter system; track shoe bolts go to 804 Nm, then a further 120°. One missing number can hold up a whole crew. Bookmarked chapters and searchable text work on screen, and the pages print clean enough to take to the bench and get greasy.
What's Inside This Link-Belt 160 X2 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 1-12 | To the Owner, Excavator Components, Identification Numbers |
| Safety, Decals, and Hand Signals | 13-30 | Safety Rules, Safety Area, Utility Safety, Operator Precautions, Decals, Hand Signals |

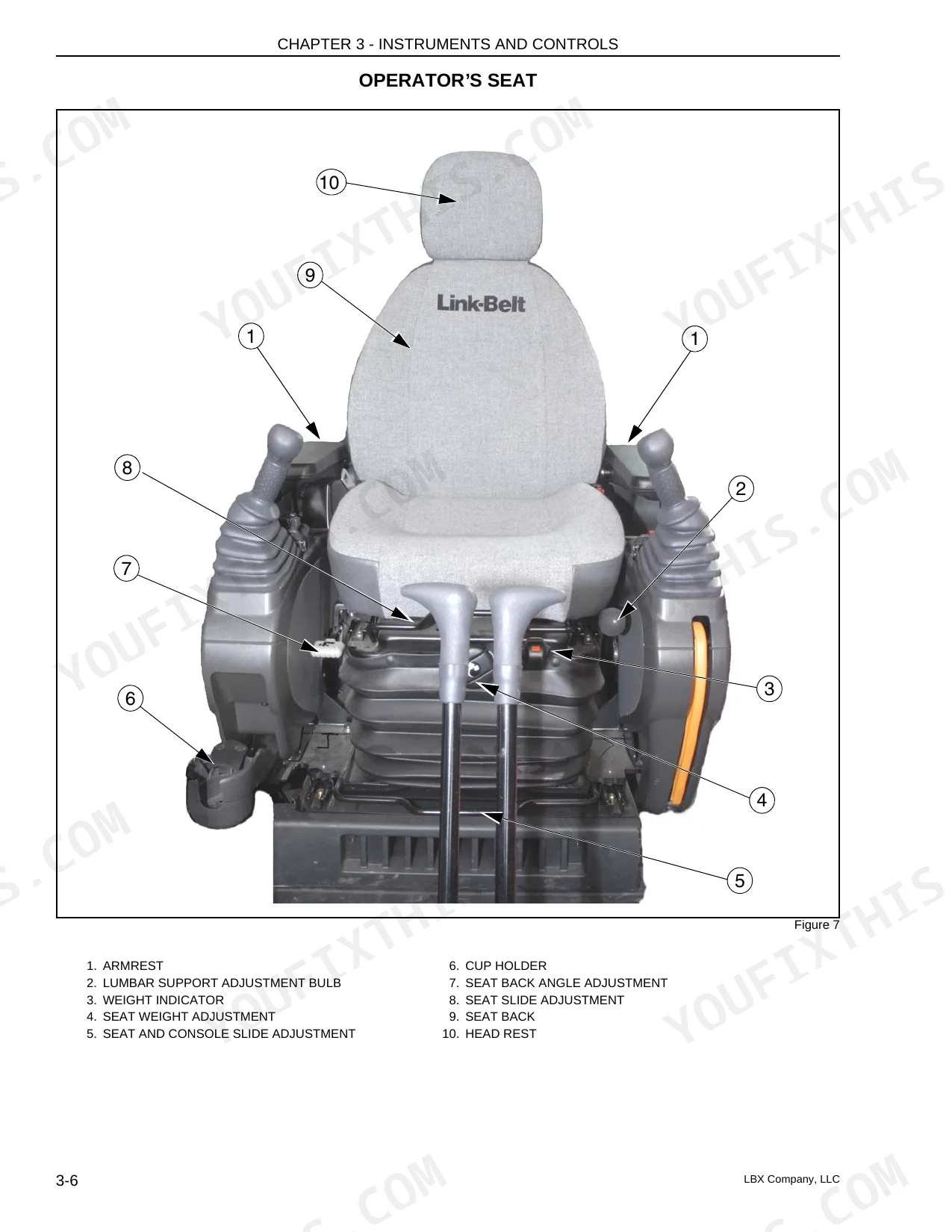

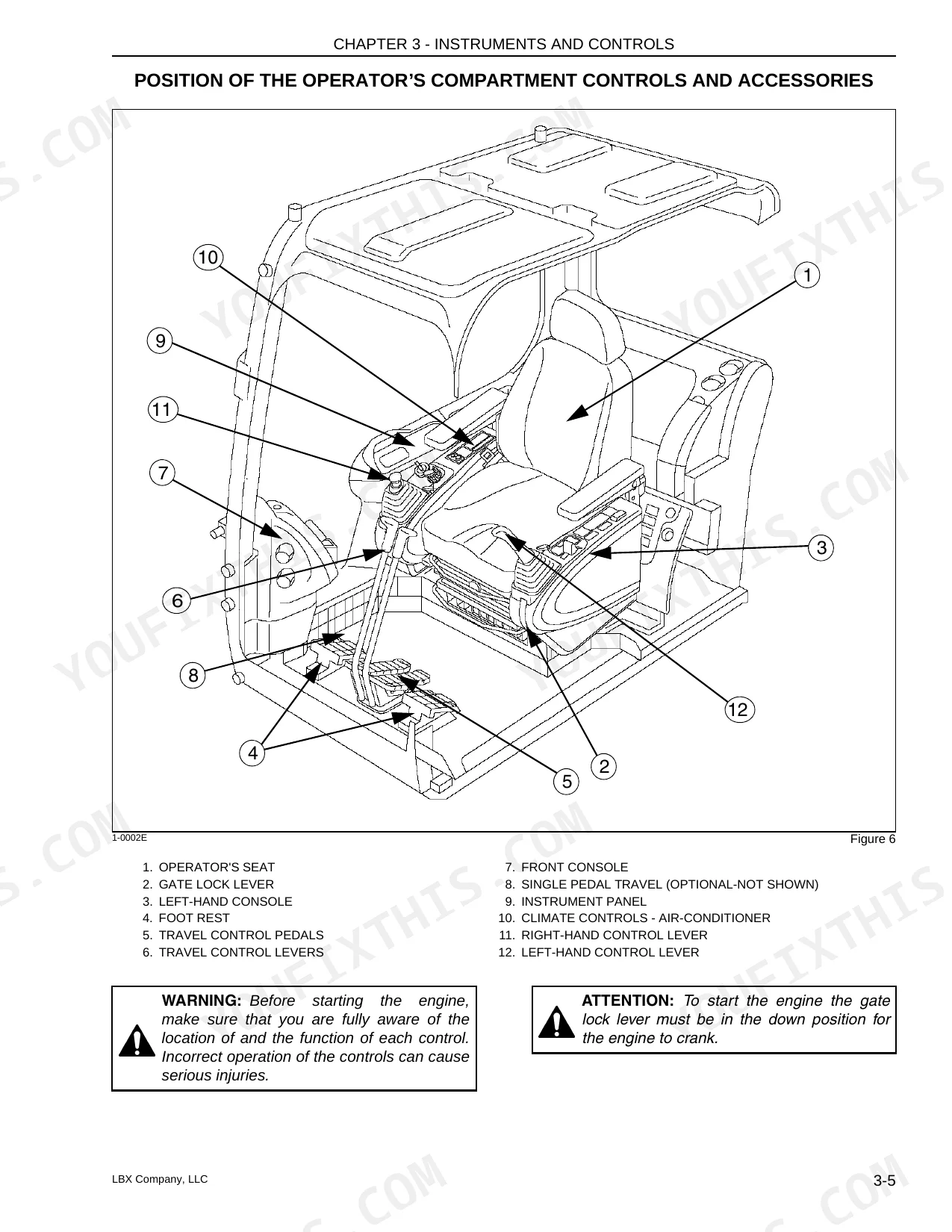

| Instruments and Controls | 31-62 | Cab, Steps and Access Handles, Position of the Operator’s Compartment Controls and Accessories, Operator’s Seat, Seat Controls, Right-Hand Control Arm and Instrument Panel |
| Operating Instructions | 63-82 | Before Operating the Excavator, Operating the Excavator, Run-In Period, Starting the Engine, Bringing the Excavator Up to Operating Temperature, Engine Operation |
| Lubrication, Filters, and Fluids | 83-116 | Servicing Instructions, Daily Inspections, Hourmeter, Lubrication Chart, Fluids and Lubricants, Fluid and Lubricant Capacities and Specifications, Lubrication Points |
| Maintenance and Adjustments | 117-130 | Tracks, Track Rollers and Idler Wheels, Radiator and Oil Cooler, Fan and Alternator Drive Belt, Inspecting and Cleaning the Excavator, Checking for Cylinder Leakage |
| Electrical | 131-138 | Fuses, Battery, Connecting One or Two Booster Batteries, Alternator, Starter Motor, Replacing a Bulb |
| Specifications | 139-148 | Engine, Electrical Systems, Hydraulic System, Undercarriage, Capacity of Systems and Components, Weights, Boom, Arms |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Capacity of the hydraulic tank | 23.78 gal (90 liters) | p. 105 |
| Total capacity of the system | 43.59 gal (165 liters) | p. 105 |
| Tightening torque of the track shoe | 600-672 lbf (813-911 Nm) | p. 120 |

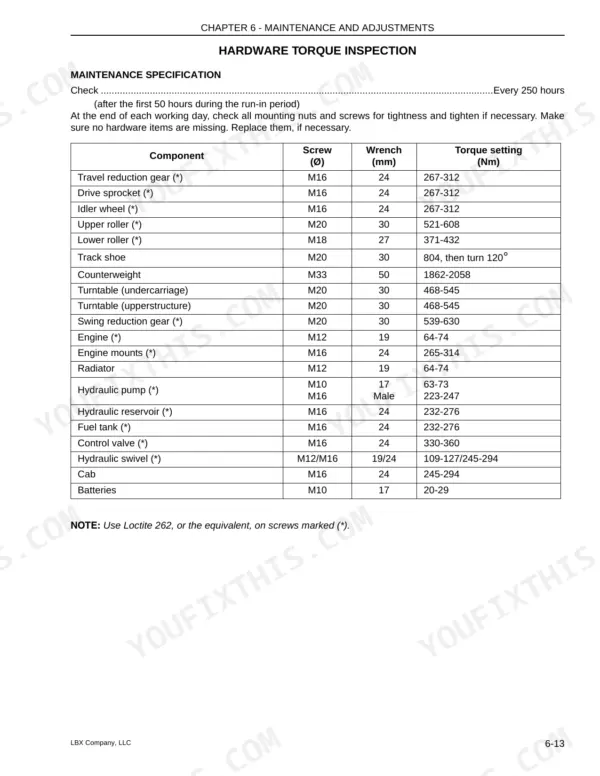

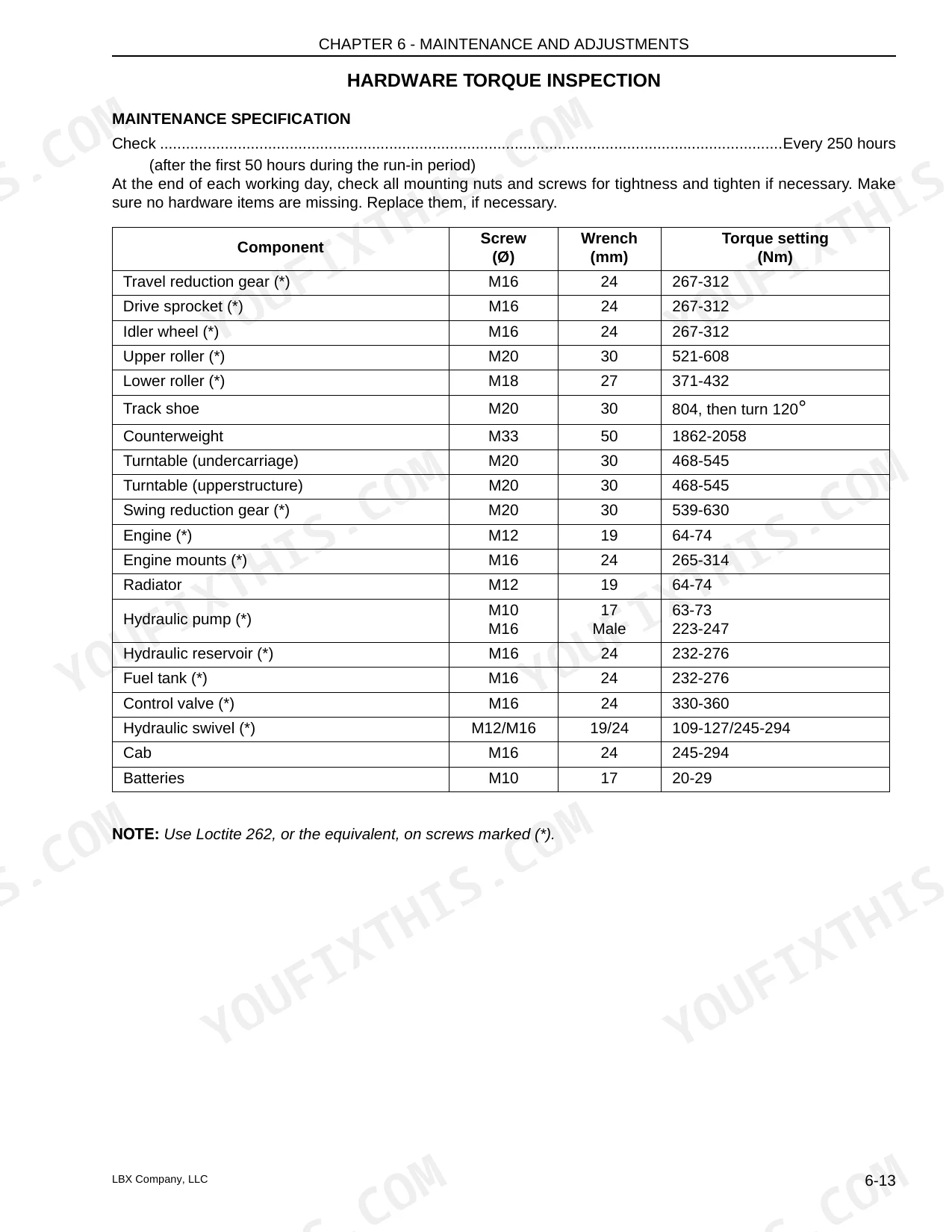

| Track shoe torque | 804 Nm, then turn 120° | p. 129 |
| Upper roller torque | 521-608 Nm | p. 129 |
| Lower roller torque | 371-432 Nm | p. 129 |

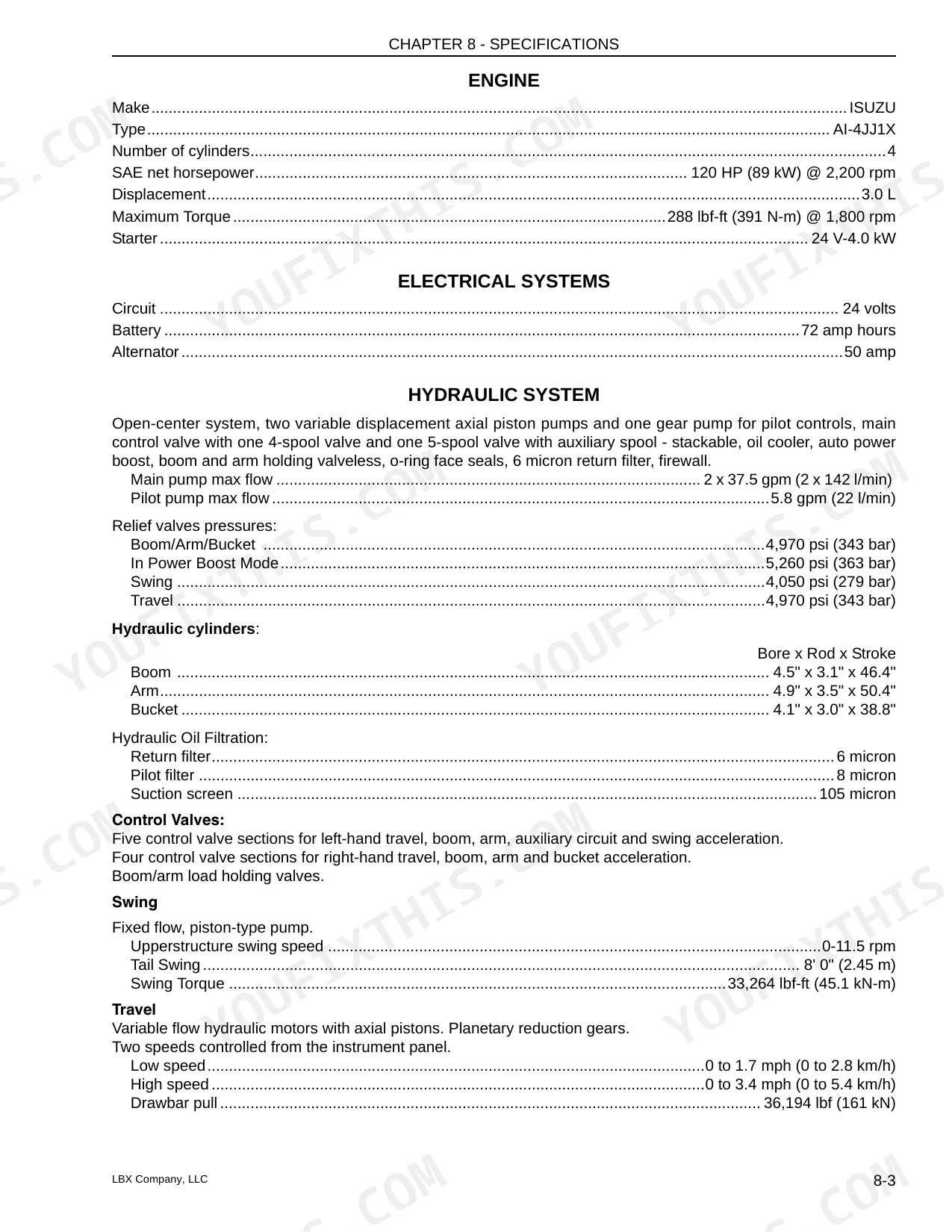

| Maximum Torque | 288 lbf-ft (391 N-m) @ 1,800 rpm | p. 141 |
| Swing Torque | 33,264 lbf-ft (45.1 kN-m) | p. 141 |
| Main pump max flow | 2 x 37.5 gpm (2 x 142 l/min) | p. 141 |
| Pilot pump max flow | 5.8 gpm (22 l/min) | p. 141 |
| Width of standard track pads | 23.6" (600 mm) | p. 142 |
| Engine Oil Capacity (with filter change) | 4.49 gal (17 liters) | p. 90 |
Link-Belt 160 X2 Common Problems This Manual Covers
Link-Belt 160 X2 message display showing check hyd oil filter warning during operation

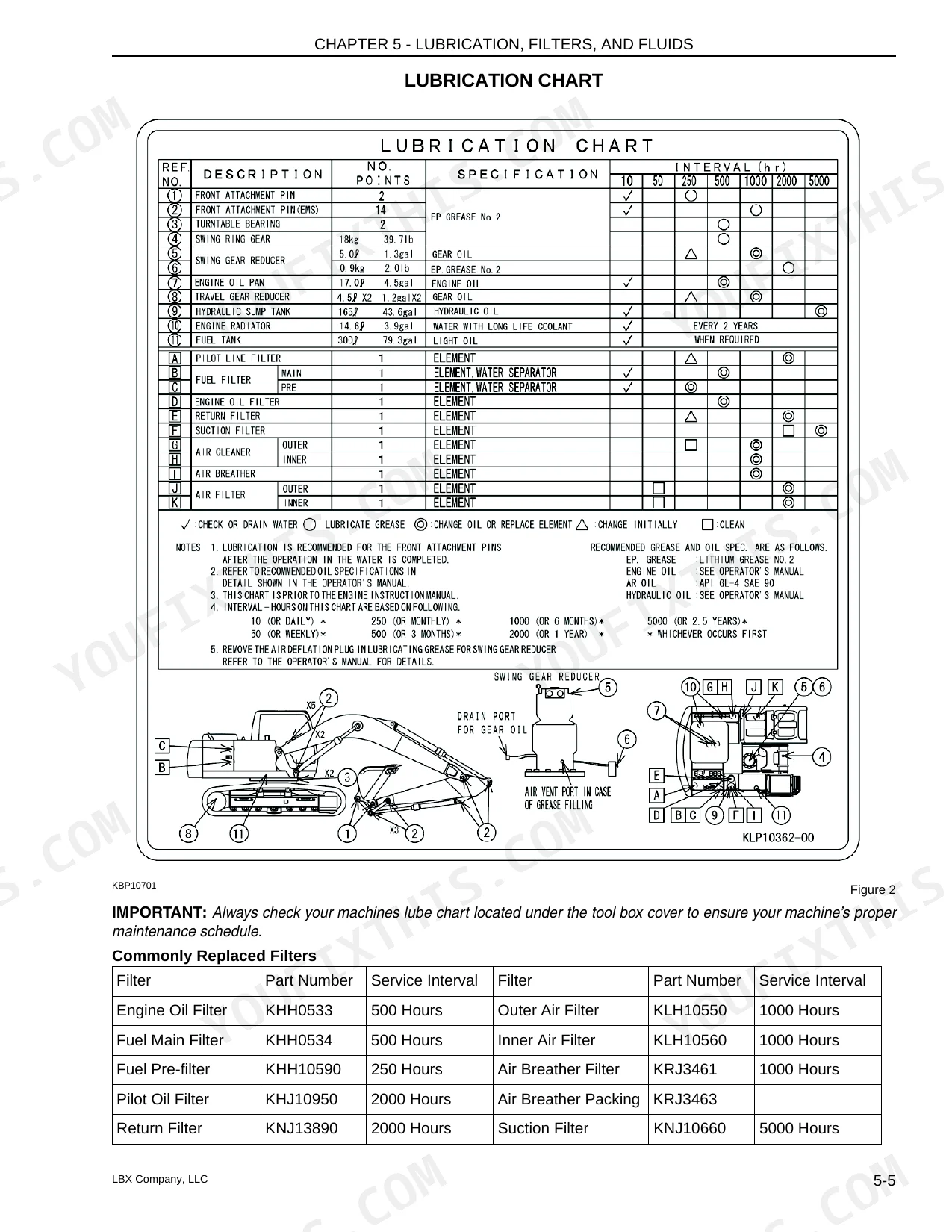

Check the hour meter against the maintenance schedule on page 87: the pilot oil filter is due every 2000 hours and the suction filter every 5000 hours. Replace whichever filter is overdue, then verify the hydraulic tank level before restarting; the tank holds 23.78 gal (90 liters) per page 105.
Manual Section: Lubrication, Filters, and Fluids p. 87track sagging between idler wheel and rollers, slack measuring outside specified range
Measure track slack following the track procedure on page 120. Compare the reading against 10.2 to 11.0 in (260 to 280 mm). Adjust track tension until it falls inside that window, then inspect the track rollers and idler wheels for damage before putting the machine back to work.
Manual Section: Maintenance and Adjustments p. 120air trapped in fuel system after running tank low with low fuel message displayed
Fill the fuel tank first; it holds 79.25 gal (300 liters) per page 90. Bleed air from the fuel system following the Fuel System Air Bleed procedure in the Lubrication, Filters, and Fluids section. Check the fuel pre-filter service record too, since the schedule on page 87 calls for service every 250 hours.
Manual Section: Fuel System Air Bleedattachment cylinder rods on boom and arm showing oil leakage during daily inspection
Clean the cylinder rods so fresh oil is easy to spot, then compare each rod against the Checking for Cylinder Leakage table on page 124, which rates a dry, slightly greasy or oily rod by a paper test. Release hydraulic system pressure before loosening anything. Check the tank level afterward against 23.78 gal (90 liters) on page 105, and bleed air from the attachment cylinders if any line was opened.
Manual Section: Checking for Cylinder Leakage p. 124alternator warning on message display and batteries showing low charge at startup
Check battery charge state and electrolyte level following the battery checks in the Electrical section. Clean the battery terminals, then confirm the fan and alternator drive belt is in good condition. If the machine will not crank, connect one or two booster batteries using the procedure in the same section.
Manual Section: Battery Troubleshooting p. 136engine producing black smoke with abnormal noise and sudden changes in engine speed
Check the message display for air filter, boost temp high, or check engine warnings before digging further. Verify engine oil level; an oil and filter change takes 4.49 gal (17 liters) per page 90. Work through the engine operation troubleshooting steps in the Operating Instructions section, and stop the machine if a warning stays on.
Manual Section: Engine Operation TroubleshootingFrequently Asked Questions
What are the replacement specifications for the main hydraulic pump on the Link-Belt 160 X2?
The main pump has a maximum flow rate of 2 x 37.5 gpm (2 x 142 l/min). p. 141
What is the correct tightening torque for the track shoe bolts on the Link-Belt 160 X2?
The tightening torque for the track shoe bolts should be between 600-672 lbf (813-911 Nm). p. 120
What is the service interval for replacing the engine oil filter on the Link-Belt 160 X2?
The engine oil filter should be replaced every 500 hours of operation. p. 95
What is the correct tension slack for the fan and alternator drive belt?
The tension slack for the fan and alternator drive belt should be about 1/2 inch when pressure of around 20 lbs is applied to the center of the belt. p. 123
How often should the hydraulic reservoir breather be replaced?
The reservoir breather should be replaced every 1000 hours of operation. p. 105
How will I receive this Link-Belt 160 X2 Operator Manual?
Instant PDF download. You get the full 150-page searchable Operator Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Is this Link-Belt 160 X2 manual print-friendly?
You can. The PDF is unlocked and carries no copy protection, so print the sections you want and keep the file as your backup.
