From the track rollers and recoil spring up through the turntable bearing, Isuzu engine, pilot lines, cab and backhoe boom, the Link-Belt 210LX parts manual PDF (OEM ID 1017) breaks the excavator down across 479 pages. Hydraulic lines take up more than a quarter of this parts catalog. Drain, pilot, breaker, swing, traction and cylinder lines are drawn as exploded views keyed to part numbers, so you can match the valve, pump or hose you are replacing to the spot where it sits on the machine. Electrical work gets the same treatment, with separate cab and frame wire harness drawings plus the system monitor, controller and DC-DC converter. Before ordering shoes, check your undercarriage: grouser shoes run from 600 to 900, and most sizes come in sealed and unsealed versions. A hose ordered off a faded tag means the machine sits twice. With bookmarked sections and a text layer, you can type in a part name, confirm the number and have the 210LX digging again sooner.
What's Inside This Link-Belt 210LX Parts Manual

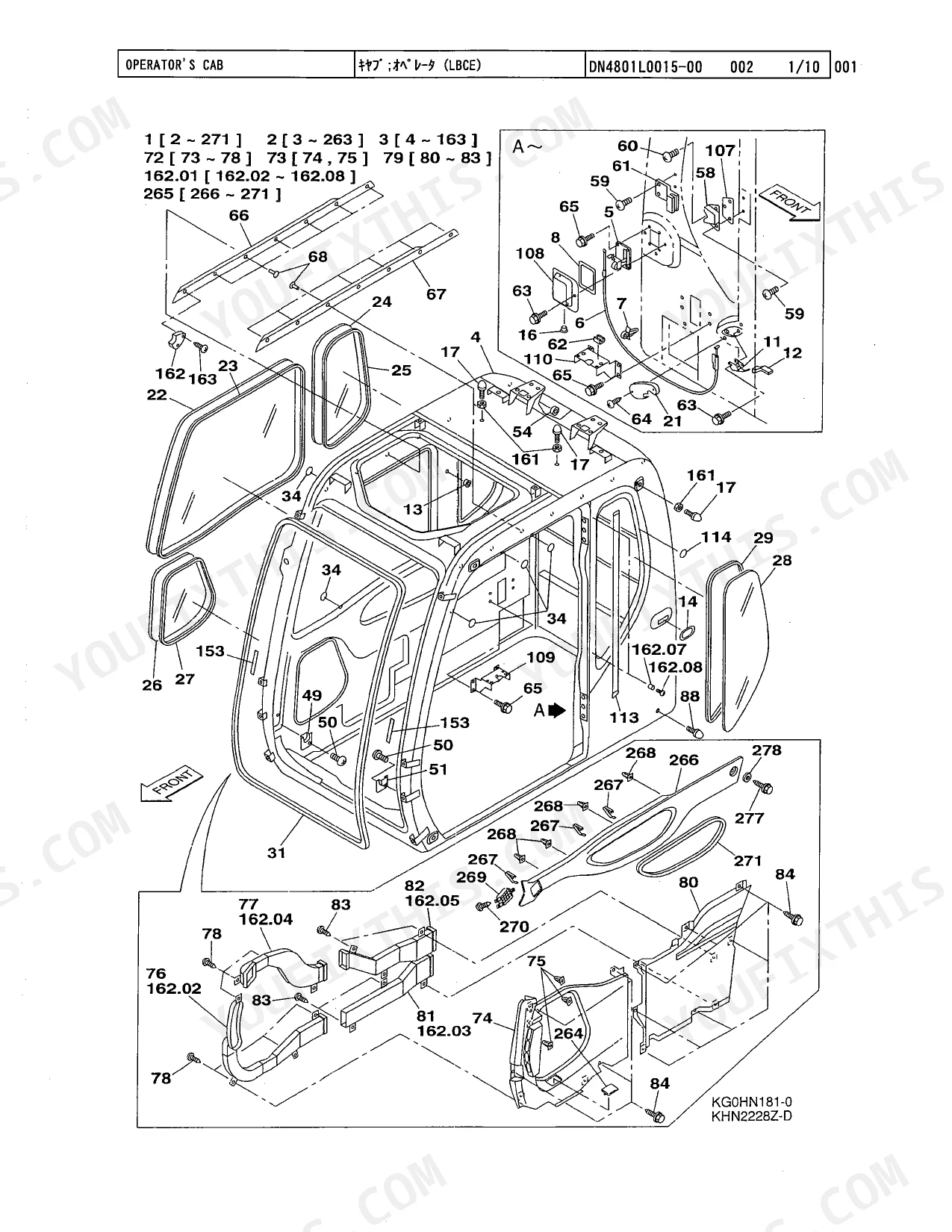

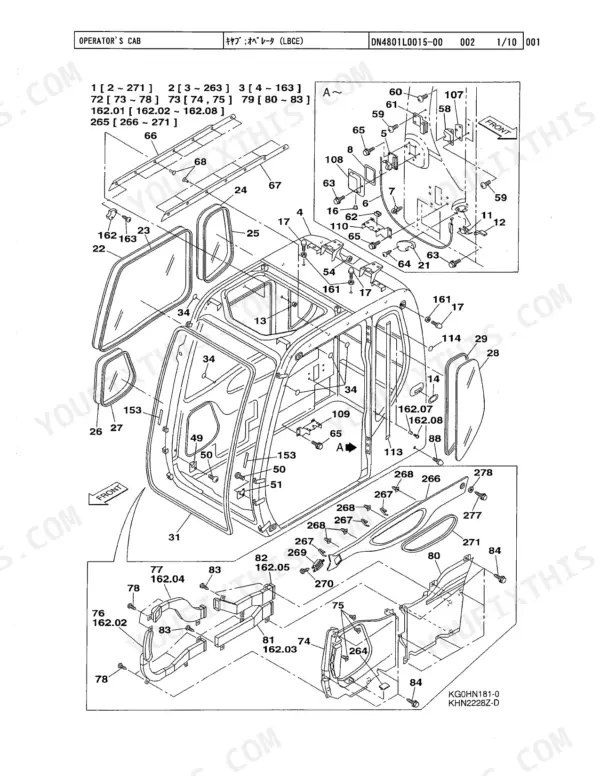

| System | Pages | Key Topics |
|---|---|---|
| Lowers | 18-51 | Traction Equipment, Lower Frame, Traction Motor Line, Upper Roller, Take-Up Roller, Lower Roller, Grouser Shoe 800 Seal, Grouser Shoe 900 Seal |
| Swing Frames | 52-63 | Revolving Frame, Counter Weight, Upper Undercover, Turn Table Bearing |
| Revolving Shafts & Equipment | 64-65 | Revolving Equipment |
| Engines | 66-83 | Fuel Line, Engine Isuzu, Muffler Standard, Radiator Swing Out, Air Cleaner Element, Engine Stop Control, Fuel Tank |
| Control & Lines | 84-213 | Drain Line, Bucket & Arm Line, Pilot Line, Pilot Press & Return Line, Boom Line, Breaker Line, Breaker Line S/V, Return & Oil Cooler Line |
| Operator's Cab & House | 214-277 | Dog Chain, Cab Guard, Cab Front Guard, Cover, Stone Guard, Operator's Cab, Rear Stand, House |
| Accessories & Name Plate | 278-295 | Tools, Painting, Name Plate English, Rear View Mirror, Spare Parts Kit |
| Electric Parts | 296-347 | Dc-Dc Converter, System Monitor, Elec. Parts & Wire Harness - Cab, Elec. Parts & Wire Harness - Frame, Battery, Horn, Am/Fm Radio High Band, Heater - Frame |
| Attachments | 348-479 | Arm Standard, Arm Short, Boom Back-Hoe, Bucket Linkage, Option Line Bar Base, Arm Cylinder Line, Grease Line, Bucket Cylinder Line |
Link-Belt 210LX Common Problems This Manual Covers

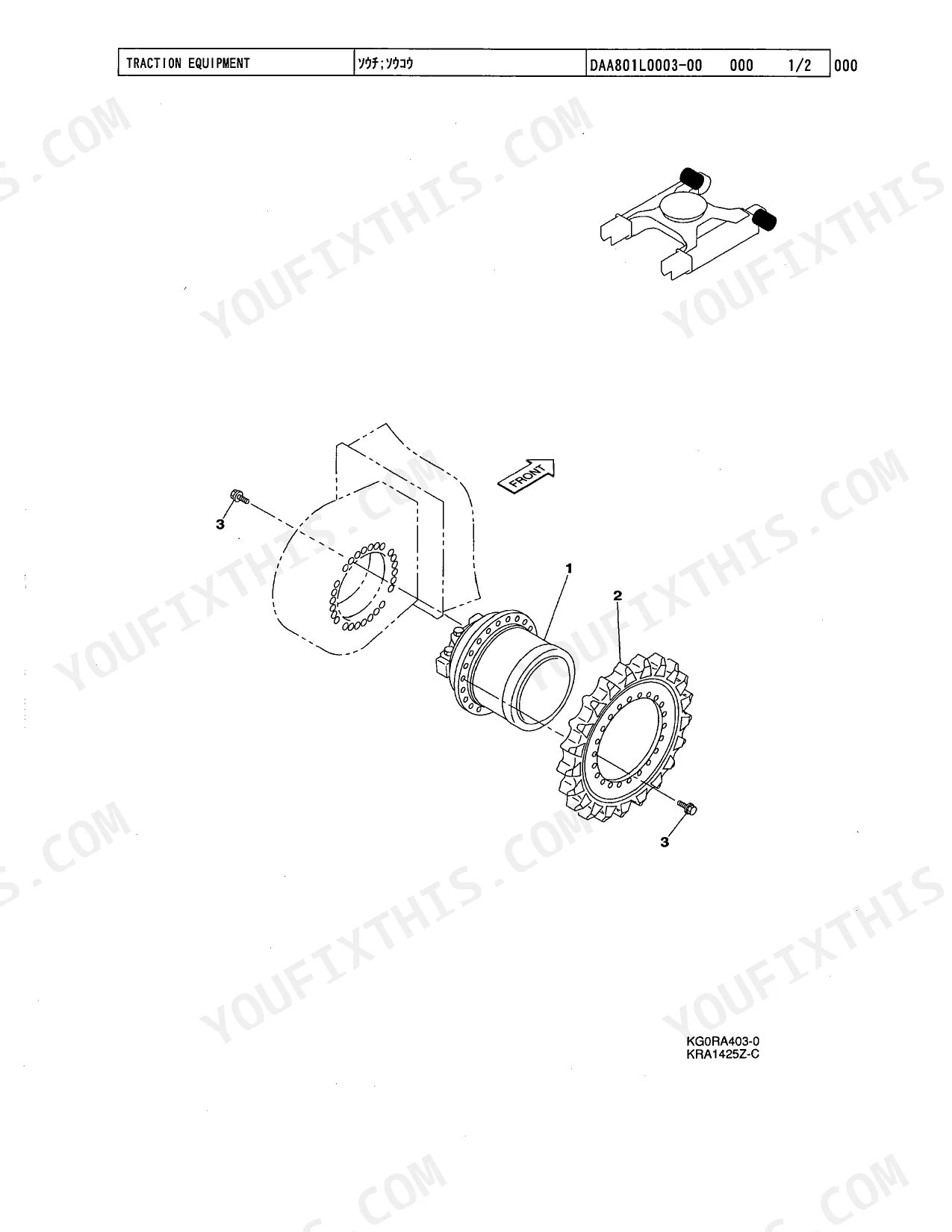

Link-Belt 210LX traction motor and sprocket assembly part numbers hard to identify from the lowers diagram

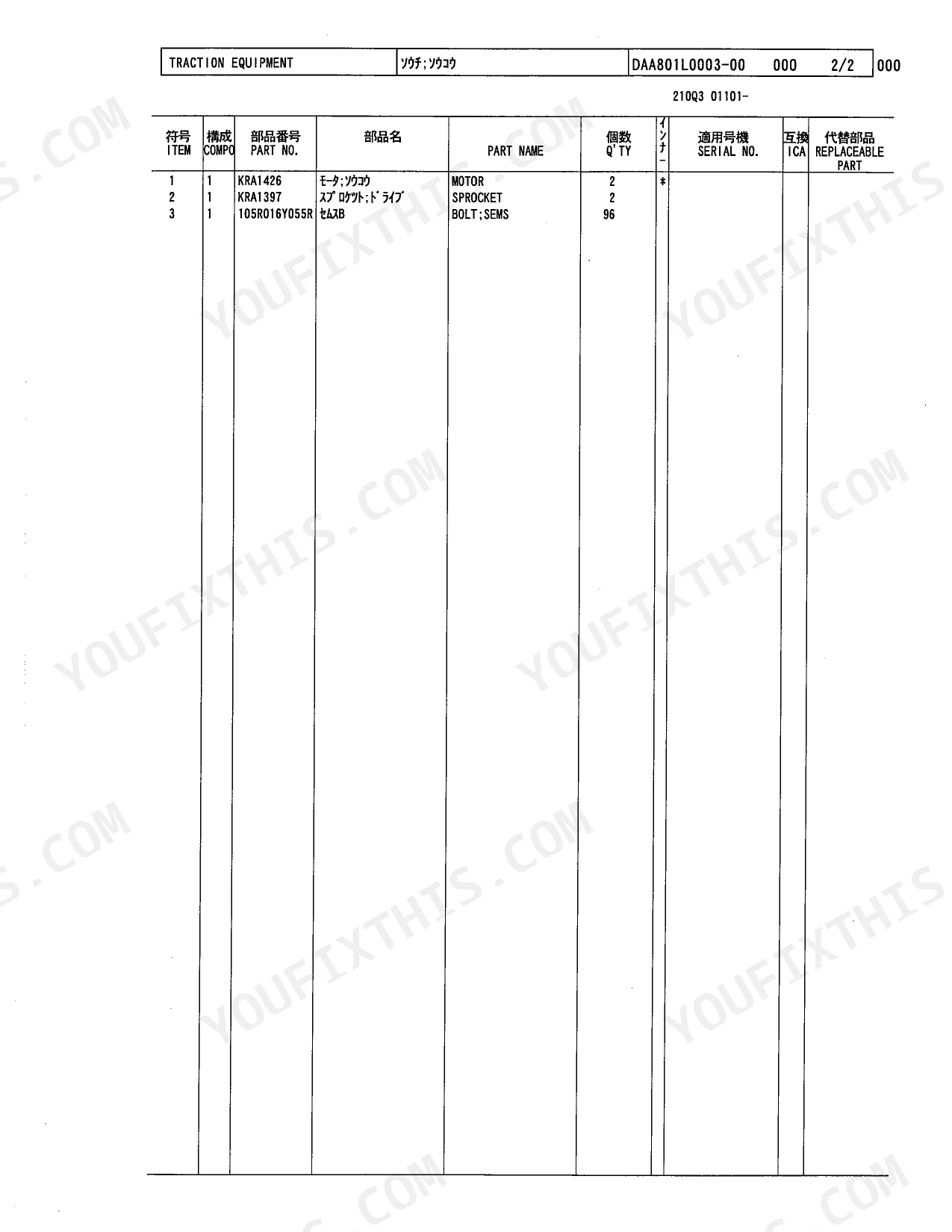

Check the Lowers chassis parts diagram on page 18 and find the traction motor and sprocket assembly callouts. Match each callout to the parts number list on page 19. Verify your serial number on the identification plate and read the interchangeability symbols explained in the front of the book before you order.
Manual Section: Lowers p. 18Upper roller, lower roller or take-up roller part number unclear when ordering undercarriage replacements
Check the Lowers section, starting with the UPPER ROLLER breakdown on pages 24-25, then the separate lower roller and take-up roller breakdowns, and match each callout to its parts list. Verify your shoe width before ordering track parts, because the catalog has separate Grouser Shoe 800 Seal and Grouser Shoe 900 Seal breakdowns. Confirm your serial number first.
Manual Section: Lowers p. 25Turn table bearing and revolving frame parts hard to identify in the swing frame breakdown
Check the Swing Frames section starting on page 52 for the turn table bearing, revolving frame and upper undercover breakdowns. Match each callout to its parts list entry, then look at the revolving equipment on page 64 if the job needs those parts too. Verify your serial number before you order bearing parts.
Manual Section: Swing Frames p. 52Isuzu engine air cleaner element and fuel line part numbers hard to find in the engines section

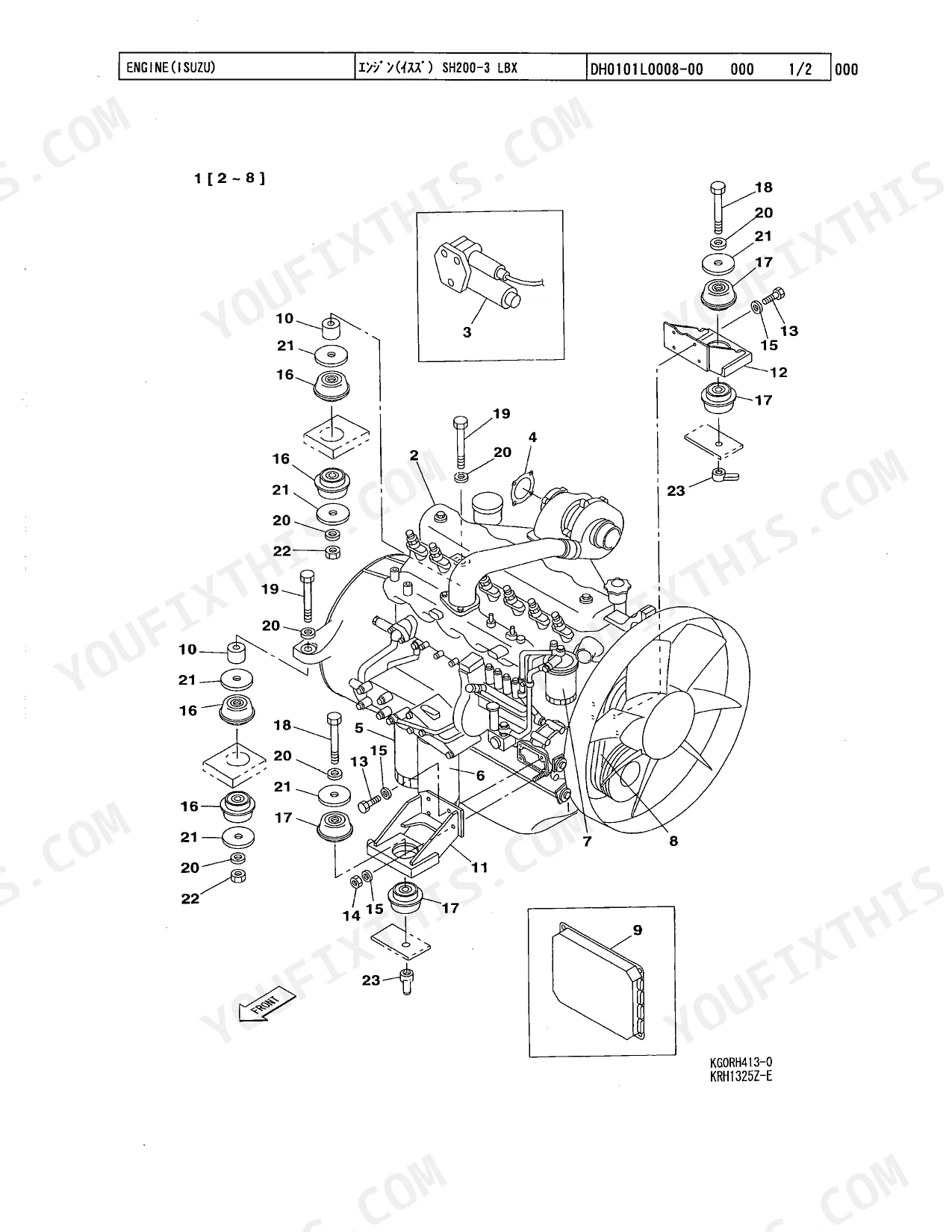

Check the Engines section starting on page 66 for the air cleaner element, fuel line and fuel tank breakdowns. Use the Isuzu engine parts diagram on page 68 to match engine mounting components to their callouts. Verify the serial number on your identification plate before you order the element or any lines.
Manual Section: Engines p. 66Hydraulic pump coupling or control valve mounting parts hard to identify in the control and lines section

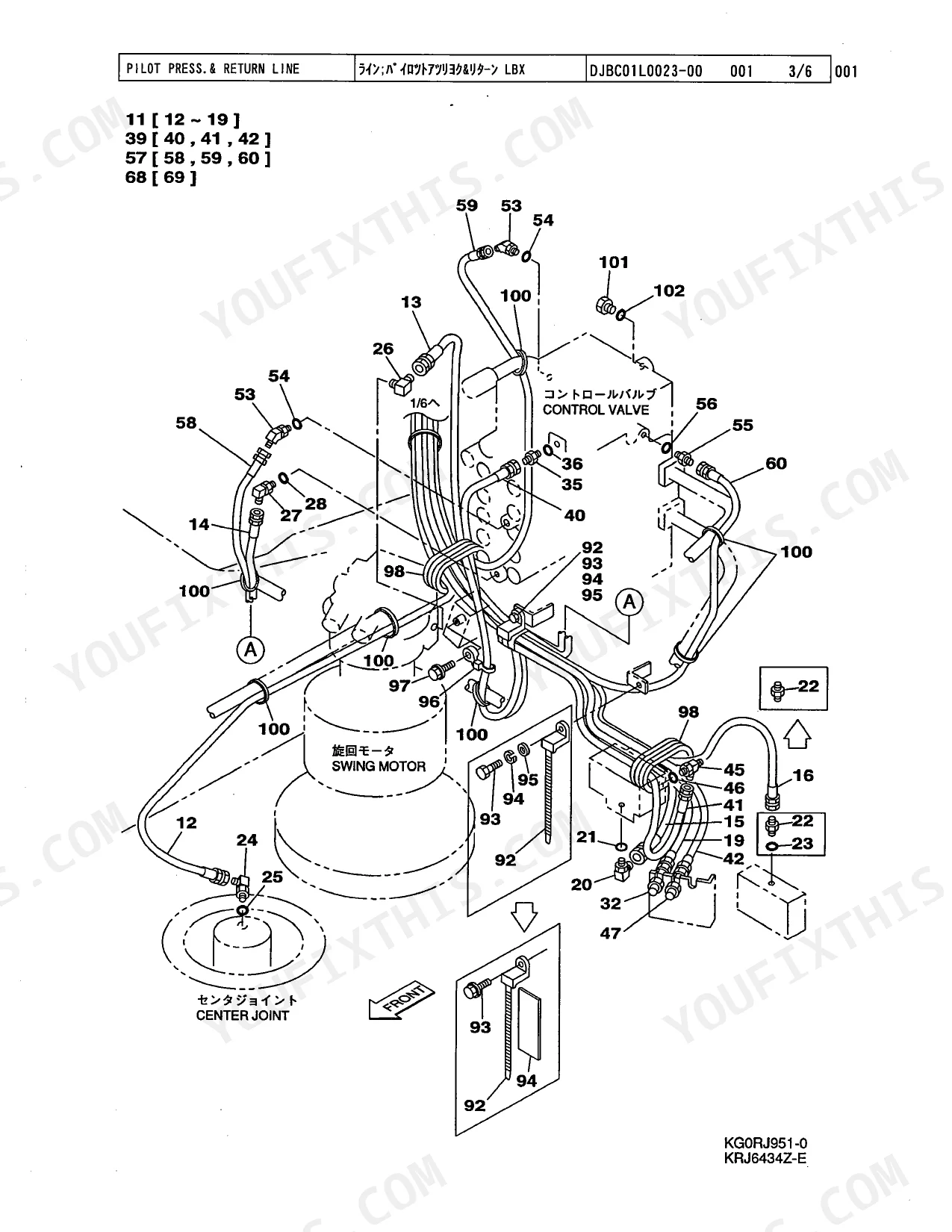

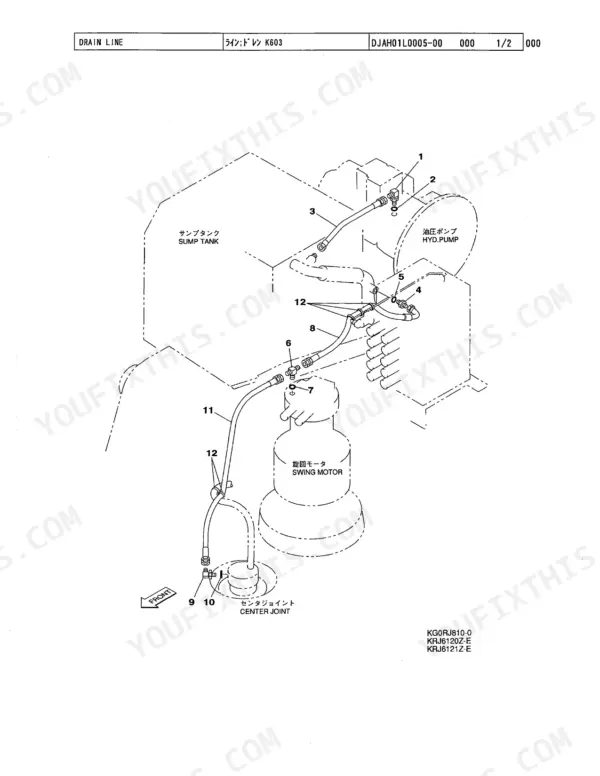

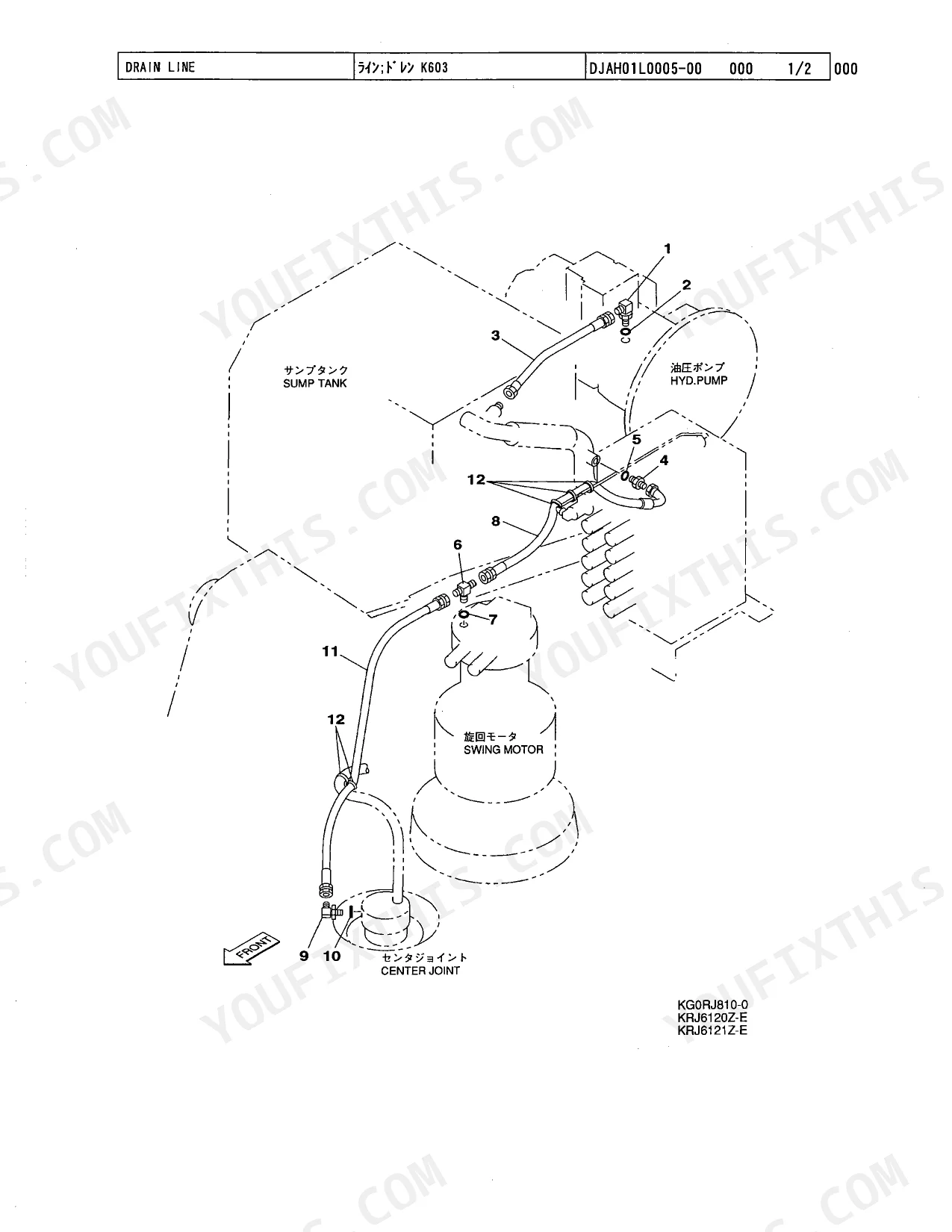

Check the Control & Lines hydraulic parts diagram on page 84 to find the hydraulic pump assembly, coupling and control valve mounting breakdowns. Trace the pilot line, boom line and return and oil cooler line routing on the hydraulic schematic so you order the correct line the first time.
Manual Section: Control & Lines p. 84Bucket cylinder line or arm cylinder line parts hard to match on standard versus short arm

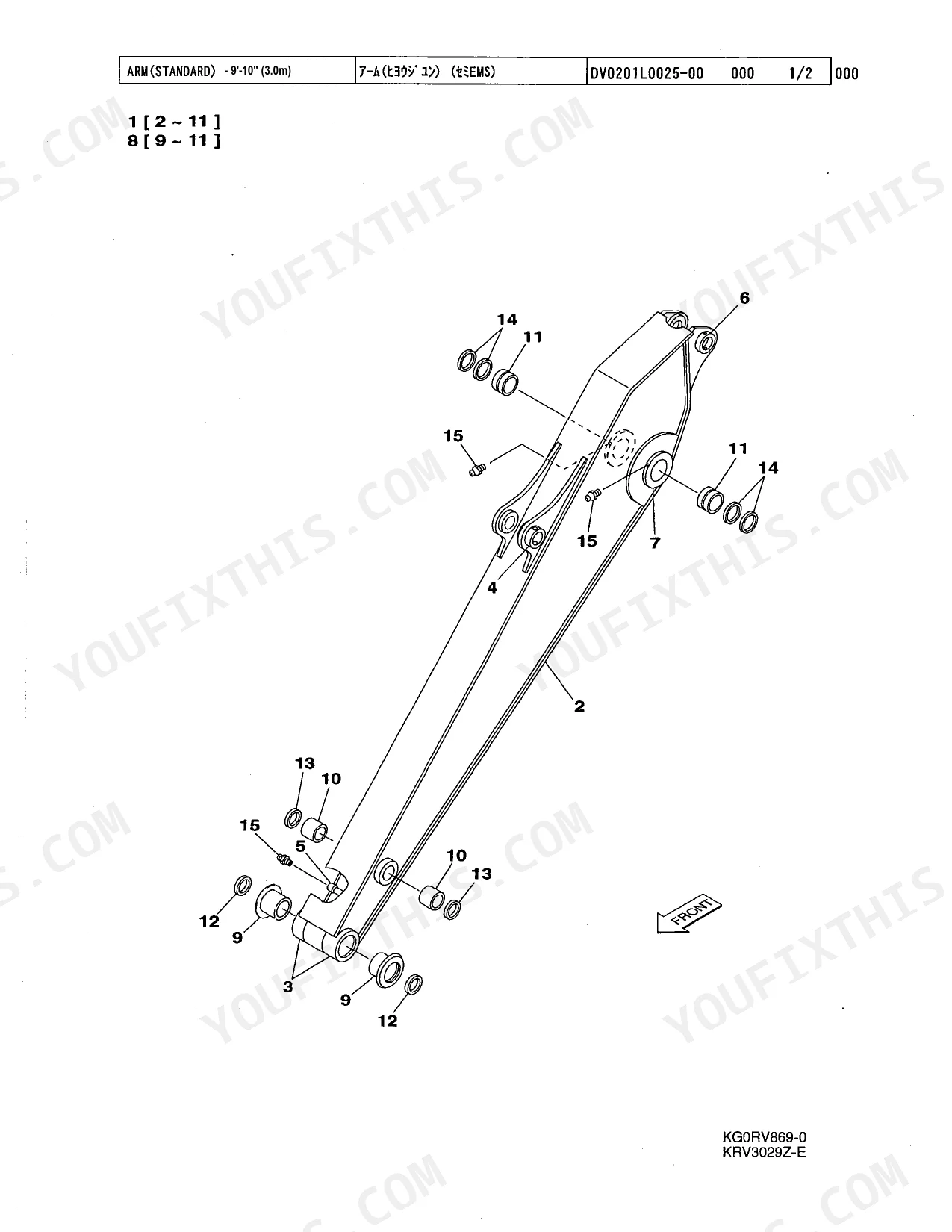

Check the boom and attachment parts diagram on page 348 and confirm whether your machine has the standard arm or the short arm, because the catalog lists them separately. Match the bucket cylinder line, arm cylinder line, grease line and bucket linkage callouts to that arm before you order any parts.
