Need factory-level service data for your 1999-2006 Mustang Skid Steer Loader? The Mustang 2042, 2044, 2054 Service Manual (OEM #000-78025) runs 143 pages organized to match real shop workflow, from specs through electrical, with separate coverage for each model variant. Hydraulic schematics map full flow for both the main system and the hydrostatic drive. Wiring diagrams cover the interlock circuit, brake circuit, charging circuit, and full harness. Troubleshooting charts span steering, hydraulics, drivetrain, and electrical. Set the lift cylinder locking nut to 215-225 ft-lbs (292-305 Nm) and the tilt cylinder locking nut to 450-500 ft-lbs (610-678 Nm). Your machine is down and the dealer wants three days. Download the PDF, jump to the bookmarked section, and start wrenching.
What's Inside This Mustang 2042, 2044, 2054 Manual
| System | Pages | Key Topics |
|---|---|---|

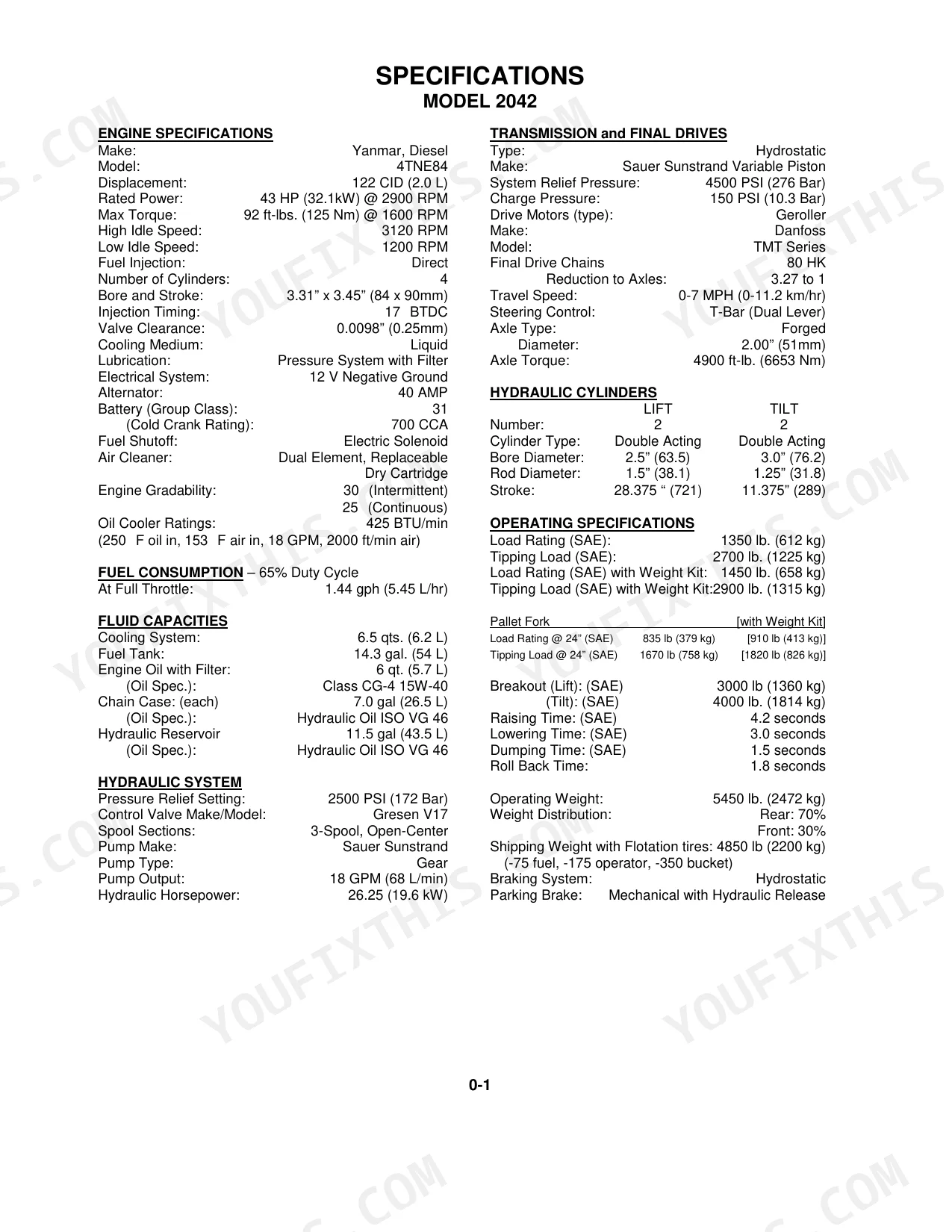

| Specifications | 5-12 | Specifications 2042, Specifications 2044, Specifications 2054 |

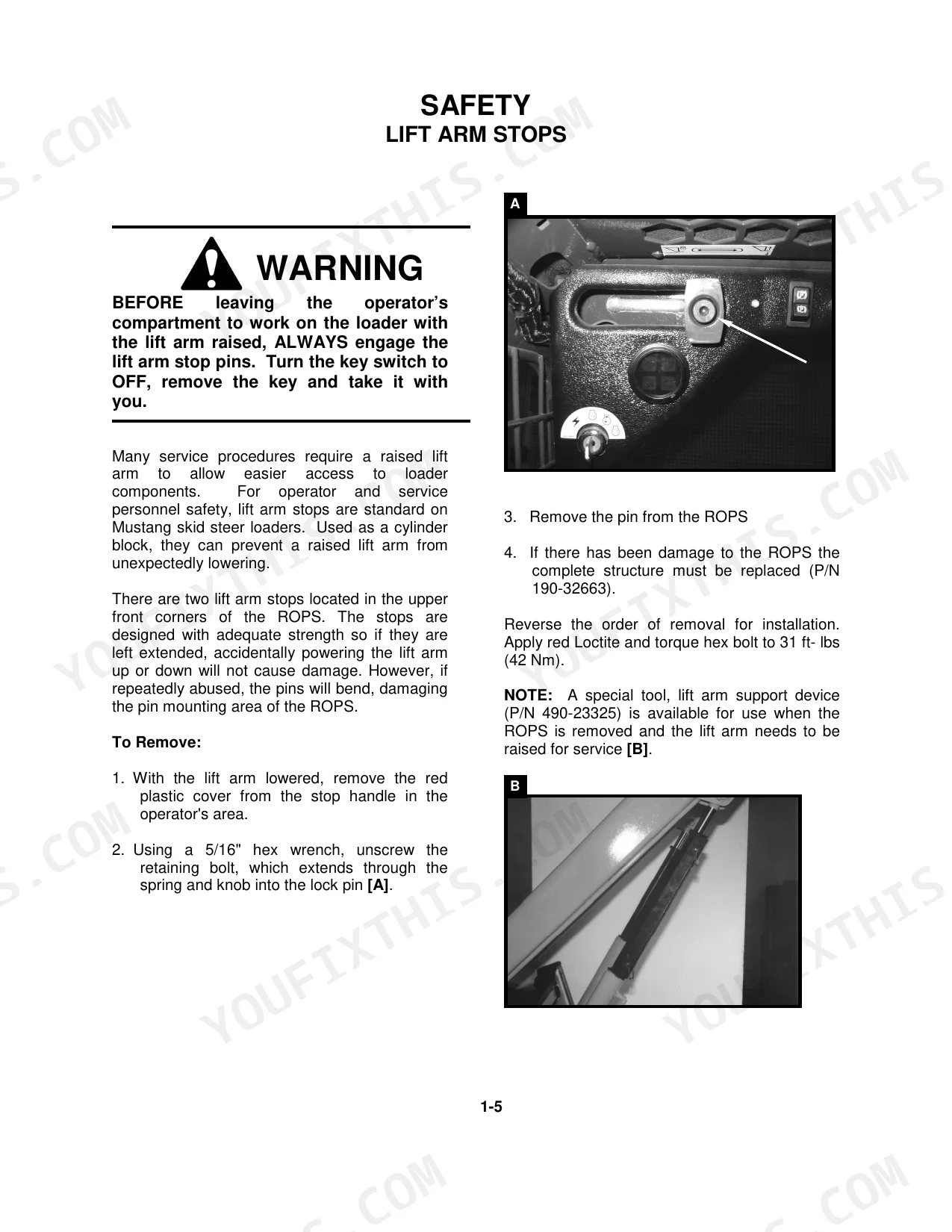

| Safety | 13-29 | Safety Equipment, Lift Arm Stops, Roll Over Protective Structure - Removal and Installation, Safety Interlocks, Lift Arm Bypass Switch, Parking Brake, Neutral Start Switches |
| General Information | 30-41 | System Contamination Control, Hydraulic Fluid, Maintenance Chart, Pre-Delivery Check List |
| Steering Controls | 42-51 | Troubleshooting, Neutral Centering Device - Adjustments, Neutral Centering Device - Service and Repair, Steering Controls - T-Bar, Steering Controls - Dual Lever |

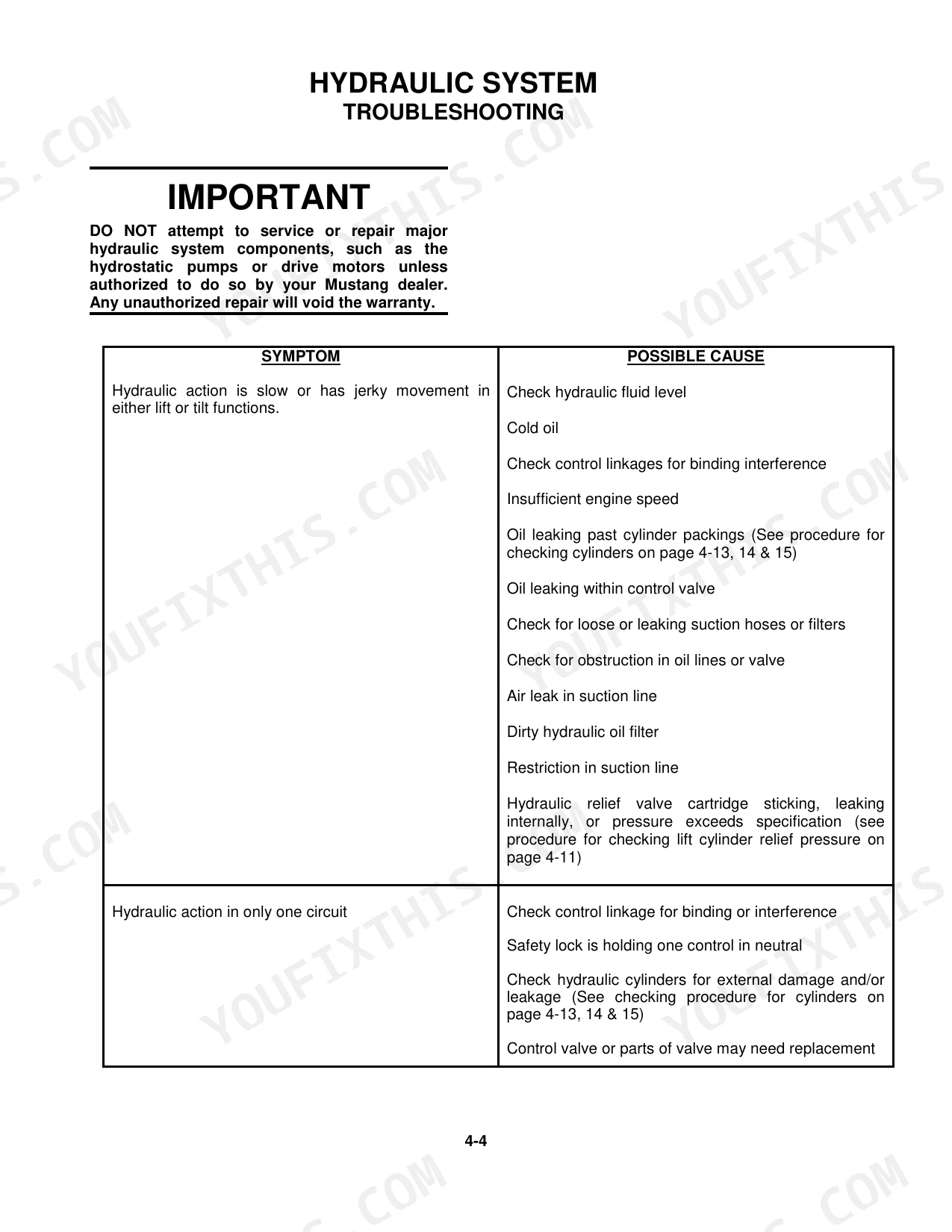

| Hydraulic System | 52-73 | Hi-Flow, Troubleshooting, Flow Diagram, Controls, Lift Circuit Leak-Down Test, Tilt Circuit Leak-Down Test, Hydraulic Cylinder Testing, Hydraulic Cylinder Service and Repair |

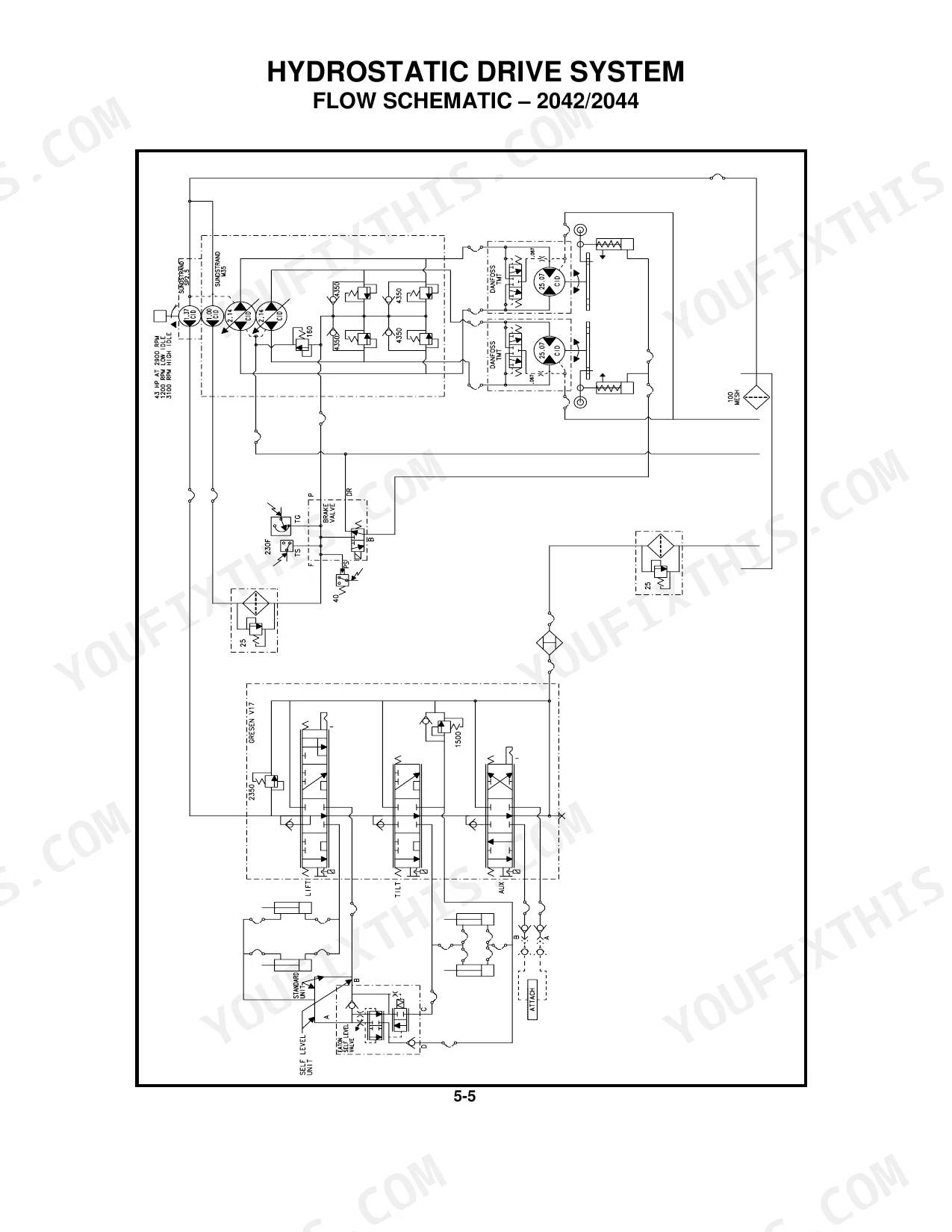

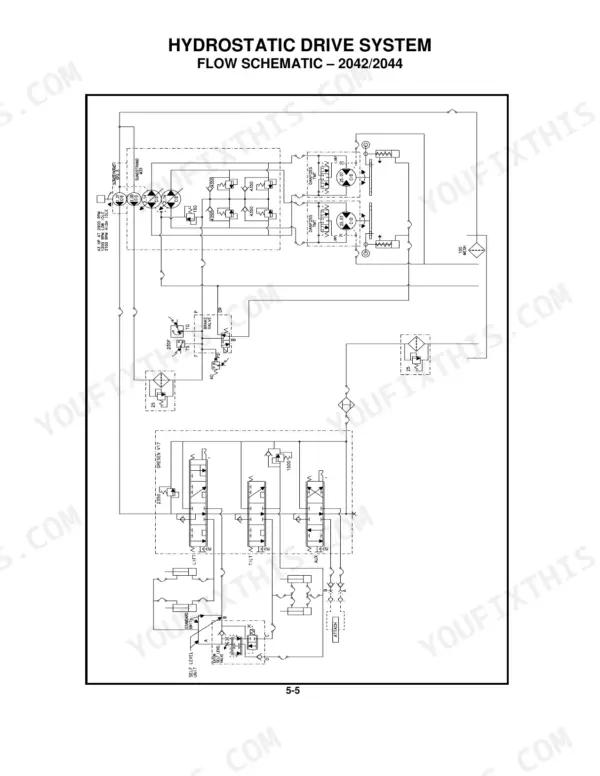

| Hydrostatic Drive System | 74-93 | Troubleshooting, Flow Diagram, Flow Schematic, System Checks Charge Pressure, Power Check, Directional Check/Relief Valve, Hydrostatic Pump, Removal and Installation |
| Chain Case | 94-107 | Drive Chain - 2042/2044, Drive Axle and Sprocket – 2042/2044, Axle Housing R&I - 2054, Drive Chain & Sprocket R&I - 2054, Troubleshooting |
| Engine | 108-119 | Troubleshooting, Engine / Hydrostatic Pump – Removal and Installation, Cooling System, Fuel System, Injection Timing, Valve Clearance Adjustment |

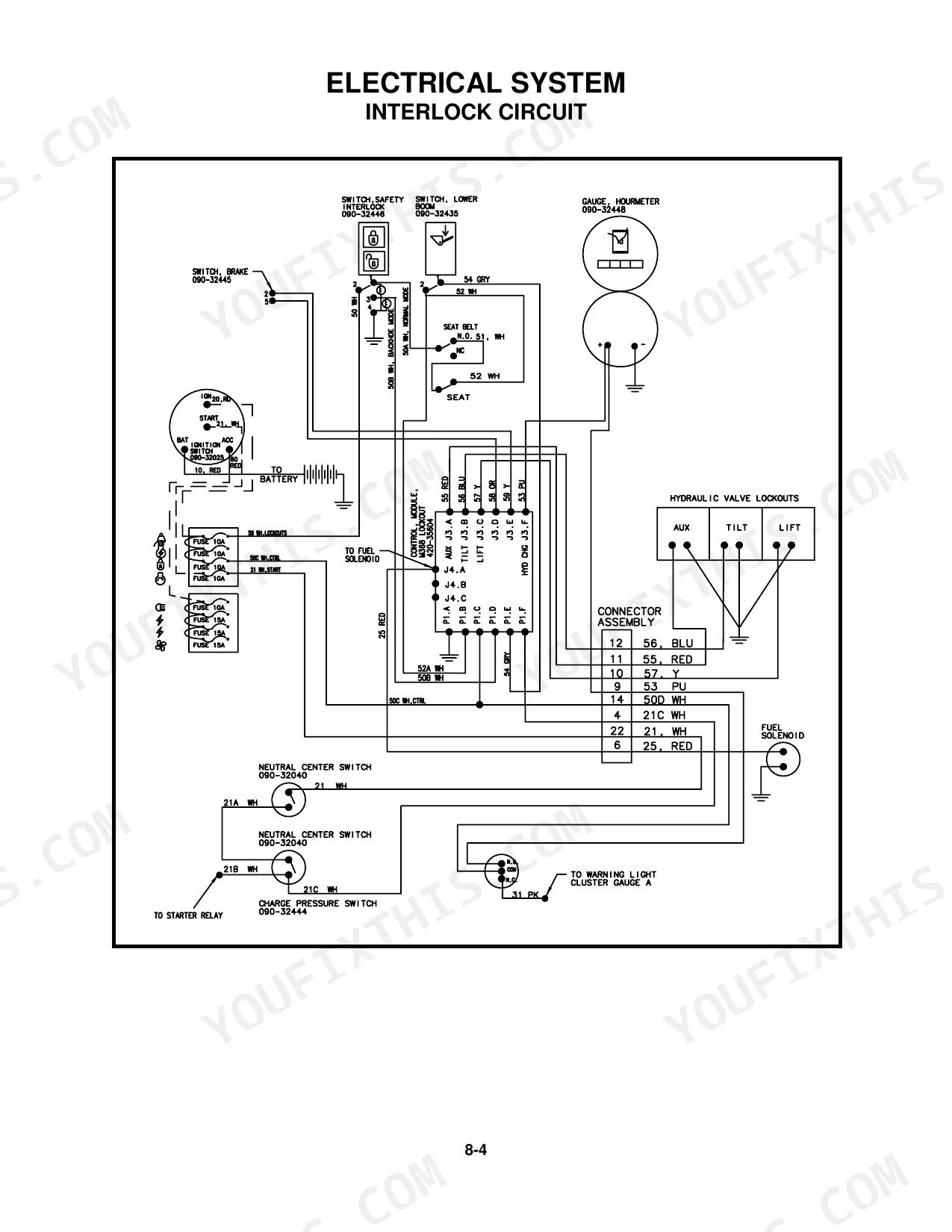

| Electrical System | 120-138 | Instrument Panel, Interlock Circuit, Interlock Circuit Wiring Diagram, Control Module Tests, Brake Circuit Wiring Diagram, Troubleshooting, Charging Circuit Diagram |
| Accessories | 139-143 | Cab Door, Cabin Heater, Accessory Outlet / Int. Light / Beacon, Backup Alarm, Auto Shutdown |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Lift hydraulic cylinder locking nut torque | 215-225 ft-lbs. (292-305 Nm) | p. 67 |
| Tilt hydraulic cylinder locking nut torque | 450-500 ft-lbs (610-678 Nm) | p. 67 |
| Hydraulic filter replacement interval (regular) | 200 hours | p. 32 |
| Hydraulic filter type (return line) | 7-micron filter | p. 52 |
| Air filter replacement | as needed | p. 32 |
| Air filter part number | 420-35598 | p. 109 |
| Fuel filter water drain check interval | 10 hours | p. 32 |
| Fuel filter change interval | 1000 hours or YEAR | p. 32 |
| Battery group class | 31 | p. 5 |
| Battery cold crank rating | 700 CCA | p. 5 |
| Typical starter draw (new engine, room temperature) | 250 amps to 325 amps | p. 128 |
| Alternator belt maintenance | Tighten to Proper Deflection | p. 32 |
Mustang 2042, 2044, 2054 Common Problems This Manual Covers
Mustang 2042 engine cranks but will not start or turns over slowly in cold weather p. 132
Test the battery at the terminals for a full-charge reading of 12.6 volts, detailed on page 132. Clamp an amp meter on the starter draw: a healthy unit pulls 250 to 325 amps at room temperature. Clean every ground connection.
Manual Section: Electrical SystemLoader hydraulics respond slowly or lose lift power when operating under heavy load p. 39
Inspect the lift circuit for internal bypass. Confirm the hydraulic reservoir is filled to its 11.5 gal (43.5 L) capacity. Check all 1/4 inch J.I.C. flare fittings for leaks and torque them to 8-12 ft-lbs as shown on page 39. Drain and replace the fluid if contaminated.
Manual Section: Hydraulic SystemDrive performance feels weak or slips noticeably on one side during operation p. 82
Measure the charge pump flow with an inline flow meter, confirming a minimum of 10 gpm (37.5 L/min) per page 82. Replace the charge pressure filter if it is near its initial change interval, within the next 50 hours noted on page 92.
Manual Section: Hydrostatic Drive SystemDiesel engine shuts down randomly after running normally with no warning lights p. 109
Examine the fuel lines for air leaks. Swap in primary air filter part number 420-35598, listed on page 109. Top off the engine oil to its 6 qt (5.7 L) capacity if it reads low. Check the auto shutdown circuit wiring for loose grounds.
Manual Section: EngineFrequently Asked Questions
What does the hydraulic system warning beep mean on a Mustang 2042/2044/2054?
A buzzer sounds whenever the engine oil pressure, engine coolant temperature, or hydraulic oil temperature warning light is on. Turn the key from "off" to "on" and the alternator and engine oil pressure lights come on with the buzzer; all three clear once the engine starts.

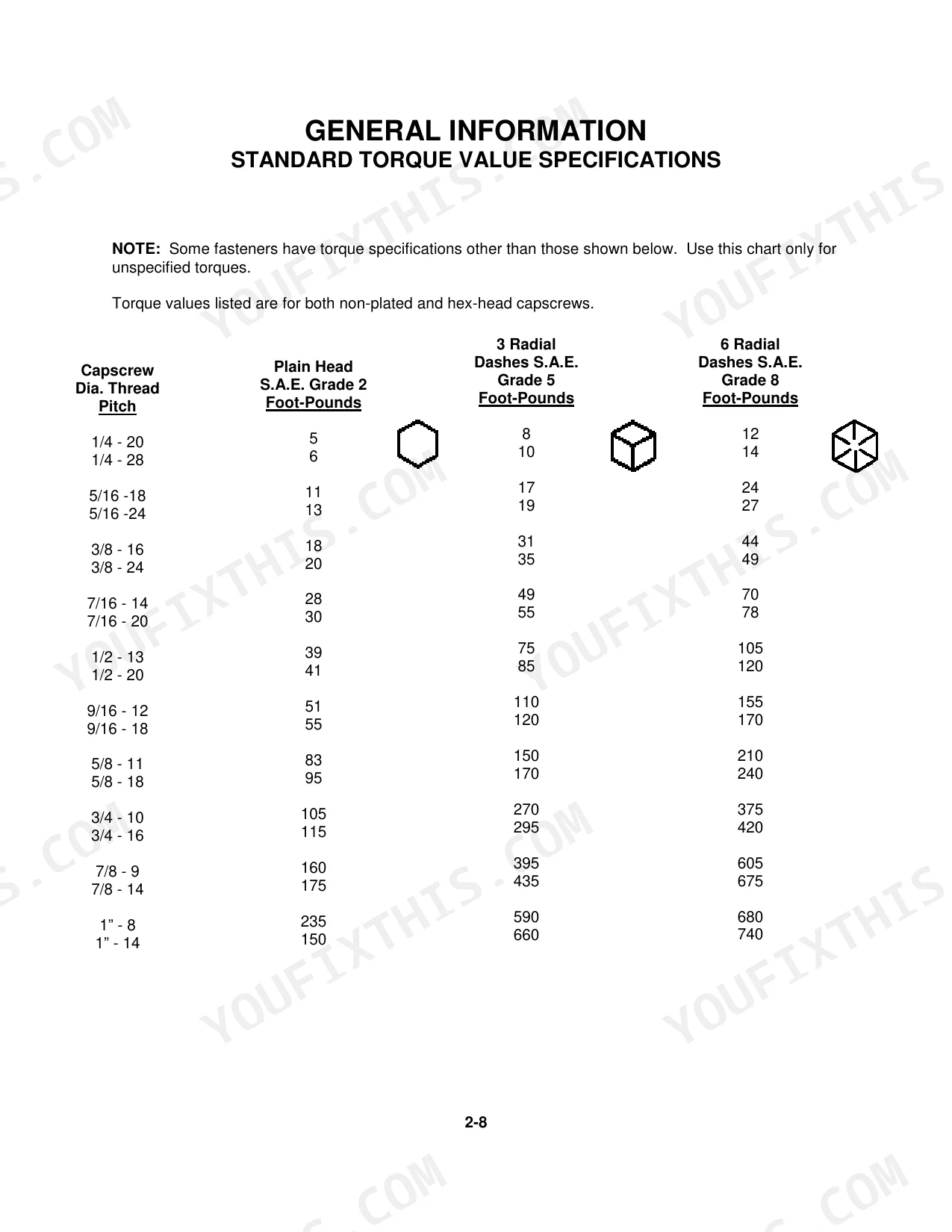

What are the torque specs for Mustang 2042/2044/2054 wheel or hydraulic components?
For wheel lug nuts, the torque specification is 120-130 ft-lbs (160-175 Nm). Hydraulic cylinder locking nuts for lift cylinders (7/8-14NF) require 215-225 ft-lbs (292-305 Nm) with Loctite® 290, while tilt cylinder locking nuts (1-14NF) require 450-500 ft-lbs (610-678 Nm). The parking brake disc retaining nut should be torqued to 120 ft-lbs (163 Nm).
Torque specs for Mustang 2054 hydraulic cylinder bolts
For the Mustang 2054, the hydraulic cylinder locking nut for lift cylinders (7/8-14NF) should be torqued to 215-225 ft-lbs (292-305 Nm) using Loctite® 290. For tilt cylinders (1-14NF), the locking nut requires 450-500 ft-lbs (610-678 Nm). When installing the gland locking nut during cylinder reassembly, torque to 80-100 ft-lbs (108-136 Nm).
What are the replacement specifications for hydraulic filter?
Hydraulic filters should be replaced as elements according to the maintenance chart, with intervals typically at 500 or 1000 hours. The return line filter is a 7-micron filter. When servicing the hydrostatic system, new hydraulic filters should be installed on the charge pressure and return lines, and the charge pressure filter should be changed two more times within the next 50 hours of use after start-up.
What do I get after purchasing this Mustang 2042, 2044, 2054 manual?
Instant download. The full 143-page searchable Service Manual lands in your account right after payment. Open it on a laptop, tablet, or phone, right there in the shop.
Can I print this Mustang 2042, 2044, 2054 manual?
Yes, print as many copies as you like; there are no restrictions. Plenty of mechanics print just the section they need and carry it onto the shop floor.
Are there hydraulic schematics in this Mustang 2042, 2044, 2054 manual?
Yes. The manual includes hydraulic circuit diagrams, system schematics, and component specifications with pressure ratings.
