The New Holland T4.90, T4.100, T4.110, and T4.120 Operator Manual (OEM #47945453, 338 pages) puts every cab control, maintenance schedule, and safety procedure for your T4-series tractor in one place. Inside: 23 pages decoding every instrument cluster indicator, SCR/AdBlue warning symbol, and programmable display function, plus a maintenance chart running from 10-hour daily checks through 3,600-hour fluid changes. Troubleshooting coverage spans engine faults, hydraulic failures, rear three-point hitch problems, and a complete U-code error list for electrohydraulic transmissions. Front disc-to-rim nuts take 250 N·m (184.4 lb ft); wheel-hub locknuts on 2WD models tighten to 115 N·m (85 lb ft). Three days waiting on the dealer is three days down. Bookmarked by section and keyword-searchable; grab your tablet, walk to the machine, and get back to work.
What's Inside This New Holland T4.90, T4.100, T4.110, T4.120 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 11-30 | Safety Rules - HVAC System, Safety Rules - Personal Protective Equipment, Safety Rules - "Do Not Use" Sign, Safety Rules - Hazardous Chemicals, Safety Rules - Near Utilities |
| Safety Information | 31-62 | Safety Rules and Signal Word Definitions, Safety Rules - General Information, Safety Rules – Maintenance, Safety Rules - Front End Loader, Burn Prevention, Safety Signs |
| Controls and Instruments | 63-122 | Operator's Seat, Instrument Cluster, Selective Catalytic Reduction (SCR) - Overview, Hand Brake Lever - Operating, Park Lock, Programmable Display |

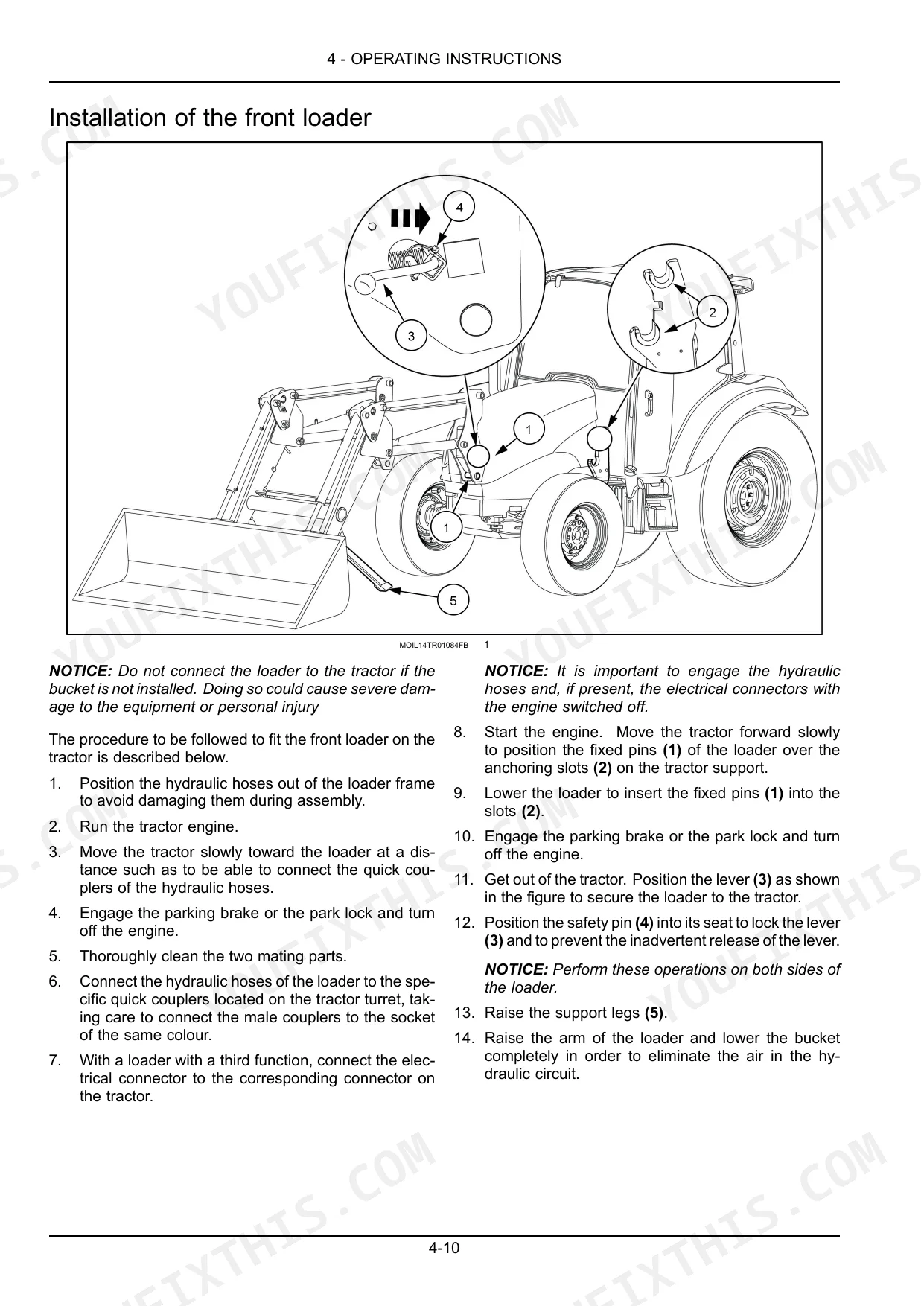

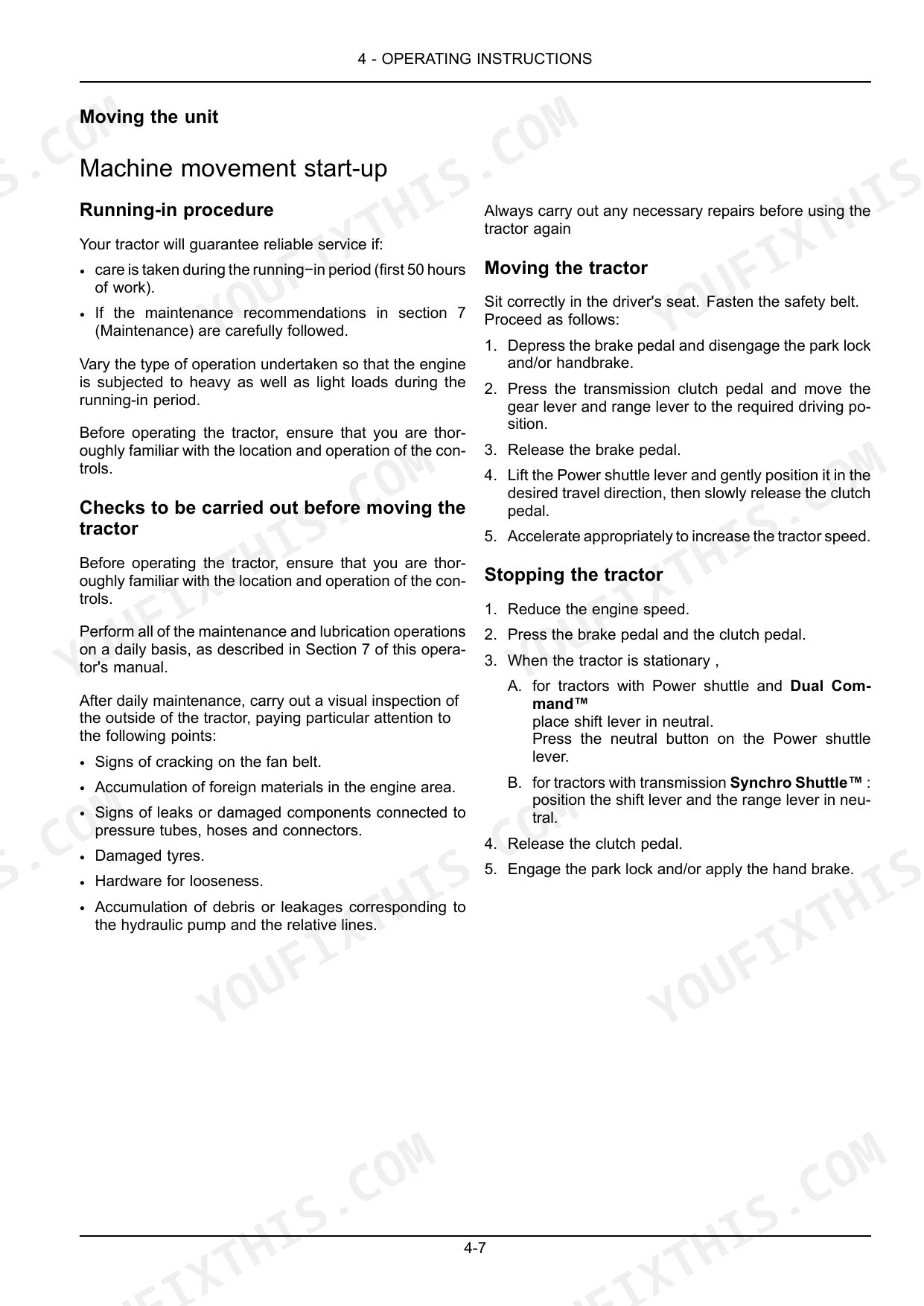

| Operating Instructions | 123-136 | Commissioning the Unit, Starting the Unit, Moving the Unit, Installation of the Front Loader, Removing the Loader, Installing the Bucket |
| Transport Operations | 137-140 | Road Transport, Transporting the Machine, Road Transport of the Tractor with Loader Installed, Recovery Transport, Towing the Tractor |
| Working Operations | 141-206 | Hydraulic Lift, Trailer Electrical Socket, Programmable Display, Dashboard/Display Brightness, Calibrating Speed, Setting the Implement Width, Programming Maintenance Work |

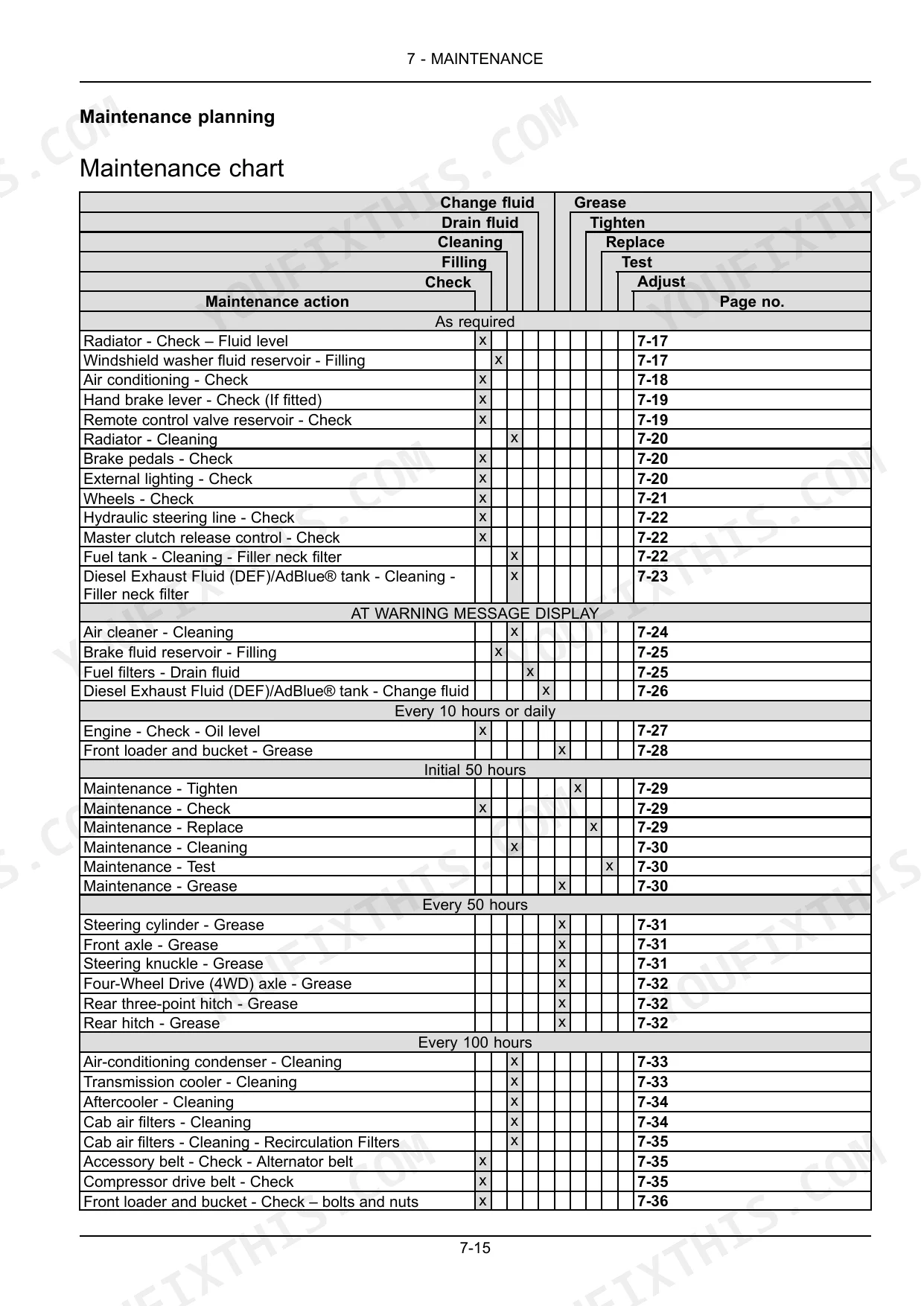

| Maintenance | 207-282 | General Safety Before You Service, Maintenance Chart, Radiator - Check – Fluid Level, Engine - Check - Oil Level, Fuel Filters - Replace, Fuses and Relays |
| Troubleshooting | 283-292 | Engine - Troubleshooting, Electrical System - Troubleshooting, Hydraulic Systems - Troubleshooting, Rear Three-Point Hitch - Troubleshooting |
| Specifications | 293-320 | Dimensions and Weights, Maximum Permitted Loads on Front and Rear Axle, Speed Table for 8 X 8 Gearbox, Consumables, Capacities, Technical Data |
| Accessories | 321-332 | Radio, Single Piece Ballast, Coolant Immersion Heater |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Wheel-hub locknuts torque (2WD models) | 115 N·m (85 ftlbs) | p. 192 |
| Disc to hub nuts torque (Front — M16) | 220 N·m (162.3 lb ft) | p. 252 |
| Disc to rim nuts torque | 250.0 N·m (184.4 lb ft) | p. 252 |
| Minimum distance between tires and loader/tractor part | 20 mm (0.8 in) | p. 177 |
| Loader boom standard hardware torque (M6) | 12 N·m (9 lb ft) | p. 242 |
| DEF/AdBlue® main filter size | 10 μm | p. 259 |
| DEF/AdBlue® in-line filter size | 70 μm | p. 258 |
| Remote control valve quick-fitting female couplers size | 1/2” | p. 151 |
| Hydraulic circuit capacity (Synchro Shuttle™ transmission) | 48 L (12.7 US gal) | p. 313 |
| Hydraulic circuit capacity (Power Shuttle transmission) | 54.0 L (14.3 US gal) | p. 313 |
| System Cooling Capacity | 16.0 L (4.2 US gal) | p. 219 |
| Fuel tank capacity | 125.0 L (33.0 US gal) | p. 219 |
New Holland T4.90, T4.100, T4.110, T4.120 Common Problems This Manual Covers
New Holland T4.90 front loader boom vibrating or bucket slow to rise during heavy lifting p. 242
Inspect the front loader hardware before daily operation. Check the torque specifications on page 242. Verify standard M12 loader boom hardware is tightened to 80 N·m (59 lb ft). Keep a minimum distance of 20 mm (0.8 in) between tires and loader parts.

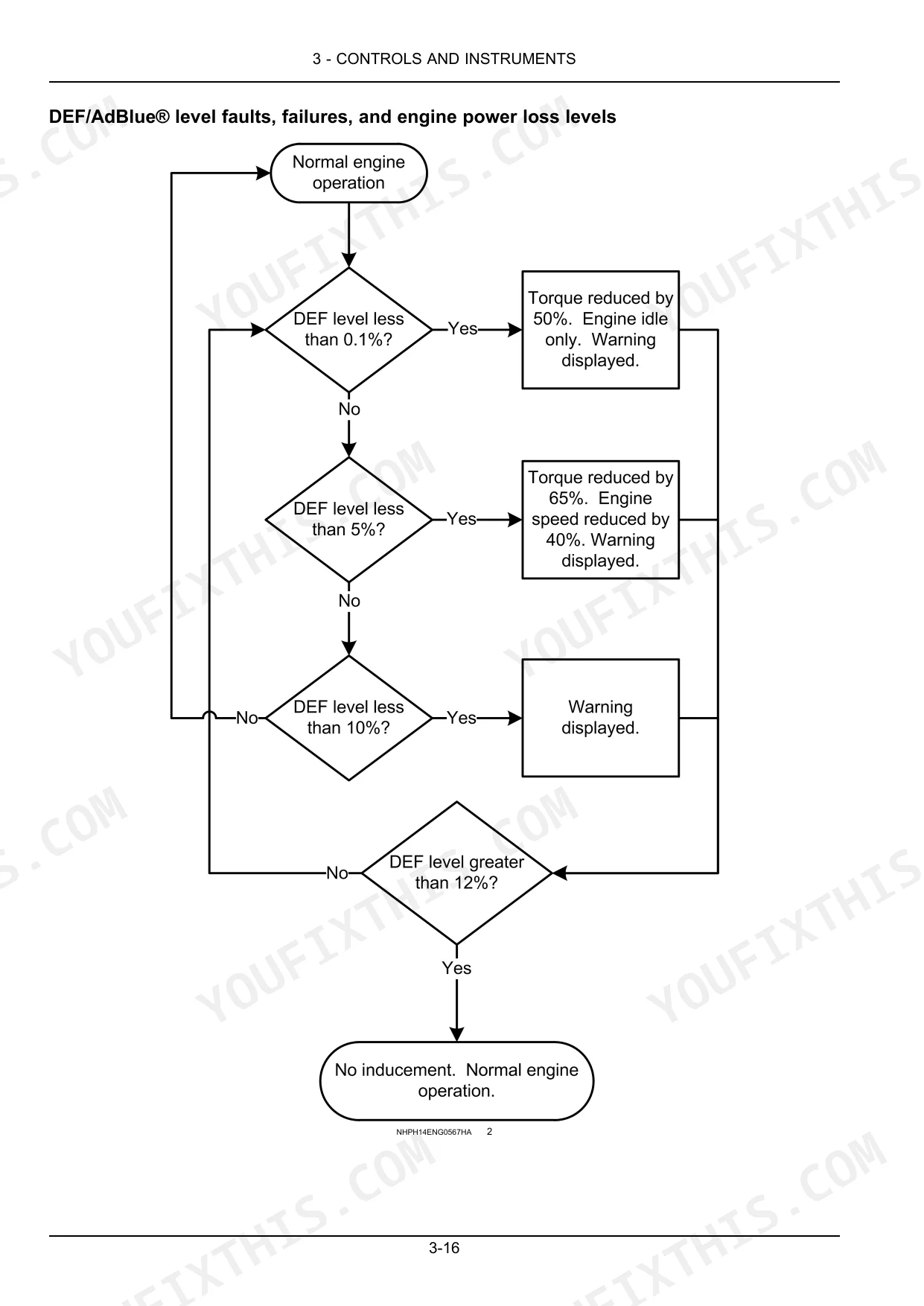

Manual Section: 7 - MaintenanceDEF system warning light flashing and sudden engine power loss during field operation p. 219
Check the fluid capacities on page 219 and verify the DEF tank contains up to 9.6 L (2.5 US gal). Inspect the tank enclosure for external leaks. If the indicator persists, review the error code reference for specific SCR system faults.
Manual Section: 7 - MaintenanceRemote control valve not working or hydraulic implement hoses difficult to connect under pressure p. 313
Verify the hydraulic circuit capacity on page 313. Fill Synchro Shuttle transmission models to 48 L (12.7 US gal) if fluid is low. Inspect the remote control valve quick-fitting female couplers on page 151 to ensure the 1/2" fittings are clean and fully seated.
Manual Section: 9 - SpecificationsFront wheel hubs coming loose or making clicking noises during heavy loader work p. 252
Inspect the front axle disc to hub nuts daily when performing heavy loader work. Torque the M16 front axle nuts to 220 N·m (162.3 lb ft) as directed on page 252. For 2WD models, verify the wheel-hub locknuts are tightened to 115 N·m (85 ftlbs).
Manual Section: 7 - MaintenanceFrequently Asked Questions
How to clear error codes on a New Holland T4 series tractor?
For an "SCR Catalyst Full" fault, manually increase the engine speed to 1500 RPM until the warning light turns off. For DEF/AdBlue® level faults, refill the tank and then cycle the key switch OFF then ON to reset the system. For most other fault codes, the manual advises contacting an authorized dealer for resolution.
What do New Holland T4 dashboard warning lights mean?

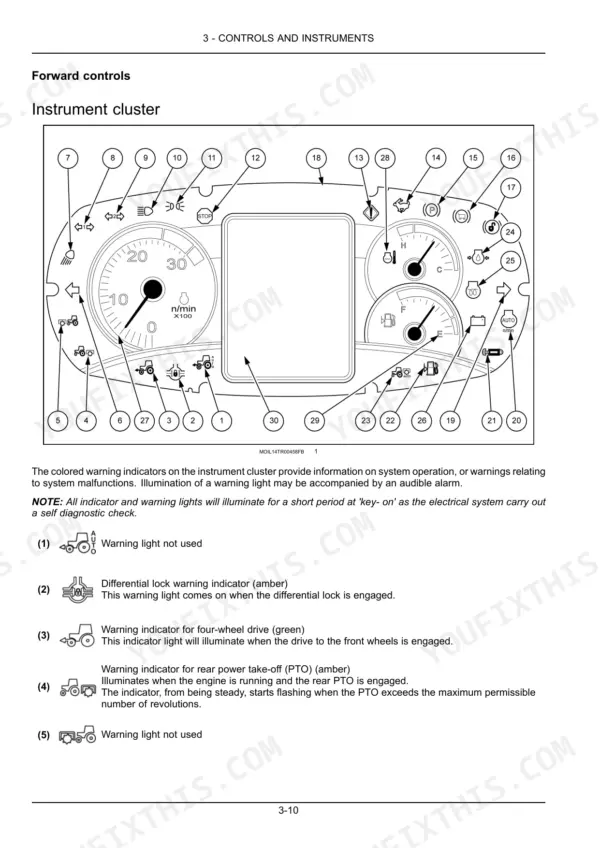

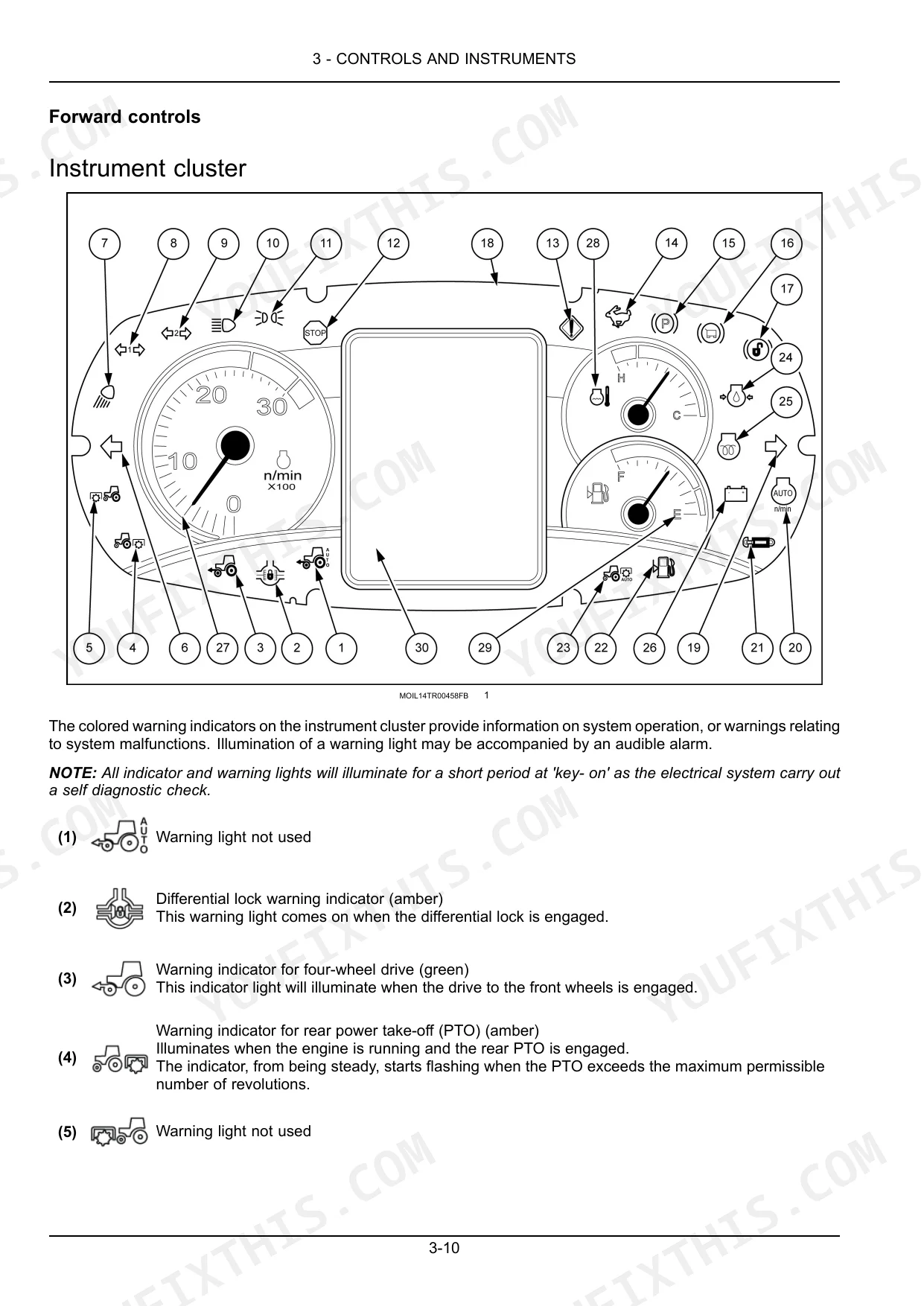

The dashboard warning lights provide information on system operation or malfunctions. For example, an amber differential lock warning light (2) indicates the differential lock is engaged, while a green four-wheel drive warning light (3) illuminates when drive to the front wheels is engaged. A red "Stop" warning light (12) indicates a critical fault, requiring immediate tractor shutdown and investigation.
How to perform a forced regen or troubleshoot DPF-related faults on a T4 tractor?
If the "SCR Catalyst Full" message appears, indicating hydrocarbon accumulation, place the machine in park, apply the hand brake, and manually increase the engine speed to 1500 RPM. Allow the machine to run at this speed until the warning light turns off, which may take approximately 1-2 hours depending on ambient temperature.
How to clear fault code New Holland T4.110
For an "SCR Catalyst Full" fault, manually increase the engine speed to 1500 RPM until the warning light turns off. For DEF/AdBlue® level faults, refill the tank and then cycle the key switch OFF then ON to reset the system. For most other fault codes, the manual advises contacting an authorized dealer for resolution.
How will I receive this New Holland T4 Series Operator Manual?
This is a 338-page searchable PDF ready for immediate download. Works on any device — pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print specific sections of this New Holland T4 Series Operator Manual?
Yes, print as many copies as you want — there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
Document Quality
This document features native digital text, allowing you to search and copy content with ease. The text is consistently crisp and clear, ensuring readability on every page. Diagrams and illustrations are raster images; they are generally clear, but some labels may show slight pixelation when magnified. The pages are clean, free from scan artifacts, stains, or skewed content. You will find several blank pages that serve as intentional section breaks.
