Part of the New Holland Repair Manuals.
Fault codes are the hardest chapter in this book, and they get a section of their own. CCU, ECU and ADIC codes come with failure modes and the connector, continuity, short-circuit and open-circuit checks to run. Numbered schematic sheets cover power distribution, transmission control, PTO and safety, and the CANBUS.
The rest of the book covers the engine, clutch, mechanical, Power Shuttle and Dual Command transmissions, 4WD, both axles, brakes, hydraulics, steering, cab A/C and the front loader. It is part number 47878245, 1st edition English, for the T4.90, T4.100, T4.110 and T4.120 Tier 4B (final) for North America, with cab or without.
Tightening torques, pressure settings, pump outputs and a special tool index sit alongside the procedures.
What's Inside This New Holland T4.90, T4.100, T4.110, T4.120 Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 1-20 | Model Applicability, Product/Engine Links, Safety Rules, Basic Instructions, Parts Identification |
| Engine | 21-168 | Engine Removal and Installation, Fuel Tanks, Air Cleaners, Exhaust Manifolds, SCR/DEF, Cooling System, Fan Drive, Aftercooler |

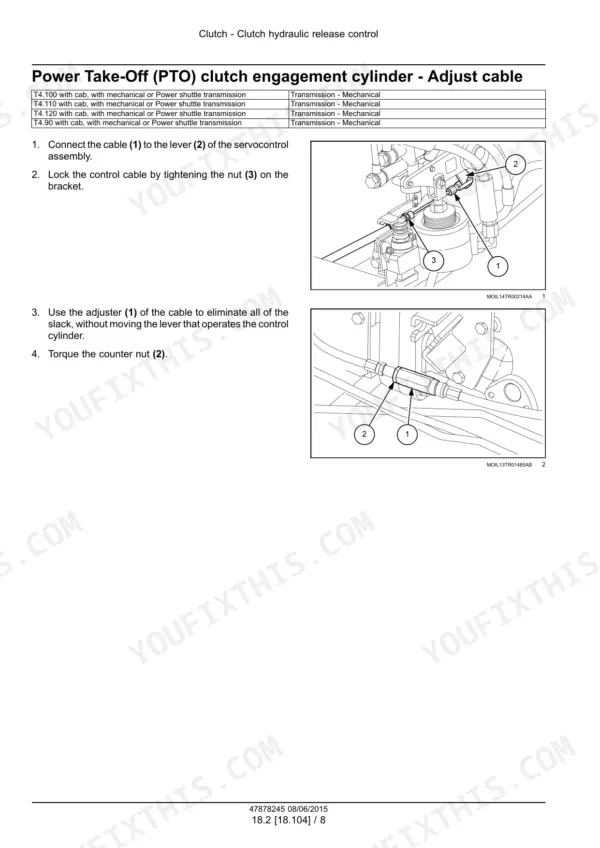

| Clutch | 169-214 | Mechanical Release Control, Hydraulic Release Control, Dual Clutch, Clutch Overhaul, Release Lever Alignment, Troubleshooting |
| Transmission | 215-404 | Mechanical Controls, Power Shuttle, Master Clutch Housing, Creeper, Reverser, Hi-Lo, Transmission Cooler, Internal Components |
| Four-Wheel Drive (4WD) System | 405-476 | Mechanical Engagement Control, Electro-Hydraulic Control, Engagement Clutch, Solenoid Control, Drive Shaft, Troubleshooting |
| Front Axle System | 477-608 | Powered Axle, Bevel Gear Set, Differential, Final Drive Hubs, Steering Knuckles, Axle Shafts, Non-Powered Axle |
| Rear Axle System | 609-694 | Bevel Gear Set, Differential Adjustment, Planetary Drives, Final Drives, Tightening Torques, Troubleshooting |
| Power Take-Off (PTO) | 695-858 | Mechanical Control, Electro-Hydraulic Control, PTO Clutch, One-Speed and Two-Speed PTO, 540/540E, 540/1000, Troubleshooting |

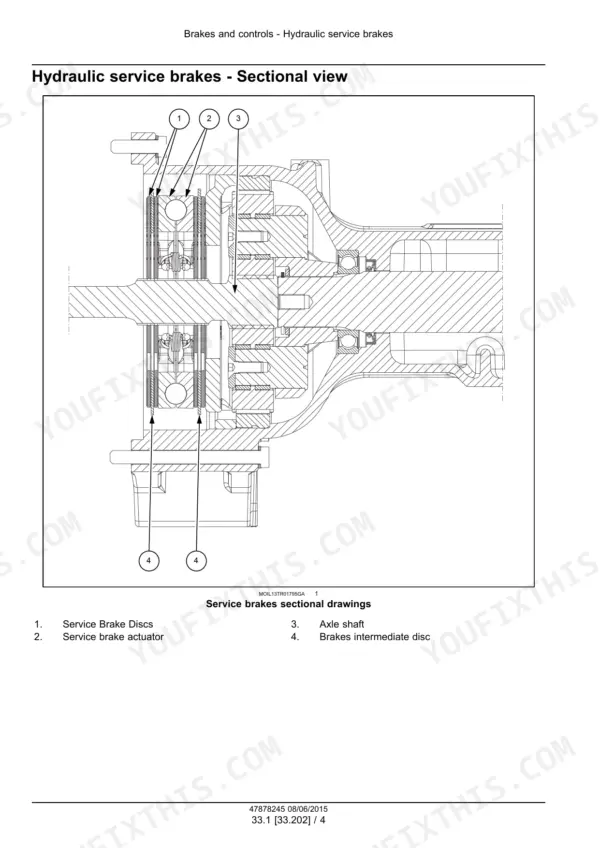

| Brakes and Controls | 859-894 | Hydraulic Service Brakes, Brake Discs, Master Cylinders, Brake Bleeding, Parking Brake, Hydraulic Trailer Brakes, Troubleshooting |
| Hydraulic Systems | 895-1028 | Fixed Displacement Pumps, Remote Valves, Hitch Control Valve, Hitch Cylinder, Front Hitch Lines, Loader Hydraulics, Hydraulic Schematics |
| Hitches, Drawbars and Implement Couplings | 1029-1174 | Drawbars, Towing Hitches, Rear Hitch Controls, Rear Three-Point Hitch, Front Hitch and Linkage, Troubleshooting |
| Steering | 1175-1244 | Steering Control, Tie Rods, Hydrostatic Control Valve, Pressure Testing, Hydraulic Pump, Steering Cylinders, Troubleshooting |
| Wheels | 1245-1260 | Front Wheel Torques, Toe-In Adjustment, 4WD Wheel Checks, Rear Wheel Torques, Rear Wheel Removal and Installation |

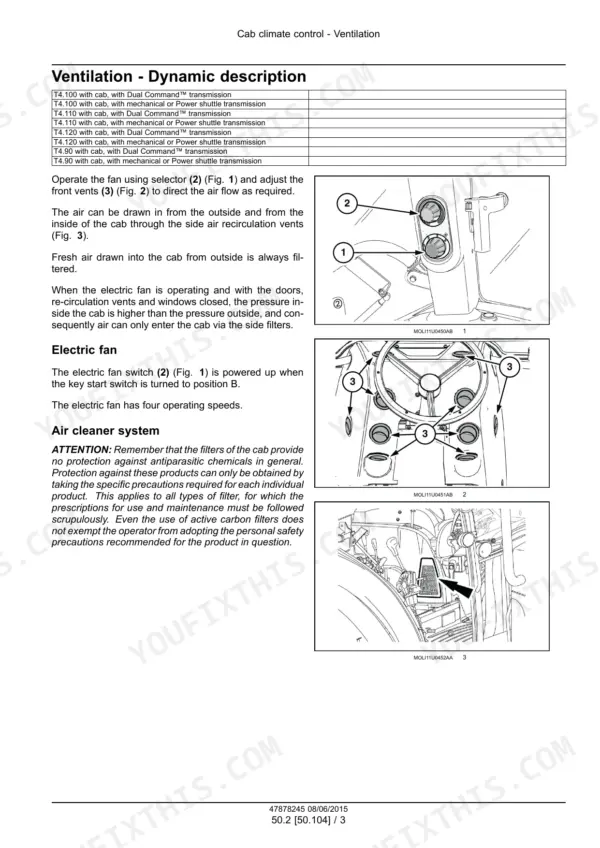

| Cab Climate Control | 1261-1364 | Heating, Ventilation, Air Conditioning, Refrigerant Charge, Compressor, Pressure Switch, Drive Belt, Leakage Tests |
| Electrical Systems - Harnesses and Electrical Schematics | 1365-2367 | Harness Localization, Electrical Schematics, Power Distribution, Engine Wiring, Transmission and PTO Wiring, Canbus, Connector Pinouts |

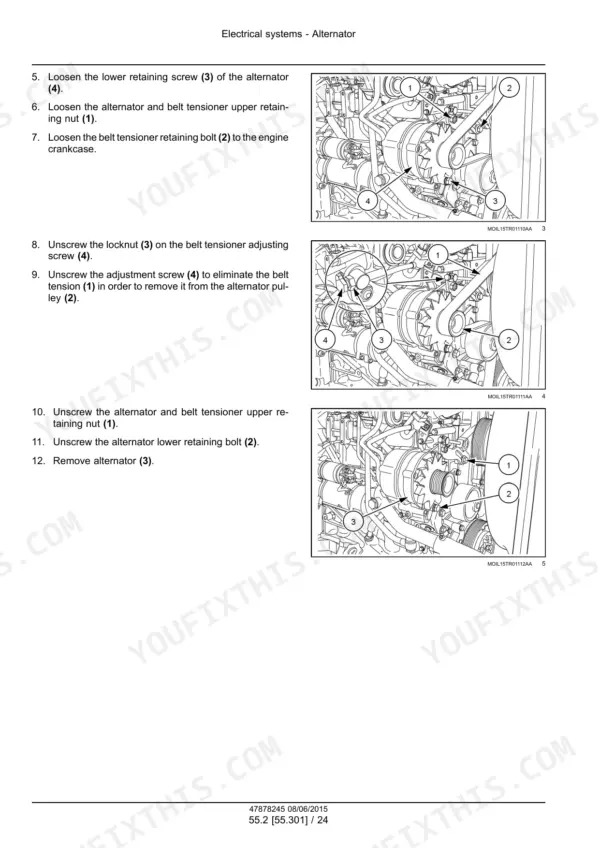

| Electrical Systems - Alternator, Battery and Engine Electrics | 2368-2457 | Alternator Specifications, Charging Circuit, Electrical Tests, Battery Specifications, Intake/Exhaust and SCR Electrical Components |

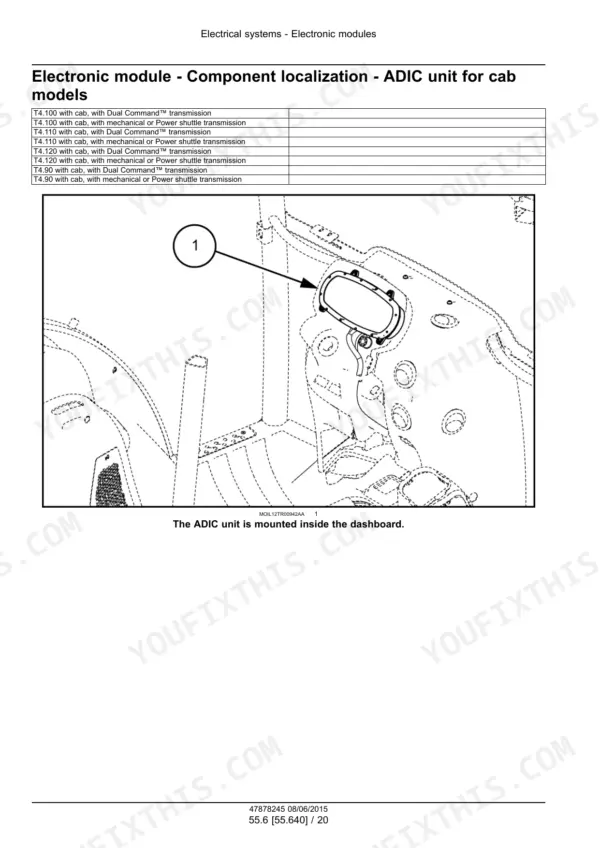

| Electrical Systems - Electronic Modules and Instruments | 2458-2615 | ECU, Adic, CCU, Diagnostic Menus, Calibration, Wiper/Washer, External Lighting, Warning Indicators and Instruments |

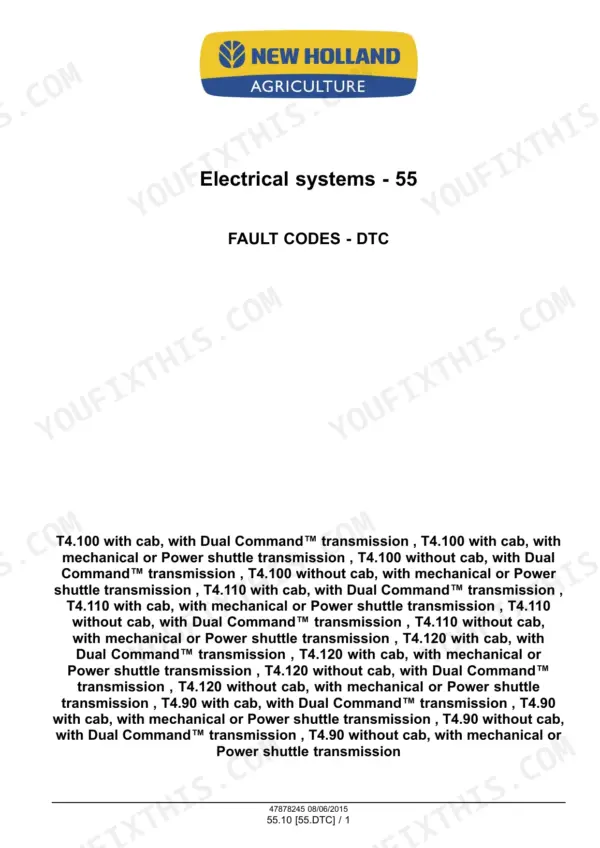

| Electrical Systems - Fault Codes (DTC) | 2616-3486 | CCU Fault Codes, ECU Fault Codes, ADIC Fault Codes, Failure Modes, Connector Checks, Signal Continuity, Short and Open Circuits |
| Front Loader and Bucket | 3487-3540 | Coupling Brackets, Loader Arm, Articulation Levers, Position Indicator, Bushings, Bucket Release Device, Loader Removal and Installation |
| Platform, Cab, Bodywork and Decals | 3541-3729 | Cab, Cab Interior, Trim and Panels, Doors and Hatches, Glazing, Operator Platform, Engine Hood, Fenders and Guards |
| Special Tool Index | 3730-3737 | Service Tool Numbers, Tool Descriptions, Operation References |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine code, mechanical / Power Shuttle transmission | F5GFL413A*B007 | p. 3 |
| Engine code, Dual Command transmission | F5GFL413A*B006 | p. 3 |
| Oil to drain for mechanical PTO removal | 48.0 l (12.7 US gal) | p. 754 |
| Oil to drain for hydraulic PTO removal | 58.0 l (15.3 US gal) | p. 763 |
| Engine speed at 540 PTO, mechanical PTO | 1957 RPM | p. 740 |
| Engine speed at 540 PTO, hydraulic PTO | 1876 RPM | p. 740 |
| Engine speed at 540E PTO | 1535 RPM | p. 792 |
| Engine speed at 1000 PTO | 2125 RPM | p. 792 |
| Power Shuttle and services transmission working pressure | 17.50 - 18.50 Kg/cm² (248.91 - 263.13 psi) | p. 235 |
| PTO clutch working pressure | 17.5 - 18.5 Kg/cm² (248.9 - 263.1 psi) | p. 741 |
| Hydraulic service brakes operating pressure | 17.60 bar (255.20 psi) | p. 862 |
| Additional hitch cylinder nominal pressure | 190 bar (2755 psi) | p. 974 |
| Steering pressure relief valve calibration | 165 - 170 bar (2392.5 - 2465 psi) | p. 1188 |
| Hydraulic pump 45 l/min, rated output new pump | 48.36 l/min (12.78 US gpm) | p. 898 |
| Lift hydraulic pump 60 l/min, rated output new pump | 62.95 l/min (16.63 US gpm) | p. 898 |
| Front 4WD steel disc to hub torque | 220.0 N·m (162.3 lb ft) | p. 1248 |
| Rear disc to hub nuts torque | 310.0 N·m (228.6 lb ft) | p. 1254 |
| Ring gear to differential housing bolts (C1) torque | 131.0 - 144.0 N·m (96.6 - 106.2 lb ft) | p. 688 |
| HFC-134a refrigerant quantity (cab) | 650.0 g (22.9 oz) | p. 1279 |
| A/C compressor lubricating oil, Sanden SD 7H15 | 185 cm³ (11.29 in³) | p. 1282 |
New Holland T4.90, T4.100, T4.110, T4.120 Common Problems This Manual Covers
Power Shuttle tractor does not move
Start with the Power Shuttle troubleshooting in the Transmission section, which points first to low system pressure. Put a gauge on and compare the reading with the 17.50 - 18.50 Kg/cm² (248.91 - 263.13 psi) working pressure. The Power Shuttle control valve hydraulic schematic in the same section shows the circuit being tested.
Manual Section: Transmission - Power shuttle transmission - Troubleshooting p. 226Front loader has little lift and weak tearout
The front loader bucket hydraulic troubleshooting traces small lift and tearout capacity to low oil pressure in the circuit. Check the hydraulic circuit, then flow-test the pump against its rated new output. The loader hydraulic schematics in Hydraulic Systems let you follow the lines to the loader valve and bucket cylinders.
Manual Section: Hydraulic systems - Front loader bucket hydraulic system - Troubleshooting p. 1025Independent PTO commanded by the flywheel does not work
The rear electro-hydraulic PTO control troubleshooting lists a clogged oil filter as a cause, so replace the filter first. Then check PTO clutch working pressure against 17.5 - 18.5 Kg/cm² (248.9 - 263.1 psi). Do both before you drain 58.0 l (15.3 US gal) to pull a hydraulic PTO.
Manual Section: Power Take-Off (PTO) - Rear electro-hydraulic control - Troubleshooting p. 736Fault code 1010-Hitch height limit potentiometer - signal too low
The DTC section gives a faulty wiring harness as the cause of this code. Work through its connector checks and signal continuity tests. If they show a short to ground, repair or replace the harness as required. Use the harness localization pages to find the run on the tractor.
Manual Section: Electrical systems - FAULT CODES p. 2642Frequently Asked Questions
Which New Holland T4 tractors does this service manual cover?
It covers the T4.90, T4.100, T4.110 and T4.120 Tier 4B (final) for North America. It is part number 47878245, 1st edition English. Each model is covered with cab and without cab, and with Dual Command, mechanical or Power Shuttle transmission. Engine codes are F5GFL413A*B007 for mechanical and Power Shuttle, and F5GFL413A*B006 for Dual Command. p. 2
What engine speeds give the rated PTO speeds on the New Holland T4.90 through T4.120?
For 540 PTO, run the engine at 1957 RPM with the mechanical PTO or 1876 RPM with the hydraulic PTO. 540E comes in at 1535 engine RPM and 1000 PTO at 2125 RPM. p. 740
What hydraulic pump outputs are listed for the New Holland T4.90 through T4.120?
A new 45 l/min pump should put out 48.36 l/min (12.78 US gpm). The 60 l/min lift pump is optional on Power Shuttle and Hi-Lo and available on request for mechanical transmission. A new one is rated at 62.95 l/min (16.63 US gpm). p. 898
How much A/C refrigerant and compressor oil does the New Holland T4.90 through T4.120 cab take?
Cab versions take 650.0 g (22.9 oz) of HFC-134a. The SANDEN SD 7H15 compressor takes 185 cm³ (11.29 in³) of lubricating oil. The Cab Climate Control section also covers the pressure switch, the drive belt and leakage tests. p. 1279
Does the New Holland T4.90 through T4.120 manual include wiring diagrams, hydraulic schematics and fault codes?

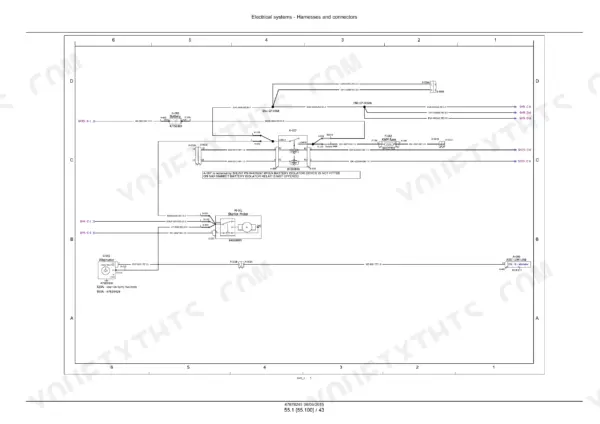

Yes. The numbered schematic sheets include 03 for main battery power distribution, 19 for transmission control, 21 for PTO and safety and 31 for CANBUS. Hydraulic schematics cover the Power Shuttle control valve, front loader NSL/MSL and the rear hitch. The DTC section lists codes such as 1004-Wheel speed sensor - signal too high and 1010-Hitch height limit potentiometer - signal too low. p. 1407
