Drop the roll bar to get under a low shed door and you need the bolt torque before you raise it again; 110 pages of New Holland factory operator instruction for the TK76, TK85 and TK85M put that number in your hand instead of in a guess.
Coverage runs from the control panel and pre-start checks through the steering clutches and brakes, central clutch, range gear and shuttle transmission, power take-off, hydraulic lift, remote control valves, implement connection points, towing equipment and ballast. The Lubrication and Maintenance section lays out the service table by hour interval; Specifications carries the troubleshooting charts and weights.
Guessing costs more than the book: the wrong filter, a second teardown, a clutch pulled apart twice. It is a PDF download, so print the pages you need for the IVECO 8045.05 or 8045.06 and let them get dirty on the bench, then get back in the field.
What's Inside This New Holland TK76, TK85, TK85M Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 1-20 | To the User, Tractor Identification, Important Ecological Considerations, Always Work Safely, Working Safely, Safety Decals, Tractor Noise Level Information Sheet |
| Controls, Instruments and Operation | 21-24 | Controls and Instruments, Control Panel, Checks Before Using the Tractor |

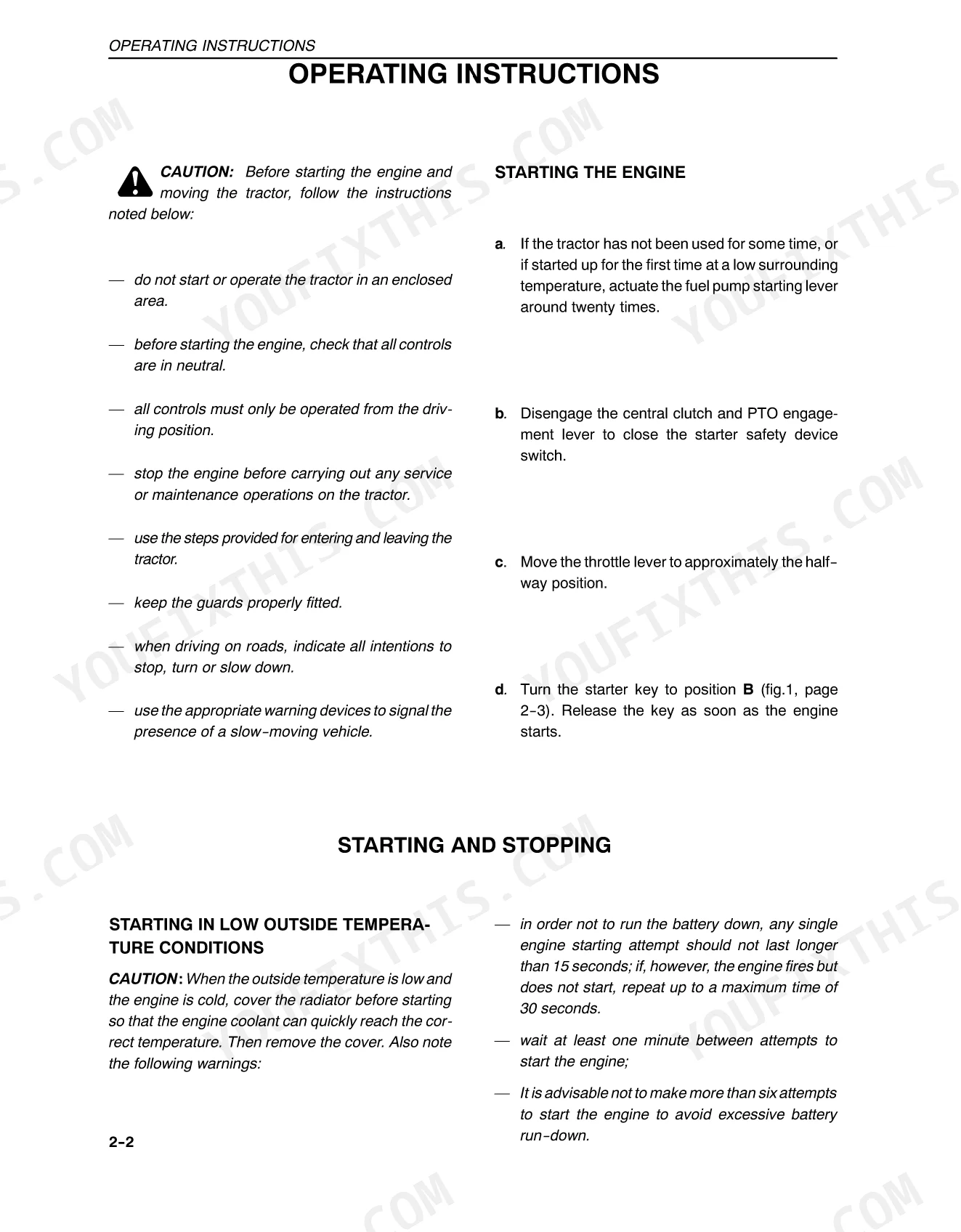

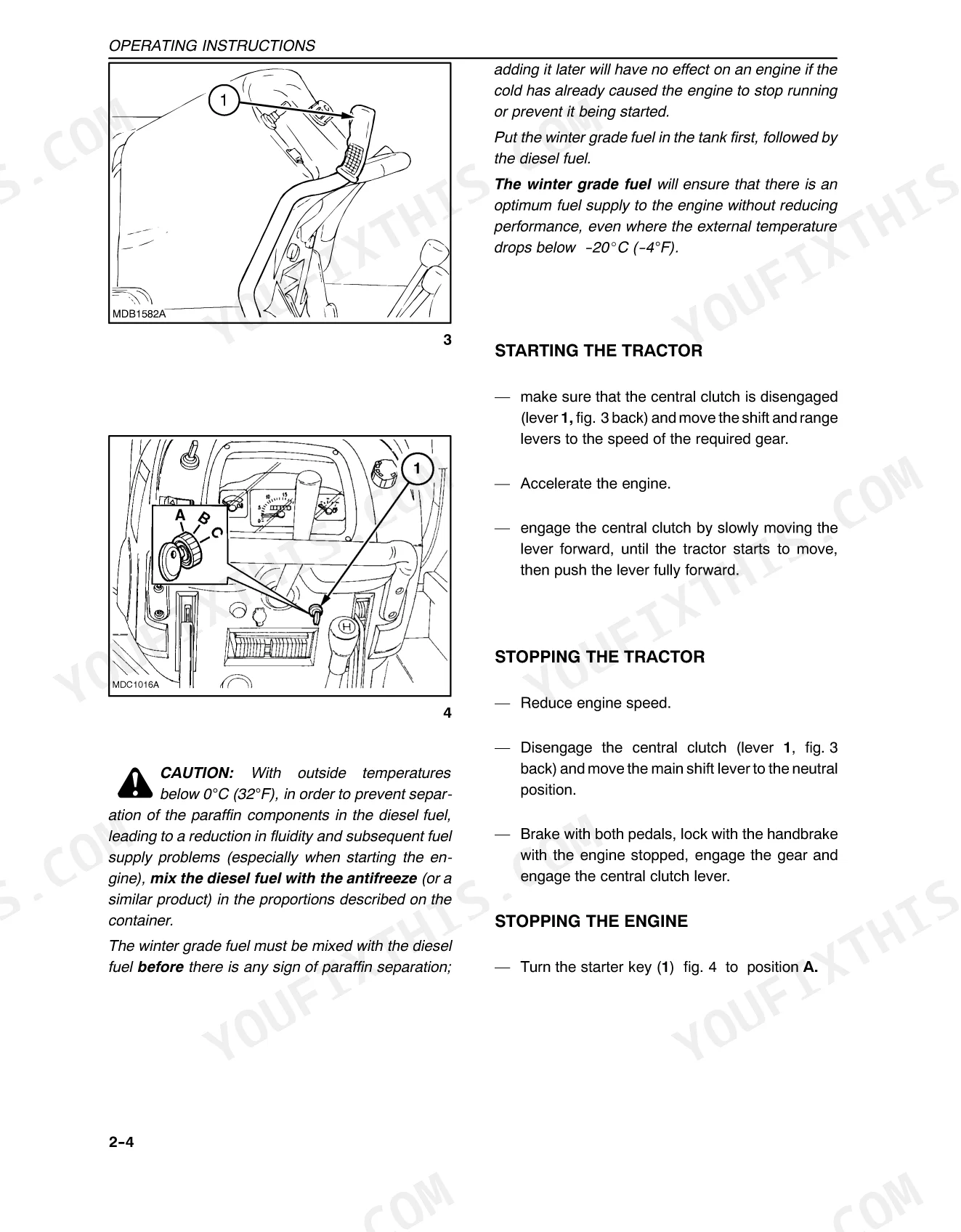

| Operation | 25-54 | Before Using the Tractor, Instrument Panel, Steering Clutches and Brakes, Central Clutch, Transmission with Range Gear and Shuttle, Fold Down Roll Bar, Power Take-Off |

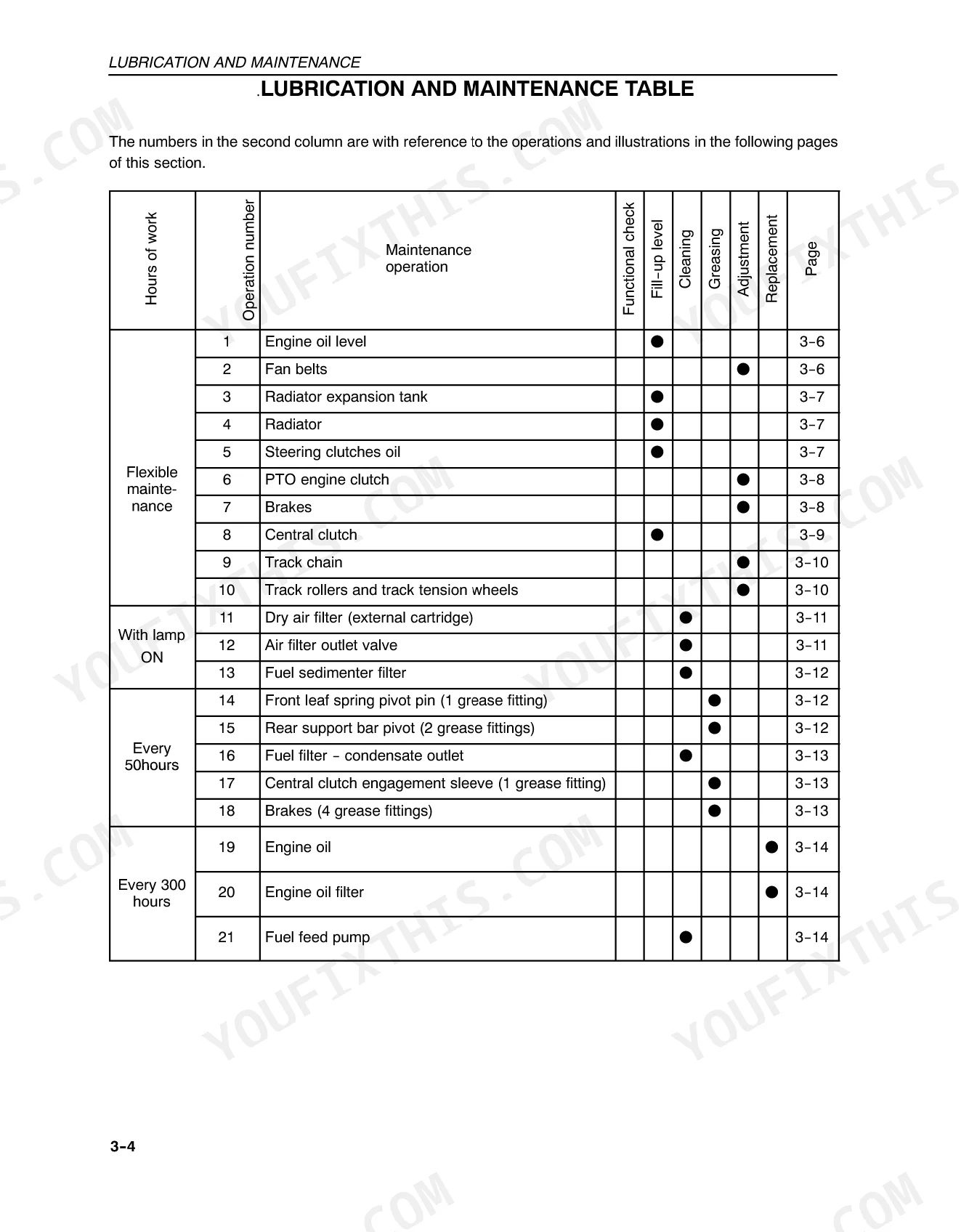

| Lubrication and Maintenance | 55-84 | Introduction, Tractor Refuelling, Lubrication and Maintenance Table, Flexible Maintenance, Instrument Panel Warning Lights, Every 50 Hours of Work, Every 300 Hours of Work |

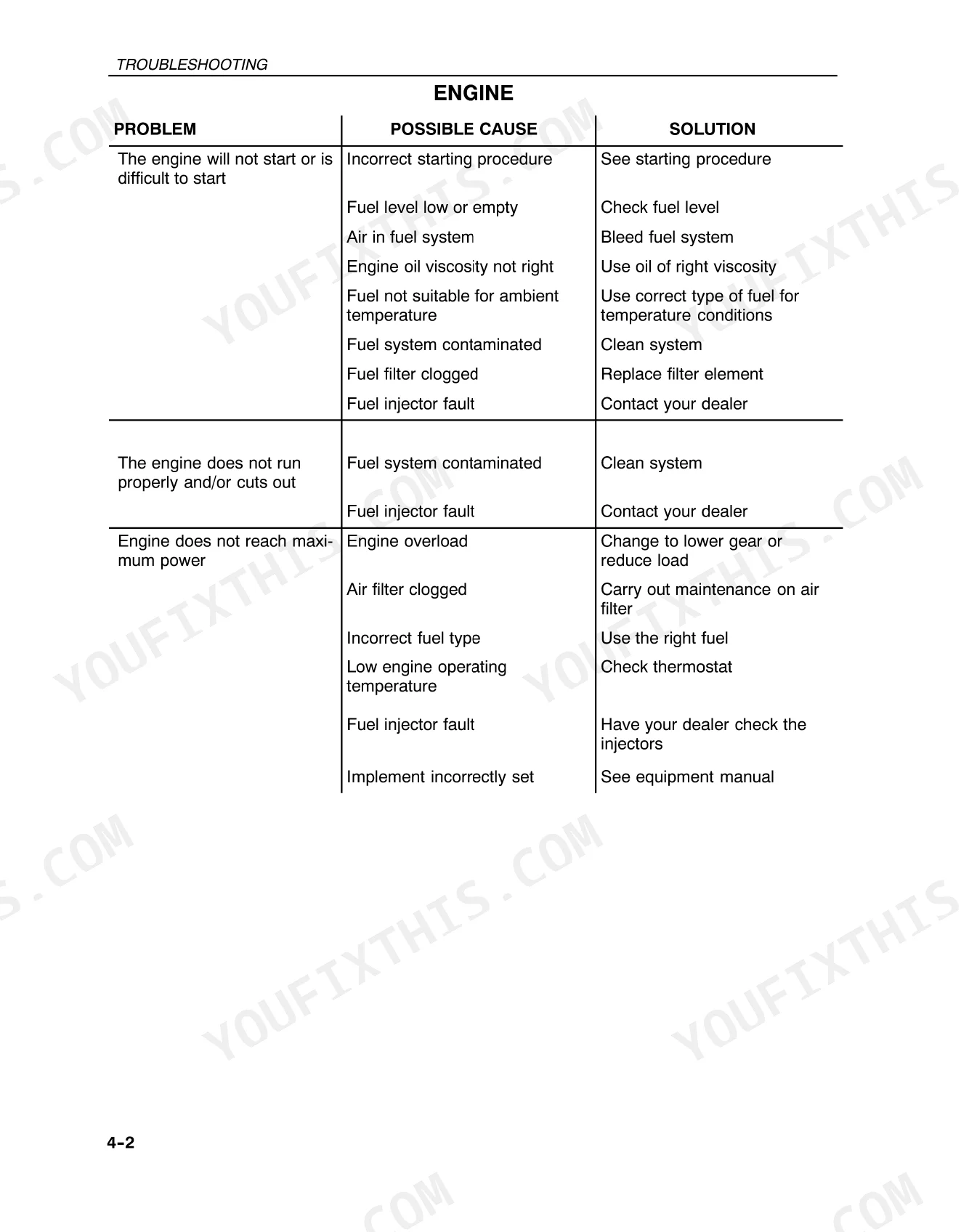

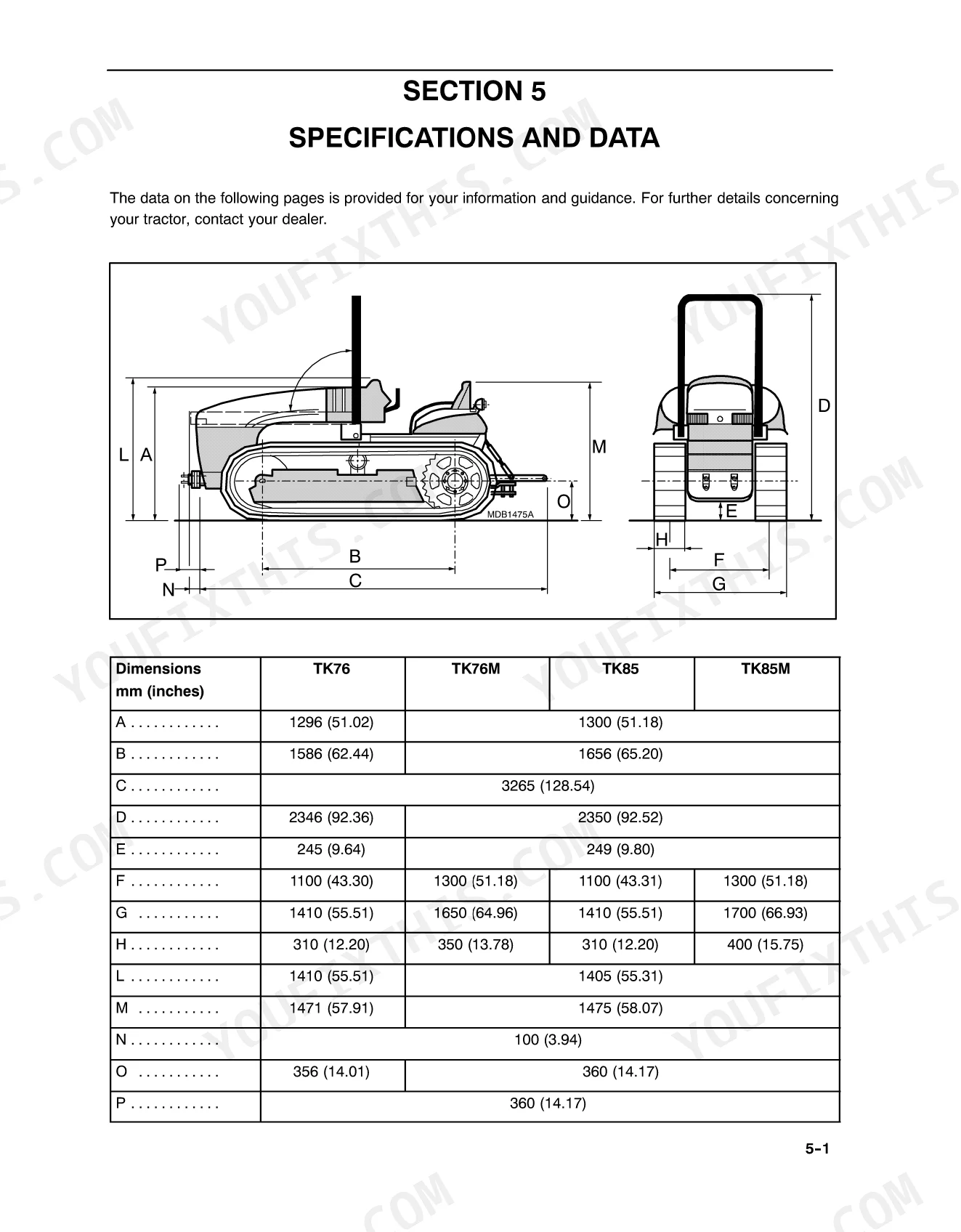

| Specifications | 85-104 | Troubleshooting, Weights |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Exhaust pipe mounting torque | 40 Nm (4.1 kgm) | p. 101 |
| Headlight reference point P-P location | 5 cm (1.97 in.) under the cross | p. 80 |
| Starter motor power | 3.1 kW (4.16 HP) | p. 100 |
| Battery capacity | 100 Ah | p. 100 |
| Fuel Tank Capacity | 122 litres | p. 56 |
| Track Shoe Bolt Tightening Torque | 133 ± 15 Nm | p. 57 |
| Roll Bar Bolt Tightening Torque | 260 ft. lbs. | p. 36 |
New Holland TK76, TK85, TK85M Common Problems This Manual Covers
Track shoe bolts loosen after break-in
New shoe bolts settle and back off once the machine has worked, and a loose shoe chews its own mounting face. The Lubrication and Maintenance section gives the check and the tightening figure of 133 ± 15 Nm.
Manual Section: Lubrication and Maintenance p. 57Roll bar left loose after lowering
The fold down roll bar gets dropped to clear a shed door or low branches and then raised in a hurry with the bolts run up by hand. The Operation section specifies tightening those bolts to 260 ft. lbs.
Manual Section: Operation p. 36Cranks slowly or not at all
Cold mornings expose a tired battery or a starter drawing more than the charging system ever replaced. Specifications lists the 100 Ah battery and the 3.1 kW (4.16 HP) starter motor so you can confirm what belongs on the tractor before ordering.
Manual Section: Specifications p. 100Running the fuel tank dry
A diesel run empty pulls air into the lines and leaves you bleeding the system instead of finishing the pass. Tractor Refuelling in the Lubrication and Maintenance section lists the 122 litres tank capacity so you can plan the day against it.
Manual Section: Lubrication and Maintenance p. 56Exhaust leak at the manifold joint
Heat cycling works the exhaust pipe fasteners loose and the leak shows up as noise and soot before anything else. The First 50-Hour Service checklist gives the exhaust pipe mounting torque of 40 Nm (4.1 kgm).
Manual Section: First 50-Hour Service p. 101Steering clutch pulls to one side
One lever grabbing harder than the other makes the tractor wander under load and wears the brake on that side. Steering Clutches and Brakes in the Operation section covers correct lever use, and the Lubrication and Maintenance section checks that both pedals travel the same 35 - 50 mm (1.38 - 1.97 in.).
Manual Section: Operation p. 62Shuttle or range shift balks
Forcing the shuttle before the machine has stopped rolling rounds off the gear teeth and turns a shift problem into a transmission teardown. The Operation section covers the range gear and shuttle transmission and the correct sequence for each change.
Manual Section: Operation p. 25Frequently Asked Questions
Which tractors does this manual cover?
The cover on page 1 lists the New Holland TK76, TK85 and TK85M crawler tractors, publication 86626574, and the specifications on page 94 give the IVECO 8045.06 and 8045.05 engines. p. 1
Is this a service manual or an operator manual?
It is the operator manual. It covers controls and instruments, operation of the clutches, transmission, PTO, hydraulic lift and remotes, the full lubrication and maintenance schedule, troubleshooting and specifications. It is not a component overhaul manual.
Does it give the maintenance intervals?
Yes. The Lubrication and Maintenance section contains the lubrication and maintenance table, flexible maintenance, instrument panel warning lights and separate hour-based service groups running from the first 50 hours through every 1200 hours of work. p. 55
What battery and starter does the tractor use?
The Specifications section lists a 100 Ah battery and a 3.1 kW (4.16 HP) starter motor, so you can match replacements before ordering parts. p. 100
How quickly can I access this New Holland TK76 manual after buying?
Immediate download of the complete 110-page searchable Operator Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Are there any print restrictions on this New Holland TK76 manual?
Yes, printing is unrestricted: a single page, a chapter, or the lot, on letter or A4.
