This 590-page New Holland TK65-TK95 Series Repair Manual (OEM #86637917) covers the full Crawler Tractor lineup: TK65-TK95 Series. Inside, you get complete engine, clutch, and transmission procedures, rear mechanical wheel drive and mechanical PTO breakdowns, plus a dedicated braking, lift, and steering clutches section. The suspension and tracks chapter runs alongside a full electrical system section with wiring diagrams for every model in the lineup, so you're not stuck backtracking a harness with a test light and a hope. Set the braking unit hydraulic actuator pressure between 27 and 29 bar (391 to 420 psi), and fill the cooling system to 13.0 dm3 on your TK76, TK85, or TK95 (10.5 dm3 on the TK65/TK75). Stop guessing which sump capacity applies to your track loader. Bookmarked by section, this PDF opens on your phone or tablet so you can search any spec and get straight back to the tracks.
What's Inside This New Holland TK65–TK95 Series Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| 86637917-Linked Pdf | 1-192 | Table of Contents, General, Engine, Clutch, Transmissions, Contents |
| 86637918-Linked Pdf | 193-382 | Table of Contents, Rear Mechanical Wheel Drive, Mechanical Power Take--Off, Braking System, Lift, Steering Clutches |
| 86637919-Linked Pdf | 383-590 | Table of Contents, Suspension and Tracks, Electrical System |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Braking unit hydraulic actuator pressure adjustment | 27 to 29 bar (27.5 to 29.5 kg/cm², 391 to 420 psi) | p. 296 |

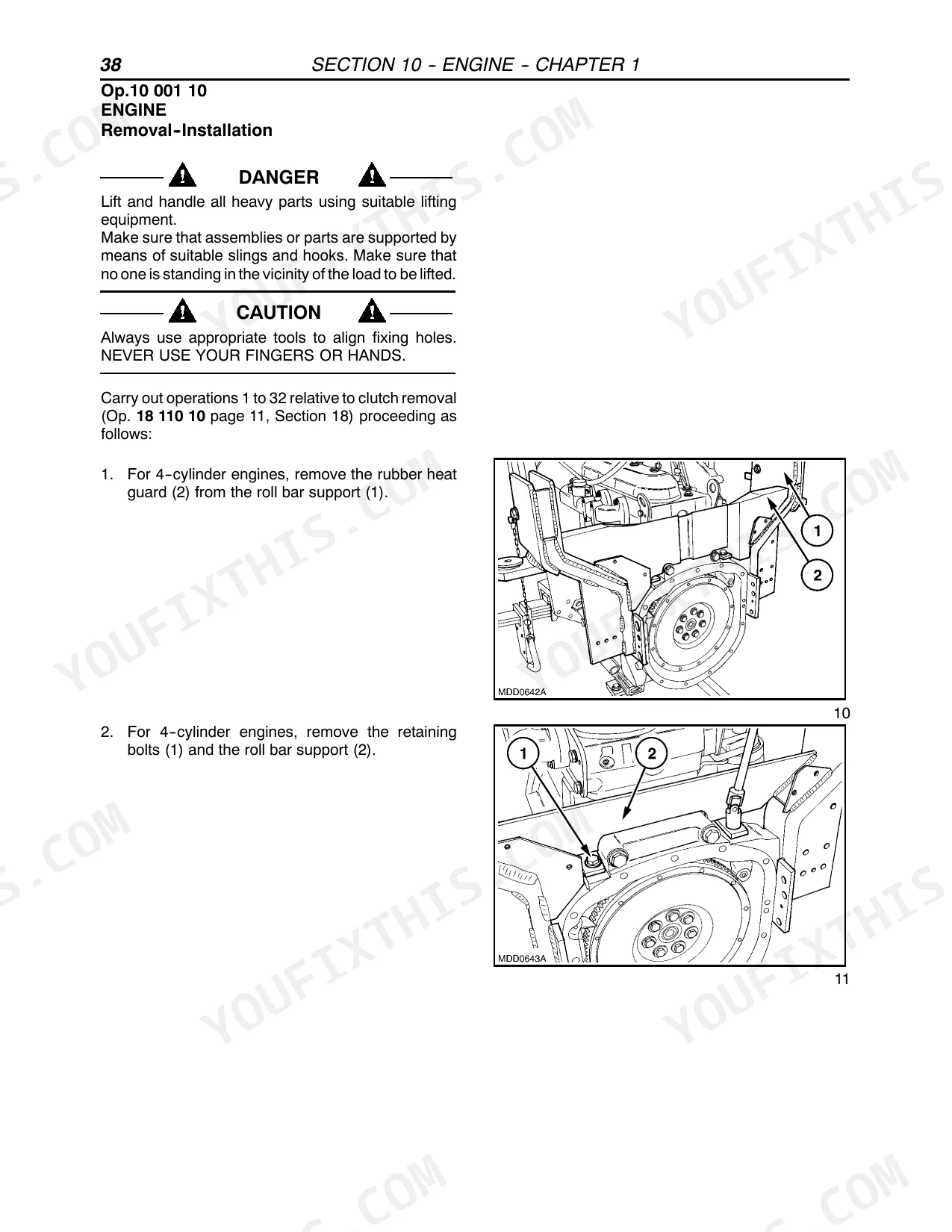

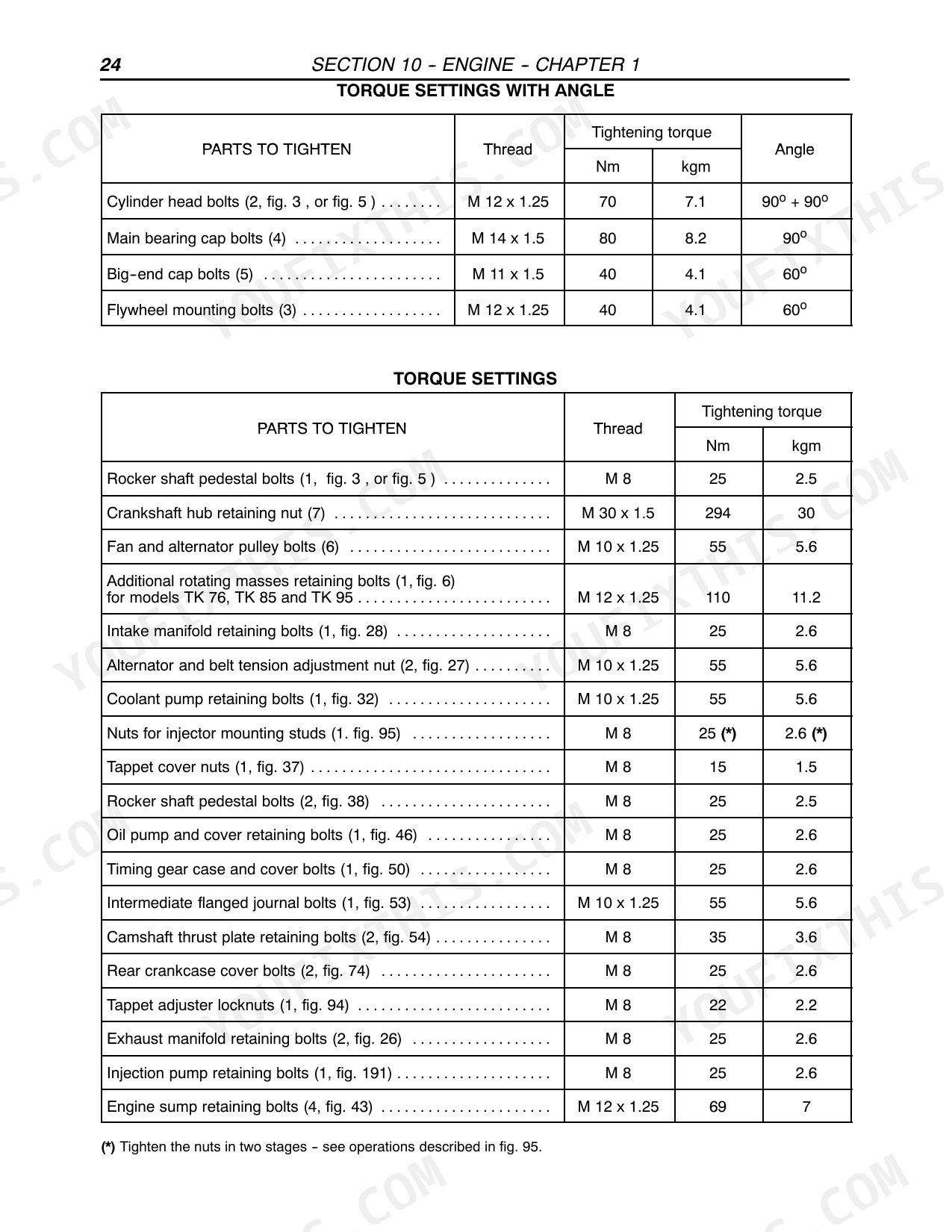

| Cylinder head bolts torque | 70 Nm (7.1 kgm) + 90° + 90° | p. 34 |
| Main bearing cap bolts torque | 80 Nm (8.2 kgm) + 90° | p. 34 |
| Big-end cap bolts torque | 40 Nm (4.1 kgm) + 60° | p. 34 |

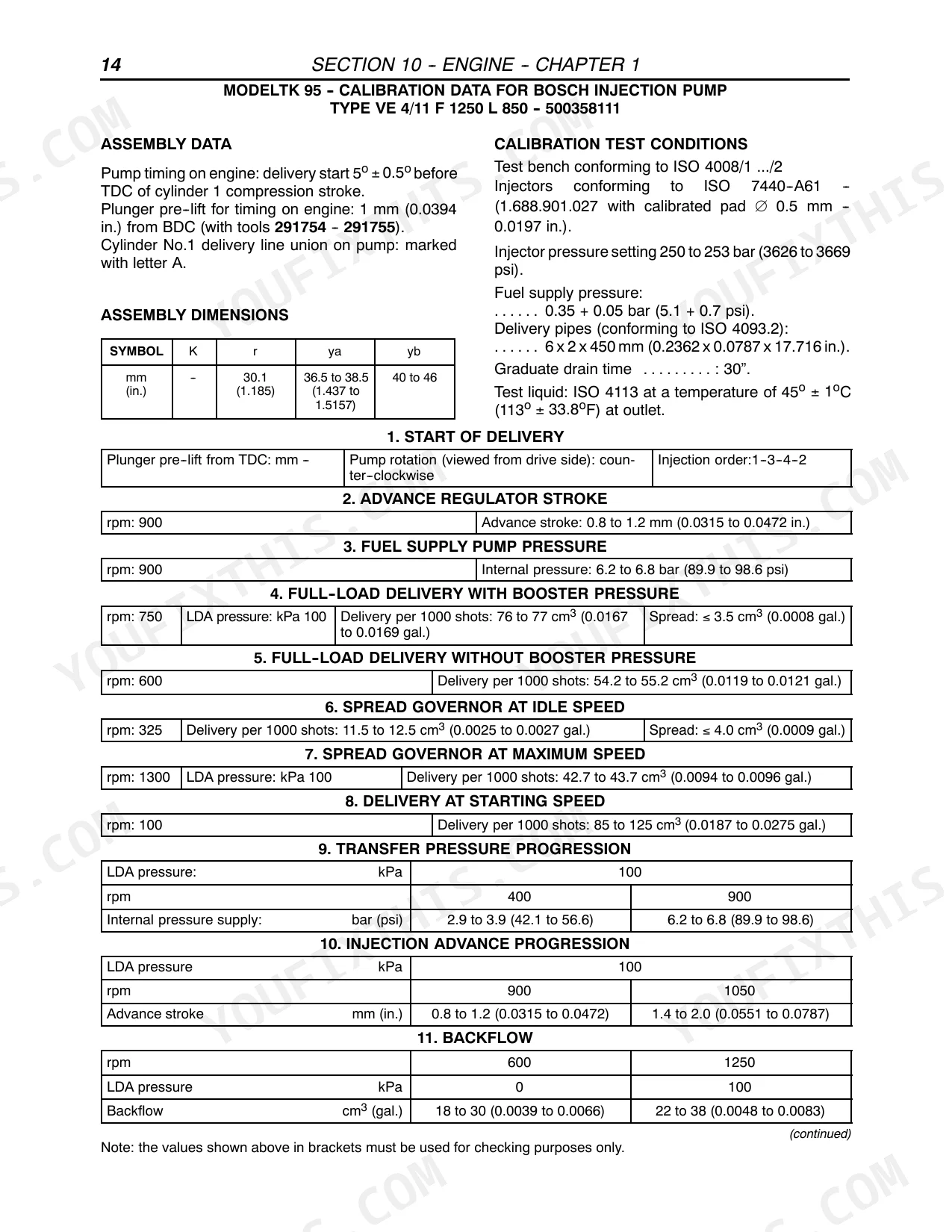

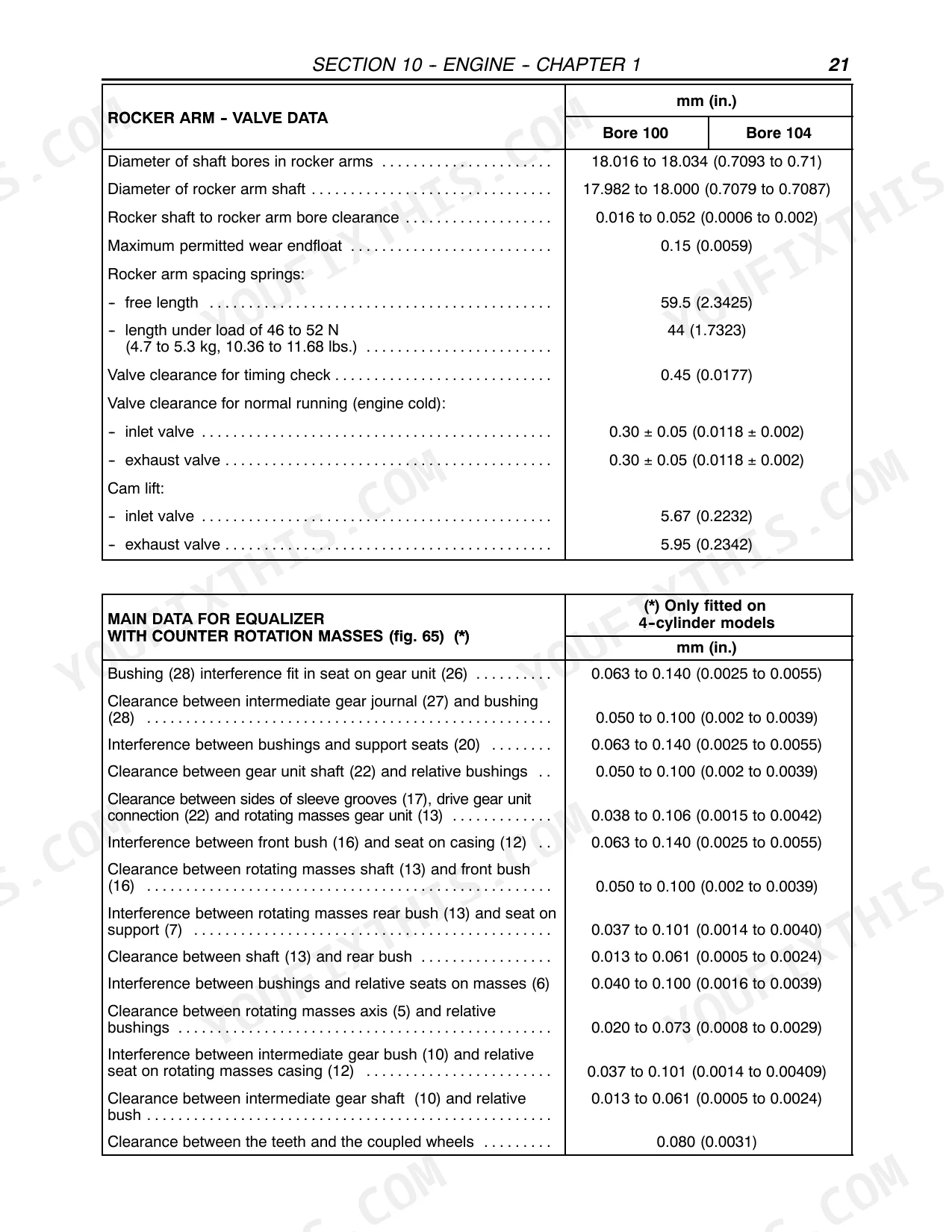

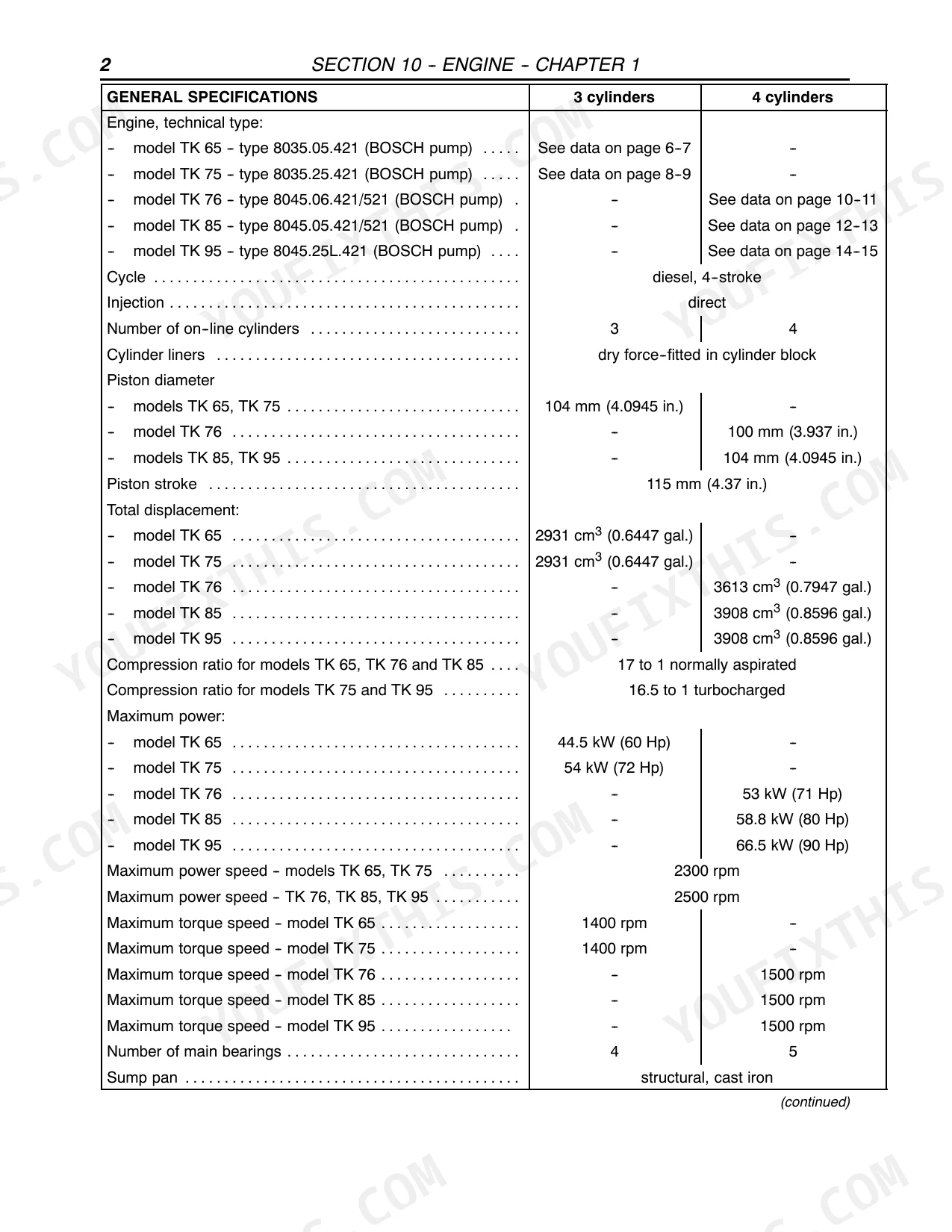

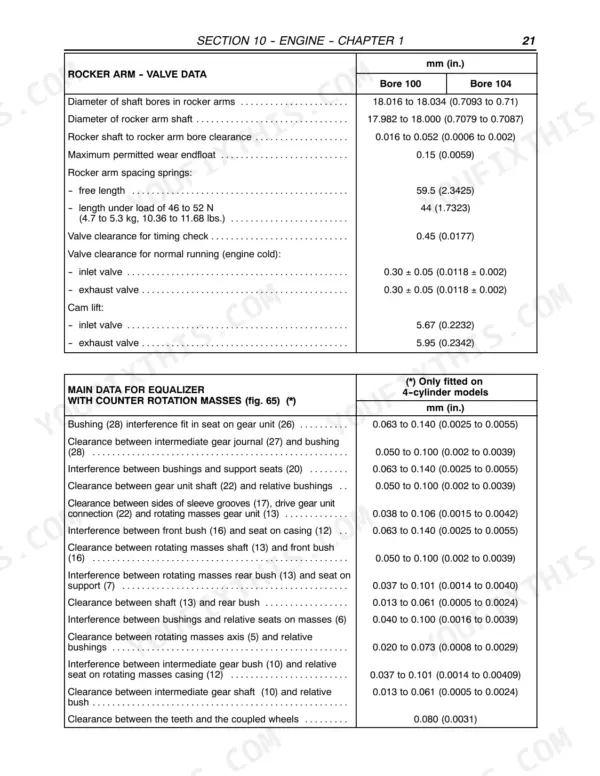

| Valve-rocker arm clearance (intake, engine cold) | 0.30 ± 0.05 mm (0.1654 ± 0.0276 in.) | p. 14 |

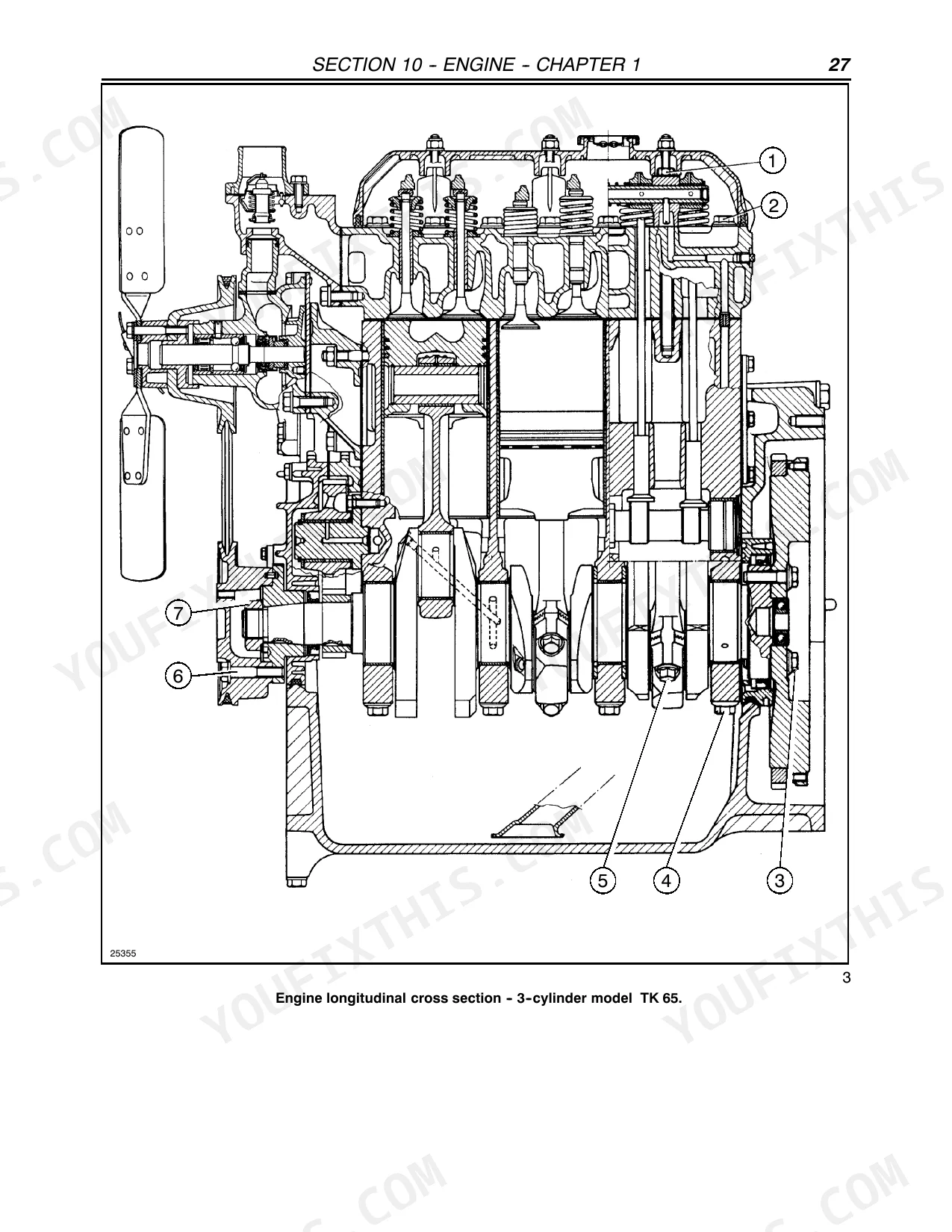

| Crankshaft assembly endfloat | 0.082 to 0.334 mm (0.0032 to 0.0131 in.) | p. 27 |
| Main clutch driven plate thickness | 9.7 to 10.3 mm (0.3819 to 0.4055 in.) | p. 129 |
| TK65, TK75 | ||
| Cooling system capacity | 10.5 dm3 (2.31 gal.) | p. 9 |
| Engine sump capacity with filter | 7.3 dm3 (1.61 gal.) | p. 9 |
| TK76, TK85, TK95 | ||
| Cooling system capacity | 13.0 dm3 (2.86 gal.) | p. 9 |
| Engine sump capacity with filter | 11.2 dm3 (2.46 gal.) | p. 9 |
New Holland TK65–TK95 Series Common Problems This Manual Covers
New Holland TK85M engine cranks but won't start, produces heavy black smoke in cold weather
Check the engine troubleshooting chart for no-start conditions. Verify valve-rocker arm clearance is set to 0.30 ± 0.05 mm (0.1654 ± 0.0276 in.) with the engine cold; tight clearance kills compression and causes hard starting. Bleed air from the fuel system, inspect the cold start device, and confirm battery voltage reads above 12.4V before condemning the starter.
Manual Section: Engine TroubleshootingClutch slips under heavy load and jerks abruptly when engaging on hills
Inspect the main clutch driven plate for glazing or oil contamination. Measure friction lining thickness with a caliper and replace the plate if it falls below 9.7 to 10.3 mm (0.3819 to 0.4055 in.). Adjust pedal free travel to spec, check the release bearing for wear, and verify the pressure plate springs seat evenly.
Manual Section: Clutch TroubleshootingPTO loses speed and slips under heavy load, hard to select PTO range
Remove the PTO clutch cover and inspect the driven plate. Replace it once thickness drops below 7.3 to 7.9 mm (0.2874 to 0.3110 in.) measured under a 7500 N load. Check clutch pack spring pressure, verify the selector linkage adjustment at the control lever, and confirm the PTO housing oil level meets spec.
Manual Section: Mechanical Power Take-Off (PTO) TroubleshootingBrakes feel spongy and tractor pulls hard to one side when stopping suddenly
Bleed the hydraulic braking circuit fully before testing. Connect a gauge to the braking unit hydraulic actuator and confirm it reads 27 to 29 bar (391 to 420 psi) as specified on page 296. Adjust the balance linkage between left and right brake pedals, inspect friction discs for uneven wear, and top off brake fluid to the correct level.
Manual Section: Braking System Troubleshooting p. 296Steering clutch sticks and drags, tractor pulls to one side during sharp turns
Remove the steering clutch access cover and inspect the friction plates for glazing or contamination. Torque the internal drum locknut to 343 Nm (35 kgm) as specified on page 357. Check release linkage travel on both sides, clean any sludge from the clutch drum, and confirm return spring tension is equal left to right.
Manual Section: Steering Clutches Troubleshooting p. 357Starter motor cranks slowly or fails to engage in cold weather conditions

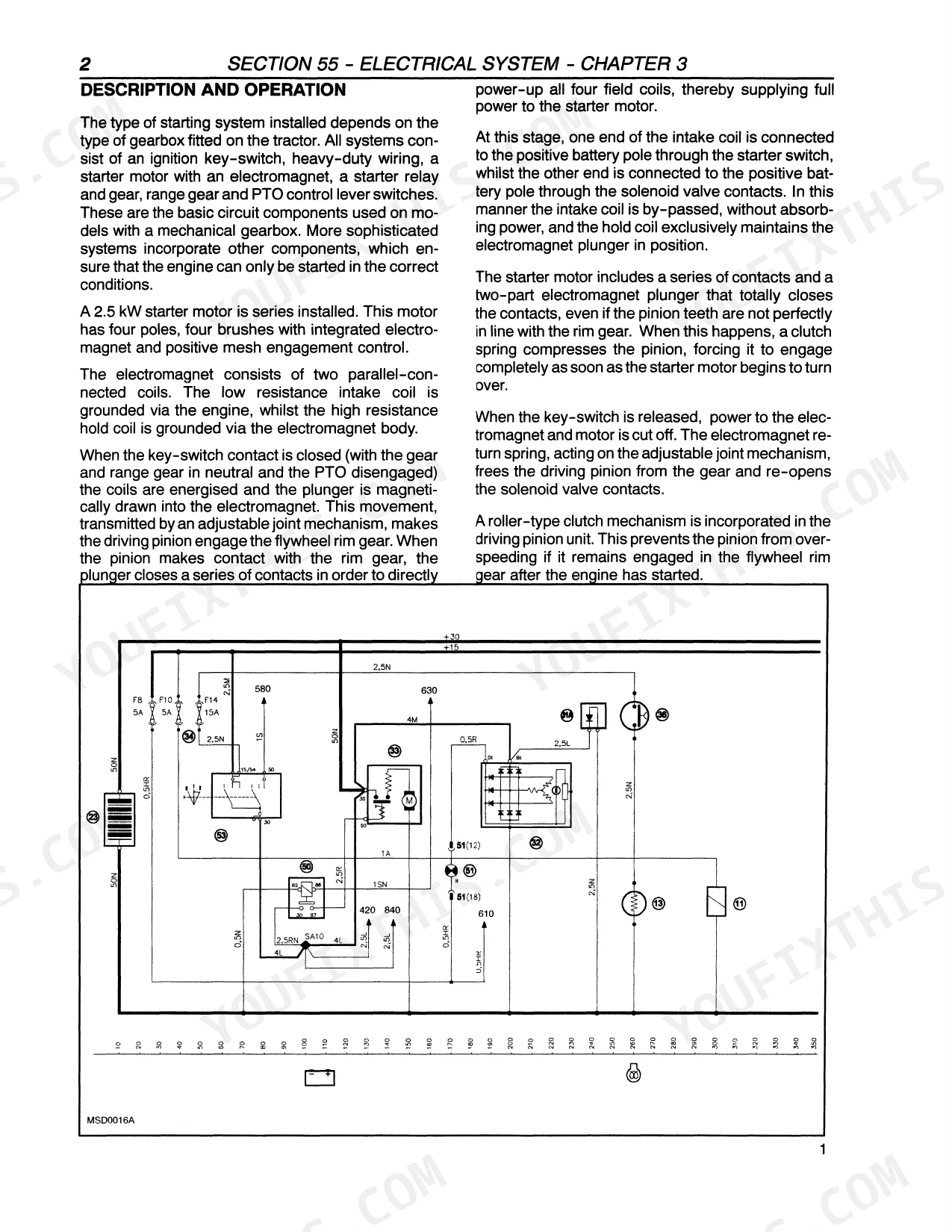

Test the starting circuit for excessive voltage drop at every connection using a multimeter, then measure current draw at the starter motor and compare it against the rated absorption value. Clean and tighten both battery terminals, check the ground strap for continuity, and confirm the battery holds full state of charge before replacing the starter.
Manual Section: Electrical System - Starting System TestingFrequently Asked Questions
What are the torque specifications for the cylinder head bolts on a New Holland TK76?
The cylinder head bolts on a New Holland TK76 should be tightened to a torque of 70 Nm (7.1 kgm), followed by two additional 90-degree turns. This applies to both 3-cylinder and 4-cylinder models. p. 34
What are the torque specifications for the final drive housing-cover retaining bolts on a New Holland TK85M?
The final drive housing-cover retaining bolts on a New Holland TK85M should be tightened to a torque of 59 Nm (6 kgm). p. 196
What is the engine oil capacity for a New Holland TK85 with a filter?
The engine oil capacity for a New Holland TK85 with a filter is 11.2 dm³ (2.46 gal). This specification applies to models TK76, TK85, and TK95. p. 9
What is the fuel tank capacity for a New Holland TK85?
The fuel tank capacity for a New Holland TK85 is 129 dm³ (28.38 gal). This applies to models TK76, TK85, and TK95. p. 9
Is this New Holland TK65–TK95 Series Repair Manual a digital download?
Instant PDF download. You get the full 590-page searchable Repair Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print specific sections of this New Holland TK65–TK95 Series manual?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
Does this New Holland TK65–TK95 Series manual include wiring diagrams?
Yes, full electrical schematics are included with wire colors, connector locations, and circuit descriptions.
