Fuel injection pump timing is where guesswork on a diesel gets expensive, which is why the timing marks, timing pin, and valve timing sit at the heart of this Perkins 4.2032 shop manual PDF, 90 pages of factory data for the 4.2032 diesel engine under OEM ID 601TPD07911158. Technical data up front hands you engine ratings, torque tensions, camshaft figures, and the 8.5 mm injection pump plunger diameter; from there, more than half the book is overhaul procedure, cylinder head through crankshaft, liners, timing case, and flywheel housing, ending with the approved service tools Perkins calls out. Set inlet valve lash cold at 0.008 in and exhaust at 0.012 in before you close up the rocker cover. Guessing costs twice: the wrong part, then a second teardown. Bought once, the bookmarked, text-searchable PDF is yours to keep for every rebuild this engine sees.

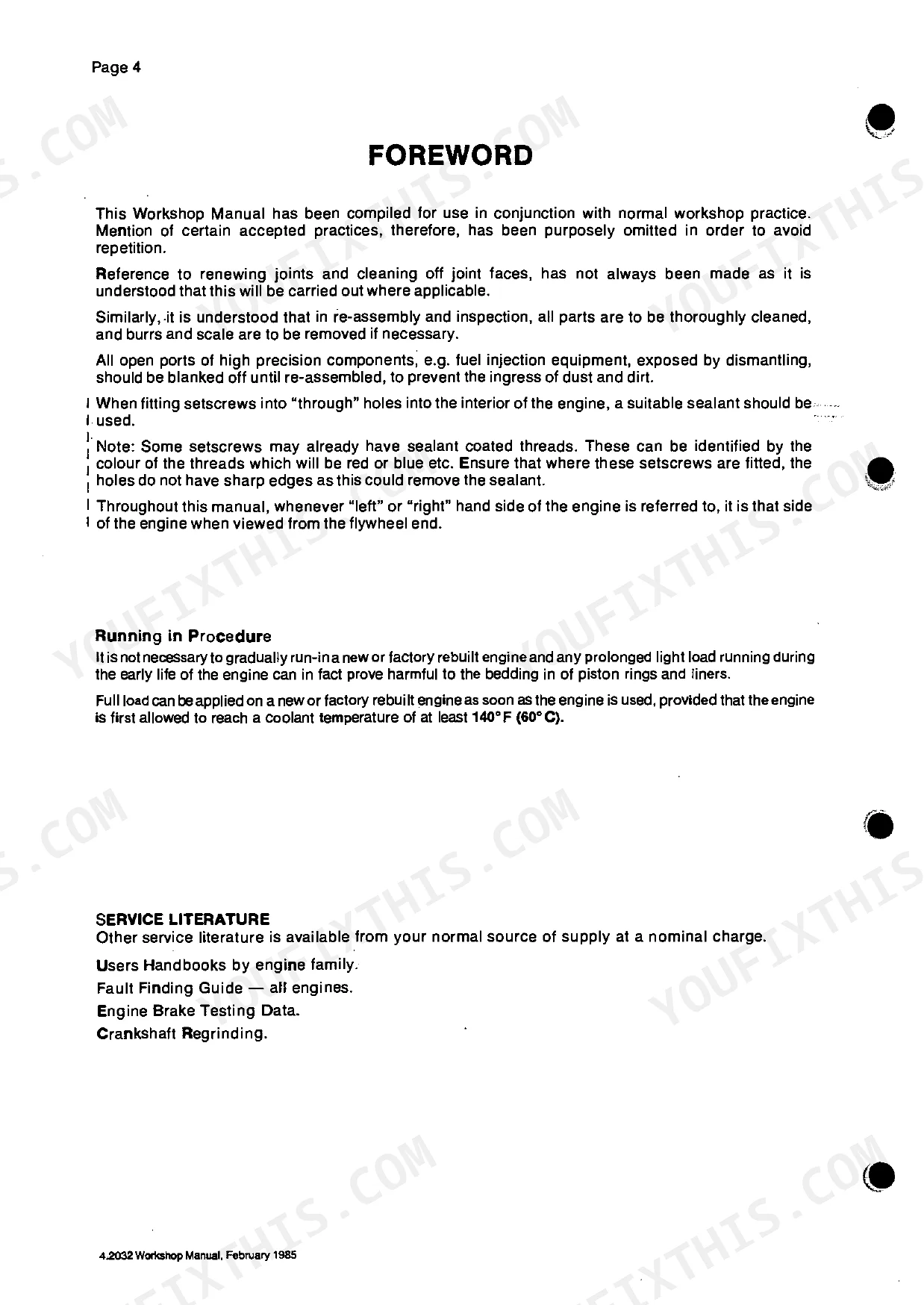

What's Inside This Perkins 4.2032 Manual

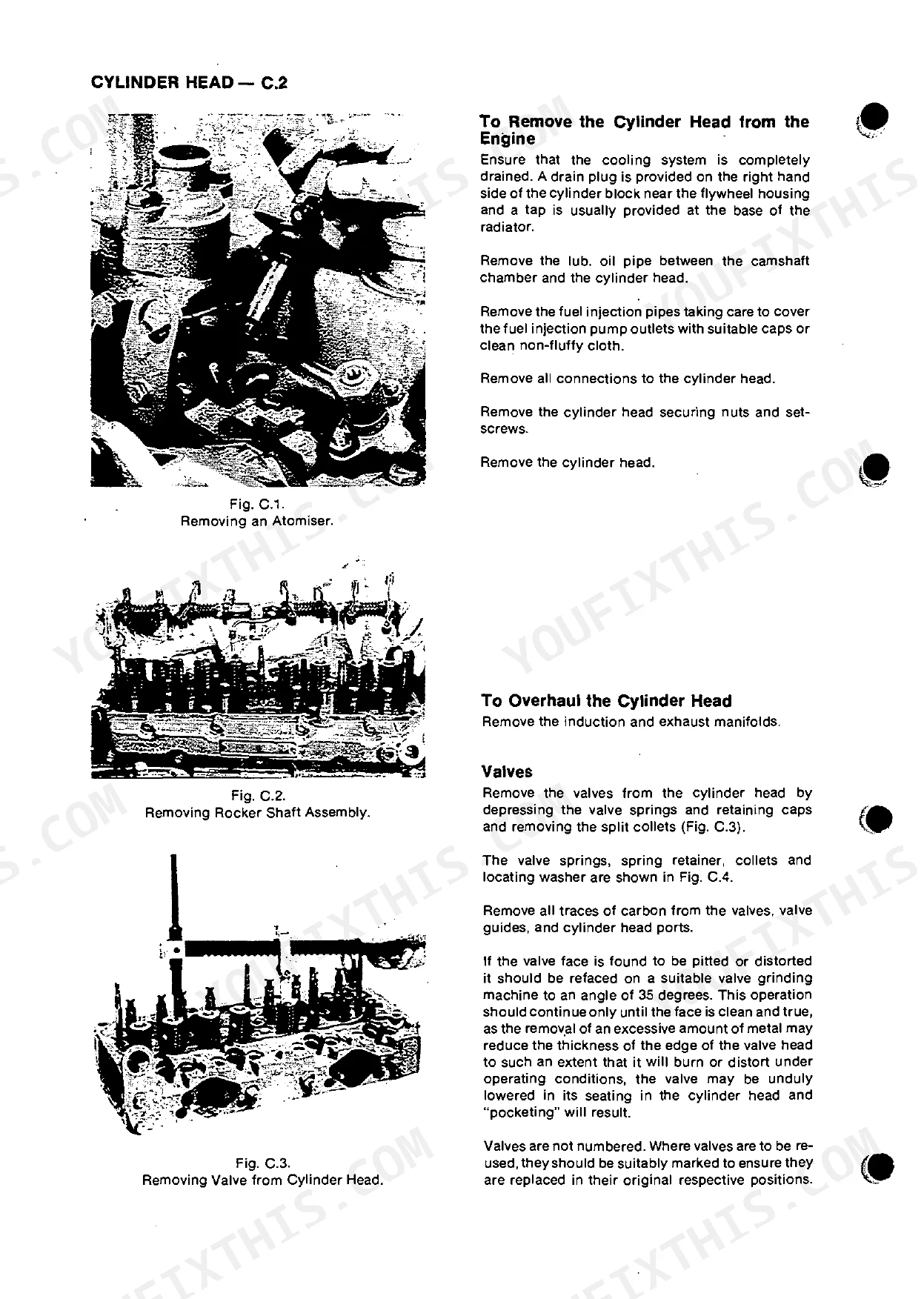

| System | Pages | Key Topics |
|---|---|---|
| Technical Data | 10-20 | Engine Ratings, Torque Tensions, Engine Weights, Piston Rings, Camshaft, Fuel Injection Pump |
| Maintenance | 21-24 | Preventive Maintenance, Post-Delivery Inspection, Engine Coolant |
| Cylinder Head | 25-32 | Valve Springs, Valve Seats, Rocker Assembly |
| Pistons and Connecting Rods | 33-39 | Piston Gudgeon Pin, Piston Rings, Renewing Connecting Rod Bearings |
| Cylinder Block and Liners | 40-42 | Cylinder Block, Cylinder Liners, Parent Bore, Liner Flange, Service Liners |
| Crankshaft and Main Bearings | 43-48 | Main Bearing Caps, Crankshaft End Float, Lip Type Crankshaft Rear End Oil Seal |
| Timing Case and Drive | 49-55 | Timing Gears, Camshaft Thrust, Fitting New Timing Case |
| Timing | 56-59 | Timing Marks, Timing Pin, Valve Timing, Fuel Pump Timing Marks, Fuel Injection Pump |
| Lubrication System | 60-66 | Lubricating Oil Filters, The Oil Pump, Lubricating Oil Sump |
| Cooling System | 67-71 | Water Pump Seal, Fan Belt |
| Fuel System | 72-77 | Fuel Injection Pump, Fuel Lift Pump, Atomisers |
| Flywheel and Flywheel Housing | 78-80 | Alignment of the Flywheel Housing |
| Alternator and Starter Motor | 81-85 | Alternator Maintenance, Starter Motor Testing, Starter Motor Maintenance |
| Approved Service Tools | 86-88 | Valve Guide Remover, Piston Ring Squeezer, Piston Height Gauge, Fuel Pump Allen Screw Key, Crankshaft Rear Oil Seal Replacer, Valve Spring Compressor |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Inlet valve clearance (cold) | 0.008 in (0,20 mm) | p. 11 |
| Exhaust valve clearance (cold) | 0.012 in (0,30 mm) | p. 11 |
| Fuel Injection Pump Plunger Diameter | 8.5 mm | p. 19 |
| Top Ring Clearance in Groove | 0.0019/0.0049 in (0,05/0,13 mm) | p. 13 |
| 2nd and 3rd Ring Clearance in Groove | 0.0019/0.0039 in (0,05/0,10 mm) | p. 13 |
| Valve Stem to Guide Bore Clearance (Inlet) | 0.006 in (0,15 mm) | p. 20 |
| Valve Stem to Guide Bore Clearance (Exhaust) | 0.0055 in (0,14 mm) | p. 20 |
| Main Bearing Running Clearance | 0.0017/0.004 in (0,04/0,10 mm) | p. 14 |
| Connecting Rod Bearing Running Clearance | 0.002/0.0035 in (0,05/0,09 mm) | p. 14 |
| Thermostat Opening Temperature | 82° C (180° F) | p. 18 |
| Thermostat Fully Open Temperature | 98° C (208° F) | p. 18 |
| atomiser securing nuts torque | 12 lbf ft (1,6 kgf m) or 15 Nm | p. 77 |
Perkins 4.2032 Common Problems This Manual Covers
Perkins 4.2032 cranks but won't start, or starts hard after fuel filter change
Bleed the fuel system using the priming procedure in the fuel system section starting on page 72; open the vent screws and work the lift pump until fuel runs free of bubbles. If cranking is slow, load test the starter motor; maximum current draw is 855 amps, listed in the data on page 19.
Manual Section: Fuel System p. 72Heavy white smoke at start-up, coolant level dropping, no external leaks visible
Pressure-test the cooling system for internal leakage, then pull the head and inspect the gasket and liner flanges. Check liner flange height against the 0.004 in (0,10 mm) limit on page 42, recut valve seats per the procedures on page 28, and torque head setscrews to 80 lb ft (108 Nm) in sequence.
Manual Section: Cylinder Head p. 26Blue exhaust smoke under load, oil consumption climbing every 50 hours, compression down on all cylinders
Measure ring-to-groove clearance; the top ring spec is 0.0019/0.0049 in (0,05/0,13 mm) on page 13. Check fitted bores against the 3.6015/3.6025 in (91,48/91,50 mm) limit on page 42, and valve stem to guide clearance, 0.006 in (0,15 mm) inlet, on page 20. Renew rings, liners, and guides beyond limits.
Manual Section: Pistons and Connecting Rods p. 33Low oil pressure warning at idle when hot, dull knock from the bottom end
Drain the sump, drop the pan, and check main bearing running clearance against the 0.0017/0.004 in (0,04/0,10 mm) spec on page 14; rod bearings run 0.002/0.0035 in (0,05/0,09 mm). Undersize shells come in 0.010, 0.020, and 0.030 in steps. Torque main bearing setscrews to 115 lb ft (155 Nm) on reassembly.
Manual Section: Crankshaft and Main Bearings p. 43Engine overheats within 20 minutes, coolant pushed from header tank, top hose stays cold
Test the thermostat in heated water; it should start opening at 180\\u00b0F (82\\u00b0C) per page 71 and be fully open at 208\\u00b0F (98\\u00b0C). Replace it if the valve is lazy. Inspect the water pump seal and fan belt tension in the cooling section on page 67, then refill with 10.5 U.K. pt (6.0 litres).
Manual Section: Cooling System p. 67Loud tappet clatter at idle, worse when warm, steady misfire on one cylinder
Set valve clearances cold to 0.008 in (0,20 mm) inlet and 0.012 in (0,30 mm) exhaust, listed on page 11, following the tappet adjustment procedure on page 32. If the clatter stays, pull the atomisers for pop testing and retorque the securing nuts to 12 lbf ft (15 Nm) per page 77.
Manual Section: Cylinder Head p. 26Frequently Asked Questions
How do I reset the Perkins 4.2032 injection pump timing?
To re-set the engine timing, position the crankshaft so that No. 1 piston is at T.D.C. (top dead center). Ensure the camshaft gear 'D' mark aligns with the hub, and the fuel pump gear dowel is located in the shaft slot. Finally, align the scribed lines on the fuel pump mounting flange and the rear of the timing case as detailed on page 58. p. 58
How do I adjust the valve lash on a Perkins 4.2032 engine?
With the engine cold, set the inlet valve clearance to 0.008 in (0.20 mm) and the exhaust valve clearance to 0.012 in (0.30 mm). Adjustments are performed by rotating the engine until specific cylinders are 'rocking' as outlined in the procedure on page 32. p. 32
What are the torque specifications for the cylinder head bolts on a Perkins 4.2032 diesel engine?
The cylinder head setscrews with integral head washers should be tightened to 80 lbf ft (11.1 kgf m or 108 Nm). Other cylinder head nuts and setscrews should be tightened to 70 lbf ft (9.7 kgf m or 95 Nm). p. 11
How do I bleed the fuel system on the Perkins 4.2032?
To bleed the system, slacken the air vent screw on the front of the governor control cover and the vent screw on the hydraulic head locking screw. Operate the priming lever on the fuel lift pump until fuel free from air bubbles issues from each point, then tighten the screws in the specified order. p. 73
What is the correct lubricating oil pressure for the Perkins 4.2032?
The lubricating oil pressure should be between 30 and 60 lbf/in² (2.1 to 4.2 kgf/cm²) at maximum engine speed and normal working temperature. p. 17
Will this Perkins 4.2032 Shop Manual download right away?
A single searchable PDF file of 90 pages, downloadable right after payment. Nothing ships, nothing waits in the mail.
Can I print just the pages I need from this Perkins 4.2032 manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
