Need the factory numbers for your Perkins 4.154? This 99-page Perkins 4.154 Shop Manual PDF (OEM #601 TPD 0192/1024) covers the diesel engine from cylinder head to flywheel housing, including the marine variants. Inside: alternator wiring diagrams, crankshaft regrind data, a dedicated timing section with valve and fuel pump timing marks, plus page after page of rebuild dimensions for pistons, liners, and main bearings. You also get lubrication, cooling, and fuel system data, exhauster service, and an approved tools list. Set valve tip clearance to 0.012 in (0,30 mm) cold, and torque the spin-on oil filter canister to 15 lbf ft (20 Nm). No more chasing specs through forum threads at midnight. Bookmarked with a full text layer; search any spec, jump to any section, and get back to wrenching.
What's Inside This Perkins 4.154 Manual

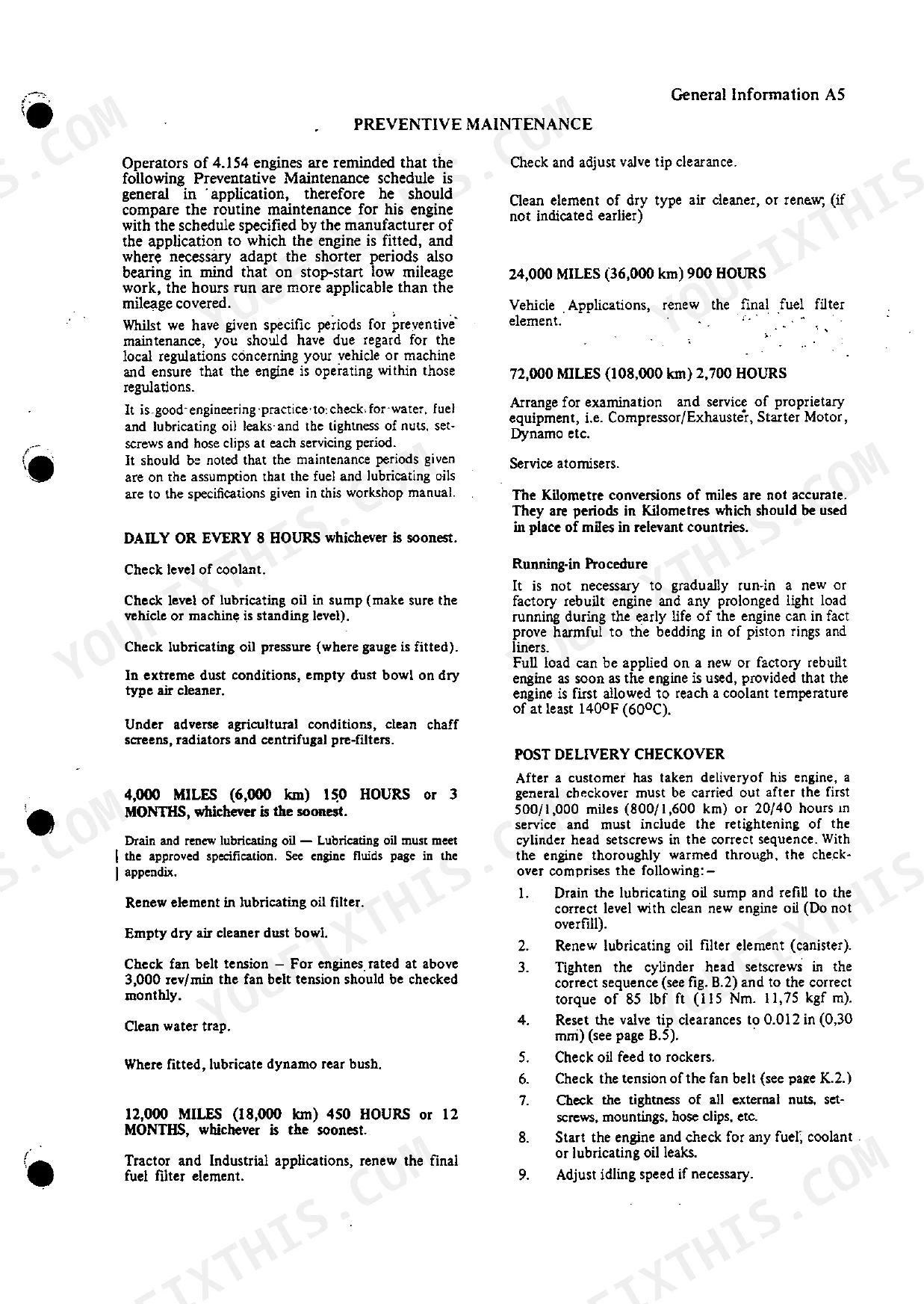

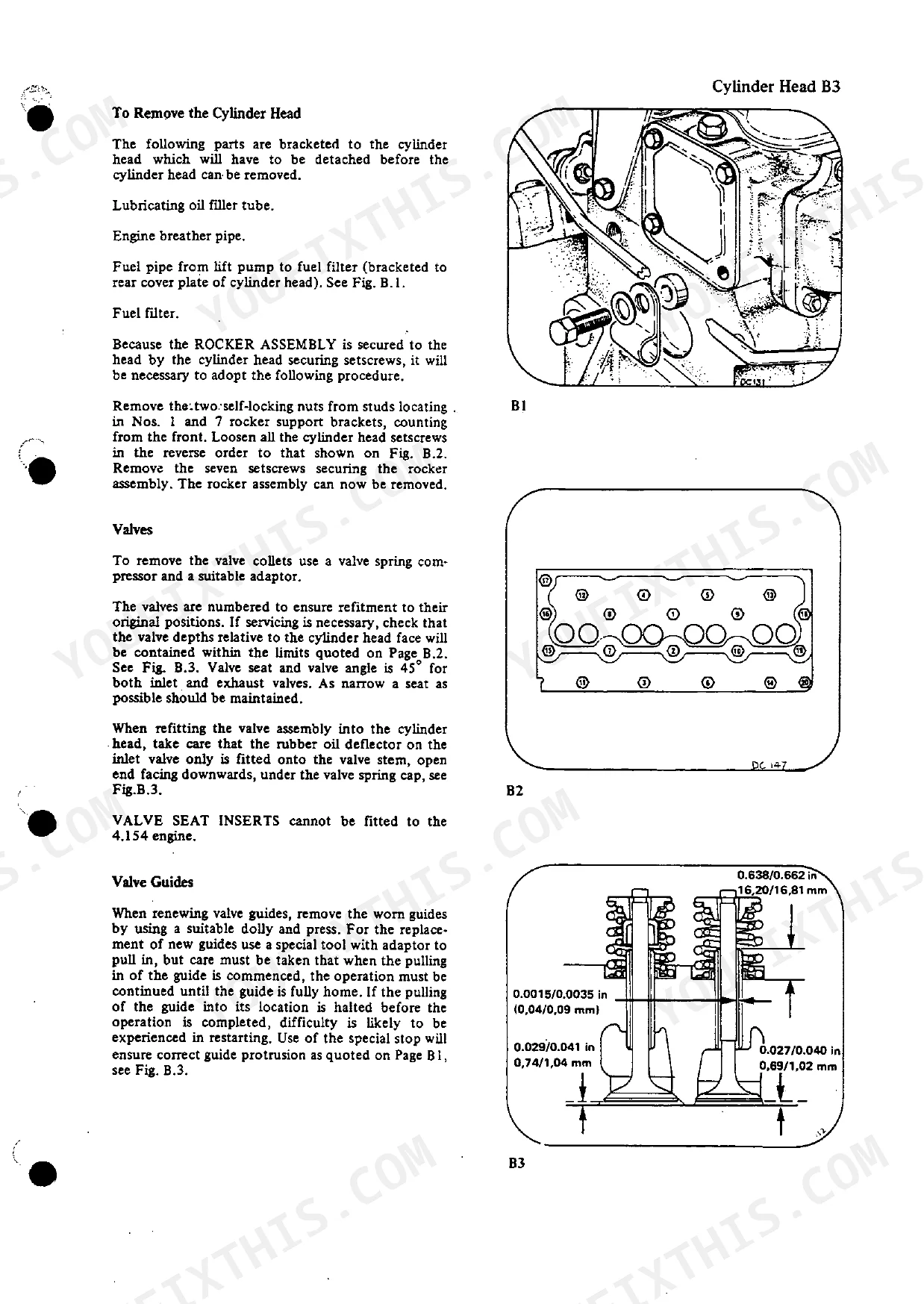

| System | Pages | Key Topics |
|---|---|---|
| General Information | 1-22 | Safety Precautions, Preventive Maintenance |
| Cylinder Head | 23-27 | Cylinder Head Dimensions, Valves |
| Pistons and Connecting Rods | 28-32 | Piston and Rod Dimensions, Connecting Rod Alignment |
| Cylinder Block and Liners | 33-34 | Cylinder Block and Liner Dimensions |
| Crankshaft and Main Bearings | 35-39 | Crankshaft and Main Bearing Dimensions, Crankshaft Regrind Data |
| Timing Case and Drive | 40-48 | Camshaft and Timing Gear Dimensions, Idler Gear and Hub |
| Flywheel and Flywheel Housing | 49-50 | Flywheel, Flywheel Ring Gear, Flywheel Housing, Flywheel Run-Out, Flywheel Alignment |
| Timing | 51-56 | Timing Marks, Timing Pin, Valve Timing, Fuel Pump Timing, Fuel Injection Pump Marking Angle |
| Lubricating System | 57-61 | Lubricating Oil System Data |
| Cooling System | 62-65 | Cooling System Data |
| Fuel System | 66-73 | Fuel System Data |
| Air Cleaner | 74-77 | Dry Type Air Cleaners, Element Renewal, Dust Bowl, Restriction Indicator, Two-Stage Air Cleaners |

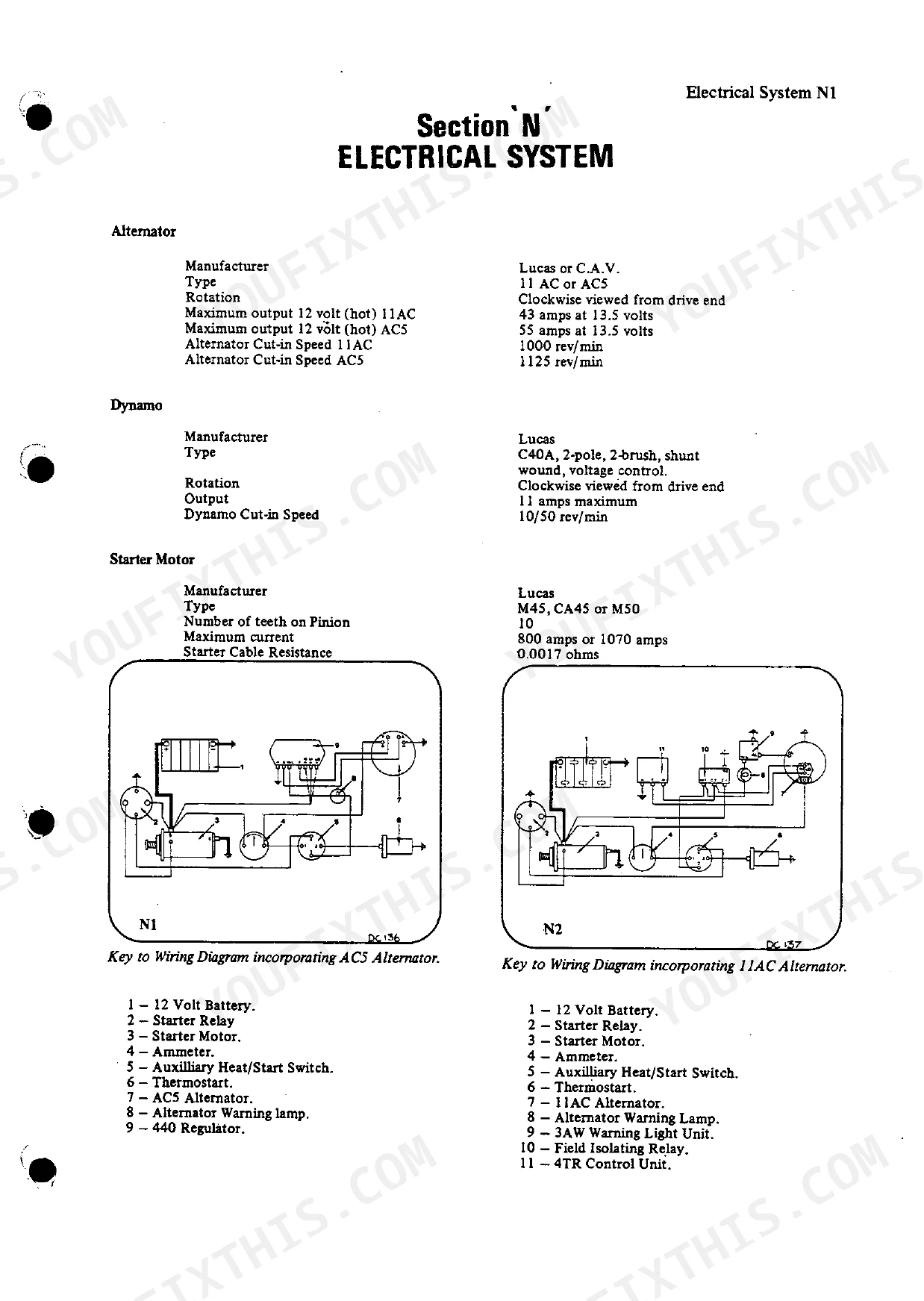

| Electrical System | 78-84 | Alternator |
| Exhauster | 85-87 | Exhauster Unit, Rotor Blades, Oil Check Valve, Exhauster Mounting, Exhauster Lubrication |
| Marine Engines | 88-96 | Marine Engine Data, Gearboxes, Sea Water Pump, Heat Exchanger, Oil Cooler |
| Engine Fluids | 97 | Fuel Specification, Coolant Specification, Lubricating Oil Specification, Sae Viscosity Grades |
| Approved Service Tools | 98-99 | Timing Tool, Adaptor, Splined Shaft, Slotted Pointer |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

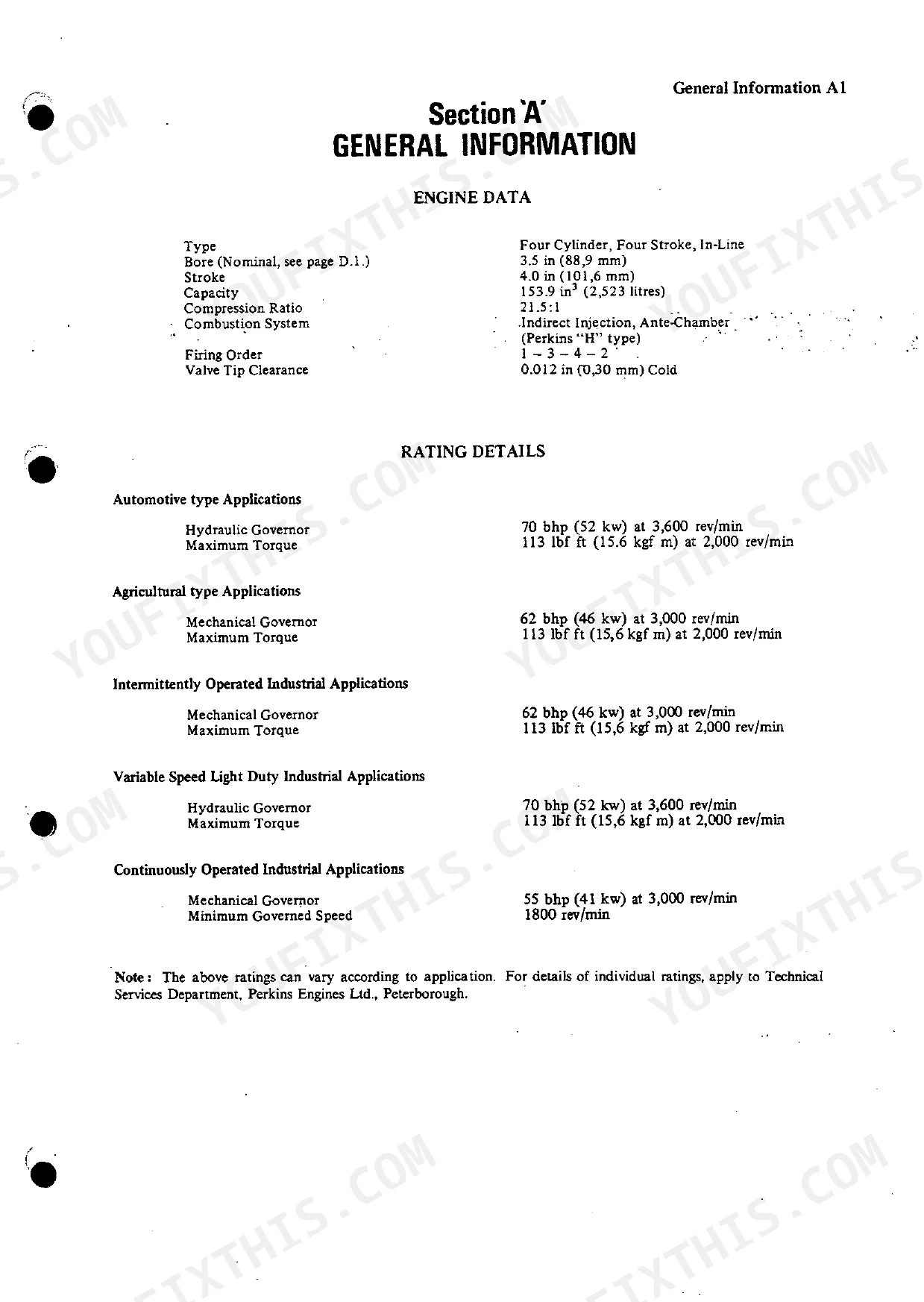

| Valve tip clearance | 0.012 in (0,30 mm) | p. 14 |
| Oil filter element setscrew torque | 10 lbf ft (14 Nm) | p. 61 |
| Spin-on oil filter canister torque | 15 lbf ft (20 Nm) | p. 61 |
| Starter motor brush spring tension | 30/40 ozf (0.85/1.13 kgf) | p. 84 |
| Valve Tip Clearance (Cold) | 0.012 in | p. 14 |
| Cylinder Head Setscrew Torque | 85 lbf ft | p. 16 |
| Water Pump Thermostat Opening Temperature | 175-181°F | p. 62 |
| Marine Engine Lubricating Oil Sump Capacity | 15 IMP pints | p. 88 |
| Marine Engine Maximum Permissible Compartment Temp | 160°F | p. 88 |
Perkins 4.154 Common Problems This Manual Covers
Perkins 4.154 cranks slowly or won't start in cold weather, cold start aid makes no difference
Check battery terminals and ground straps for corrosion, then work the low cranking speed column of the fault finding chart on page 22. Verify sump oil matches the viscosity grades on page 97; thick oil drags cranking speed down. If the motor still labors, test brush spring tension against the 30/40 ozf (0.85/1.13 kgf) spec on page 84.
Manual Section: Fault Finding Chart p. 22Engine runs rough or stalls intermittently, restarts after bleeding, then dies again under load
Trace the air ingress before touching the injection pump. Tighten fuel line unions and check the lift pump gasket, then bleed the system using the fuel system procedures starting on page 66. Replace the fuel filter element at the 12,000 mile interval on the maintenance schedule, page 18; a clogged element pulls air past its seals.
Manual Section: Fuel System p. 66Oil pressure gauge reads low or drops to zero at idle when engine is hot
Check the dipstick and confirm the oil grade against the specifications on page 97; fuel-diluted or wrong-viscosity oil kills hot idle pressure. Replace the filter element using new seals, torquing the setscrews to 10 lbf ft (14 Nm) per page 61. If pressure stays low, inspect the pump following the lubricating system section on page 57.
Manual Section: Lubricating System p. 57Coolant temperature climbs above normal, level drops with no visible external leak
Test the thermostat in heated water; it must begin opening between 175 and 181°F (79.5 to 83.5°C) per the cooling system data on page 62. Check fan belt tension and clear debris from the radiator core. Verify valve tip clearances at 0.012 in cold, page 14, since tight valves make the engine run hot.
Manual Section: Cooling System p. 62Starter motor Bendix drive engages sluggishly, pinion grinds or fails to mesh with ring gear
Remove the starter and wash the Bendix drive assembly in clean paraffin; gummed oil on the sleeve is the usual cause of lazy engagement. Do not lubricate the drive threads afterward. While the motor is apart, check brush spring tension against the 30/40 ozf (0.85/1.13 kgf) spec on page 84 and inspect pinion teeth for burring.
Manual Section: Starter Motor Testing p. 84Frequently Asked Questions
How do I reset the valve tip clearances on a Perkins 4.154 engine?
The valve tip clearance should be set with the engine cold at 0.012 in (0,30 mm). The procedure involves setting the clearance on specific cylinders while others are rocking: set No. 1 while No. 4 is rocking, No. 3 while No. 2 is rocking, No. 4 while No. 1 is rocking, and No. 2 while No. 3 is rocking. p. 27
What are the torque specifications for the Perkins 4.154 cylinder head setscrews?
The cylinder head setscrews must be tightened progressively in the specified sequence to a final torque of 85 lbf ft (115 Nm, 11,7 kgf m). This final torque tightening stage should be repeated to ensure proper seating. p. 27
What is the torque specification for the connecting rod nuts on the Perkins 4.154?
The connecting rod nuts should be tightened to a torque of 45 lbf ft (61 Nm, 6,2 kgf m) for non-phosphated nuts, or 60 lbf ft (82 Nm, 8,3 kgf m) for phosphated nuts. If the nuts are removed, they must be replaced with new ones. p. 32
How do I check the fan belt tension on the Perkins 4.154?
The fan belt tension is correct when the thumb, applied mid-way on the longest unsupported length of the belt, can depress it approximately 3/8 in (10 mm) without undue pressure. p. 63
What is the lubricating oil pressure for the Perkins 4.154 engine?
The lubricating oil pressure should be 30/60 lbf/in² (2,1/4,2 kgf/cm²) at maximum speed and normal operating temperature. p. 58
What format is this Perkins 4.154 manual in?
Instant PDF download. You get the full 99-page searchable Shop Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print specific sections of this Perkins 4.154 Shop Manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
