This 103-page Perkins 4.165 Diesel Engine Workshop Manual (OEM 601 SER 08801143) walks you through every system on this engine, from cylinder head to exhauster, with the numbers Perkins actually printed at the factory. You get full teardown and rebuild procedures for pistons, crankshaft, timing case, and fuel system, plus a dedicated fault finding chart for the AC5 and 11AC electrical setups when your multimeter isn't giving you answers. Torque the cylinder head setscrews to 122 Nm (90 lbf ft) and the main bearing cap setscrews to 109 Nm (80 lbf ft); connecting rod nuts run 102 Nm. You already know a re-used gasket or a guessed torque spec means pulling the head twice. This PDF carries bookmarked sections for every chapter listed above, so you jump straight to cylinder liners or fuel pump timing without hunting. Load it on your phone, prop it against the bench, and get the 4.165 back together right the first time.
What's Inside This Perkins 4.165 Manual
| System | Pages | Key Topics |
|---|---|---|

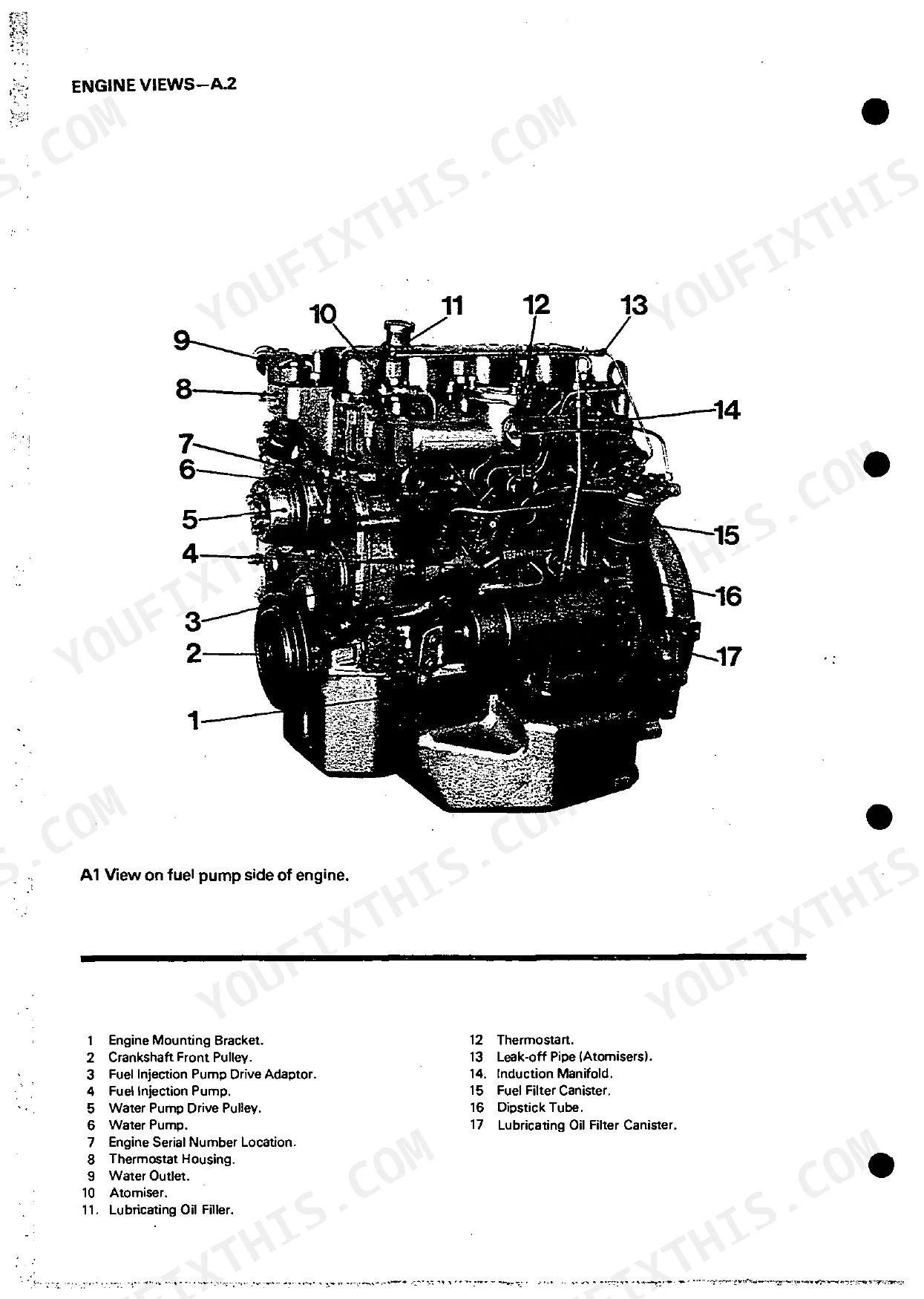

| Engine Views | 5-8 | Fuel Pump Side Components, Camshaft Side Components, Lubricating Oil Pump Section |

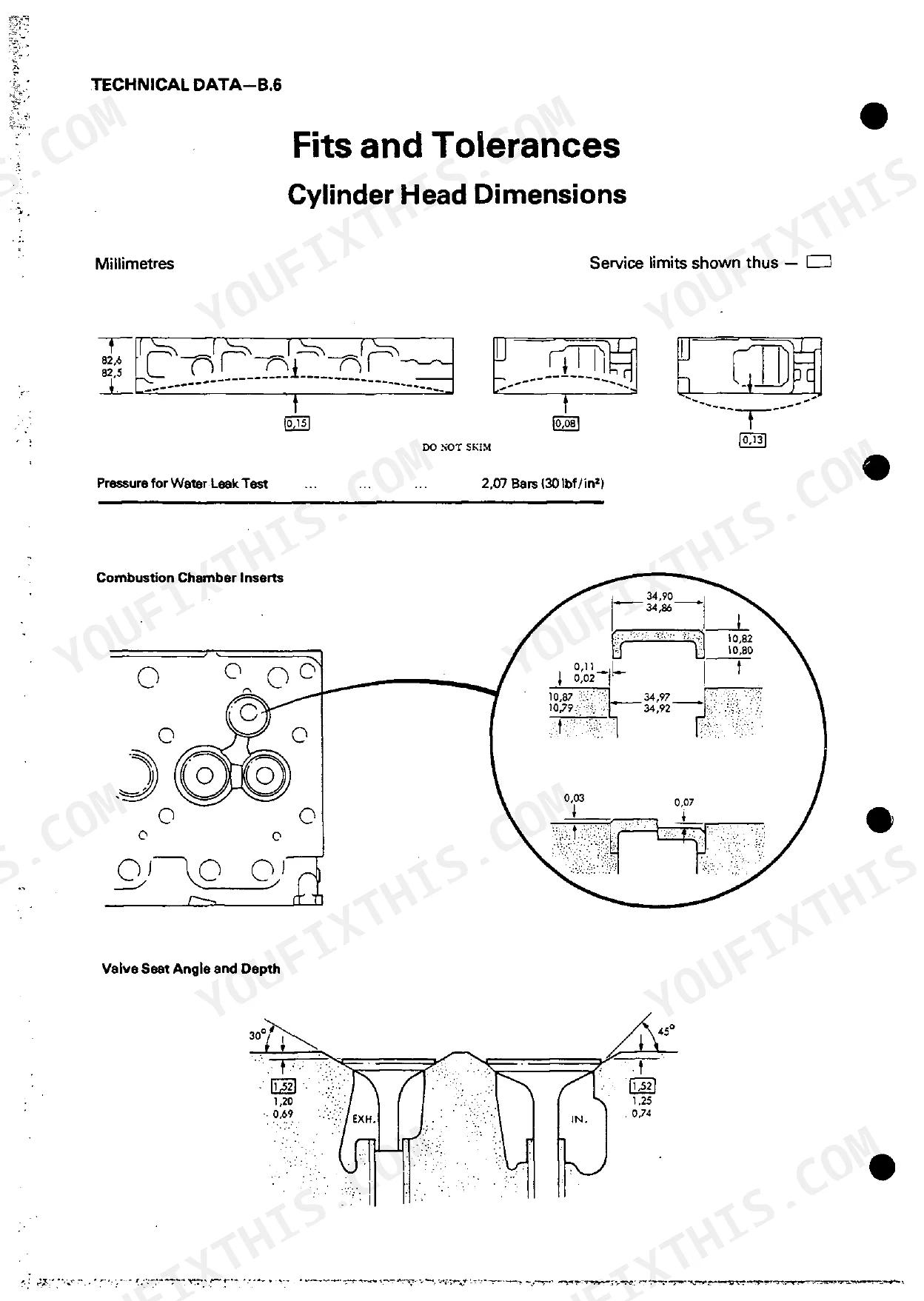

| Technical Data | 9-27 | Fits and Tolerances |
| Operating and Maintenance | 28-32 | Operating Instructions, Warm Starting, Cold Starting, Preventive Maintenance, Post Delivery Checkover, Preservation |
| Fault Finding | 33-34 | Fault Finding Chart, Key to Fault Finding Chart, Fault Finding AC5, Fault Finding 11AC |

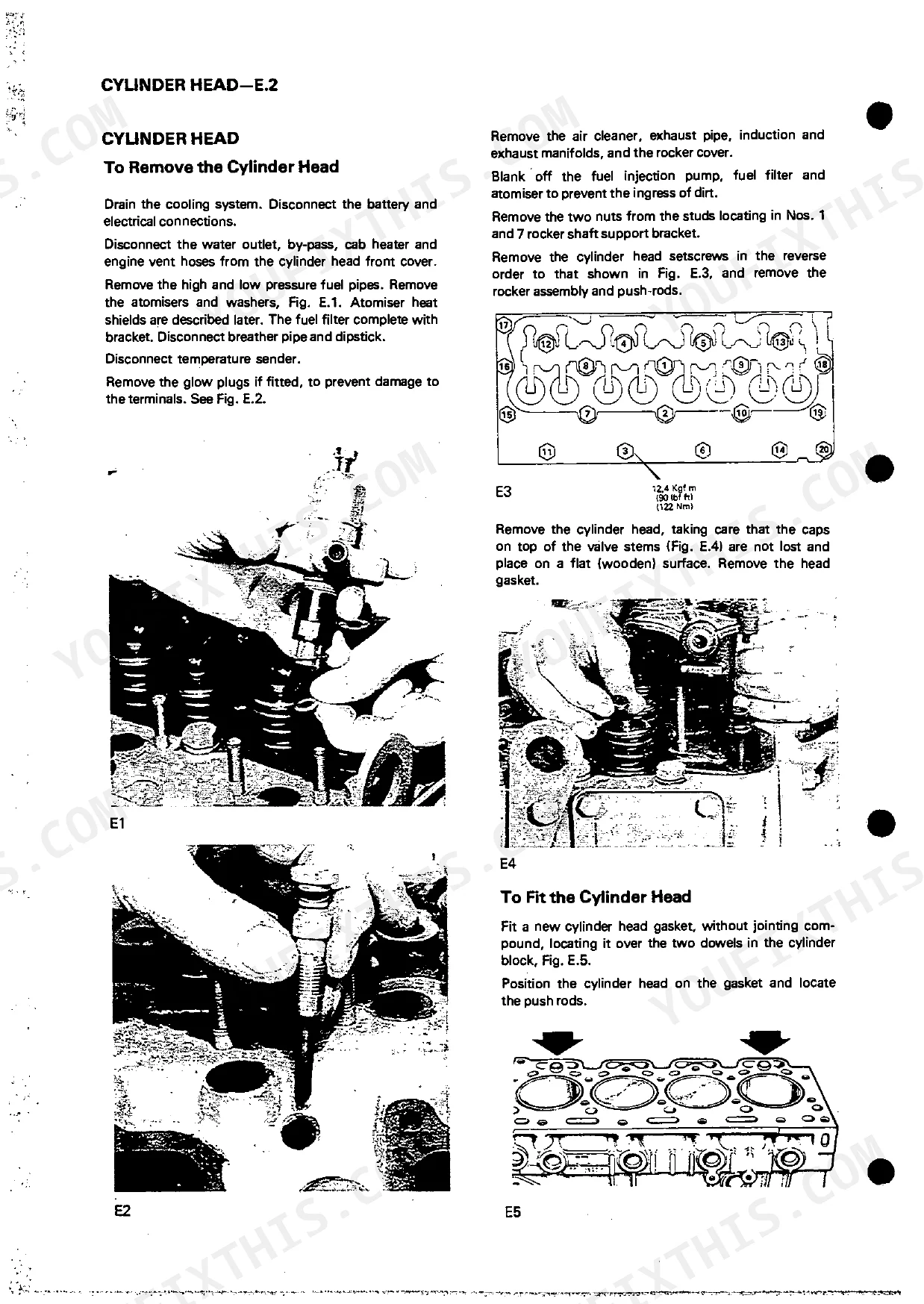

| Cylinder Head | 35-41 | To Remove the Cylinder Head, To Fit the Cylinder Head, To Remove the Valves, To Refit the Valves, Valve Guides, Combustion Chamber Inserts, Valve Tip Clearances |
| Pistons and Connecting Rods | 42-45 | Removal of Pistons and Rods, To Remove Piston and Rings, Piston Ring Gaps, To Renew the Small End Bush, To Fit a New Piston, To Assemble Piston, Connecting Rod and Piston Rings |
| Cylinder Block and Liners | 46-47 | Cylinder Block, Cylinder Liners, To Renew Cylinder Liners, Machining, Top Face |
| Crankshaft and Main Bearings | 48-51 | Crankshaft End Float, To Renew the Thrust Washers, To Remove the Crankshaft, Overhaul of Standard Size Crankshaft, Rear Main Oil Seal, Main Bearing Caps |
| Timing Case and Drive | 52-60 | To Remove the Timing Case Cover, To Refit the Timing Case Cover, To Remove the Idler Gear and |
| Timing | 61-65 | Timing Marks, To Reset to the Original Timing, Checking the Valve Timing, Fuel Pump Timing Marks, Checking Fuel Pump Timing Using the Circlip Method |
| Lubricating System and Oils | 66-73 | Lubricating Oils, Oil Sump, Oil Pump Mid-Mounted, Oil Pump Front Mounted, Oil Relief Valve, Oil Filter |
| Cooling System | 74-77 | Water Pump Belt Adjustment, Water Pump, Thermostat, Piston Cooling Jets |
| Fuel System and Air Filter | 78-84 | Fuel Filter, Water Trap, Fuel Lift Pump, Fuel Injection Pump, Atomisers, Air Cleaners |
| Flywheel and Flywheel Housing | 85-87 | To Remove the Flywheel, Flywheel Ring Gear, To Refit the Flywheel, Flywheel Run-Out, Flywheel Alignment, Flywheel Housing |
| Exhauster | 88-90 | Description, Mounting, Lubrication, Servicing the Exhauster Unit, To Reassemble |
| Electrical System | 91-97 | Alternator, Starter Motor, Dynamo, Maintenance, Fault Finding, Belt Adjustment |
| Service Facilities | 98-99 | Service Publications, Service Instruction |
| Approved Service Tools | 100-101 | Valve Guide Remover and Replacer, Piston Ring Squeezer, Piston Height and Valve Depth Gauge, Crankshaft Rear Oil Seal Replacer, Cylinder Liner REMOVER/REPLACER |

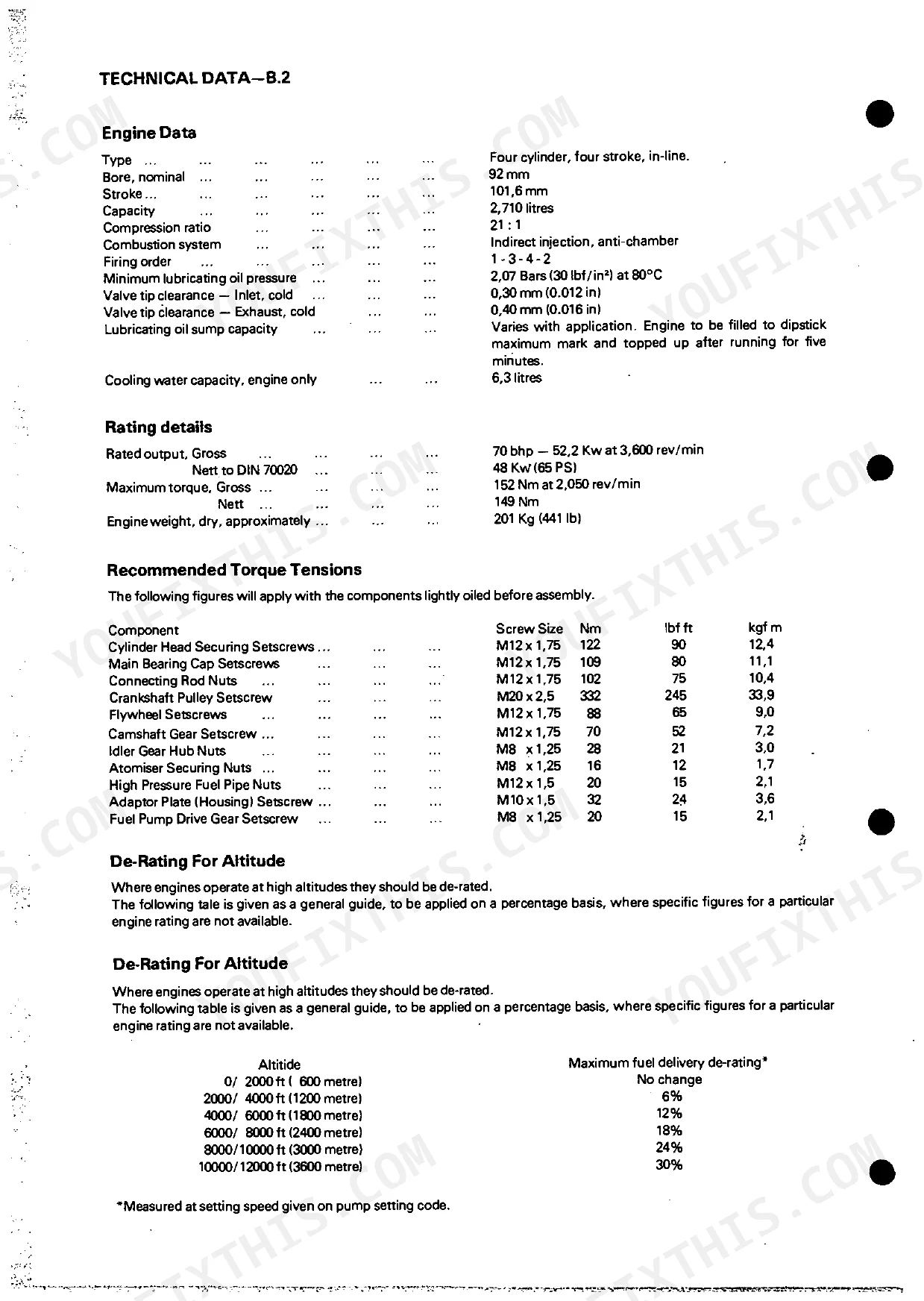

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

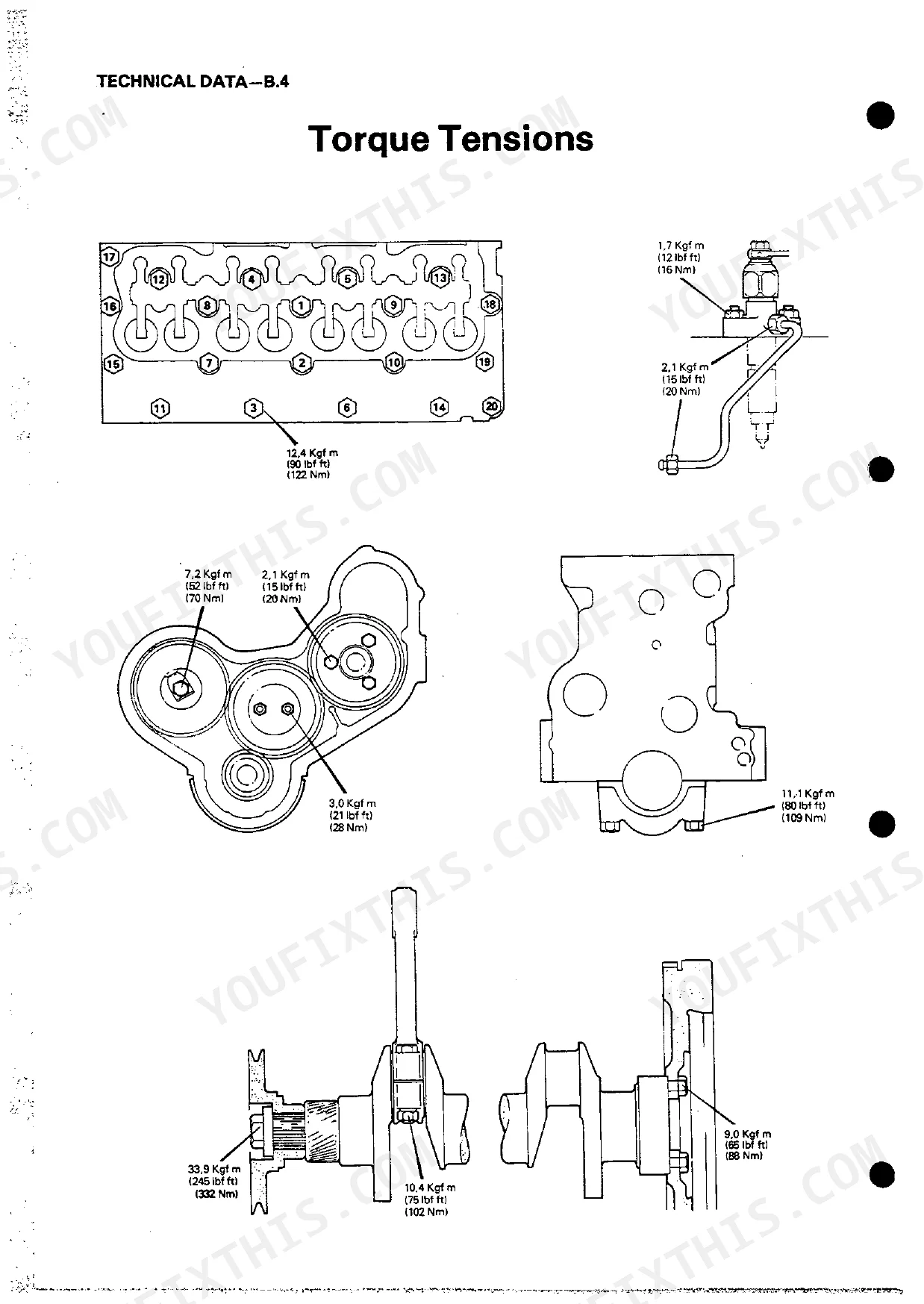

| Cylinder Head Securing Setscrews | 122 Nm (90 lbf ft) (12,4 kgf m) | p. 10 |
| Main Bearing Cap Setscrews | 109 Nm (80 lbf ft) (11,1 kgf m) | p. 10 |
| Cooling water capacity, engine only | 6,3 litres | p. 10 |
| Bore, nominal | 92 mm | p. 10 |
| Stroke | 101.6 mm | p. 10 |
| Engine Capacity | 2.710 litres | p. 10 |
| Compression ratio | 21:1 | p. 10 |
| Minimum lubricating oil pressure | 2.07 Bars (30 lbf/in²) at 80°C | p. 10 |
| Valve tip clearance - Inlet, cold | 0.30 mm (0.012 in) | p. 10 |
Perkins 4.165 Common Problems This Manual Covers
Perkins 4.165 diesel engine cranks slowly but won't start in cold weather
Check the fault finding chart on page 33 for low cranking speed causes. Verify battery terminals are clean and tight, then load test the battery. Inspect starter motor brushes and pinion engagement per the electrical system section starting page 91. If cranking is normal but engine still won't fire, check compression against the specified 21:1 ratio on page 10.
Manual Section: Fault Finding p. 33Engine runs but exhaust smoke is excessive and lacks power under load
Check the fault finding chart on page 33 to narrow down excessive smoke and power loss causes. Test atomiser setting pressure, which should read 155 Kgf/cm² (152.0 bar) per page 81; a low or ragged spray pattern points to worn nozzles. Inspect the air cleaner element for blockage against the maintenance schedule on page 30 and replace if overdue.
Manual Section: Fuel System and Air Filter p. 78Oil pressure gauge reads low or fluctuates erratically at idle right after startup
Check the fault finding chart on page 33 for low or fluctuating oil pressure causes. Verify oil level against the dipstick, then confirm gauge reading meets the minimum 2.07 Bars (30 lbf/in²) at 80°C spec on page 10. Inspect the lubricating oil pump in the lubricating system section starting page 66; worn gears or a stuck relief valve are culprits.
Manual Section: Lubricating System and Oils p. 66Coolant temperature climbs into overheating range during normal operating conditions under load
Check the fault finding chart on page 33 for overheating causes. Test the thermostat against its 81/85°C opening temperature spec on page 27 and replace it if it fails to open fully. Inspect water pump belt tension and pump bearings in the cooling system section starting page 74, and verify the piston cooling jets aren't blocked with debris.
Manual Section: Cooling System p. 74Deep knocking noise from engine block develops gradually after many hours of hard use
Check the fault finding chart on page 33 for knocking causes. Inspect the crankshaft and main bearings in the section starting page 48; measure bearing clearances against the technical data clearance specifications on page 13. If reassembling, torque main bearing cap setscrews to 109 Nm (80 lbf ft) as specified.
Manual Section: Crankshaft and Main Bearings p. 48Fuel injection pump loses timing and engine runs erratic at all speeds
Check the timing marks and reset procedure in the timing section starting page 61 if the engine runs erratic at all speeds. Verify fuel pump timing marks align correctly, then inspect high pressure fuel pipe nuts; torque them to 20 Nm (15 lbf ft) per page 10, since loose fittings let air enter the fuel system.
Manual Section: Timing p. 61Frequently Asked Questions
How do I fix white smoke on a Perkins 4.165 with retarded timing?
White smoke, indicated as 'Blue/white exhaust' in the fault finding chart, can be caused by incorrect fuel pump timing or incorrect valve timing. To address this, you should refer to the procedures for checking and adjusting the fuel pump timing on page 63 and the valve timing on page 62 of the manual. p. 34
What is the recommended maintenance schedule for a Perkins 4.165 diesel engine?

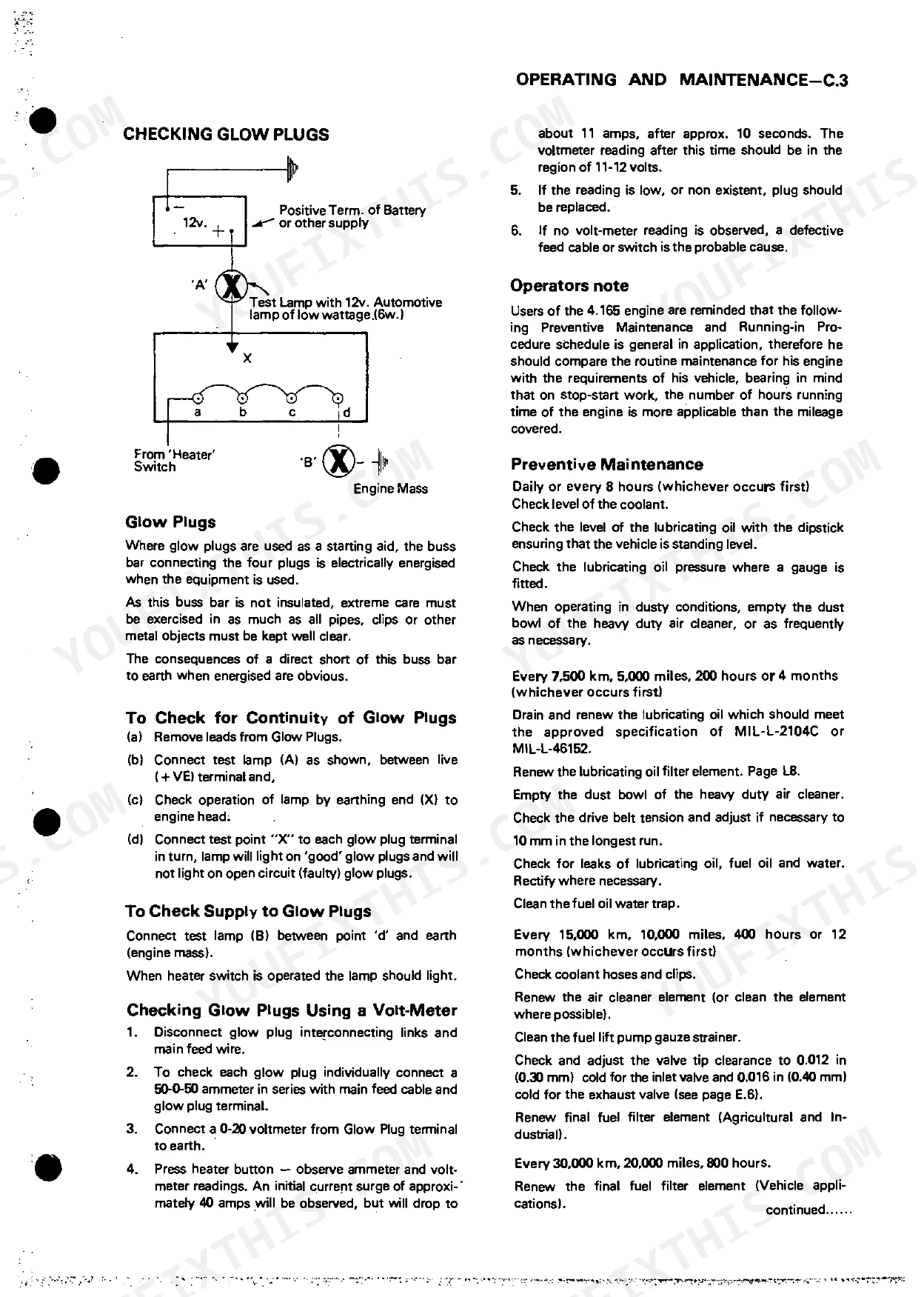

The recommended maintenance schedule includes daily or every 8 hours checks for coolant and lubricating oil levels. More extensive maintenance, such as draining and renewing lubricating oil, is recommended every 7,500 km, 5,000 miles, 200 hours, or 4 months, whichever occurs first. Air cleaner elements should be renewed every 15,000 km, 10,000 miles, 400 hours, or 12 months. p. 30
How do I find the operation and maintenance manual for my Perkins 4.165 using the serial number?
The engine number for your Perkins 4.165 can be found stamped on a machined face of the cylinder block, located above the fuel injection pump. This number should be quoted in full when seeking information or ordering parts from your local Perkins Distributor, who can provide service literature. p. 11
Where is the shutdown stop solenoid located on a Perkins 4.165?
The shutdown stop solenoid on a Perkins 4.165 engine is located on the fuel injection pump. This solenoid is energized to stop the engine, either by pressing a button or through a switch operation. p. 29
What are the symptoms of advanced timing on a Perkins 4.165 under load?
The manual indicates that 'Knocking' is a symptom associated with 'Incorrect fuel pump timing' or 'Incorrect valve timing'. While it does not specifically detail symptoms for 'advanced timing' or 'under load', incorrect timing in general can lead to knocking. p. 34
What do I get after purchasing this Perkins 4.165, 4.165 Diesel Engine manual?
Immediate download of the complete 103-page searchable Workshop Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Am I able to print pages from this Perkins 4.165, 4.165 Diesel Engine manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
