Need the factory specs to overhaul your Perkins diesel engine? This 120-page Perkins 4.192, 4.203, D4.203 Workshop Manual PDF (OEM #601 SER06811010) breaks down every teardown and rebuild procedure for these classic powerplants. Inside, you get a full fault-finding chart, complete wiring diagrams for the alternator and starter motor, and step-by-step instructions for pulling cylinder liners. Open to the technical data section to find page after page of service wear limits, recommended torque tensions, and clearance specs for the pistons and connecting rods. Verify your flywheel housing bore alignment and check the exact piston ring gaps before torquing the cylinder head bolts. Every hour in the shop costs money. Download this bookmarked file directly to your phone or tablet, search for the exact spec, and get back to work.
What's Inside This Perkins 4.192, 4.203, D4.203 Manual
| System | Pages | Key Topics |
|---|---|---|
| Engine Views | 7-9 | - |

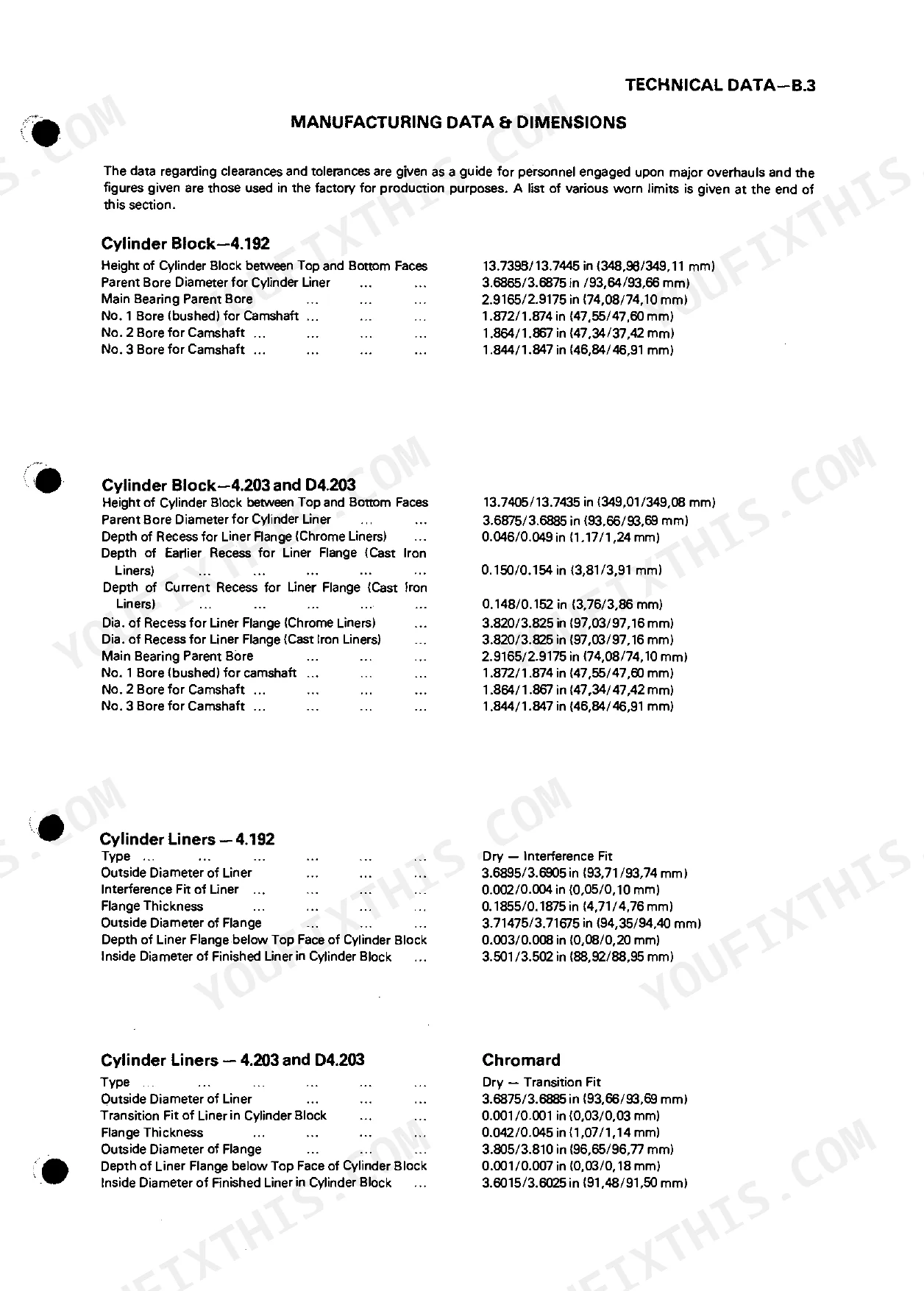

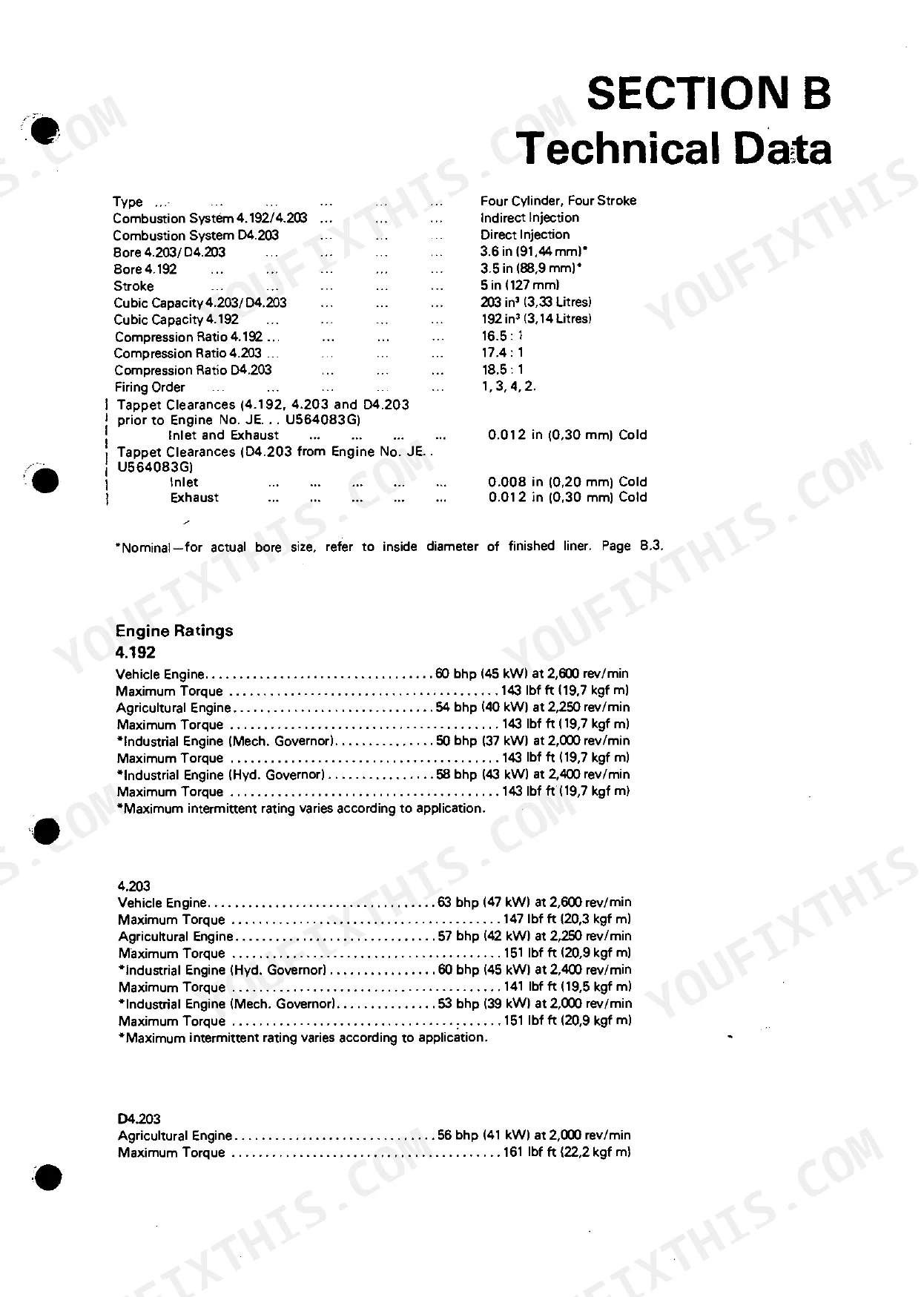

| Technical Data | 10-23 | Engine Ratings, Recommended Torque Tensions, Engine Weights, De-Rating for Altitude, Manufacturing Data & Dimensions, Service Wear Limits |

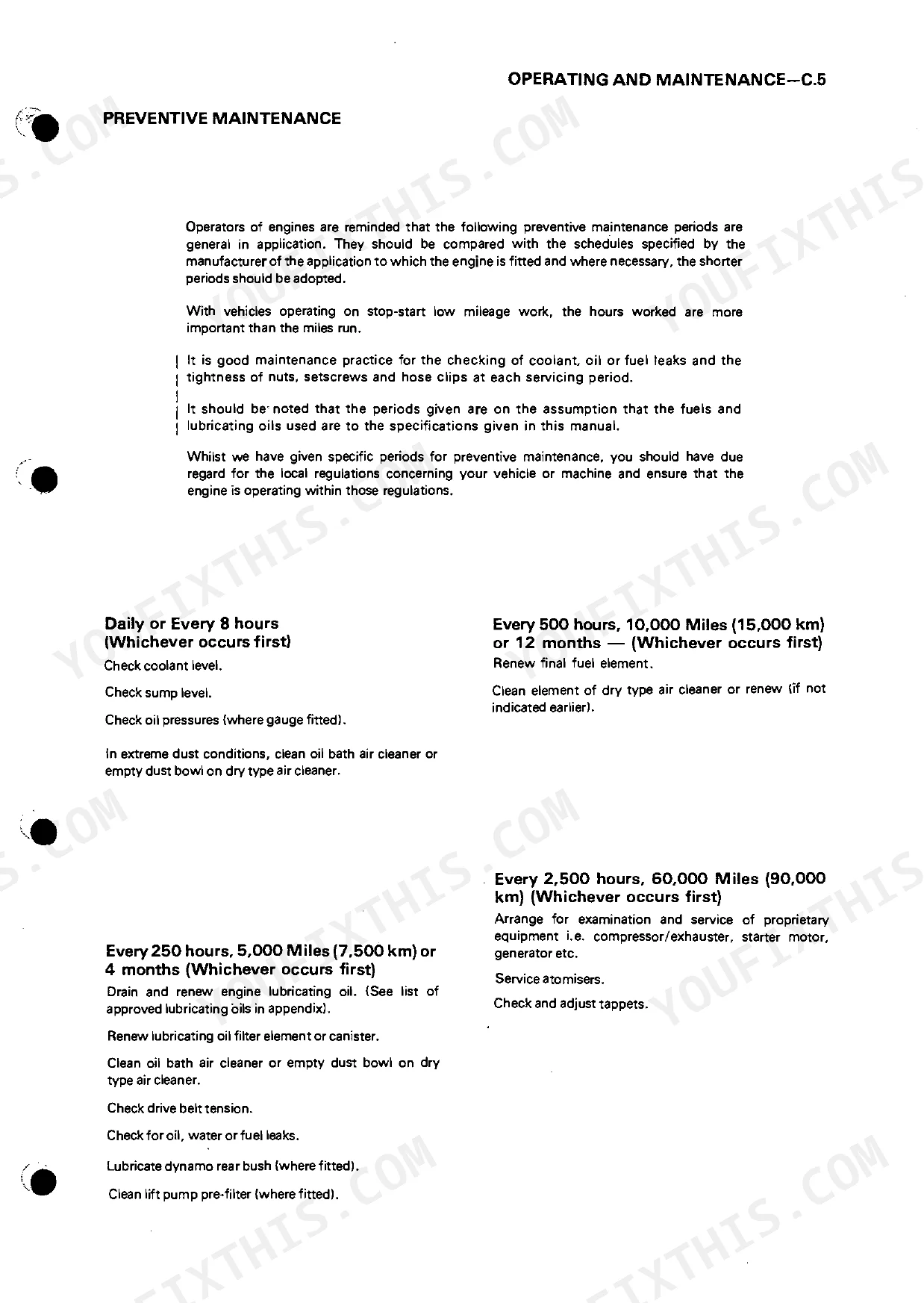

| Operating and Maintenance | 24-30 | Cold Starting Aids, Preventive Maintenance |
| Fault Finding | 31-32 | Fault Finding Chart, Key to Fault Finding Chart, Low Cranking Speed, Will Not Start, Lack of Power, Overheating |

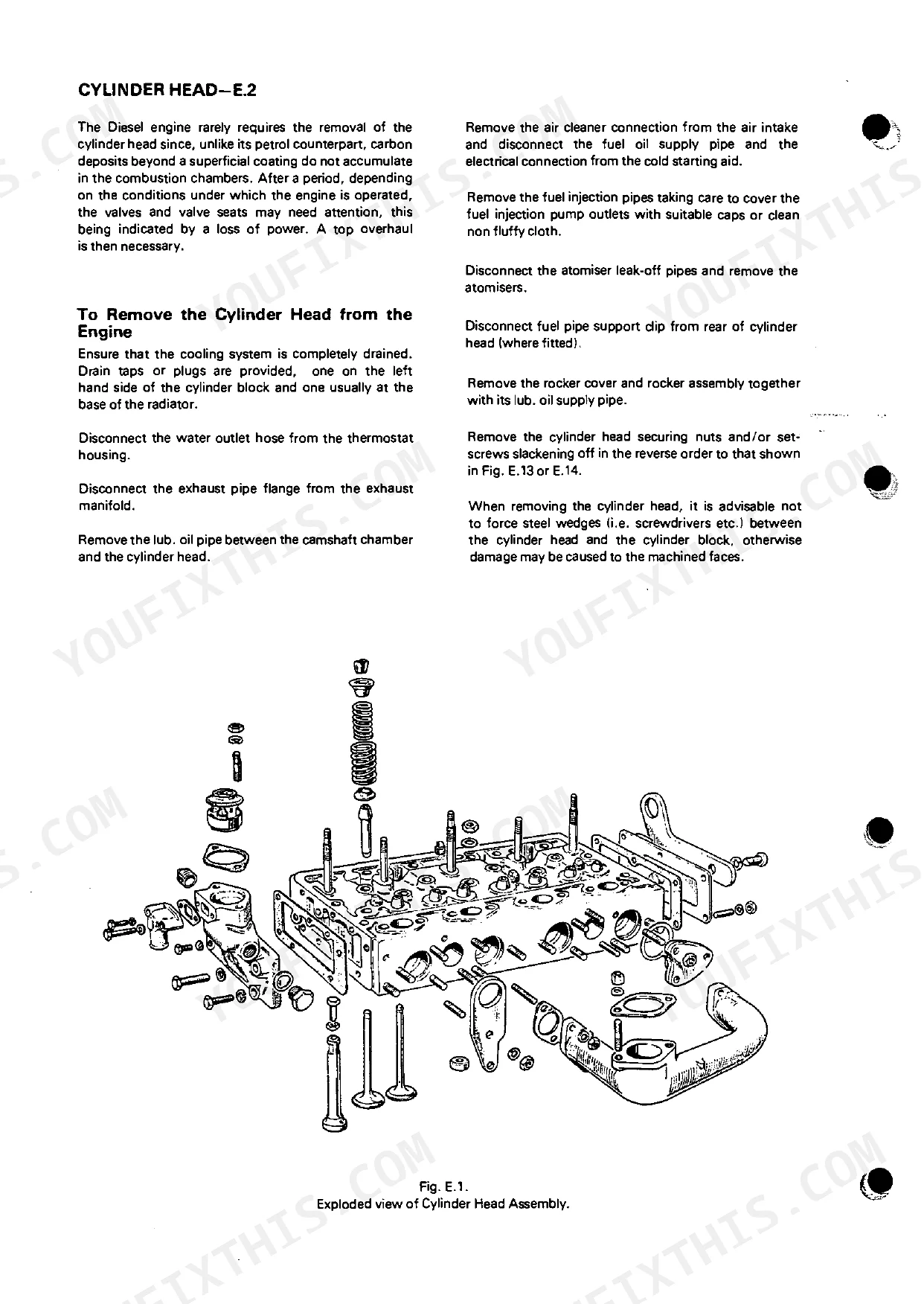

| Cylinder Head | 33-43 | Cylinder Head Retaining |

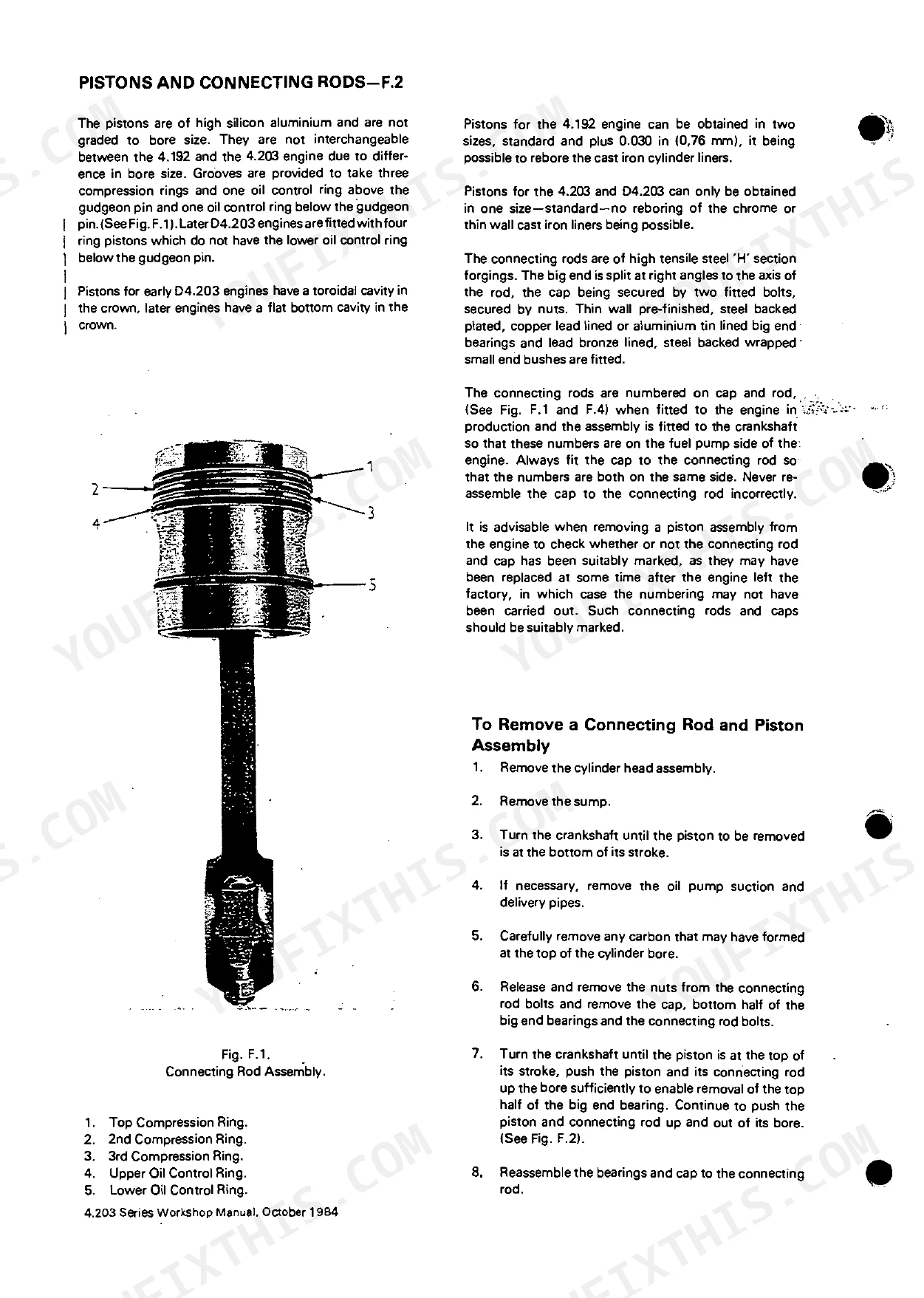

| Pistons and Connecting Rods | 44-51 | Piston Gudgeon Pin, To Remove a Piston From a Connecting Rod, To Replace a Piston on a Connecting Rod, Piston Rings, Fitting Piston Rings to Pistons, Checking Piston Ring Gaps |
| Cylinder Block and Liners | 52-54 | To Remove Liners, Preparation for Fitting Pre-Finished Service |
| Crankshaft and Main Bearings | 55-62 | - |
| Timing Case and Drive | 63-70 | - |
| Timing | 71-76 | To Check Timing |
| Lubricating System | 77-84 | - |
| Cooling System | 85-89 | Water Pump, Thermostat, Fan Belt |
| Fuel System and Air Cleaners | 90-99 | Atomisers |
| Flywheel and Flywheel Housing | 100-102 | Flywheel Removal, Flywheel Ring Gear, Flywheel Housing Alignment, Flywheel Housing Bore Alignment, Sealed Back Ends |

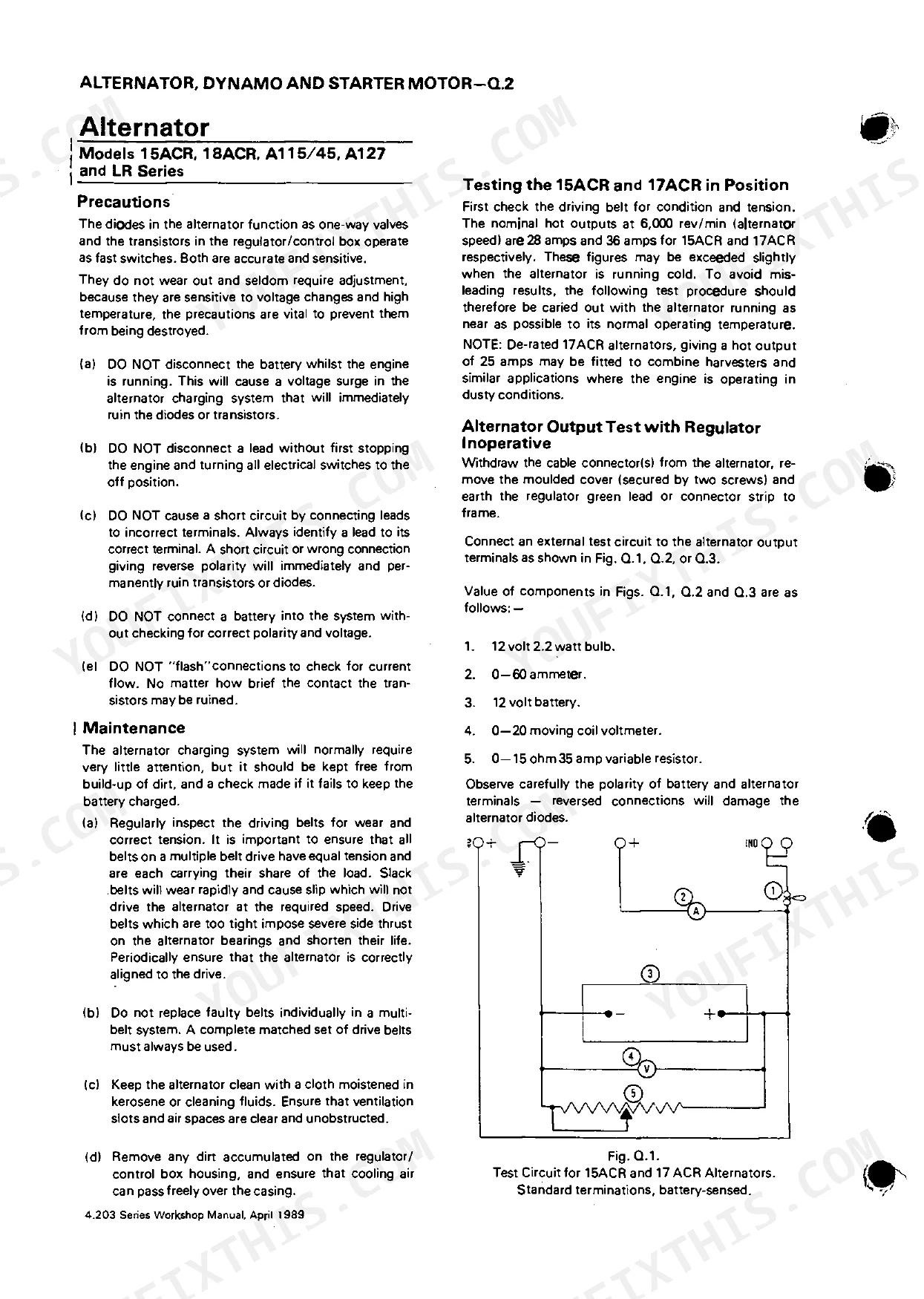

| Alternator, Dynamo and Starter Motor | 103-108 | Alternator Precautions, Alternator Testing, Dynamo Maintenance, Starter Motor General, Starter Motor Maintenance, Starter Motor Testing |
| Exhauster | 109-113 | Description, Operation, Servicing, Removal, Dismantling, Overhaul |
| Fuel and Lubricating Oil Specifications | 114 | Fuel Specification, Cetane Number, Viscosity, Density, Sulphur, Lubricating Oil Specification |
| Approved Service Tools | 115-117 | Valve Guide Remover, Piston Ring Squeezer, Piston Height Gauge, Universal Timing Gauge, Crankshaft Rear Oil Seal Replacer, Cylinder Liner Remover |
| Service Facilities | 120 | Service Publications, Operators Handbooks, Crankshaft Regrinding, Fault Finding Guide, Installation and Maintenance Guide, Service Instruction |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Plunger Diameter 4.192 and 4.203 Hydraulic Governor | 7 mm | p. 17 |
| Oil Pump Clearances Between Inner and Outer Rotors | 0.001/0.006 in (0,03/0,15 mm) | p. 14 |
| Water Pump Outside Diameter of Shaft for Pulley | 0.5906/0.5909 in (15,00/15,01 mm) | p. 20 |
| Atomiser Securing Nuts | 12 lb ft (1,6 kgf m) (16 Nm) | p. 11 |
| Bearing Running Clearance | 0.0018/0.0036 in (0.05/0,09 mm) | p. 17 |
Perkins 4.192, 4.203, D4.203 Common Problems This Manual Covers
Perkins 4.203 fuel injection pump fails from contamination, engine cranks slowly with no ignition.
Check the fault finding chart on page 32 for low cranking speed and hard start causes. Inspect the D.P.A. type distributor pump described on page 93 for contamination; drain water from the filter bowl and prime the system. On mechanical governor models, verify plunger diameter at 7.5 mm (page 21) hasn't worn past limits.
Manual Section: Fuel System and Air Cleaners p. 93Excessive black exhaust smoke pours from the stack under heavy load.
Check the fault finding chart on page 32 under lack of power and excessive smoke. Clean or replace the air cleaner element and check for exhaust restriction. Test atomiser spray pattern per page 97: spray should reach about one foot with a 3 inch cone; a ragged or dribbling pattern means pull the injector and replace it.
Manual Section: Fault Finding p. 32Oil pressure gauge reads low or drops suddenly during normal operating conditions.
Check oil pressure against the relief valve setting of 50 to 65 lbf/in² (345 to 448 kN/m²) given on page 82. Remove and inspect the oil pump; rotor clearance between inner and outer rotors should read 0.001 to 0.006 in (0,03/0,15 mm) per page 20. Replace the pump if clearance exceeds spec, and change the oil filter.
Manual Section: Lubricating System p. 82Engine overheats with visible steam and rapid coolant loss in high-load applications.
Check coolant level and pressure-test the system for a head gasket breach. Verify the thermostat opens at 180°F (82°C) per the page 20 spec; a stuck thermostat causes rapid overheating. Remove the water pump and check impeller clearance against 0.015 to 0.025 in (0,38/0,64 mm) from page 87; replace the pump if worn.
Manual Section: Cooling System p. 87Knocking or grinding noise comes from the crankcase after thousands of hours.
Drop the oil pan and inspect main and rod bearings for scoring or wiped material. Torque main bearing setscrews to 115 lbf ft (156 Nm) per the page 11 spec when reinstalling. If journals are worn, regrind to 0.010 in (0,25 mm) undersize per page 59 and fit the matching undersize bearing shells.
Manual Section: Crankshaft and Main Bearings p. 59Frequently Asked Questions
What are the torque specifications for Perkins 4.203 cylinder head bolts?
The torque specifications for Perkins 4.203 cylinder head bolts vary based on the type of fasteners. For cylinder heads utilizing nuts only, the torque is 60 lbf ft (8,3 kgf m) 81 Nm. If using nuts and setscrews, the torque is 70 lbf ft (9,7 kgf m) 95 Nm. For setscrews with integral head washers, it is 80 lbf ft (11,1 kgf m) 108 Nm. p. 11
How do I reset the fuel injection pump timing for a Perkins 4.203 engine?
To reset the fuel injection pump timing, first remove atomisers and rocker shaft. Position the crankshaft so that No. 1 piston is at T.D.C. Then, set the timing circlip by connecting No. 1 cylinder outlet connection (marked "W") to an atomiser tester and pump up to 30 atm (31 kgf/cm² or 440 lbf/in²), turning the pump by hand until it locks up, and adjusting the squared end of the circlip to align with the appropriate letter on the pump rotor. p. 73
What are the torque specifications for Perkins 4.192 connecting rod nuts?
The torque specifications for Perkins 4.192 connecting rod nuts depend on their plating. For phosphated (dull black) nuts, the torque is 60 lbf ft (8,3 kgf m) 81 Nm. For cadmium plated (silver) nuts, it is 45 lbf ft (6,2 kgf m) 61 Nm. For non-plated self-locking nuts, the torque is 70 lbf ft (9,7 kgf m) 95 Nm. p. 11
What is the recommended lubricating oil pressure for Perkins 4.192, 4.203, and D4.203 diesel engines?

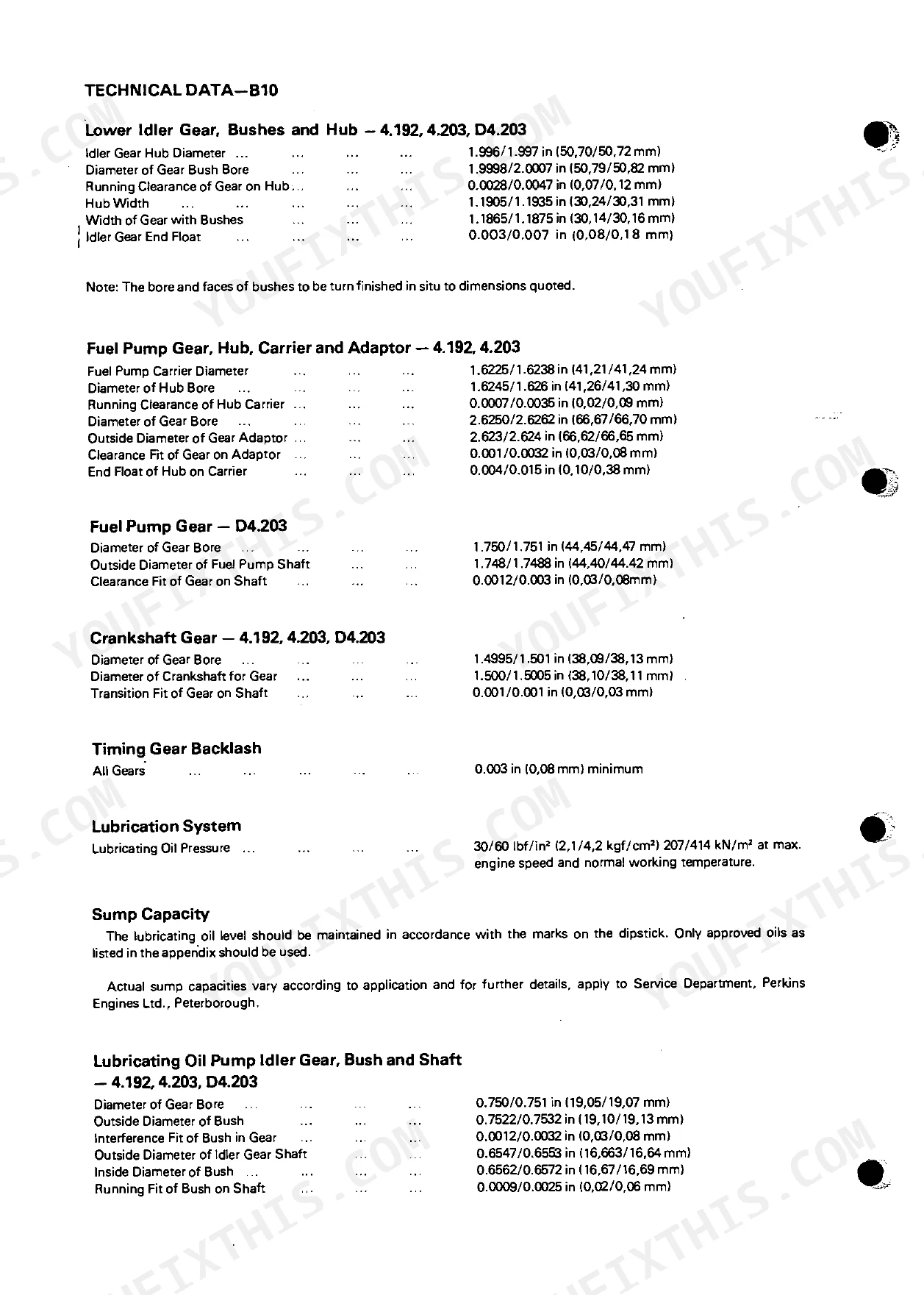

The recommended lubricating oil pressure for these engines is 30/60 lbf/in² (2,1/4,2 kgf/cm²) or 207/414 kN/m² at maximum engine speed and normal working temperature. p. 19
What do I get after purchasing this Perkins 4.192, 4.203, D4.203 manual?
Instant PDF download. You get the full 120-page searchable Workshop Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Am I able to print pages from this Perkins 4.192, 4.203, D4.203 manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Can I find wiring schematics in this Perkins 4.192, 4.203, D4.203 manual?
Included. The Perkins 4.192, 4.203, D4.203 Workshop Manual covers complete wiring harness diagrams, electrical circuits, and connector pinouts.
