Need factory numbers for your Perkins T6.3543 diesel? This 101-page Perkins M50 shop manual PDF (OEM 601 SER 0782 1058) handles the whole engine package: the T6.3543 block plus the AC5, 11AC, and 17ACR alternators, M50 starter motor, and the SC6 and Twin 9 compressors. Inside: a full turbocharger section with fault diagnosis, reconditioning steps, and an installation checklist, backed by alternator fault-finding charts and page after page of teardown and rebuild procedures. You also get torque tables and troubleshooting data straight from Perkins engineering. Set valve tip clearance to 0.012 in (0.30 mm) cold, then pull the cylinder head nuts down to 95 lbf ft (129 Nm). No more chasing charging faults with a multimeter and a prayer. Bookmarked with a live text layer; type a spec, jump to the page, get back to wrenching.
What's Inside This Perkins T6.3543 Series Manual
| System | Pages | Key Topics |
|---|---|---|
| Turbocharger | 83-88 | Cleaning, Dismantling, Fault Diagnosis, Inspection, Installation Check List, Re-Assembly, Reconditioning |
| Alternator Acs and 11AC | 89-91 | Precautions, Maintenance (Fault: Finding AC5, Finding 11AC, Diagnosis Procedure 11AC) |
| Alternator 17ACR | 92 | Testing the 17ACR in Position |
| Starter Motor M50 | 93-94 | Maintenance, Testing on Vehicle |
| Compressor | 95 | Preventive Maintenance, To Remove, To Replace |
| Compressor SC6 | 96-97 | Dismantling, Cleaning, Parts, Re-Assembly |
| Compressor Twin 9 | 98-101 | Data and Dimensions for Twin 9, To Dismantle, To Re-Assemble, To Recondition |

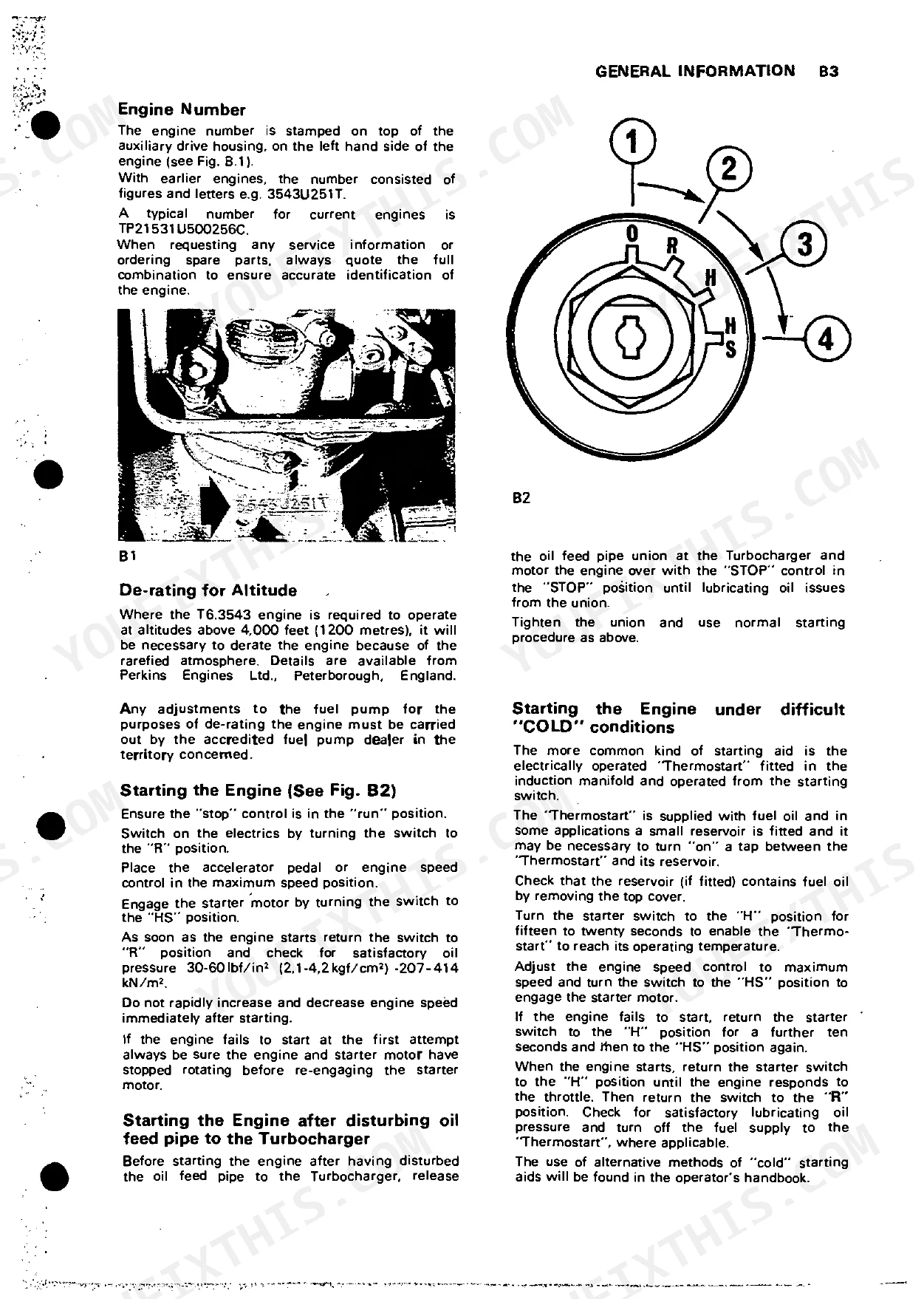

Quick Reference Specifications

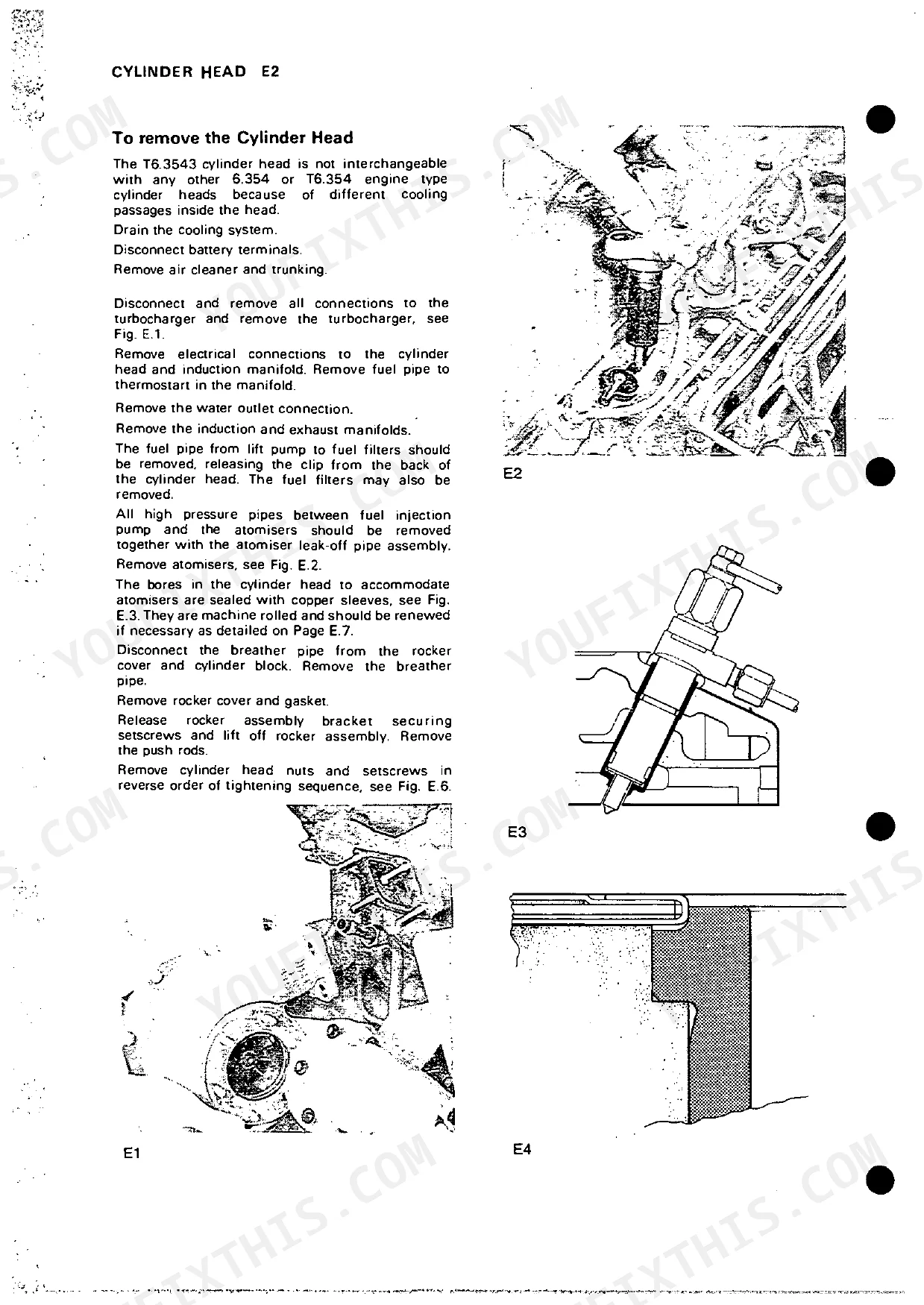

| Specification | Value | Page |
|---|---|---|
| Valve Tip Clearance (prior to Engine No. 3543U10342TL) | 0.012 in (0.30 mm) COLD | p. 4 |
| Valve Tip Clearance (commencing Engine No. 3543U10342TL) Inlet | 0.008 in (0.20 mm) COLD | p. 4 |
| Cylinder Head Nuts | 95 lbf ft (13.1 kgf m, 129 Nm) | p. 4 |
| Cylinder Head Setscrews | 95 lbf ft (13.1 kgf m, 129 Nm) | p. 4 |
| Atomiser nut torque | 12 lbf ft (16 Nm) | p. 15 |
| Torque Tension for Filter Bowl Retaining Setscrew | 14 Nm | p. 54 |
| atomiser securing nuts torque | 12 lbf ft (1,7 kgf m) | p. 75 |
| fuel lift pump securing setscrews torque | 20 lbf ft (2,7 kgf m) - 27 Nm | p. 69 |
| fuel lift pump minimum production static pressure | 6 lbf/in2 (0,42 kgf/cm2 - 41 kN/m2) | p. 69 |
| water pump securing setscrews torque | 20 lbf ft (2,77 kgf m) - 27 Nm | p. 63 |
| impeller blade to pump body clearance | 0.012/0.035 in (0,3/0,89 mm) | p. 65 |
| thermostat opening temperature | 177/183°F (80,6/83,9°C) | p. 61 |
Perkins T6.3543 Series Common Problems This Manual Covers

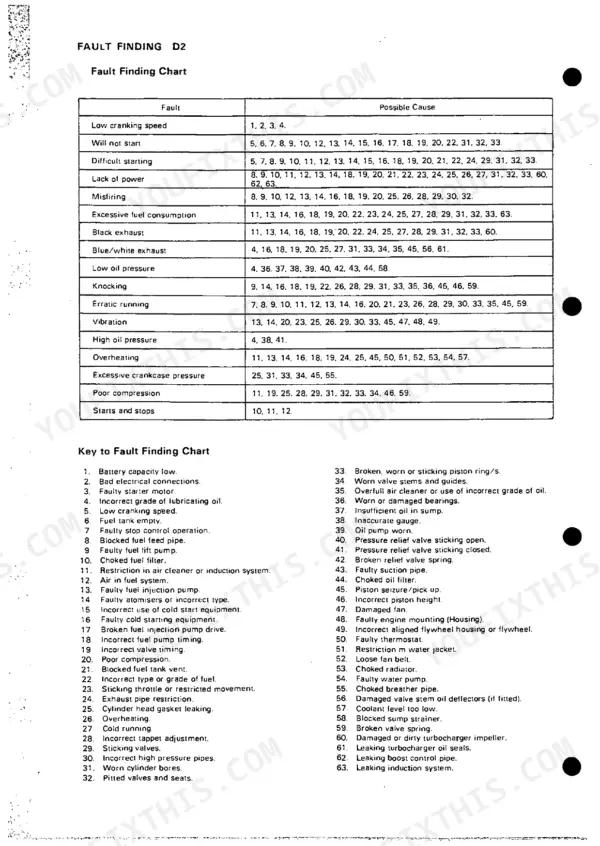

Perkins T6.3543 turns over slowly and will not start, especially on cold mornings
Check battery connections and load-test the battery first, then work through the fault finding chart. If cranking speed is good but the engine still won't fire, test the lift pump; static pressure below 6 lbf/in2 (0,42 kgf/cm2) means the pump needs attention, covered on page 69.

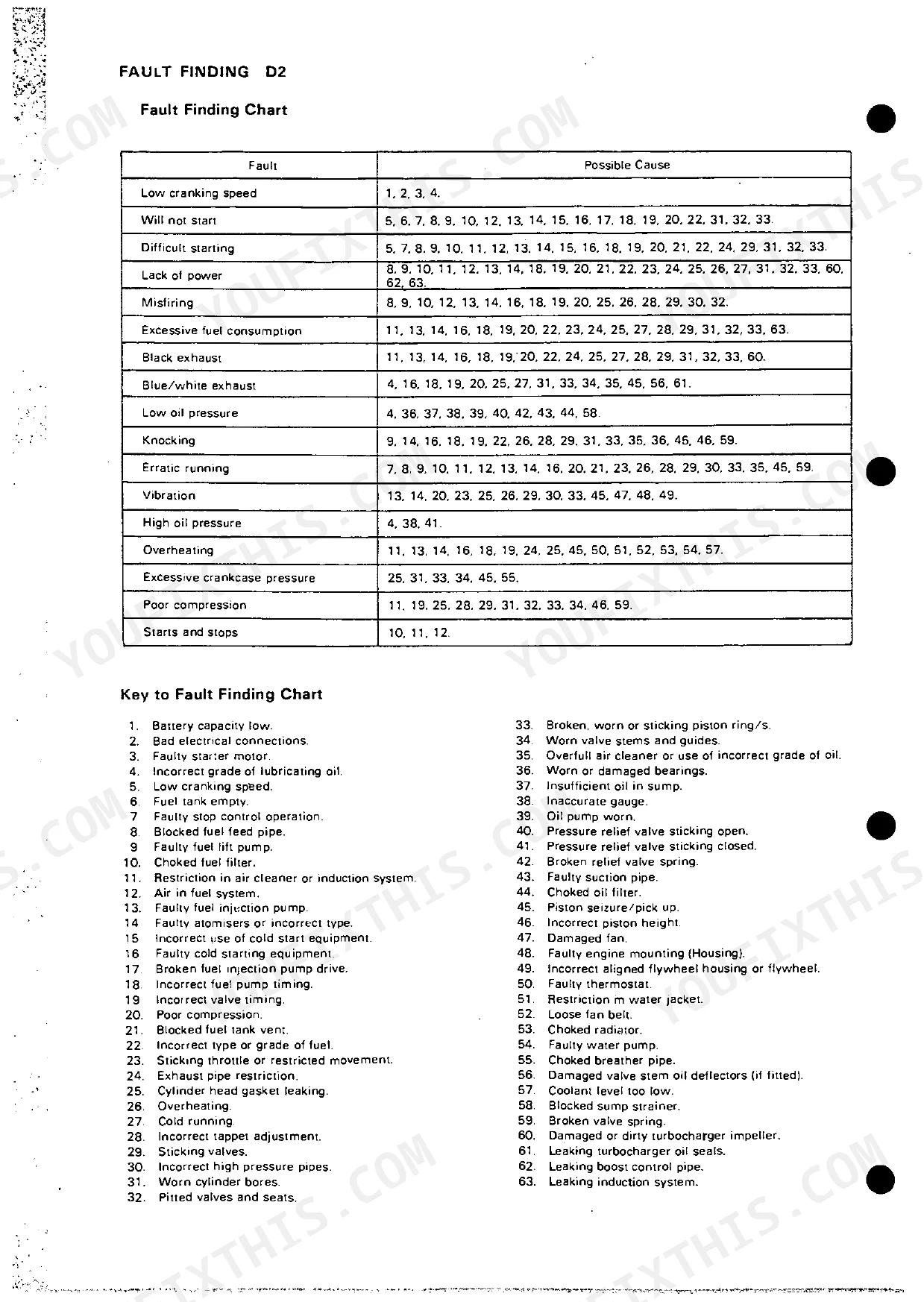

Manual Section: Fault Finding Chart p. 69Oil pressure gauge reads low at idle once the engine reaches operating temperature

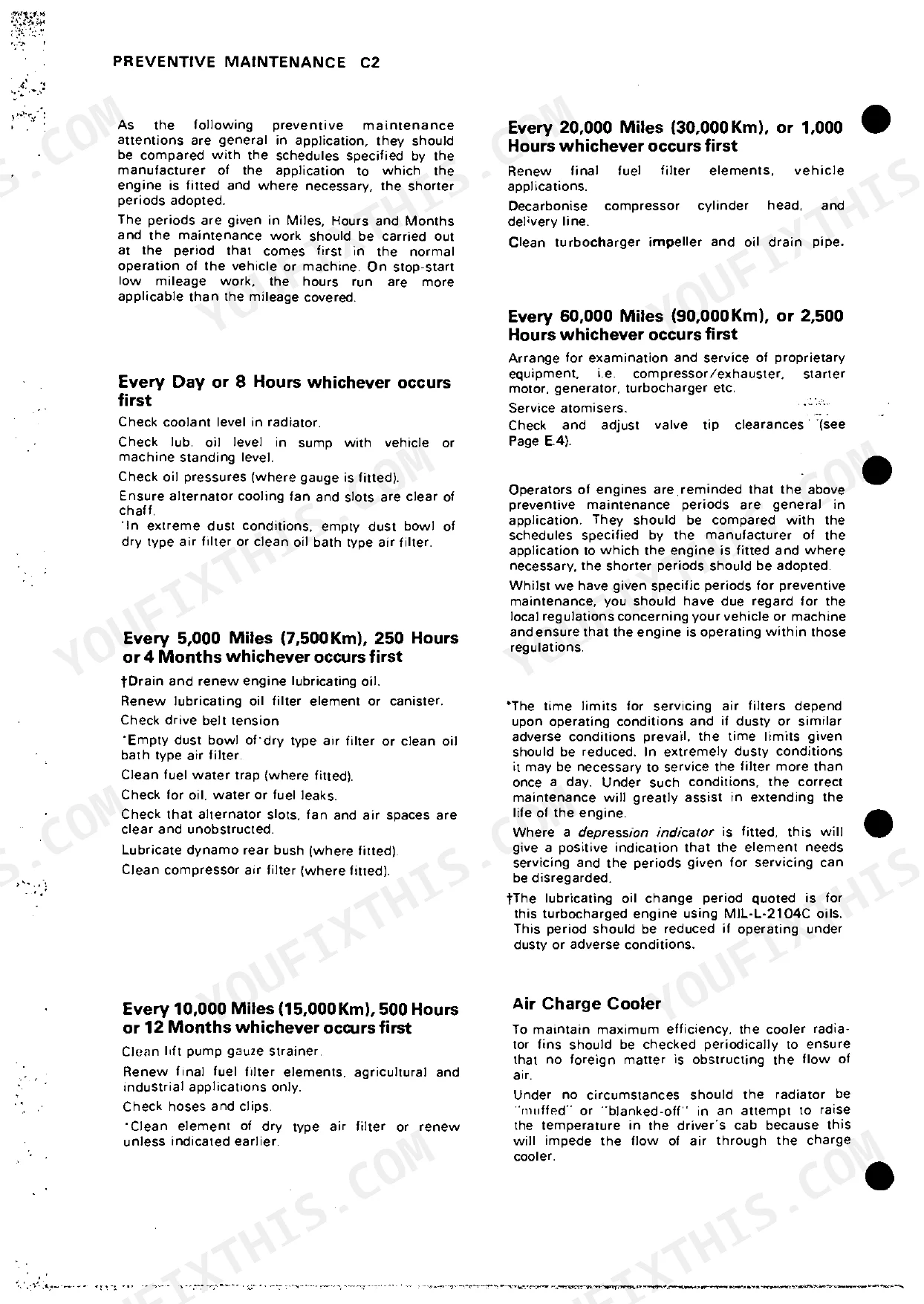

Check the dipstick first; the sump holds 26 Imperial Pints. Replace the oil filter and torque the filter bowl retaining setscrew to 14 Nm, both covered on page 54. If pressure stays low with fresh oil, follow the low oil pressure column of the fault finding chart to isolate relief valve or pump wear.
Manual Section: Fault Finding Chart p. 11Coolant temperature climbs steadily under load and the engine overheats within twenty minutes
Verify coolant level; the system takes 35 Imperial Pints. Test the thermostat in heated water; it must begin opening at 177/183°F (80,6/83,9°C) per page 61, and replace it if it stays shut. Check belt tension, then inspect the water pump; impeller blade to body clearance should be 0.012/0.035 in (0,3/0,89 mm), detailed on page 65.
Manual Section: Fault Finding Chart p. 65Engine loses power under load and blows black exhaust smoke when the turbo spools
Replace the fuel filters and check the air cleaner before blaming the turbocharger. Then check for excessive air inlet depression and low delivery pressure using the fault diagnosis procedure in the turbocharger section starting on page 83. If injectors are suspect, pull them and refit with securing nuts torqued evenly to 12 lbf ft (1,7 kgf m), shown on page 75.
Manual Section: Turbocharger Fault Diagnosis p. 83Light tapping noise from the rocker cover, louder at idle and when hot
Adjust the valve clearances cold: 0.008 in (0.20 mm) inlet and 0.018 in (0.46 mm) exhaust on engines from Engine No. 3543U10342TL, or 0.012 in (0.30 mm) on earlier engines, per page 16. If the tap continues after adjustment, use the knocking column in the fault finding chart to check injectors and bearings.
Manual Section: Fault Finding Chart p. 16Battery goes flat overnight and the alternator warning light stays on above idle
Check belt tension and clean the battery terminals first. Test the 11AC alternator output; it should deliver its rated 43 amps at 12 volts, listed on page 90. Work through the fails-to-charge and low charging rate checks in the fault finding procedure starting on page 89 before condemning the regulator.
Manual Section: Alternator 11AC Fault Finding p. 90Frequently Asked Questions
How do I reset the Perkins T6.3543 fuel injection pump timing?
With No. 1 piston at T.D.C. on compression, align the slot in the fuel pump drive hub with the slot in the fuel pump adaptor plate. If they do not align, release the three screws on the auxiliary drive gear to turn the shaft until they align. For C.A.V. pumps, the letter 'F' on the rotor must align with the straight edge of the circlip. p. 71
How do I reset valve clearance on a Perkins T6.3543?
For engines commencing at Engine No. 3543U10342TL, set the inlet valve clearance to 0.008 in (0.20 mm) and the exhaust valve clearance to 0.018 in (0.46 mm) with the engine cold. Use a feeler gauge between the top of the valve stem and the rocker lever. p. 16
What is the torque specification for Perkins T6.3543 rocker cover fixings?
The rocker assembly securing nuts should be tightened down progressively from the centre outwards to a torque of 55 lbf ft (75 Nm). p. 15
What are the Perkins T6.3543 injector nozzle pressure and service settings?
For current engines with C.A.V. pumps, the setting pressure is 210 atm (3090 lbf/in² or 217 kgf/cm²) and the working pressure is 195 atm (2870 lbf/in² or 201 kgf/cm²). p. 78
What do Perkins T6.3543 alternator warning light or charging fault symptoms mean?
If the warning lamp does not go out when running and the ammeter shows reduced output, or if the alternator delivers reduced output, the alternator is faulty. You should remove it from the installation and apply an open circuit diode check. p. 90
Is this Perkins T6.3543 manual a PDF I download?
This is a 101-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Am I free to print this Perkins T6.3543 Shop Manual?
Yes, printing is unrestricted: a single page, a chapter, or the lot, on letter or A4.
