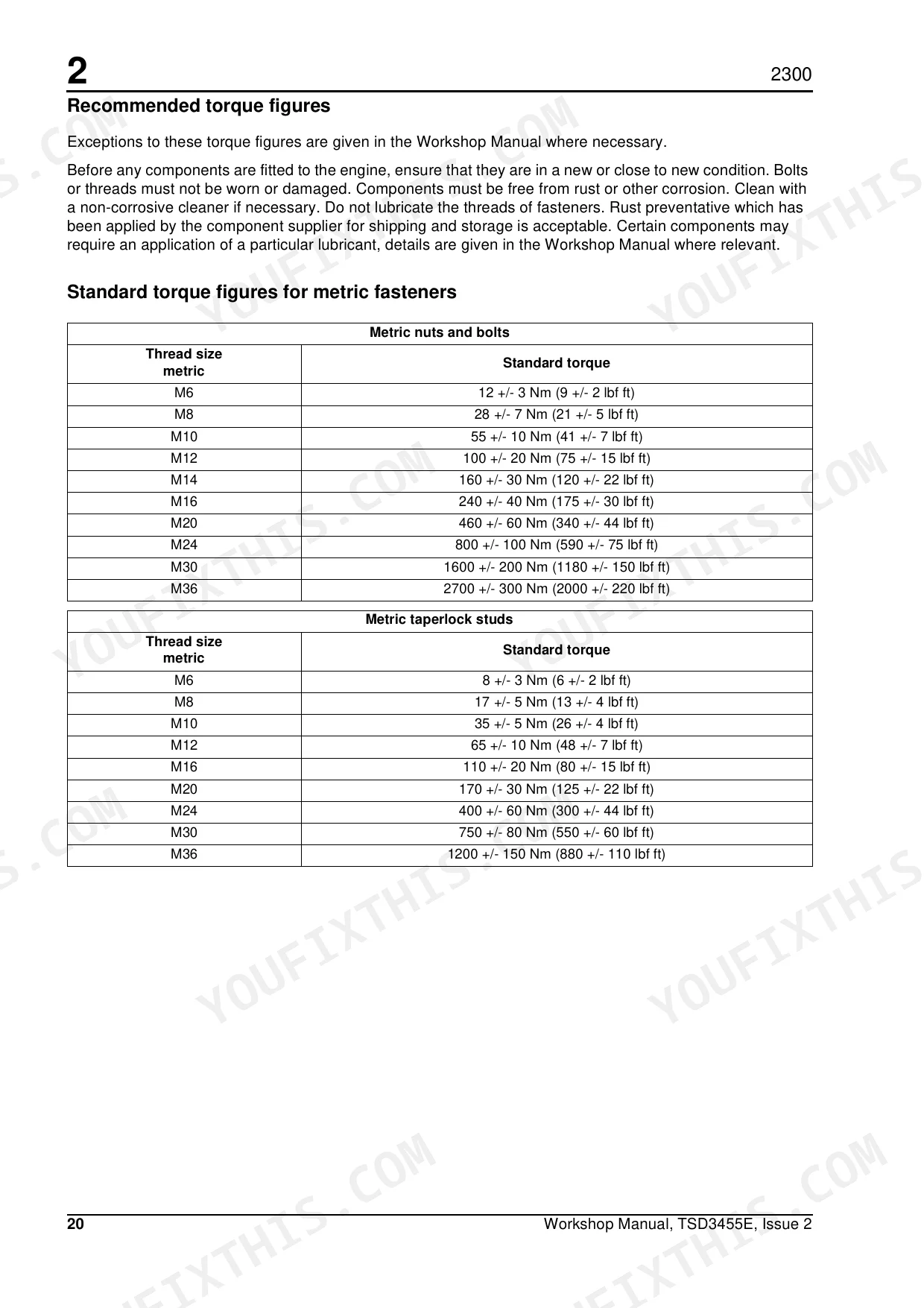

Rebuilding one of these straight-six turbos? This 158-page Perkins 2300, 2306A-E14, 2306C-E14 Shop Manual PDF (OEM TSD3455E) is the factory workshop book for the 6 cylinder turbocharged diesel engine. You get numbered operations for the whole engine: cylinder head and electronic injector units, pistons and connecting rods, crankshaft seals and vibration damper, timing gears, cylinder liner protrusion checks, plus the ECM, turbocharger, cooling system, and starter motor. A full table of recommended torque figures backs up every job. Set the inlet tappets at 0.38 mm and the exhausts at 0.76 mm, then pull the head bolts down to a final 450 Nm. No more chasing numbers through forum threads. Bookmarked with a real text layer; jump to any operation, search any spec, and get your engine back together.

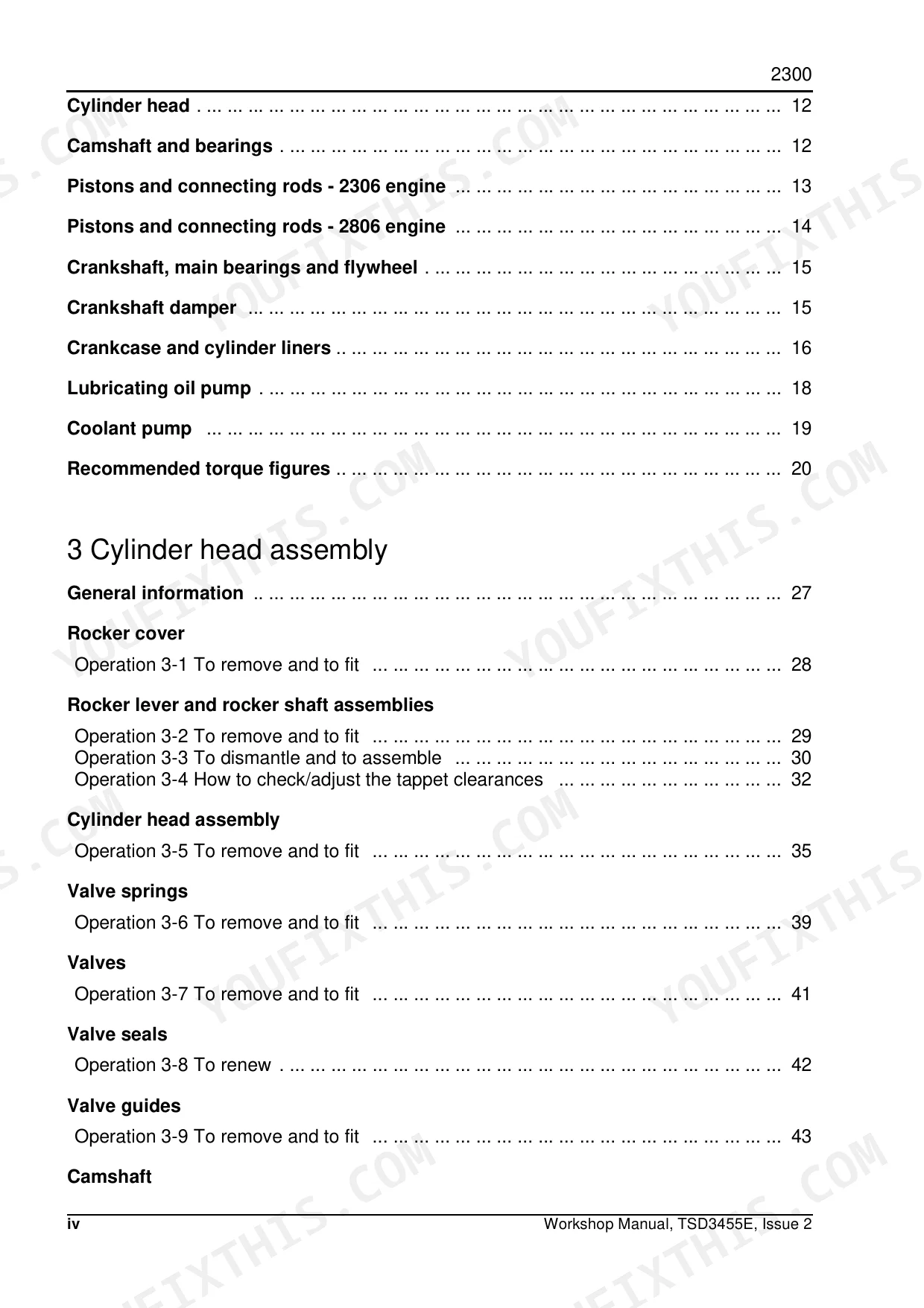

What's Inside This Perkins 2300, 2306A-E14, 2306C-E14 Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 11-16 | Safety Precautions |
| Specifications | 17-36 | Basic Engine Data - 2306 Engine, Basic Engine Data - 2806 Engine, Rocker Assemblies, Valves, Valve Guides, Valve Springs, Valve Seat Inserts, Cylinder Head |
| Cylinder Head Assembly | 37-66 | Rocker Cover, Rocker Lever and Rocker Shaft Assemblies, Valve Springs, Valves, Valve Guides, Camshaft, Electronic Injector Units |
| Pistons and Connecting Rod Assemblies | 67-72 | Operation 4-1 to Remove and to Fit, Operation 4-2 to Dismantle and Assemble |
| Crankshaft Assembly | 73-82 | Crankshaft (Operation 5-1 to Remove and to Fit), Crankshaft Front Seal and Wear Sleeve (Operation 5-2 to Renew), Crankshaft Rear Seal and Wear Sleeve (Operation 5-3 to Renew) |
| Gear Case and Drive Assembly | 83-90 | Gear Case Cover (Operation 6-1 to Remove and to Fit), Timing Gears (Operation: 6-2 to Remove and to Fit, 6-3 How to Check the Position of the Timing Gears) |
| Crankcase and Cylinder Liners | 91-96 | Front Engine Support (Operation 7-1 to Remove and to Fit), Cylinder Liners (Operation: 7-2 to Remove and to Fit, 7-3 to Check and to Adjust the Protrusion of the Cylinder Liners) |
| Engine Timing and Electronic Controls | 97-100 | Electronic Control Module (Operation 8-1 to Remove and to Fit), Engine Timing (Operation 8-2 to Check) |
| Aspiration System | 101-104 | Exhaust Manifold (Operation 9-1 to Remove and to Fit), Turbocharger (Operation: 9-2 to Remove and to Fit, 9-3 to Dismantle and to Assemble) |
| Lubrication System | 105-112 | Oil Filter and Oil Filter Header (Operation 10-1 to Remove and to Fit), Oil Filter Header (Operation 10-2 to Dismantle and to Assemble), Sump (Operation 10-3 to Remove and to Fit) |
| Fuel System | 113-120 | Fuel Priming Pump (Operation 11-1 to Remove and to Fit), Fuel Transfer Pump (Operation: 11-2 to Remove and to Fit, 11-3 to Test) |
| Cooling System | 121-138 | Leakage Test, Coolant Filler Cap, Radiator, Fan, Fan Drive Assembly, Fan Drive Belts, Engine Oil Cooler |
| Flywheel and Housing | 139-142 | Flywheel (Operation 13-1 to Remove and to Fit), Flywheel Housing (Operation 13-2 to Remove and to Fit) |
| Electrical Equipment | 143-148 | Starter Motor (Operation 14-1 to Remove and to Fit) |
| Auxiliary Equipment | 149-150 | Oil Sample Valve |
| Special Tools | 151-158 | List of Special Tools |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Lubricating oil pressure at rated speed | 4.5 bar | p. 17 |
| Inlet valve tappet clearance | 0.38 mm | p. 42 |
| Exhaust valve tappet clearance | 0.76 mm | p. 42 |
| Cylinder head bolt torque (final) | 450 Nm | p. 48 |
| Main bearing cap bolt torque | 260 Nm plus 120 degrees | p. 75 |
| Connecting rod bearing bolt torque | 90 Nm plus 90 degrees | p. 69 |
| Coolant pump pressure | 112 kPa | p. 138 |
| Dry engine weight | 1551 kg | p. 16 |
| Cylinder head weight | 148 kg | p. 45 |
| Flywheel weight | 56 kg | p. 140 |
| Flywheel housing weight | 83 kg | p. 141 |
Perkins 2300, 2306A-E14, 2306C-E14 Common Problems This Manual Covers
Perkins 2300 Series sudden coolant loss, no external leak, milky residue on oil filler cap
Pressure test the cooling system first; the leakage test procedure starts on page 121. If pressure drops with no external leak, pull the cylinder head and inspect the gasket and liner seats. The head weighs 148 kg, so rig a proper lifting device. Torque new head bolts to a final 450 Nm per the sequence on page 48.
Manual Section: Cylinder Head Assembly p. 48Engine shuts down on high coolant temperature, ECM code 361-3, coolant pump weeping at drain hole
Check coolant level cold and test the filler cap before condemning parts. Run the coolant pump pressure test on page 138; the spec is 112 kPa. Replace the pump if it leaks at the drain hole. If pressure checks pass, test the thermostat and inspect the radiator core using the procedures starting on page 121.
Manual Section: Cooling System p. 138Low oil pressure shutdown at operating temperature, ECM logs code 360-3, gauge reads low at idle
Verify actual pressure with a mechanical gauge before pulling anything apart; spec is 4.5 bar at rated speed (page 17). Replace the oil filter canister and confirm oil level and grade. Filter and oil pump procedures start on page 105. If pressure stays low, suspect worn main bearings; new cap bolts torque to 260 Nm plus 120 degrees (page 75).
Manual Section: Lubrication System p. 105Loud tapping from the rocker cover at idle, engine runs rough and misfires

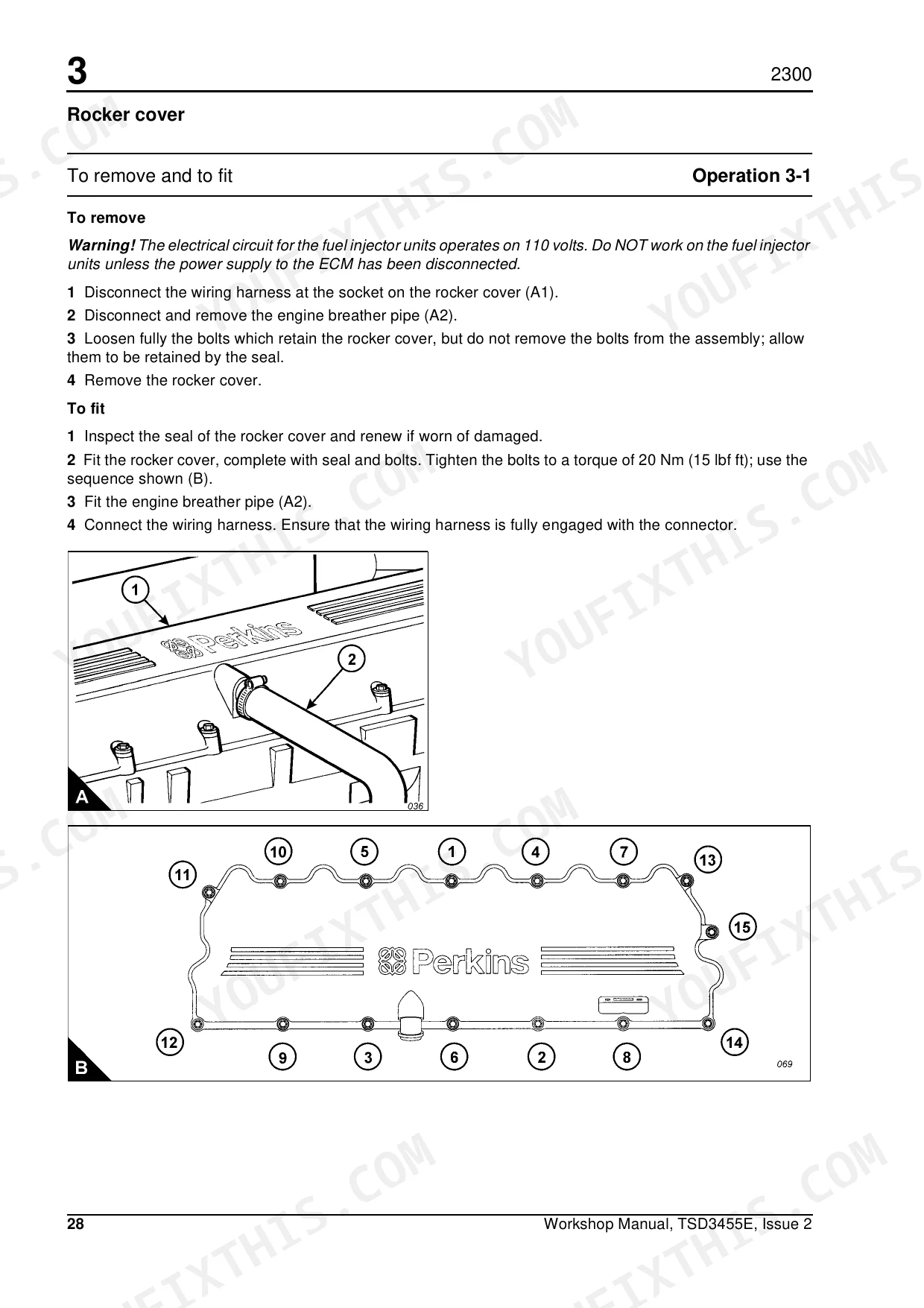

Check tappet clearances with the engine cold: 0.38 mm inlet, 0.76 mm exhaust (page 42). Adjust any that are out and recheck after a test run. If the tapping continues with correct clearances, remove the rocker cover and inspect the rocker levers and shaft; those procedures start on page 37.
Manual Section: Cylinder Head Assembly p. 42Cranks fine but won't fire, or fires briefly then dies after standing overnight
Bleed the fuel system using the air elimination procedure on page 113, then watch for the symptom returning; air that comes back means a suction side leak. Inspect fittings and seals between tank and transfer pump, replace the fuel filter elements, and test the transfer pump per Operation 11-3 in the Fuel System section.
Manual Section: Fuel System p. 113Frequently Asked Questions
How do I adjust the valve clearance on a Perkins 2300 Series engine?
The tappet clearance is measured between the rocker levers and the top of the valve bridge pieces with the engine cold and stopped. The inlet valve clearance is 0,38 mm (0.015 in) and the exhaust valve clearance is 0,76 mm (0.030 in). Detailed procedures for setting the engine to TDC and performing the adjustment are provided in Operation 3-4. p. 42
How do I check and adjust the alternator belt tension on a Perkins 2300 Series engine?
Use a Borroughs belt tension gauge to check the tension at the specified position. For a used belt, the tension should be 267 N, equivalent to 2,5 mm of movement with a force of 11,3 N. If a new belt is fitted, set the tension to 400 N, equivalent to 2,5 mm of movement with a force of 16,6 N. p. 146
What are the replacement specifications for the fuel filter elements?
The fuel filter elements in the primary and secondary fuel filter canisters should be renewed according to the procedures given in the User’s Handbook, TSD3449E. Ensure that the used filter elements and 'O' ring seals are discarded in a safe place and in accordance with local regulations. p. 118
What is the tightening torque for the cylinder head bolts on the Perkins 2300 Series?
The cylinder head bolts must be tightened in the specified sequence in three stages. The final torque for the bolts is 450 +/- 20 Nm (333 +/- 15 lbf ft). p. 48

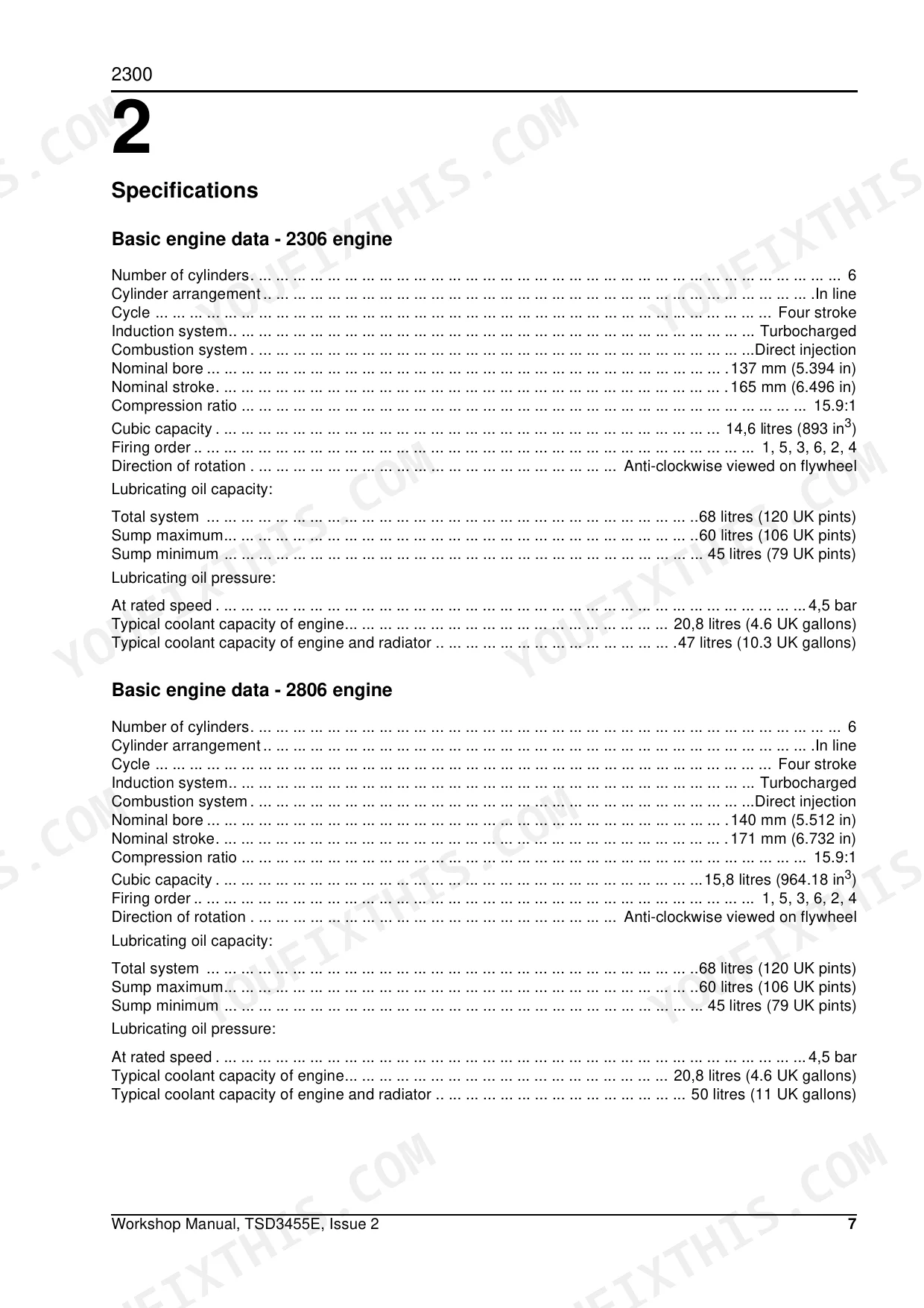

What is the lubricating oil capacity for the 2306 engine?
The total lubricating oil capacity for the 2306 engine is 68 litres (120 UK pints). The sump maximum capacity is 60 litres (106 UK pints) and the sump minimum capacity is 45 litres (79 UK pints). p. 17
What format is this Perkins 2300, 2306A-E14, 2306C-E14 manual in?
Instant PDF download. You get the full 158-page searchable Shop Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Are there any print restrictions on this Perkins 2300, 2306A-E14, 2306C-E14?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
