Within the hour you could have the deck off your Sabre and this technical manual open to the spindle brake adjustment: 161 pages covering twelve gear and hydrostatic lawn tractor variants from the 1438 to the 1646 Auto V-Twin, published under OEM ID TM-GX10238. Factory wiring diagrams trace the cranking and charging circuits, and the electrical section walks each diagnostic from symptom to test point. Both power trains get full repair coverage; gear transaxle teardowns sit beside hydrostatic theory of operation and troubleshooting, with mower belt tension, deck leveling, and steering backlash adjustments behind them. Gap the spark plug at 0.76 mm (0.030 in.) and torque the engine mounting bolts to 32 N•m (24 lb-ft), straight from the factory spec tables. Nothing kills a Saturday like a missing torque figure. Bookmarked and text searchable, this PDF puts the transaxle section two clicks from the cover.
What's Inside This Sabre 1438–1646 Manual
| System | Pages | Key Topics |
|---|---|---|
| Sabre Lawn Tractor Technical Manual | 1 | |
| Introduction | 2 | Specifications, Component Location, System Schematic, Theory of Operation, Troubleshooting Chart, Diagnostics |
| Safety | 3-7 | Battery Handling, Chemical Product Safety, Protective Clothing, Machine Service Procedures, Tire Service, Asbestos Dust Handling |
| Specifications and Information | 8-17 | Unified Inch Torque Values, Metric Torque Values, Gasoline Specifications (Gasoline Storage) |

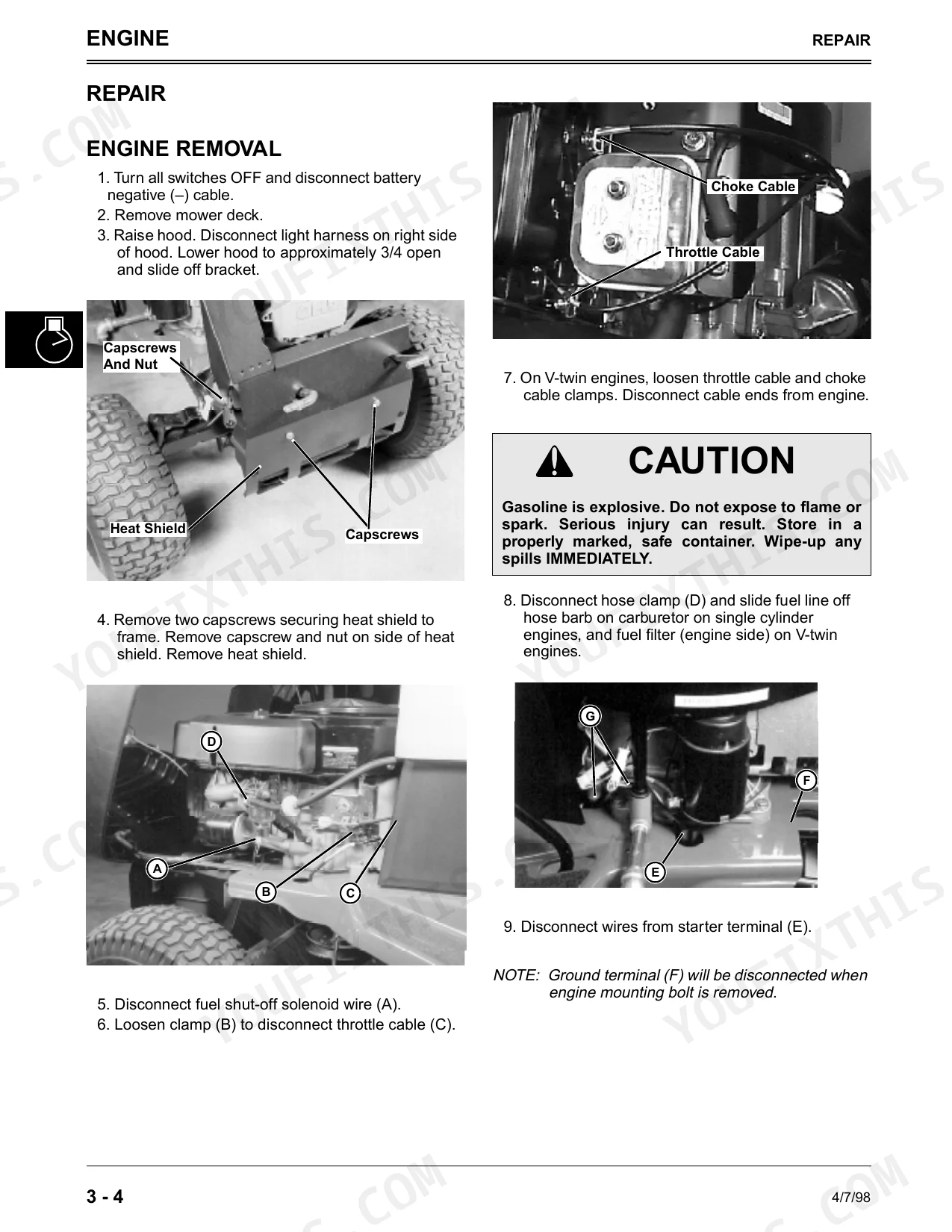

| Engine | 18-23 | Engine Removal, Engine Installation, Service Equipment, Engine Specifications, Fuel Shut-Off Solenoid |
| Electrical | 24-51 | Diagnostics, Tests and Adjustments |
| Gear Power Train | 52-85 | Component Location, Repair |
| Hydrostatic Power Train | 86-127 | Theory of Operation, Troubleshooting, Repair |
| Steering | 128-133 | Steering Gear Removal, Pedestal Bushings, Steering Backlash Adjustment, Steering Linkage, Steering Pinion Shaft |
| Attachments | 134-149 | Lift Linkage, Mower Deck Removal, Mower Deck Installation, Spindle Brake Adjustment, Mower Belt Tension, Deck Leveling |
| Miscellaneous | 150-157 | Fuel Tank, Dash Panel, Front Wheel Bearing Repair, Front Axle Removal, Front Axle Installation, Rear Wheel Removal |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Battery Cranking Amps | 230 amps at 0° C (32° F) | p. 9 |
| Battery Cold Cranking Amps | 190 amps at 0° C (32° F) | p. 9 |
| Spark Plug Air Gap | 0.76 mm (0.030 in.) | p. 9 |
| Engine mounting bolt torque | 32 N•m (24 lb-ft) | p. 22 |
| Muffler mounting bolt torque | 24 N•m (18 lb-ft) | p. 22 |
| Spark Plug Gap | 0.76 mm (0.030 in.) | p. 9 |
| Starter solenoid ground terminal voltage | Greater than 0 volts, Less than 0.2 volts | p. 33 |
| Crankcase Oil Capacity (Single Cylinder without oil filter) | 48 oz (1.42 L) | p. 9 |
| Crankcase Oil Capacity (Single Cylinder with oil filter) | 56 oz (1.66 L) | p. 9 |
| Crankcase Oil Capacity (V-Twin with oil filter) | 56 oz (1.66 L) | p. 9 |
| Fuel Tank Capacity | 4.7 L (1.25 gal) | p. 9 |
| Gear Transaxle Oil Capacity | 2.3 kg (5.07 lbs) | p. 10 |
Sabre 1438–1646 Common Problems This Manual Covers
Deck belt burns or smokes, blades keep coasting after PTO disengagement, deck will not fully park
Verify belt routing against the deck diagrams in the Attachments section before anything else; a misrouted belt burns fast. Inspect the idler pulley for seized bearings and check spindle brake action at each blade. Adjust the spindle brake, then tighten the jam nut to 27 N·m (20 lb-ft) as shown on page 141.
Manual Section: Attachments p. 141Hydrostatic forward and reverse lever slowly loses travel, tractor creeps in neutral or loses drive uphill
Check the shift linkage and control rod for worn pivot holes or a bent rod before blaming the transaxle. Inspect the drive belt and tensioning spring, then verify the neutral return linkage adjustment. Drain and refill the hydrostatic transaxle with 2.36 L (2.5 qt) of oil, the capacity listed on page 88.
Manual Section: Hydrostatic Power Train p. 88Frequently Asked Questions
What are the torque specifications for the mower deck spindle assembly nuts on my Sabre 1438 Gear tractor?
The torque specification for the spindle assembly nuts on the mower deck is 27 N•m (20 lb-ft). p. 148
How do you fix sabre 1642 engine floods and runs rich, raw fuel leaking into the muffler or cylinder after sitting?
Drain stale fuel and remove the carburetor bowl. Inspect the float needle and seat for varnish or a stuck float, then clean or replace them. Replace a fuel-soaked spark plug and gap the new one to 0.76 mm (0.030 in.). Work through the rough-running chart on page 31 if flooding returns. p. 31
How do you fix engine will not crank or start even with the seat safety interlock manually held down?
Check battery voltage first; you need 11.8 to 13.2 volts at the positive terminal, per the test points on page 33. Then measure the starter solenoid ground terminal, which should read less than 0.2 volts during cranking. Replace the ignition switch or a corroded interlock switch if those checks pass. p. 33
How do you fix runs fine at idle but surges, sputters, and loses power after a few minutes of mowing?
Replace the fuel filter and fuel line, then drain the 4.7 L (1.25 gal) tank and refill with fresh gasoline. Test spark under load conditions; a coil that breaks down hot mimics fuel starvation. Follow the miss and rough-run steps on page 31 to separate fuel faults from ignition faults. p. 31
Will this Sabre 1438 Gear Technical Manual download right away?
Delivery is instant: a 161-page searchable PDF is yours the second checkout clears. Laptop, tablet, or phone, all fine.
Can I print this Sabre 1438 Gear manual?
Yes, printing is unrestricted: a single page, a chapter, or the lot, on letter or A4.
Are there wiring harness diagrams in this Sabre 1438 Gear manual?
An electrical diagram is included, enough to follow the main wiring on the Sabre 1438 Gear & variants. You can see one on page 28.
