Need factory repair data for your Same Explorer 75 T-TB, 85 T-TB, or 95 T-TB? This 518-page repair manual PDF walks you through the whole tractor: transmission, rear PTO, front axle, hydraulics, brakes, lift, and electrical. You get complete wiring looms with connector positions, hydraulic diagrams matched to your model variant, and a full torque table for every fastener class. Step-by-step teardowns handle the clutch housing, Hi-Lo unit, bevel pinion, and PTO clutch assemblies for each version. Set M12x1.75 bolts between 66.5 and 73.5 Nm, and confirm the full 50-degree steering angle after a front axle rebuild. A slipping shuttle won't fix itself on forum advice. Bookmarked and text-searchable, the PDF opens on any device: type in a spec, jump straight to the section, and get back under the tractor.

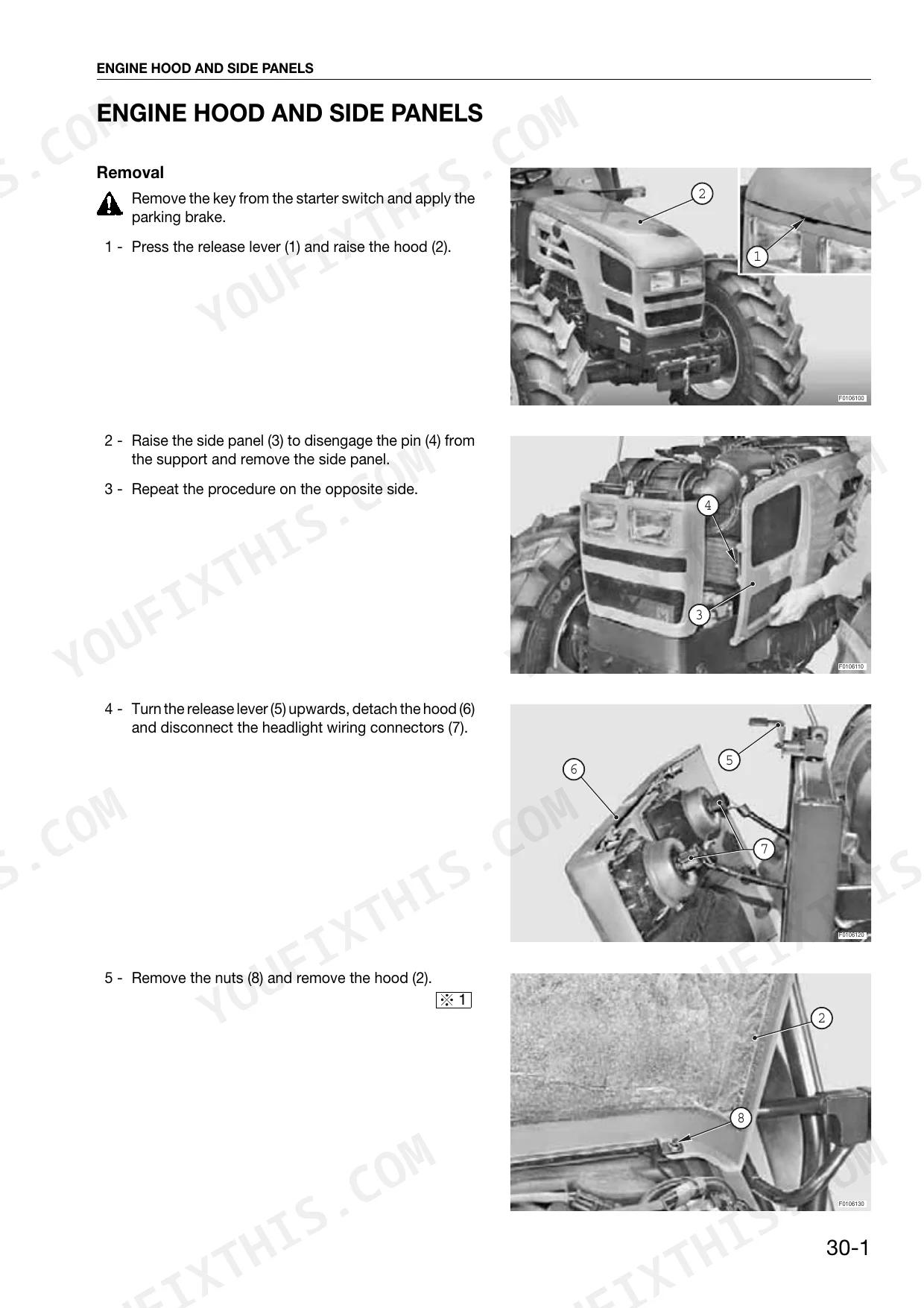

What's Inside This Same EXPLORER 75 T-TB, EXPLORER 85 T-TB, EXPLORER 95 T-TB Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| Transmission | 23-34 | Introduction, Description, Clutch Housing, Hi-Lo Unit, Gearbox and Shuttle Assembly, Bevel Pinion and Range Gearbox Assembly, Four-Wheel Drive Engagement and Parking Brake Assembly |
| Rear PTO | 35-46 | Description, PTO Clutch Assembly, 2-Speed PTO and Groundspeed PTO, 4-Speed PTO and Groundspeed PTO |
| Front Axle | 47-50 | Final Drive, Pinion, Differential and Differential Lock |

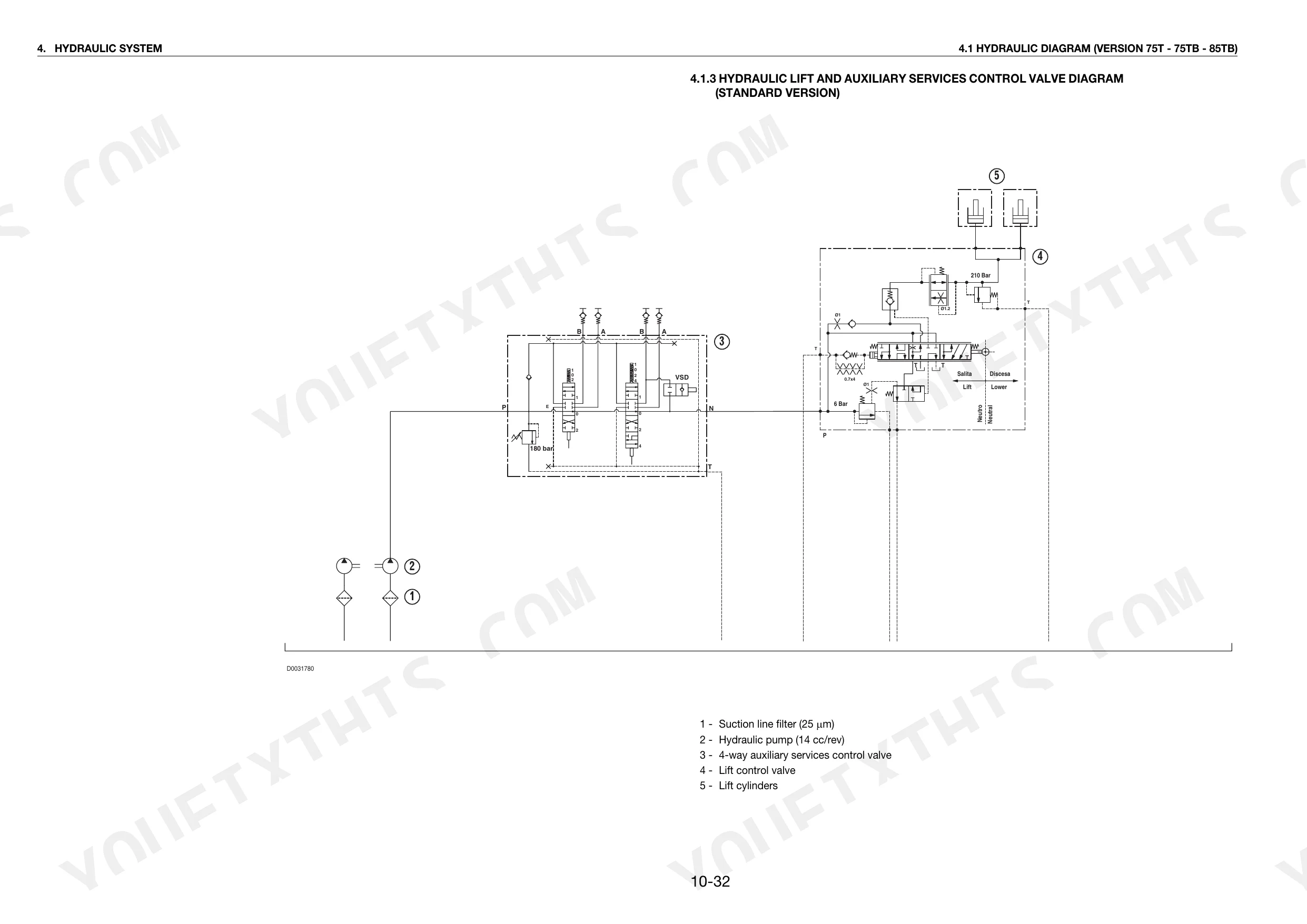

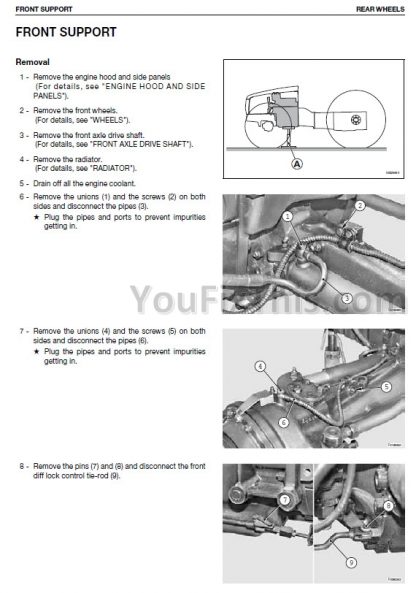

| Hydraulic System | 51-78 | Description, Hydraulic Diagram, Steering Circuit Gear Pump, Lift Circuit Gear Pump, Power Steering, Pressure Control Valve, Auxiliary Services Control Valve, Lift Control Valve |
| Braking System Overview and Separate-Brakes Valve | 79-84 | Braking System Description, Separate-Brakes Valve Function, Brake Pedal Operation, Brake Circuit Diagrams |
| Trailer Braking Valve | 85-88 | Trailer Braking Valve Function, Italy Version, Export Version, Hydraulic Diagrams |
| Front Axle and Steering Components | 89-162 | Front Axle Assembly, Steering Cylinder, Epicyclic Reduction Unit, Steering Knuckle Housing, Bevel Gear Pair, Differential Lock |
| Clutch and Engine Components | 163-201 | Differential Assembly, Clutch Assembly, Clutch Release Bearing, Clutch Master Cylinder, Clutch Piston, Clutch Control Circuit |
| Lift and Auxiliary Services | 202-267 | Lift Assembly, Lift Cylinder, Lift Control Valve, Mechanical Draft Sensor, Hydraulic Lift Control Valve, Auxiliary Services Control Valve |
| Gearbox and PTO Systems | 268-458 | Range Gearbox, Rear Differential, Bevel Pinion, 4WD Engagement Control, PTO Input Shaft, PTO Output Shaft, PTO Clutch Control, Groundspeed PTO |

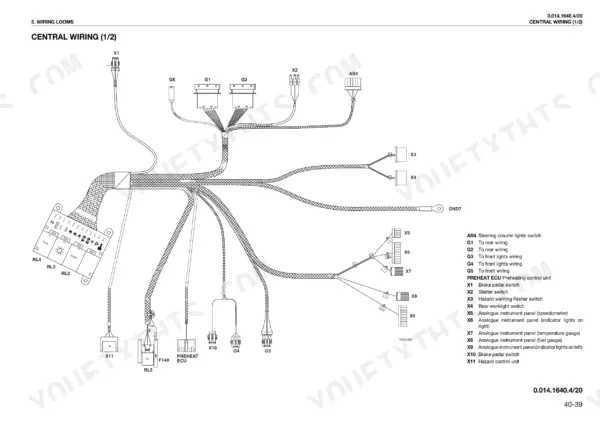

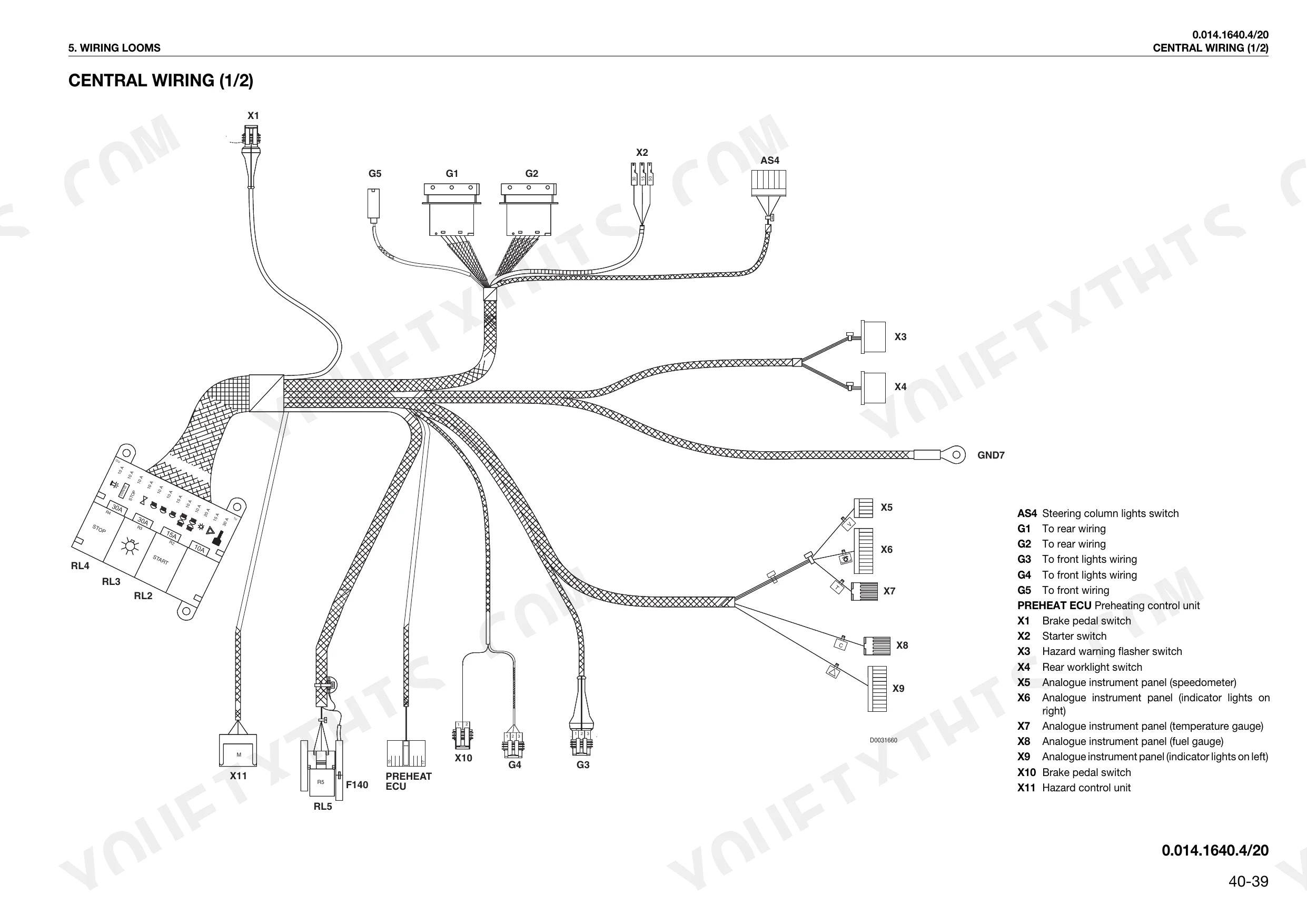

| Electrical Systems and Wiring | 459-518 | Wiring Looms, Connector Positions, Starting and Preheating System, Instrument Panel, Lighting System, Trailer Brake Wiring |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||

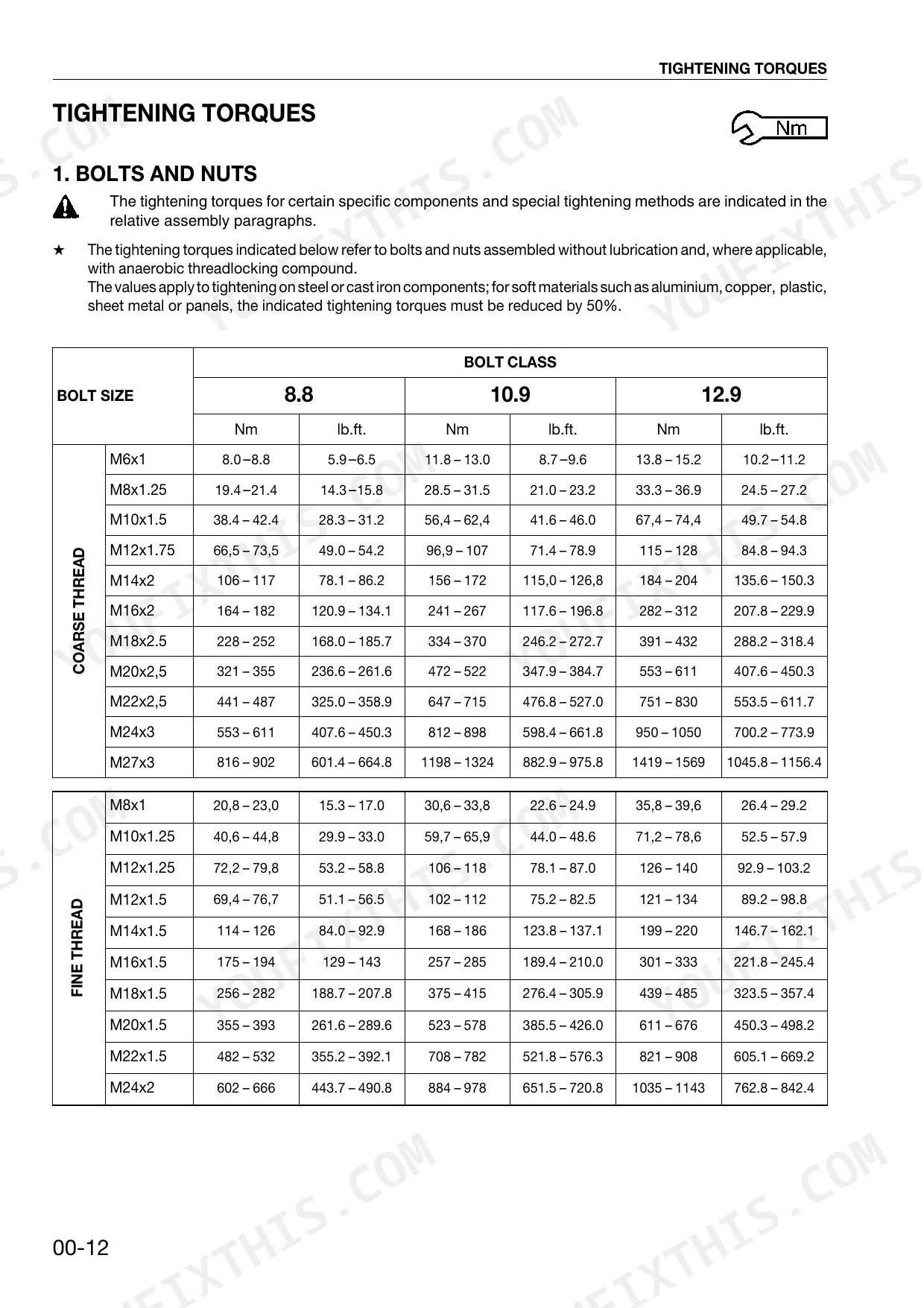

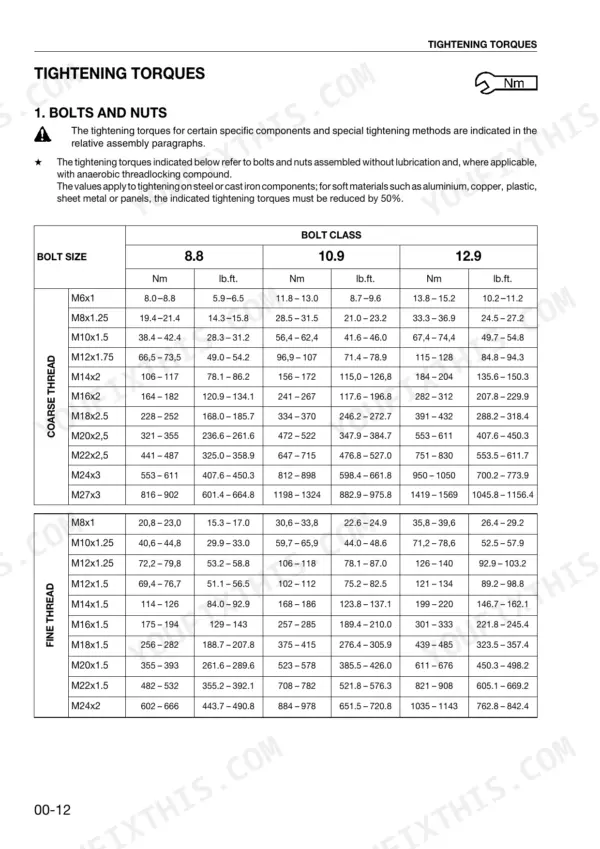

| M6x1 coarse thread bolt torque (8.8 class) | 8.0 – 8.8 Nm | p. 14 |
| M8x1.25 coarse thread bolt torque (8.8 class) | 19.4 – 21.4 Nm | p. 14 |
| Steering angle | 50° | p. 47 |
| Pressure relief valve setting (Power Steering) | 150-155 bar | p. 63 |
| Maximum operating pressure (Steering Circuit Pump) | 155 bar | p. 61 |
| Maximum operating pressure (Lift Circuit Pump) | 190 bar | p. 62 |
| Minimum constant pressure at port B (Trailer Braking Valve) | 12.5 bar | p. 86 |
| Maximum pressure at port B (Trailer Braking Valve) | 135 bar | p. 86 |
| Maximum operating pressure at port N (Trailer Braking Valve) | 200 bar | p. 86 |
| Tightening torque (Front Wheel Bolts) | 377 Nm | p. 101 |
| 75TB-85TB | ||
| Track width | 1608 mm | p. 47 |
| 95TB-75T-85T-95T | ||
| Track width | 1770 mm | p. 47 |
Same EXPLORER 75 T-TB, EXPLORER 85 T-TB, EXPLORER 95 T-TB Common Problems This Manual Covers
Same Explorer 85 T-TB power steering heavy and jerky at idle, wheel hard to turn under load
Test steering circuit pressure with a gauge at the power steering unit. The relief valve setting is 150 to 155 bar, listed on page 63, and the steering pump maxes out at 155 bar per page 61. If pressure reads low, check the suction line for air leaks, then inspect the steering circuit gear pump for wear.
Manual Section: Hydraulic System p. 63Rear hydraulic lift won't raise mounted implement, or lift arms drop slowly with engine running
Check lift circuit pressure at the lift control valve with the engine at rated speed. Maximum operating pressure for the lift circuit pump is 190 bar, spec on page 62. If pressure falls short, trace the circuit using the hydraulic schematic on page 52 before pulling parts; a worn lift gear pump or stuck control valve spool is the usual culprit.
Manual Section: Hydraulic System p. 62Clutch pedal feels spongy and goes to the floor, gears grind when shifting
Bleed the clutch control circuit starting at the slave cylinder and keep the reservoir topped up the whole time. Inspect the master cylinder piston and seals for scoring, covered in the clutch procedures starting on page 163. Torque M8x1.25 mounting bolts to 19.4 to 21.4 Nm when refitting, and recheck pedal feel before road testing.
Manual Section: Clutch and Engine Components p. 163Trailer brakes drag constantly or barely grip when tractor pedals are pressed hard
Test pressure at port B of the trailer braking valve: you want a constant 12.5 bar minimum with pedals released and no more than 135 bar under full braking, specs on page 86. If readings drift outside that range, remove and inspect the valve. Bleed the brake circuit afterward following the procedure in the braking section starting on page 79.
Manual Section: Trailer Braking Valve p. 86Front wheel wobble and clicking noise at road speed after tire shop remounted wheels
Check front wheel bolt torque first: spec is 377 Nm, listed on page 101. While you are there, verify rear wheel nuts at 500 Nm per page 103. Inspect bolt holes for elongation and replace any stretched bolts. Clean rust and paint off the hub mating face before remounting, then retorque after the wheel has been loaded.
Manual Section: Front Axle and Steering Components p. 101Frequently Asked Questions
What is the torque specification for the front wheel bolts on the SAME Explorer 75 T-TB (4WD version)?
The tightening torque for the front wheel bolts on the 4WD version of the SAME Explorer 75 T-TB is 377±38 Nm (277.8±28.0 lb.ft.). p. 101
What is the transmission oil capacity for the SAME Explorer 75 T-TB, 85 T-TB, and 95 T-TB?
The maximum transmission oil capacity for these models is 50 liters (13.2 US gallons). p. 249
What is the tightening torque for the M12 bolts on the lift assembly?
The tightening torque for M12 bolts on the lift assembly is 70±3.5 Nm (51.6±2.6 lb.ft.). p. 205
What is the tightening torque for the 3-point linkage nut?
The tightening torque for the 3-point linkage nut is 150 Nm (110.5 lb.ft.). p. 248
What is the pressure relief valve setting for the power steering system?
The pressure relief valve setting for the power steering system is 150 to 155 bar. p. 63
What format is this Same Explorer 75 T-TB, 85 T-TB, 95 T-TB manual in?
You get a 518-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Is this Same Explorer 75 T-TB, 85 T-TB, 95 T-TB Repair Manual printable?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
