This is the factory Service Manual for the Same Frutteto 60 II, Frutteto 75 II, and Frutteto 85 II tractors, delivered as a downloadable PDF of 294 pages. It covers the 1000.3-A, 1000.4-A, and 1000.4-AT diesel engines fitted to these three models, rated at 60, 75, and 85 HP.Inside you get the workshop procedures a mechanic needs: engine teardown and rebuild, transmission and gearbox service, axles, vehicle systems, operator controls, and the programming and diagnosis tester. Torque figures, clearances, oil capacities, and adjustment settings are included throughout.Whether you are chasing a clutch problem, setting valve clearance, or overhauling the cooling system, this manual gives you the exact specifications and step by step instructions for the job. The text layer is searchable, and every page prints cleanly for shop use.
What's Inside This Same Frutteto 60 II, Frutteto 75 II, Frutteto 85 II Manual
| System | Pages | Key Topics |
|---|---|---|
| Maintenance | 7-8 | Engine, Gearbox, Rear Axle, Hydraulic Power-Lift, Auxiliary Systems, Hydrostatic Steering, Front PTO, Front-Wheel Drive |

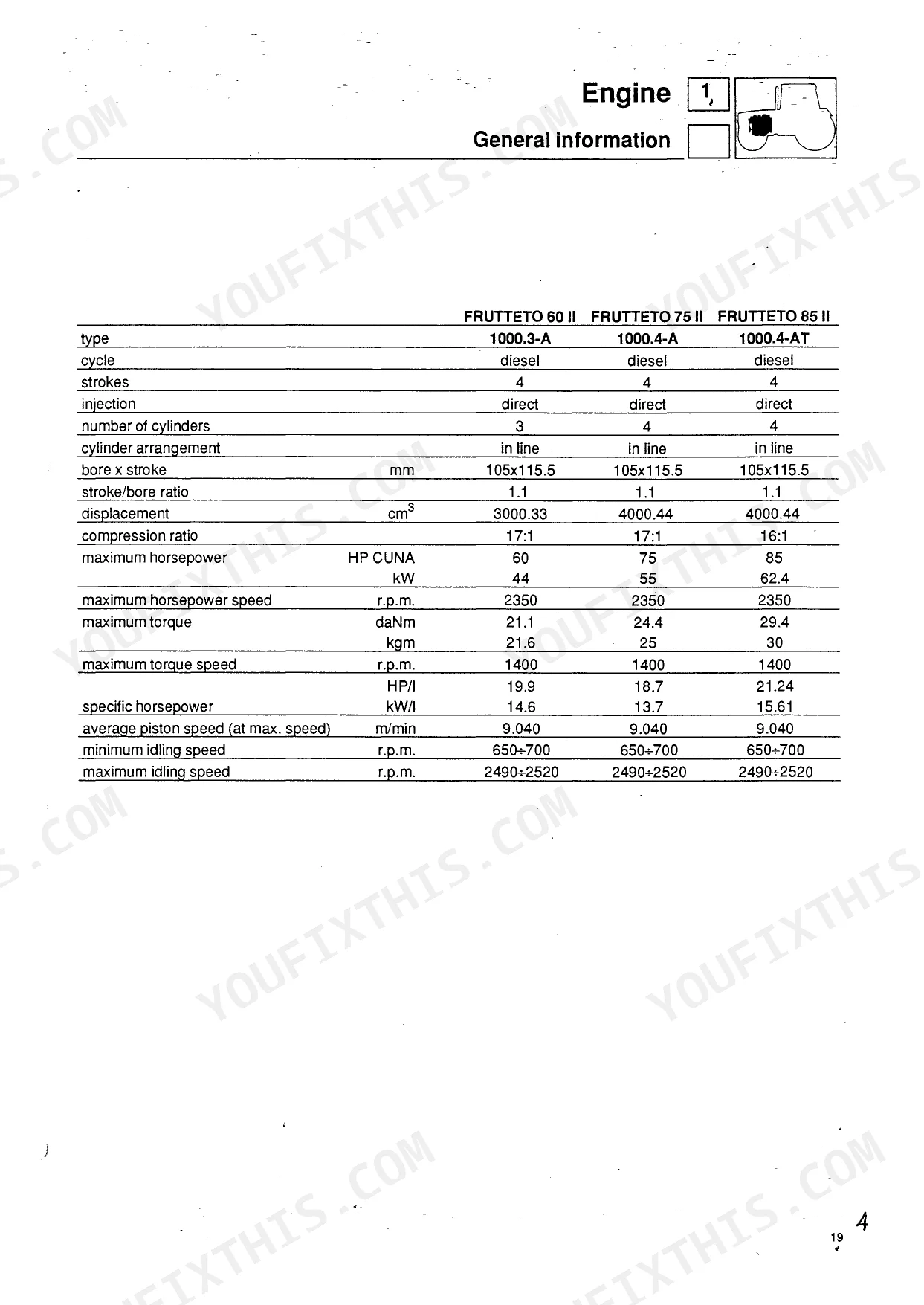

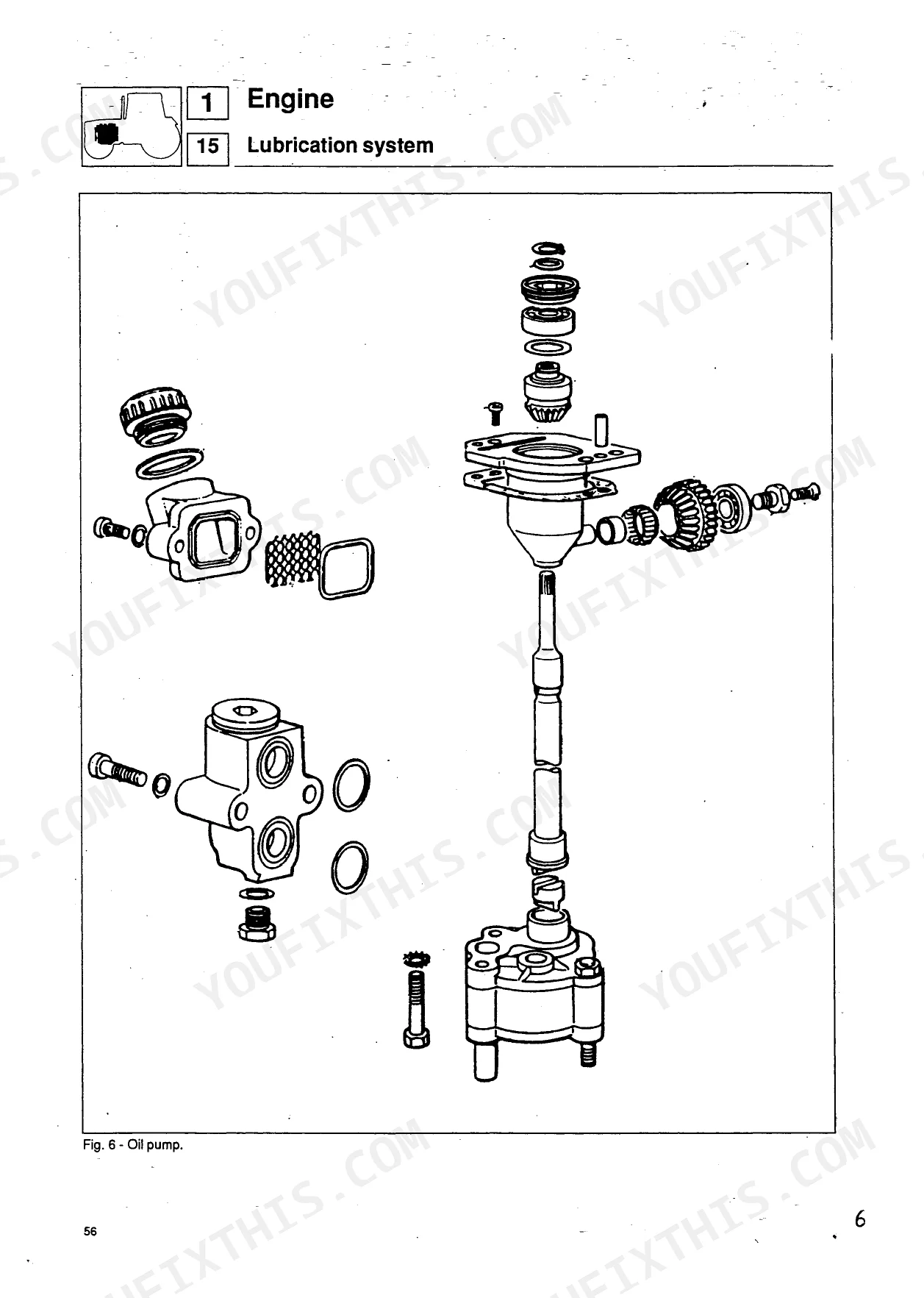

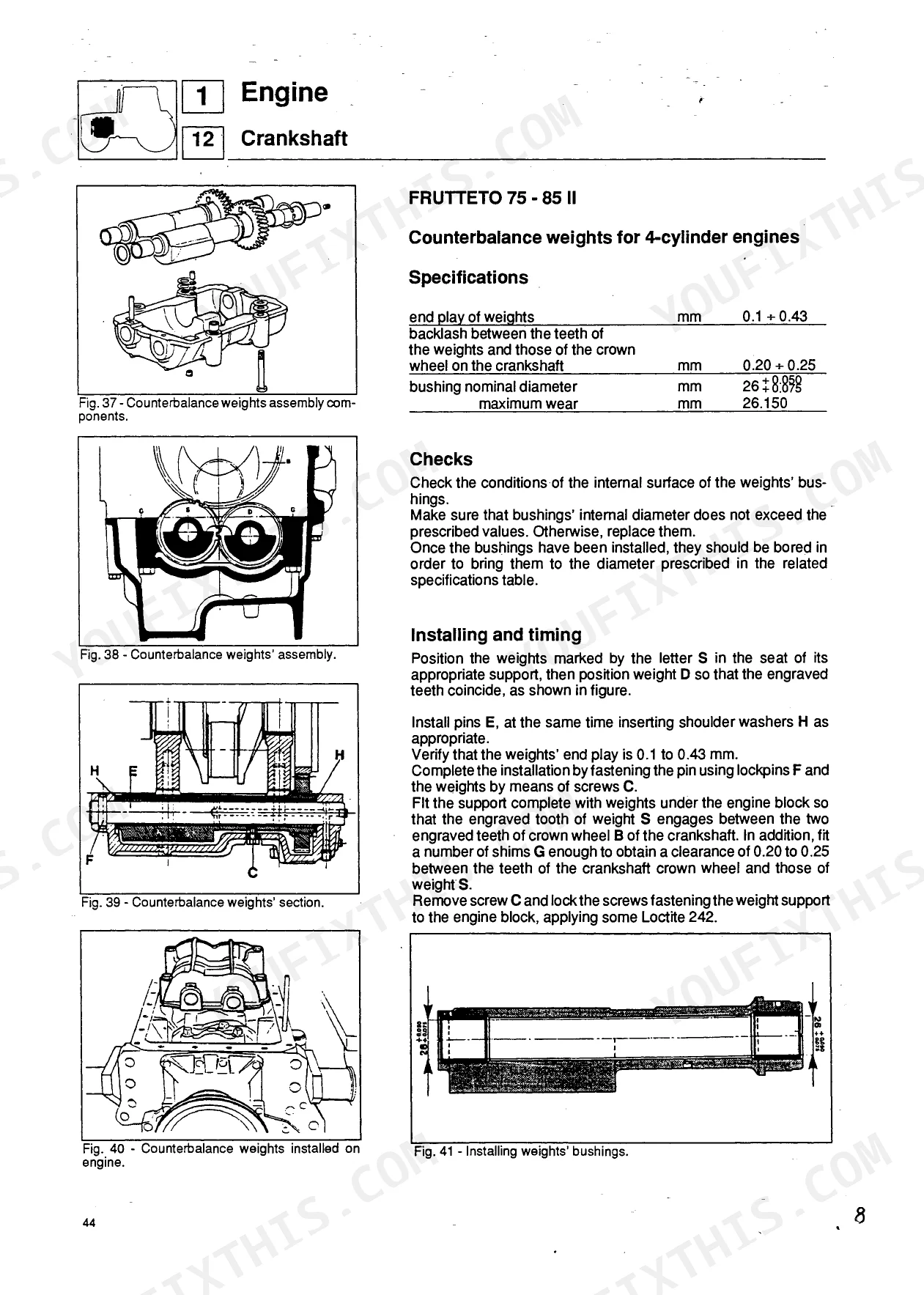

| Engine | 9-81 | Crankshaft, Lubrication System, Turbocharging, Pistons, Piston Rings, Fuel System, Mechanical Engine Governor |
| Transmission | 82-87 | Clutch, Clutch Disk - Gearbox, Clutch Disk - Power Take-Off, PTO Clutch Adjustment, PTO Control Lever |
| Gearbox | 88-118 | Primary Shaft, Power Take-Off Shafts, Syncropower Unit, Gear Shift Fork, Powerspeed, Differential |
| Vehicle | 119-137 | Brakes, Rear P.T.O. Gear, Front P.T.O. Assembly, Gearbox Oil Filling, Electro-Hydraulic Valve |
| Axles | 138-154 | Front-Wheel Drive, Axle Shafts, Forks, Brakes, Epicyclic Reducer, Bevel Gear Pair, Differential Lock |
| Controls | 155-244 | Hydrostatic Steering, Hydraulic Distributor, Priority Valve, Hydrostatic Cylinder, Electro-Hydraulic Controls, Differential Locks, Front-Wheel Drive, Power Take-Offs |
| Programming and Diagnosis Tester | 245-294 | Electronic Engines Governor, Hydraulic Shuttle (Hydrive) Electronic System, A.P.S. Electronic System, Power Lift Electronic System, Engine ECU, Pedal Sensor, Actuator |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||

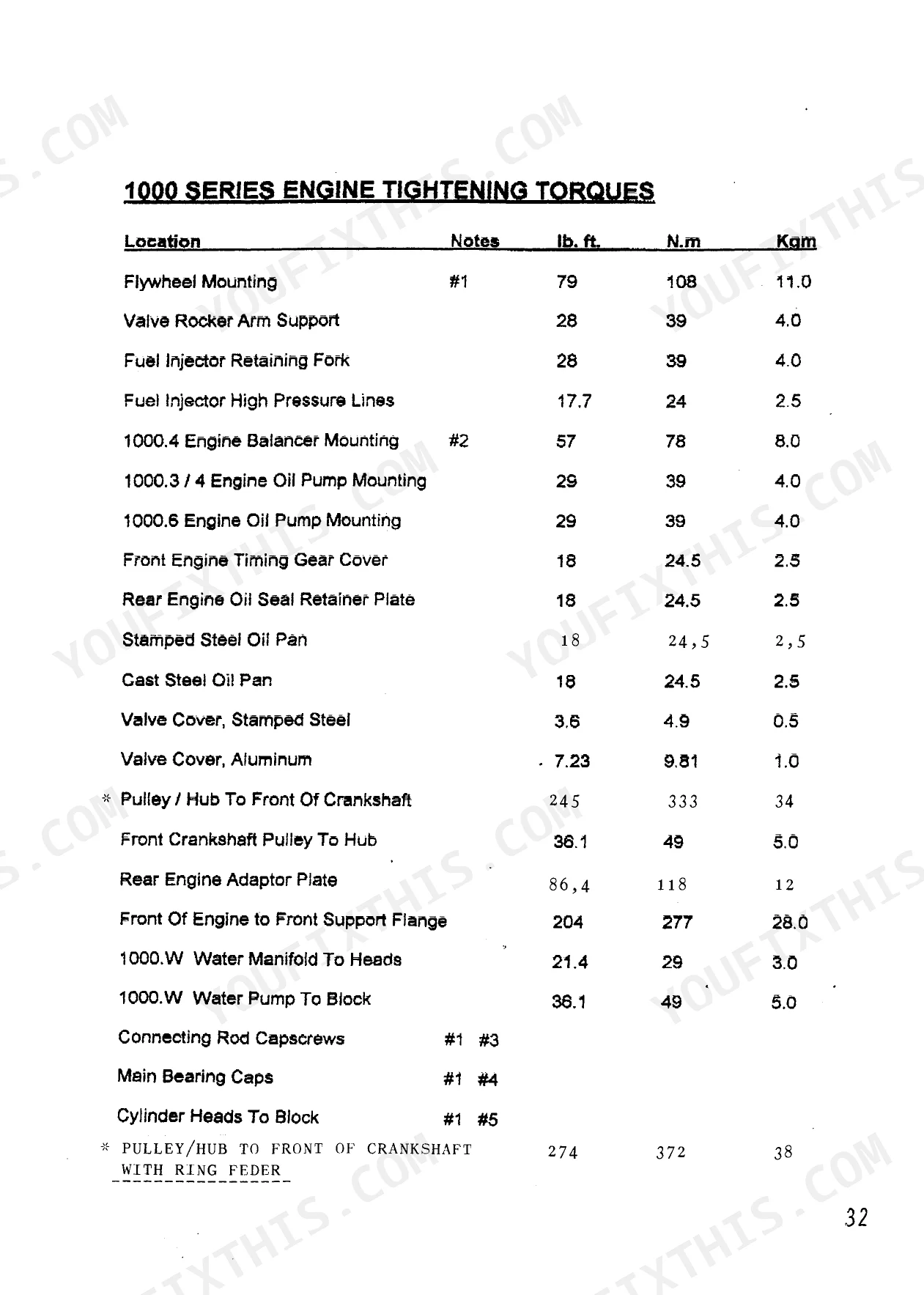

| Cylinder head mounting capscrews torque (STEP#1) | 14 lb.ft (20 N.m, 2.0 Kgm) | p. 38 |
| Cylinder head mounting capscrews torque (STEP#2) | 36 lb.ft (50 N.m, 5.0 Kgm) | p. 38 |
| Gearbox clutch disk diameter | 280 (11") | p. 82 |
| Syncropower clutch disk number (S+L+H) | 2 | p. 101 |
| Syncropower clutch disk diameter (S+L+H) | 168 mm | p. 101 |
| Rear axle half-shaft bearings assembly (piastrina H and vite G) torque | 9 Kgm | p. 117 |
| Rear axle half-shaft bearings assembly shim F tolerance | +/- 0.02 mm | p. 118 |
| Frutteto 60 II, 75 II | ||
| Gearbox clutch minimum allowable disk thickness (60-75HP) | 8.5 mm | p. 82 |
| Frutteto 60 II | ||
| Oil cooling radiator type (1000.3-A) | 3 rows | p. 10 |
| Oil cooling radiator code no. (1000.3-A) | 085.1540.3 | p. 10 |
| Frutteto 75 II, 85 II | ||
| Oil cooling radiator type (1000.4-A, 1000.4-AT) | 4 rows | p. 10 |
| Oil cooling radiator code no. (1000.4-A, 1000.4-AT) | 086.1540.3 | p. 10 |
Same Frutteto 60 II, Frutteto 75 II, Frutteto 85 II Common Problems This Manual Covers
Engine overheating from dirty cooling fins
These tractors run hot when the cylinder head cooling fins and oil radiator clog with chaff and dust, causing repeated high-temperature warnings. The manual covers the cooling and lubrication systems so you can inspect, clean, and verify oil radiator condition.
Manual Section: Engine p. 9Clutch slipping or dragging
Worn clutch disks and an out-of-spec pedal free travel lead to slipping under load or a clutch that will not release cleanly. The Transmission section gives disk thickness wear limits and pedal idle stroke so you can measure and adjust correctly.
Manual Section: Transmission p. 82Rear axle noise or loss of drive
Owners report driveline noise, vibration, or loss of drive as rear axle and final drive components wear. The Axles section walks through inspection, clearances, and rebuild procedures for these assemblies.
Manual Section: Axles p. 138Weak or slow hydraulic lift

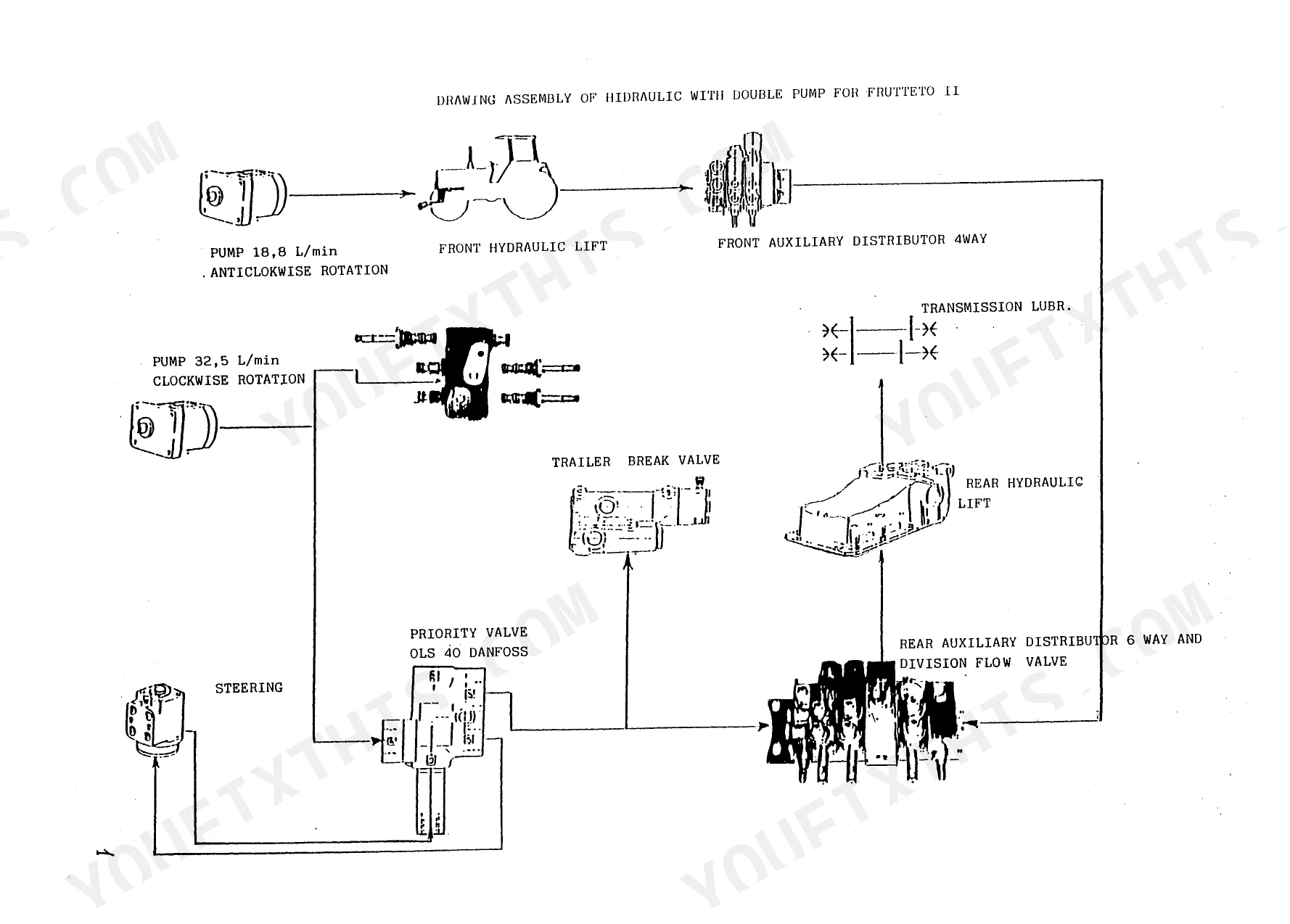

Slow implement lift or intermittent response usually points to hydraulic pump wear, filter restriction, or the hydrostatic steering circuit. The Controls section documents the power-lift and hydrostatic steering systems, including working pressure checks.
Manual Section: Controls p. 155Hard starting or low power
Persistent starting trouble or a drop in power output often traces to the fuel injection system, nozzles, or valve timing. The Engine section covers injection pressures, nozzle popping pressure, and valve clearance so you can diagnose the fuel and combustion side.
Manual Section: Engine p. 9Syncropower gearbox clutch faults
The Syncropower shift clutches wear and drop lubricating pressure, causing rough or lost gear engagement. The Gearbox section lists disk counts, disk set wear limits, and lubricating pressure so you can service the pack to spec.
Manual Section: Gearbox p. 88Frequently Asked Questions
Which tractors does this manual cover?
It covers the Same Frutteto 60 II, Frutteto 75 II, and Frutteto 85 II tractors, with their 1000.3-A, 1000.4-A, and 1000.4-AT diesel engines. All three models are handled in the same 294-page service manual.
What is the cylinder head bolt torque sequence?
The Engine section gives the staged procedure: an initial pass at 14 lb.ft (20 N.m), a second pass at 36 lb.ft (50 N.m), then two final 45 degree angular turns. Follow the manual's exact step order. p. 9
How do I know when the clutch disks need replacing?
The Transmission section lists the wear limits. The gearbox clutch disk has a minimum allowable thickness of 8.5 mm on the 60 and 75 HP models, and the power take-off clutch disk minimum is 6 mm. p. 82
What is the valve clearance setting?
The Engine section specifies a valve clearance of 0.20 mm measured on a cold engine, applied across all three Frutteto II models. Set it per the manual's adjustment procedure. p. 9
Is this Same FRUTTETO 60 II, FRUTTETO 75 II, FRUTTETO 85 II manual a digital?
You get a 294-page searchable PDF (8 MB) that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Am I able to print pages from this Same FRUTTETO 60 II, FRUTTETO 75 II?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.

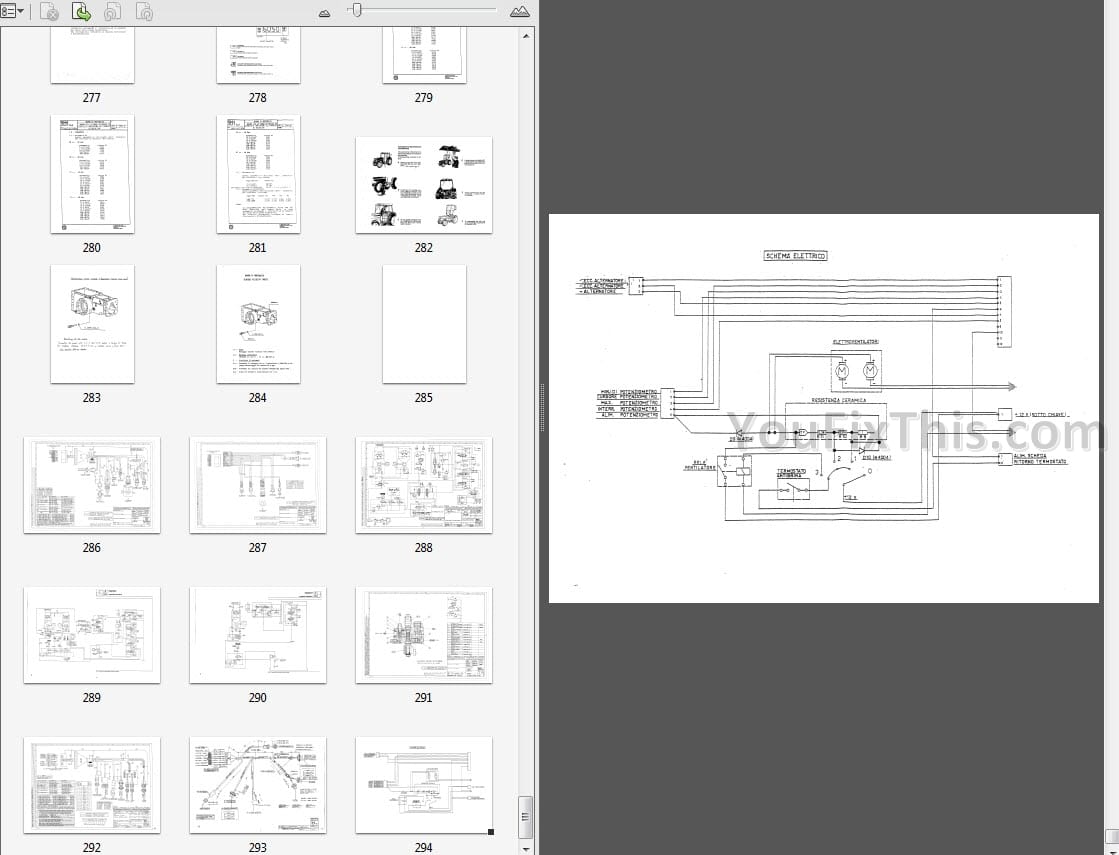

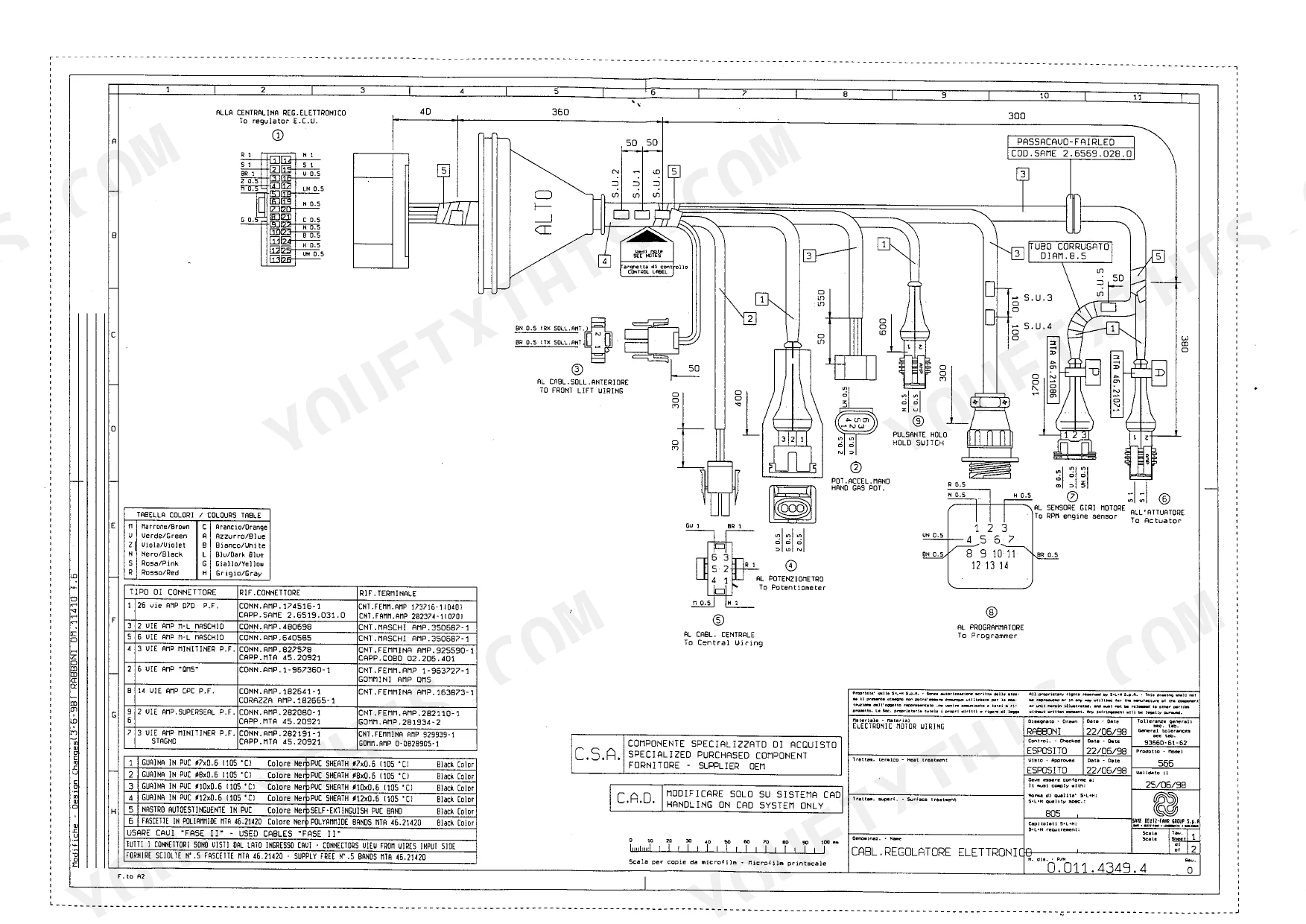

Are electrical wiring diagrams included in this Same FRUTTETO 60 II, FRUTTETO?
Complete wiring diagrams are included, covering all electrical circuits, harness routing, and connector pinouts for the Same FRUTTETO 60 II, FRUTTETO 75 II, FRUTTETO 85 II.
