A tiller slip clutch slipping mid-pass, a mower spindle howling before the field is half cut: TM1763 exists for those failures, a 250 page John Deere Technical Manual covering the mower decks and attachments of the Commercial & Consumer Equipment line. The John Deere 54D–72D mower decks and attachments technical manual PDF puts rotary mowers, tillers, post hole diggers, blades, rotary brooms, snowblowers, iMatch AutoHitch and AutoConnect decks under one cover. Fastener torque tables open the book, running metric, Grade 7 metric, inch, face seal and O-ring boss fitting values. Rebuild work claims the largest share of those pages, carrying gear cases, spindles, drive belts, powershafts and PTO slip clutch adjustment from removal through assembly. Set your seal face 2.57 mm (0.10 in.) from the lower end of the spindle housing, then pull blade bolts to 68 N-m (50 lb-ft). Your afternoon dies for want of one lock nut value. Bookmarked and searchable, it prints clean, and these pages can get dirty on the bench.
What's Inside This John Deere 54D–72D Mower Decks and Attachments Manual
| System | Pages | Key Topics |
|---|---|---|
| Technical Manual | 1-2 | Table of Contents, Specifications and Information, Identification Numbers, Tools and Materials, Component Location, Schematics and Harnesses |
| Introduction | 3-4 | Manual Description, Product Support Program, Bleed Tabs, Page Numbering |

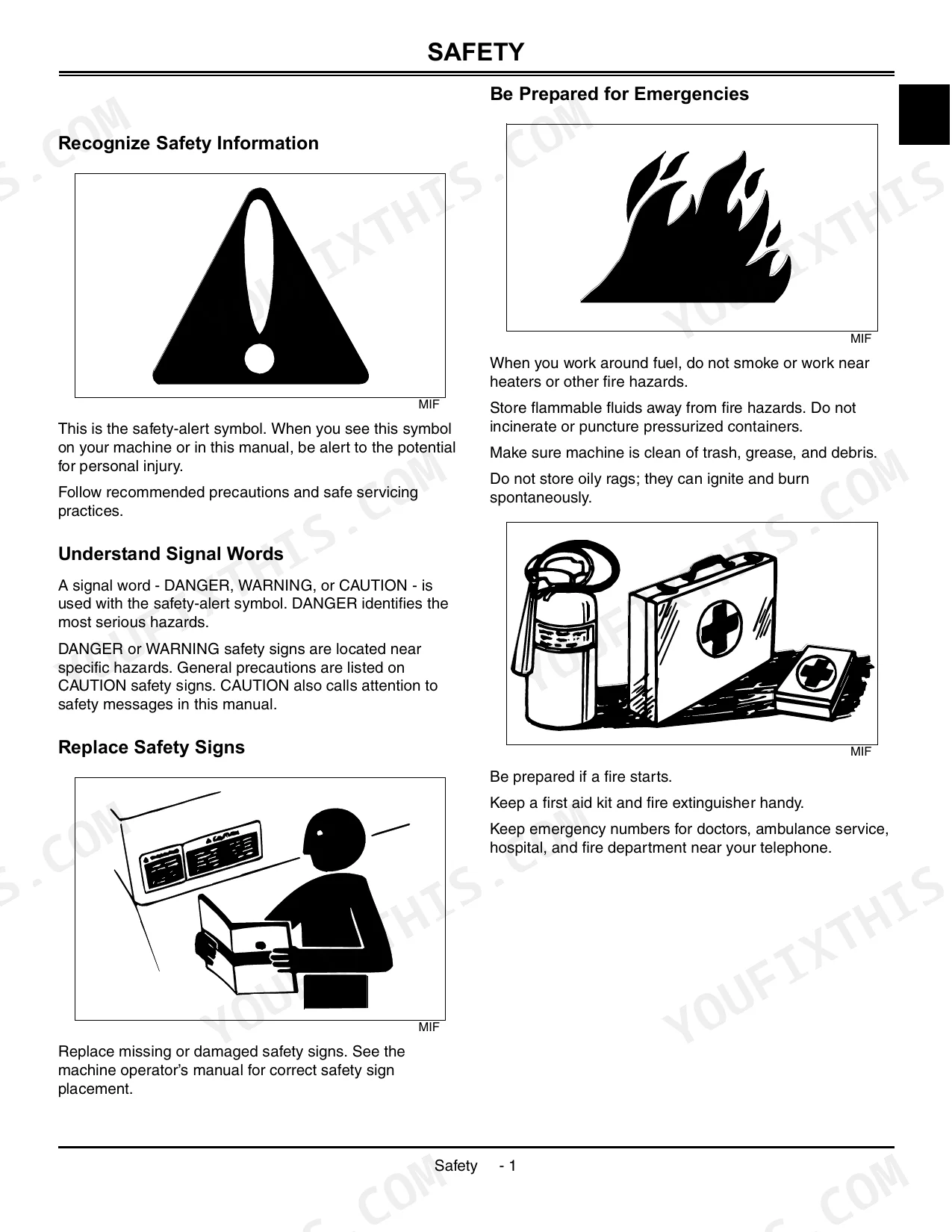

| Safety | 5-8 | Safety Information, Signal Words, Safety Signs, Emergency Preparedness, High-Pressure Fluid Lines, Service Procedures |

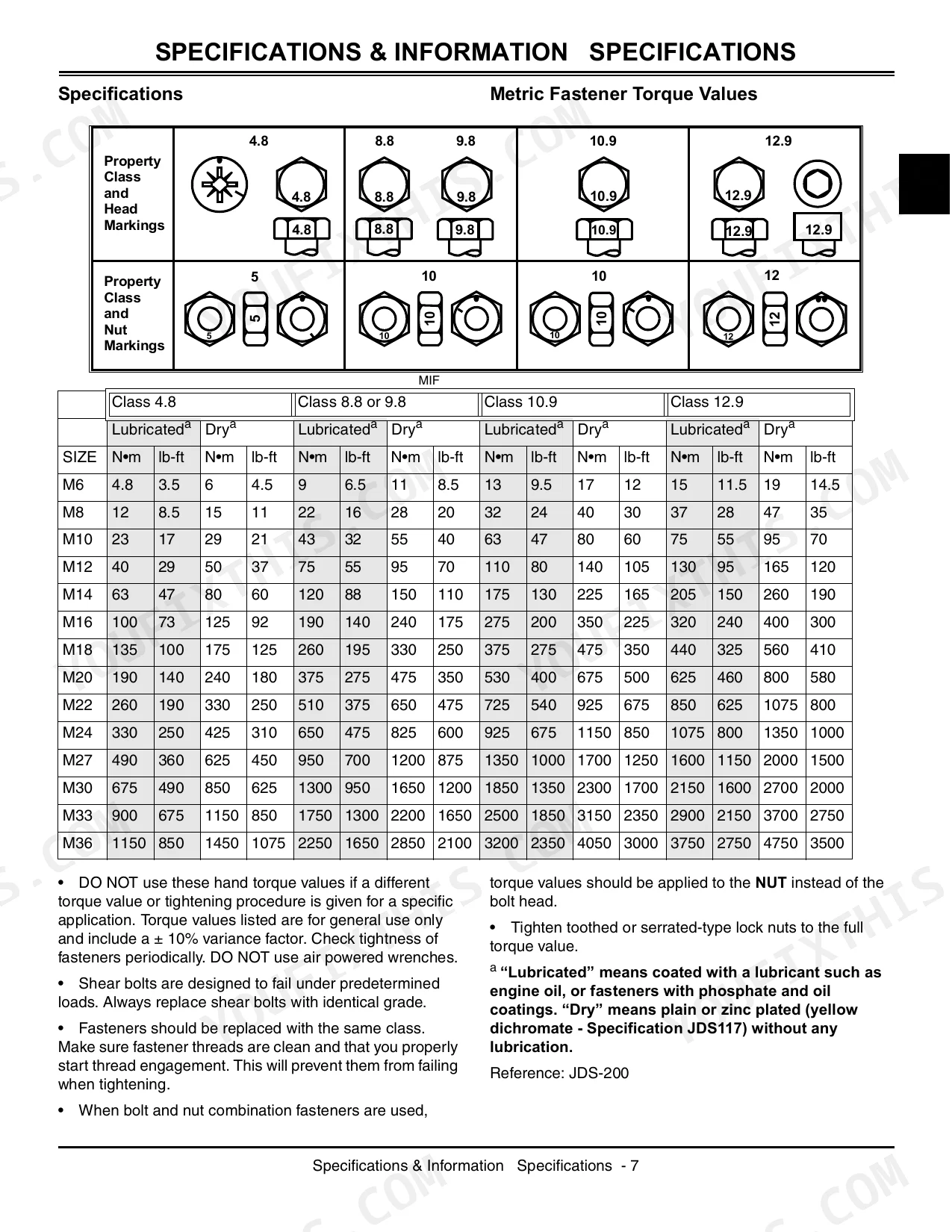

| Specifications and Information | 9-18 | Metric Fastener Torque Values, Metric Fastener Torque Values - Grade 7, Inch Fastener Torque Values, Face Seal Fittings with Inch Stud Ends Torque |
| Rotary Mowers | 19-48 | Mower Specifications, Gear Case, Spindles and Blades, Drive Belts, Powershafts |
| Tillers | 49-116 | General Specifications, Side Drive Chain Adjustment, PTO Slip Clutch Adjustment, Gear Case Removal, Rotor Bearing Replacement |
| Post Hole Digger | 117-130 | Gear Case Inspection, Gear Box Removal, Gear Box Disassembly, Gear Box Assembly |
| Blades | 131-136 | Angle Cylinder, Lift Cylinder, Specifications, Other Materials |
| Rotary Brooms | 137-164 | Mounting Components, Brush Assembly, Gear Box, Drive Chain Adjustment, PTO Mounting Bracket |
| Snowblowers | 165-184 | Chute Control, Gear Case, Gear Assembly, Fan Replacement, Coupler Replacement, Rotor Assembly |
| iMatch AutoHitch | 185-194 | Slider Replacement, AutoHitch Bearing, Rotary Cutter Bearing, PTO Drive Shaft Components |
| AutoConnect Mowers | 195-242 | Gear Drive Components, Spindle Removal, Spindle Disassembly, Mower Blade Removal, Drive Belt Replacement, Mower Mount Installation |
| Miscellaneous | 243-248 | Selecting Hoses, Hose Failures, Hose Routing, Hose Installation |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Blade Bolt Torque | 68 N•m (50 lb-ft) | p. 39 |
| Spindle Mounting Lock Nuts | 30 N•m (22 lb-ft) | p. 33 |
| Flanged Nut Torque | 255 N•m (188 lb-ft) | p. 29 |
| Seal Face Distance from Lower End of Housing | 2.57 mm (0.10 in.) | p. 33 |
| Ramp/Belt Guard Lock Nuts | 30 N•m (22 lb-ft) | p. 33 |
| Cutting edge | 0.40 mm (0.016 in.) | p. 40 |
| 60 and 72 Inch Mowers | ||
| Ramp/Belt Guard Lock Nuts torque | 30 N•m (22 lb-ft) | p. 33 |
| 54 Inch Mowers | ||

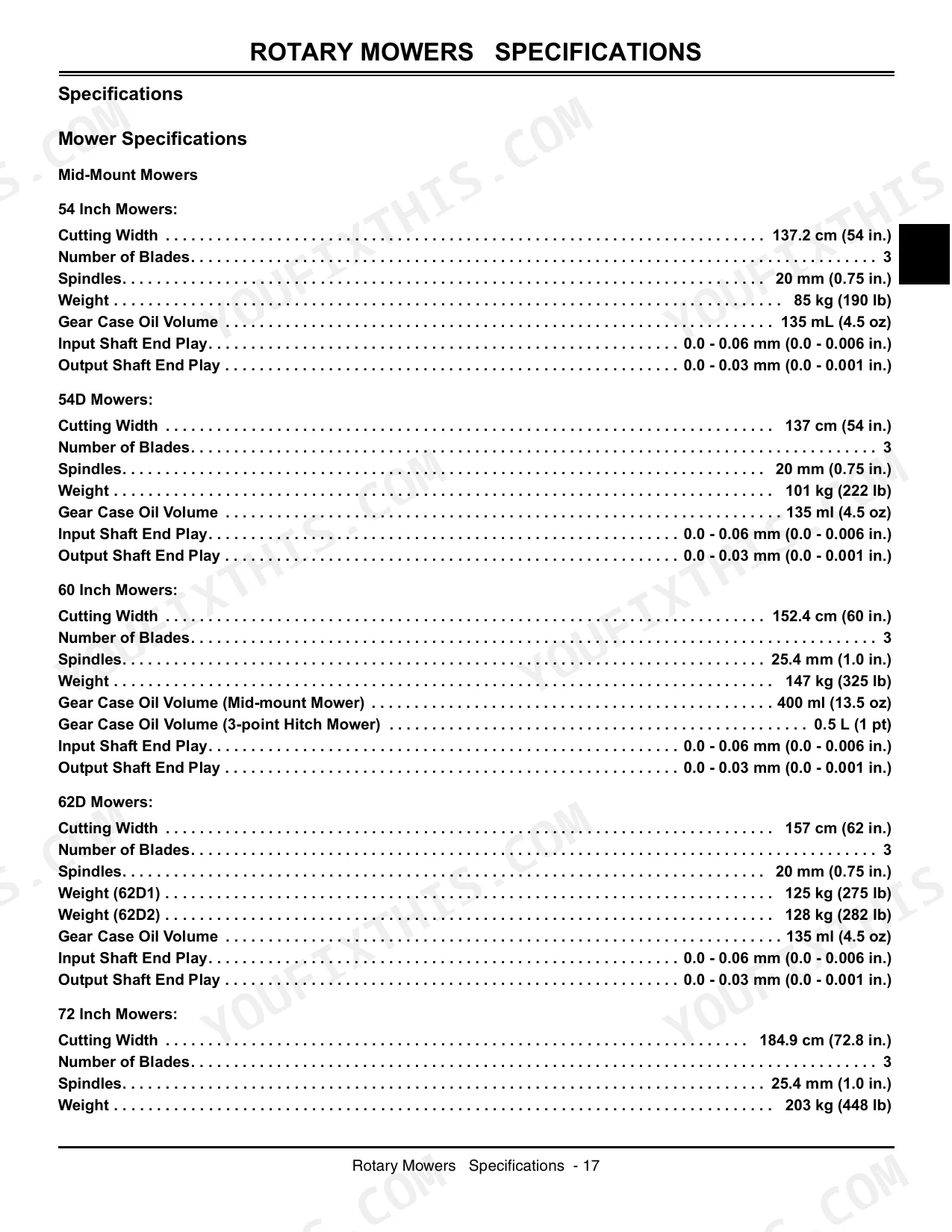

| Gear Case Oil Volume (54 Inch Mowers) | 135 mL (4.5 oz) | p. 21 |
| 54D Mowers | ||
| Gear Case Oil Volume (54D Mowers) | 135 mL (4.5 oz) | p. 21 |
| 60 Inch Mowers | ||
| Gear Case Oil Volume (60 Inch Mowers - Mid-mount) | 400 mL (13.5 oz) | p. 21 |
| 62D Mowers | ||
| Gear Case Oil Volume (62D Mowers) | 135 mL (4.5 oz) | p. 21 |
| Model 647 | ||
| Gear Case Oil Capacity (Model 647) | 0.750 L (1.7 pt) | p. 51 |
John Deere 54D–72D Mower Decks and Attachments Common Problems This Manual Covers
John Deere 54D deck vibrates hard and squeals at full PTO speed, throws belts
Pull the belt guard and spin each spindle by hand. Any grinding or sideways play means the bearings are finished. Rebuild or replace the spindle, then torque the spindle mounting lock nuts to 30 N•m (22 lb-ft) per page 33 and set the flanged nut to 255 N•m (188 lb-ft) before the belt goes back on.
Manual Section: Spindle Removal and Installation (Rotary Mowers) p. 29Blades bog down or stop turning in heavy wet grass, deck belt smells hot
Check belt routing against the drive belt diagrams in the Rotary Mowers section starting on page 19, then check the idler arm spring for stretch or a seized pivot. Replace a glazed or cracked belt. Sharpen blades back to the 0.40 mm (0.016 in.) cutting edge shown on page 40 so you can finish the field in one pass.
Manual Section: Rotary Mowers p. 40Uneven cut, one side cutting lower than the other, deck scalps on turns
Set the tractor on a level shop floor with tires aired to spec, then measure blade tip height front and rear on both sides. Adjust the lift linkage and gauge wheels until both sides match, then retorque the blade bolts on 54D and 62D decks to 68 N•m (50 lb-ft) using page 39 before heading back out.
Manual Section: Rotary Mowers p. 39Spindle housings run hot and give off a burnt smell right after mowing
Clean packed clippings off every spindle housing once the deck cools, and grease the fittings. Pull the hot spindle and inspect the bearings and seals. On reassembly, press the seal face 2.57 mm (0.10 in.) below the lower end of the housing as page 33 calls out, then tighten the spindle nut to 163 N•m (120 lb-ft).
Manual Section: Spindle Removal and Installation (Rotary Mowers) p. 33Gear case whines or weeps oil at the deck drive, blades slow to spin up

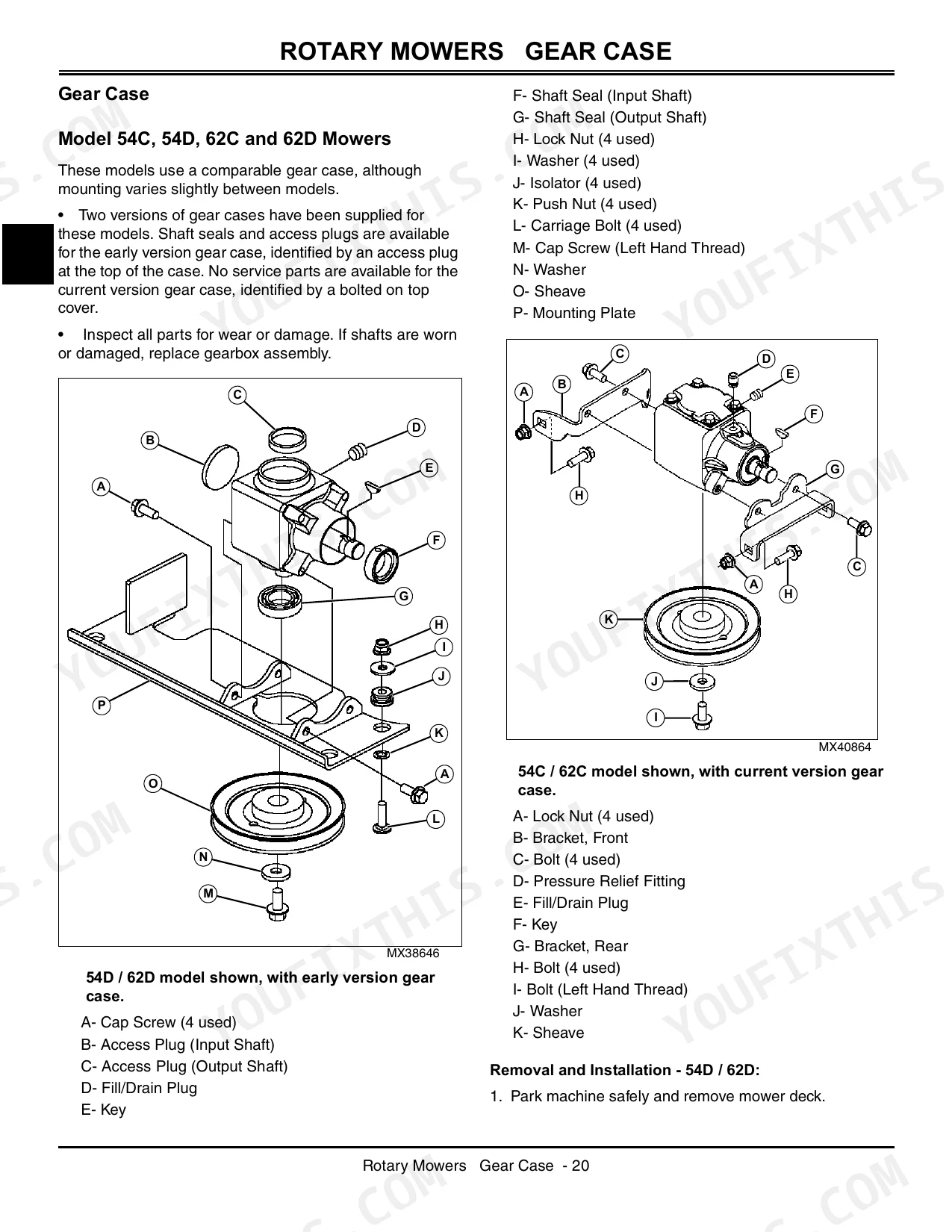

Drain the gear case, inspect the drain plug magnet for metal, and check the seals before topping off. Refill a 54D case to 135 mL (4.5 oz) using the capacity table on page 21. If the gears are chipped, rebuild the case with the procedures starting on page 24 before the grass gets ahead of you.
Manual Section: Gear Case Removal and Installation (Rotary Mowers) p. 21Deck engages weakly, belt slips at the sheave, and mowing quits under load
Inspect the sheave and idler for wobble, then check the belt for glazing and the guides for wear. Replace worn idler arm bushings and any belt guide that is grooved. Tighten the flange nut on the AutoConnect spindle to 142 N•m (105 lb-ft) as page 213 spells out, then recheck belt tension.
Manual Section: Spindle Disassembly and Assembly (AutoConnect Mowers) p. 213Frequently Asked Questions
What is the blade bolt torque for a John Deere 54-inch mower deck?
The torque specification for the blade bolt on a 54-inch deck is 57 - 84 N•m (42 - 62 lb-ft). p. 22
What are the replacement specifications for spindle bearings on 54D and 62D decks?
When servicing spindles, always install new bearings and seals. The seal face distance from the lower end of the housing should be 2.57 mm (0.10 in.). p. 33
What is the gear case oil capacity for the 54-inch mid-mount mower?
The gear case oil volume for the 54-inch mid-mount mower is 135 mL (4.5 oz). p. 21
What is the torque specification for the 6 mm bolts on the iMatch AutoHitch?
The torque specification for the 6 mm bolts on the iMatch AutoHitch is 17 ± 2 N•m (150 ± 18 lb-in.). p. 187
Is this John Deere 54D manual a PDF I download?
A single searchable PDF file of 250 pages, downloadable right after payment. Nothing ships, nothing waits in the mail.
Is this John Deere 54D Technical Manual printable?
Printing is allowed without restriction. Pull the pages you need for the job and bin them when they get greasy.
