A mower that surges under load and dies at the end of the yard usually comes down to governor linkage or a carburetor nobody has touched in years. The John Deere JS25, JS35, JS45 technical manual PDF, 158 pages published under OEM number TM103619, is the factory book for these walk-behind rotary mowers. Engine work fills the bulk of it, two separate sections covering cooling, crankcase breather, lubrication, compression release, carburetor and governor operation for the JS25 and JS35 together, then the JS45 alone. Wire color codes and electrical schematics let you trace the ignition circuit, electric starter and stator output, with troubleshooting charts near the front. Set your governed speed at 3400 plus or minus 100 rpm, then torque the wheel nuts to 28.5 N-m (21 lb-ft). One missing number stops a Saturday repair cold. Bookmarked and searchable, it prints clean, so the pages can get greasy on the bench.
What's Inside This John Deere JS25, JS35, JS45 Manual
| System | Pages | Key Topics |
|---|---|---|
| Technical Manual | 1-2 | Walk-Behind Rotary Mowers, Technical Specifications, Maintenance Procedures, Repair Instructions, Diagnostic Charts |
| Introduction | 3-4 | Manual Description, Product Support Program, Identification Numbers, Component Location, Theory of Operation |
| Safety | 5-8 | - |
| Specifications and Information | 9-16 | Fastener Torques, Gasoline Storage, Engine Oil, Lubricant Storage, Serial Number Locations |
| Engine JS25 and JS35 | 17-64 | Cooling System, Crankcase Breather System, Lubrication System, Compression Release System, Carburetor, Governor Operation |
| Engine JS45 | 65-104 | Cooling System, Crankcase Breather System, Lubrication System, Compression Release System, Carburetor, Governor Operation |
| Electrical | 105-126 | Diagnostic Information, Wire Color Codes, Electrical Schematics, Ignition Circuit, Electric Starter, Stator Output |
| Power Train | 127-142 | Traction Drive System, Drive Belt, Transaxle, Ground Speed Adjustment, Drive Cable, Drive Axle |
| Miscellaneous | 143-152 | Front Wheel Removal, Rear Wheel Removal, Wheel Bearing Inspection, Front Axle Replacement, Blade Assembly Removal, Handle Assembly |
Quick Reference Specifications

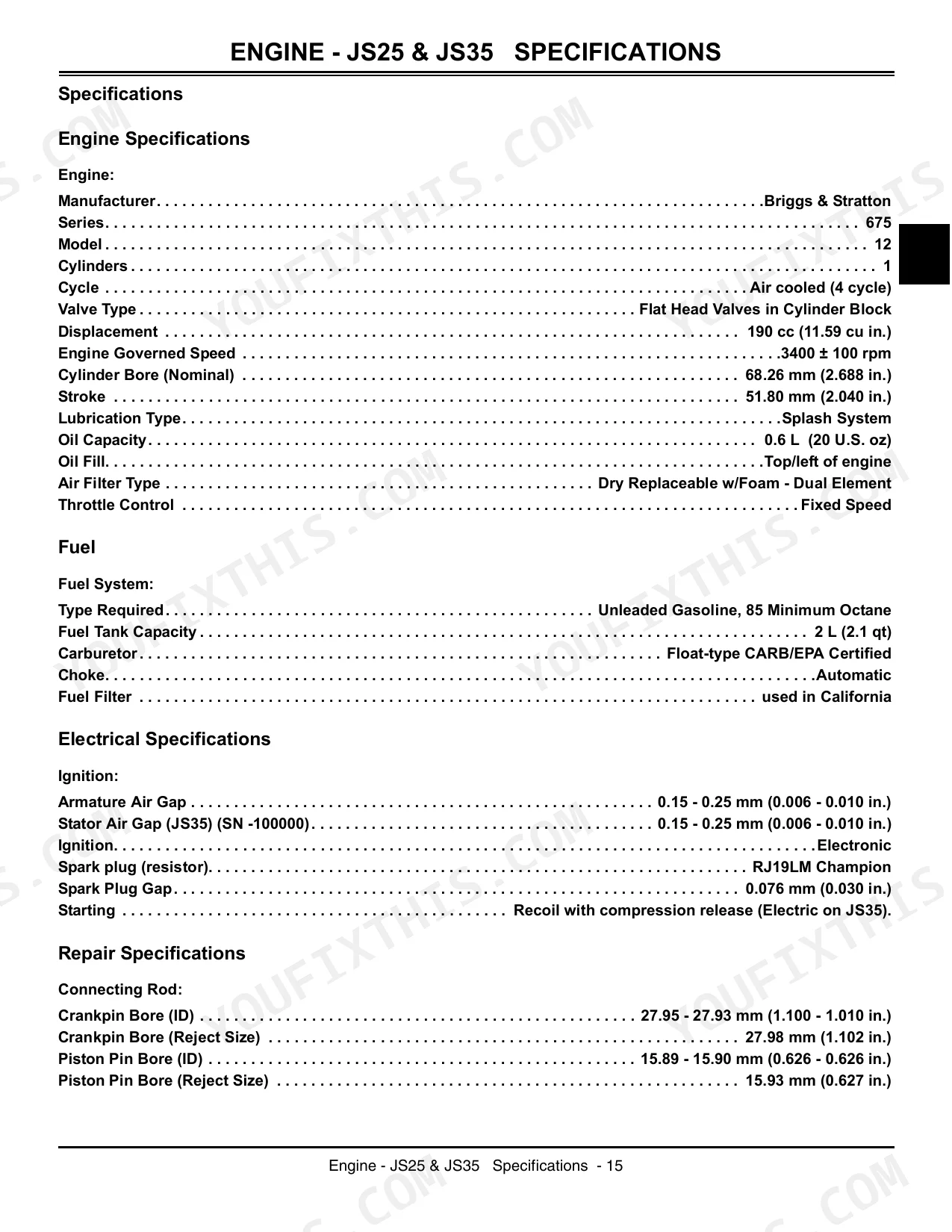

| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Wheel Mounting Nuts Torque | 28.5 N•m (21 lb-ft) | p. 141 |
| Front Wheel Nut/Bolt Torque | 28.5 N•m (21 lb-ft) | p. 141 |
| Rear Wheel Nut Torque | 28.5 N•m (21 lb-ft) | p. 141 |
| JS25, JS35 | ||
| Engine Governed Speed | 3400 ± 100 rpm | p. 19 |
| Oil Capacity | 0.6 L (20 U.S. oz) | p. 19 |
| Spark Plug Gap | 0.076 mm (0.030 in.) | p. 19 |
| JS45 | ||
| Engine Governed Speed | 3400 ± 100 rpm | p. 67 |
| Oil Capacity | 0.65 L (22 U.S. oz) | p. 67 |
| Spark Plug Gap | 0.51 mm (0.020 in.) | p. 67 |
John Deere JS25, JS35, JS45 Common Problems This Manual Covers
John Deere JS35 idles rough, backfires after shutdown, and puffs white smoke at the muffler

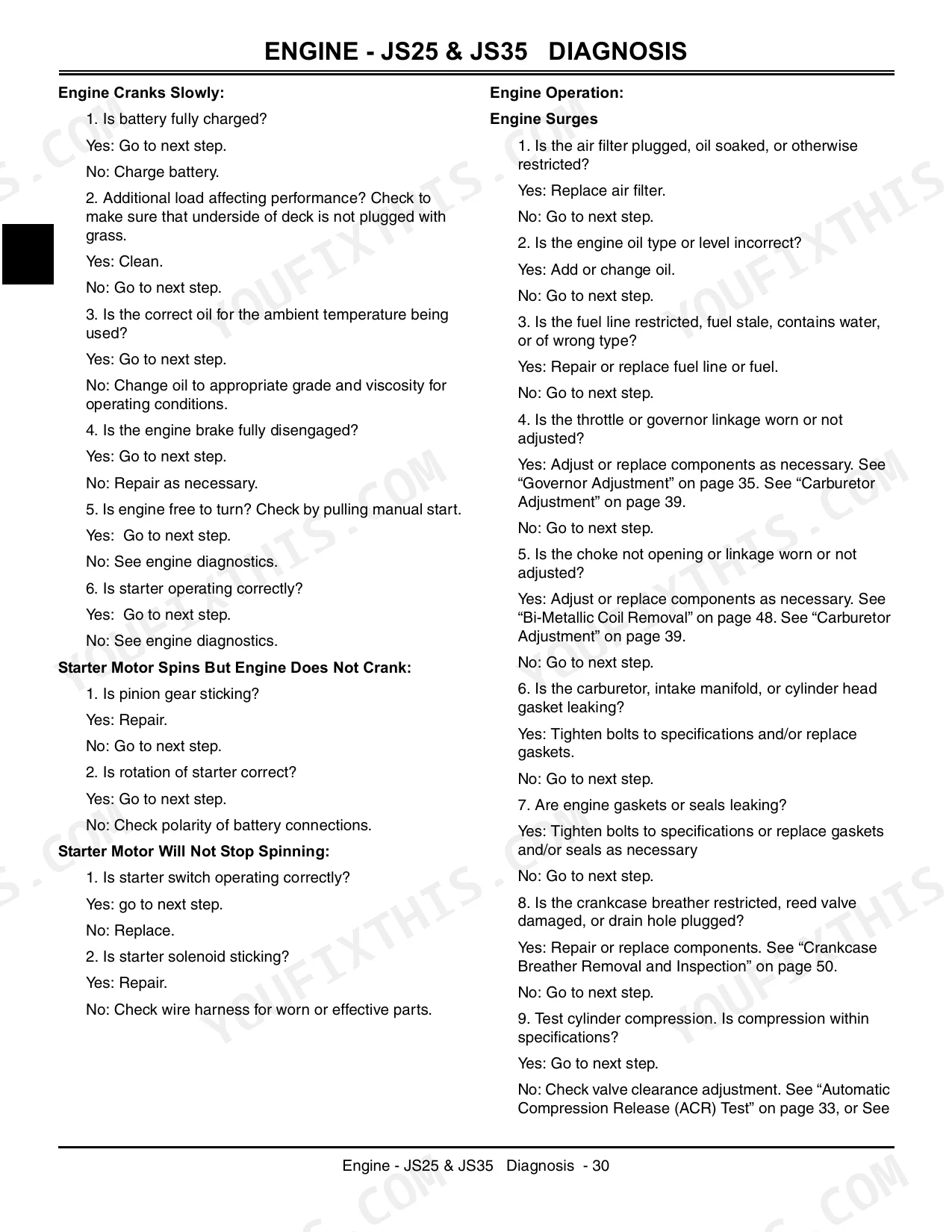

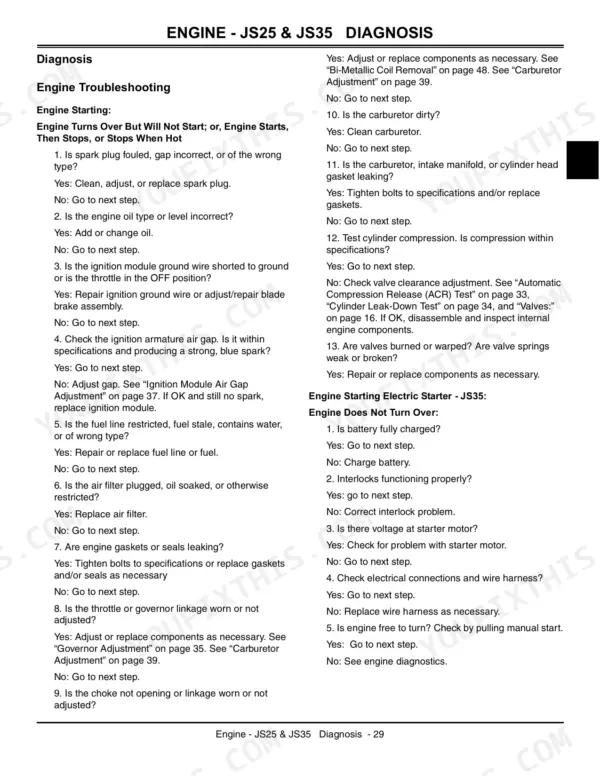

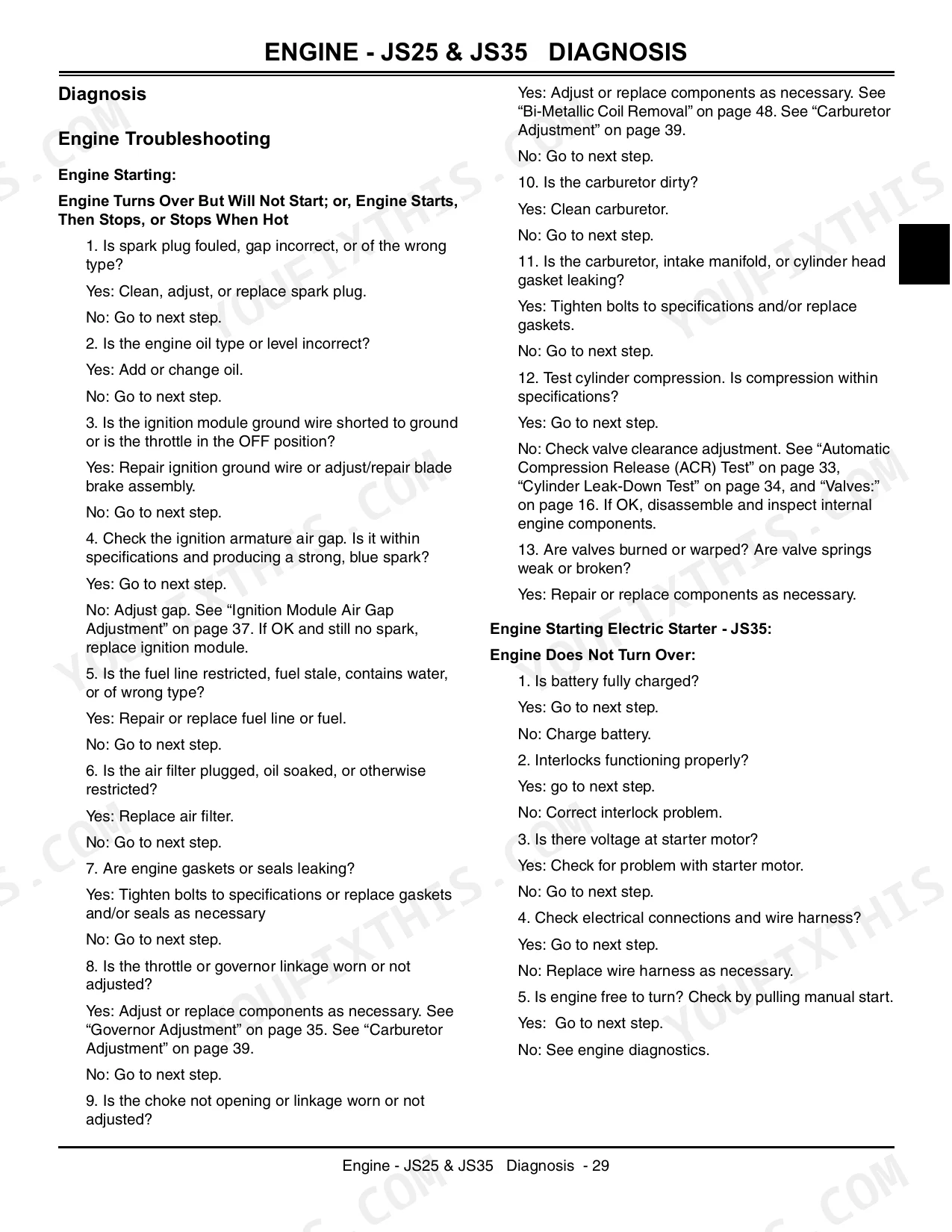

Start with the engine troubleshooting charts beginning on page 33 before pulling anything apart. Set governed speed to 3400 plus or minus 100 rpm, then check the spark plug gap at 0.076 mm (0.030 in.). Rough idle with smoke usually traces to valve clearance or a crankcase breather passing oil into the carburetor throat.
Manual Section: Engine JS25 and JS35 p. 33Front wheel wobbles, wheel arm cracks, or a front wheel falls off during mowing
Pull the wheel and inspect the deck welds at the mounting boss for hairline fractures before you blame the bolt. Check the wheel bearing for play using the inspection steps in the Miscellaneous section starting on page 143, replace any scored bearing, then torque the front wheel nut to 28.5 N-m (21 lb-ft).
Manual Section: Miscellaneous p. 141Drive wheels stay locked and will not roll freely when the drive bail is released
Disconnect the drive cable at the handle and roll the mower by hand to isolate cable bind from transaxle trouble. A stiff or kinked cable holds tension even at rest. Work through the traction drive diagnostics in the Power Train section beginning on page 127, inspect the drive belt for glazing, and reset ground speed adjustment.
Manual Section: Power Train p. 127Engine burns oil, smokes under load, or the level drops between mowings
Drain the oil warm and refill to spec: 0.6 L (20 U.S. oz) on the JS25 and JS35, 0.65 L (22 U.S. oz) on the JS45. Overfilling pushes oil out the breather. Clean the breather passage, replace a saturated air filter, then follow the oil consumption chart on page 34.

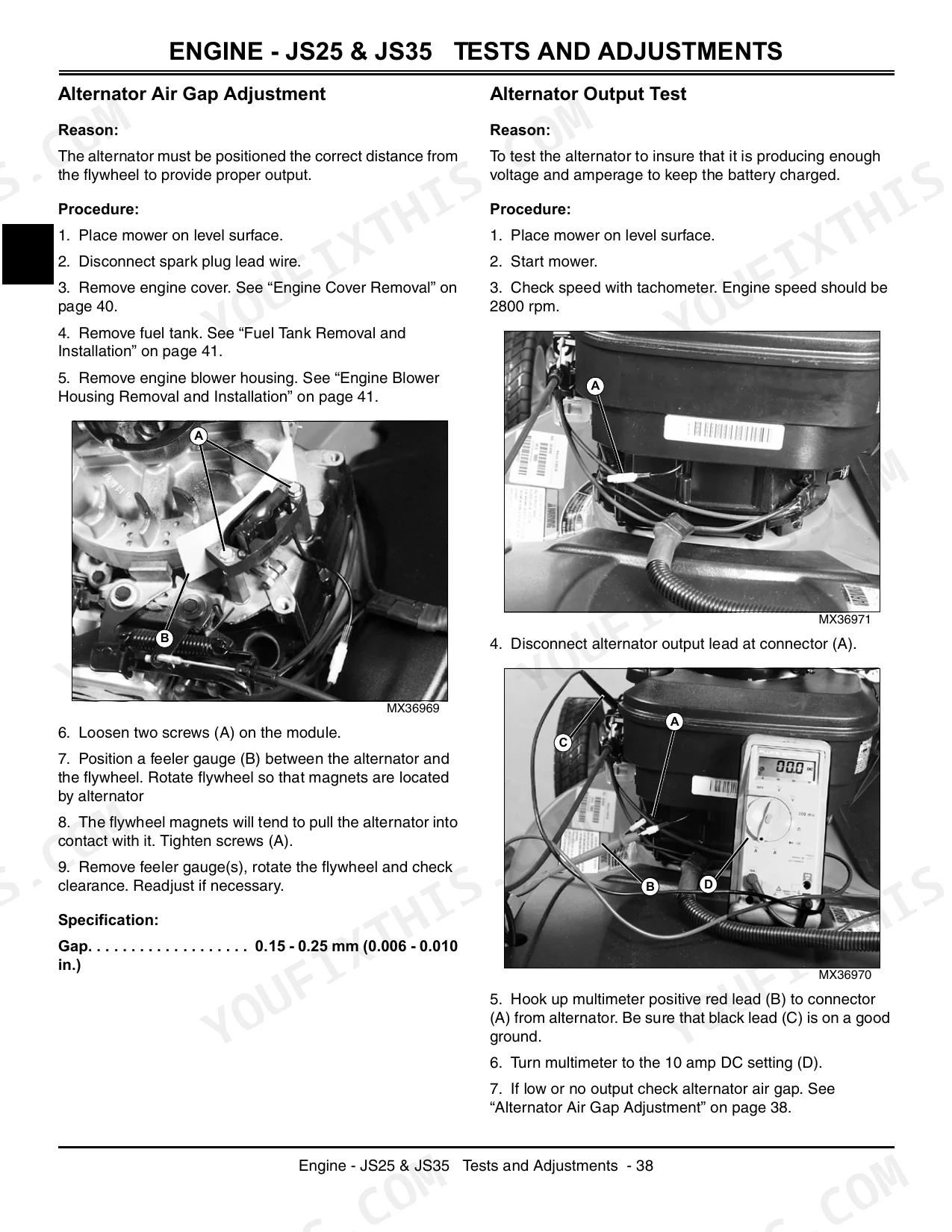

Manual Section: Engine JS25 and JS35 p. 34Engine cranks slowly or will not start with the electric starter

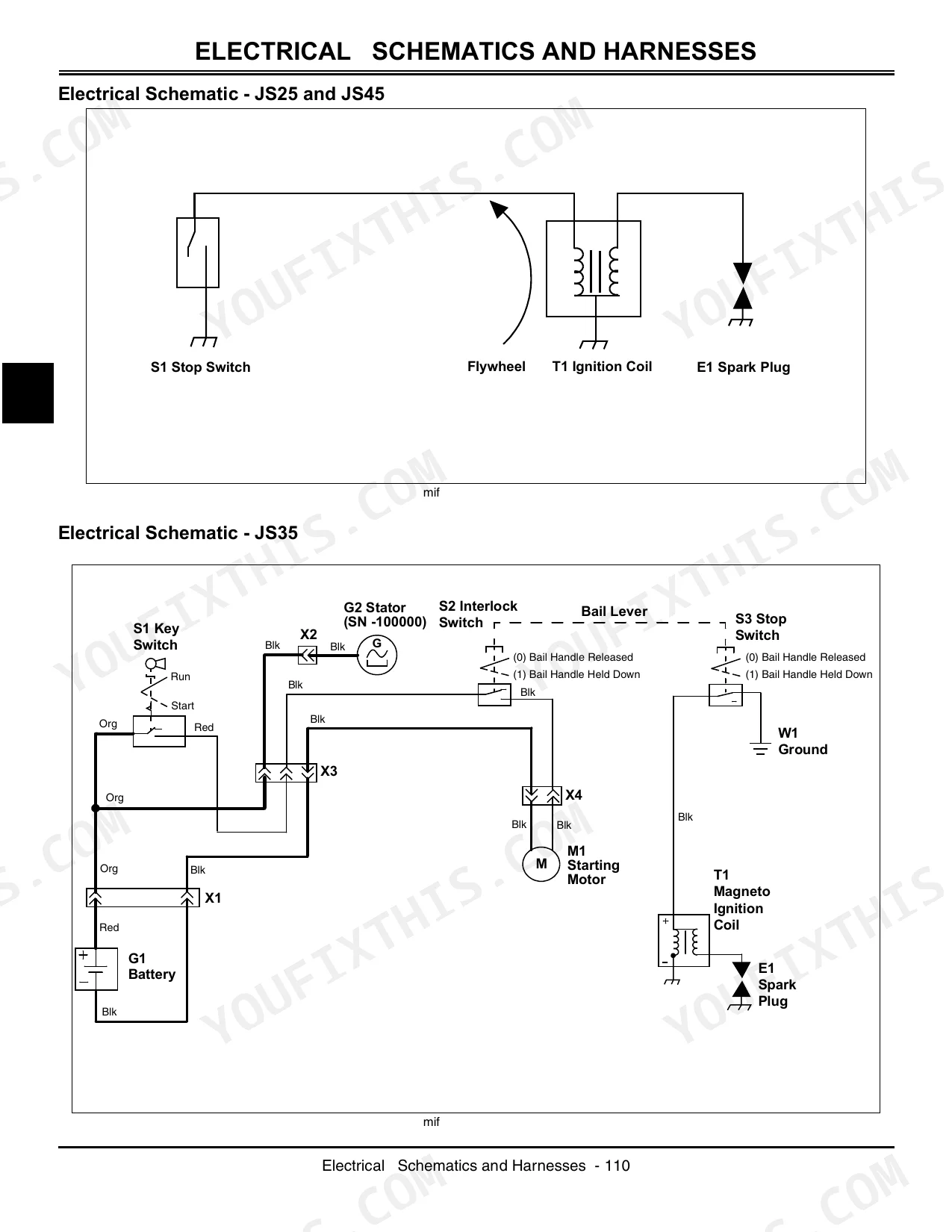

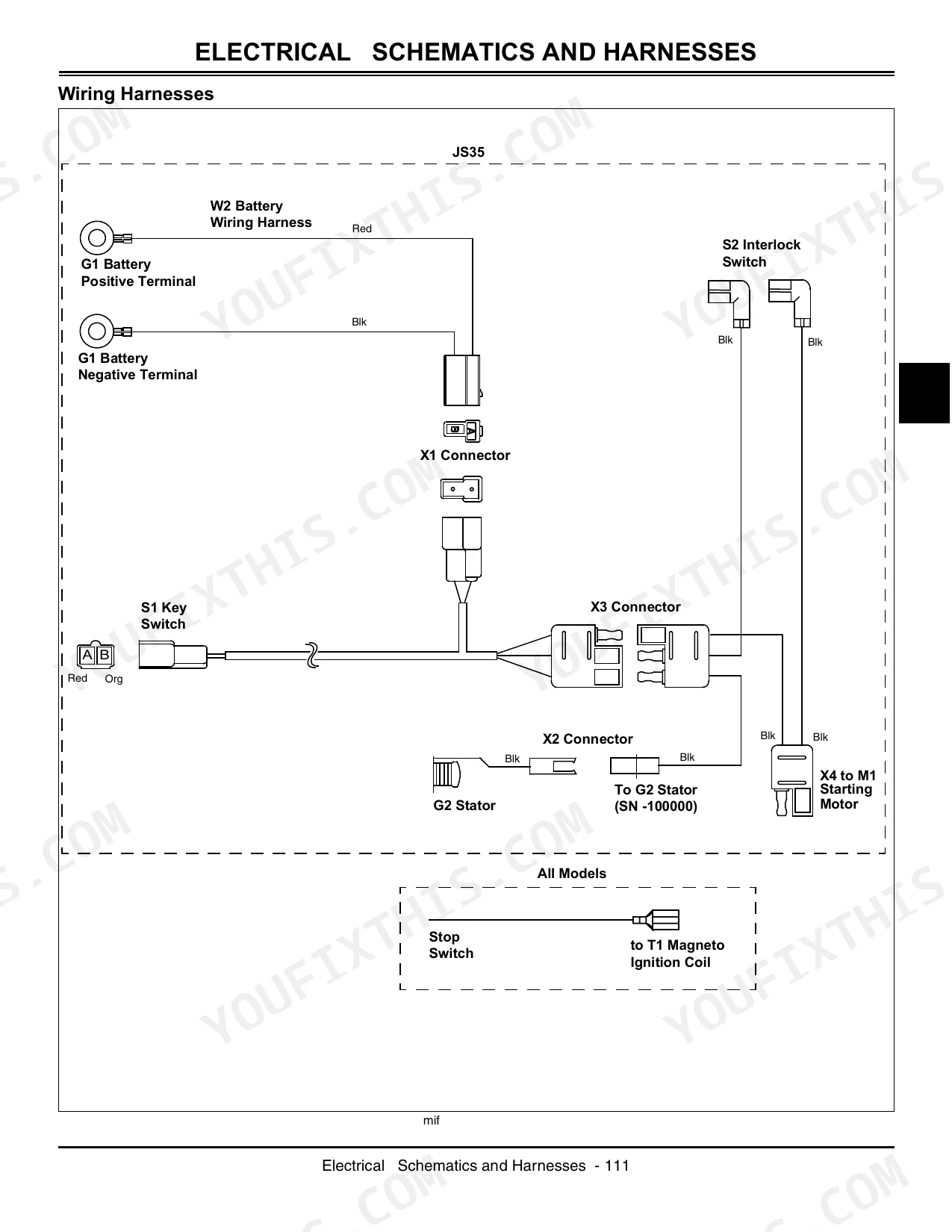

Test battery voltage and clean both cable ends to bright metal before condemning the starter. Trace the ignition and starter circuit against the wiring diagram on page 114, checking wire colors at each connector. Verify the stop switch is not grounding the ignition, then confirm spark plug gap matches spec for your engine.
Manual Section: Electrical p. 114Mower deck cracks near the spindle area or handle mounts after seasons of use
Remove the blade and inspect the deck shell around every stressed mount for cracks that start at a weld toe. Check blade balance, since an out of balance blade shakes a deck apart. Reinstall using the blade assembly procedure in the Miscellaneous section starting on page 143 and torque hardware to the values listed on page 11.
Manual Section: Miscellaneous p. 143Frequently Asked Questions
What are the torque specifications for the blade bolt on the John Deere JS35 mower?
The torque specification for the blade bolt on the JS35 mower is 48 - 61 N•m (35 - 45 lb-ft). p. 20
What is the engine oil capacity for the JS25 and JS35 models?
The engine oil capacity for the JS25 and JS35 models is 0.6 L (20 U.S. oz). p. 19
What is the intake valve clearance specification for the JS25 and JS35 engines?
The intake valve clearance for the JS25 and JS35 engines is 0.13 - 0.18 mm (0.005 - 0.007 in.). p. 20
What is the cylinder head cap screw torque for the JS45 engine?
The cylinder head cap screw torque for the JS45 engine is 24 N•m (212 lb-in.). p. 68
What is the spark plug gap for the JS45 engine?
The spark plug gap for the JS45 engine is 0.51 mm (0.020 in.). p. 67
What exactly do I receive with this John Deere JS25 Technical Manual?
All 158 pages arrive as one searchable PDF at checkout. Read it at the desk, then take the phone out to the machine.
Can I print a copy of this John Deere JS25 Technical Manual for the shop?
Printing is allowed without restriction. Pull the pages you need for the job and bin them when they get greasy.
