Part of the John Deere Repair Manuals.
Need the exact factory procedures for your L-Series mower? This 390-page John Deere L100 Technical Manual PDF (OEM #TM2026) breaks down the complete engine, powertrain, and mower deck assemblies for the L100, L110, L120, and L130 Lawn Tractors. You get complete wiring diagrams, detailed troubleshooting charts for hydrostatic drives, and exploded views of every major component. Open the electrical section to trace starting circuits, or jump into the heavy repair procedures covering both Briggs & Stratton and Kohler powerplants. Set your spark plug gap to exactly 0.76 mm and tighten the starting motor bolts to 16 N-m before you turn the key. Stop tearing down assemblies blindly and guessing at clearances. Download the file instantly, use the built-in bookmarks to jump straight to your repair, and get your mower back on the turf.
What's Inside This John Deere L100, L110, L120, L130 Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 1-10 | Introduction, Safety Precautions, Manual Organization |

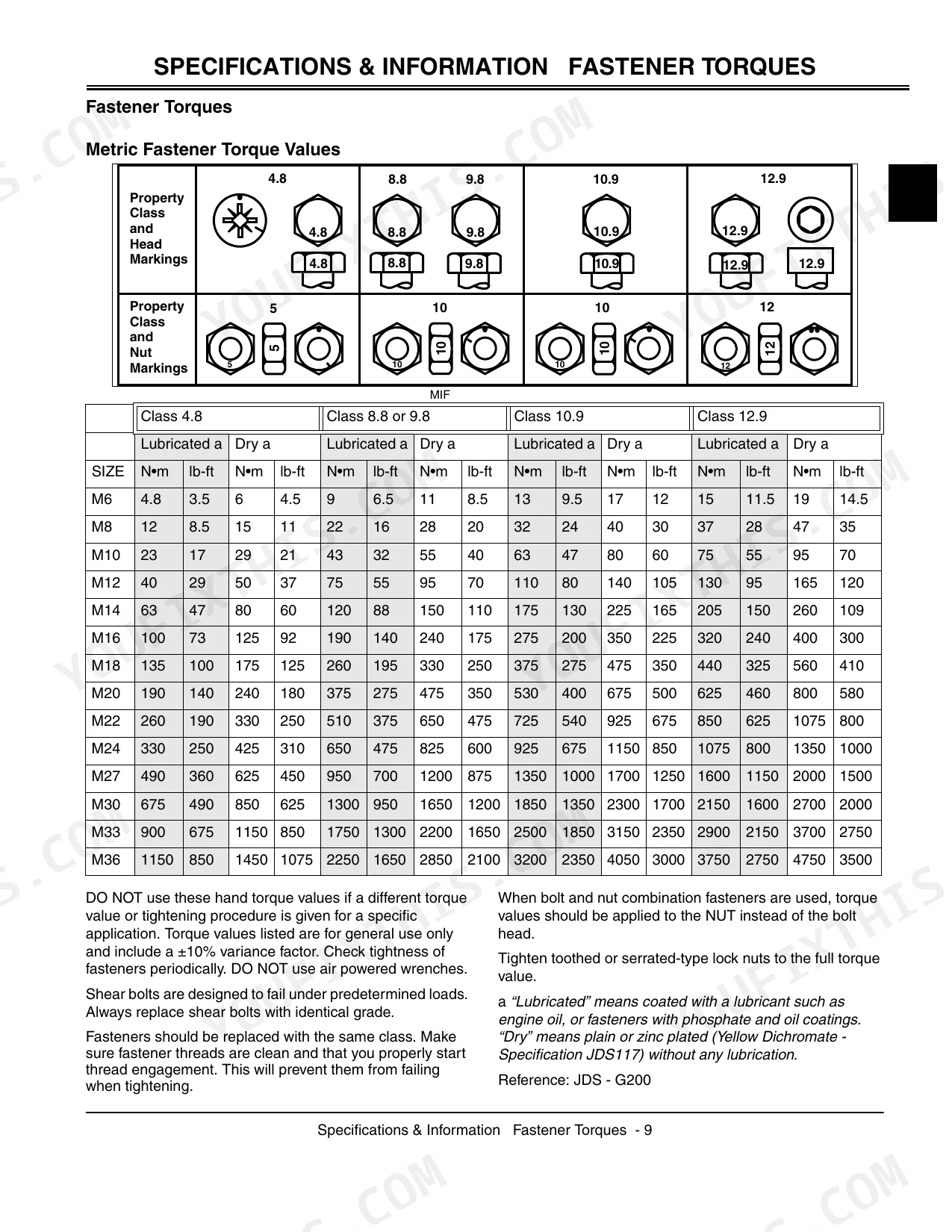

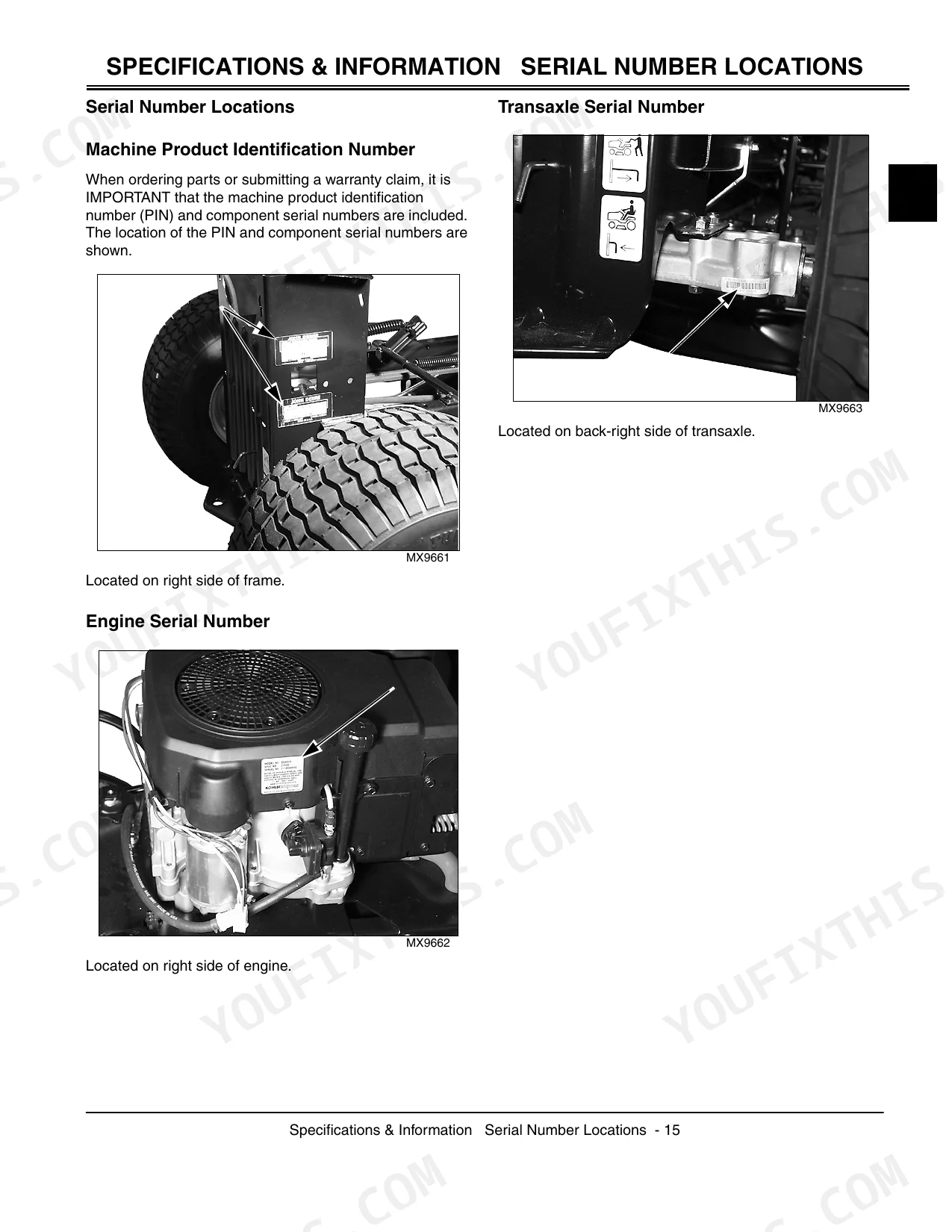

| Specifications and Information | 11-20 | Fastener Torque Values (Metric and Inch), Serial Number Locations, Product Identification |

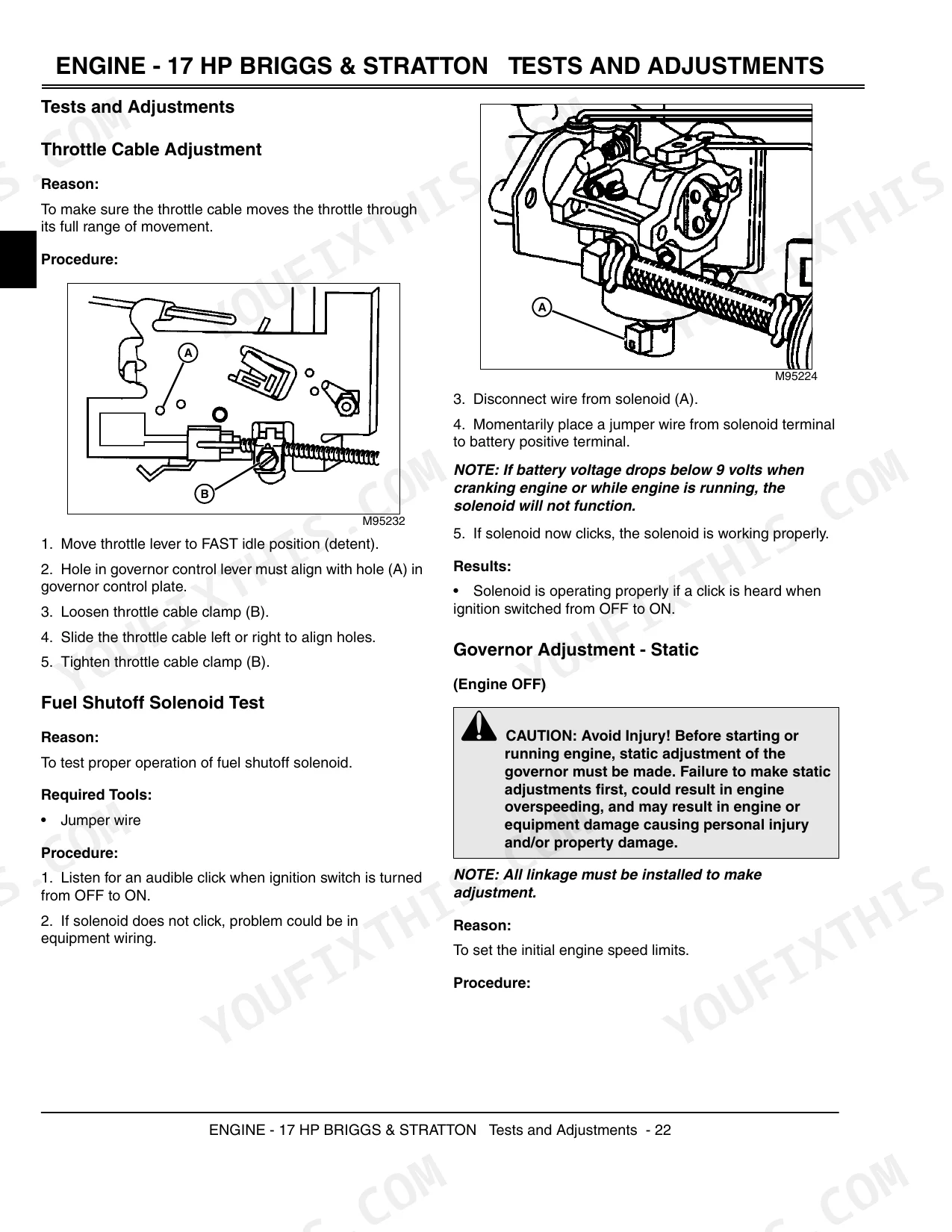

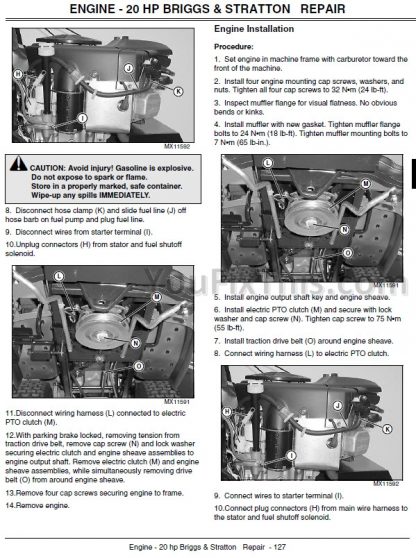

| Engine - 17 Hp Briggs & Stratton | 21-60 | Throttle Cable and Governor Adjustment, Slow Idle Carburetor Adjustment, Valve Clearance, Armature Air Gap, Cylinder Leakdown Test, Carburetor and Fuel Pump Repair, Starting Motor Disassembly and Pinion Gear Replacement |
| Engine - 17.5 Hp Kohler | 61-110 | Choke and Governor Adjustment, Fast and Slow Idle Speed, Automatic Compression Release Check, Cylinder Leakdown Test, Piston and Ring End-Gap Measurement, Crankshaft and Main Bearing Inspection, Balancer Shaft, Hydraulic Valve Lifters, Oil Pan and Seal |
| Engine - 20 Hp Briggs & Stratton (V-Twin) | 111-158 | Throttle and Choke Cable Adjustment, Fuel Shutoff Solenoid Test, Governor Static and Dynamic Adjustment, Compression and Cylinder Balance Tests, Ignition Armature Air Gap, Valve Clearance, Oil Pump and Breather Valve Service, Starting Motor Repair |
| Engine - 23 Hp Kohler (V-Twin) | 159-206 | Engine Will Not Start Diagnostics, Engine Operation Theory, Governor and Choke Adjustment, Fast Idle Speed, Camshaft Removal and End Play, Piston Ring End Gap and Side Clearance, Crankshaft Measurement, Flywheel and Stator, Valve Lapping |

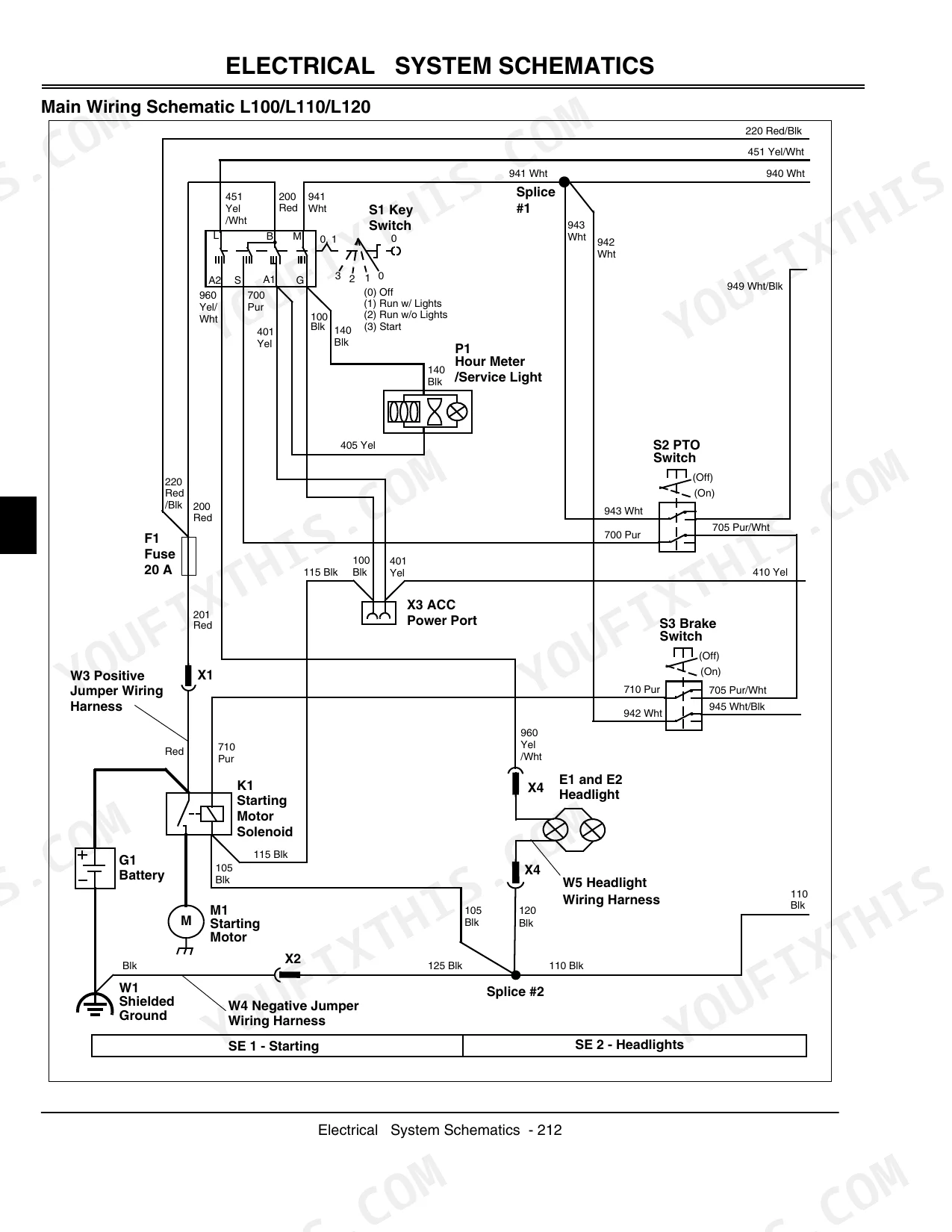

| Electrical | 207-284 | System Schematics and Wiring Harnesses, Component Location, Charging and Starting Circuit Diagnostics, Fuse and Relay Tests, Ignition and Safety Switch Tests |

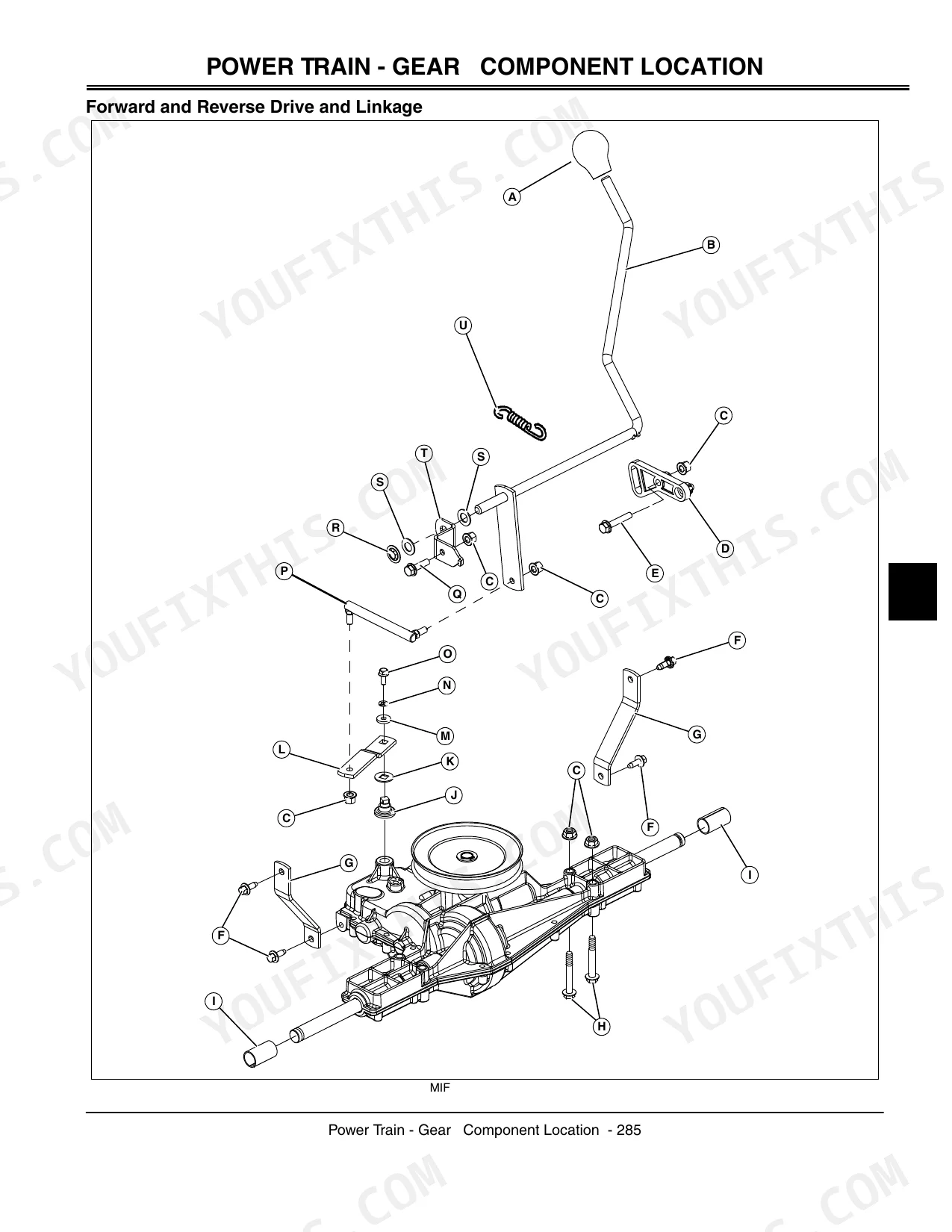

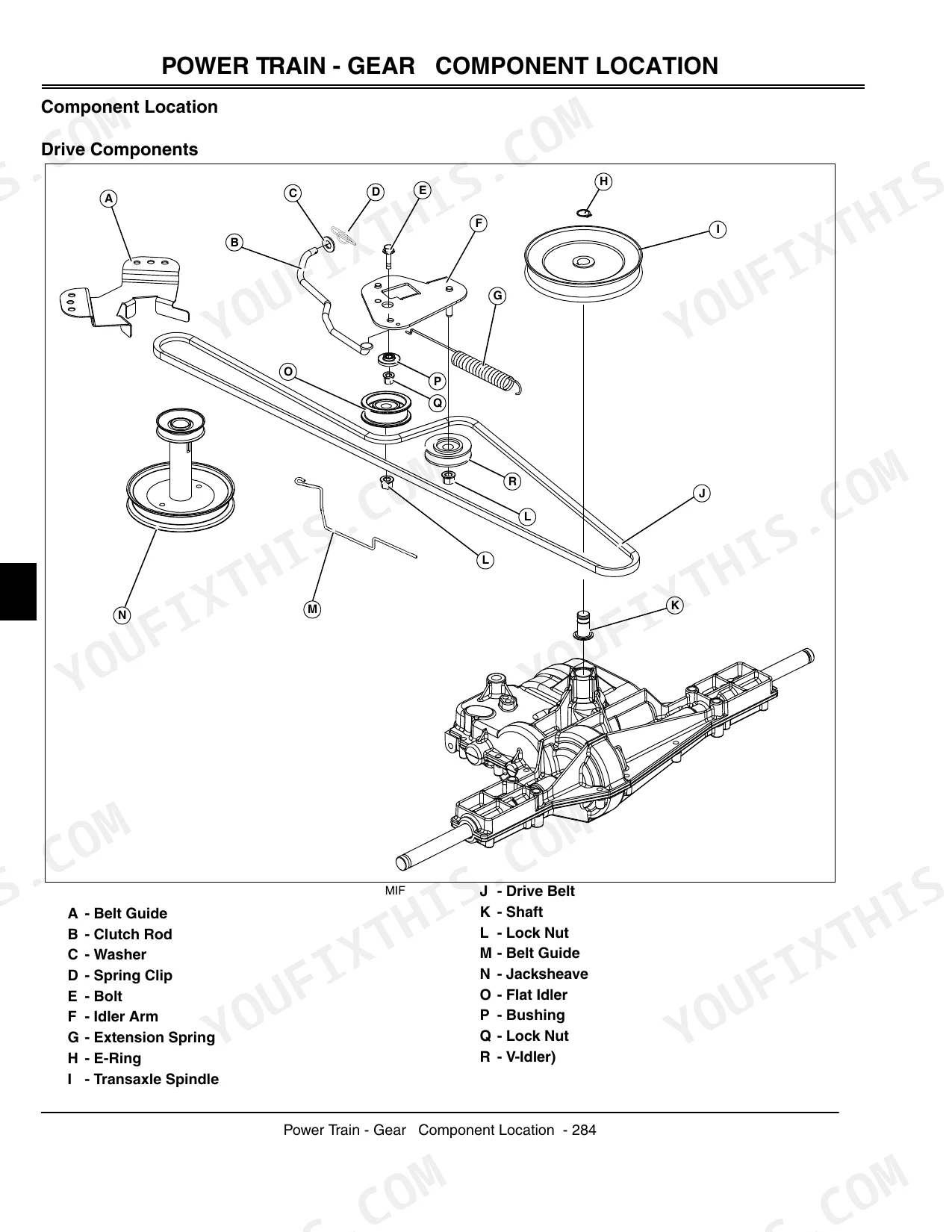

| Power Train - Gear | 285-304 | Drive Component Location, Clutch Pedal and Belt Traction Drive Operation, Transaxle and Brake System Operation, Gear Transmission Diagnostics, Shift Linkage Adjustment, Traction Drive Belt Replacement |
| Power Train - Hydrostatic | 305-322 | Transaxle and Drive Component Location, Traction Drive Belt System, Freewheel System, Forward/Reverse Pedal Linkage, Hydrostatic Transmission Diagnostics, Traction Drive System Test, Neutral Creep Adjustment |
| Steering | 323-332 | Steering Component Location, Steering Wheel and Shaft Removal, Steering Gear and Sector Plate Repair, Front Axle and Spindle Service, Toe-In Adjustment |
| Brakes | 333-348 | Brake Linkage Removal and Installation (Gear and Hydrostatic), Brake Pedal Assembly, Brake Adjustment and Testing |
| Attachments | 349-374 | 42-Inch and 48-Inch Mower Deck Component Location, Mower Decks Troubleshooting Chart, Mower Drive Checks, Blades Will Not Rotate, Drive Belt Slips, Vibration and Uneven Cutting, Checking and Adjusting Mower Level, Blade Brake Adjustment |
| Miscellaneous | 375-390 | Wheel and Tire Service, Seat and Hood Removal, Fuel Tank Service, Repair Specifications |
Every system also includes table of contents and specifications.
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Fuel Filter | Replaceable (In-Line Type) | p. 23 |
| Air Cleaner | Paper with outer foam element | p. 23 |
| Spark Plug Gap | 0.76 mm (0.030 in.) | p. 23 |
| Spark Plug Torque | 20 N•m (180 lb-in.) | p. 21 |
| Starting Motor Bolt Torque | 16 N•m (140 lb-in.) | p. 52 |
| Starting Motor Through-Bolt Torque | 6 N•m (50 lb-in.) | p. 53 |
| Hydrostatic Transaxle Type | Tuff Torq® K46V (7A6460) | p. 307 |
| Transaxle Mounting Cap Screw Torque | 40 N•m (30 lb-ft) | p. 307 |
| Mower Spindle Mounting Screw Torque | 27 N•m (20 lb-ft) | p. 351 |
| Mower Blade Cap Screw Torque | 62 N•m (46 lb-ft) | p. 351 |
| Mower Blade Cutting-Edge Wear Limit | 0.40 mm (0.016 in.) | p. 24 |
John Deere L100, L110, L120, L130 Common Problems This Manual Covers
John Deere L100 engine shuts off unexpectedly or loses power under load while mowing
Check the inline fuel filter referenced on page 23 and replace it if ethanol varnish has clogged the element. Verify spark plug gap against the 0.76 mm (0.030 in.) spec on page 23, then work through the service procedures starting page 26 to test the carburetor bowl for gum deposits. Drain stale fuel and refill with fresh gasoline before restarting.
Manual Section: Engine (B&S - Single Cylinder) Tests and Adjustments p. 26Transmission won't move forward or reverse, or slips badly under load on hills
Check the belt for glazing, fraying, or stretching per the troubleshooting table on page 293; replace it if it doesn't spring back after finger pressure. Inspect the pedal linkage and idler tension, and torque the transaxle mounting cap screws to 40 N•m (30 lb-ft) if recently serviced. Test in neutral for creep before condemning the transaxle.
Manual Section: Power Train - Gear Troubleshooting Table p. 293Blade does not engage when the PTO lever is pulled, mower deck stays dead
Check the wiring diagram to trace the PTO switch circuit and confirm continuity across the safety interlock. Test battery output against the 12 VDC spec on page 273 to rule out low voltage tripping the circuit. Replace the PTO switch or blown fuse if the electric clutch doesn't click when the lever engages.
Manual Section: ElectricalExcessive vibration during mowing that gets noticeably worse as blade speed increases
Check the mower deck troubleshooting chart on page 355 to isolate a bent blade from worn spindle bearings. Remove the blade and inspect for warping, then torque the blade cap screw to 62 N•m (46 lb-ft) on reinstall. Torque the spindle mounting screws to 27 N•m (20 lb-ft) and spin each spindle by hand to feel for bearing play.
Manual Section: Attachments Mower Decks Troubleshooting Chart p. 355Drive belt slips, squeals, or breaks after only a few mowing seasons
Check the belt condition per the spec on page 293: replace it if glazed, frayed, or stretched rather than reusing. Follow the mower drive belt tension adjustment procedure starting page 358 and verify the idler pulley spins freely without wobble. Clean grass buildup from the pulleys and confirm alignment before reinstalling the belt.
Manual Section: Attachments Tests and Adjustments p. 358Frequently Asked Questions
How to reset the hour meter on John Deere L100, L110, L120, L130?
The manual states that the service light, which is part of the hour meter, is fully automatic, nonadjustable, and has no override function. This indicates that the hour meter cannot be manually reset by the user. p. 270
What are the torque specifications for the blade bolts on John Deere L120?
The blade cap screws for both the 42-inch and 48-inch mower decks on the John Deere L120 should be tightened to a torque of 62 N•m (46 lb-ft). p. 351
Does the John Deere L130 have error codes or a diagnostic system?
The John Deere L130 manual outlines symptom-based diagnostic procedures for electrical and engine issues, such as 'Engine Will Not Start' or 'Engine Cranks But Will Not Start,' guiding technicians through checks like battery voltage, spark, and fuel flow. However, it does not mention specific error codes. p. 167
How to reset the PTO on John Deere L110 after it trips?
To reset the PTO on the John Deere L110 after it trips, particularly in the context of the Reverse Implement Option (RIO) system, the operator should place the machine back into neutral or forward. Releasing the S2 RIO switch will break the ground path, allowing the K RIO latch relay to reset the circuit, making the PTO ready for engagement again. p. 258
What is the torque specification for the engine flywheel on John Deere L100?
The torque specification for the engine flywheel nut on the John Deere L100, which uses a 17 HP Briggs & Stratton single-cylinder engine, is 136 N•m (100 lb-ft). p. 24
What format is this John Deere L100–L130 Series manual in?
Immediate download of the complete 390-page searchable Technical Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Are there any print restrictions on this John Deere L100–L130 Series manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
