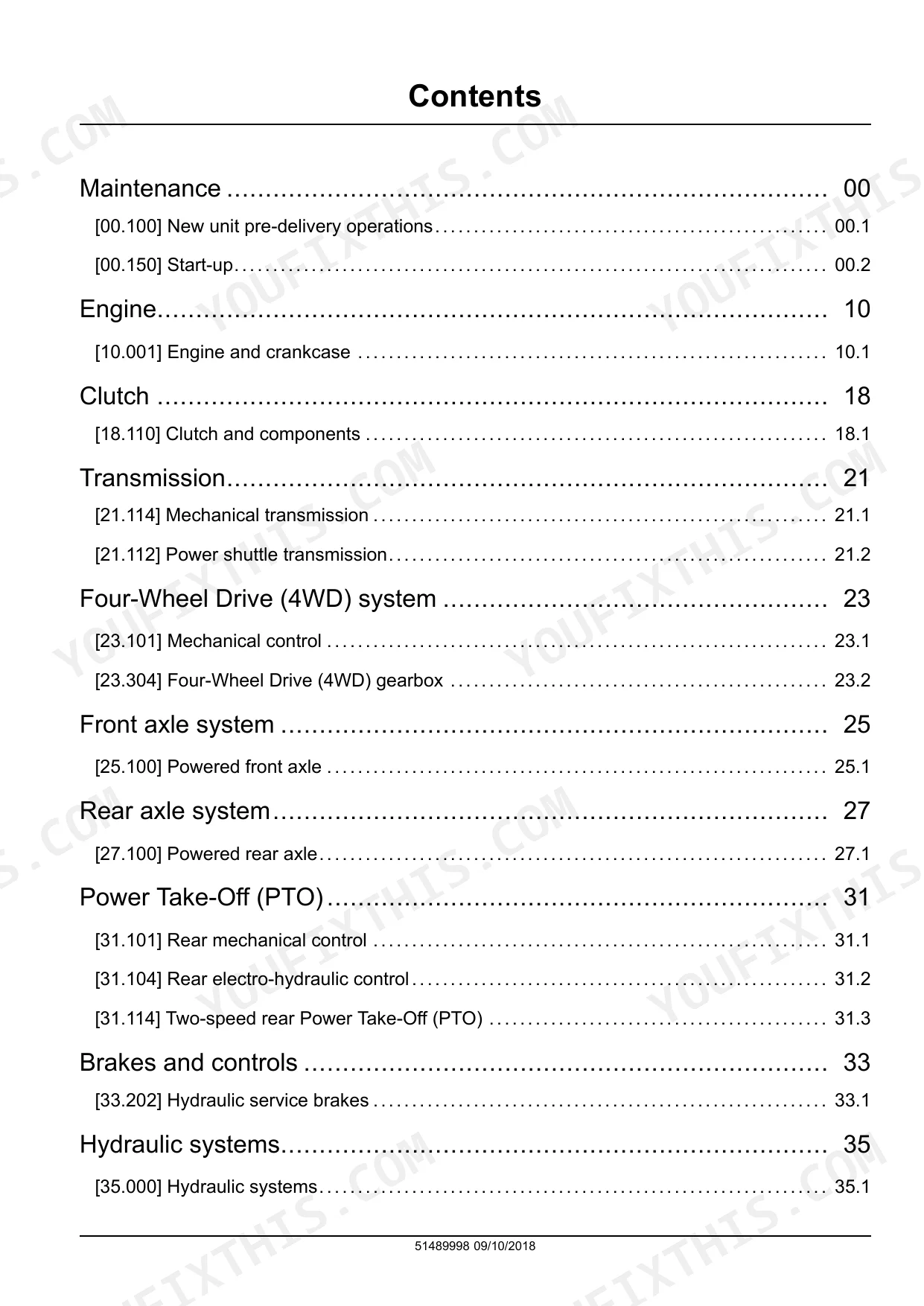

This is the factory service manual for the New Holland Workmaster 55, Workmaster 65 and Workmaster 75 utility tractors. It opens with a maintenance section that gives every fluid, its specification and its exact capacity, then works through the tractor system by system: engine, clutch, transmission, four-wheel drive, axles, PTO, brakes, hydraulics, steering, cab climate and electrical, closing with the front loader. About half the book is electrical, and most of that is harness drawings, connector diagrams and the fault-code tables with the guided test behind each code.
What's Inside This New Holland Workmaster 55, Workmaster 65, Workmaster 75 Manual
| System | Pages | Key Topics |
|---|---|---|
| Maintenance | 7-26 | Service Intervals, Fluid and Lubricant Specifications and Capacities, Filters, Greasing Points, Standard Tightening Torques |
| Engine | 27-54 | Engine and Crankcase, Belt and Fan Drive, Sump and Cylinder Block, Engine Mountings and Ancillaries, Engine Removal and Refit |
| Clutch | 55-92 | Clutch Assembly and Release Mechanism, Pedal Free Play, Clutch Removal and Overhaul |

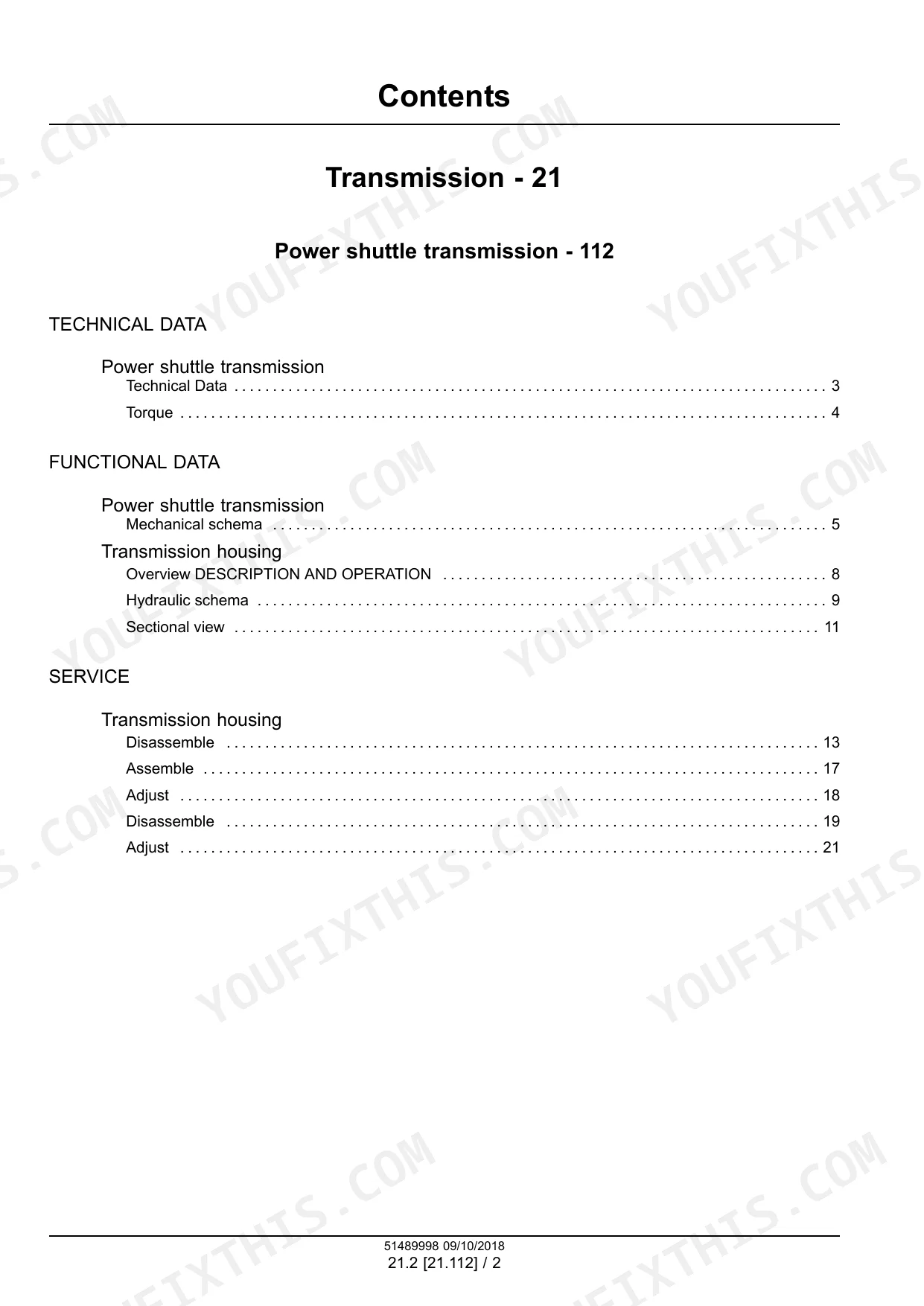

| Transmission | 93-166 | Mechanical and Powershuttle Transmissions, Shuttle Unit and Range Gears, Synchronisers and Shift Forks, Transmission Strip-Down and Reassembly |
| Four-Wheel Drive (4WD) System | 167-192 | 4WD Engagement Clutch and Control, Drive Shaft and Supports, 4WD Overhaul |
| Front Axle System | 193-242 | Driven Front Axle Casing, Bevel Drive and Differential, Hub Reducers, Steering Knuckles, Axle Rebuild |
| Rear Axle System | 243-270 | Rear Bevel Gear Pair and Differential, Differential Lock, Final Drives, Bearing Preload and Backlash |

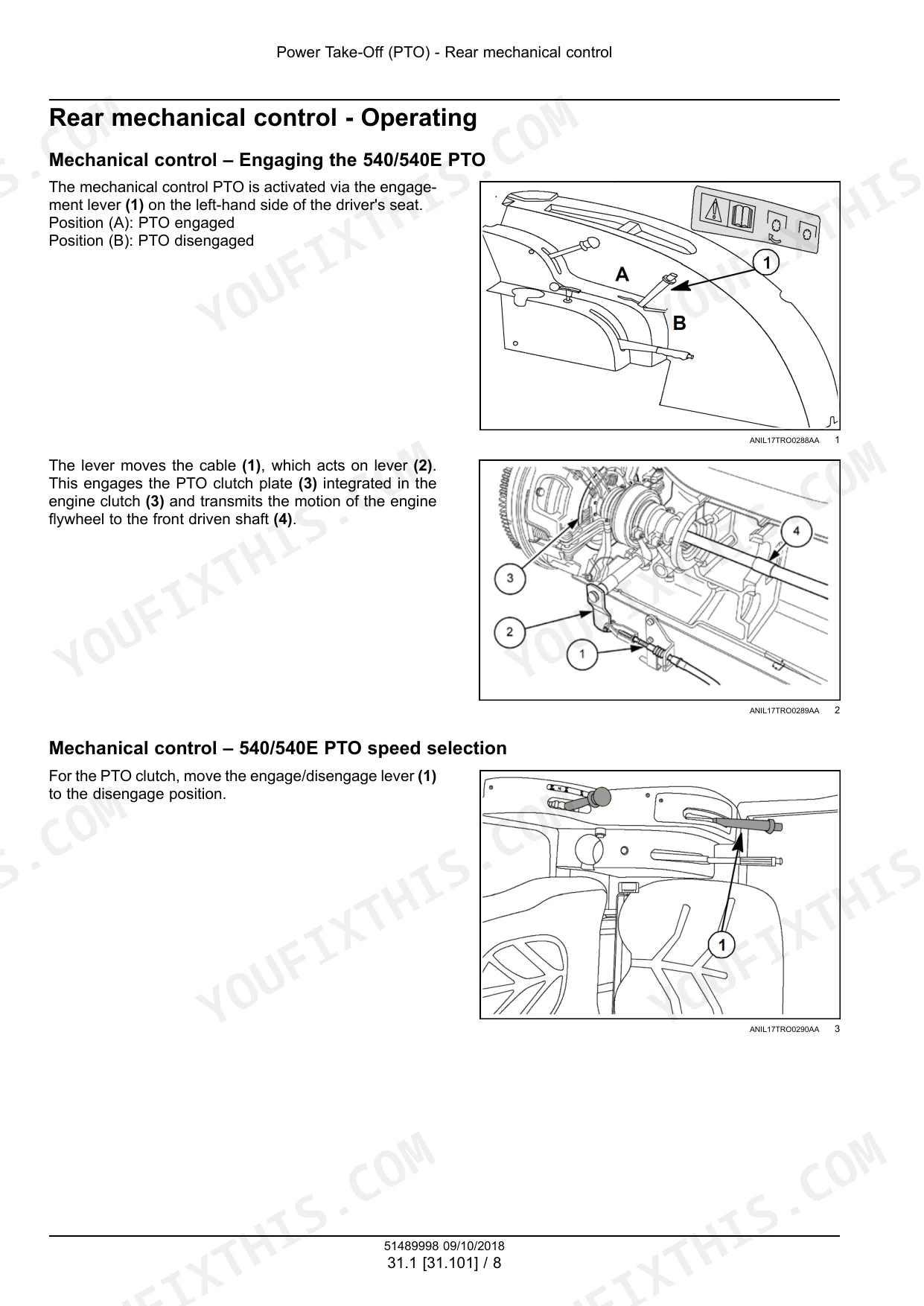

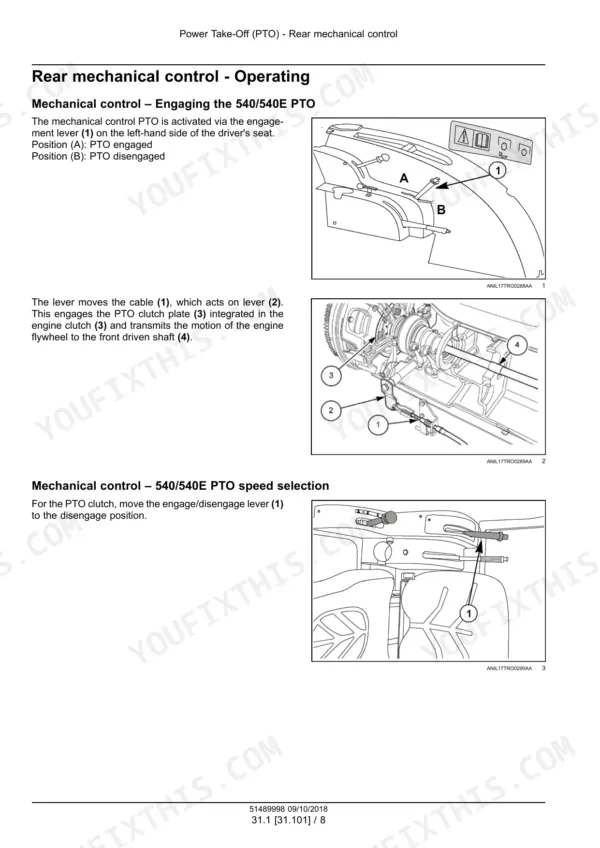

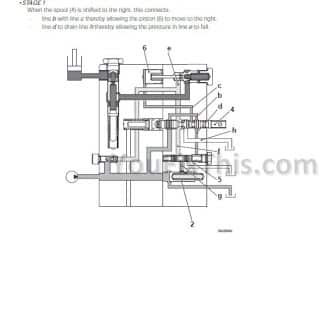

| Power Take-Off (PTO) | 271-316 | PTO Clutch and Brake, Speed Selection and Output Shaft Change, PTO Control Linkage, PTO Overhaul |
| Brakes and Controls | 317-338 | Service Brakes and the Braking Unit, Parking Brake, Pedal Adjustment, Bleeding the Brake Circuit |
| Hydraulic Systems | 339-408 | Hydraulic Pump and Suction Circuit, Electro-Hydraulic Lifter and Its Control Piston, Distributor Operation, Lift Arm Raise and Lower Logic, Filter and Suction Fault Finding, Pump Overhaul |

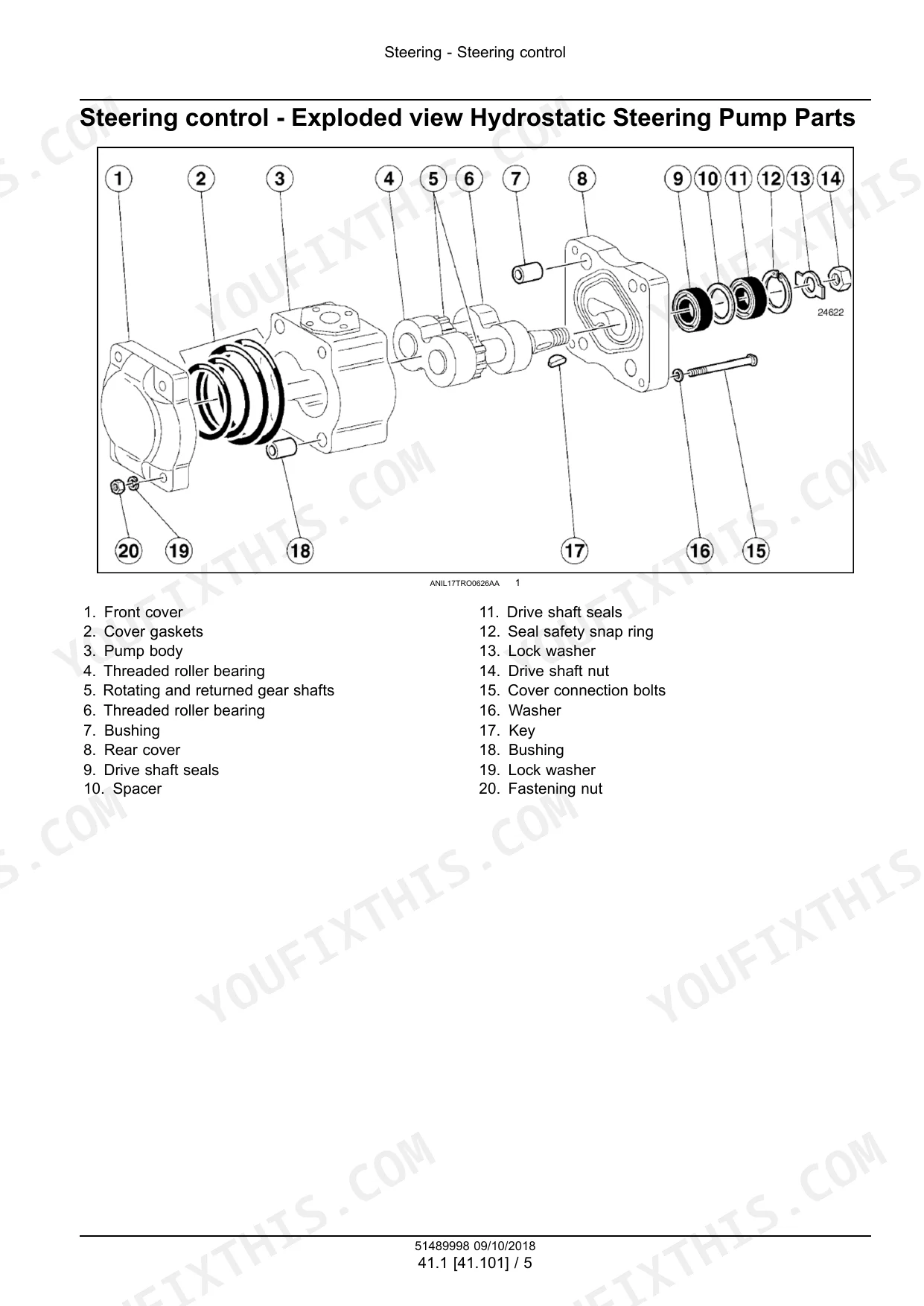

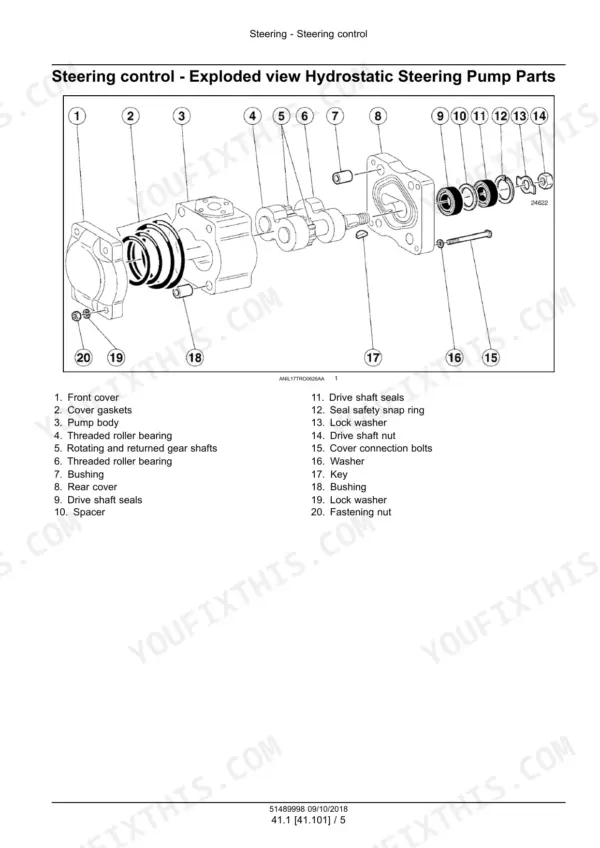

| Steering | 409-464 | Hydrostatic Steering Unit and Circuit, Steering Control Valve and Cylinder, Steering Column, Fault Finding |
| Cab Climate Control | 465-524 | Heating, Ventilation and Air Conditioning, Compressor and Condenser, Refrigerant Charge and Handling, Leak Testing |
| Electrical Systems: Harnesses and Connectors | 525-777 | Complete Wire Harness Drawings, Connector Component Diagrams, Fuse and Relay Layouts, Pin-Out Tables |
| Electrical Systems: Starting, Charging and Cab Controls | 778-866 | Engine Starting System, Alternator and Charging Circuit, Battery, Cab Controls and Instrument Circuits |
| Electrical Systems: Fault Codes and Diagnostics | 867-1160 | Fault-Code Tables with Their Conditions, Guided Diagnostic Test Procedures, Circuit-Level Troubleshooting |
| Front Loader and Bucket | 1161-1222 | Loader Arms, Lift and Bucket Cylinders, Loader Valve and Controls, Bucket and Attachment Mounting |
| Platform, Cab, Bodywork and Decals | 1223-1241 | Cab and Platform Assembly, Bodywork Panels, Hood and Grille, Glazing, Decals, Component Removal |
| Schemas and Special Tool Index | 1242-1245 | Index of the Schematics and the Part Numbers of the Special Service Tools Each Procedure Calls for |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All models | ||
| Fuel tank capacity | 82 L | |
| Crankcase oil capacity | 7.9 L unfiltered, 8.6 L filtered; AMBRA UNITEK 10W-40 or UNITEK SSL 0W-40 | |
| Mechanical transmission capacity | 30 L, hydraulic transmission oil or AMBRA MASTERTRAN ULTRACTION | |
| Powershuttle transmission capacity | 35 L, hydraulic transmission oil or AMBRA MASTERTRAN ULTRACTION | |
| Front axle capacity | 6 L casing, 1 L per reducer; AMBRA MULTI G | |
| Braking unit capacity | 0.7 L, AMBRA BRAKE LHM | |
| Air conditioning refrigerant charge | 1.5 kg | |
| Windshield washer container | 2 L | |
| Workmaster series | ||
| Engine cooling system capacity | 9 L, AMBRA AGRIFLU mixed 50% with distilled water | |
New Holland Workmaster 55, Workmaster 65, Workmaster 75 Common Problems This Manual Covers
The three-point lift will not raise, raises slowly, or drifts down under load.
Check the easy causes the manual lists before you strip anything: a blocked pump inlet filter and air drawn into the pump suction hose both produce exactly these symptoms. Clean or replace the filter and check the suction hose and its bearings first. If the supply is sound, the hydraulic section walks through the electro-hydraulic lifter, the control piston and the distributor, showing how oil is routed to raise and to lower the arms so you can tell a distributor fault from a tired pump.
Manual Section: Hydraulic SystemsA warning lamp or a stored fault code with no obvious mechanical cause.
Read the code and go to the fault-code tables, which give the conditions that set each code and a guided diagnostic that names what to measure and where. When the test points at a circuit, move to the harness drawings and the connector component diagrams and back-probe the pin they specify. Check the battery and charging circuit first if several unrelated codes appear together, since low system voltage sets codes across the machine.
Manual Section: Electrical Systems: Fault Codes and DiagnosticsRefilling a transmission or an axle and not knowing the right oil or quantity.
Work from the maintenance section rather than a generic chart. It names both the specification and the exact capacity: 30 L for the mechanical transmission and 35 L for the Powershuttle, 6 L in the front axle casing with 1 L in each reducer, 0.7 L of AMBRA BRAKE LHM in the braking unit, and 7.9 L of crankcase oil unfiltered or 8.6 L with a new filter. It also lists the service intervals and every greasing point.
Manual Section: MaintenanceFrequently Asked Questions
Which tractors does this manual cover?
The Workmaster 55, Workmaster 65 and Workmaster 75. They share the chassis, the axles, the hydraulics and the electrical architecture, so nearly every procedure applies across the three. Where a build differs, such as the mechanical transmission against the Powershuttle, the manual gives the separate procedure and the separate fluid capacity.
What are the fluid capacities?
The fuel tank holds 82 L and the cooling system 9 L of AMBRA AGRIFLU mixed half and half with distilled water. Crankcase oil is 7.9 L unfiltered or 8.6 L filtered. The mechanical transmission takes 30 L and the Powershuttle 35 L. The front axle casing takes 6 L with 1 L in each reducer, the braking unit 0.7 L, and the air conditioning system carries a 1.5 kg refrigerant charge.
Does it include the wiring and the fault codes?
Yes, and it is about half the book. The harness drawings, connector component diagrams and fuse and relay layouts run from page 525 to page 777, the starting, charging and cab-control circuits from page 778 to page 866, and the fault-code tables with their guided diagnostic procedures from page 867 to page 1160.
Is the front loader covered?
It is, in its own section at pages 1161 to 1222, covering the loader arms, the lift and bucket cylinders, the loader valve and controls, and the bucket and attachment mounting. That is separate from the tractor hydraulic section, which covers the pump, the electro-hydraulic lifter and the three-point linkage.
How big is the manual and can I search it?
It is 1245 pages in English, a searchable and printable PDF. Search the text, print the pages you need for the bench, and keep the rest on a laptop in the workshop.
What do I get after purchasing this New Holland Workmaster 55, Workmaster 65?
Immediate download of the complete 1245-page searchable Service Manual (139 MB). Access it on any device, from a laptop at your desk to a phone in the field.
Is this New Holland Workmaster 55, Workmaster 65, Workmaster 75 manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
