This 189-page Takeuchi TB015 parts manual PDF (OEM #PC3-101Z6) is the factory parts catalog for the mini excavator, with exploded views and part numbers for every assembly on the machine. Numbered exploded diagrams run across the undercarriage, turntable and control levers, engine and electrical system, hydraulic piping and tank, covers and cab, hoe attachment, and the full hydraulic device group: swivel joint, control valves, pilot valve, solenoid valves. A numerical index cross-references every part number, so one glance at a diagram tells you exactly which pin, seal, or track roller to order. Factory detail runs down to shim level: boom swing shims in 0.2, 0.5, 1.0 and 1.6 mm, engine foot shims in 1.6 and 2.3 mm. No more ordering the wrong bushing twice. Bookmarked and keyword-searchable; find the part, grab the number, place the order.
What's Inside This Takeuchi TB015 Parts Manual
| System | Pages | Key Topics |
|---|---|---|

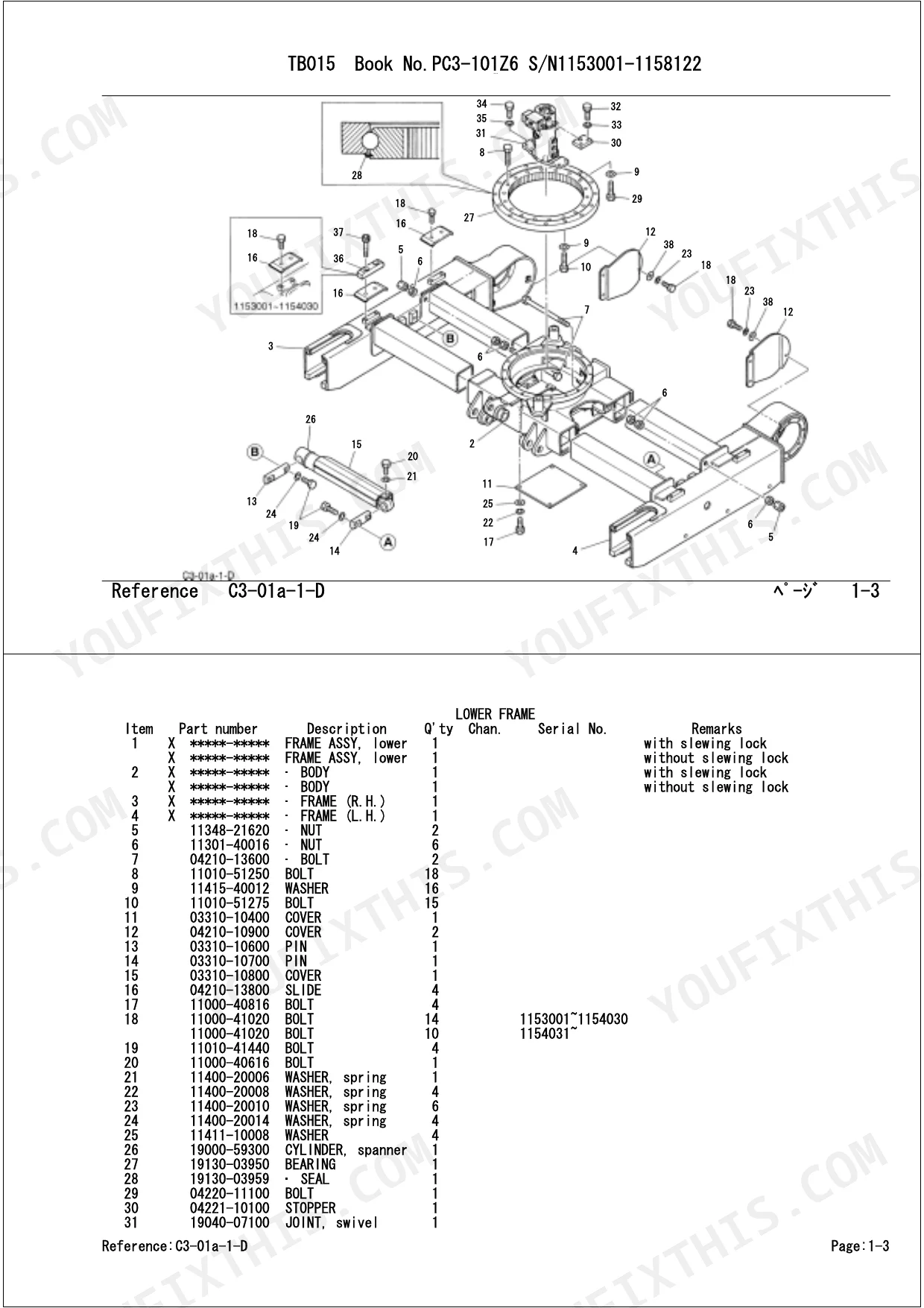

| Undercarriage | 12-20 | Lower Frame, Crawler Belt, Track Roller, Front Idler, Track Adjuster, Travel Device, Dozer Blade, Piping: Lower |

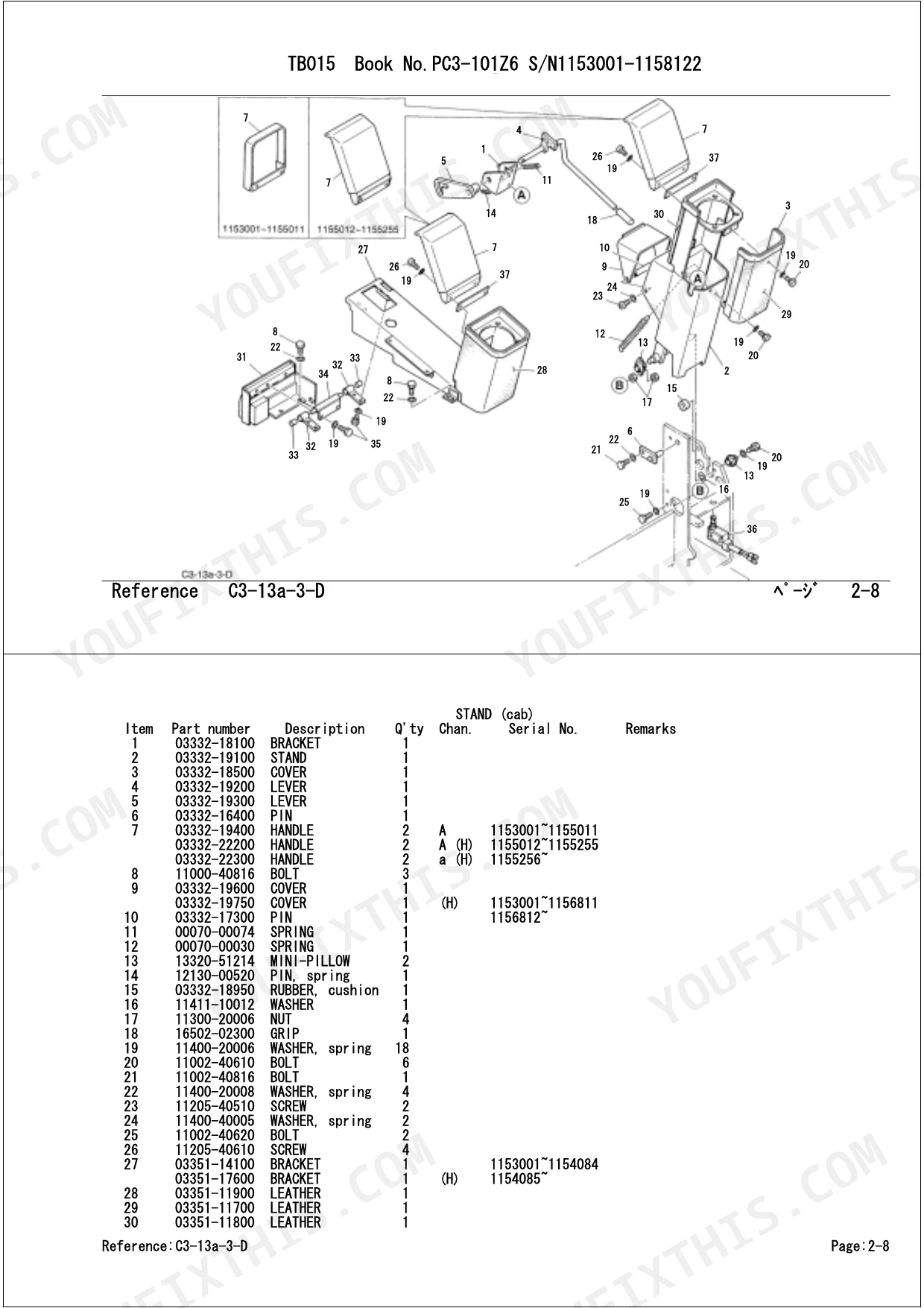

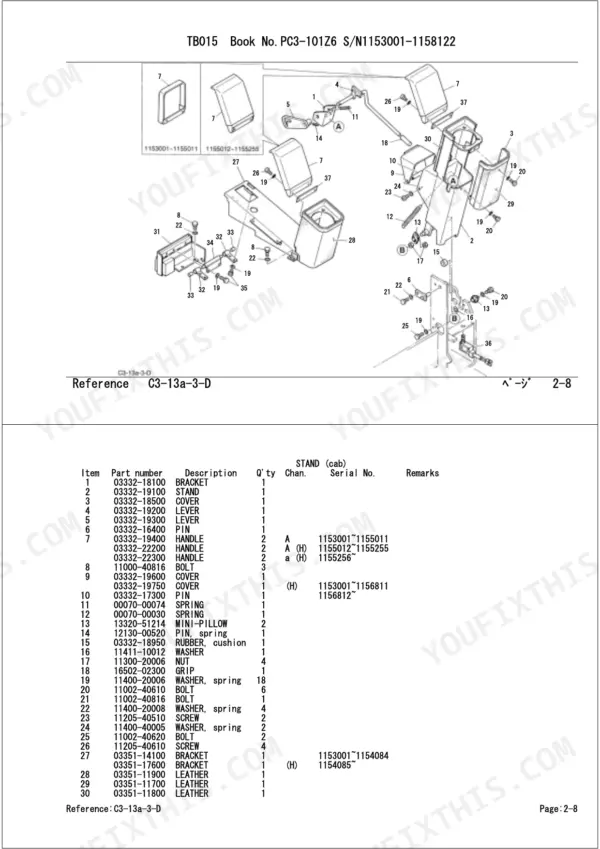

| Turntable & Control Lever | 21-39 | Slewing Device, Turntable, Boom Swing, Travel Lever, Stand (Cab), Stand(Canopy), Operation Lever, Piping: Operation Lever |
| Engine & Electrical System | 40-56 | Engine & Accessories, Control Box, Engine Control, Electrical, Electrical 1 for Australia, Electrical 3(Cab) |
| Hydraulic Piping & Tank | 57-70 | Grease Piping, Valve & Accessories, Piping: Upper, Pump Drive, Hydraulic Tank |
| Cover & Cab | 71-92 | Cover, Seat (Japan), Seat, Cab |

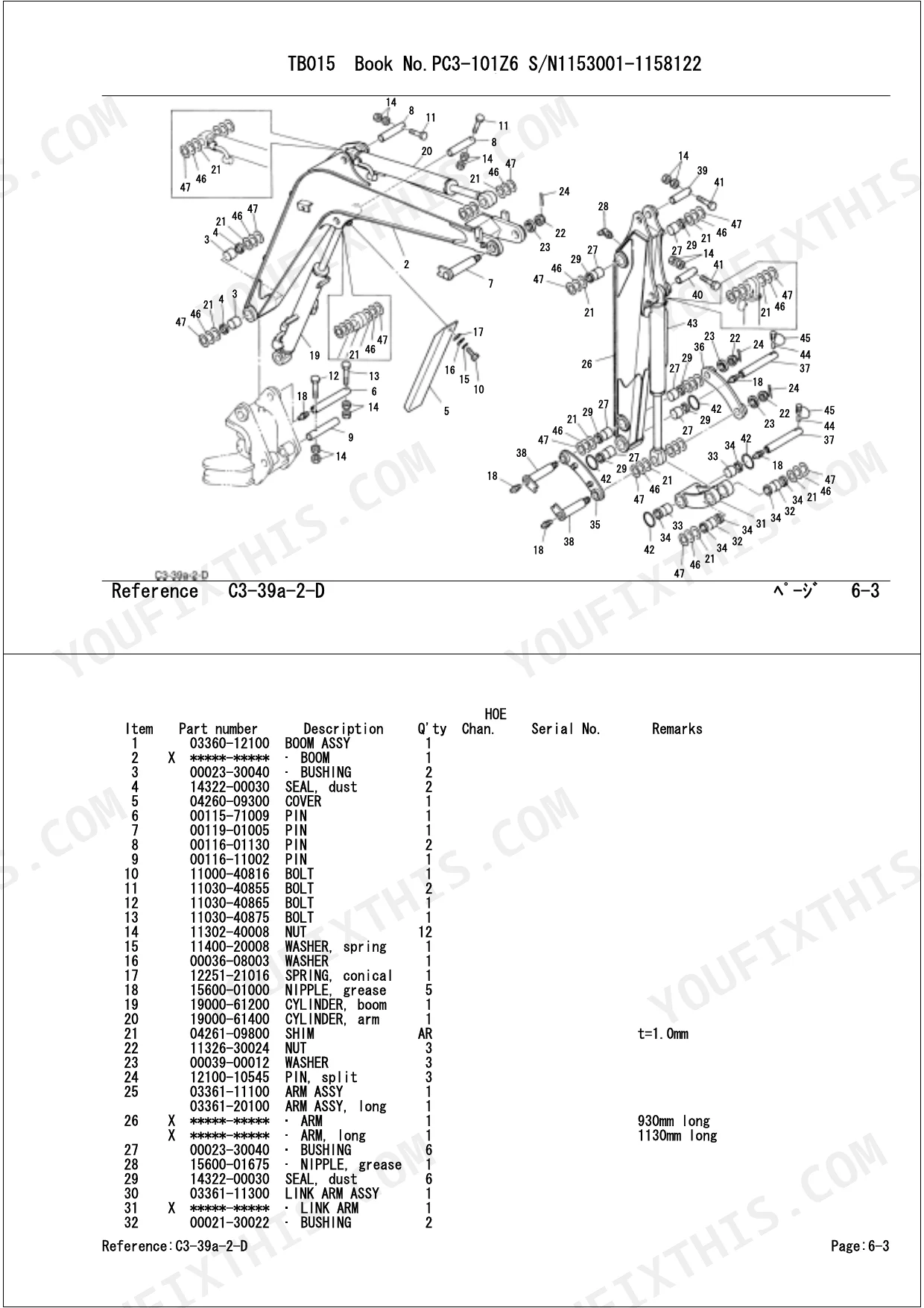

| Hoe Attachment | 93-102 | Hoe, Telescopic Arm, Bucket (Japan), Bucket, Bucket for U.S.A., Piping: Hoe, Piping: Hoe 2(Aux. Line), Piping: Hoe 3(Telescopic) |
| Decal & Tool | 103-132 | Decal (Japan), Decal English(Canopy), Decal German(Canopy) |
| Hydraulic Device | 133-170 | Swivel Joint, Control Valve, Pilot Valve, Sub Valve, Solenoid Valve, Stop Valve |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Boom swing shim thickness (selective) | 0.2mm / 0.5mm / 1.0mm / 1.6mm | p. 23 |
| Boom swing pivot washer thickness | 4.5mm / 5.0mm / 5.5mm | p. 23 |
| Engine foot shim thickness (selective) | 1.6mm / 2.3mm | p. 40 |
Takeuchi TB015 Common Problems This Manual Covers
Takeuchi TB015 boom swing bracket has excessive play, can't identify which shim part numbers to order
Check the boom swing exploded view on page 23. Shims are listed in four thicknesses: 0.2mm, 0.5mm, 1.0mm, and 1.6mm, each under its own part number. Measure the gap at the swing bracket pivot, order a stack of thicknesses to fill it, and verify each part number against your serial number range.
Manual Section: Boom Swing p. 23Engine mount vibration repair needs foot shims, unsure which thickness part numbers fit

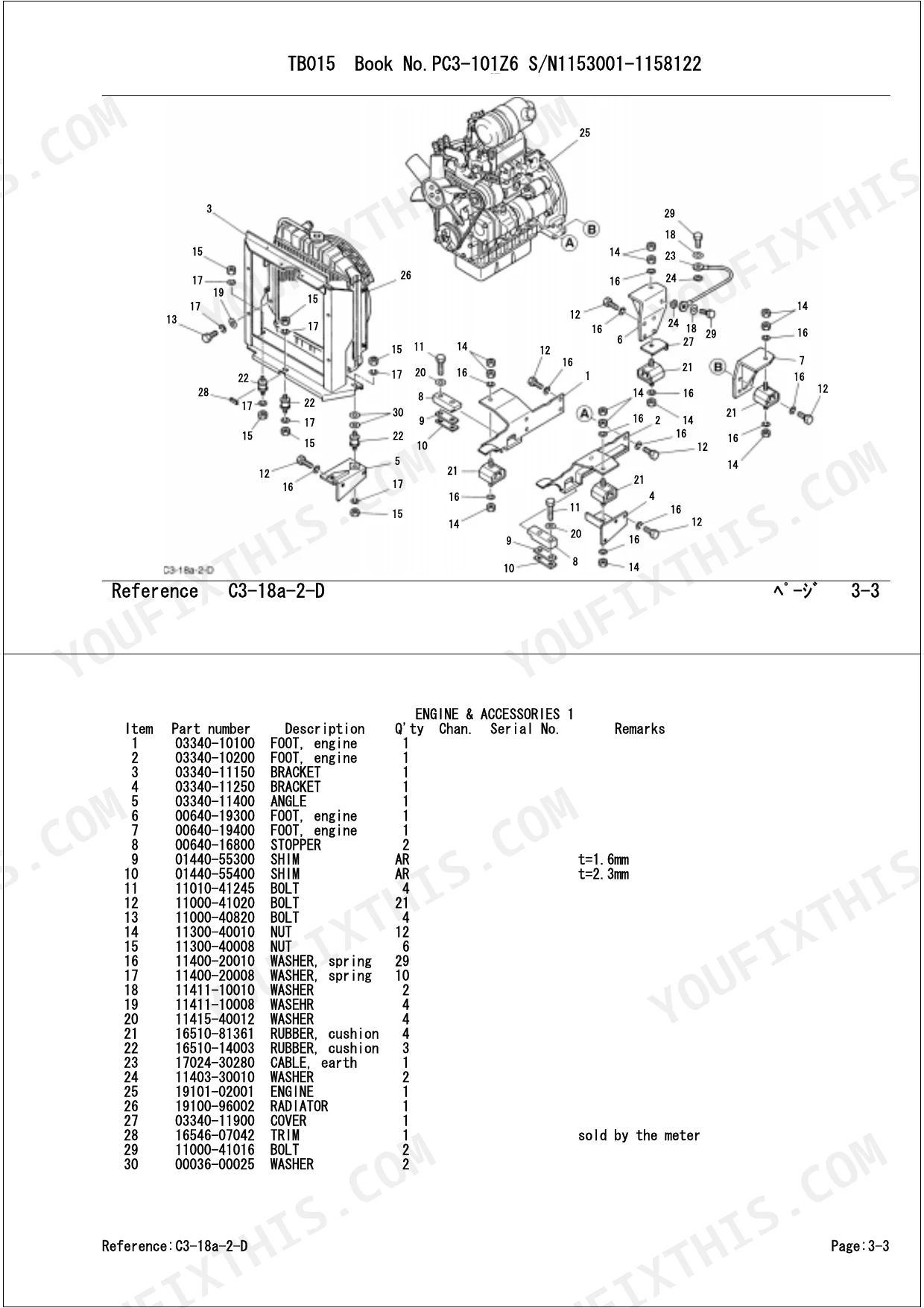

Check the engine parts diagram on page 40. Engine foot shims come in 1.6mm and 2.3mm thicknesses, each with a separate part number. Measure the gap under each engine foot and count the shims you pulled out so you reorder the full stack. Confirm both part numbers against your serial number range before ordering.
Manual Section: Engine & Electrical System p. 40Hydraulic return filter and suction strainer look similar, need correct part numbers for each
Check the hydraulic tank parts list in the Hydraulic Piping & Tank section starting on page 57. The suction strainer sits inside the tank on the pump line; the return filter mounts through the tank cover. Match each callout number in the exploded view to the parts list, then verify both part numbers against your serial number range.
Manual Section: Hydraulic Tank p. 57Track roller leaking grease, can't tell which oil seal and bearing part numbers match
Check the Track Roller exploded view in the parts list. Each roller breaks down into the shell, shaft, bearings, and oil seals, all with separate callout numbers. Pull the leaking roller, note whether your machine runs steel or rubber crawler belt hardware, and cross-reference every part number against your serial number range before ordering.
Manual Section: Track RollerFrequently Asked Questions
What is the replacement specification for the hydraulic tank filter cartridge?
The hydraulic tank uses a filter cartridge with part number 15510-00320. This component is located within the hydraulic tank assembly as shown on page 65. p. 65
What is the part number for the rubber crawler belt used on the TB015?

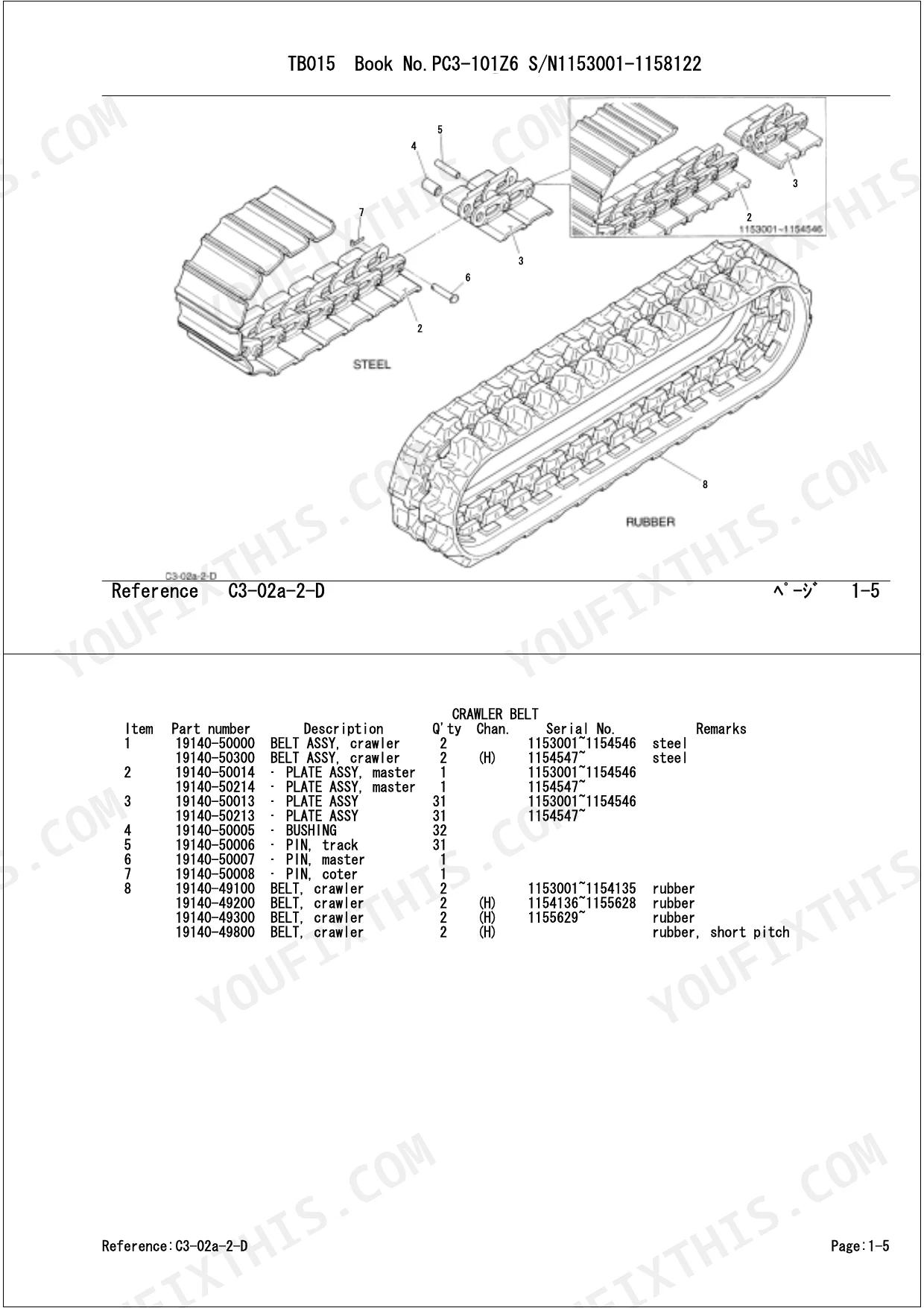

The rubber crawler belt for the TB015 has part number 19140-49100, which is applicable for serial numbers 1153001 to 1154135. Other variations exist for different serial ranges and machine types, as detailed on page 14. p. 14
What is the part number for the travel motor assembly with a parking brake?
The travel motor assembly (L.H.) with a parking brake is part number 19031-14400. This part is listed in the travel device section on page 18. p. 18
What is the thickness of the boom swing shim?
The boom swing shim is available in several thicknesses, including 0.2mm, 0.5mm, 1.0mm, and 1.6mm. These shims are identified by part numbers 00036-00044 through 00036-00067, as shown on page 23. p. 23
What is the part number for the bucket tooth used on the 500mm wide bucket?
The bucket tooth for the 500mm wide bucket is part number 01362-09900. This is listed in the bucket section on page 97. p. 97
What format is this Takeuchi TB015 manual in?
A 189-page Parts Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Are there any print restrictions on this Takeuchi TB015 manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
