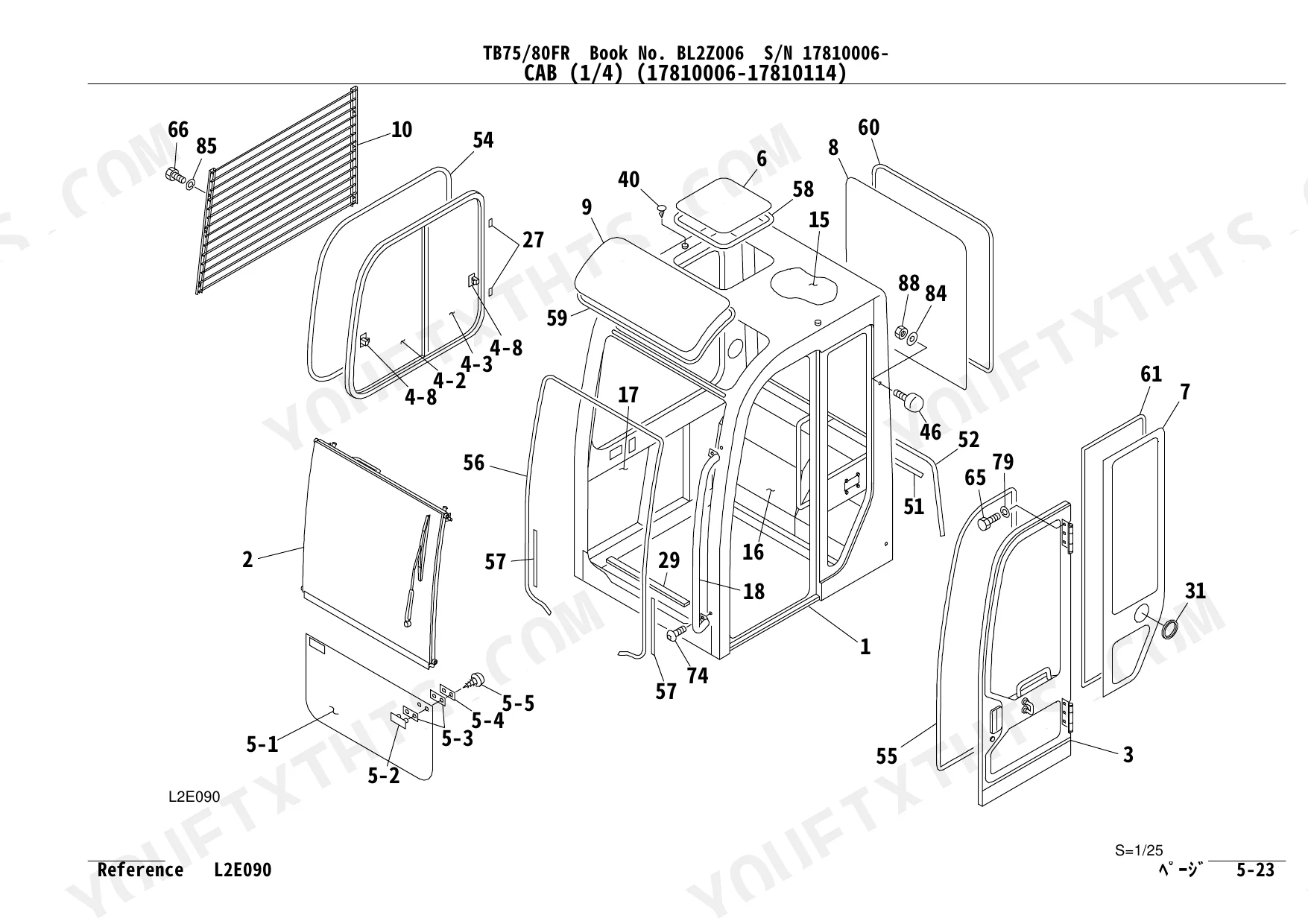

Tracking down the right part number for a mid-size Takeuchi shouldn't take three phone calls. This 626-page Takeuchi TB75FR, TB80FR parts catalog PDF (OEM #BL2Z006) covers every assembly on both hydraulic excavator models, from lower frame to bucket pin. You get exploded views with numbered callouts for the undercarriage, slewing device, boom offset, engine and electrical system, hydraulic piping, cab, and hoe attachment, each keyed to factory part numbers and quantities per machine. Need a seal kit for the offset cylinder or a solenoid valve for the control block? Match the diagram, read the number, order once. The full hydraulic device section breaks out every cylinder, the travel and slew motors, and both pumps down to individual O-rings. Stop ordering parts twice because a dealer guessed wrong. Bookmarked by section and keyword-searchable; find the part on your phone and call it in from the machine.
Complete the set for your TB75FR, TB80FR
- Repair Manual: Takeuchi TB80FR Compact Excavator Workshop Manual (incl. Wiring)
- Repair Manual: Takeuchi TB80FR Compact Excavator Repair Manual
What's Inside This Parts Manual
| System | Pages | Key Topics |
|---|---|---|

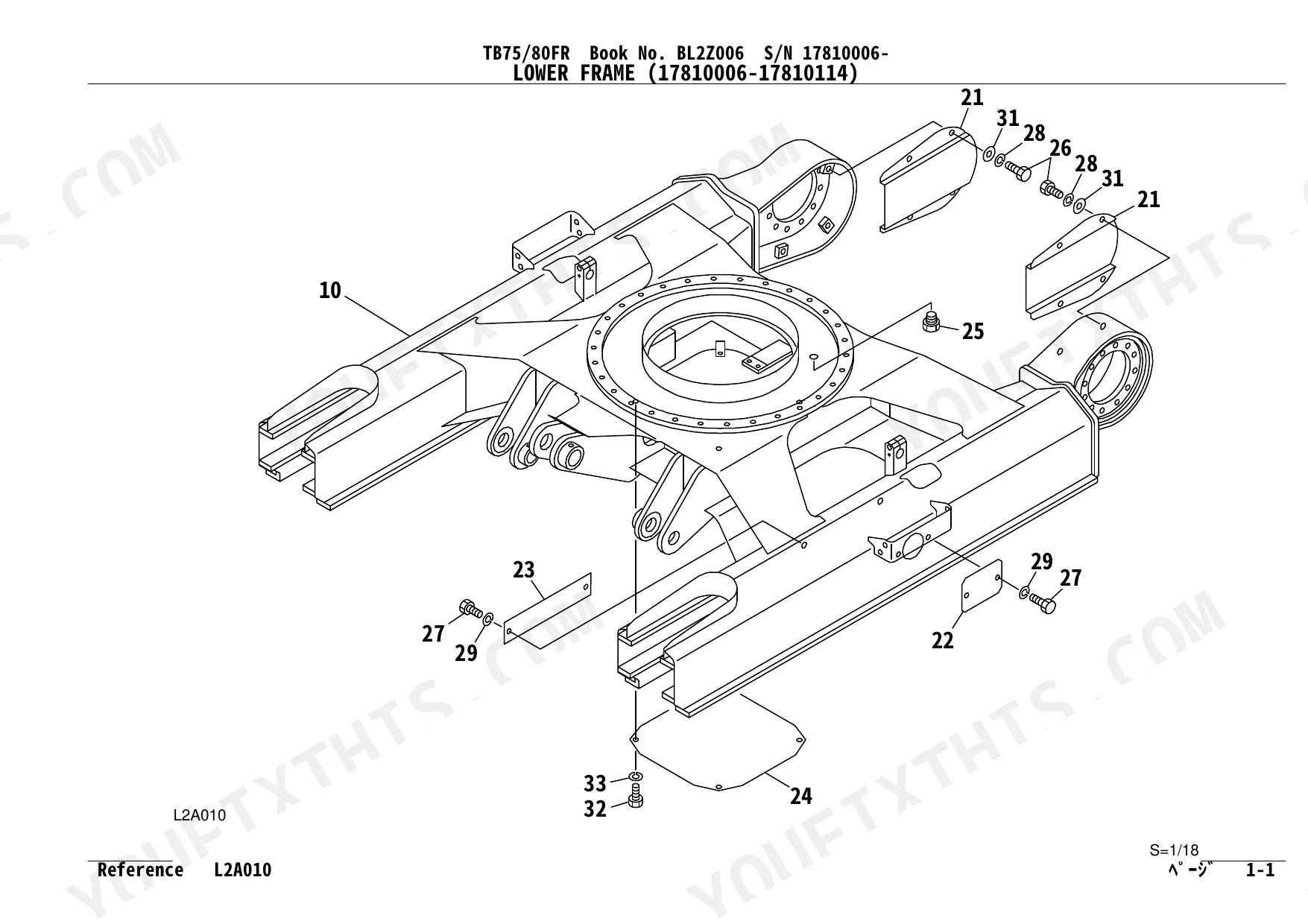

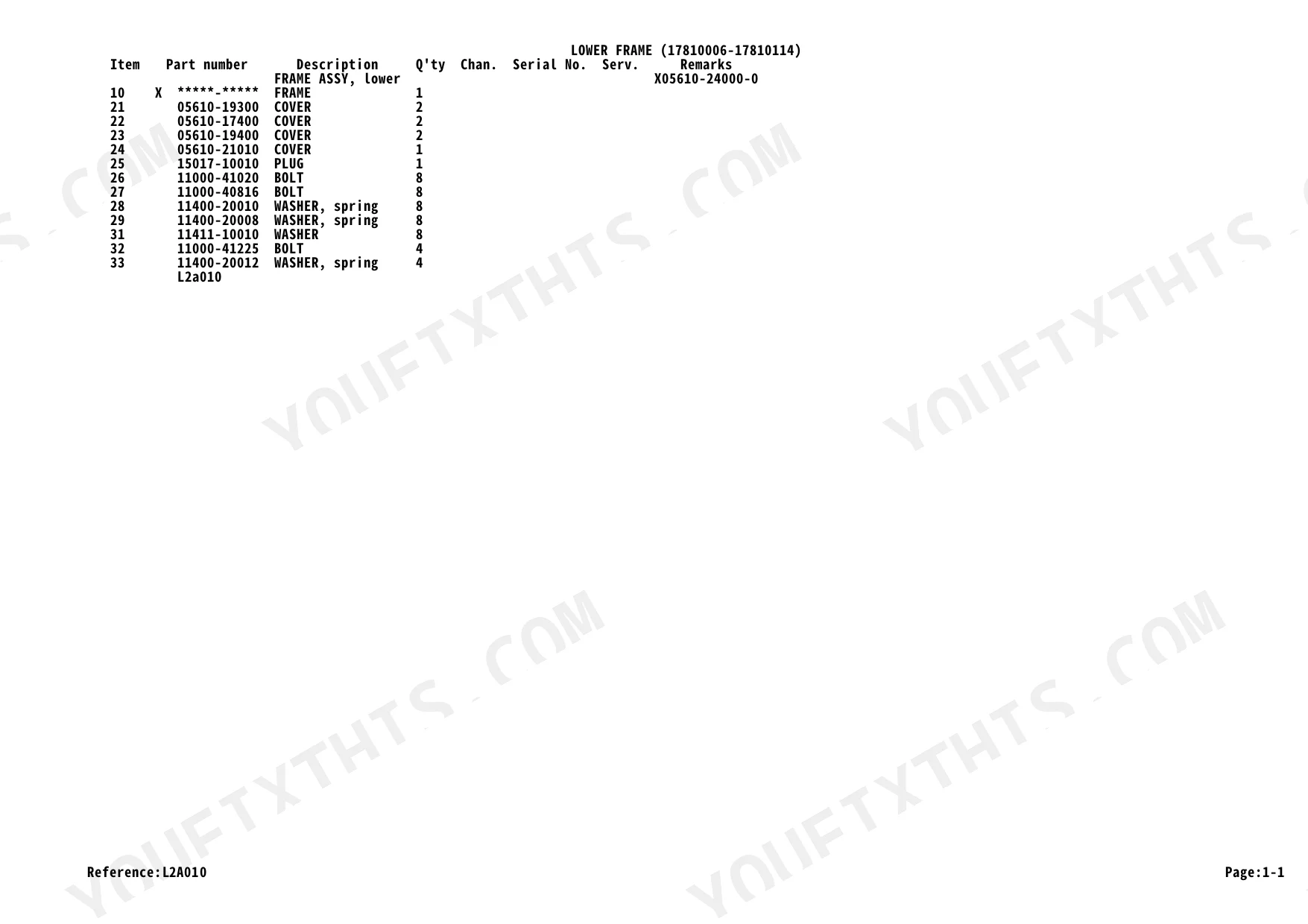

| Undercarriage | 16-57 | Lower Frame, Crawler Belt, Carrier Roller, Track Roller, Front Idler, Track Adjuster, Travel Device, Slew Bearing |
| Turntable & Control Lever | 58-149 | Slewing Device, Turntable, Boom Offset, Offset Switch, Travel Lever, Dozer Blade Lever, Operation Lever & Stand, Piping; Operation Lever |

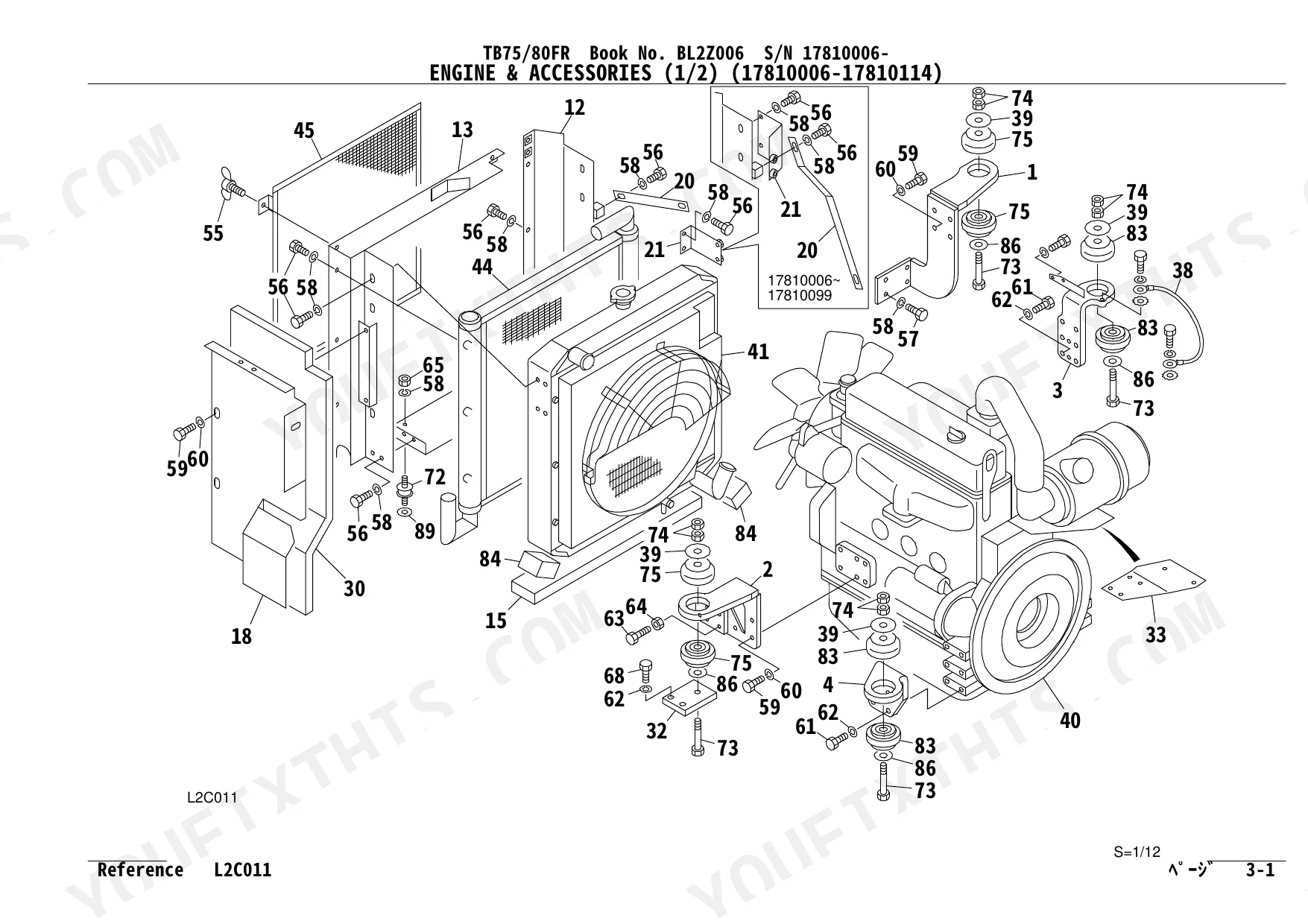

| Engine & Electrical System | 150-219 | Engine & Accessories, Air Cleaner, Alternator, Drain Plug, Control Box, Engine Control, Electrical, Travel Alarm |

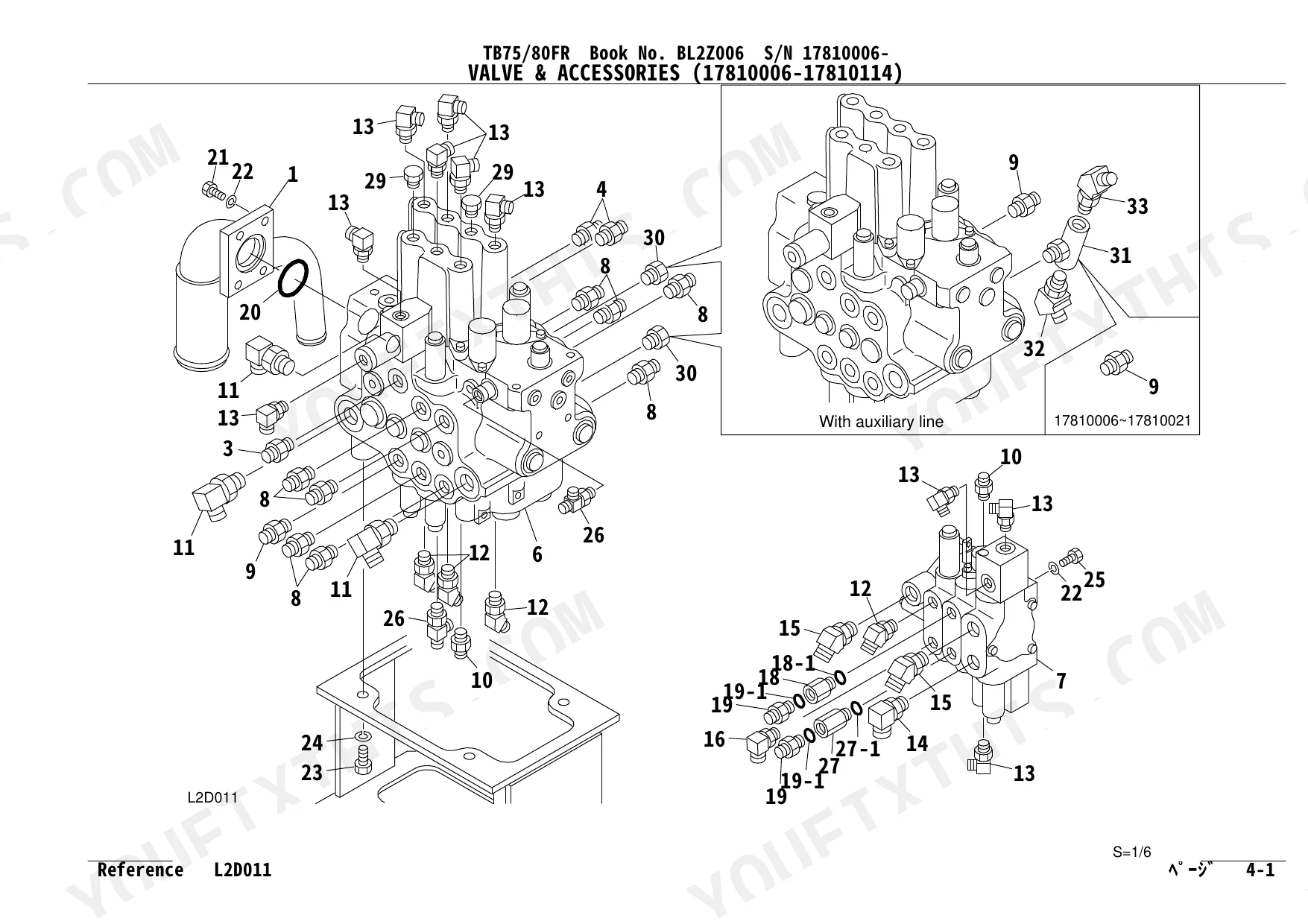

| Hydraulic Pipng & Tank | 220-271 | Valve & Accessories, Piping; Upper, Accumulator, Emergency Shut-Off Valve, Pump Drive, Hydraulic Tank, Fuel Tank & Fuel Piping, Fuel Supply Pump |

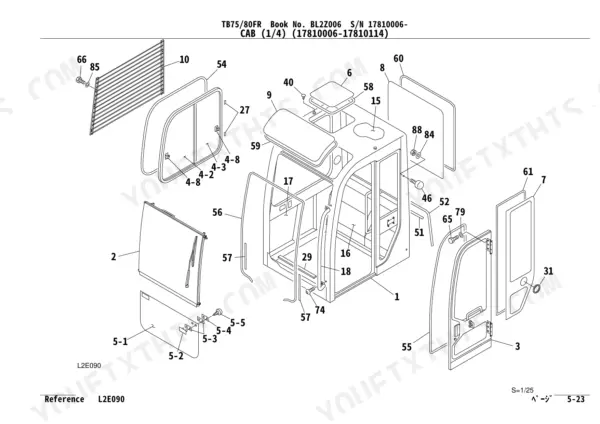

| Cover & Cab | 272-373 | Cover, Floor Frame, Seat, Cab Mount, Cab, Cab Accessories, Heater, Air Conditioner |

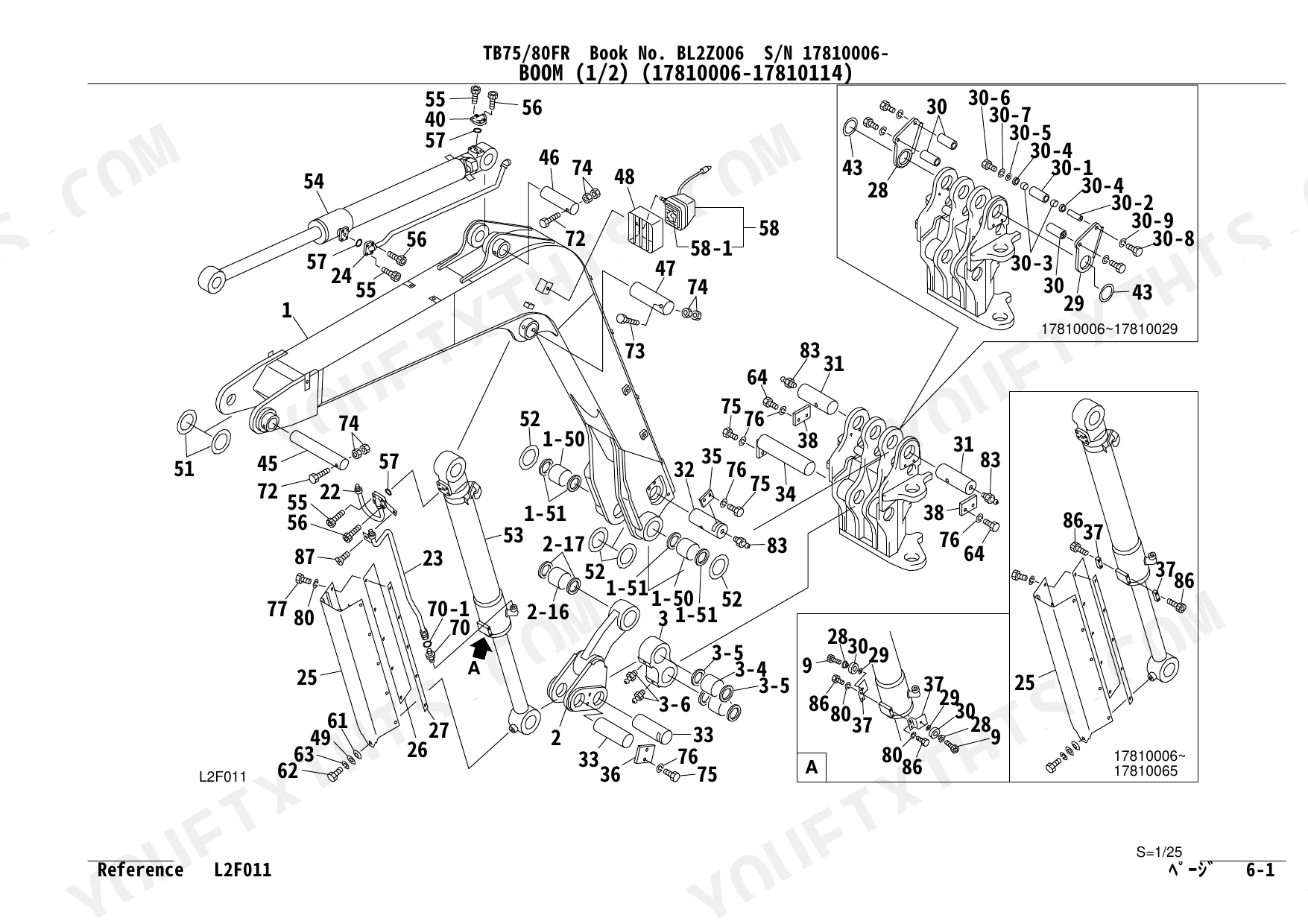

| Hoe Attachment | 374-417 | Boom, Interference Sensor, Arm, Bucket, Auxiliary Line |
| Decal & Tool | 418-455 | Decal, Tool & Accessories, Painted Color |
| Hydraulic Device | 456-589 | Swivel Joint, Control Valve, Block Assy, Inlet Housing Assy, Solenoid Valve, Pilot Valve, Remote Control Valve, Rotary Valve |
