Need the right part number for your Takeuchi TL10 crawler loader? This 68-page Takeuchi TL10 parts manual PDF (OEM PUB. 1) is the factory parts catalog with exploded views for every assembly on the machine. Inside: track rollers, front idlers, travel motors, hydraulic pumps, control valves, and cylinder assemblies, each drawn as a numbered exploded view keyed to its factory part list. You get seal kit breakdowns for the arm, bucket, and clam cylinders, plus complete wiring harness, fuel tank, and 4-in-1 bucket component listings. Ordering a travel motor seal kit or a track spring piston? Match the callout number in the exploded view and read the exact Takeuchi part number straight off the list. No more guessing at part numbers from a blurry photo. Bookmarked PDF opens on any device; walk out to the machine with your tablet and identify the part right in front of you.
What's Inside This Takeuchi TL10 Parts Manual
| System | Pages | Key Topics |
|---|---|---|

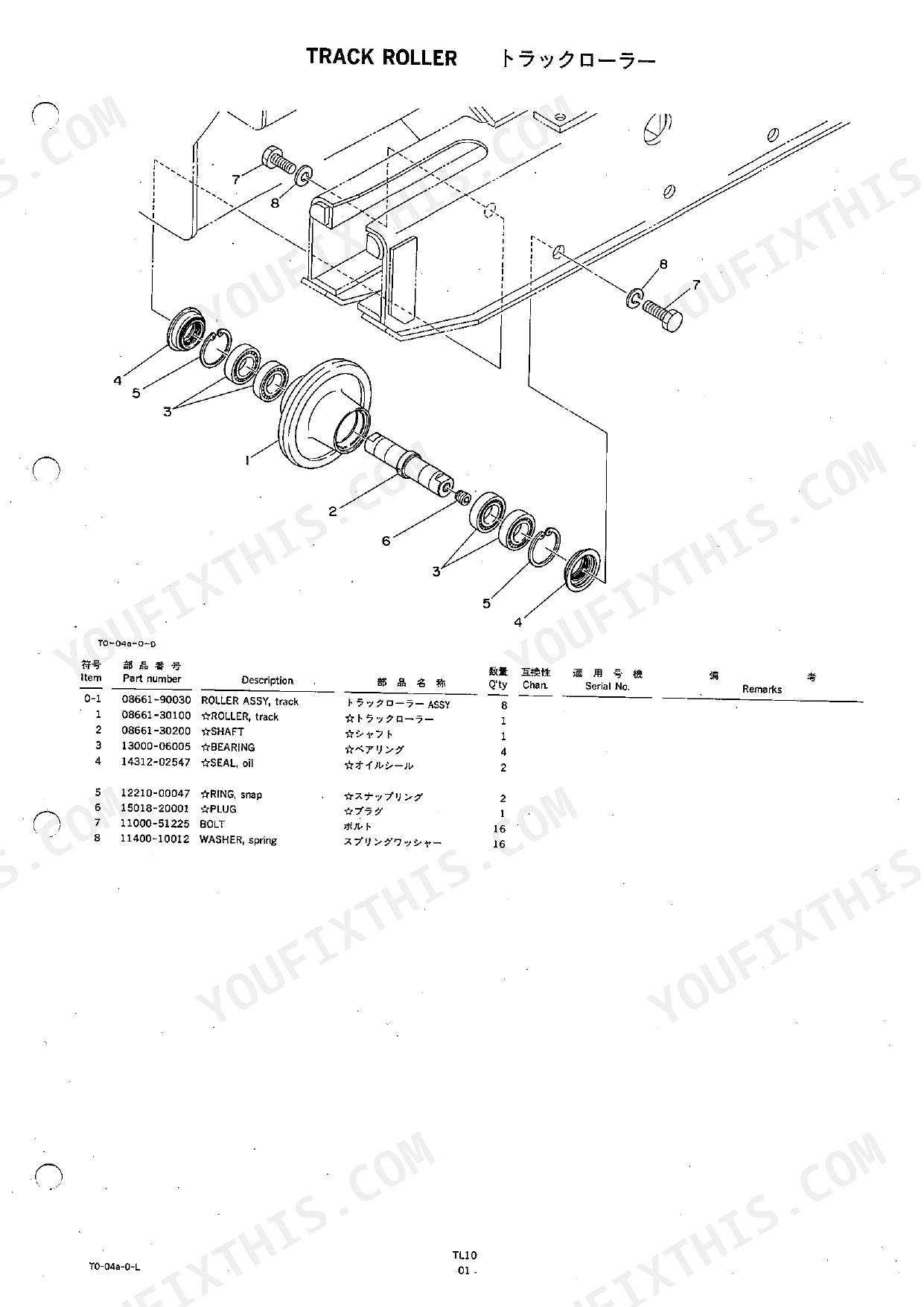

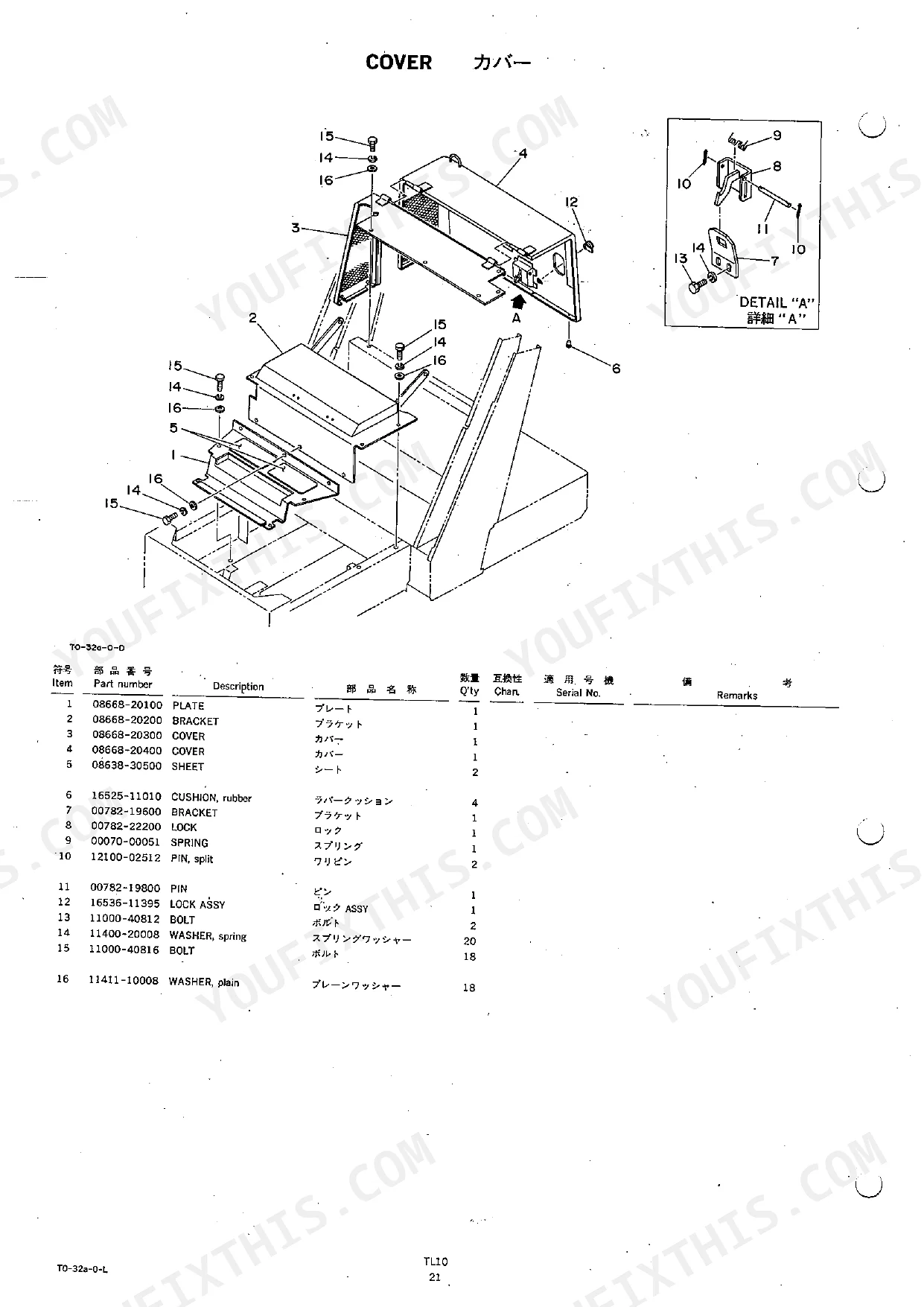

| Track Roller | 15 | Roller Assy, Shaft, Bearing, Seal, Plug, Bolt |
| Front Idler | 16 | Idler Assy, Shaft, Yoke, Bearing, Seal, Plug |
| Track Spring | 17 | Cylinder, Piston, Spring, Bolt, Valve Assy, Packing |
| Travel Device | 18 | Travel Motor, Sprocket, Slide, Crawler Belt, Shoe, Pin |
| Frame | 19 | Cover, Bolt, Washer |
| Bumper | 20 | Bolt, Washer |
| Travel Lever | 21 | Lever, Bracket, Valve Assy, Pin, Bearing, Grip |
| Operation Pedal | 22-23 | Pedal, Bracket, Lever, Shaft, Valve Assy, Bushing |
| Operation Lock | 24-25 | Bar, Joint, Bracket, Arm, Rod, Spring |
| Engine & Accessories 1 | 26 | Foot, Stopper, Brace, Bracket, Radiator Assy, Fan Guard |
| Engine & Accessories 2 | 27 | Pipe, Bracket, U-Bolt Assy, Clamp, Hose, Silencer |
| Control Box 1 | 28 | Control Box, Glow Signal, Safety Relay, Starter Switch, Hour Meter, Fuse Box |
| Control Box 2 | 29 | Cover, Switch, Pilot Box Assy, Bolt, Washer, Band |
| Engine Control | 30 | Assy, Bracket, Lever, Control Cable, Rod End |
| Electrical | 31-32 | Wiring Harness, Horn, Lamp Assy, Battery, Terminal, Cable |

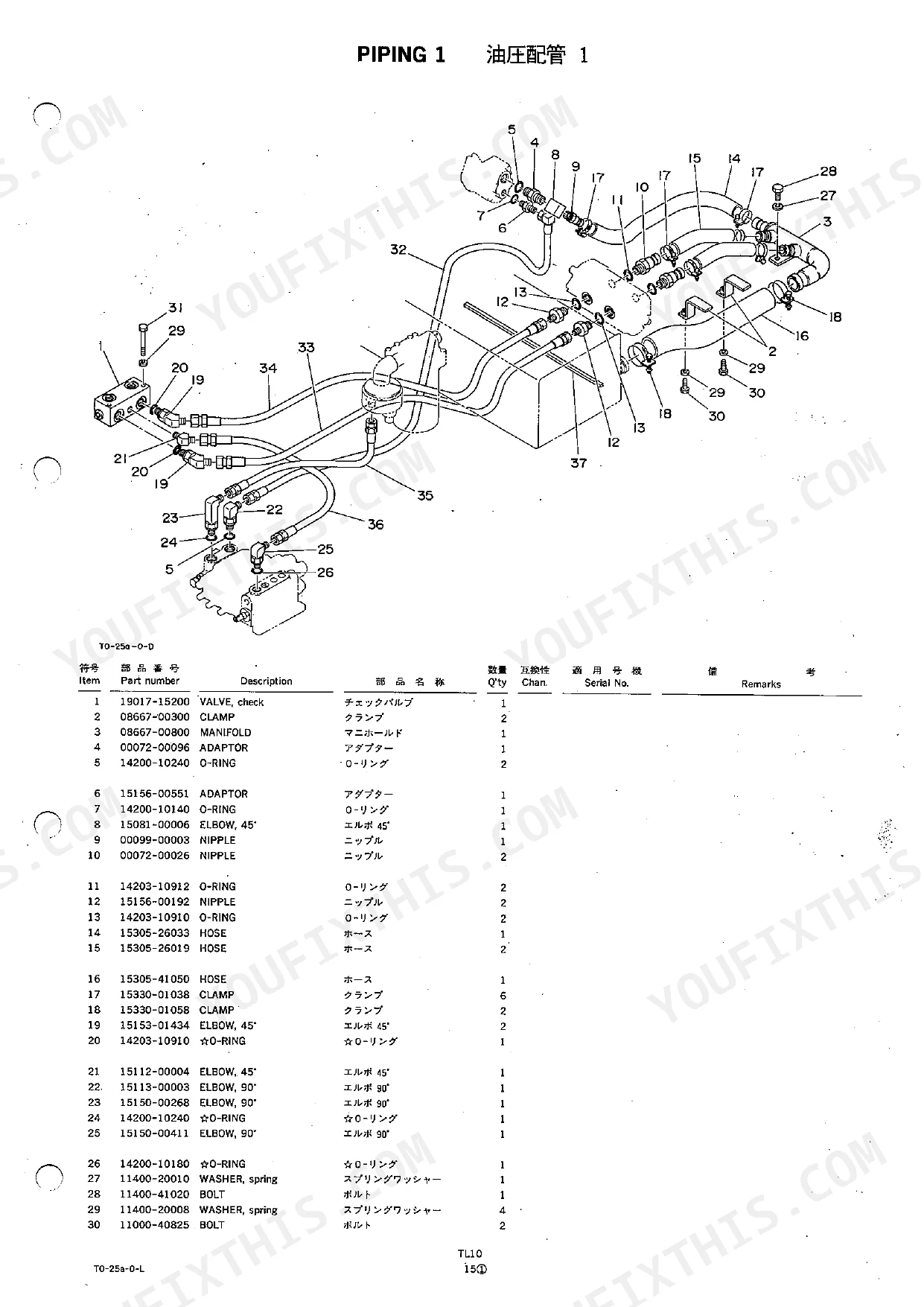

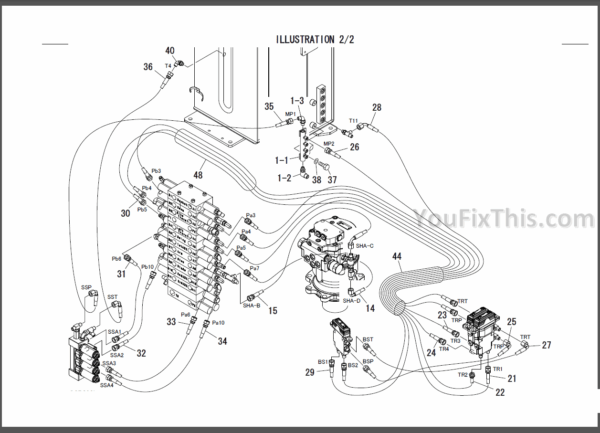

| Piping 1 | 33-34 | Check Valve, Manifold, Adaptor, O-Ring, Nipple, Hose |
| Piping 2 | 35 | Tube, Holder, Tube Assy, Elbow, Adaptor, Hose |
| Piping 3 | 36 | O-Ring, Adaptor, Elbow, Plug, Hose Assy, Rubber |
| Pump Drive | 37 | Plate, Flange, Coupling, Pump Assy, Socket Bolt, Washer |
| Hydraulic Tank | 38 | Cover, Plug, O-Ring, Filter, Gauge, Manifold, Adaptor |
| Fuel Tank | 39 | Tank Assy, Cap, Strainer, Hose, Float, Clamp, Valve |
| Seat | 41 | Bracket, Belt Assy, Bolt, Washer, Nut |
| Canopy | 42 | Absorbent, Washer, Bolt, Spring Washer, Hook |

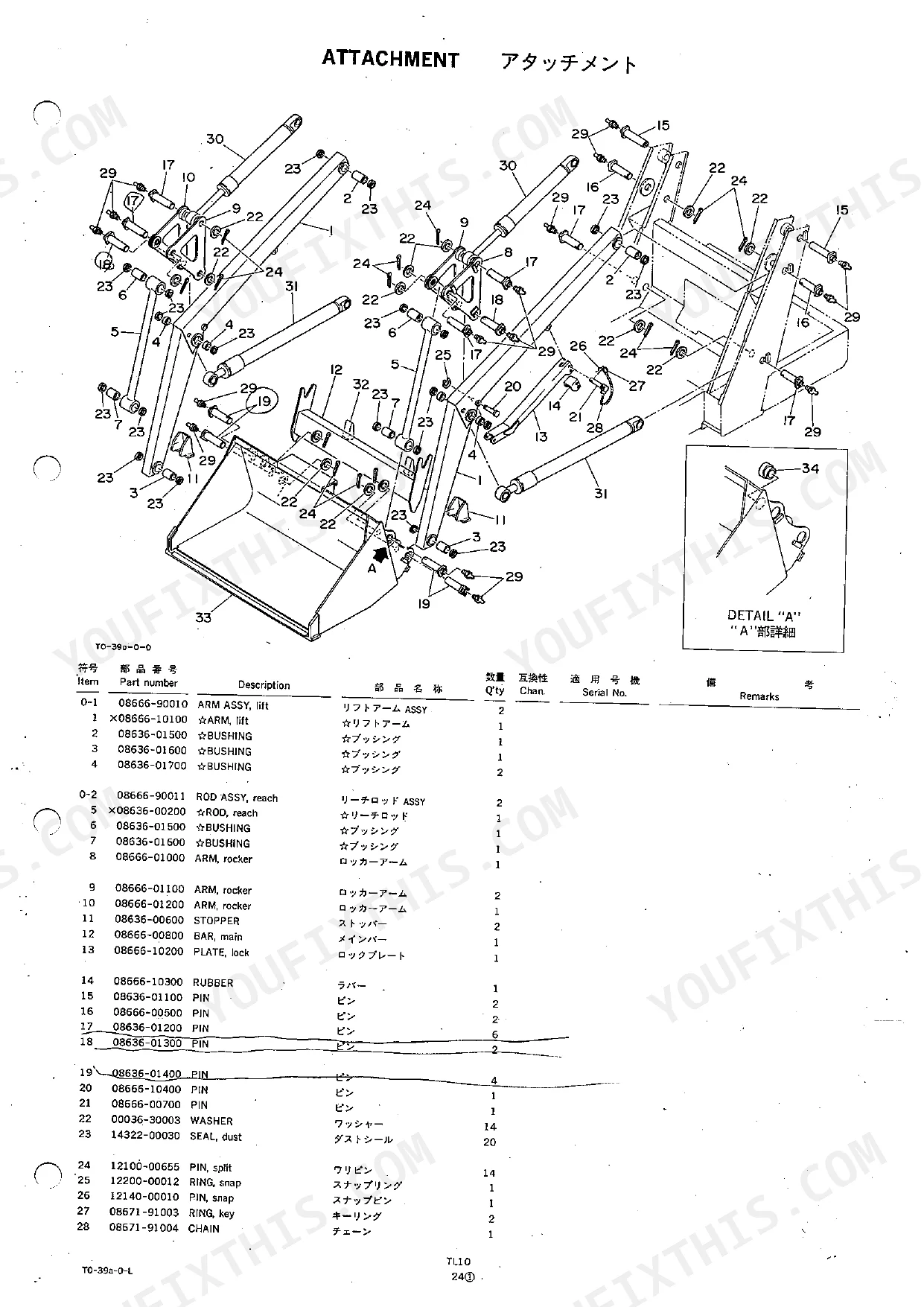

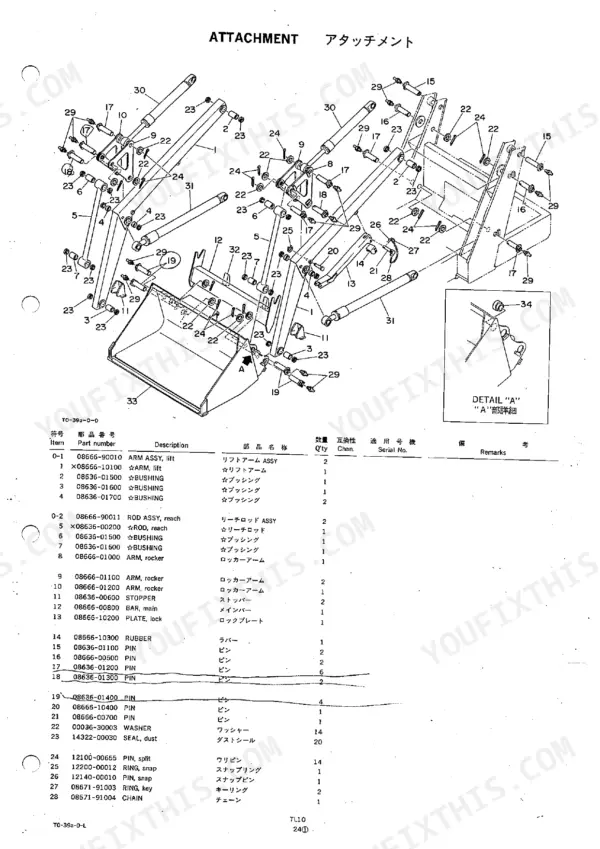

| Attachment | 43 | Arm Assy, Rod Assy, Bushing, Arm, Cylinder, Bucket Assy |
| Piping Attachment | 44 | - |
| Sticker | 45-48 | - |
| Control Valve Travel | 49-50 | Valve Assembly, Cover Assembly, Block Assembly, Housing, Spring, Tie Rod |
| Control Valve Pedal | 51-52 | Valve Assembly, Cover Assembly, Block Assembly, Ring, Spring, Plunger |
| Check Valve | 53 | Valve Assembly, O-Ring |
| Arm Cylinder | 54 | Cylinder Assembly, Seal Kit, Packing, Piston, Rod, Bushing |
| Bucket Cylinder | 55 | Cylinder Assembly, Seal Kit, Packing, Piston, Rod, Bushing |
| Travel Motor | 56-57 | Motor Assembly, Seal Kit, Reduction, Bearing, Gear, Shaft |
| Hydraulic Pump | 58 | Pump Assy, Seal Kit, Oil Seal, Seal Element, Back-Up Element, Coupling |
| Hydraulic Pump Sub | 59-62 | Pump Assy, Seal Kit, Balance Seal, Gasket, Oil Seal, Drive Gear |
| In-1 Bucket | 63 | - |
| Quick Attachment | 64 | Assy, Bracket Assy, Bushing, Lever, Yoke, Guide Spring |
| Clam Cylinder | 65-68 | Cylinder Assy, Seal Kit, Piston Packing, Rod Packing, Dust Seal, Piston Rod |
Takeuchi TL10 Common Problems This Manual Covers
Takeuchi TL10 track rollers worn out, can't match roller assembly part numbers to serial number range
Check the Track Roller parts number list on page 15. Match the roller assembly, shaft, bearing, seal, and plug item numbers to the exploded view, then confirm your machine falls in the Serial No. 201000002 and up range on the serial plate before ordering, since track components vary between serial ranges.
Manual Section: Track Roller p. 15Front idler wobbles, unsure which yoke and bearing parts fit the idler assembly
Check the Front Idler exploded view on page 16. Identify the idler assembly, shaft, yoke, bearing, ring, and seal by item number, then pull the exact part numbers from the list. Verify your serial number sits in the 201000002 and up range covered by this catalog before placing the order.
Manual Section: Front Idler p. 16Track keeps slipping loose, need the tension cylinder piston and packing part numbers
Check the Track Spring breakdown on page 17. Locate the cylinder, piston, spring, valve assembly, packing, and ring in the exploded view and read the part numbers straight off the list. Order the packing and ring together with the valve assembly so the tensioner goes back together as a matched set.
Manual Section: Track Spring p. 17Travel motor leaking, can't tell which seal kit covers the reduction gear side
Check the Travel Motor listing on pages 56-57. The breakdown separates the motor assembly, seal kit, reduction parts, bearings, gears, and shaft; match your leak point to the exploded view before choosing the kit. Cross-reference the sprocket and crawler belt hardware on page 18 if the travel device mounting parts are also worn.
Manual Section: Travel Motor p. 56Ordered the wrong hydraulic valve twice, travel and pedal control valves look identical in listings
Verify which valve you actually have against the Control Valve Travel exploded view on pages 49-50 and the Control Valve Pedal view on pages 51-52. The two share similar housings but use different cover assemblies, block assemblies, and springs, so match item numbers from the diagram, not the valve's outside appearance.
Manual Section: Control Valve Travel p. 49Bucket cylinder weeping oil, need the correct seal kit and packing set
Check the Bucket Cylinder listing on page 55 for the cylinder assembly and seal kit part numbers. Note the arm cylinder carries its own separate kit on page 54, so don't swap them. Match the packing, o-ring, and wear ring item numbers against the exploded view before ordering the complete kit.
Manual Section: Bucket Cylinder p. 55Frequently Asked Questions
What are the replacement specifications for track rollers?
The track roller assembly (part number 08661-90030) consists of the roller (08661-30100), shaft (08661-30200), bearings (13000-06005), and oil seals (14312-02547). The assembly is secured with 16 bolts (11000-51225) and 16 spring washers (11400-10012). p. 15
What are the replacement specifications for front idlers?
The front idler assembly (part number 08661-20000) includes the idler (08661-20100), shaft (08661-20200), yoke (08661-20300), and three bearings (13000-06006). It also utilizes snap rings (12210-00055), oil seals (14312-03055), spring pins (12130-00645), and a plug (15018-20001). p. 16
What is the part number for the travel motor?
The travel motor assembly is identified by part number 19031-04100. This component is used in the travel device system. p. 18
What is the part number for the main hydraulic pump?
The main hydraulic pump assembly is identified by part number 19020-07100. It is located within the pump drive system. p. 37
What is the part number for the fuel tank assembly?
The fuel tank assembly is identified by part number 08668-90031. This assembly includes the fuel tank (08668-30100), cap (15521-00200), and strainer (15521-00220). p. 39
What do I get after purchasing this Takeuchi TL10 manual?
You get a 68-page scanned PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print specific sections of this Takeuchi TL10 Parts Manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
